Development of Transformations from Business Process

Models to Implementations by Reuse

Teduh Dirgahayu, Dick Quartel and Marten van Sinderen

Centre for Telematics and Information Technology

University of Twente, P.O. Box 217, 7500 AE Enschede, The Netherlands

Abstract. This paper presents an approach for developing transformations from

business process models to implementations that facilitates reuse. A

transformation is developed as a composition of three smaller tasks: pattern

recognition, pattern realization and activity transformation. The approach

allows one to reuse the definition and implementation of pattern recognition and

pattern realization in the development of transformations targeting different

business process modeling and implementation languages. In order to decouple

pattern recognition and pattern realization, the approach includes a pattern

language to represent the output of the pattern recognition task, which forms the

input of the pattern realization task.

1 Introduction

The behaviour represented in a business process model is not only determined by its

activities, but also by its structure. This structure defines how the activities are

related, which determines amongst others the order in which the activities are

executed. In general, the structure is composed of generic structures representing

well-known and frequently-used relationships, such as sequence, choice and

concurrency. We use the term pattern to denote these generic structures. A pattern is

an example of a structure concept, as described in [16]. It represents some type of

relationship between activities without determining what activities are related.

Patterns are typically nested to form the structure of a model.

In a transformation from business process models to implementations, two

successive tasks can be identified in transforming patterns: pattern recognition and

pattern realization. Pattern recognition identifies the patterns that form the structure of

a model. Pattern realization translates these patterns into constructs of an

implementation language.

Pattern recognition is not a trivial task. The definition and implementation of

pattern recognition is expensive in terms of effort, cost and time. When one develops

transformations from a modeling language to a set of implementation languages, it

would be efficient if pattern recognition can be developed once and be reused with

different pattern realizations. This is possible because pattern recognition is specific

This work is part of the Freeband A-MUSE project (http://a-muse.freeband.nl), which is sponsored by the

Dutch government under contract BSIK 03025.

Dirgahayu T., Quartel D. and van Sinderen M. (2007).

Development of Transformations from Business Process Models to Implementations by Reuse.

In Proceedings of the 3rd International Workshop on Model-Driven Enter prise Information Systems, pages 41-50

DOI: 10.5220/0002429400410050

 SciTePress

to the modeling language and independent from implementation languages. If a new

pattern must be recognized, it is only the pattern recognition that needs to be

extended. In our proposal, patterns identified by pattern recognition are documented

in an intermediate model that is defined in a kind of pattern language.

Pattern realization translates elements in the intermediate model to constructs of

an implementation language. When one develops transformations from a set of

modeling languages to an implementation language, it would be efficient if the same

pattern realization can be reused with different pattern recognition. This is possible

because pattern realization is specific to the implementation language and

independent form modeling languages.

To allow reuse, pattern recognition and pattern realization should be decoupled

from each other. This can be achieved by defining the intermediate model in a

language that is independent from any modeling and implementation languages. This

pattern language is used as a standard way for representing patterns found in a model.

Pattern recognition and pattern realization are developed as individual

transformations. In order to keep the definition and implementation of pattern

realization simple, it is preferable that a pattern is represented as a single concept in

an intermediate model.

The objective of this paper is to present an approach that facilitates the reuse of

pattern recognition and pattern realization in transformations from business process

models to implementations. The approach aims at giving transformation development

the benefits of development by reuse, i.e. less development cost, shorter time-to-

market and correctness [9, 19]. The approach includes a pattern language for defining

intermediate models between pattern recognition and pattern realization.

The structure of this paper is as follows. Section 2 discusses our approach in more

detail. Section 3 presents a pattern language for defining intermediate models. Section

4 gives examples of transformations. Section 5 relates our work with other research

activities. Finally, section 6 presents our conclusions and future work.

2 Approach

The idea of our approach is illustrated in Figure 1. Suppose that we develop a UML-

to-BPEL transformation. The transformation is developed as a composition of three

smaller tasks: T

for transforming UML activities into BPEL basic activities, T

for

recognizing patterns in UML and T

for realizing these patterns into BPEL structured

activities. Patterns recognized in the source model M

UML

are documented in the

intermediate model M

int

. The separation of pattern transformations T

and T

from

activity transformation T

is to let the intermediate model M

int

focus on patterns and

be independent from UML and BPEL. Each activity in the source model is associated

with a unique identifier that is maintained in all the transformations. The results of

transformations T

and T

are combined to produce a BPEL model. The identifier of

an activity is used to correctly put a BPEL basic activity associated with that identifier

within a BPEL structured activity in which the BPEL basic activity should be

contained. This example is presented in more detail in Section 4.

Source

Model M

UML

Intermediate

Model M

int

P1a

P2a

Target

Model M

BPEL

activity transformation

pattern transformation

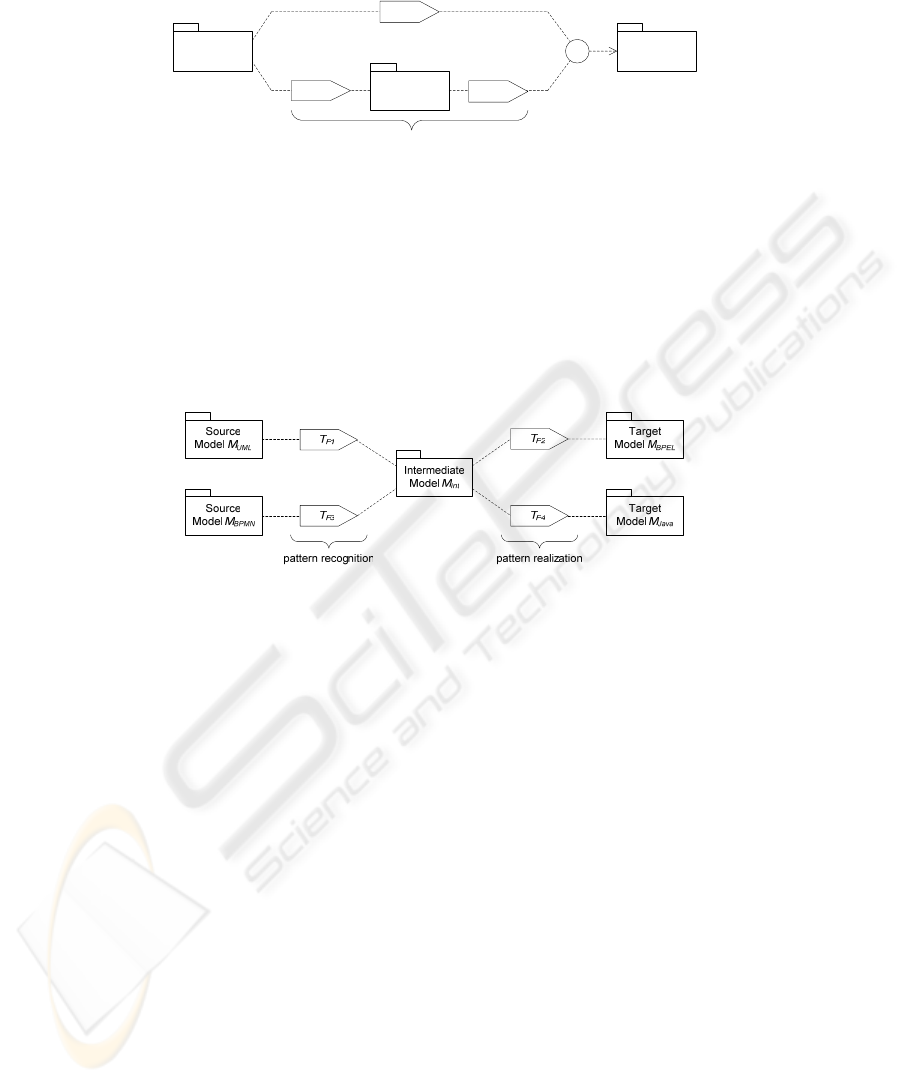

Fig. 1. Separating pattern transformations T

and T

from activity transformation T

Figure 2 shows how this approach facilitates the reuse of pattern recognition and

pattern realization. Activity transformations between source and target models are

omitted for brevity. We have transformations T

for recognizing patterns in UML

and T

for realizing patterns in BPEL. To have a UML-to-Java transformation, we

reuse transformation T

and develop transformation T

for realizing patterns in Java.

To have a BPMN-to-Java, we develop transformation T

for recognizing patterns in

BPMN and reuse transformation T

. To have a BPMN-to-BPEL, we reuse

transformations T

and T

Fig. 2. Reusing pattern recognition and pattern realization.

An activity transformation is not reusable because it is specific to the languages of the

source and target models. Consider, for example, the mapping of a UML

AcceptEventAction to a BPEL receive activity. The UML action may require BPEL-

specific information to be supplied to the BPEL activity, e.g. partnerLink, portType and

operation. A UML-to-BPEL activity transformation must handle this BPEL-specific

information. This makes the transformation is not reusable for transforming a UML

activity to other implementation languages. Obviously the transformation cannot be

used to transform, for instance, BPMN activities to BPEL activities. Therefore, an

activity transformation has to be developed for each pair of modeling and

implementation languages.

2.1 Requirements for a Pattern Language

To facilitate the reuse of pattern recognition, an intermediate model should be defined

in a pattern language that is independent from (i.e., abstracts from distinguishing

features of) any implementation language. An intermediate model that is specific to

an implementation language can only be realized in that implementation language. In

that case, pattern recognition cannot be reused with other implementation languages.

To facilitate the reuse of pattern realization, a pattern language should be

independent from any modeling language. A pattern language that is specific to a

modeling language may not be able to document patterns defined in other modeling

languages. In that case, the pattern realization is useful for that modeling language

only.

In order to define a pattern language, we need a limited set of basic patterns.

Patterns in a business process model will be documented in an intermediate model in

terms of those basic patterns. We investigate patterns that are commonly found in

business processes models and in implementations. We focus on realizing business

process models in an imperative language or in the imperative part of an

implementation language.

We consider workflow patterns as patterns that are commonly found in business

processes. In [1], twenty different workflow patterns have been identified. Our

approach uses workflow patterns as modeling constraints, i.e. any composition in the

model should conform to one of these patterns. Pattern recognition should be able to

identify workflow patterns in a model.

Control patterns [7, 20] are patterns that are found in implementations. A control

pattern defines a certain execution ordering of activities in a structured program. The

patterns are sequence, selection and iteration. Concurrent programming [3] adds

another control pattern called concurrence.

We have three alternatives to determining a limited set of basic patterns for a

pattern language. The alternatives are as the following.

1. Workflow patterns as basic patterns. Many basic patterns will have no direct (1-to-

1) mapping to constructs of an implementation language. Pattern realization must

translate such a basic pattern into a composition of constructs of an implementation

language. A drawback of this alternative is that if a new workflow pattern must be

recognized, the pattern language, pattern recognition and pattern realization must

be extended.

2. Control patterns as basic patterns. Every basic pattern will be able to be mapped

directly to a construct of an implementation language. A workflow pattern must be

represented as a composition of one or more basic patterns in an intermediate

model. If a new workflow pattern must be recognized, only pattern recognition

must be extended.

3. Workflow and control patterns as basic patterns. This alternative combines the

first and second alternatives. It brings the drawback of first alternative.

We took the second alternative to define a pattern language that we call Common

Behavioural Patterns Language (CBPL). We present the language in Section 3.

CBPL can be considered as an abstract platform [2] that offers a large set of

implementation languages to realize an intermediate model. Each CBPL pattern can

be realized in many implementation languages, such as BPEL, Java, C/C++ or VB.

2.2 Documenting Patterns

We can distinguish between workflow patterns that are comparable to CBPL patterns

and workflow patterns that are not comparable (i.e., have no 1-to-1 mappings; see

Table 1). The parallel split and exclusive choice of workflow patterns are comparable

to CBPL concurrence and selection, respectively. A synchronization pattern can be

composed with a parallel split pattern to allow an activity be performed after a CBPL

concurrence. A simple merge pattern can be composed with an exclusive choice

pattern to allow an activity be performed after a CBPL selection.

Table 1. Comparison of workflow patterns and CBPL patterns.

Workflow patterns CBPL Patterns

Comparable patterns

Sequence Sequence

Parallel split (+ Synchronization) Concurrence

Exclusive choice (+ Simple merge) Selection

Arbitrary cycles

, Multiple instances (MI)

Iteration

Incomparable patterns

Implicit termination -

Deferred choice -

Interleaved parallel routing -

Milestone -

Multi-choice -

Synchronizing merge -

Multi-merge -

Discriminator -

Cancel activity -

Cancel case -

in special cases called structured cycles

consists of four patterns: MI without synchronization, MI with a priori design knowledge, MI with a

priori runtime knowledge, and MI without a priori runtime knowledge.

The arbitrary cycles pattern indicates that an activity can be performed repeatedly

without imposing some structure. A special case of this pattern, which is called

structured cycle [1], is comparable to CBPL iteration.

The multiple instances pattern indicates that an activity can have multiple

instances at a same time. This pattern may not be directly supported in some

implementation languages [1]. A work-around solution [21] performs multiple

instances of the activity at different times. This solution is comparable to CBPL

iteration.

A workflow pattern that is incomparable to a CBPL pattern should be documented

as a composition of CBPL patterns. When the precise semantics of this workflow

pattern cannot be documented as a composition of CBPL patterns, a work-around

solution [21] can be developed to closely represent the semantics.

3 Common Behavioural Patterns Language

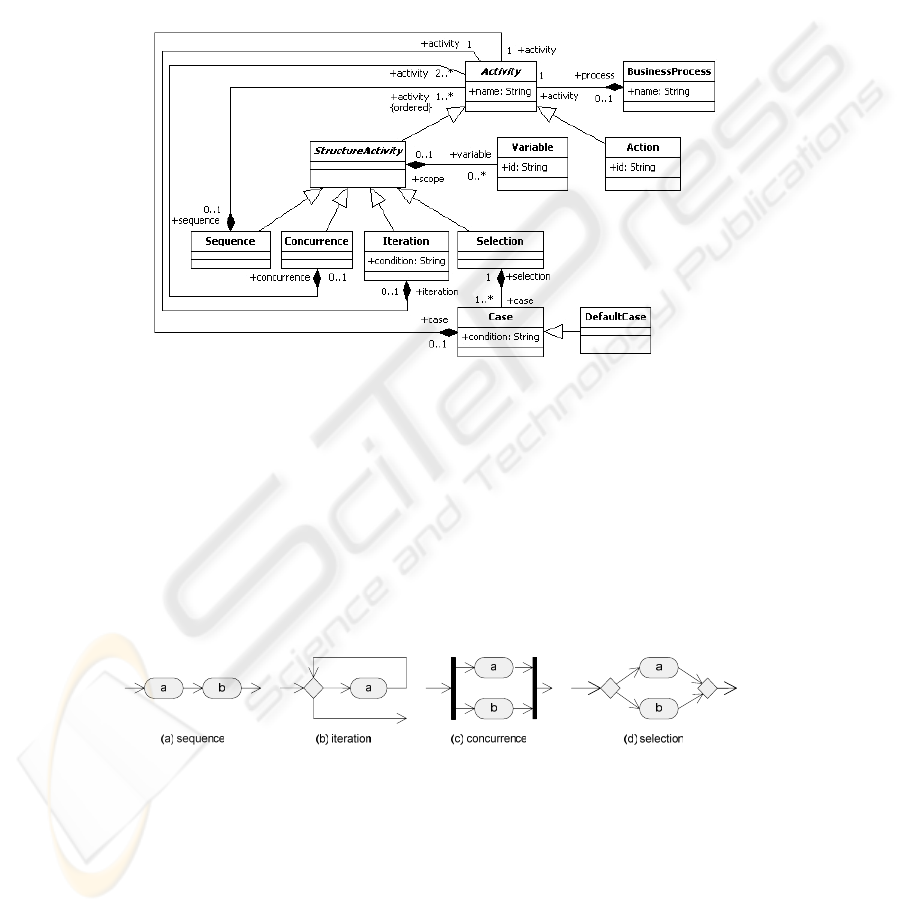

Figure 3 presents the CBPL metamodel. An activity is an abstract concept that

represents an activity with a certain purpose. An activity can be a structure activity or

an action. A structure activity represents an activity whose purpose is to determine the

execution ordering of other activities. This activity is used to define CBPL patterns.

An action represents an activity whose purpose is to perform a certain task. It contains

an identity to relate the action to an activity in activity transformation.

A pattern is a kind of a structure activity. CBPL patterns are represented as

sequence, concurrence, selection and iteration. A sequence contains one or more

activities to be executed in succession. A concurrence contains two or more activities

that can be executed independently. An iteration contains an activity to be executed

repeatedly as long as its condition holds. A selection contains one or more cases to be

selected. A case contains an activity to be executed when its condition holds. A

default case is selected when no other case can be selected.

Fig. 3. CBPL metamodel.

A structure activity may define variables. A variable holds an information value

that is required by the execution of the structure activity or the activities contained in

the structure activity. A variable is transformed by activity transformations but its

declaration must be in a proper scope, i.e. a structure activity. A variable contains an

identity to relate the variable to a variable in an activity transformation.

A business process defines the behaviour of a business process in order to provide

its functionality. It contains an activity to be performed. When a business process

consists of many activities, the activity of a business process is a structured activity

containing those activities.

Fig. 4. Representation of CBPL patterns in UML.

We do not provide a concrete syntax for CBPL. CBPL patterns should be

expressed using elements of the modeling language of a business process model.

Figure 4 shows the representation of CBPL patterns in UML activities diagram. Join

and merge nodes of the concurrence and the selection patterns, respectively, are

optional.

4 Example

We illustrate the use of our approach in the development of a UML-to-BPEL

transformation. The transformation is developed as a composition of a UML-to-CBPL

transformation as pattern recognition, a CBPL-to-BPEL transformation as pattern

realization and a UML-to-BPEL activity transformation. The example focuses on

pattern recognition and pattern realization.

Figure 5 shows an example of a business process model of an insurance

application. The business process receives an application and determines whether the

application type is collective or individual. The business process then calls another

service according to the application type. When the business process receives a

confirmation from the service, it forwards the confirmation to the applicant.

The structure of the model is formed from two CBPL patterns: sequence and

selection. A CBPL sequence pattern is formed from an

AcceptEventAction receive

Application, a composition that conforms to the CBPL selection pattern and a

SendSignalAction replyConfirmation. A CBPL selection pattern is formed from two

CallOperationActions: applyForCollective and applyForIndividual. Information

that is not relevant to pattern transformation is omitted for brevity.

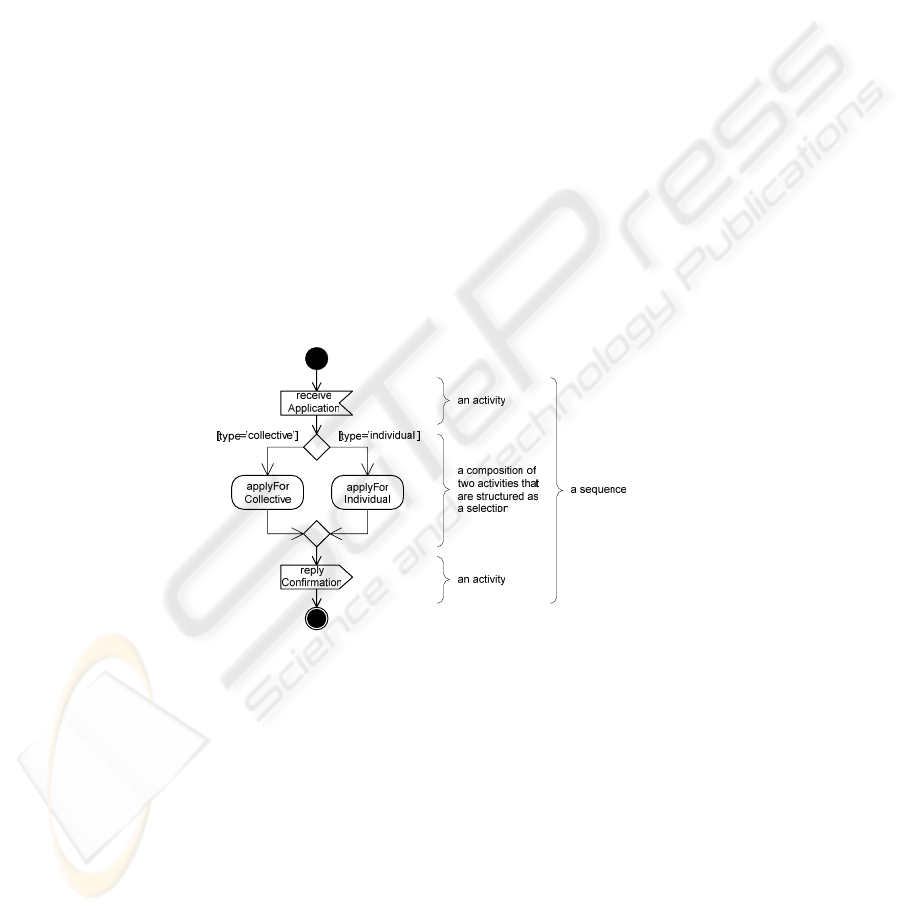

Fig. 5. A business process model of insurance application.

The UML-to-CBPL transforms the UML model to an intermediate model depicted

in Figure 6(a). It is a good practice to put the only action of a structure activity in a

sequence pattern. If the pattern realization then transforms the action into a succession

of activity constructs, the activity constructs are already in a sequence. The CBPL-to-

BPEL transformation transforms the intermediate model to a BPEL model depicted in

Figure 6(b). The figure shows only constructs that are relevant to patterns. The

similarity between the models and between their metamodels (see [6, 8] for the BPEL

metamodel) eases the development of a CBPL-to-BPEL transformation.

If we want to develop an UML-to-Java transformation, we can reuse the pattern

recognition that was developed in the UML-to-BPEL transformation. For the example

in Figure 5, the pattern recognition will give the same output as Figure 6(a). The

structure of the intermediate model resembles the structure of a Java method. This

makes the development of a CBPL-to-Java transformation relatively easy. A sequence

is transformed to a scope indicated with a pair of curly brackets {}; a selection is

transformed to a keyword if; and a case within the selection becomes the condition

of the if.

</sequence>

</case>

</sequence>

</case>

</selection>

</sequence>

</sequence>

</case>

</sequence>

</case>

</switch>

</sequence>

(a) intermediate model in CBPL (b) target model in BPEL

Fig. 6. The example in CBPL and BPEL.

5 Related Work

The need for transformation (de)composition is studied in [10]. The study addresses

issues that should be considered in transformation decomposition and composition,

such as order of rule execution, tangling and scattering concerns, and additive

changes. The study focuses on the development of a transformation language that can

handle those issues.

(De)composition of a transformation are also studied in the area of aspect

orientation [5, 12, 17]. A transformation is decomposed according to concerns, e.g.

logging, security and transaction. Aspect orientation does not consider the structure

and activities of a business process model as concerns and, hence, does not

decompose a transformation according to them.

Transformations from business process models to implementations can be found

in [6, 11, 15, 18]. None of them indicates how the transformations are (de)composed.

Each develops a transformation directly based on a transformation specification.

Pattern transformation can be considered as an implementation of pattern

application approach [13]. Our approach extends the idea of pattern application such

that pattern application can be developed by reuse.

The UML 2.1.1

StructuredActivities package [14] is to support traditional structured

programming constructs. It provides the concepts of sequence, conditional and loop

nodes, which are similar, respectively, to sequence, selection and iteration patterns in

CBPL. UML has no single concept for concurrence. CBPL allows concurrence be

represented as a single concept.

6 Conclusions and Future Work

In this paper, we present an approach for developing a transformation from business

process models to implementations that facilitates reuse. The approach separates

pattern transformation from activity transformation. Pattern transformation is

developed as a composition of two transformations that are performed in succession:

pattern recognition and pattern realization. Pattern recognition identifies patterns that

form the structure of a model. Pattern realization translates these patterns into

constructs of an implementation language. The results of pattern realization and

activity transformation are combined to produce the implementation of the business

process model. The approach facilitates the reuse of pattern recognition and pattern

realization in transformations from different modeling languages to different

implementation languages.

The approach takes workflow patterns as knowledge for pattern recognition. Thus,

workflow patterns act as modeling constraints. Patterns recognized are documented in

an intermediate model. The approach includes a pattern language, which we call

CBPL, to define this intermediate model. CBPL documents workflow patterns in

terms of CBPL patterns.

We have developed a transformation from business process models in ISDL [4] to

BPEL as a composition of pattern recognition and pattern realization. Activity

transformation is not developed as an individual transformation yet. The activity

transformation is embedded in the pattern recognition and pattern realization.

Currently we are refactoring the pattern recognition and pattern realization such that

the activity transformation part stands as an individual transformation. We will then

compose the pattern recognition, pattern realization and activity transformation as

suggested by the approach described in this paper.

Our future work will investigate how to map workflow patterns that are not

comparable to CBPL patterns onto CBPL. The mapping gives us an opportunity to

evaluate the stability of the CBPL metamodel with regard to addition of new

workflow patterns. To prove the idea of transformation development by reuse, a

transformation from ISDL to Java will be developed by reusing pattern recognition

that has been developed in our ISDL-to-BPEL transformation.

References

1. van der Aalst, W.M.P., ter Hofstede, A.H.M., Kiepuszewski, B., Barros, A.P. Workflow

Patterns. Distributed and Parallel Databases Volume 14 No. 3. Springer (2003) 5-51

2. Almeida, J.P.A. On the Notion of Abstract Platform in MDA Development. Proc. of 8

IEEE Intl. Enterprise Distributed Object Computing Conference (2004) 253-263

3. Andrews, G.R., Schneider, F.B. Concepts and Notations for Concurrent Programming.

ACM Computing Survey Volume 15 Issue 1 (1983) 3-43

4. ASNA. ISDL Home. http://isdl.ctit.utwente.nl

5. Barbosa, P.A.A, Contreras, C.F.G., Rodriguez, J.M.M. MDA and Separation of Aspects:

An Approach based on Multiple Views and Subject Oriented Design. Proc. of 6

Intl.

Workshop on Aspect Oriented Modeling (2005)

6. Bordbar, B., Staikopoulos, A. On Behavioural Model Transformation in Web Services.

Proc. of ER Workshops 2004. LNCS Volume 3289. Springer, Berlin (2004) 667-67

7. Chapin, N., Denniston, S.P. Characteristic of a Structured Program. SIGPLAN Notices,

Volume 13 Issue 5 (1978) 36-45

8. Dirgahayu, T. Model-Driven Engineering of Web Services Composition: A Transformation

from ISDL to BPEL. MSc thesis. University of Twente, Enschede (2005)

9. Hallsteinsen, S., Paci, M. (eds.) Experiences in Software Evolution and Reuse. Twelve Real

World Projects. Springer, Berlin (1997)

10. Kurtev, I. Adaptability of Model Transformations. PhD thesis. University of Twente,

Enschede (2005)

11. Koehler, J., Hauser, R., Kapoor, S., Wu, F.Y., Kumaran, S. A Model-Driven

Transformation Method. Proc. of 7th IEEE Intl. Enterprise Distributed Object Computing

Conference (2003) 186-197

12. Kulkarni, V., Reddy, S., Separation of Concerns in Model-Driven Development. IEEE

Software Volume 20 Issue 5 (2003) 64-69

13. OMG. MDA Guide version 1.0.1. omg/2003-06-01 (2003)

14. OMG. Unified Modeling Language: Superstructure version 2.1.1. formal/2007-02-03

(2007)

15. Patrascoiu, O. Mapping EDOC to Web Services using YATL. Proc. of 8th IEEE Intl.

Enterprise Distributed Object Computing Conference (2004) 286-297

16. Quartel, D., Dijkman, R., van Sinderen, M. Extending profiles with stereotypes for

composite concepts. Proc. of 8

ACM/IEEE Intl. Conf. on Model Driven Engineering

Languages and Systems (MoDELS). LNCS Volume 3713. Springer, Berlin (2005) 232-247

17. Solberg, A., Simmonds, D., Reddy, R., Ghosh, S., France, R. Using Aspect Oriented

Techniques to Support Separation of Concerns in Model Driven Development. Proc. of 29

Annual Intl. Computer Software and Applications Conf. (2005) 121-126

18. Specht, T., Drawehn, J., Thranert, M., Kuhne, S. Modeling Cooperative Business Processes

and Transformation to a Service Oriented Architecture. Proc. of 7th IEEE Intl. Conf. on E-

Commerce Technology. (2005) 249-256

19. Sutcliffe, A. The Domain Theory: Patterns for Knowledge and Software Reuse. Lawrence

Erlbaum Associates, Inc. (2002)

20. Williams, M.H. Generating Structured Flow Diagrams: The Nature of Unstructuredness.

The Computer Journal Volume 20 No. 1 (1977) 45-50

21. Wohed, P., van der Aalst, W.M.P., Dumas, M., ter Hofstede, A.H.M. Analysis of Web

Services Composition Languages: The Case of BPEL4WS. LNCS Volume 2813. Springer,

Berlin (2003) 200-215
