Applying a Model-driven Approach to Model

Transformation Development

E. Victor S

anchez Rebull

, Orlando Avila-Garc

ıa

, Jos

e Luis Roda Garc

ıa

and Antonio Est

evez Garc

ıa

Open Canarias, S.L., C/. El

ıas Ramos Gonz

alez, 4 - Oﬁcina 304

38001 Santa Cruz de Tenerife, Spain

Universidad de La Laguna

La Laguna, Spain

Abstract. One of the cornerstones of MDA is the speciﬁcation and execution of

model transformations. This paper proposes a practical application of MDA to

the development of model transformations. This approach involves transforming

instances of different transformation languages with differing levels of abstrac-

tion in a PIM-PSM style. By means of two case studies, we discuss technical

details and assess what possible gains it can offer in terms of productivity and

maintainability.

1 Introduction

MDA (Model-Driven Architecture) [13] proposes a scheme of successive transforma-

tions between formal models describing software. These models represent the software

at different levels of abstraction and degrees of platform independence, as in the clas-

sic Platform Independent vs Platform Speciﬁc Model (PIM-PSM) separation. A set

of standards such as MOF (Meta-Object Facility) [14] for metamodeling and QVT

(Query/Views/Transformations) [15] for model transformation speciﬁcation, exists in

MDA to sustain the application development cycle centered on these models as ﬁrst-

class artifacts. Thus, creation and execution of model transformations play a central

role in MDA. This implies the need to designing model transformation languages (such

as QVT) and facilities to create, manipulate and execute their instances.

This paper presents a practical MDA approach to model transformation develop-

ment, which is the application of the MDA paradigm to the development of model

transformations (Sect. 2). We discuss two case studies (Sect. 4) to reﬂect its advantages,

after introducing a platform speciﬁc transformation language in Sect. 3. The ﬁrst one

shows one solution approach to execute instances of QVT, as a general purpose model

transformation language; the second one shows the execution of instances of MTTL

(Model Template Transformation Language) [2], a domain speciﬁc transformation lan-

guage. Related work and other approaches are presented in Sect. 5 and conclusions in

Sect. 6.

Victor Sánchez Rebull E., Avila-García O., Luis Roda García J. and Estévez García A. (2007).

Applying a Model-driven Approach to Model Transformation Development.

In Proceedings of the 3rd International Workshop on Model-Driven Enterprise Information Systems, pages 53-62

DOI: 10.5220/0002430200530062

 SciTePress

2 MDA Approach to Model Transformation Development

By applying a MDA approach to model transformation development we mean splitting

up the process of specifying executable transformations in different levels of abstraction

(as explained in [4]). This implies considering model instances of model transformation

languages as PITs (Platform Independent Transformations) which are then transformed

onto lower level transformation languages; which in our case is ATC (Atomic Trans-

formation Code) [9]. Transformation models expressed in ATC are tied to a speciﬁc

runtime platform (which executes them) named VTE (Virtual Transformation Engine),

hence they can be considered PSTs (Platform Speciﬁc Transformations). This approach

allows us to bring support to the execution of other model transformation languages’

instances in VTE indirectly through ATC.

3 ATC as Platform Speciﬁc Transformation Language

ATC (see above and [9]) is a general purpose low-level ATC transformation language.

Its instances take the shape of models conforming to the ATC metamodel, the most

recent version of which can be found at [7].

ATC models are executed by the VTE model transformation engine, a virtual ma-

chine created with this sole purpose. VTE is implemented as a thin software layer built

on top of EMF [5], which is considered to be a MOF implementation. VTE abstracts

from its API those EMF fundamental components that thoroughly combined represent

each of a set of low-level model transformation primitives called atom types in the ATC

jargon. These primitives form up the ATC instruction set. Although ATC models are

easily manipulated by hand with the default EMF tree editor, they are usually obtained

as the result of an (automated) transformation development process.

It is expected that ATC contains all the necessary model transformation mechanics

so it is feasible to map (translate) complete model transformation languages’ semantics

to equivalent ATC constructs. This includes general purpose languages such as QVT,

and any languages that may cover a wide range of speciﬁc or particular domains of

application, like the MTTL explained in Sect. 4.2. This translation will be discussed in

Sect. 4.

3.1 How Much PST is ATC

We claim that ATC models are platform-speciﬁc. Indeed ATC is tied to VTE, as its

target runtime platform. This PST condition will remain unconditionally true for the

purpose of this work (and according to [4]) even with the possibility of unfolding the

virtual engine into native java code speciﬁc to each ATC instance (see [9]), or if other

engine implementations are constructed that support the ATC language, over the same

EMF or (porting VTE to) other metamodeling facilities such as NetBeans MDR [12],

for which the ATC language should not suffer almost any modiﬁcations to its design.

The ATC’s PST nature helps us emphasize its low-level orientation and put it in

contrast alongside other model transformation languages, which in their majority can

be considered of a higher abstraction level, and which in general preserve a complete

neutrality from any known technology or platform. As alternatives to ATC as low-level

model transformation languages we will mention ATL-VM [10], which has implemen-

tations based on at least two different metamodeling infrastructures (the both aforemen-

tioned EMF and MDR).

4 Platform Independent Transformation Languages

For transformation languages whose instances can have a model representation, nothing

prevents us from formalizing a (collection of related) transformation(s) that translate

them to semantically equivalent ATC models, much in the sense of the MDA’s PIM

to PSM transformation paradigm. Thus, regardless of which Platform-Speciﬁc model

transformation language is ﬁnally chosen for our execution, if any, PITs fulﬁll their goal

of being static artifacts reusable through different underlying transformation engines or

tools.

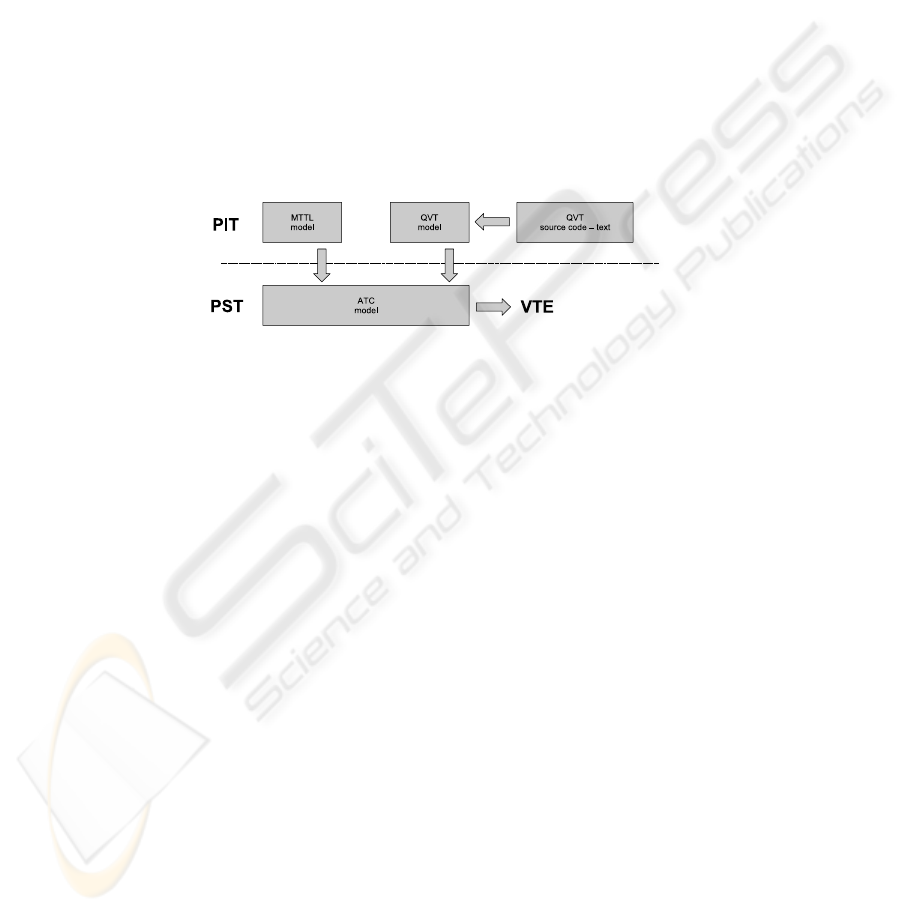

Fig.1. Instances of MTTL, a domain speciﬁc transformation language, are treated as PITs. Tex-

tual instances of QVT, a standard and general purpose transformation language, are converted to

models (conforming to the QVT metamodel or abstract syntax) which in turn may be considered

PITs.

In this section we show the beneﬁts coming from taking a MDA approach to model

transformation development by means of two case studies (see Figure 1). The ﬁrst case

shows a solution to indirectly execute instances of QVT, a general purpose and stan-

dard model transformation language (Sect. 4.1), in the VTE engine; likewise, the sec-

ond one shows the execution of instances of MTTL (Model Template Transformation

Language), a domain speciﬁc transformation language (Sect. 4.2).

4.1 The General-purpose QVT

As already mentioned, notation to express model transformation semantics in MDA is

speciﬁed in the QVT standard. This speciﬁcation details an architecture composed by

three languages. Relations is a declarative language where mappings can be expressed

between related domains. Also declarative, Core is a lower-level language that offers

the same semantic capabilities as Relations.

Finally, Operational Mappings (OM) is the only imperative QVT language. It serves

two purposes. Firstly it assists Relations to complement certain rules by providing pro-

cedural implementations that guide QVT engines on how these rules must be resolved.

This is particularly useful whenever it is difﬁcult, if not impossible, to properly express

those declarative rules in Relations. Secondly it can be used as a standalone imperative

model transformation language

This case study addresses ways to support QVT in VTE in terms of OM, although

the discussion is applicable to any other textual model transformation language, as long

as it has a well deﬁned metamodel for which conforming executable models can be

formalized.

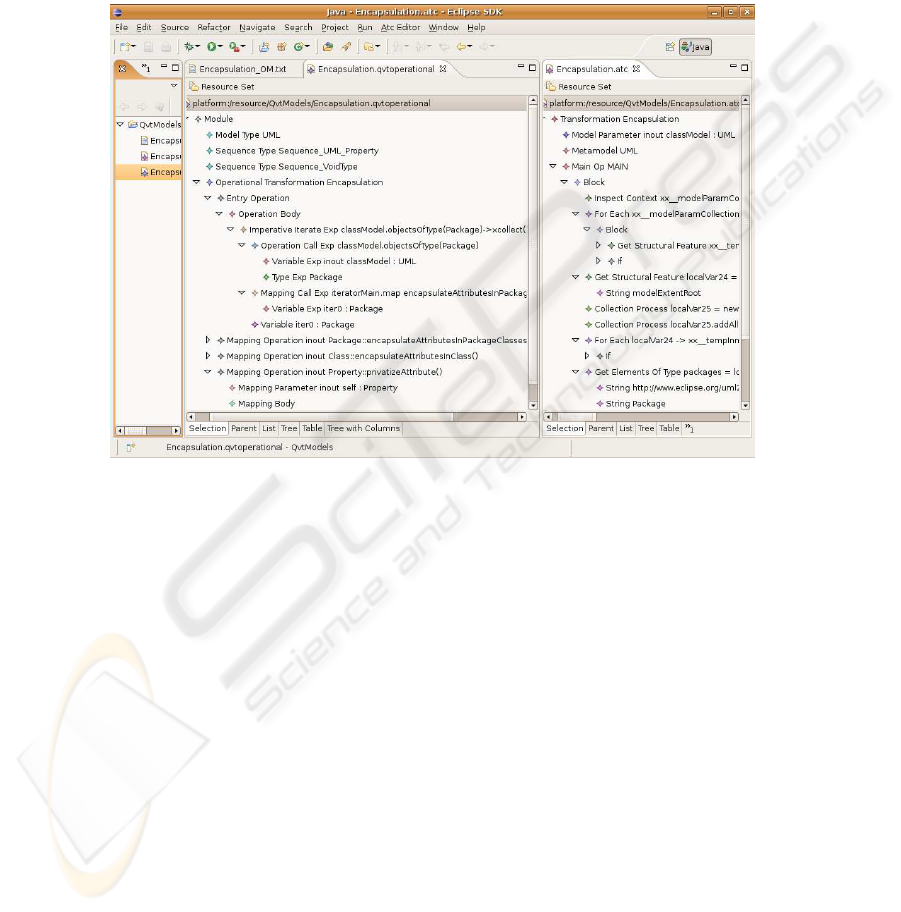

Fig.2. A model conforming to the OM’s metamodel as PIT to the left and its transformed ATC

semantically equivalent PST model to the right.

Model transformation languages can be supported in VTE by, ﬁrst, parsing the tex-

tual instances into an AST (abstract syntax tree) and, second, traversing the tree to

generate the equivalent atoms that composed one or more ATC transformations, basi-

cally using an automatically generated parser [9]. An alternative translates the AST to

a model conforming to the metamodel of the transformation language (an example of

such model is shown in Fig. 2). This model (which represents a transformation!) can

then be checked and optimized before it is ﬁnally transformed onto ATC. It can also be

stored within model repositories and even shared among tools, as if it were an ordinary

model.

In this scenario we are rightfully applying the MDA principles in terms of PIT to

PST transformations. Moreover, if the AST created by the textual syntax parser comes

also to be a model conforming to certain metamodel (for instance, GASTM [16]), then

we have another model in the transformation chain to obtain ATC instances. This is a

clear example of a practical PIM to PSM MDA transformation development process in

the context of MDA. Here the model paradigm is applied in two stages. First, to the

process of obtaining the model of the source language from the AST model, once it is

automatically produced from the source text. Second, to the translation from this trans-

formed model to the ATC model that is the output target artifact for the whole process,

and which represents an executable transformation suitable for the VTE environment.

Both transformation steps supersede the traditional semantic parsing execution stage

that analyses the inferred AST to generate output.

By speciﬁcally taking advantage of model transformation tools and languages and

exploiting their model-orientation characteristics, we can get abstracted from a signiﬁ-

cant amount of functionality and increase the overall productivity. Also, efforts invested

towards this goal are expected to be paid off by succeeding in somehow reusing these

transformatons to support other languages.

Operational Mappings vs. ATC. ATC is (at least almost) as low level as it can be, so

it may be considered a reference point in an absolute scale that measures a transforma-

tion language’s level of abstraction. Making an estimation about how distant from ATC

is OM in this scale, or starting a study to obtain metrics about its level compared to

other high-level languages, could be interesting to calibrate OM’s absolute abstraction

level. While such a study is beyond the scope of this work, it is easy to infer that subtle

mechanisms involved in an OM’s transformation execution such as trace instance man-

agement, and instantiation sections in mapping operations, put the language on a rather

high level starting point. As per a sentence by sentence comparison, there is much com-

plexity involved to give an approximate rate of sentence versus number of combined

ATC atoms representing the same semantics, but they often comprise two or three of

them (worst cases can raise this ﬁgure above twenty). However, to be fair we should not

be counting sentences in OM against ATC atoms, since each of them usually comprises

several model elements. To present some ﬁgures regarding model element count, a typ-

ical Encapsulation transformation example gives about 115 elements in OM vs. about

220 in ATC, which increases over 260 if we include the OM’s implicit execution trace

information tracking.

4.2 The Domain-speciﬁc MTTL

As explained before, QVT [15] is a standard transformation language that is expected

to be used across companies and projects. Its general-purpose nature allows us to spec-

ify different types of transformations. Although the beneﬁts coming from using such a

language are clear, many studies exist showing the advantages of rising the level of ab-

straction by introducing Domain-Speciﬁc Transformation Languages (DSTL), as when

using any other domain speciﬁc language (DSL) [2]. In this case study we show MTTL

(Model Template Transformation Language), a domain-speciﬁc language to create soft-

ware product lines of models [2], and a MDA approach to execute its instances.

Software product lines of models are an effective solution to maintain model fami-

lies in Model Driven Engineering. An approach to implement this kind of product lines

is based on the use of model templates containing all model variants of the family in

a superimposed form [6]. In order to obtain a concrete family member, a model trans-

formation automatically specializes the model template by purging relations between

model elements. The specialization is carried out following a set of selected features

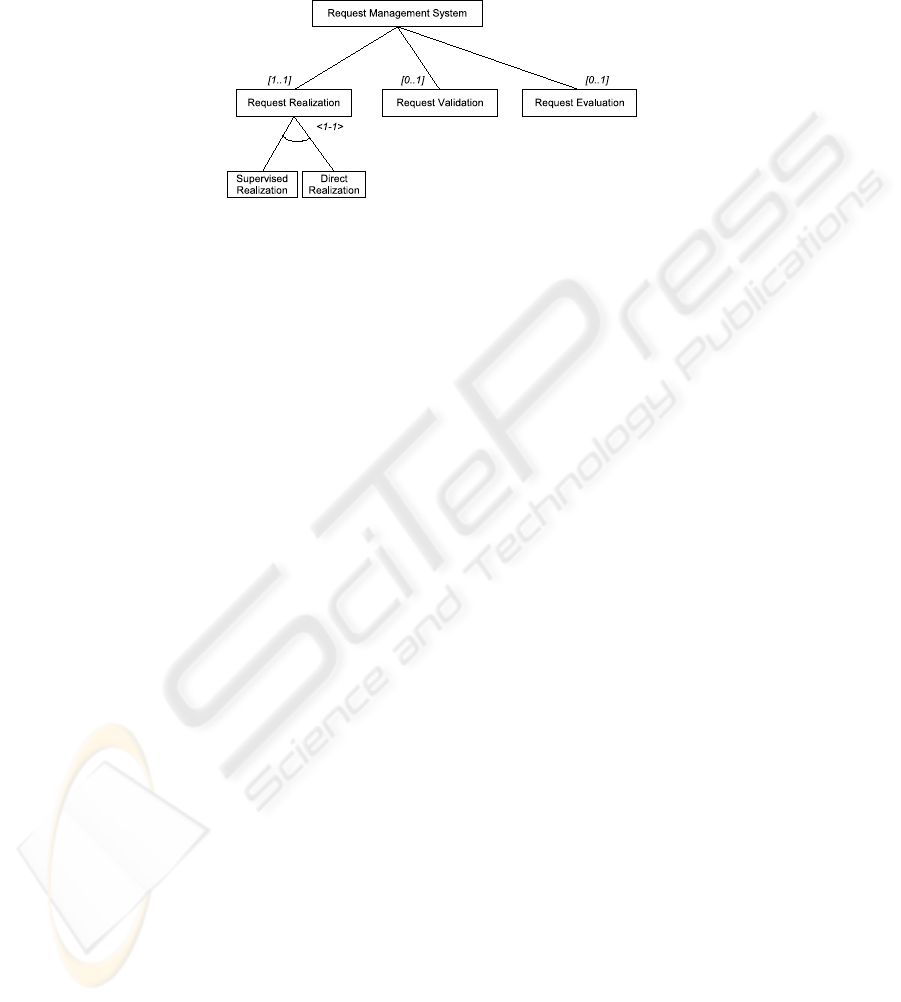

that are speciﬁed aside, in a feature model which characterizes the model family.

Fig.3. Feature Model in Cardinality-Based Feature Model notation [8] for a family of Request

Management Systems (RMS). Request Validation and Request Evaluation are optional features

in this family; feature Request Realization is mandatory, while Supervised Realization and Direct

Realization are alternative features. By selecting optional and alternative features from the feature

model we are able to identify up to eight different variants of RMS.

Model Template Transformation Language (MTTL) is a DSTL that has been de-

veloped to ease the engineering of product lines of models using a template approach.

MTTL is an imperative language with four basic operations to manipulate object rela-

tions within model templates: REMOVE, SELECT, CLEAR and INSERT.

In this case study, we are to create a software product line of use case models in

the domain of request management systems (RMS). In our experience, those systems

share many commonalities while vary along well deﬁned characteristics. Therefore, the

development of such systems may greatly beneﬁt from the use of a software product

line approach. In this example we are to create a software product line that automates

the analysis phase in the development of a family of RMS systems. This product line

will maintain a family of UML Use Case models that represent the analysis solution

to those systems. Fig. 3 shows a feature model describing the common and variable

features of the family.

Following [6], we use a template approach to implement this software product line.

First, we create a model template containing all variants of use case models in a su-

perimposed form (see Fig. 4). Each use case model, solution to the analysis of a sin-

gle RMS, is obtained by deleting object relations from the model template. Secondly,

we deﬁne the transformation that shall specialize this model template when optional

and alternative features from the feature model are selected. It is here where we take

advantage of using a DSTL in combination with a MDA approach to transformation

development: we specify such a transformation in MTTL (see Fig. 5) and transform it

onto ATC in order to execute it.

Figure 5 shows the MTTL model we have created to solve the problem and its corre-

sponding ATC model. While the former is made of six objects, the latter contains more

than three hundred. Moreover, the use of MTTL, a DSTL, is straight and easy, abstract-

ing us from implementation details such as the metamodeling framework. This is a clear

Realize Request

Evaluate RequestValidate Request

Recover Request

Generate Reports

Staff Member

Technician

Requester

<<include>>

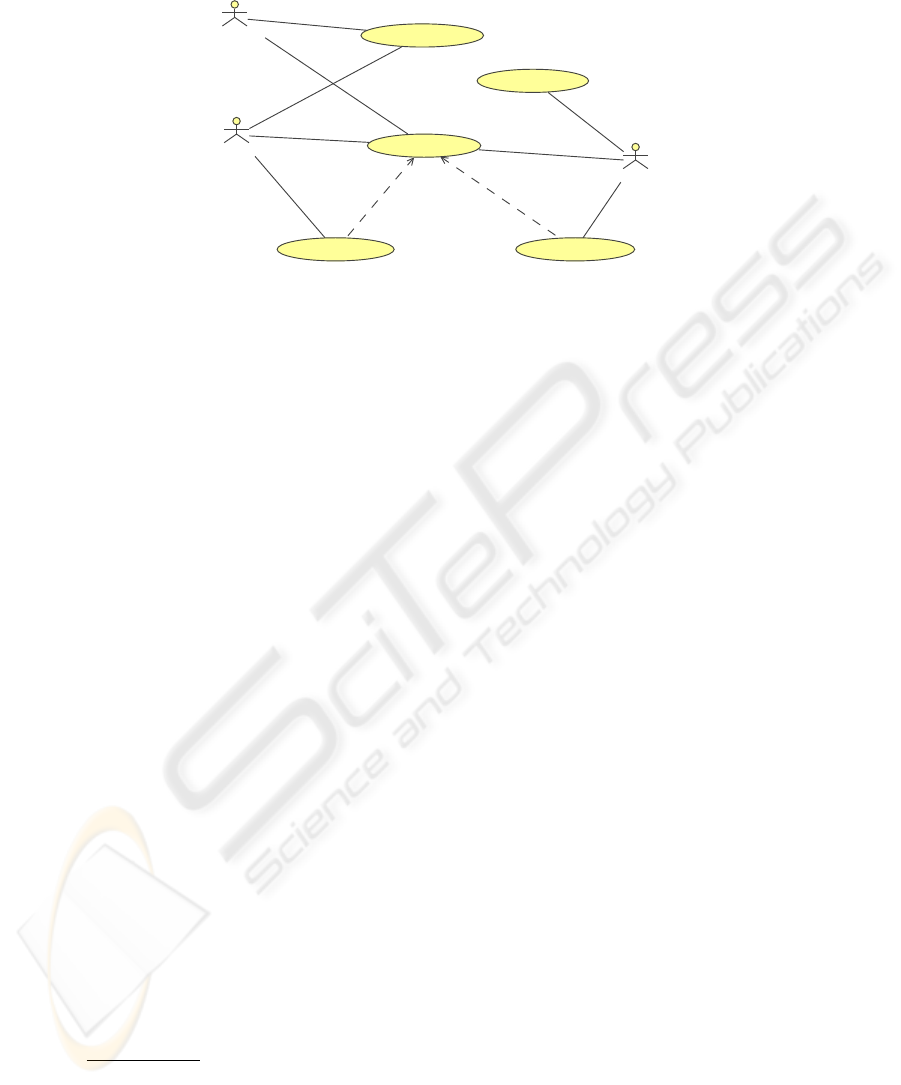

Fig.4. Template for a family of use case models. It is a use case model itself, containing all the

family members in a superimposed form, so it contains all objects and relations belonging to

any of the model variants. By purging a subset of these objects and relations it is transformed

(specialized) to generate those family members.

example of time savings when using domain speciﬁc languages to specify transforma-

tions, which in this case builds on top of beneﬁting from using transformation models,

as discussed in Sect. 4.1. Another important point is that the transformation between

MTTL and ATC was developed once, when MTTL itself was created, and took much

less effort than building up a compiler or a transformation engine exclusively for it (see

[2]).

5 Related Work and Other Approaches

There have been some other examples of applying a MDA approach to model trans-

formation development. For example, [3] proposes an extensible weaving metamodel

and its transformation onto general purpose transformation languages. This metamodel

may be extended to become a domain-speciﬁc language tailored to specify mappings or

relations between model objects in different domains

. For example, [11] proposes an

extension to specify model transformations at a higher level of abstraction as mappings

between metamodel elements. In that particular study, the instances of the extension

where transformed onto ATL [10]. That mapping language differs from our MTTL in

two respects: ﬁrst, the former links objects at the metamodeling level (M2) while the

latter does it at the modeling level (M1); and secondly, MTTL is suitable for the domain

of transformations of model templates following feature models, a domain much more

speciﬁc that the former’s.

There exist other approaches to solve the problem of model transformation pro-

duction in QVT or in DSTLs such as MTTL. For example, textual instances of QVT

might be compiled into Java to be executed. Likewise, QVT or DSTL models might be

transformed onto Java code by model-to-text transformations. The problem with these

See [1] for an extension implementing MTTL.

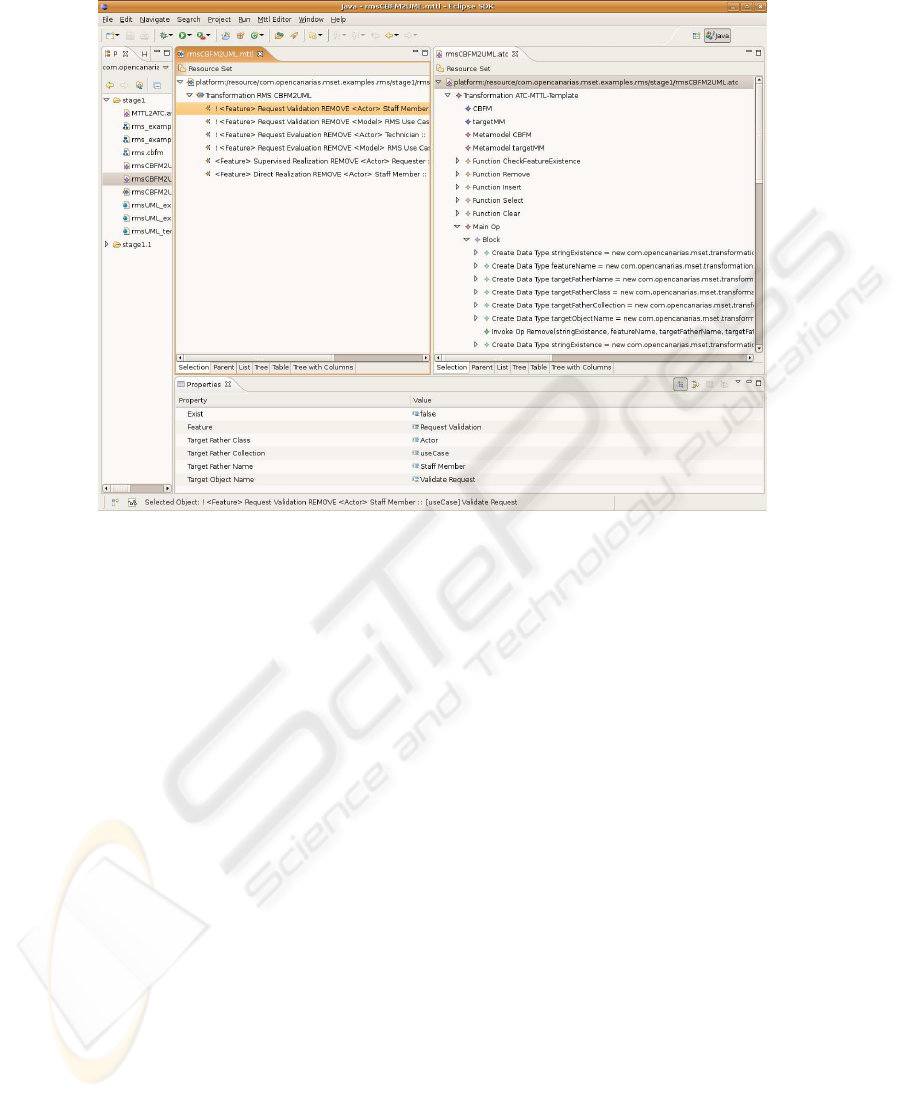

Fig.5. A MTTL mapping model on the left. It describes the specialization of the model template

of Fig. 4 after the selection of features from the feature model of Fig. 3. It contains six elements,

all specifying REMOVE operations, that is, the purge of model template objects. On the right,

corresponding ATC model. The transformation of MTTL instances onto ATC is carried out by

ﬁlling up an ATC template containing a function per MTTL operation. Each mapping object from

the MTTL model is then translated into a call operation (invoke object) to the corresponding

function with the proper parameters.

approaches is the inability of reuse: none of the efforts applied in the development of

a compiler or model-to-text transformation may help in the development of the others.

An alternative approach implies to build speciﬁc engines for those transformation lan-

guages. One of the shortcomings mentioned for the previous approach is completely

valid here: the inability of reuse in developing these alternative transformation engines

may make their development a too costly enterprise.

6 Conclusions

In this paper we have proposed a MDA approach to model transformation development.

By exploring two case studies that reﬂect the beneﬁts of this approach, we have shown

ways to transform PITs to PSTs. The ﬁrst of them showed a solution to allow instances

of QVT, a standard and general purpose transformation language, to be indirectly exe-

cuted in the VTE runtime platform. The second example showed the application of the

same approach to execute instances of MTTL, a domain speciﬁc transformation lan-

guage. Similar transformations applied upon ATC models can transitively extend the

compatibility (and support) of the source language to other tools. Conversely, middle-

ware languages and tools can also be used to bring compatibility of distant languages

in VTE.

We think that we have shown evidence enough so as to argue that all the beneﬁts

expected from MDA concerning model-driven evolution can directly be expanded to the

use of this very same approach to model transformation development. Among them we

highlight the reuse of transformation facilities, which helps us save costs and increase

productivity when creating MDA solutions in our software development projects.

Acknowledgements

Paper supported by the Ministerio de Educaci

on y Ciencia (PTQ2004-1495, PTR1995-

0928-OP), the Fondo Social Europeo and DGUI, Consejer

ıa de Educaci

on, Cultura y

Deportes, Gobierno de Canarias (PI042005/007). Thanks also go to the Red de Desar-

rollo de Software Dirigido por Modelos (DSDM), ref: TIN2005-25866-E.

References

1. Orlando Avila-Garc

ıa and Marcos Didonet Del Fabro. AMW use case: Mapping fea-

tures to models. Technical Report MST-9, Open Canarias, S.L., Apr 2007. Available at

http://www.eclipse.org/gmt/amw/usecases/softwareproductline/.

2. Orlando Avila-Garc

ıa, Antonio Est

evez Garc

ıa, Victor S

anchez Rebull, and Jose Luis Roda

Garc

ıa. Using software product lines to manage model families in model-driven engineering.

In SAC 2007: Proceedings of Symposium on Applied Computing, track on Model Transfor-

mation. ACM Press, Mar 2007.

3. Jean B

ezivin, Salim Bouzitouna, Marcos Didonet Del Fabro, Marie-Pierre Gervais, Fr

ederic

Jouault, Dimitrios Kolovos, Ivan Kurtev, and Richar F. Paige. A canonical scheme for model

composition. In ECMDA 2006: Proceedings of the European Conference on Model-Driven

Architecture, volume 4066 of LNCS, pages 346–360. Springer-Verlag, Jul 2006.

4. Jean B

ezivin, Nicolas Farcet, Jean-Marc J

equel, Benoit Langlois, and Damien Pollet.

Reﬂective Model Driven Engineering, 2003. Available at http:/www.lina.sciences.univ-

nantes.fr/Publications/2003/BFJLP03.

5. Frank Budinsky, David Steinberg, Ed Merks, Ray Ellersick, and Timothy J. Grose. Eclipse

Modeling Framework (EMF). Addison Wesley, Aug 2003. ISBN 0-13-142542-0.

6. Krzysztof Czarnecki and Michal Antkiewicz. Mapping features to models: A template ap-

proach based on superimposed variants. In Proceedings of GPCE 2005, volume 3676 of

LNCS, pages 422–437. Springer-Verlag, 2005.

7. Open Canarias. ATC metamodel, Feb 2007. URL http://www.modelset.es/

files/ATC.ecore.

8. Krzysztof Czarnecki, Simon Helsen, and Ulrich Eisenecker. Formalizing cardinality-based

feature models and their specialization. Software Process Improvement and Practice, special

issue of best papers from SPLC04, 10(1):7–29, 2005.

9. Antonio Est

evez, Javier Padr

on, Victor S

anchez, and Jos

e Luis Roda. ATC: A low-level

model transformation language. In MDEIS 2006: Proceedings of the 2nd International Work-

shop on Model Driven Enterprise Information Systems, May 2006.

10. Fr

ederic Jouault and Ivan Kurtev. On the architectural alignment of ATL and QVT. In SAC

2006: Proceedings of the Symposium on Applied Computing. ACM Press, Apr 2006.

11. Denivaldo Lopes, Slimane Hammoudi, Jean B

ezivin, and Fr

eric Jouault. Mapping spec-

iﬁcation in MDA: From theory to practice. In INTEROP-ESA 2005: Proceedings of the

First International Conference on Interoperability of Enterprise Software and Applications,

pages 253–264. Springer-Verlag, Feb 2005. Available at http://www.lina.sciences.univ-

nantes.fr/Publications/2005/LHBJ05.

12. Sun Microsystems. NetBeans Metadata Repository. Homepage at http://mdr.netbeans.org/.

13. OMG. MDA guide version 1.0.1. Technical Report omg/2003-06-01, Jun 2003. Available

at http://www.omg.org/docs/omg/03-06-01.pdf.

14. OMG. Meta Object Facility (MOF) 2.0 core speciﬁcation. Technical Report ad/2003-10-04,

Apr 2003. Available at http://www.omg.org/docs/ad/03-10-04.pdf.

15. OMG. MOF 2.0 Query/Views/Transformations. Technical Report ptc/05-11-01, Nov 2005.

Available at http://www.omg.org/docs/ptc/05-11-01.pdf.

16. OMG. Architecture-Driven Modernization (ADM): Abstract Syntax Tree Meta-

model (ASTM). Technical Report admtf/2006-11-01, Nov 2006. Available at

http://www.omg.org/docs/admtf/06-11-01.pdf.
