SECRDW: An Extension of the Relational Package from

CWM for Representing Secure Data Warehouses

at the Logical Level

Emilio Soler

, Juan Trujillo

, Eduardo Fern

andez-Medina

and Mario Piattini

Departamento de Inform

atica. University of Matanzas

Autopista de Varadero km 3. Matanzas, Cuba

Departamento de Lenguajes y Sistemas Inform

aticos. University of Alicante

C/ San Vicente S/N 03690 Alicante, Spain

Grupo ALARCOS, Departamento de Tecnolog

ıas y Sistemas de Informaci

Centro Mixto de Investigaci

on y Desarrollo de Software UCLM-Soluziona

University of Castilla-La Mancha

Paseo de la Universidad, 4 - 13071 Ciudad Real, Spain

Abstract. Data Warehouses (DWs) constitute a valuable support to store exten-

sive volumes of historical data for the decision making process. For this rea-

son, it is vital to incorporate security requirements from the early stages of the

DWs projects and enforce them in the further design phases. Very few approaches

specify security and audit measures in the conceptual modeling of DWs. Further-

more, these security measures are speciﬁed in the ﬁnal implementation on top of

commercial systems as there is not a standard relational representation of secu-

rity measures for DWs. On the other hand, the Common Warehouse Metamodel

(CWM) has been accepted as the standard for the exchange and the interoperabil-

ity of the metadata. Nevertheless, it does not allow us to specify security measures

for DWs. In this paper, we make use of the own extension mechanisms provided

by the CWM to extend the relational package to specify at the logical level the

security and audit rules captured during the conceptual modeling phase of the

DWs design. Finally, in order to show the beneﬁts of our extension, we apply it to

a case study related to the management of the pharmacies consortium businesses.

1 Introduction

According to the current development of the digital technology, the organizations began

to adopt more and more computerized information systems, which rely upon databases

and DWs. Therefore, the very survival of the organization depends on the appropriate

manipulation of the security and conﬁdentiality of the corresponding information [3].

Normally in the DWs projects, security aspects are implemented in the ﬁnal stages of the

design. However, the information security is a serious requirement which must be given

careful thought to, not as an isolated aspect, but as an present element in all development

lifecycle stages, from requirement analysis to implementation and maintenance [2]. The

Soler E., Trujillo J., Fernández-Medina E. and Piattini M. (2007).

SECRDW: An Extension of the Relational Package from CWM for Representing Secure Data Warehouses at the Logical Level.

In Proceedings of the 5th International Workshop on Security in Information Systems, pages 245-256

DOI: 10.5220/0002438002450256

 SciTePress

above-mentioned justiﬁes that is vital to incorporate conﬁdentiality measures in the

design of DWs and enforce them.

On the other hand, it is widely accepted that the DW design is based on the multidi-

mensional (MD) modeling which structures the information into facts and dimensions.

For the design of DWs we base our proposal on Model Driven Architecture (MDA) [14].

MDA proposes several models at different levels: at conceptual level the Platform In-

dependent Model (PIM) and at the logical level the Platform Speciﬁc Model (PSM).

In our context, the PIM corresponds the conceptual MD modeling based on the UML

presented in the works [6, 5, 24], which extended the proposal based on UML [9], in

order to incorporate security requirements in the conceptual design of DWs. The PSM

corresponds with our extension of the CWM at the logical level.

The previous work presented in [11] employ MDA for the DWs development, choos-

ing the relational metamodel from CWM [13]. The relational package of the CWM

enables mediated interchange between relational DBs from the majority of relational

commercial systems [18]. However, security and audit measures cannot be modeled in

the CWM because it does not provide the modeling constructors for representing data

security related to issues such as access rights, users or roles [12]. Most data access

control approaches are based on the proprietary metadata structures of speciﬁc software

products [17], thus, integrating security related to metadata into the CWM improve the

security support and facilitate the establishment of a standardized access control mech-

anism for data warehouses [12]. According to MDA we do not need the metadata of a

DBMS; we need a metamodel that allows us to represent security and audit measures

at the logical level. Hence, is this paper we present an extension of the relational meta-

model from CWM by using its own extensions mechanisms. By this way we represent,

at the logical level, all the security and audit measures captured during the conceptual

modeling phase of the DWs design.

The rest of the paper is structured as follows. The works related to our proposal are

discussed in section 2. Secure multidimensional modeling is introduced in section 3.

Section 4 shows an overview of the CWM. Section 5 presents our extension of the

relational metamodel from CWM, next, in section 6 we show a case study in order to

show the beneﬁts to use our extension in the design of secure DWs. Finally, section 7

draws the main conclusions and outlines our immediate future work.

2 Related Work

Relevant literature on this subject comprises several initiatives to include security in the

DW design. In [7] the authors describe a prototype model for DWs security based on

metadata, which enable to deﬁne views of data for each group of users, however, it does

not permit to specify complex restrictions of conﬁdentiality. Rosenthal and Sciore [19],

extend SQL grants and create a mechanism of inferences to establish the security. An-

other attempt is the architecture for both Federated Information Systems (FIS) and DWs

that preserve MultiLevel security integration between FIS and DWs [20]. These ap-

proaches ([7, 19, 20]) are extractives but only focus on practical issues such as acquisi-

tion, storage and access control at the OLAP side. None of them examine the represen-

tation of security into both, at conceptual and logical stage.

246

On the other hand, there are more elaborated initiatives that propose models of

authorization for the DWs design. For example, in [8] the authors propose a security

concept for OLAP, which is a role based security model for data warehouses. Priebe

and Pernul [17] propose a security design methodology similar to the classical database

design methodology (requirement analysis, conceptual, logical, and physical design)

covering requirements and concrete implementations in commercial systems. The same

authors (Priebe and Pernul) in [16] extend the ADAPTed UML model for the previous

conceptual phase, specifying a methodology and a MD security constraint language for

conceptual modeling of OLAP security. In [4] the authors show that access privileges

for DWs and OLAP can be expressed more intuitively than using SQL’s grant state-

ments, their access control model focus speciﬁcally on expressiveness and usability.

These proposals ( [8, 16, 17]) offer security models at the conceptual level by means of

security constraints, but basically deal with OLAP operations. These proposals [17,16]

are one of the best references in this area. As a summary, these works implements the

security rules considered in their conceptual approach in commercial database systems.

On the other hand, we base our approach in the works [5,6,24] in which the authors

claim for the design of the security rules in all stages of the DWs design, from con-

ceptual to ﬁnal implementation. And therefore, in this paper, we formally extend the

CWM in order to allow us to automatically transform the security rules considered at

the conceptual level in the logical representation of the DWs.

Numerous proposals exist that extends CWM with different objectives: for the mod-

eling of logical object-oriented relational data storage and the corresponding ETL pro-

cess [10], for universal data mining library that implements data mining methods and

algorithms [23], for recording the trace information of metadata evolution and maintain

consistency during metaclass evolution [25], for representing and integrate the metadata

generated by data and metadata lineage implementation [21] and for providing quality

information to DW client tools [1] and for building a conceptual model for data quality

and cleaning, both applicable to operational and data warehousing context. However,

none of the previous proposals extend the relational metamodel from CWM with secu-

rity aspects. Only the work presented in [22] shows how the CWM could be adequate

for representing security measures for DWs at the logical level. In this paper the CWM

is not formally extended through the formal extension mechanisms.

3 Secure Multidimensional Modeling

The main properties of the MD modeling are represented by UML proﬁle [9], which

is based on OO conceptual modeling. In [6], the previous proﬁle is reused in order

to be able to design an MD conceptual model classifying both information and users

in order to represent the main security aspects in the conceptual modeling of DWs.

Therefore, the proﬁle allows us to classify the security information that will be used in

our conceptual modeling of data warehouses. For each element of the model (fact class,

dimension class, fact attribute, etc.), is deﬁned its security information, specifying a

sequence of security levels, a set of user compartments and a set of user roles. Security

constraint is considered to specify security in attributes. The security information and

these constraints indicate the security properties that users have to be able to access

247

information. The description of the proﬁle is represented as a UML package. All the

above constraints (AuditRule, AuthorizationRule and SecurityRule) are modeled using

UML notes.

In the considered SMD modeling (Secure Multidimensional Modeling), the struc-

tural properties of MD modeling are represented by means of a UML class diagram in

which the information is clearly organized into facts and dimensions. These facts and

dimensions are represented by SFact and SDimension classes respectively, where S is

the abbreviation of secure. With respect to SDimensions, each level of a classiﬁcation

hierarchy is speciﬁed by a SBase class. An association of SBase classes speciﬁes the

relationship between two levels of a classiﬁcation hierarchy. Every SBase class must

also contain an identifying SAttribute OID (SOID) and a SDescriptor attribute (SD).

The class called UserProﬁle will contain information of all users entitled to access to

the MD model. An example of secure MD modeling is shown in Fig. 4 of the section 6.

In the following section we present a general description of the CWM, emphasizing

the different mechanisms for their extension.

4 An Overview of the CWM

The main purpose of the CWM [13] is to enable easy interchange of warehouse and

business intelligence metadata between warehouse tools, warehouse platforms and ware-

house metadata repositories in distributed heterogeneous environments. CWM is based

on three key industry standards: i) UML, an OMG modeling standard, ii) MOF (Meta

Object Facility), an OMG metamodeling and metadata repository standard, and iii) XMI

(XML Metadata Interchange), an OMG metadata interchange standard.

The UML standard deﬁnes a rich object oriented modeling language that is sup-

ported by a range of graphical design tools. The MOF standard deﬁnes an extensible

framework for deﬁning models for metadata, and providing tools with programmatic

interfaces to store and access metadata in a repository. The XMI standard allows meta-

data to be interchanged as streams or ﬁles with a standard format based on XML. CWM

has been designed to conform to the ”MOF model”, it belongs to the M2 layer, we refer

the reader to [13,18] for further details on the different metamodel layers of the CWM.

4.1 Organization of the CWM

CWM is organized in 21 separate packages which are grouped into ﬁve stackable layers

by means of similar roles

. We will mainly focus our work on the Resource layer and,

more precisely, on the Relational package as a relational metamodel that describes the

corresponding metadata of the relational data resources. The Resource layer describes

the structure of data resources that act as either sources or targets of a CWM medi-

ated interchange. The Relational package describes data accessible through a relational

interface such as a native RDBMS, Object DB Connectivity, or Java DB Connectivity.

For more details we refer the reader to [13]

248

4.2 CWM Extensibility Mechanism

CWM provides extension mechanisms to build speciﬁc metamodels. According to [13],

there are two general techniques to extend CWM: Use of the general extension mecha-

nisms provided by the UML Object Model, by means of tagged values and stereotypes.

This approach is usually used for minor extensions (for example additional attributes to

objects model) that are not signiﬁcant enough to require the creation of a speciﬁc model.

The second variant is non-normative model extensions or modeled extensions [18] doc-

umented as additional metamodel packages that extend the CWM metamodel. This pro-

posal is used for more complex extensions, CWM itself is built following this extension

type. To represent security aspects at the logical level we need to introduce new classes

and associations, hence, the non-normative extension is the preferred mechanism, be-

cause it is not a simple extension [18].

In the next section, we use the non-normative extension mechanism to extend the

Relational package, in order to represent security and audit rules at the logical level.

5 The SECRDW Extension

The extension of the relational package from CWM deﬁnes new classes to allow rep-

resenting at the logical level all the security and audit requirements captured during

the conceptual modeling phase of DWs design. This extension will be called SECure

Relational Data Warehouses (SECRDW) metamodel, which depends on the following

packages: Relational, Core and Data Types.

5.1 Inheritance

Model Element

(from Core)

Namespace

(from Core)

Package

(from Core)

Schema

(from Relational)

SSchema

Classifier

(from Core)

GeneralizableElement

(from Core)

Constraint

(from Core)

Class

(from Core)

ColumnSet

(from Relational)

NamedColumnSet

(from Relational)

Table

(from Relational)

STableUserProfile

StructuralFeatur

e (from Core)

Attribute

(from Core)

Column

SColumn

SecurityConstraint

AuditConstraint

ARConstraint

AUR

Constraint

SecurityProperty

DataType

(from Core)

SQLSimpleType

(from Relational)

SQLDataType

(from Relational)

Enumeration

(from DataTypes)

Level

Compartment

Privilege

AccessAttempt

Role

Levels

Instance

(from Instance)

SetType

SetCompartmentType

SetPrivilegeType

SequenceType

SetRoleType

SetOCLType OCLExpression

SetLogInfo

Catalog (from

Relational)

SCatalog

securityLevels

securityCompartment

securityRole

Fig.1. SECRDW Package Inheritance.

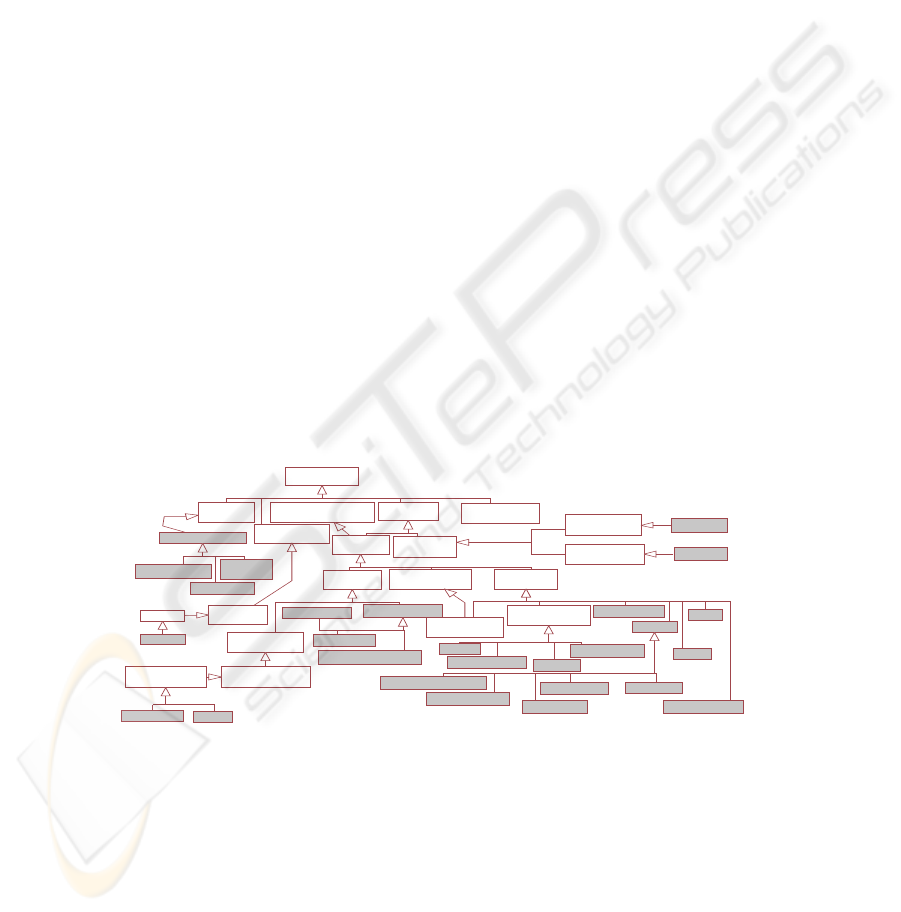

In Fig.1 we show the new classes that conform the SECRDW package colored in

grey, whereas classes from the CWM metamodel remain white. The SSchema (SCat-

alog) classes specialize the schema (catalog) classes to allow a secure schema (cata-

log). STable and UserProﬁle specializes to the Table metaclass. SColumn is specialized

249

in the Column metaclass. The UserProﬁle table is a special table that store informa-

tion of users with access to the systems, these rights are speciﬁed by SecurityProp-

erty (securityLevel, securityCompartment and securityRole). STable and SColumn has

associate security information by means of SecurityProperty (securityLevel, security-

Compartment and securityRole). SecurityProperty specializes to the Class (from Core)

metaclass, with it, we establish by means of securityLevel, securityCompartment and

securityRole access properties over tables and columns that the user must be fulﬁlled

to accede to the same ones. AuditConstraint is useful both as a deterrent against mis-

behavior as well for analyzing the user behavior by employing the system to ﬁnd out

possible attempted or actual violations. AuditConstraint is essential to record the access

to tables and columns performed by users. ARConstraint allows to deﬁne rules for spec-

ifying multilevel security policies in tables and columns. AURConstraint, may coexist

with ARConstraint, and enable to specify the access to the tables and columns, thus

permitting us to specify security models which are much more elaborate. The Securi-

tyConstraint class logically inherits properties of the Constraint class from Core. The

data types are studied more in depth in the following section.

5.2 New Data Types

In general, the CWM packages only support data type attributes that are considered

necessary for information interchange between systems [13]. To represent security and

audit information at the logical level we need new data types. In Fig. 2 new classes

appears that inherit from DataType or from Enumeration classes. The new classes that

represent new data types appear with gray color in Fig. 2. These new data types are

necessary to model the access properties (securityProperty) and the constraints (SCon-

straint) to STable, UserProﬁle and SColumn.

Privilege

Classifier (from

Core)

DataType

(from Core)

SQLSimpleType

(from Relational)

SQLDataType

(from Relational)

Enumeration

(from DataTypes)

AccessAttempt

SetType

Compartment

SetCompartmentType

/ elementCompart : Compartment...

+elementCompart

SetPrivilegeType

/ elementPrivileg : Privilege...

+elementPrivileg

SetOCLType

OCLExpression

SequenceType

/ elementLevel : Level

Level

+elementLevel

{ordered}

Levels

/ lowerlevel : Level

/ upperlevel : Level

+upperLevel

1 {ordered}

+lowerLevel

{ordered}

LogInfo

SetLogInfo

+elementLogInfo

SetRoleType

/ elementRole : Role

Role

roleName : String...

+elementRole

...

+subRoleOf

...

Fig.2. New Data Types for SECRDW Package.

The SequenceType class represents a data type that allows specifying all the lev-

els of security that can be used by the elements of the model (ordered from minor to

the most restrictive). Level is an ordered enumeration composed of all security levels

250

that have been considered (unclassiﬁed, conﬁdential, secret and top Secret). Compart-

ment is the enumeration composed of all user compartments that have been considered.

Privilege will be an ordered enumeration composed of all different privileges that have

been considered (read, insert, delete, update, all). Attempt will be an ordered enumera-

tion composed of all different access attempts that have been considered (all, frustrate-

dAttempt, successfullAccess, none). Levels will be an interval of levels composed of

a lower level and an upper level. If the upper and lower security levels coincide, all

instances will have the same security level; else, the speciﬁc level will be deﬁned ac-

cording a securityConstraint. OCLExpression speciﬁes an Object Constraint Language

(OCL) expression that fulﬁls some condition for the users of the system. Role will repre-

sent the hierarchy of user roles that can be deﬁned. SetRoleType speciﬁes a set of users,

each role is the root a subtree of the hierarchy of user roles considered. SetCompart-

mentType represent a set of compartments. SetPrivilegeType speciﬁes the privileges

the user can receive or remove. SetOCLType speciﬁes the tables involved in a query

performed by the user, in order to establish new requirement for tables or columns by

means of securityConstraint (ARConstraint or AURConstraint). SetLogInfo speciﬁes

the elements that we want to register for a future audit, usually refers to subject request-

ing the access (subjectID), tables or columns to be accessed (objectID), the operation

requested (action), the time request (time) and the access control response (response).

5.3 New Secure Classes and Main Association

The SECRDW package deﬁne a container SCatalog and SSchema that are inherited

from Schema and Catalog respectively. SCatalog is a local repository of meta data

describing all databases maintained by the relational database engine. SSchema is a

collection of STables and securityProperties and aim to security at the model level. A

ColumnSet represents any form of relational data. A STable and userProﬁle are inher-

ited from Table, which contains Columns. Be observed in Fig. 3 that the table user-

Proﬁle contains columns to specify the access properties (securityProperty) that has the

user. UserProﬁle unlike STable is only and does not have association with the rest of the

tables of the system. A ForeignKey associates columns from one table with columns of

another table. PrimaryKey class inherits from the UniqueConstraint. PrimaryKey and

ForeignKey metaclasses are ownered by STable metaclass (see Fig. 3).

To represent security and audit measures in the new metamodel, we add some meta-

classes. SecurityProperty metaclass inherits from the Class (from Core) metaclass and

specializes as SecurityLevels, SecurityCompartments and SecurityRoles metaclasses.

Furthermore, representing security constraints, authorization rules and audit rules in

the metamodel we add AuditConstraint class, ARConstraint class and AURConstraint

class, which inherit from SecurityConstraint. To specify constraints depending on par-

ticular information of a user or a group of users, we introduce the userProﬁle metaclass.

Observe in Fig. 3 the new classes that we have added to the relational package relational

from CWM, as well as the new associations between classes. The new classes contain

attributes of each one of the types speciﬁed in Fig. 2, these attributes allow to represent

all the security information captured during the conceptual modeling of the DWs de-

sign. Especially, the attribute objectCond refers to an additional condition imposed to

251

Schema

(from Relational)

UserProfile

AuditConstraint

logType : AccessAttempt

logCond : OCLExpression

logInfo : SetLogInfo

objectCond : OCLExpression

AURConstraint

involvedTables : SetOCLType

sign = {+,-}

action : SetPrivilegeType

objectCond : OCLExpression

subjectID : OCLExpression

subjectCond : OCLExpression

ARConstraint

involvedTables : SetOCLType

objectCond : OCLExpression

ARcond : OCLExpression

subjectCond : OCLExpression

SecurityLevels

SL : Levels

SecurityCompartments

SC : SetCompartmentType

SecurityRoles

SR : SetRoleType

ColumnSet

(from Relational)

Column

(from Relational)

0..1

/owned

0..1

/feature

NamedColumnSet

(from Relational)

0..1

/optionScopeColumnSet

0..1

/optionScopeColumn

Table

(from Relational)

SSchema

0..1

/namespace

0..1

/ownedElement

SecurityProperty

0..1

0..*

0..1

0..*

SColumn

0..*

1..3

scolumn

0..*

securityProp

1..3

ForeingKey

(from Relational)

1..*

/feature

1..*

/keyRelatonship

PrimaryKey

(from Relational)

1..*

/ fk

1..*

/ pk

SecurityConstraint

0..1

0..*

scolumn

0..1

securityConst

0..*

STable

1..3

0..1

/namespace 0..1

/ownedElement

0..1

/namespace

0..1

/ownedElement

0..1

0..*

0..1

0..*

Fig.3. New classes and associations.

the STable or SColumn object. The attribute subjectCond, allows to specify a condition

for the users of the system.

In the following section, we are going to show how we do use the extension in the

representation at the logical level of a secure MD model related to the management of

the pharmacies consortium businesses.

6 A Case Study

In this section, we apply our extension of the CWM relational metamodel in the context

of a pharmaceutical consortium. The consortium managers several pharmacies that of-

fer different services types to the community and wishes to control everything relating

to the sales of medicines by means of the prescription medical. To deﬁne a classiﬁ-

cation of data and users that is typical for this type of business (the most general is

Pharmacy Employee, which is then specialized into the Pharmacist and nonPharmacist

roles, and which are in turn specialized into the assistant and technicians roles in the for-

mer case, and into maintenance and administrative in the latter). As security levels, we

have considered in this case conﬁdential, secret and topSecret. Inside the company ex-

ists a pharmacovigilance group, that guards by the security use of certain medicaments

and a committee that guards by the health of his clients, for it we have deﬁned four se-

curity compartments: pharmacovigilanceCenter, generalCenter, healthOversightCenter

and comercialManagerCenter.

6.1 Deﬁning the PIM

In Fig. 4 we show an instance of the Secure Multidimensional Model, i.e., our SMD

PIM, which illustrates a part of the DWs that is required to the previous problem. The

SFact Sales Prescription (stereotype SFact) contain all the sales information in one or

more pharmacies, and can be acceded by users who have security levels secret or topSe-

cret, play an Administrative or Pharmacist role and belong to pharmacovigilanceCenter,

252

healthOversightCenter and comercialManagerCenter compartments. The sales attribute

can be only accessed by users who perform the administrative role (tagged values SR of

sales attribute) and belong to comercialManagerCenter compartment, and therefore the

access to this attribute will be forbidden for others users (pharmacist and maintenance

employees or belong to other different comercialManagerCenter compartment). The

income attributes can be only accessed by users who perform the administrative role

(tagged value SR of income attribute). Others static user classiﬁcation for the classes

of the conceptual model deﬁned in Fig. 4 are: The SFact Sales Prescription contain

<<AuditRule>>

{logType= all}

{logInfor subjectID objectID time response}

{logCond self.DataT.hour < 9 or

self.DataT.hour > 21}

userProfile

userCode

name

securityLevel

pharmacyNumber

securityRole

securityCompartments

dateContract

<<AuthorizationRule>>

{exceptSign= +}

{exceptCond self.name=

UserProfile.name}

<<AuditRule>>

{logType= frustatedAttents}

{logInfo subject objectID time}

{logCond self.Medication_group=

'Drug'}

City {SL= C}

SOIDcode

SD name

SDA population

Pharmacy_type {SL= C}

SOID number

SD description

DataP {SL= S; RS= Pharma,

Admin; SC= pharmaC}

SOID ssn

SD name

SDA dateOfBirth

SDA race {SL = TS; SR= Admin}...

SDA address {SR= Admin}

1..*

<<Rolls-UpTo>>

DataT {SL= S; SR=

Pharma, Admin}

SOID, SD date

SDA dayOfYear

SDA vacation

SDA big_event

DataPh {SL= C}

SOID number

SDA postal address

SDA telephone

SDA director

1..*

<<Rolls-UpTo>>

Patient

Time

1..*

Pharmacy

Sales_Prescription {SL= S..TS; SR= Pharma, Admin; SC=

pharmaC, healthC, comercialC}

SFA typeAmount

SFA sales {SR = Admin; SC= comercialC}

SFA numberPrescriptionUnits

/ income {SR= Admin}

0..*

Medication

0..*

Medication_group {SL= C}

SOID code

SD description

Provider {SL= C; SR= Admin;

SC= comercialC}

SOID code

SDA name

SDA contact

DataM {SL= S; SR= Admin; SC= pharmaC,

comercialC}

SOID code

SDA name

SDA stock {SC = comercialC}

1..*

<<Rolls-UpTo>>

1..*

<<Rolls-upTo>>

<<SecurityRule>>

{invMDClasses= (DartaPh)}

{SiarCond self.SC= if self.typeAmount=

'Insurance' then {'comercialC'}

endif}

Fig.4. Example of MD model with security information and constraint.

four dimensions (Pharmacy, Patient, Medication and Time), which contain SBase hier-

archies. The access to these SBase hierarchies is established in the same way that was

done with the SFact. UserProﬁle class contains the information of all users who will

have access to this secure MD model. Each user has securityLevels (SL), securityRoles

(SR) and securityCompartments (SC) associated.

Several security constraints have been speciﬁed by using the previously deﬁned con-

straints, stereotypes and tagged values.The following paragraphs correspond to notes 1

and 2 in Fig. 4:

1. For each instance of the fact class Sales Prescription, if the type of payment is

through an insurance the security compartment will be comercialManagerCenter

(tagged value SC). This constraint is only applied if the user makes a query whose

information comes from the DataPh.

2. We wish to record the subject, object and time for every frustrated access attempt

to DataM (Data Medication) of the drug description.

6.2 Deﬁning the PSM

Starting from the PIM in Fig. 4, we apply QVT relations [15] to achieve an instance

of the SECRDW metamodel, i.e., our secure PSM, just as we show in Fig. 5, which

253

represent a snowﬂake schema at the logical level. The PSM instance show in Fig. 5 cor-

respond to an instance of the metamodel extended in subsection 5.3. With the extension

of CWM we formalized the concepts for a relational platform, although they are closest

to the MD despite when the used logical paradigm was not so similar to the relational

model, then the transformation is very interesting from the MD to the relational model

with respect to security.

Sales_Prescription {SL= S..TS; SR= Pharma, Admin;

SC= pharmaC, healthC, comercialC}

SFA typeAmount: varchar(8)

SFA sales : Numeric {SR= Admin; SC= comercialC}...

numberPrescriptionUnit : Integer

SFA income : Numeric {SR = Admin}

<<STable>>

AudConst 4

ARConst 1

{invTables= DartaPh}

{ARcond self.SC= if self.typeAmount=

'Insurance' then {'comercialC'}

endif}

AURConst 3

AudConst 2

{logType= frustatedAttents}

{logInfo subject objectID time}

{logCond self.Medication_group= 'Drug'}

UserProfile

userCode : integer

name : String

securityLevel : Levels

pharmacyNumber : Integer

securityRole : SetRole

securityCompartment : SetCompartment...

dateContract : Date

City {SL= C}

Pharmacy_type {SL=C}

DataT {SL= S; SR=

Pharma, Admin}

DataP {SL= S; RS= Pharma,

Admin; SC= pharmaC}

1..*

DataPh {SL= C}

1..*

Medication_group {SL= C}

Provider {SL= C; SR=

Admin; SC= comercialC}

DataM {SL= S; SR= Admin;

SC= pharmaC, comercialC}

1..*

Bridge

1..*

Fig.5. A snowﬂake representing an instance of SECRDW metamodel at the logical level.

The fact Sales Prescription is represented in Fig. 5 by means of the STable Sales

Prescription. In this table we represent all its columns, as well as all the information

of associated security, that restrict the access to the own table and its columns. Each

SBase is transformed into a STable, nevertheless, the class UserProﬁle is transformed

into the UserProﬁle table. To represent the relation many-to-many between the tables

DataM and Provider we have created a bridge table. The security information (SL, SR

and SC) represented in the table Sales Prescription of Fig. 5 constitute instances of the

SecurityProperty class that appears in Fig. 3. This security information is modeled at the

logical level in the headline of the own table (see Fig. 5). The security constraints Secu-

rityRule 1, AuditRule 2, AuthorizationRule 3 and AuditRule 4 that appear in Fig. 4 are

transformed into instances of the SecurityConstraint class that appears in Fig. 3. These

instances are represented in Fig. 5 by means of UML’s notes with the names ARConst

1, AudConst 2, AURConst 3 and AudConst 4, nevertheless, to make the Fig. 5 more

understandable, we only have showed the attributes of the ARConst 1 and AudConst 2

classes, which constitute instances of classes that represent new data types introduced

in Fig. 2.

6.3 Code Example in Oracle DBMS

To ﬁnish the case study we show some implementations of the security aspects modeled

in the SECRDW metamodel that appears in Fig. 5. We have chosen version 10 of Oracle

DBMS since it supports security and audit facilities by means of some of its components

254

namely Oracle Label Security (OLS10g), Virtual Private Databases (VPD) and Oracle

Fine-Grained Auditing (FGA). We are going to explain only the security aspects that

contemplate our extension, for it ﬁrst we created a security policy named ’MyPolicy’

and valid levels, compartments and hierarchical groups.

SET_LEVELS (‘SALAPolicy’, ‘User1’, ‘TS’, ‘S’, ‘S’)

CREATE FUNCTION Function2 (typeAmount: Varchar2(20))

Return LBACSYS.LBAC_LABEL

As MyLabel varchar2(80);

Begin

If typeAmount= ’Insurance’ then MyLabel:= ‘S::Ph,Adm::comercialC’ else

‘S::Ph,Adm::pharmaC,healthC,comercialC’

endif;

Return TO_LBAC_DATA_LABEL (‘MyPolicy’, ‘MyLabel’);

CREATE FUNCTION Function1 () Return LBSCSYS.LABC_LABEL

Begin

dbms_fga.add_policy(

object_schema => ’MyPolicy’,

object_name => ‘DataM’,

policy:name => ‘MyPolicy’,

audit_column => ’code, name, stock’,

statement_types => ‘select’,

enable => true

);

d)c)

b)a)

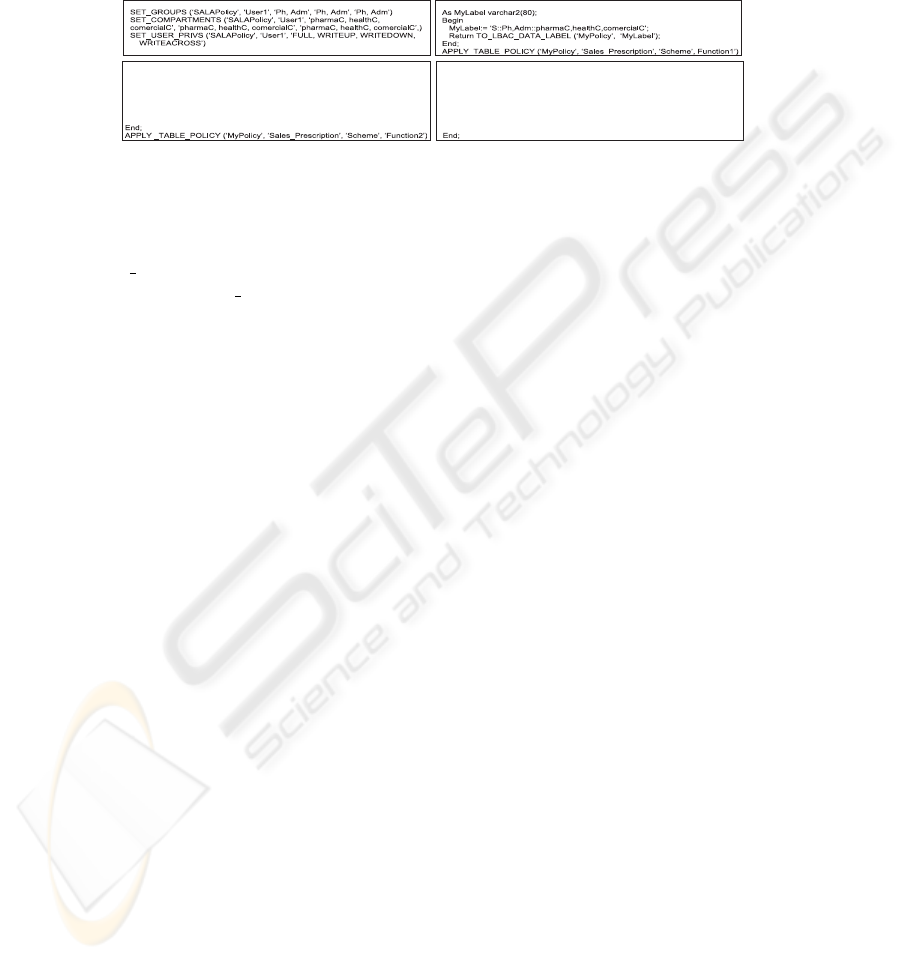

Fig.6. Implementing our constraints in Oracle 10g.

In Fig. 6 a) we show how the User1 satisfy the security properties for the table

Sales

Prescription. Fig. 6 b) show how we deﬁne and establish the security information

for the table Sales Prescription through labeling functions from OLS, although is not

possible to consider security at the column level. The ARConst 1 is implemented by

means of the labeling function represented in Fig. 6 c). FGA allow us to deﬁne and

implement the AudConst 2 (see Fig. 6d)). In AudConst 2 we can’t implement the log-

Type and logCond 2 because FGA does not allow us, neither to choose the audit type

(logType) nor the condition referring to columns from different tables (logCond).

7 Conclusions and Future Work

In this work, we have presented an extension of the relational package of the CWM to

represent at the logical level all the captured security and audit rules during the concep-

tual modeling stage of DWs. This proposal is aligned with MDA, with it we contem-

plated security aspects in all design phases of the DWs, from the PIM, with the proposal

of modeling conceptual based in UML, and its corresponding representation at the log-

ical level based on this paper. In order to show the validity of our extension we have

developed a case study to illustrate how we modeled at the logical level the security and

audit requirements represented during the conceptual modeling stage. Our immediate

future work consists in implementing an automatic transformation between the PSM

and the implementation level and extending the i* proposal for DWs to incorporate

security and audit aspects in the requirement analysis phase of DWs.

Acknowledgements

This work has been partially supported by the METASIGN project (TIN2004-00779)

from the Spanish Ministry of Education and Science, by the DADASMECA project

(GV05/220) from the Regional Government of Valencia, and by the DIMENSIONS

(PBC-05-012-1) DADS project (PBC-05-012-2) from the Regional Science and Tech-

nology Ministry of Castilla-La Mancha (Spain).

255

References

1. G. C. M. Amaral and M. L. M. Campos, “AQUAWARE: A Data Quality Support Environ-

ment for Data Warehousing”, SBBD’04, Bras

ılia, DF, Brasil (2004)

2. P. Devanbu and S. Stubblebine, “Software Engineering for Security: a Roadmap”, presented

at The Future of Software Engineering, Limerick, Ireland (2000)

3. G. Dhillon and J. Backhouse, “Information Systems Security Management in the New Mil-

lenium”, Communications of the ACM, vol. 43 (7) (2000)

4. W. Essmayr, E. Weippl, F. Lichtenberger, W. Winiwarter, and O. Mangisengi, “An Autho-

rization Model for DWs and OLAP”, Workshop On Security In Distributed DW, USA (2001)

5. E. Fern

andez-Medina, J. Trujillo, R. Villarroel, and M. Piattini, “Access Control and Audit

Model for the Multidimensional Modeling of DWs”, DSS, vol. 42 (2006) 1270-1289

6. E. Fern

andez-Medina, J. Trujillo, R. Villarroel, and M. Piattini, “Developing Secure DWs

with a UML Extension”, I. Systems, vol. Article In Press, Corrected Proof (2006)

7. N. Katic, G. Quirchmayr, J. Schiefer, M. Stolba, and A. M. Tjoa, “A Prototype Model for

Data Warehouse Security Based on Metadata”, DEXA’98, Vienna, Austria (1998)

8. R. Kirkg

oze, N. Katic, M. Stolda, and A. M. Tjoa, “A Security Concept for OLAP”,

DEXA’97, Toulouse, France (1997)

9. S. Luj

an-Mora, J. Trujillo, and I. Y. Song., “A UML proﬁle for multidimensional modeling

in data warehouses”, Data& Knowledge Engineering (DKE), vol. 59, 725-769 (2006)

10. T. Maier, “A Formal Model of the ETL process for OLAP-Based Web Usage Analysis”,

WebKDD’04, Seatle, Washington, USA (2004)

11. J.-N. Maz

on, J. Trujillo, M. Serrano, and M. Piattini, “A MDA approach for the development

of data warehouses”, Decis. Support Syst. (2007), doi:10.1016/j.dss.2006.12.003

12. F. Melchert, A. Schwinn, C. Herrmann, and R. Winter, “Using Reference Models for Data

Warehouse Metadata Management”, AMCI’05, Omaha, NE, USA (2005)

13. OMG, ”Common Warehouse Metamodel Speciﬁcation 1.1” (2003)

14. OMG, “MDA Guide Version 1.0.1”, J. M. a. J. Mukerji, Ed.: OMG (2003)

15. OMG, ”MOF 2.0 QVT Final Adopted Speciﬁcation” (2005)

16. T. Priebe and G. Pernul, “A Pragmatic Approach to Conceptual Modeling of OLAP Secu-

rity”, ER’01, Yokohama, Japan (2001)

17. T. Priebe and G. Pernul, “Towards OLAP Security Design - Survey and Research Issues”,

DMDW’00, Sweden (2000)

18. J. Poole, D. Chang, D. Tolbert, and D. Mellor, Common Warehouse Metamodel Developers

Guide. Indianapolis, Indiana: Wiley Publishing, Inc (2003)

19. A. Rosenthal and E. Sciore, “View Security as the Basic for Data Warehouse Security”,

DMDW’00, Sweden (2000)

20. F. Saltor, M. Oliva, A. Abell

o, and J. Samos, “Building Secure DW Schemas from FIS”, in

Heterogeneous Information Exchange and Organizational Hubs., Ed.: KA 123-134 (2002)

21. A. S. Santana and A. M. d. C. Moura, “Metadata to Support Transformations and Data &

Metadata Lineage in a Warehousing Environment”, DAWAK’04, Zaragoza, Spain (2004)

22. E. Soler, R. Villarroel, J. Trujillo, E. Fern

andez-Medina, and M. Piattini, “Representing Se-

curity and Audit Rules for DW at the Logical Level by using the CWM”,ARES’06, Vienna

23. M. Thess and M. Bolotnicov, “XELOPES Library Documentation Version 1.2.3”, Prudsys

AG (2004)

24. R. Villarroel, E. Fern

andez-Medina, M. Piattini and J. Trujillo, “A UML 2.0/OCL Extension

for Designing Secure DWs”, Journal of Research and Practice in IT, vol. 38 (2006)

25. X. Zhao and Z. Huang, “A Formal Framework for Reasoning on Metadata Based on CWM”,

ER’06, Tucson, AZ, USA (2006)

256
