USING A TWO-WAY BALANCED INCOMPLETE BLOCK

DESIGN TO COMPARING AN AGENT-ORIENTED SOFTWARE

ENGINEERING METHODOLOGIES

Faezeh Parandoosh and Siavosh Kaviani

Department of Computer Science, Payamenour University, Tehran, Iran

Keywords: Incomplete block design, Agent, Agent-Oriented Software Engineering (AOSE), Agent-Oriented

methodologies, MaSE, Prometheus, Tropos and Gaia.

Abstract: There has been a surge of interest in agent-oriented software engineering in recent years. Numerous

methodologies for developing agent-based systems have been proposed in the literature and the area of

agent-oriented methodologies is maturing rapidly. Evaluating methodologies' strengths, weaknesses and

domains of applicability plays an important role in improving them and in developing the "next-generation"

of methodologies. In this paper, we present a reliable framework that adopts statistical techniques to

compare agent-oriented methodologies. Based upon this framework we performed a comparison of four

AOSE methodologies MaSE, Prometheus, Tropos and Gaia.

1 INTRODUCTION

Agent-oriented techniques represent an exciting new

means of analyzing, designing and building complex

software systems. They have the potential to

significantly improve current practice in software

engineering and to extend the range of applications

that can feasibly be tackled.

"One of the most fundamental obstacles to large-

scale take-up of agent technology is the lack of

mature software development methodologies for

agent-based systems." (Luck,

McBurney & Preist,

2003, p.11).

Even though AOSE methodologies have been

proposed, few are mature or described in sufficient

detail to be of real use. In fact, the area of agent-

oriented methodologies is maturing rapidly and that

the time has come to begin drawing together the

work of various research groups with the aim of

developing the next generation of agent-oriented

software engineering methodologies (Castro, Kolp

& Mylopoulos, 2002; Bersciani et al. n.d.).

An important step is to understand the

differences between the various key methodologies,

and to understand each methodology's strengths,

weaknesses, and domains of applicability.

In this paper we perform the comparison on

several well-known methodologies. A qualified

methodology has been selected based on the

availability of the documentation that describes it,

the familiarity of the agent community with it, and

its domain of applicability. As a result, the following

9 methodologies have been selected as treatments to

our experiment: Gaia, MaSE, Prometheus, Tropos,

MAS-CommonKADS, MESSAGE, FIPA-OS, JiVE

and CNFM (Elamy and Far, 2005). In this paper we

perform a comparison on four well-known AOSE

methodologies MaSE, Prometheus, Tropos and

Gaia.

In section 2, we briefly introduce these

methodologies. In section 3, we describe a

framework for comparing AOSE methodologies. We

then (section 5) select the Appropriate Statistical

Model techniques to compare AOSE methodologies.

In section 6 we apply the framework to compare the

methodologies.

2 THE METHODOLOGIES

2.1 MaSE

Multi agent Systems Engineering (MaSE) (Scott et

al.2001) is an agent-oriented software engineering

methodology which is an extension of the object-

oriented approach. As a software engineering

Parandoosh F. and Kaviani S. (2007).

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED SOFTWARE ENGINEERING METHOD-

OLOGIES.

In Proceedings of the Second International Conference on Evaluation of Novel Approaches to Software Engineering , pages 56-65

DOI: 10.5220/0002585200560065

 SciTePress

methodology, the main goal of MaSE is to provide a

complete-lifecycle methodology to assist system

developers to design and develop a multi-agent

system. It fully describes the process which guides a

system developer from an initial system

specification to system implementation. This process

consists of seven steps, divided into two phases.

The MaSE Analysis stage includes three smaller

process steps. First, the Capturing Goals step guides

the analysts to identify goals and structure and

represent them as a goal hierarchy. This goal model

is a product of a goal decomposition process in that

goals are broken down in subgoals, subgoals to sub-

subgoals and so on. The second step involves Use

Cases, a technique which is commonly found in

object-oriented methodologies. It includes extracting

main scenarios from the initial system context or

copying them from it if they exist. The use cases

should show how a goal can be achieved during a

normal system operation as well as erroneous

conditions. The second part of this step is to apply

those use case. Firstly, an initial set of roles is

identified based on goals and use cases scenarios.

Secondly, the sequence of events that occur in the

interaction or communication between roles is

represented in a Sequence Diagram. This model is

also analogous to UML sequence diagrams except

that entities are roles rather than objects. Refining

Roles is the final step of the Analysis phase where a

Role Model and a Concurrent Task Model are

constructed. The Role Model describes the roles in

the system. It also depicts the goals which those

roles are responsible for, the tasks that each role

performs to achieve its goals and the communication

path between the roles. Tasks are then graphically

represented in fine-grained detail as a series of finite

machine automata in the Concurrent Task Model.

The first step of the Design Phase is called

"Creating Agent Classes". The output of this step is

an Agent Class Diagram which describes the entire

multi-agent system. The agent class diagram shows

agents and the roles they play. Links between agents

show conversations and are labelled with the

conversation name. The details of the conversations

are described in the second step of the design phase

("Constructing Conversations") using

communication class diagrams. These are a form of

finite state machine. The third step of the Design

stage is Assembling Agent Classes. During this step,

we need to define the agent architecture and the

components that build up the architecture. In terms

of agent architecture, MaSE does not dictate any

particular implementation platform. The fourth and

final step of the design phase is System Design. It

involves building a Deployment Diagram which

specifies the locations of agents within a system.

MaSE has extensive tool support in the form of

agent Tool. Its latest version 2.0 implements all

seven steps of MaSE.

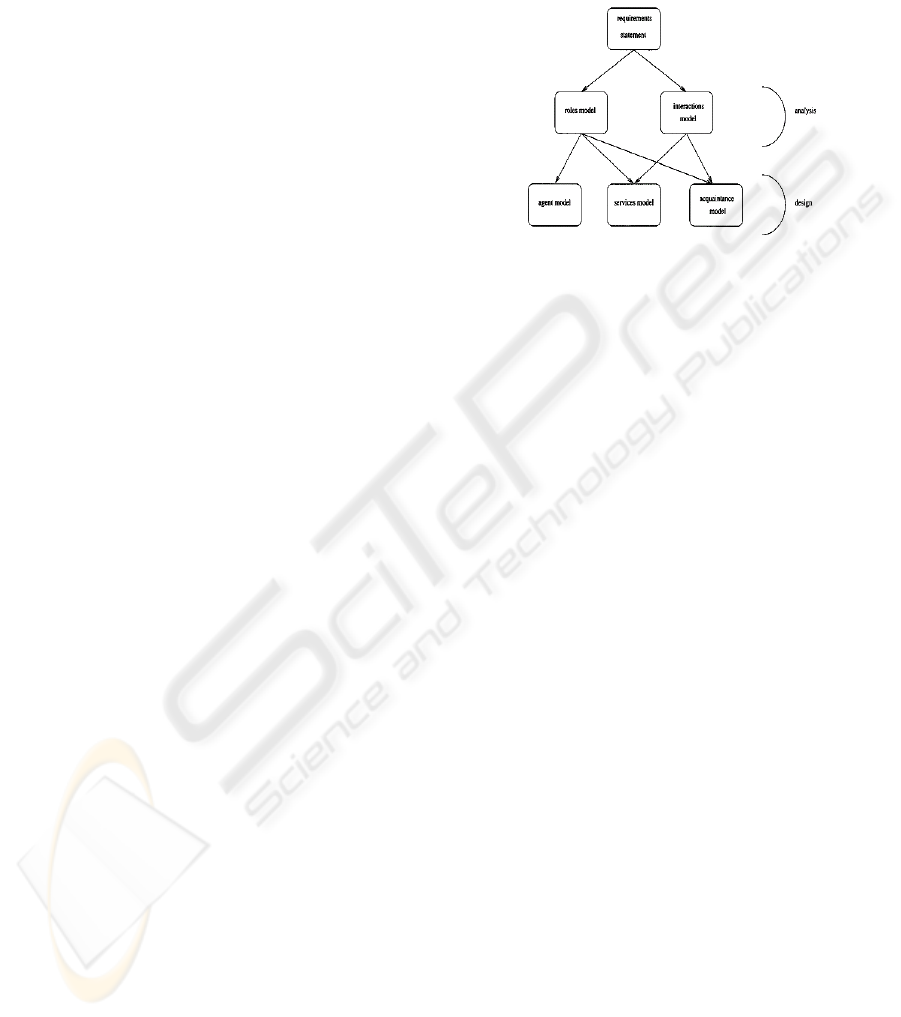

Figure 1: Relationship between Gaia's models.

2.2 Gaia

Gaia is one of the first methodologies which is

specifically tailored to the analysis and design of

agent-based systems. Its main purpose is to provide

the designers with a modeling framework and

several associated techniques to design agent-

oriented systems.

The Gaia methodology is both general, in that it

is applicable to a wide range of multi-agent systems,

and comprehensive, in that it deals with both the

macro-level (societal) and the micro-level (agent)

aspects of systems. Gaia separates the process of

designing software into two different stages:

analysis and design (Wooldridge, Jennings & Kinny,

1999; Wooldridge, Jennings & Kinny, 2000).

Analysis involves building the conceptual

models of the target system, whereas the design

stage transforms those abstract constructs to

concrete entities which have direct mapping to

implementation code. Figure 1 depicts the main

artifacts of each stage: Role Model and Interaction

Model (Analysis), and Agent Model, Services Model,

and Acquaintance Model (Design).

2.3 Prometheus

The Prometheus methodology is a detailed AOSE

methodology that is aimed at non-experts. It has

been successfully taught to and used by

undergraduate students. Prometheus consists of three

phases: system specification, architectural design,

and detailed design (Giorgini & Henderson-Sellers,

2005; Padgham & Winikoff, 2002).

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED

SOFTWARE ENGINEERING METHODOLOGIES

The system specification is the first phase of

Prometheus. Its main purpose is building the

system's environment model, identifying the goals

and functionalities of the system, and describing key

use case scenarios.

The architectural design is the second phase of

Prometheus. The three main activities involved in

this stage are: defining agent types, designing the

overall system structure, and defining the interaction

between agents.

The internals of each agent and how it will

accomplish its tasks within the overall system are

addressed in the detailed design phase. It focuses on

defining capabilities, internal events, plans and

detailed data structure for each agent type identified

in the previous step. (Figure 2)

Prometheus is supported by two tools. The

JACK Development Environment (JDE), developed

by Agent Oriented Software (www.agent-

software.com) includes a design tool that allows

overview diagrams to be drawn. These are linked

with the underlying model so that changes made to

diagrams, for example adding a link from a plan to

an event, are reflected in the model and in the

corresponding JACK code. The Prometheus Design

Tool (PDT) provides forms to enter design entities.

It performs cross checking to help ensure

consistency and generates a design document along

with overview diagrams. Neither PDT nor the JDE

currently support the system specification phase.

2.4 Tropos

Tropos is an agent-oriented software development

methodology created by a group of authors from

various universities in Canada and Italy (Bersciani et

al. 2004; Fatemi, NematBakhsh & TorkLadani,

2006; Giunchiglia, Mylopoulos & Perini, 2002;

Leskowsky & Anderson, 2003). Tropos is based on

two key ideas. First, the notion of agent and all

related mentalistic notions (for instance goals and

plans) are used in all phases of software

development, from early analysis down to the actual

implementation. Second, Tropos covers also the

very early phases of requirements analysis, thus

allowing for a deeper understanding of the

environment where the software must operate, and

of the kind of interactions that should occur between

software and human agents. The Tropos language

for conceptual modeling is formalized in a

metamodel described with a set of UML class

diagrams.

One of the significant differences between

Tropos and the other methodologies is its strong

focus on early requirements analysis where the

domain stake-holders and their intentions are

identified and analyzed. This analysis process allows

the reason for developing the software to be

captured. The software development process of

Tropos consists of five phases: Early Requirements,

Late Requirements, Architectural Design, Detailed

Design and Implementation.

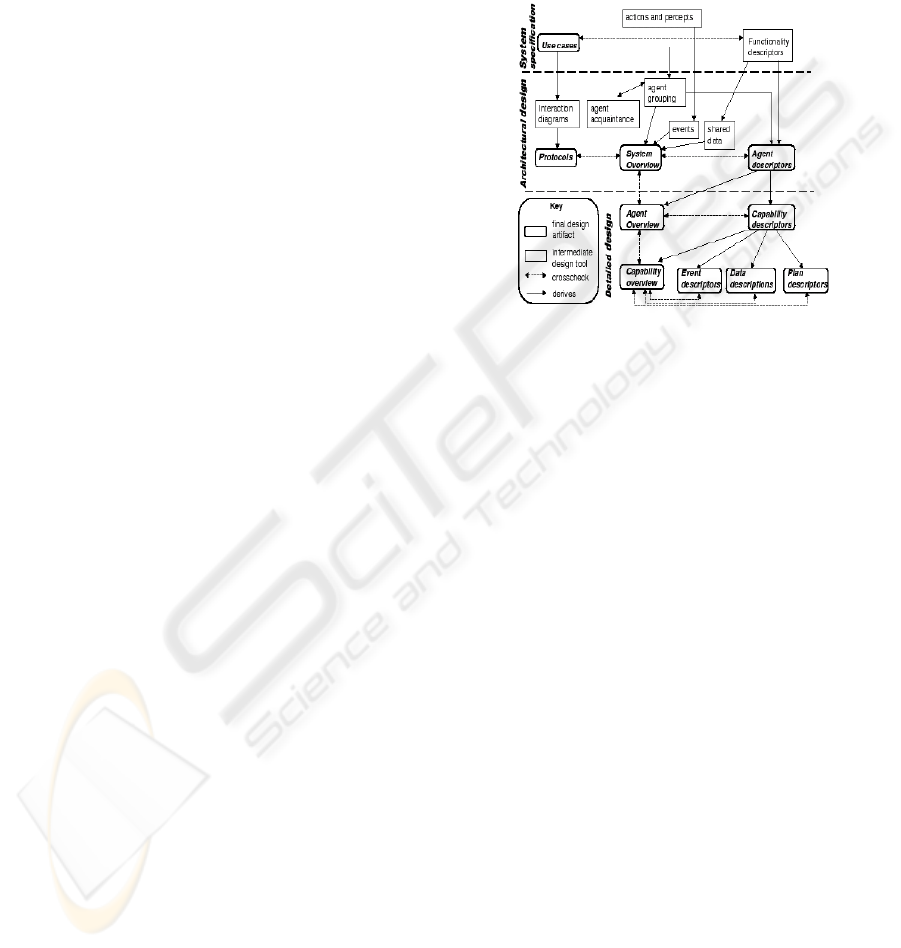

Figure 2: Overview of 3 Phases in Prometheus.

3 A COMPARISON

FRAMEWORK

In this section, we briefly describe a methodology

evaluation framework within which the

methodology comparison is conducted.

The comparison framework covers nine major

aspects of each AOSE methodology: Concepts,

Upgradeability, Modeling language, Basic

properties, Mental attitudes, Modeling, Process,

Pragmatics and Management. This framework is

adapted from a framework proposed in (Fatemi,

NematBakhsh & TorkLadani, 2006; Giorgini &

Henderson-Sellers, 2005) for comparing Agent-

Oriented Methodologies.

3.1 Concepts

Agent-oriented concepts are of great importance for

agent-oriented methodologies in general and for

agent-oriented modeling languages in particular.

Usability- to what extend the methodology is easy to

use and implement, Modeling- to what extend

concepts can be expressed in multiple

models/diagrams; Overloading- to what extend

concepts can be overloaded; Notation- to what

extend notations are semantically and syntactically

clear and simple across models?

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

3.2 Upgradeability

Mobility- how capable is the methodology in

modeling agent migration? Scalability- This

measures the methodology's support for designing

systems that are scalable. It means that the system

should allow the incorporation of additional

resources and software components with minimal

user disruption. Open Systems Support- to what

extend it can provide support for open systems to

allow dynamic integration/removal of new

agents/resources; Distribution- This criterion

measures the methodology's support for designing

distributed systems. It means the methodology

should provide mechanisms, including techniques

and models, to describe the configuration of

processing elements and the connection between

them in the running system. It shows not only the

physical of the different hardware components that

compose a system, but also the distribution of

executable programs on this hardware. More

specifically, such models need to depict the

deployment of agents over the network. Dynamic

Structure- to what extend it can provide support for

dynamic system reconfiguration when agents are

created or destroyed.

3.3 Modeling Language

Clarity and understandability- These two criteria are

closely related to each other and both of them are

fundamental requirements of a modeling language.

In fact, a methodology which provides clear

notations tends to increase the users'

understandability of the models. Consistency- to

what extend it satisfies modeling consistency (i.e. no

individual requirement is in conflict); Unambiguity-

symbols and syntax are provided to users so that

they can build a representation of a particular

concept. Thus, the semantic or meaning of a concept

is the users' interpretation of the representation

provided. However, this interpretation can be

different from observer to observer, which in turn

results in misunderstandings. Therefore, it is

important to make sure that a constructed model can

be interpreted unambiguously. Traceability- There

are relationships between models and between

models and the requirements of the target system.

Traceability requires that it has to be easy for the

designers and the audiences of the design documents

to understand and trace through the models. This

may increase the users' understanding of the system.

Tracing backwards and forwards between models

and stages also allow the users to verify that all the

requirements of the system are addressed during the

analysis and design stages. Traceability also assists

the designer produce new models by referring to the

models that have been previously constructed. A

result of doing this may be increased productivity in

the sense that information gathered from one model

can be used to construct others. Usability-It is

important for a modeling language not only to be

understandable to the users but also to be easy to

use. The first step toward using a modeling language

is to learn the notation. Hence, it is desirable that the

notation be easy to learn by both expert and novice

users. In addition, the easier the users can remember

the notation, the quicker they are able to learn to use

it. Therefore, the notation should be as simple as

possible. Furthermore, since people usually sketch

models by hand during the process of brainstorming

or reviewing designs, it is essential for the notation

be easy to draw and write by hand. Finally, as

mentioned earlier, one of the important purposes of a

modeling language is to convey information among

the users. Often this is in the form of hardcopy

documentation for reading and discussing. Hence, it

is important that the diagrams produced are easy to

read and comprehend when printed.

3.4 Basic Properties (Weak Notation)

Autonomy- Agents can operate and make their own

decision on which action they should take without

direct intervention of humans or other agents. In

other words, both agents' internal state and their own

behaviour are controlled by themselves. We want to

know does the methodology support modeling a

decision-making mechanism of agents regardless of

the environment or does the methodology support

describing an agent's self-control features? For

example, functionalities and tasks being

encapsulated within an agent may increase the

degree of autonomy. Reactivity/Proactivity- Pro-

activeness is an agent's ability to pursue goals over

time and Reactivity an agent's ability to respond in a

timely manner to changes in the environment, so the

degree of allowing reactivity/proactivity is very

important; Sociability- to what degree the

methodology provides organized relationships

among agents, represents agents’ commitments and

interfaces with other entities; Adaptability- to what

degree agents are flexible to adjust their activities to

environmental changes; Concurrency- agent's ability

to deal with multiple goals and/or events at the same

time. More specifically, agents are able to perform

actions/tasks or interact with other agents

simultaneously. We want to know what extend

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED

SOFTWARE ENGINEERING METHODOLOGIES

agents performs several tasks simultaneously;

Interactions- to what extend agents can interact with

other agents, and with environment; Human

Computer Interaction to what degree the

methodology is capable to construct models to

represent user interfaces and system-user

interaction?

3.5 Mental Attitudes (Strong Notation)

This feature relates to the strong agency definition of

agents. The three major elements of the Belief-

Desire-Intention (BDI) architecture of agents are an

example of it. The BDI architecture defines an

agent's internal architecture by its beliefs, the desires

or goals it wants to achieve and its intentions or

plans to accomplish those goals. We want to know

does the methodology support modeling mental

attitudes of agents.

3.6 Modeling

Agent-Oriented- how efficient the methodology is in

supporting modularity, hierarchical modeling,

reusability, and traceability; Abstraction- to what

degree it is efficient to produce models at various

levels of details and abstractions; Consistency-

Models should not contradict each other. This

property becomes more important as the design

evolves. More specifically, the representation of

various aspects of a system such as structure,

function and behaviour should be consistent. We

want to know does the methodology provide

guidelines and techniques for consistency checking

both within and between models, do the

methodology supported by tools that provide model

consistency checking or is data dictionary used to

avoid naming clashes between entities.

3.7 Process

An ideal methodology should cover six stages,

which are enterprise modeling, domain analysis,

requirements analysis, design, implementation and

testing. Methodologies which cover all aspects of

the system development are more likely to be chosen

because of the consistency and completeness they

provide. Development principles- This criterion

addresses the lifecycle coverage in a broad view. It

examines the development stages and their

corresponding deliverables described within the

methodology. In addition, it examines the supporting

software engineering lifecycle model and

development perspectives. Process step- Differing to

the above criterion, this one measures the lifecycle

coverage in more detail. In fact, an important aspect

in evaluating whether a methodology covers a

particular process step is the degree of detail

provided. Estimating and quality assurance

guidelines: These two criteria determine if such

guidelines are provided within the methodology

process. Estimating guidelines are important to task

planning. Quality assurance guidelines provide the

assessors with useful information in evaluating the

merit of the delivered product. Supporting

development context: This criterion identifies the

development context supported by the methodology.

A development context specifies a set of constraints

within which the software development has to take

place.

3.8 Pragmatics

Maturity: The maturity of a methodology is a factor

that can play an important role in determining the

quality of a methodology. There are several ways to

measure the maturity of a methodology, for

example: What are available resources supporting

the methodology? What is the methodology's

"experience" such as the history of the methodology

use? What are available resources supporting the

methodology? Domain applicability: This considers

whether the methodology is targeted at a specific

type of software domain such as information

systems, real time systems or component based

systems. With regard to this issue, the methodology

that is applicable to a wide range of software

domains tends to be more preferred.

3.9 Management

Management Decision- to what degree the

methodology can be accepted by management; Cost

Estimation - to what degree it is economically

feasible?

4 SELECTING PARTICIPANTS

There were 8 participants in the experiment

(evaluators), all of whom were taking a specialized

graduate course in Agent-Oriented Software

Engineering. They all had adequate knowledge and

experience in software development. The

participants were provided sufficient documentation

about the methodologies, clear instructions about the

experiment, and equal amount of time to complete

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

their task using well-prepared surveying

questionnaires.

5 SELECTING THE

APPROPRIATE STATISTICAL

MODEL

In (Elamy and Far, 2005), they compared 9

methodologies and the statistical model was One-

way ANOVA model for a Complete Random Design

(CRD), they decided to have at least 4 replicas for

each of the 9 treatments. they have two limitations

there. First, they suspect that there is heterogeneity

among evaluators for many reasons, such as

technical experience; although the randomization

will tend to spread the heterogeneity around to

reduce bias, we still have a strong limitation, which

is the lack of resources; they have only 12

participants. To bypass this lack, they decided to

make use of each participant to assess more than one

methodology. This solution headed us to consider a

2-way ANOVA model with blocking.

In this model, each block of treatments will be

assigned at random to one participant. If we used a

Randomized Complete Block Design (RCBD), each

evaluator should assess a complete block, i.e. 4

methodologies, and the design will probably more

effective because we will have more replications,

3248 =×

, by assuming considerable variability

within blocks. Unfortunately, this design has also a

limitation that makes it hard to implement, because

not all the participants are familiar with the whole

methodologies.

After a thorough analysis and extended

discussions, they ended up the battle by adopting the

two-way Balanced Incomplete Block Design (BIBD)

additive model with fixed-effects,

ijjiij

Y ∈+++=

βαμ

Where

i =1 to t; t = number of treatments = 4

j=1 to b; b = number of blocks = 8

=the observation (effectiveness) recorded on

the treatment (methodology) i by the evaluator

assigned to the block j

= overall mean of experiments of this type

=treatment main effects, the deviation from

the mean caused by the

treatment;

∑

(fixed

effects)

=main effects of the column blocking variable,

the deviation from the mean caused by the

block;

∑

(fixed effects)

∈

=independent random error

),0(~

and

k = number of treatments per block = 3; r =

number of replications per treatment = 4;

number of times any pair of treatments appears

together in the same block =

1)1/()1( =−− tkr

This model is referred to as “balanced” because

each block will have the same number of treatments,

“additive” because no interactions are considered

between factors, “incomplete” because each

participant will not evaluate a complete set of

treatments (4 methodologies), “fixed” because we

were limited to narrow down the selection of the

qualified methodologies upon our own interest by

looking into specific measures, and not at random

from a large number of methodologies; thus, if we

decided to repeat the experiment we would use the

same methodologies, and not reselecting new ones

randomly. In fact, this model is applicable for both

RCBD and BIBD; however, the analysis is different.

By denoting the nine methodologies with letters

from A to D as shown in Table 1, we can obtain 16

replicas; which satisfies our goal of having 4

replicas for each treatment.

Table 1: BIBD assignment.

Treatments(Methodologies),i

M4 M3 M2 M1

B A E1

B A E2

D C E3

D C E4

B A E5

B A E6

D C E7

D C E8

Block

(evaluators)

, k

M=Methodology; E=Evaluator

6 COMPARING

METHODOLOGIES

Based on the comparison framework (Section 3),

Statistical Model proposed in section 5 and based on

the users view points; we have performed a brief

comparison between selected methodologies that is

explained below.

6.1 Concepts

Usability-We attempted to measure how complex a

methodology is to users, by using UML (Unified

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED

SOFTWARE ENGINEERING METHODOLOGIES

Modeling Language) and RUP (Rational Unified

Process) as a benchmark. There seems to be an

agreement among the respondents that the four

methodologies are about the same complexity as

UML and RUP. However, it is not clear that there

was a consensus on the perceived complexity of

UML+RUP, and so the answers to this question did

not allow any strong conclusions to be drawn.

Notation- the responders generally agreed that the

methodologies' notation were clear and the symbols

and syntax are well defined. These indicate the

notations provided by all of the four methodologies

are fairly clear and understandable.

6.2 Upgradeability

Dynamic Structure and Scalability- Regarding this

criterion, most of the respondents stood on a neutral

point of view. In our perspective, this issue is not

explicitly addressed in any of the methodologies.

More specifically, they do not tell how to deal with

the introduction of new components or modules in

an existing system. Open Systems Support- none of

the methodologies support design of open systems.

Distribution- Overall, all of the methodologies

implicitly supports distribution. This is partially due

to the nature of agent-based systems. When

developed, agents communicate with each other via

a message passing system. In other words, agents are

not coupled until an interaction needs to occur. As a

result, the agents do not necessarily populate on the

same systems. The results from the questionnaire

also agreed with that view. Responses on this

criterion on average range from Neutral to Agree.

MaSE is an exceptional case in that the system

design step of MaSE allows the developers to design

and allocate agents over the network. It is supported

by the Deployment Model, a representation of agent

types and their location on the network. Therefore,

we tend to strongly agree with all the respondents of

MaSE that the methodology provides sufficient

support for distribution.

6.3 Modeling Language

Clarity and understand ability- the responders

generally agreed that the methodologies' notation

were clear and the symbols and syntax are well

defined. These indicate the notations provided by all

of the four methodologies are fairly clear and

understandable. Consistency- In terms of

consistency checking, the level of support differs

between methodologies. MaSE and Prometheus

support it well whereas Tropos and Gaia do not

appear to support it. These responses seem to relate

the availability of tool support integrated with the

methodology. PDT (Prometheus) and agent Tool

(MaSE) provides a strong support for model and

design consistency checking. Traceability- Likewise

to consistency, MaSE and Prometheus appear to be

the leader in terms of supporting this feature. The

responders of these two methodologies, including us

agreed that there are clear links between models

provided by them. For instance, goals, roles, agents,

and tasks are all linked together. This strong

connection improves the ability to track

dependencies between different models. Such

connections, as described in one of the paper related

to MaSE, allow developers to (automatically or

manually) derive design models (e.g. an agent's

internal architecture) from analysis constructs.

Unambiguity- Semantics is also well-defined by all

the methodologies. For Gaia, the student felt that the

semantics of Gaia's modeling language are not well-

defined. However, we tend to disagree with that. The

meaning of symbols and models in Gaia is in fact

defined in detail. Tropos was another interesting

case: there was disagreement on whether the

concepts were clear, and whether the notation was

clear and easy to use; furthermore, there was

disagreement on whether the syntax was defined, but

oddly, there was consensus that the semantics were

defined. For the remaining two methodologies, there

was an agreement (strongly agree - agree) that the

modeling language is unambiguous in the sense that

the semantics of the notation is clearly defined.

Usability- Overall, most of the respondents agreed

that the notations of the four methodologies are easy

to learn and use. This also relates to the agreement

of the understand ability and clarity of the notation

as discussed above. Tropos is, however, an

exception case. One of its authors strongly agrees

and the other agrees that the modeling language of

the methodology is easy to use. In contrast, the user

and we preferred to take a neutral view on this

criterion. This is due to the fact, unlike MaSE and

Prometheus, Tropos does not have a tool support

integrated with the methodology. As a result, users

may find it difficult to draw diagrams, checking

model consistency, etc.

6.4 Basic Properties (Weak Notation)

Autonomy- According to the responses from the

survey and our assessment, all of the four agent-

oriented methodologies recognize that importance.

The level of support for autonomy in all of them is

overall "good" (ranging from medium to high). This

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

is reacted by the fact that all the four methodologies

provide various supports for describing an agent's

self-control features. For instance, functionalities

and tasks are encapsulated within an agent. In

addition, plan diagrams in Tropos, concurrent task

diagrams in MaSE, or plan descriptors in

Prometheus allow the decision-making mechanism

of agents to be modelled regardless of the

environment and other entities. That mechanism is

based upon the agents' goals and their roles within

the system. Pro-activeness and reactivity- Based on

the results, it seems that these two attributes are

difficult to measure we received highly varying

responses. They seem to be fairly well supported by

some of the four methodologies (medium-high for

MaSE and Prometheus, mostly high for Tropos).

Similarly to mental attitudes, this can be explained

by the fact that in these three methodologies agents'

goals are captured and so are the execution of plans

(i.e. actions or tasks) to achieve these goals. In

addition, Prometheus has the action descriptors

which are a means for specifying agents' responses

to environment changes in terms of external events.

Concurrency- In terms of support for concurrency,

although the ratings are mostly medium high and

vary considerably, MaSE is probably best with its

concurrent task diagrams and communication class

diagrams. The former is used to specify how a single

role can concurrently execute tasks that define its

behaviour. The latter, also expressed in the form or a

finite state machine, is able to define a coordination

protocol between two agents. Prometheus was rated

as being one of the weakest although we should note

that the handling of protocols in Prometheus has

been developed since the time of the questionnaire.

Sociability- Although the methodologies all support

cooperating agents, none of them support teams of

agents in the specific sense of teamwork. All of the

methodologies provide a wide range of

communication modes. More specifically, they

support both direct/indirect and

synchronous/asynchronous communication.

6.5 Mental Attitudes (Strong Notation)

Prometheus and Tropos support well (medium to

high) the use of mental attitudes (such as beliefs,

desires, intentions) in modeling agents' internals.

The percept and action descriptors in Prometheus

and the actor diagrams in Tropos represent the agent

knowledge of the world (i.e. beliefs). Goals and

plans are also modelled in the two methodologies. In

contrast, MaSE and Gaia provide weaker support for

capturing an agent's mental attitudes. MaSE have

goal diagram but they do not have a representation

of the agent's belief.

6.6 Modeling

Agent-Oriented- To some extent, all the

methodologies supports traceability, In terms of

consistency checking, the level of support differs

between methodologies. MaSE and Prometheus

support it well whereas Tropos and Gaia do not

appear to support it. Modularity and hierarchical

modeling are generally well-supported (although

there was disagreement from the student using

Tropos) however reusability is not well handled by

any of the methodologies. Consistency- MaSE and

Prometheus support it well whereas Tropos and Gaia

do not appear to support it.

6.7 Process

Development principles- From the software

development life-cycle point of view, all four

methodologies cover requirements analysis, and

architectural design. Some of them (MaSE and

Prometheus) go further than that with description of

detailed design, implementation and

testing/debugging. Deployment is only addressed in

MaSE. Process steps: The process steps described in

the requirements analysis and design phases are also

addressed well in most of the four methodologies.

Detailed design is not well documented in Gaia.

Furthermore, a common feature in all the

methodologies is the lack of management making

decisions in performing the process steps such as

when to move to the next phase, etc. Estimating and

quality assurance guidelines: Because of the

immaturity of agent-oriented methodologies, issues

relating to cost estimating or quality assurance are

not addressed in all four methodologies. They

probably rely on the current software engineering

practice of these matters. Supporting development

context: Top down design and "Greenfield"

development is the popular approaches employed by

most of the four methodologies.

6.8 Pragmatics

Maturity- Regarding the availability of resources

supporting the methodologies, most of them are in

the form of conference papers, journal papers or

technical reports. The availability of tool support is

varies. MaSE and Prometheus are well supported

with agentTool (MaSE) and JDE and PDT

(Prometheus). According to the authors of MaSE

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED

SOFTWARE ENGINEERING METHODOLOGIES

(based on the questionnaire's responses), agentTool

can be used as a diagram editor, a design

consistency checker, code generator and automatic

tester. They also revealed that agentTool has been

downloaded and used by many people in academia

as well as industry and government. The tools

supporting Prometheus, PDT and JDE, also provide

a similar range of functionalities. PDT supports for

drawing diagrams, checking model and design

consistency, and generating reports. JDE (Jack

Development Environment) can be used a design

tool to build the structure of an agent system in

which the concepts provided by JACK match the

artifacts constructed in Prometheus' detailed design

phase. Tropos has only weak tool support (a diagram

editor) whereas there is no tool support for Gaia that

we are aware of. Although we attempted to

determine how much "real" use (as opposed to

student projects, demonstrators etc.) had been made

of each methodology, it was not clear from the

responses to what extent each methodology had been

used, who had used the methodology, and what it

had been used for. Nevertheless, to our knowledge,

MaSE was used to design a team of autonomous,

heterogeneous search and rescue robots (Scott et al.

2002). Tropos was used to develop a web-based

broker of cultural information and services for the

government of Trentino, Italy (Bresciani et al. 2002)

and an electronic system called Single Assessment

Process to deliver an integrated assessment of health

and social care needs for older people (Mouratidis et

al. 2002 ). Domain applicability: The respondents

tended to agree that there is no limitation to the

application domains where one of the four agent-

oriented methodologies can be applied.

6.9 Management

Cost Estimation- None of the methodologies seem to

address cost estimating guidelines. Management

Decision- None of the methodologies seem to

address management decision, Although one

respondent indicated that Tropos provides some

support for decision making by management, e.g.

when to move between phases, we do not agree with

this assessment.

7 CONCLUSION AND FUTURE

WORKS

One of the most fundamental obstacles to large scale

take-up of agent technology is the lack of mature

software development methodologies for agent-

based systems. Even though many Agent Oriented

Software Engineering (AOSE) methodologies have

been proposed, few are mature or described in

sufficient detail to be of real use. An important step

towards a complete unique methodology is to

understand the differences between the various key

methodologies, and to understand each

methodology's strengths, weaknesses, and domains

of applicability.

In this paper, we use a new statistical approach,

based on adopting the incomplete block design

model to evaluate the four AOSE methodologies.

Overall, all four methodologies provide a reasonable

support for autonomy, mental attitudes, pro-

activeness, and reactive ness. The notation of the

four methodologies is generally good. Most of them

have a strong modeling language in terms of

satisfying various criteria such as clarity and

understandability, adequacy and expressiveness,

ease of use, and unambiguity. However, there are

several exceptions. Tropos was not perceived as

being easy to use whilst GAIA was both ranked

weakly on adequacy and expressiveness. In addition,

only Prometheus and MaSE provide techniques and

tools for maintaining the consistency and traceability

between models. For the other two methodologies,

there is still more room for improvement with

respect to these issues. It is also emphasized that

none of the evaluated methodologies explicitly

provide techniques, guidelines, or models to

encourage the design of reusable components or the

reuse of existing components. Regarding the

process, only Prometheus and MaSE provide

examples and heuristics to assist developers from

requirements gathering to detailed design. Gaia was

not support detailed design. Additionally, even

though all phases from early requirements to

implementation are mentioned in Tropos with

examples given, the methodology does not appear to

provide heuristics for any phase. Implementation,

testing/debugging and maintenance are not clearly

well-supported by any methodology.

Additionally, some important software

engineering issues such as quality assurance,

estimating guidelines, and supporting management

decisions are not supported by any of the

methodologies.

As agent-oriented methodologies continue to be

developed, research will keep aiming at the direction

of determining which agent-oriented methodologies

are best suited to support the development of a

particular project or system. Hence, there are various

future works that can be done in this area.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

ACKNOWLEDGEMENTS

We would like to thank Dr.Faraahi, for his valuable

comments on a draft of this paper.

REFERENCES

Bresciani, P., Giorgini, P., Giunchiglia, F., Mylopoulos, J.,

Perini, A. (2004) Troops: An agent-oriented software

development methodology. From Trento University,

Department of Information and Communication

Technology.

Fatemi, A., NematBakhsh, N.,TorkLadani, B.(2006). An

Investigation of Agent Oriented Software Engineering

Methodologies to Provide an Extended Methodology,

IEEE International conference on Information and

Communication Technologies, 0-7803-9521.

Elamy, H., Far, H. (2005) Utilizing incomplete block

designs in evaluating agent-oriented software

engineering methodologies, IEEE International

conference on Electrical and Computer Engineering,

0-7803-8886.

Giorgini, P., Henderson-Sellers, B. (2005). Agent-

Oriented Methodologies, IDEA GROUP. United

States of America, 1

edition.

Luck, M., McBurney, P., Preist, C. (2003). Agent

technology: Enabling next generation computing: A

roadmap for agent-based computing. AgentLink

report. Retrieved from www.agentlink.org/roadmap.

Wooldridge, M., Jennings, N.R. & Kinny,D. (1999). A

Methodology for Agent-Oriented Analysis and

Design. In Proceedings of the third international

conference on Autonomous Agents and Multi-Agent

Systems, Seattle, WA.

Wooldridge M., Jennings N.R., Kinny, D. (2000) , The

Gaia Methodology for Agent-Oriented Analysis and

Design, From Liverpool University, Department of

Computer Science.

Giunchiglia, F., Mylopoulos, J., Perini, A. (2002). The

Tropos software development methodology:

Processes, Models and Diagrams. In Third

International Workshop on Agent- Oriented Software

Engineering.

Wooldridge, M., (1997) Agent-based software engineering

In IEE Proc. on Software Engineering, 144 (1) 26-37.

Waldner, A., Fuster , P., (2002). An Agent Oriented

Methodology: High Level and Intermediate Models.

Scott A. DeLoach, Mark F.Wood, and Clint H. (2001)

Sparkman. Multiagent systems engineering.

International Journal of Software Engineering and

Knowledge Engineering, 11(3):231–258.

Padgham, L., Winikoff, M., (2002). Prometheus: A

methodology for developing intelligent agents. In

Third International Workshop on Agent-Oriented

Software Engineering.

Leskowsky, Z. and D. Anderson (2003). Comparing Agent

Oriented Methodologies. American Society of System.

Castro, J., Kolp, M., Mylopoulos, J., (2002). Towards

requirements-driven information systems engineering:

The tropos project, Information Systems, Elsevier:

Amsterdam, The Netherlands.

Bresciani, P., Giorgini, P., Giunchiglia, F., Mylopoulos J.,

& Perini, A. Towards an Agent Oriented approach to

Software Engineering", In the Workshop Dagli oggetti

agli.

Bresciani, P., Giorgini, P., Giunchiglia, F., Mylopoulos, J

and Perini, A. (2002). Troops: An agent-oriented

software development methodology. Technical Report

DIT-02-0015, from Trento University, Department of

Information and Communication Technology.

Scott A. DeLoach, Eric T. Matson, and Yonghua Li.

(2002). Applying agent oriented software engineering

to cooperative robotics. In Proceedings of the The 15th

International FLAIRS Conference.

Mouratidis, H., Giorgini, P., Manson, G., & Philp, L.,

(2002). Using Tropos methodology to Model an

Integrated Health Assessment System. In Proceedings

of the 4th International Bi-Conference Workshop on

Agent-Oriented Information Systems.

USING A TWO-WAY BALANCED INCOMPLETE BLOCK DESIGN TO COMPARING AN AGENT-ORIENTED

SOFTWARE ENGINEERING METHODOLOGIES
