DEFINING AND USING A METAMODEL FOR

DOCUMENT-CENTRIC DEVELOPMENT METHODOLOGIES

Manuel Bollain and Juan Garbajosa

System and Software Technology Group, Technical University of Madrid (UPM), E.U. Informatica

Km. 7 Cra. Velencia, E-28031 Madrid, Spain

Keywords:

Document centric software engineering, document-driven software engineering, product and process mod-

elling.

Abstract:

The concept of software product is often associated to software code; process documents are, therefore, con-

sidered as by-products. Also very frequently, customers primarily demand ”results” and, in a second place,

documentation. Development efforts are then focused on code production at the expense of documents quality

and corresponding veriﬁcation activities. As discussed within this paper, one of the root problems for this is

that documentation in the context of methodologies is often described with not enough level of detail. This

paper presents a metamodel that faces this problem. It is an extension of ISO/IEC 24744, the metamodel for

methodologies development. Under this extension, documents can become the drivers of the methodology

activities. Documents will be the artifact in which method engineers should focus for methodology devel-

opment, by deﬁning its structure and constraints. Developers will put their effort in ﬁlling sections of the

documents as the way to progress in the process execution. This process execution will be guided by those

documents deﬁned by the method engineers. This approach can be, as well, the basis for a new approach to a

Document-Centric Software Engineering E nvironment.

1 INTRODUCTION

In software production, work products are both pro-

grams and documents. Methodologies describe the

activities and tasks for producing such documents and

programs but in many cases, organizations have prob-

lems for following the deﬁned process (if any). Time

schedule delays force developers to skip over docu-

ment production, and related activities, trying to re-

lease a ”operational” product in time. This is a com-

mon situation that pushes companies to adhere to pro-

cess maturity models, and attain a maturity level. Ma-

turity models maybe a baseline to guide the efforts to

cope with the documentation issue, but not a complete

solution, even in the case of deﬁning a speciﬁc matu-

rity model for the documentation process as in (Vis-

conti and Cook, 1993), more in scenarios with strong

time constraints or high pressure. Technicians like to

solve technical problems, and associated documenta-

tion is often considered as the ”boring” part of the

work. For all these reasons, documentation quality is

often neglected. We can also consider applying agile

methods and therefore to reduce the effort in docu-

mentation production, and maintaining some control

over documentation quality and completeness, but the

ongoing debate still remains the same: ”Working soft-

ware over comprehensive documentation” (Boehm,

2002).

One of the root problems is that the existing pre-

deﬁned processes and methodologies consider docu-

ments as one of their natural outputs. Very often they

simply provide guidelines on how to perform the pro-

cess considering proper documents as resulting from

performing good process practices. The problem with

this assumption is that, being true, the granularity

level is too coarse. It is necessary to establish, as for-

mally as possible, the existing relationship between

documents and the rest of the elements of the soft-

ware process at a level of detail enough to consider

the production of documents not simply as a result of

activities but as a part of the process itself.

Within this paper, the concepts of process and

Bollain M. and Garbajosa J. (2007).

DEFINING AND USING A METAMODEL FOR DOCUMENT-CENTRIC DEVELOPMENT METHODOLOGIES.

In Proceedings of the Second International Conference on Evaluation of Novel Approaches to Software Engineering , pages 33-40

DOI: 10.5220/0002586400330040

 SciTePress

methodology as described in (Gonzalez-Perez and

Henderson-Sellers, 2005) will be followed, and ap-

plied in the context of ISO 24744:2007 emerging

standard (ISO, 2007). Following this standard, a doc-

ument is a durable depiction of a fragment of real-

ity. However it is possible to be more concrete and

consider that a document will be composed of sec-

tions and subsections. It is possible to describe mod-

els in terms of documents, assuming that documents

are structured; UML class model is an example when

described using OCL. It is just necessary to describe

the model in a textual fashion. In our approach, all

the activities must correspond with a product, that is,

a document; we adopt a strategy in which all the pro-

cess outputs can be represented as documents, in other

words, a document-centric perspective of the software

process as in (Luqi Zhang et al., 2004) and (Bollain

et al., 2003). According to this, all the activities will

produce a ”touchable” result in form of a document;

this includes source code. The approach to this re-

search work is based on specifying the relationship

between documents and the rest of the elements of

the software process.

It is common that standards deﬁne activities as

lists of tasks in which the verb to document partici-

pates at the beginning or the end of the list. For ex-

ample, in ISO 12207 (ISO, 1995), we can go to sec-

tion 5.3.4.1 that reads The developer shall establish

and document software requirements, including the

quality characteristics speciﬁcations, described below

[...]. As discussed above, in many cases, the descrip-

tion of an activity includes the act of documenting

its execution results. This takes us to a situation in

which, in practice, the tools used for assisting in an

activity have some sort of utility intended for report

or document generation. This report or document will

contain the results of the activity, that is what is usu-

ally understood as the software product. This makes

the activity execution and to document two different

issues. If we accept that all software products will

be documents, corresponding to previously deﬁned

templates, and that activities will be deﬁned in accor-

dance to that templates, the act of document creation

will mean performing the corresponding activities or

tasks. With this approach we found the following ad-

vantages:

• All the project information is within documents,

following the template established by the method

engineer and there is no need of further work for

documenting the performed activities. This will

require to deﬁne modelling formalisms in terms

of documents as outlined in (Bollain et al., 2003).

Stakeholders models adopted in software process

models such as (Sharp et al., 1999) and (Robinson

and Volkov, 1997) can be partially supported as

well with this approach. Deﬁning roles for differ-

ent participants or stakeholders could be achieved

using different points of view of each stakeholder

for different documents or document sections.

• Documentation preparation is timely. This is

ISO/IEC 12207, section 6.4.2.7 compliant. As

progress in the development process is through

documents fulﬁllment, it is not necessary verify

if documentation preparation is timely.

This paper is structured as follows: this section, 1,

is an introduction. Related work is analysed in section

2. The necessary ISO/IEC 24744 standard extensions

for achieving a document-centric methodology deﬁni-

tion, the outcome classes and types and the new rela-

tionships will be explained in section 3. How to make

a usage of this extension for deﬁning a document-

centric methodology will be developed in section 4,

and ﬁnally, some conclusions, advantages of the ap-

proach, pitfalls and future work will be presented in

section 5.

2 RELATED WORK

Document-centric approach has been addressed such

as in (Luqi Zhang et al., 2004) and more recently in

(Rausch et al., 2005). Reference (Luqi Zhang et al.,

2004) introduces a document centric approach and

concludes that a document driven approach is feasi-

ble and useful; however the approach is different in

the sense it is not based on a study on process meta-

modelling but rather on how documents can be trans-

lated from a user oriented form into machine equiva-

lent forms more oriented to be processed and how to

get advantage of this. Reference (Rausch et al., 2005)

introduces some ideas in line with this work but they

are not developed in detail. Reference (Nguyen and

Munson, 2003) presents and environment in which

documents play an essential role, but the work de-

scribed is oriented to support web applications. XML

documents contain the information of the project, that

is, documents and data are the same as described in

(Nguyen et al., 2003). This approach makes it pos-

sible to support traceability and conﬁguration man-

agement on the document itself. In all the cases, the

source code is still independent from the project doc-

uments.

The use of documents to drive the software pro-

cess is presented in (Bollain et al., 2003) and (Alarc

et al., 2004); it can be considered as a precedent

research work to this one, but the theoretical back-

ground is not provided within here; these references

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

also introduce which are the requirements for docu-

ments to support models.

There are several techniques for deﬁning and sup-

porting process. Process deﬁnition usually lies on

Process Modeling Languages (PML) based on some

linguistic paradigms such as (Cass et al., 2000), Petri

nets or logical languages; several of them are dis-

cussed in (Fuggetta, 2000). Others are component-

based software process support (Gary et al., 1998),

role-based approaches (Kopka and Wellen, 2002), co-

ordination rules (Ciancarini, 1995); some interesting

reﬂections can be found in (Barnes and Gray, 2000).

Even process support could based on tools integration

mechanisms, like in (Pohl et al., 1999).

In (Gonzalez-Perez and Henderson-Sellers,

2005), several approaches on process metamodelling

are discussed: a well accepted modelling language as

UML (OMG, 2001) deal with modelling issues but

neglect process, while widespread methodological

frameworks such OPEN (Atkinson and Kune, 2000)

or Extreme Programming] (Beck, 1999) emphasize

the process side and are less detailed when it comes

to work product. In the beginning of 2007, ISO/IEC

24744:2007 (ISO, 2007) Metamodel for development

methodologies was published; it offers a balance

between process and product in the methodology

deﬁnition issue. This standard has been the basis for

deﬁning our metamodel in which process and product

will be closely related.

Other related works include document extraction

from central repositories like in (Gray et al., 1999),

(Henrich, 1996)and (Singh and Han, 1997). Docu-

ment contents is based on project information, but just

as a result of querying the project repository. Also

Hypertext linking management in HTML documents

has been studied in (Devanbu et al., 1999) and (Oinas-

Kukkonen, 1999), where part of the project data, like

traceability information, is in the document, but the

document info is still the result of querying a reposi-

tory.

3 A METAMODEL FOR

SUPPORTING DOCUMENTS AS

FULL PRODUCTS

ISO/IEC 24744 standard (ISO, 2007), has a three do-

main context: the metamodel domain, the method-

ology domain and the endeavour domain, as shown

in ﬁgure 1. According to ISO/IEC 24744 an endeav-

our is an Information-based domain development ef-

fort aimed at the delivery of some product or service

through the application of a methodology.

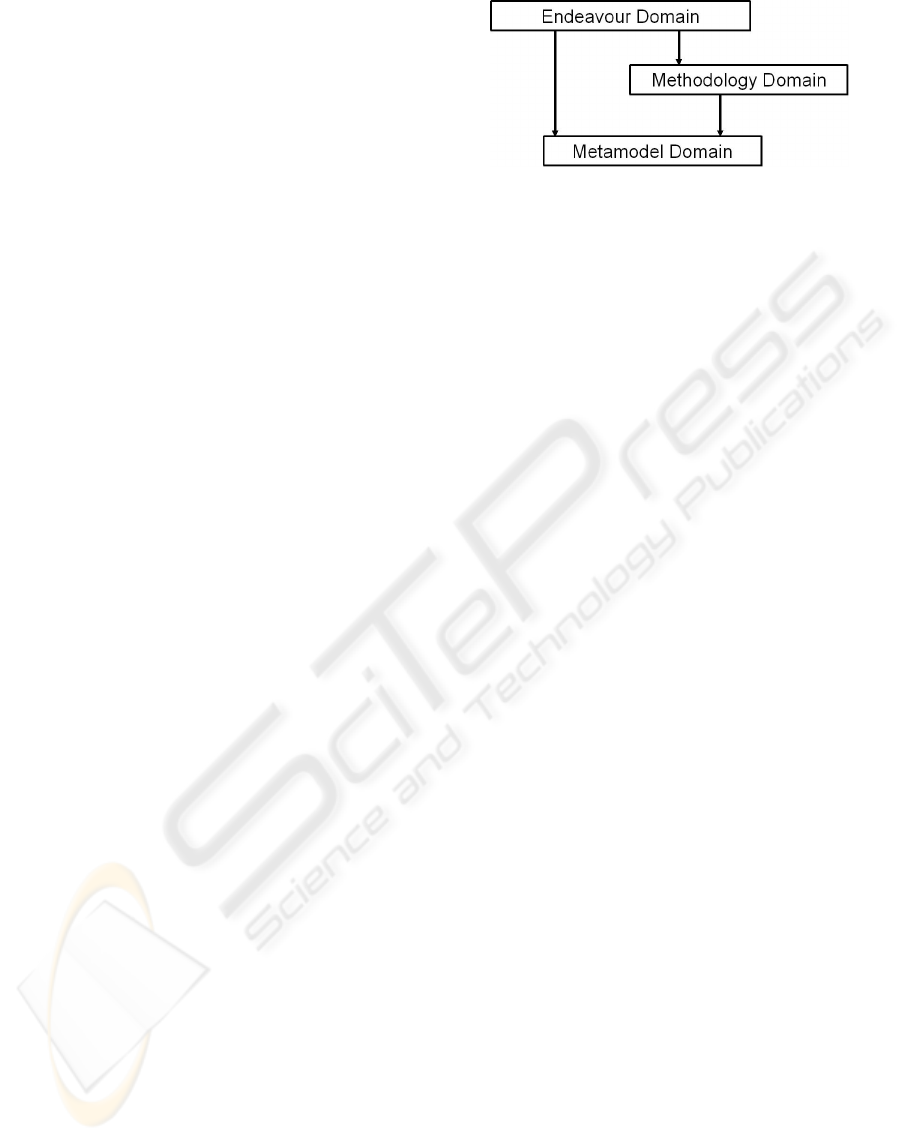

Figure 1: Three domains layers conforming to ISO/IEC.

24744:2007

Metamodels are useful for specifying the con-

cepts, rules and relationships used to deﬁne method-

ologies. A methodology is the speciﬁcation of the

process to follow together with the work products

to be used and generated, plus the consideration of

the people and tools involved, during an Information-

based domain development effort. A methodology

speciﬁes the process to be executed, usually as a set

of related activities, tasks and/or techniques, together

with what work products must be manipulated (cre-

ated, used or changed) at each moment and by whom,

possibly including models, documents and other in-

puts and outputs. In turn, specifying the models that

must be dealt with implies deﬁning the basic building

blocks that should be used to construct these models.

Most metamodelling approaches deﬁne a meta-

model as a model of a modelling language, process

or methodology that developers may employ. Follow-

ing this conventional approach, classes in the meta-

model are used by the method engineer to create in-

stances (i.e. objects) in the methodology domain and

thus generate a methodology. However, these objects

in the methodology domain are often used as classes

by developers to create elements in the endeavour do-

main during methodology enactment. This apparent

contradiction is solved by conceiving a metamodel as

a model of both the methodology and the endeavour

domains. Thus, we ﬁnd a dual-layer modelling, one

layer in the methodology domain and other in the en-

deavour domain. Modelling a methodology element

in both layers should be performed by means of Clab-

jets, that is a dual entity that is a class (for the endeav-

our layer) and an object (for the methodology layer)

at the same time

ISO/IEC 24744 is an open and ﬂexible standard

and has been designed to be extended. Therefore the

approach to deﬁne in detail the existing relation be-

tween documents, tasks and other process elements

was to extend ISO/IEC 24744 to provide the method

engineer with a new tool. ISO/IEC 24744 classes are

immutable. It is allowed to introduce new attributes

and relationships only in new extended classes.

ISO/IEC 24744 contains a relationship between

producer, task and document, as shown in ﬁgure 2,

DEFINING AND USING A METAMODEL FOR DOCUMENT-CENTRIC DEVELOPMENT METHODOLOGIES

but this is not enough for deﬁning a direct relation-

ship between them. ISO/IEC 24744 classes will be

extended in order to obtain a direct relationships be-

tween producer (role) and product (document). The

same type of relationship between document, task,

technique and tool is required. The following para-

graphs present how classes have been extended.

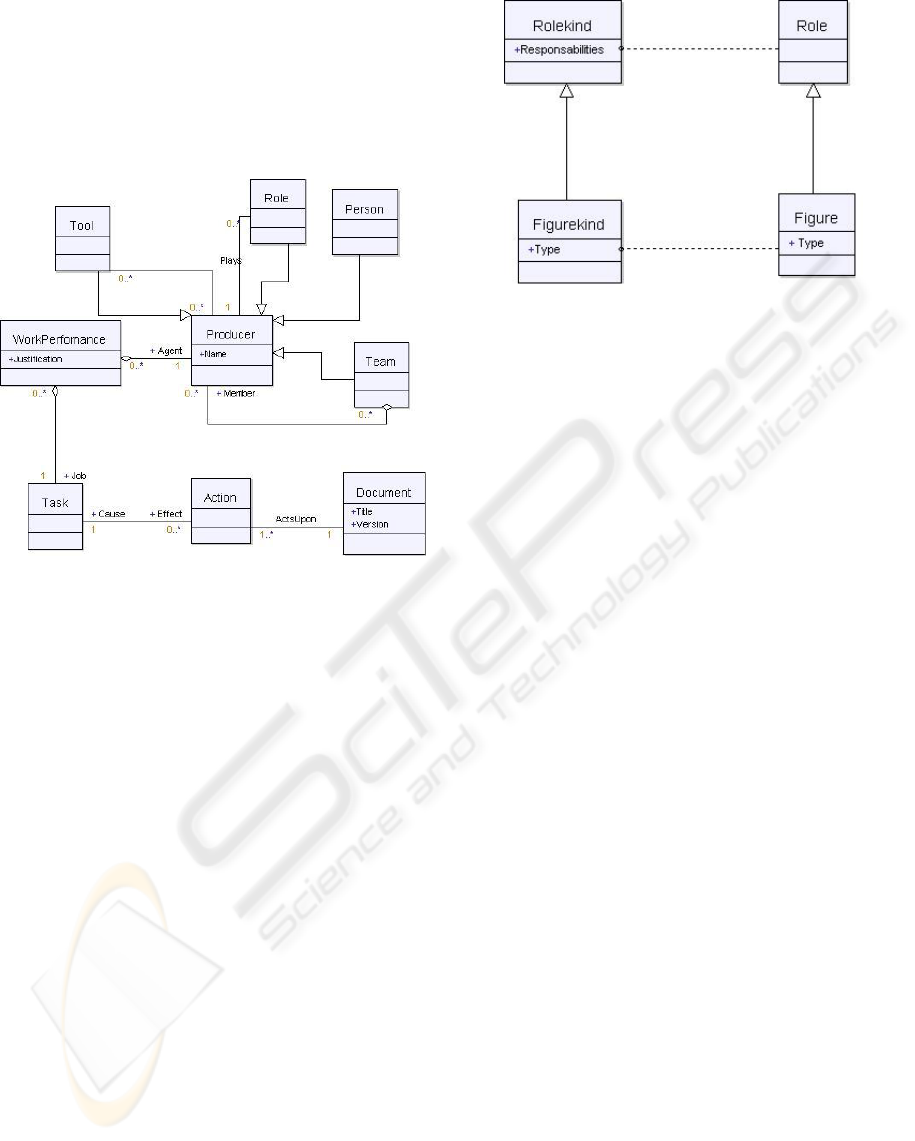

Figure 2: Relationships between producers, tasks and doc-

uments in the standard.

Extension of Role class: this is a subclass of Pro-

ducer. In ISO/IEC 24744 it is possible to deﬁne the

roles to be played by persons, teams or even tools.

There is a indirect relationship between producers and

products through Workperformance, Task and Action

classes. It is possible to specify which producers have

been involved in different products creation, but is

not possible state explicitly which participant is in-

volved in the creation of a particular product. In our

approach, a direct relationship for setting this partic-

ipation is needed. At the same time, it is necessary

to set the producers role type in relation to the prod-

uct. For achieving this, a new attribute called Type

is created with two possible values: producer or con-

sumer. The new extended class is called Figure and it

is a subclass of the ISO/IEC 24744 class Role. Both

extended classes in the methodology domain and in

the endeavour domain are shown in ﬁgure 3.

Extension of Document Class: As presented

in ﬁgure 4, Document class and its parent class,

WorkProduct are the main classes of our approach. It

is important to highlight that a Document could have

a parent document. This hierarchy allows a subdocu-

ments schema that could be used to support document

sections and subsections. This provides the meta-

model with a mechanism for deﬁning the methodol-

ogy documentation at any level of detail, depending

on the required document granularity. The Document

Figure 3: Role Class Extension.

class extension is necessary for setting the following

new relationships:

• Relationship with producers, that is, with Figure

class, as previously discussed.

• Relationship with tasks, techniques and tools

needed for document or subdocument (section)

development. In ISO/IEC 24744 there is a di-

rect relationship between tasks and products (doc-

uments) through the Action class, but is not pos-

sible to state the same type of relationship with

the applicable techniques. Although this direct

relationship is not necessary in the methodology

domain, we consider it essential in the endeav-

our domain for our approach. The same case oc-

curs with tools relationship: there is no direct re-

lationship in ISO/IEC 24744, but we consider it

necessary for achieving a well deﬁned document-

centric methodology .

• Relationship between documents for setting up

constraints among them. In the methodology do-

main, the different types of documents and the

constraints among them should be deﬁned. A doc-

ument could have constraints that involve other

documents that are subdocuments of the ﬁrst one.

Extension of Constraint Class: The Standard

Constraint class is a condition that holds or must hold

at certain point in time. Constraints are often used

to declaratively characterize the entry and exit condi-

tions of actions. This class applies only in the method-

ology domain, having no sense in the endeavour level.

Initially, it is related with ActionKind class, setting

conditions form the execution of its related actions.

In our approach, the constraints will be applied on

documents: the document production will depend on

conditions applied on other documents (or subdocu-

ments). From this, it is necessary an extension of the

Constraint class and setting a new relationship.

Extension of TaskTechniqueMapping Class:

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

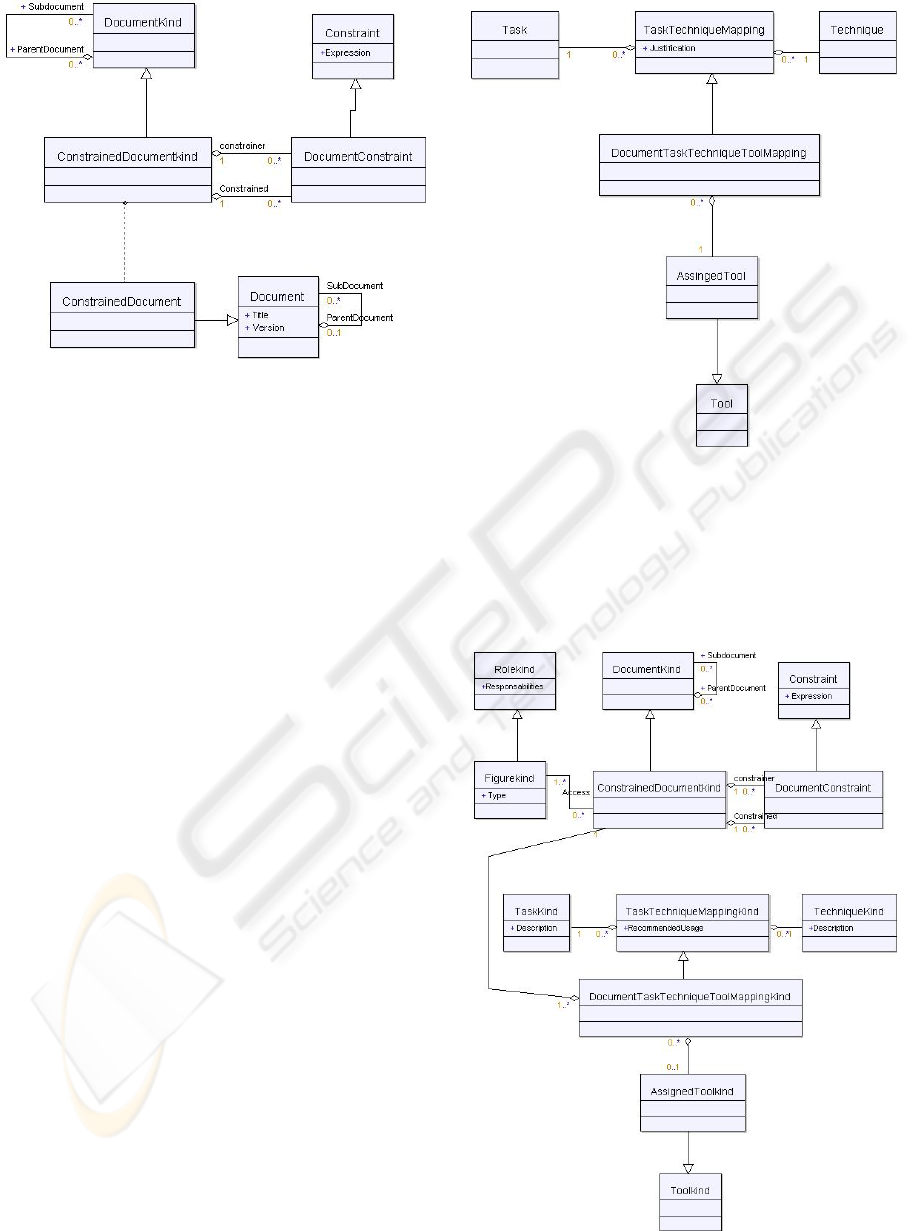

Figure 4: Document Class Extension.

the TaskTechniqueMapping ISO/IEC 24744 class es-

tablishes the relationship between tasks and the appli-

cable techniques in both the methodology and the en-

deavour domains. However, our aim is, as discussed

above, providing the method engineer with the pos-

sibility of assigning tasks to documents and corre-

sponding techniques with a direct relationship. At

the same time, we consider useful the possibility of

assigning which tools should be involved in certain

tasks execution, following certain techniques, related

with these documents. For this, we need to extend

the TaskTechniqueMapping ISO/IEC 24744 class in

the new DocumentTaskTechniqueToolMapping class,

which makes it possible the direct document assign-

ment to the corresponding tasks for completing it, the

applicable techniques in each case, and the tools to

be used. Figure 5 shows the classes involved in this

mapping. In our approach, this mapping is necessary

in both methodology and endeavour domains in order

to provide support not only for the methodology def-

inition, but the Document-Centric Software Engineer

Environments as well.

Extension of Tool Class: ISO/IEC 24744 tool

class is a subclass of the Producer class and it is re-

lated with other producers that are assisted by it. As

Producer subclass, it has the same relationship with

products as described for Role class. As previously

discussed, in our approach, tools are related in an di-

rect way with tasks and techniques required for de-

veloping a document. The relationship between tools

and assisted producers is established, in an indirect

way, through the document in which they take part.

The relationship between Tool class and Document-

TaskTechniqueToolMapping could be achieved by the

extension of the Tool class into a new class called As-

signedTool.

The metamodel extension, in the methodology do-

Figure 5: Task, Technique and tool mapping.

main, is shown in ﬁgure 6. The ConstrainedDocu-

mentkind is the core of our proposal: Figures are re-

lated with documents and will follow the tasks, use

the techniques and tools attached to the documents

under the corresponding documents constraints.

Figure 6: Metamodel extension in the methodology domain.

DEFINING AND USING A METAMODEL FOR DOCUMENT-CENTRIC DEVELOPMENT METHODOLOGIES

The metamodel extension in the endeavour do-

main is shown in ﬁgure 7. It is very similar to the cor-

responding methodology domain point of view. The

main difference lies on the lack of constraints in this

domain.

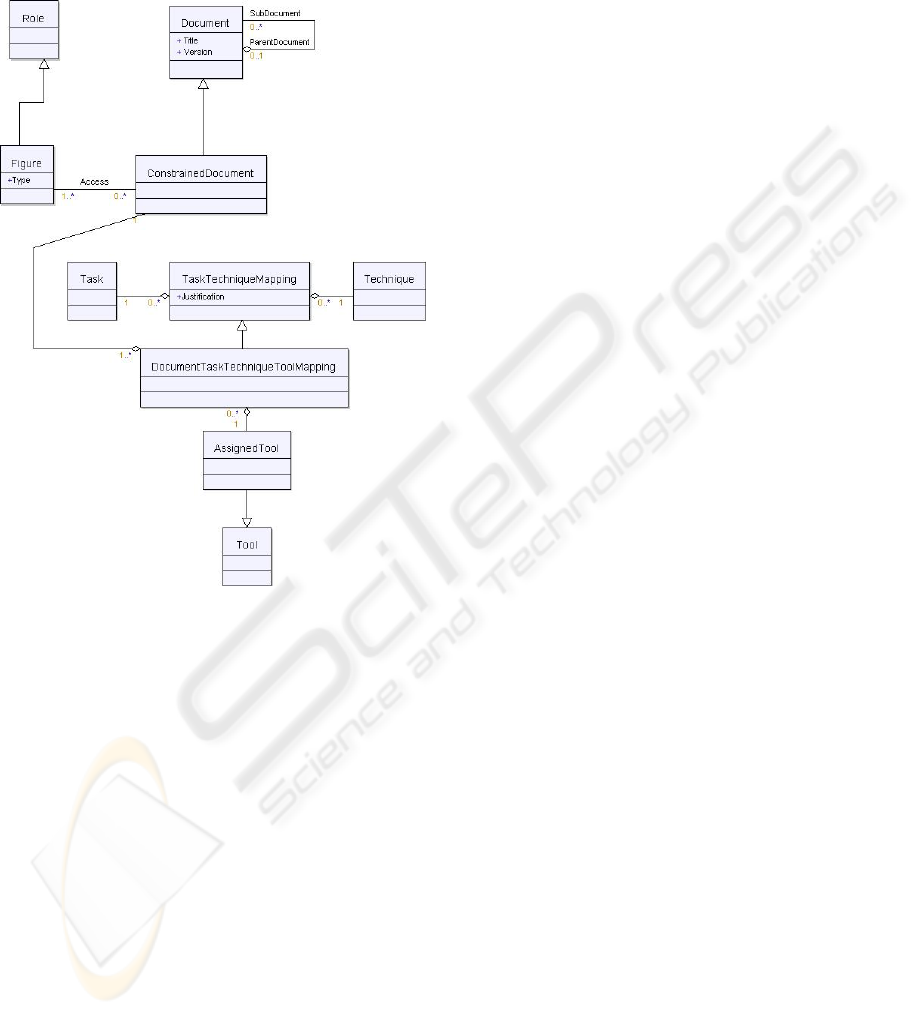

Figure 7: Metamodel extension in the en deavour domain.

4 METAMODEL EXTENSION

USAGE

The steps for deﬁning a methodology using this ex-

tension are the following:

• Document structure deﬁnition. ConstrainedDoc-

umentKind structure in the methodology domain

and ConstrainedDocument structure in the en-

deavour domain. A document kind is composed

by a set of subdocuments that could be treated as

sections. The detail level of each subdocument

depends on the desired detail level in the method-

ology deﬁnition.

• FigureKind deﬁnition. For each Constrained-

DocumentKind, FigureKind, an extension of

RoleKind class, will be deﬁned. This ele-

ment could grant access on document kinds to

TeamKind or Rolekind elements. At this point,

stakeholders will be deﬁned and also the role they

will play as document or subdocument producers

or consumers. In the endeavour domain, it is pos-

sible as well, the deﬁnition of concrete persons as

Figures.

• Document constraints deﬁnition. Using Docu-

mentConstraint class, it is possible the documents

(or subdocuments) to deﬁne constraints such as

creation conditions or documents precedence. For

example, a Unit Test Report document could be

produced only if a Unit Test Plan document is

approved and the ﬁrst draft of Source Code doc-

ument is baselined. This constraint could only

be deﬁned in the methodology domain. Though

working at document level can be considered a

coarse granularity, it is necessary to recall that this

kind of constraints can equally be deﬁned at any

document sub-structure level.

• Document Tasks, techniques and tools assign-

ment. Any document development will involve

tasks, techniques and tools that will be carried out

by the ﬁgures with producer grants on this docu-

ment. For example, a Unit Test Report document

can be assigned to a producer Figure called Unit

Test Team. This document also have assigned the

Run Unit Test task, using the Black Box tech-

nique, with the Test Case Generator tool support.

Therefore, tasks precedence, responsibilities distribu-

tion and applicable techniques and tool deﬁnition are

determinated by complete documents deﬁnition, and

consequently, documents are the drivers of methodol-

ogy deﬁnition and process execution.

5 CONCLUSION AND FUTURE

WORK

This paper has presented an approach that is charac-

terised by two issues: ﬁrst, documents become the key

product developers produced, not as by-products and,

second, it enables the possibility to deﬁne method-

ologies that use constraints on documents templates

to drive software processes. For this, the standard

ISO/IEC 24744:2007 Software Engineering – Meta-

model for Development Methodologies has been ex-

tended in order to provide a modelling baseline to

support the approach.

While the approach looks promising on the one

side, an identiﬁed limitation is related to the need of

having detailed document templates. A balance be-

tween the approach and the required information for

a cost-effective project is required. Another issue is

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

that software/system models should have to be spec-

iﬁed in the form of documents. For instance in the

case UML, OCL will facilitate this task obviously.

As future work, it is planned to extend this meta-

model in order to support conﬁguration management.

This will imply that for any type of document it will

be necessary to identify at which level conﬁguration

control will be performed. For instance for a software

requirement document the conﬁguration item could

be each requirement. This will be a methodologi-

cal decision that should be taken in each case by the

method engineer.

Automation may be a key issue to support the ap-

proach described within this paper. Therefore it is

planned to set up the basis to deﬁne a software engi-

neering environment architecture in which documents

are the central issue and supports all the concepts in-

troduced within the paper. Documents will be used as

the integration mechanism of tools and services us-

ing XML schemes to deﬁne the document templates.

These XML schemes will be the result of applying

some mapping rules to the proposed metamodel. A

Software Engineering Environment will manage the

XML schemes and documents and will trigger the ex-

ecution of the deﬁned tools for performing the tasks

assigned to different documents or subdocuments. A

prototype was already developed few years ago as

presented in (Alarc

on et al., 2004).

ACKNOWLEDGEMENTS

Authors are indebted to Cesar Gonzalez for the

support and advice provided while working with

ISO/IEC 24744. The work reported herein has

been partially supported by Spanish ”Ministerio

de Educacion, Ciencia y Cultura” within the AG-

MOD TIC2003-08503 and the OVAL/PM TIC2006-

14840, the project VULCANO FIT-340503-2006-

3 from ”Ministerio de Industria, Turismo y Com-

ercio”, and by the DOBERTSEE project, Eu-

ropean Space Agency ESA/ESTEC Contract No.

15133/01/NL/ND.

REFERENCES

Alarc

on, P. P., Garbajosa, J., Crespo, A., and Ma-

gro, B. (2004). Automated integrated support for

requirements-area and validation processes related to

system development. In IEEE INDIN, Los Alamitos,

CA, USA. IEEE Computer Society.

Atkinson, C. and Kune, T. (2000). Meta-level indepen-

dent modelling. In 14th European Conference on

Object-Oriented Programming, editor, International

workshop on model engineering.

Barnes, A. and Gray, J. (2000). Cots, workﬂow, and soft-

ware process management: An exploration of soft-

ware engineering tool development. In Proceedings

of the 2000 Australian Software Engineering Confer-

ence, page 221. IEEE Computer Society.

Beck, K. (1999). Extreme Programming Explained: Em-

brace Change. Addison-Wesley Professional.

Boehm, B. W. (2002). Get ready for agile methods, with

care. IEEE Computer, 35(1):64–69.

Bollain, M., Alarcon, P. P., Garbajosa, J., and Amador, J.

(2003). A low-cost document-centric software/system

engineering environment. In Proceedings of the 16th

International Conference ”Software & Systems Engi-

neering and their Applications” Paris, 2003.

Cass, A. G., Lerner, B. S., Stanley M. Sutton, J., McCall,

E. K., Wise, A., and Osterweil, L. J. (2000). Little-

jil/juliette: a process deﬁnition language and inter-

preter. In ICSE ’00: Proceedings of the 22nd inter-

national conference on Software engineering, pages

754–757. ACM Press.

Ciancarini, P. (1995). Modeling the software process using

coordination rules. In WETICE, pages 46–53.

Devanbu, P., Chen, Y.-F., Gansner, E., Müller, H., and

Martin, J. (1999). Chime: customizable hyperlink in-

sertion and maintenance engine for software engineer-

ing environments. In Proceedings of the 21st inter-

national conference on Software engineering, pages

473–482. IEEE Computer Society Press.

Fuggetta, A. (2000). Software process: a roadmap. In Pro-

ceedings of the conference on The future of Software

engineering, pages 25–34. ACM Press.

Gary, K., LindqKuist, T., Koehnemann, H., and Derniame,

J. (1998). Component-based software process sup-

port. In 13th IEEE International Conference on Au-

tomated Software Engineering (ASE’98), pages 196 –

199.

Gonzalez-Perez, C. and Henderson-Sellers, B. (2005). Tem-

plates and resources in software development method-

ologies. Journal of Object Technology, vol. 4, no. 4.

Gray, J., Scott, L., Liu, A., and H arvey, J. (1999). The ﬁrst

international symposium on constructing software en-

gineering tools (coset ’99). In Proceedings of the

21st international conference on Software engineer-

ing, pages 707–708. IEEE Computer Society Press.

Henrich, A. (1996). Document retrieval facilities for

repository-based system development environments.

In Proceedings of the 19th annual international ACM

SIGIR conference on Research and development in in-

formation retrieval, pages 101–109. ACM Press.

ISO (1995). ISO/IEC 12207:1995 Information technology

- Software life cycle processes.

ISO (2007). ISO/IEC 24744:2007 Software Engineering –

Metamodel for Development Methodologies. Interna-

tional Organization for Standarization.

DEFINING AND USING A METAMODEL FOR DOCUMENT-CENTRIC DEVELOPMENT METHODOLOGIES

Kopka, C. and Wellen, U. (2002). Role-based views to ap-

proach suitable software process models for the de-

velopment of multimedia systems. In ISMSE, pages

140–147.

Luqi Zhang, L., Berzins, and V. Qiao, Y. (2004). Documen-

tation driven development for complex real-time sys-

tems. Software Engineering, IEEE Transactions on,

pages 936 – 952.

Nguyen, T. N. and Munson, E. V. (2003). The software con-

cordance: a new software document management en-

vironment. In Proceedings of the 21st annual interna-

tional conference on Documentation, pages 198–205.

ACM Press.

Nguyen, T. N., Munson, E. V., and Boyland, J. T. (2003).

Conﬁguration management in a hypermedia-based

software development environment. In Proceedings

of the fourteenth ACM conference on Hypertext and

hypermedia, pages 194–195. ACM Press.

Oinas-Kukkonen, H. (1999). Flexible case and hypertext.

ACM Comput. Surv., 31(4es):7.

OMG (2001). OMG Uniﬁed Modelling Language Speciﬁ-

cation. Version 1.4. Object Management Group.

Pohl, K., Weidenhaupt, K., Haumer, P., Jarke, M., and

Klamma, R. (1999). PRIME - toward process-

integrated modeling environments. ACM Trans. Softw.

Eng. Methodol., 8(4):343–410.

Rausch, A., Bartelt, C., Ternit

e, T., and Kuhrmann,

M. (2005). The V-Modell XT Applied Model-

Driven and Document-Centric Development.

In 3rd World Congress for Software Quality,

VOLUME III, Online Supplement, number 3-

9809145-3-4, pages 131 – 138. International

Software Quality Institute GmbH. available at

http://www.isqi.org/isqi/deu/conf/wcsq/3/proc.php.

Robinson, W. N. and Volkov, V. (1997). A meta-model

for restructuring stakeholder requirements. In ICSE,

pages 140–149.

Sharp, H., Finkelstein, A., and Galal, G. (1999). Stake-

holder identiﬁcation in the requirements engineering

process. In DEXA Workshop, pages 387–391.

Singh, H. and Han, J. (1997). Increasing concurrency in

object-oriented databases for software engineering en-

vironments. In DASFAA, pages 175–184.

Visconti, M. and Cook, C. R. (1993). Software system doc-

umentation process maturity model. In ACM Confer-

ence on Computer Science, pages 352–357.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering
