AN ONTOLOGY-BASED APPROACH TO THE MODELLING OF

COLLABORATIVE ENTERPRISE PROCESSES

Dynamic Managing of Functional Requirements

M. V. Hurtado, M. Noguera, M. L. Rodríguez, J. L. Garrido

Departamento de Lenguajes y Sistemas Informáticos, Universidad de Granada, E.T.S.I.I.T.

c/ Periodista Daniel Saucedo Aranda s/n, 18071 Granada, Spain

Lawrence Chung

Department of Computer Science, University of Texas at Dallas, Richardson, Texas 75083, USA

Keywords: Ontology-based collaborative modelling, Enterprise modelling techniques.

Abstract: Enterprise models describe and analyze collaborative processes and provide stakeholders with a common

view of requirements. A core challenge to tackle the management of collaborative business processes is the

continuous translation between business requirements and the current collaborative process model of the

involved enterprises. This model is constituted by multiple IT systems, resources, and human labour. This

paper presents a novel approach to modelling business processes from the perspective of collaborative

systems. The proposal consists of a multi-level design scheme based on ontologies for the description of

complex collaborative systems. The use of this ontology-based framework enables machine reasoning

which can be applied to automated or semi-automated control and propagation of changes in the functional

requirements specification. Benefits related to integrating ontology-based models are also presented.

1 INTRODUCTION

Nowadays, collaborative systems need to be

developed in order to operate in dynamic

environments. This kind of systems supports users

who perform flexible and creative tasks within

defined business rules.

The development of models and mechanisms is

mandatory in order to enable the specification of

collaborative systems which can capture the

increasingly dynamic nature of both intra and inter-

enterprise processes. Enterprise modelling

techniques aim at modelling the behavior and

domain entities in order to identify the fundamental

business principles of an organization (Ambler,

2003) (Jaekel, 2005). They are recognised for their

value in describing complex organizational domains,

but usually in an informal way. Therefore, the

modelling methods need to be improved with a new

approach to integrate methods and tools which are

appropriate to enterprise modelling and to the

management of change. Ontology based integration

of methods and tools can solidly provide a more

precise means to model collaborative enterprise

processes (Gruninger, 2000).

This research work presents an ontology-based

framework which aids software engineers in the

description of domain requirements and their

appropriate association with the collaborative model

elements (by means of concepts and relationships

among them) at different levels. From the

perspective of collaborative business processes, an

ontology-based framework contributes to the formal

definition of business semantics in a common

vocabulary and supports the modelling and analysis

of functional requirements. Moreover, this

framework enables the dynamic management of

domain requirements for collaborative processes

within and across enterprises.

The remainder of this paper is organized as

follows. Section 2 shows the main motivations on

the basis of the relevant issues to be addressed for an

advanced description of collaborative systems.

Section 3 introduces an ontology-based framework

to modelling and analysing functional requirements

V. Hurtado M., Noguera M., L. Rodríguez M., L. Garrido J. and Chung L. (2007).

AN ONTOLOGY-BASED APPROACH TO THE MODELLING OF COLLABORATIVE ENTERPRISE PROCESSES - Dynamic Managing of Functional

Requirements.

In Proceedings of the Second International Conference on Evaluation of Novel Approaches to Software Engineering , pages 87-94

DOI: 10.5220/0002587000870094

 SciTePress

of collaborative systems. Section 4 presents how the

proposal adequately supports the dynamic

management of the functional requirements

satisfying desirable properties for a formal

description. Finally, the conclusions and future work

are given in Section 5.

2 MOTIVATIONS

Collaboration processes in today’s global business

environment are a critical issue to the innovation and

creation of new business models. Collaborative

business processes involve organizations,

workgroups, applications, documents and different

sources of information. Stakeholders need to be

assisted with tools that help them to describe, verify,

validate and share their perspective in both

modelling processes and domain requirements

capture.

Domain requirements are related to the

properties and functionalities of the system to be

designed. They are categorized into functional and

non-functional. There are several approaches dealing

specifically with non-functional requirements which

support the elicitation, documentation, verification

and validation of this requirements (Chung,

2006).However, functional requirements are usually

given in natural language or using semi-formal

notations (e.g. UML use case (OMG, 2003)) during

the modelling process. The main difficulty of this

method resides in the gaps between domain users

and requirements engineers. This will be the main

source of inconsistent and ambiguous requirements

(Yuqin, 2006).

Conversely, requirements generated by different

members in a collaborative process may use

different terminology to specify their system views.

Hence, the same term may be applied to different

concepts and different terms can be used to

designate the same entity.

As long as models are not described sharing a

common terminology, there will not be appropriate

instruments to support the exchange of information

and to ensure certain properties (consistency,

completeness, etc) in the description and

management of functional requirements using

different models. Recent research points to

ontologies as an appropriate technology to solve this

problem. An ontology is a formal description of

objects and their properties, relationships,

constraints, and behaviour (Gruber, 1995), (Guarino,

1995). It allows defining a common vocabulary for

users who need to share viewpoints of each

particular domain. Consequently, the use of an

ontology-based method (Zhi, 2000), (Lu, 2000)

focusing on representing domain concepts and

relations among them, can be used to share both

intra and cross-enterprises models.

Furthermore, requirements are also altered during

the system design due to changes of the business

process and rules, customers’ objectives, etc.

Formalizing ontologies with standard languages,

for instance OWL (Web Ontology Language)

(Smith, 2004), machine reasoning can be applied to

an automated or semi-automated control and

propagation of the functional requirements changes.

The underlying Description Logics (Baader, 2003)

to the OWL language allows OWL-based reasoners

to perform certain verification procedures such as

consistency check, concept satisfiability,

classification and realization (Sirin, 2006).

Therefore, an ontology-based approach provides

mechanisms to propagate changes, and focuses on

the evolutionary nature of Collaborative Business

Processes.

3 FRAMEWORK FOR

MODELLING OF

COLLABORATIVE

ENTERPRISE PROCESSES

We propose an ontology-based design scheme for

the modelling and requirements analysis of

collaborative system design. This ontology-based

framework provides both terminology to specify

different functional requirements visions and

communication of system functions by means of a

well-defined terminology, syntax and semantics.

Amenities

ontology

document

Amenities-based

application ontology

document for

enterprises

Amenities-based

application ontology

document for

C&C Valuation Office

Amenities-based

application ontology for

John F. Kennedy aiport

Amenities-based

application ontology

document for

airports

Amenities-based

application ontology

document for

Accurances office

Amenities-based

application ontology

document for

Caser Insurances

Amenities-based

application ontology

document for

Notary Offices

Amenities-based

application ontology

document for

Klimt Notary Office

Amenities-based

application ontology

document for

universities

Metamodel level

Domain ontology

Ground level

application ontologies

First level

application ontologies

organizations

roles

tasks…

artefacts

actors…

Amenities-based

application ontology

document for

Bank Branch

Amenities-based

application ontology

document for

Bank Branch nº 15

Amenities-based

application ontology

document for

Bank Branch nº 32

Figure 1: Three-tier ontology design for collaborative

systems.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

At the highest abstraction level of the adopted

design scheme (see Figure 1) for building the

framework, a domain ontology defines the

collaborative system terminology. Using this

ontology, domain users and modellers can describe

systems functions in terms of a common vocabulary

(organizations, group, actor, role, capability, law,

task, subactivity, information object, interaction

protocol, etc.).

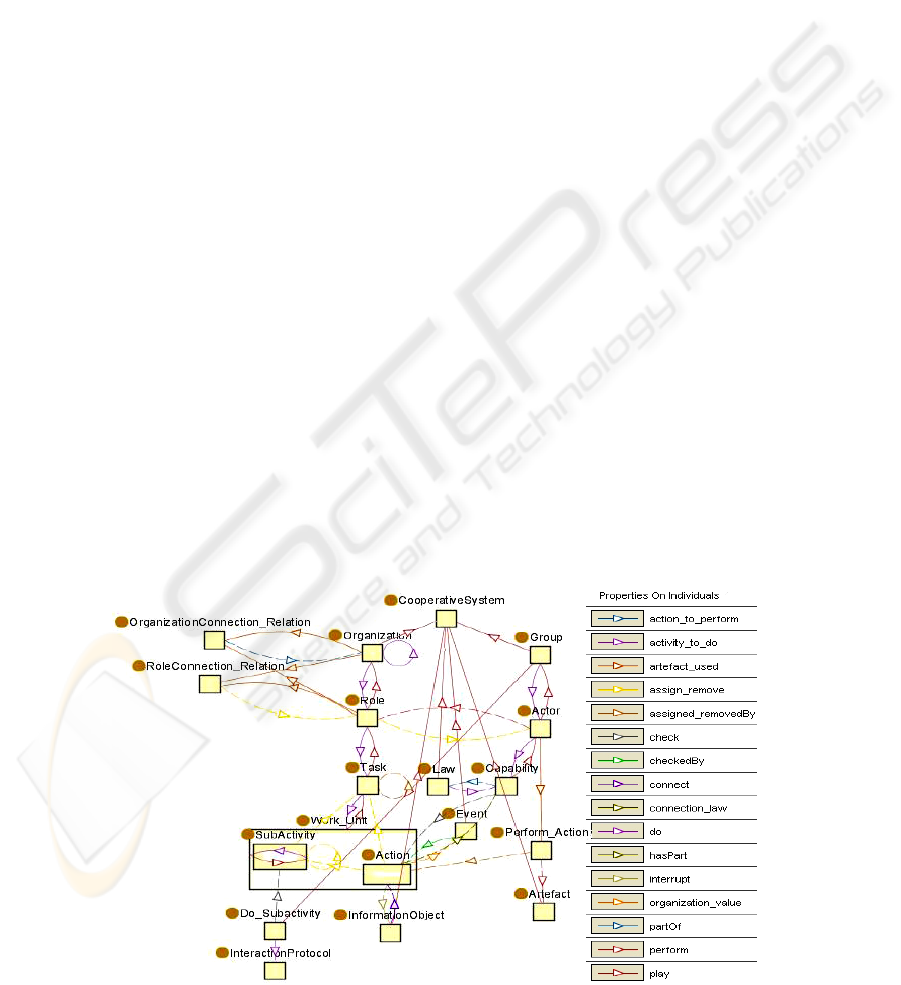

Figure 2 shows a diagrammatic representation of

a domain ontology description, basically concepts

and relationships between them, using the Protégé

ontology editor (Knublauch,.2004).

The metamodel for the domain ontology is

adopted from AMENITIES (Garrido, 2005a), a

methodology for the study and development of

collaborative systems. We define the meaning of the

terminology using OWL which gives a precise and

unambiguous semantics for each term.

The correctness and unambiguity avoid possible

conflicts and diverse interpretations by different

modellers. Accordingly, modellers use the same

terminology and can work in the system

specification promoting a participatory design.

At the subsequent level, based on the domain

ontology, different application ontologies would

appear in order to define specific elements for each

particular business process (bank branch, valuation

office, notary office, assurances office…), but with

the adequate abstraction level so that they can be

employed in similar or related systems (e.g. bank

manager, head of risk and cashier roles).

At the lowest level, more specific entities of the

system we are dealing with would be declared (e. g.

“Anna Riemann” and “Donald Johnson” as actors

present in the bank collaborative system of the

Branch nº 15 ).As a leading example, we will

consider the process of granting a mortgage in a

bank branch. In this context collaborative systems

can help a branch to offer a wider range of services.

The corporate activity includes some collaborative

tasks among different organizations (Bank Branch,

Valuation Office and Notary Office)

Likewise, it is necessary that diverse actors

belonging to different organizations are involved,

although they are all part of the same group in

charge of the granting process. Among others, bank

actors can play the bankManager, headOfRisk, and

cashier roles. Different banker tasks are considered

in order to provide various banking services. During

the process of granting a mortgage several

information objects are handled. One of subactivity

is called calculate_leverage_coefficient which is

composed by others such as the subactivities

queryASNEF and queryRAI, which obtain

information contained in two databases: the ASNEF

databases (banking database of possible non-

fulfilment and their current situation) and RAI

database (database referred to unpaid banking

effects, bills of exchange etc.). As a result of the

calculate_leverage_coefficient subactivity and

together with additional information provided by the

customer, the headOfRisk generates the mortgage

report and suggests the approval, refusal or

interruption of the operation. If the bank manager

approves the operation, the collaborative task

agreeAndsign will be carried out. A connection_law

indicates that to perform that action, bank manager,

notary and client must sign the mortgage document.

Figure 2: Diagrammatic representation of the AMENITIES metamodel description in OWL (domain ontology).

AN ONTOLOGY-BASED APPROACH TO THE MODELLING OF COLLABORATIVE ENTERPRISE PROCESSES -

Dynamic Managing of Functional Requirements

calculateLeverage

Coefficient

Collect-applicant

-data

Metamodel Level: Domain ontologyFirst Level: Application ontology

Bank_Branch

headOfRisk bankManager cashier

grantLoan

query

ASNEF

qweryRAI

mortgageReport

Face to face

Granting-mortgage

CooperativeSystem

Notary-Office

decideConcesion

Allowed

Signature

agreeAndsign

Computer

Videoconference

mortgagegranting

Figure 3: Mapping of some application ontology elements (Bank Branch Example) to metamodel elements.

4 DYNAMIC MANAGEMENT OF

FUNCTIONAL

REQUIREMENTS

The ontology based approach offers the potential to

meet some needs of requirements management.

These include abstraction mechanisms using

different levels (see Figure 3), description for each

term (concepts, properties, instances, as well as

concept inheritance), inference mechanism, and

model driven trace requirements capture (for

example using Laws, pointing out the type

InteractionProtocol…).

4.1 General Analysis

Collaborative business processes evolve with time.

Hence, the system description is necessarily an

iterative and dynamic process. The reasons for

changes are inherent in the complexity of reality and

in the limited ability of humans to cope with this

complexity. Thus, the specification system must be

able to change for a number of reasons, among

others the following:

 The system specification often contains

“design errors” and sometimes does not meet

the requirements of its users.

 The business environment in which the system

operates can change unpredictably, thereby

invalidating the requirements made when the

system was designed.

 Users’ requirements can change after the

system is initially built, requiring that the

existing specification evolve to meet the new

requirements.

Since most of the changes usually affect local parts

of the system or organization, it is compulsory that

the changes are managed without affecting those

elements that are unrelated to these changes and

without being necessary to put them “out of

service”. Likewise, appropriate tools and strategies

for change propagation are needed.

The proposed three-tier ontology design allows

us to manage systematically the modelling of the

dynamic nature of the functional requirements for

this kind of systems. The domain ontology and the

application ontologies provide vocabularies and

restrictions to help identifying and analysing system

functions changes. Constraints capture statements

that must be satisfied by design after change.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

In addition, related to the dynamic aspects of the

collaborative system, a different level can be used to

answer many questions on the system behaviour, by

deduction and using the reasoning logic.

In order to illustrate changes and their propagation

(a change in one element of an ontology may have

relevant consequences on other elements of the

scheme-based ontology), the following situations

will be considered for changes in:

 the relationships between instances and the

terms of the application ontology at the

ground level.

 the terms of the application ontology at the

first level

 the structure of the domain ontology

Each of these changes can be carried out by one of

the meta-change transformations: add, remove and

modify ontology elements (Stojanovic,2002). As a

result, a set of operations (Table 1) can be defined

by the cross level of the set of entities of the

ontology model, which form the ontology-based

scheme, and the set of meta-operations.

A set of operations can be applied to an ontology in

a valid state, and after all changes are performed, the

ontology and dependant collaborative system must

convert into another valid state. It means that every

change is guaranteed to maintain the domain

constraints.

According to software engineering, a set of

properties for the specification has to be maintained

for instance:

 Consistency – A consistent description system

satisfies all invariants of the domain ontology

model (Amenities ontology document).

Invariants are constraints that must fulfill in

every state of an ontology. For example, an

organization has at least one role class.

 Validity – it is necessary to distinguish

between syntax and semantic validity of an

ontology. Syntax invalidity arises when

undefined entities are used or model

constraints are invalidated. Semantic

invalidity arises when the meaning of an

ontology entity is modified. Conversely, a

valid instance adjusts to the constraint

specified in the ontology document.

4.2 Detailed Examples of Control and

Propagation in Requirements

Changes

On the basis of the previously described case study

(section 3), some particular examples of functional

requirements changes are illustrated in this section.

System Behavior Properties

The most frequent changes are related with the

dynamical aspects of the system which occur at the

ground level. It allows us to specify functional

requirements related to system behaviour, i.e. state

changes in the described system.

See the example of “Anna Riemann” who was

playing the cashier role changes to the headOfRisk

role (Figure 4).

1.**Ground level

is (Anna Riemann play cashier)?

TRUE=> (Remove_instance (AnnaRiemann play

cashier) AND Add_instance (AnnaRiemann play

headOfRisk)

FALSE => (Add_instance (AnnaRiemann play

headOfRisk)

2.**Model level

No-changes

3.**Metamodel level

No-changes

Figure 4: Meta-operations and propagation (changes at

ground level).

Table 1: Operations in the ontology-based scheme.

Add Remove Modify

Concept Add concept Remove concept Rename concept

Concept hierarchy Add subConceptOf

relationship

Remove subConceptOf

relationship

Set subConceptOf

relationship

Property Add property Remove property Rename property

Property Domain Add property domain Remove property domain Set property domain

Property Range Add property range Remove property range Set property range

Instance Add instance Remove instance Rename instance

Property Instance Add property instance Remove property instance Set property instance

AN ONTOLOGY-BASED APPROACH TO THE MODELLING OF COLLABORATIVE ENTERPRISE PROCESSES -

Dynamic Managing of Functional Requirements

In the Bank_Branch organization can be

considered the need of including a new role called

proxy with the intention of realizing chief's tasks,

hereby the bankManager is released from some

tasks. This requirement modification takes place in

the first level application ontology of the scheme

description (Figure 5).This operation of adding the

role would provoke changes in the following level

because an actor system could play a proxy role (i.e.

Donald Johnson) and, in the accomplishment of

certain actions, the actor playing this role may

replace the bank manager; this is the case for the

task signature-load. Therefore, to realize the above

mentioned subactivity, it would be necessary to

modify the specification of the responsible roles in

order to include the connexion between the proxy

and the bank manager roles by means of an

exclusive-or relationship.

1.**Model level

Add concept (proxy)

AddsubConcept Of relationship (proxy, Role)

Add property (proxy.role, signature-load.task)->

Actor play proxy replace Actor play bank-manager

AND check replace-bank-manager.Law

Rename signature-load.subactivity

2.**Ground level

is (Donald Johnson instance of Actor)?

TRUE=> (Remove_instance (Donald-Johnson instance

of Actor)) AND Add_instance (Donald Johnson play

proxy)

FALSE=> (Add_instance (Donald-Johnson instance of

Actor) AND Add instance (Donald-Johnson play proxy )

3.**Metamodel level

No-changes

Figure 5: Meta-operations and propagation (changes at the

model level).

Finally, there is another kind of less usual

changes which take place at metamodel level. For

example, for the highest abstraction level in the

system description, a new way of arranging the work

could be required, in particular, to have pending

tasks classified according to different factors. In the

branch context, such factors might be related to the

type of asset transaction (credit, loan, mortgage,…),

deadlines to be met, etc. In order to fulfil this new

requirement, stakeholders could decide to add the

new concept worklist in the domain ontology. This

concept would be connected by an aggregation

relationship with the concept task, The cardinality of

relation would be of 0..n. This kind of change

modifies the conceptual model. However, there is

not propagation to the previously created application

ontologies at the first and ground levels (Figure 6).

1.**Metamodel level

Add concept (worklist)

AddsubConcept Of relationship (workist, Task)

Add property (worklist, cardinality)

Add property range (woklist.cardinalyty, 1:n)

2.**Model level

No-changes

3.**Ground level

No-changes

Figure 6: Meta-operations and propagation (changes at

metamodel level).

Another kind of change could be to remove one

element of the domain ontology. For example, when

the term subactivity is removed, the change involves

modifications in order to guarantee the consistency

of same and lower abstraction levels (application

ontologies), each instance of the subactivity concept

must be substituted with the set of final actions it

includes.

Completeness Property

The separation between the model and the ground

level ontologies may cause that design decisions be

spread throughout both levels. The formalization of

the system description using ontologies allows

defining the appropriate restrictions so that

completeness and consistency be preserved. For

example, let’s consider that Anna Riemann is

integrated in the group that deals with the

agreeAndSign at the ground level ontology.

At the model level, this activity for the signing of

a mortgage is defined to be part of the roles bank

manager, notary and client. In that case, it has to

checked that Anna_Riemann plays one of the roles

the activity agreeAndSign is part of or add (or

remove) the necessary facts to the ground level

ontology accordingly in order to preserve the

completeness of the system (Figure 7).

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering

1.**Metamodel level

No-changes

2.**Model level (present facts)

SubActivity (agreeAndSign)

Role (bankManager)

Role (notary)

Role (client)

(agreeAndSign partOf client)

(agreeAndSign partOf bankManager)

(agreeAndSign partOf notary)

3.**Ground level (present facts)

Actor (Anna_Riemann)

Group (sign-Group)

(sign-Group do agreeAndSign)

**Ground level (new facts)

Add_instance (Anna_Riemann partOf (sign-Group))

(Add_instance (Anna_Riemann play bankManager)

OR (Add instance (Anna_Riemman play notary))

OR (Add instance (Anna_Riemman play client))

OR (Remove_instance (Anna_Riemann partOf (sign-

Group))))

Figure 7: Detection of incompleteness and system

response.

Consistency Property

Finally, as an example of consistency preservation

let’s think of the following scenario. At the model

level, the bank the branch office belongs to has

made a corporate decision by which every actor

playing the role proxy must assume the task agree

assigned to the bankManager when this one is

absent, However, the branch office of the mortgage

system has forbidden that any role may share the

tasks assigned to the bankManager. This

inconsistency will become apparent when trying to

satisfy both restrictions.

1.**Metamodel level

No-changes

2.**Model level

(agreeAndSign partOf bankManager)

is (bankManager status absent) == TRUE? =>

((exist ?actor play proxy) AND

(Add_instance (agreeAndSign partOf proxy))

=> System_Restriction_Violation (“Generated by --”,

Add_instance (agreeAndSign partOf proxy))

3.**Ground level

forall ?activity ((?activity partOf bankManager)

==TRUE) => NOT (exists ?role (?activity partOf

?role)))

Figure 8: Detection of consistency violation and system

response.

5 CONCLUSIONS AND FUTURE

WORK

Collaborative systems are dynamic (changing over

time), active (carrying out processes of change) and

open (changes in the business environment inducing

changes in the system). A successful collaborative

system at its core depends on its capacity to support

both the environment and the internal changes (e.g.,

roles played by actors, actors’ capabilities, etc.).

In this paper, we have presented a three-tier

ontology for modelling and managing the intrinsic

evolutionary aspects of collaborative processes. This

ontology formally defines a set of essential concepts

that allows for modelling functional requirements. In

addition, elementary and compositionally operation

has been introduced in order to control the

propagation in the requirements change. These

changes can also be modelled either as a snapshot at

a particular instance of time or as a sequence of

changes over a period of time. Also associated with

the ontology are rules of changes: changes are

applied in a valid collaborative system state, and

after all changes are performed, result in a valid

state. This ensures that every change preserves the

system domain constraints. In order to show how to

apply this approach, a banking system case study has

been described.

In previous works (Hurtado, 2001), (Hurtado,

2002), although related to a different problem

domain of that treated in this paper, have been

defined mechanisms (algorithms and restrictions) on

the basis of the graph theory in order to assure these

properties in an automatic way. The corresponding

mechanisms for the current proposal (in the

collaborative system domain) are been developed by

using OWL logics (Sirin, 2006), according to the

multilevel scheme proposed.

Additionally, future work will be targeted to

support the development of groupware applications

on the basis of the proposed description and

dynamic management of functional requirements.

For that aim, clear connections should be established

between this framework and software architectures

in order to trace requirements. We are exploring

ways to capture and maintain a software architecture

as an instance of an architectural ontology, together

with key design decisions that determine the final

software architecture for each given system similarly

to the approach in (Akerman, 2006).

We also plan to capitalize on our previous

experiences in the development of groupware

applications (Garrido, 2007), in devising an

ontology-based architectural framework with

AN ONTOLOGY-BASED APPROACH TO THE MODELLING OF COLLABORATIVE ENTERPRISE PROCESSES -

Dynamic Managing of Functional Requirements

evolutionary capabilities. It can provide the support

for structural changes in the architecture in order to

satisfy changes that can occur in the functional

requirements specification.

ACKNOWLEDGEMENTS

This research is partially supported by R+D projects

of the Spanish MCYT under project TIN2004-

08000-C03-02.

REFERENCES

Akerman, A. Tyree, J. 2006. Using ontology to support

development of software architectures. In IBM

Systems Journal, Vol 45, Nº 4, pp. 813-825.

Ambler, S. W., Nalbone, J., Vizdos, M., 2003. Enterprise

Unified Process: Extending the Rational Unified

Process. Prentice Hall PTR.

Baader, F., Calvanese, D., McGuineness, D., Nardi, D.,

Patel-Schneider, P. 2003. The Description Logic

Handbook. Cambridge University Press.

Chung, L. Supakkul, S., 2006. Capturing and reusing

functional and non-functional requirements

knowledge: A goal-object pattern approach. In

Proceedings of the IEEE International Conference on

Information Reuse and Integration, pp. 539-544.

Garrido, J.L., Gea, M., Rodríguez, M.L., 2005.

Requirements Engineering in Cooperative Systems.

Requirements Engineering for Sociotechnical

Systems. Chapter XIV, IDEA GROUP, Inc.USA.

Garrido, J.L. Noguera, M. González, M. Hurtado M.V.,

Rodríguez, M.L., 2007. Definition and use of

Computation Independent Models in an MDA-based

groupware development process. In Science of

Computer Programming, Vol. 66, Issue 1, pp. 25-43,

Elsevier.

Garrido, J.L. Padereswki, P. Rodríguez, M.L. Hornos,

M.J. Noguera, M., 2005. A software architecture

intended to design high quality groupware

applications. In Proceeding of the 4th International

Workshop on System/Software Architectures,

IWSSA’05, Las Vegas, USA, June 2005, pp 59-65.

Gruber, T.,1995. Toward Principles for the Design of

Ontologies Used for Knowledge Sharing. International

Journal of Human and Computer Studies, Vol. 43

(5/6), pp. 907-928.

Gruninger, M., Atefi, K., Fox, M.S., 2000. Ontologies to

Support Process Integration in Enterprise Engineering.

In Computational and Mathematical Organization

Theory, Vol. 6, Nº. 4, pp. 381-394.

Guarino, N. and Giaretta, P., 1995 Ontologies and

Knowledge Bases: Towards a Terminological

Clarification. In N. Mards (Ed.) Towards Very Large

Knowledge Bases: Knowledge Building and

Knowledge Sharing. IOS Press, Amsterdam. pp.25-

32.

Hurtado, M.V.,Parets, J. 2001,Evolutionary Information

and Decisión Support Systems: An integration Based

on Ontologies. Lecture Notes in Computer Science

LNCS 2178, pp 146-159.

Hurtado, M.V.,2002 Un modelo ontológico de integración

evolutivo entre sistemas de información y sistemas de

ayuda a la decisión. Tesis doctoral. Departamento de

Lenguajes y Sistemas Informáticos. Universidad de

Granada. Spain.

Jaekel, F.W., Perry, N., Campos, C., Mertins, K.,

Chalmeta, R., 2005. Interoperability Supported by

Enterprise Modelling. LNCS 3762, pp. 552 – 561.

Knublauch, H., Fergerson, R.W., Noy, N.F., Musen, M.,

2004. The Protégé OWL Plugin: An Open

Development Environment for Semantic Web

Applications. LNCS 3298, pp. 229 – 243.

Lu, R.Q., 2000. Ontology-based requirements analysis

Journal of Software. Vol. 11(8). Pp 1009-1017.

OMG. Object Management Group: Unified Modelling

Language (UML) 2.0 Superstructure Specification,

August 2003. Ptc/03-08-02, pp. 455–510.

Sirin, E., Parsia, B., Cuenca-Grau, B., Kalyanpur, A.,

Katz, Y.. 2006. Pellet: A practical OWL-DL reasoner,

Journal of Web Semantics (To Appear)

Smith, M.K. Welty, C. and McGuinness, D.L. (Eds.),2004.

OWL Web Ontology Language Guide, W3C

Recommendation, 10 February

2004,http://www.w3.org/TR/2004/REC-owl-guide-

20040210/. Latest version available at

http://www.w3.org/TR/owl-guide/.

Stojanovic, L. and Motik, B., 2002. Ontology evolution

within ontology editors. In Proceedings of the

OntoWeb-SIG3 Workshop at the 13th International

Conference 22 on Knowledge Engineering and

Knowledge Management (EKAW) , pp. 53—62.

Yuqin Lee and Wenyun Zhao, 2006. Domain

Requirements Elicitation and Analysis -An Ontology-

Based Approach; LNCS 3994, pp. 805 – 813.

Springer-Verlag Berlin Heidelberg 2006

Zhi, Jin., 2000. Ontology-based requirements elicitation

automatically. Chinese J. Computers. Vol.23, Nº.5, pp.

486-492.

ENASE 2007 - International Conference on Evaluation on Novel Approaches to Software Engineering
