SOFTWARE AGENTS REPRESENTING MEDICAL GUIDELINES

John McGrory, Frank Clarke

Dublin Institute of Technology, Dublin 8, Ireland

Jane Grimson

School of Computing, Trinity College Dublin, Dublin 2, Ireland

Peter Gaffney

Adelaide & Meath Hospital, Incorporating the National Children's Hospital (AMNCH), Tallaght, Dublin 24, Ireland

Keywords: Clinical laboratory validation, patient-centred, patient-focused, agents, computer-interpretable-guideline

(CIG), guidelines and protocols. Software Agents representing medical guidelines.

Abstract: Guidelines are self-contained documents which healthcare professionals reference to obtain specific disease

or medical condition knowledge for a particular population cohort. They view these documents and apply

known facts about their patients to access useful supportive information to aid in developing a diagnosis or

manage a condition. Traditional CIG models decompose these guidelines into workflow plans, which are

then called using certain motivational trigger conditions controlled by a centralised management engine.

Therefore, CIG guidelines are not self-contained documents, which specialise in a particular condition or

disease, but are effectively a list of workflow plans, which are called and used when the patient information

is available. The software BDI agent offers an alternative approach which more closely matches the modus

operandi of narrative based medical guidelines. An agent’s beliefs capture information attributes, plans

capture the deliberative and action attributes, and desire captures the motivational attributes of the guideline

in a self-contained autonomous software module. This synergy between the narrative guideline and the BDI

agent offers an improved solution for computerising medical guidelines when compared to the CIG

approach.

1 INTRODUCTION

Clinical guidelines are condition focused documents

through which domain specific aims, goals,

procedures, plans and normal reference ranges are

disseminated to healthcare professionals (Browne,

2005) (Oosterhuis, 2004). To maximise influence on

a market audience these documents are written in

domain specific languages and ontologies (e.g.

cardiology, neurology and paediatrics). The purpose

of these documents are to guide the reader, and

streamline activities around a particular medical

condition, organ or disease using evidence based

supportive information. When a clinical or

laboratory guideline is developed by an expert group

they focus on best practice for the specific disease,

condition or organ. They include all relevant

knowledge, logic and motivational aspects they

deem necessary to adequately describe the domain.

Therefore, guidelines are autonomous self-contained

documents, which can be used in whole or in part, to

provide supporting information for healthcare

decision-making, once their meaning is not taken out

of context.

Clinicians and laboratory technologists care for

patients so it is their responsibility to filter through

these guidelines acting on a patient’s behalf. They

must make use of the maximum decision-making

support offered by these resources based on the

known facts about the individual. This is termed

patient-centred validation. However, the enormous

quantity and presentation style of these documents

makes it difficult for professionals to quickly

identify relevant guidelines, and extract information

and intended logic contained within them, and apply

142

McGrory J., Clarke F., Grimson J. and Gaffney P. (2008).

SOFTWARE AGENTS REPRESENTING MEDICAL GUIDELINES.

In Proceedings of the First International Conference on Health Informatics, pages 142-147

 SciTePress

them usefully in a patient-centred fashion (Peleg et

al., 2003).

One approach to overcome these issues is to use

Computer-Interpretable-Guidelines (CIG). The

underlying operation of CIG models is to decompose

the narrative guideline into separate workflow

activities and management rules. The management

rules from each guideline are linked together

centrally using an inference engine. This inference

engine is constructed by the CIG developers using

rules that link the various workflow activities

together. These management rules provide the

motivation for a centralised inference engine to

choose particular workflow activities depending on

the patients known characteristics (e.g. weight,

gender, height). As more guidelines are decomposed

and added, the number of workflow activities and

the size and complexity of the centralised inference

engine increases. Using this technique the original

self-contained knowledge developed by the

guideline author’s is fragmented and the true context

is lost.

Agent-oriented software operates on the notion

that human intelligence and decisions can be

synthesised by managing tangible elements, such as

beliefs, goals, sub-goals, plans and intentions. Each

agent is an autonomous software module that is self-

contained, has its own inference engine and a set of

beliefs, goals and plans. The goals, beliefs and plans

are encoded into the agent and the inference engine

interprets them. When a goal is chosen the inference

engine searches plans that match currently known

beliefs and prioritises them. The most appropriate

plan is selected and executed to perform some

activity or choose another goal. In addition to its

inference engine the agent approach also permits

separate agents to socialise, work in groups and

collaborate to solve common goals.

There are characteristic similarities between

guidelines and a particular type of agent, namely the

Belief-Desire-Intention (BDI) agent as shown in

Table 1.

Table 1: BDI to Guideline mapping.

By encoding the agent with the knowledge, logic

and motivational components of a guideline, it

creates an opportunity for an individual agent to

represent a single guideline. As additional guidelines

are added, new agents are created to represent them.

This technique means that the original self-contained

knowledge developed by author’s remains as an

integrated software module and the context is

retained.

The thrust of this paper is to demonstrate that a

single software agent possesses the ability to

reproduce the function and content of a clinical

guideline as a 1:1 ratio. This is because a synergy

exists between guideline and agent characteristics.

2 COMPARISON OF

GUIDELINES, CIG’S AND

AGENTS

Guidelines play a crucial supporting role in the

detection, diagnosis, treatment, and supervision of

diseases in patients, in a modern healthcare setting.

In some cases these documents aid in the planning of

treatments, quantifying of medication amounts,

monitoring of patient responses, which could all

have serious patient safety issues if inaccurate

information was used. Therefore, it is vital the

knowledge, logic and motivation contained within

the guideline are clearly understood with reference

to a specific patient. But how do CIG’s and agents

reproduce the knowledge, logic, action and more

specifically motivation of guidelines? In the

following subsections the function, use and

methodology behind guidelines, CIGs and agents are

discussed.

2.1 Guideline Infrastructure

Guidelines are autonomous literature sources which

seldom rely on any other knowledge, except some

base-level understanding. They provide information,

logic and motivation in order to describe aspects of a

particular domain. The guideline document itself is

made up of a series of aims, goals, procedures and

plans. It was never expected guidelines would be

used exclusively in a form of cookbook medicine,

but more in a complementary and supportive role by

providing domain specific information. Therefore,

these documents are rarely used in whole, but more

in part, to aid in healthcare delivery. This means that

the guideline should be viewed holistically, and not

just as a collection of separate workflow elements

taken out of context.

In summary, a clinical guideline is a self-

contained document which specialises in a specific

BDI

Structure

Characteristics Guideline Structure

Belief

↔

Informational

attributes

↔

Facts

Desire

↔

Motivational

attributes

↔

Goals and aims

Intension

↔

Deliberative

attributes

↔

Selection of

Actions

SOFTWARE AGENTS REPRESENTING MEDICAL GUIDELINES

143

condition, organ or disease. Medical professionals

interface with this document in light of the known

patient information to support their patient-centred

healthcare delivery.

2.2 Computer-Interpretable-Guidelines

The underlying principle behind the CIG approach is

to disassemble the guideline into separate workflow

activities, and then orchestrate rules to link these

activities together centrally based on the presented

patient data. The majority of CIG’s decompose the

medical guideline into an Arden Syntax Medical

Logic Module (MLM) or similar by dividing the

narrative guideline into ‘evoke’, ‘data’, ‘logic’ and

‘action’ slots. These slots are used to develop a

software workflow activity plan, complete with a

triggering condition, but contain no motivation or

goal. As more guidelines are added, rules controlling

the selection, merging and division of workflow

activities increases. The centralised CIG control

engine which manages these activities provides the

motivation or goal for the software to operate. As all

guidelines are coupled together via the centralised

set of management rules it is not possible to

distribute this activity among a number of computer

systems. This is fundamentally different to the true

operation of a medical guideline where many copies

of the same guideline exist.

In summary, a CIG is a list of workflow plans

which are called and used when the relevant patient

information is available. It is centralised and the

original knowledge is fragmented and cannot be

truly interfaced with.

2.3 Software Agents

An agent is an autonomous self-contained software

module which is programmed using belief, goal and

plan attributes. Each agent has its own inference

engine which interprets these attributes in order to

perform some activity. The principle of a BDI

agent’s operation is based on a belief capturing the

informational attributes, the desire capturing

motivational attributes and the intention capturing

the deliberative attributes of an agent (Rao et al.,

1995). An agent shell is a generalised version of an

agent which can be adapted for a wide variety of

different applications. There are a number of BDI

agent shells available such as Jason, 3APL and

Jadex. Jadex 0.932 was the agent shell used in this

research. Although there are characteristic

similarities between agents and guidelines the raw

Jadex shell is not capable of capturing guideline

functionality without some modification. To this end

the Jadex agent shell was adapted and this modified

version of the Jadex agent was titled Autonomous

Socialising Knowledge agent (ASK-agent).

Using the ASK-agent model a guideline can be

decomposed into workflow activities, but instead of

having a centralised inference engine to manage all

the guidelines, each guideline has its own inference

engine. The guidelines have the ability to

communicate with other resources using message

passing. The ASK-agent encodes the separate

workflow paths and motivational management rules

of the guideline within a single autonomous software

module. There is no centralised engine managing the

separate ASK-agents, therefore the approach is

distributed. Each agent registers itself, complete

with the services it provides, language and ontology

it uses with a Directory Facilitator (DF). The DF

acts as a goldenpages for agents, allowing them to

be looked-up, accessed and used as independent

resources.

Table 2: Adapted MLM to Agent map.

The agent’s beliefs capture and encode the

information attributes of the guideline, the agent’s

Adapted

MLM

Slot

ASK-Agent Component

Evoke The ASK-agent’s action trigger to perform

some task, or perform goal.

Data Belief, the facts the agent uses to trigger logic.

A belief can be any Java object.

Logic Condition, precondition or trigger based on

beliefs used for the selection of an appropriate

workflow activity plan or goal.

Action Execution of the workflow activity.

*NEW*

Achieve

Goal

Motivates the ASK-agent to achieve a specific

goal to reach some desired state, such as

determine patient gender, age, PatientID.

*NEW*

Maintain

Goal

Motivates the ASK-agent to maintain a specific

condition (e.g. maintain the plausibility value

above 60%)

*NEW*

Query

Goals

Motivates the ASK-agent to seek alternative

avenues on an IF basis without committing to

the workflow activity (e.g. test alternative paths

before committing to the path, such as would

knowing the gender of the patient alter the

outcome?).

*NEW*

Meta-level

reasoning

If more than one workflow activity is triggered

simultaneously, but only one should be chosen

the ASK-agent must choose the most

appropriate course of action to take.

*NEW*

Modal

reasoning

If data stored in the beliefs or received in a

message has a level of truth, but cannot be

established as 100% true or false, then the

ASK-agent can weight its selection of an

appropriate action (e.g. the patient could have

kidney failure, probability of 60%, but the

patient could also have liver failure, probability

of 55%)

HEALTHINF 2008 - International Conference on Health Informatics

144

plans capture and encode the deliberative and action

attributes of the guideline, and the desire captures

and encodes the motivational attributes of the

guideline. This can be accurately and efficiently

completed by using an adapted MLM to agent map

as shown in Table 2, which was used in a proof of

concept agent application developed by the authors.

The extended MLM structure provides a means

to extract the guideline motivational components in

the form of achieve, maintain and query goals.

These motivational components provide the driving

force behind the agent’s activity. Using this

approach an agent can act faithfully and

autonomously on behalf of the guideline in a self-

contained capacity. Thus when patient specific

information is presented to the individual agents, via

message passing, they have the ability to apply their

encoded knowledge and logic, and provide a

supportive response based solely on that

information. Using this operation dynamic an agent

module can also make use of the maximum

supportive response from the other separate agent’s

(which represent guidelines) based on the known

facts about the individual patient. By providing a

framework which allows separate agents broadcast

supportive communications to each other, the agent

approach offers the opportunity for the data to be

validated in a patient-centred fashion.

In summary, an ASK-agent is a self-contained

software module which specialises in a specific

condition, organ or disease affecting a particular

population cohort. Other agents (software or human)

interface with this software knowledge in light of the

known patient information, and receive supportive

information from the agent to aid in their patient

specific healthcare delivery.

3 PROCEDURE TO CONVERT A

GUIDELINE TO ASK-AGENT

To provide a consistent technique for developing

ASK-agent modules, which can act faithfully and

accurately on behalf of a guideline, it is important to

document, and explain the conversion process. The

development of an ASK-agent module from a

specific narrative guideline is based on the cycle

shown in Figure 1. This procedure uses the

expanded MLM mapping to the Agent Definition

File (ADF) Extended Mark-up Language (XML) file

and Java plans. The procedure is divided into six

steps each of which is described in the following

subsections.

Select

Guideline

Convert guideline

to Extended MLM

Convert Extended

MLM to

Agent ADF

File & Plans

Does implementation

represent guideline motovation,

logic and knowledge?

Review guideline

Yes

Upload/Execute

Select

Guideline

Convert guideline

to Extended MLM

Convert Extended

MLM to

Agent ADF

File & Plans

Does implementation

represent guideline motovation,

logic and knowledge?

Review guideline

Yes

Upload/Execute

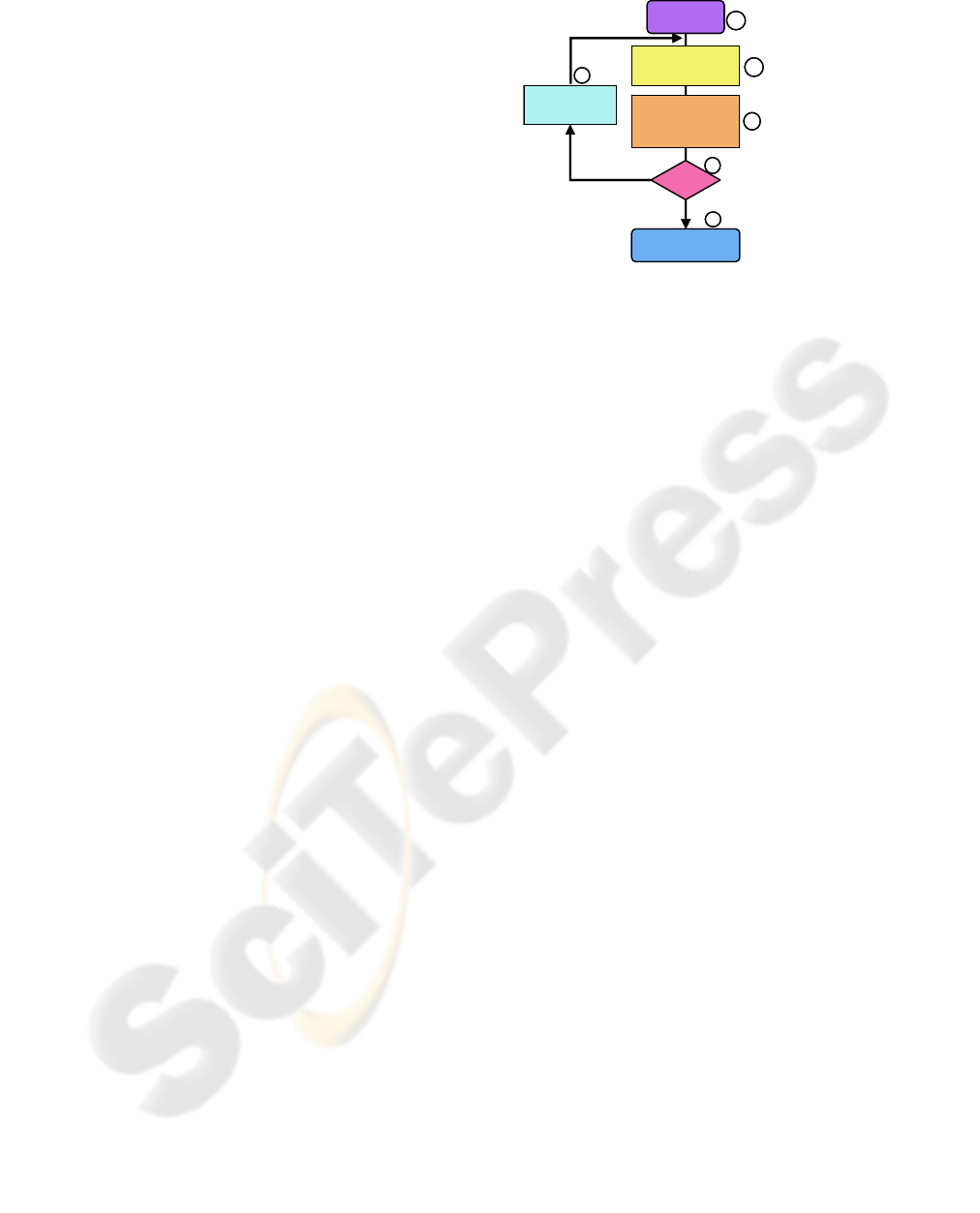

Figure 1: Encoding of expert agent procedure.

3.1 Select Guideline

The medical institution chooses a guideline that

matches and complements their core activities. The

types of guidelines being discussed are text based

documents with conclusions being derived using

rule-based or statistic-based decisions or numerical

analysis. Neither the proposed ASK-agent nor

existing CIG approaches can manage guidelines

which have been developed using graphical imagery

and charts.

3.2 Convert Guideline to Extended

MLM

The guideline document is an amalgamation of a

number of workflow activities which are triggered

using motivational goals. Consider for illustration

purposes the example of a generalised guideline

extract shown in Table 3.

Table 3: Generalised guideline extract.

Evoke:

Arrival of laboratory results for analyte results X, Y and Z.

Data:

PatientAge

PatientGender

Logic:

IF (25Years < PatientAge >50Years) AND (40U/L < X >

130U/L) THEN perform ActivityA.

IF (PatientGender = Male AND (8U/L < Y > 40U/L) THEN

perform ActivityB.

IF (PatientGender = Female AND (6U/L < Y > 35U/L) THEN

perform ActivityB.

IF (PatientGender = Female AND (50U/L > Z) THEN perform

ActivityC.

Action:

ActivityA

ActivityB

ActivityC

SOFTWARE AGENTS REPRESENTING MEDICAL GUIDELINES

145

The evoke slot relates to the triggering condition

which is used to start this specific workflow path.

The data information is retrieved from the

Laboratory Information System (LIS) by completing

an SQL query, or by executing an archetype query.

An archetype is a recently employed term used in

medical informatics. It is described in the CEN pre-

standard prEN13606:2004(E) as a reusable, template

model which presents a specific viewpoint of a

domain reference model. The logic relates to a rule

for selecting an activity. Finally the action is the

activity to be performed, such as “print message to

screen” or perform another activity.

3.3 Convert MLM into Agent ADF File

and Java Plans

The agent is encoded by directly mapping the

extended MLM components to the ASK-agent. Code

1 illustrates how the Jadex ADF is encoded using

XML. This file contains MLM slot components such

as data, evoke, action, logic, query goal, achieve

goal, maintain goal and meta-level priority. Meta-

level reasoning is where two or more plans or goals

can be triggered at the same time and a choice is

needed on which one takes priority. For example

consider the generalised guideline extract shown in

Table 2. The first logical statement may be triggered

calling on activityA to be executed. But any of the

other three logic statements could also be triggered

simultaneously calling on activityB or activityC. Do

all need to be performed together, or should one

activity be completed first? These decisions are

traditionally realised centrally within the CIG

engine, and are not part of the distributed MLM

modules themselves. This motivation must be

extracted from the original narrative guideline

document and added to the BDI, providing the

motivating force behind the agent’s activity. Using

Jadex this ordering of activities can be completed

using priority attributes. Other components utilised

by the expert agent model but not explicitly declared

in either the narrative guideline or MLM are

language, ontology and service descriptions. If the

guideline was developed using a specific language

or ontology, it is important that the sender of

messages to it are aware of this, so a richer form of

communication can be established. To this end the

Jadex agent permits the declaration of an agent’s

language and ontology. The service description is

used to register services the guideline can perform.

In practice a guideline can perform many services,

for example validate analyte Y and Z results if the

PatientAge is known, or validate analyte X and Z

results if PatientGender is known. These are

services the ASK-agent is able to provide and are

described using the Service Description component.

For each service described using the ASK-agent

eight parameters are used to describe it. These

parameters are name, type, ownership,

GuidelineReference, InformationNeeded

ValidationType, ontology and protocol. These

services are registered with the DF goldenpages

agent. Type is used to identify the field of expertise

to which the ASK-agent belongs (e.g. liver, kidney,

and haematology). Ownership is used to identify the

guideline implementation owner (e.g. department).

GuidelineReference is used to identify the guideline

that the ASK-agent represents (e.g. ISBN).

InformationNeeded is a list of the data the ASK-

agent requires in order to process the validation

request (e.g. SerumALK_P, SerumALT,

SerumGGT). The InformationNeeded titles can be

developed to match the medical domain titles. Both

ontology and protocol where described earlier. There

presence in the service description is so other ASK-

agents can identify the ontology and protocol used

by this particular agent.

<!-- <H3> Second Heading</H3>

<H4> Third Heading</H4> -->

<goals>Evoke_MLM_Slot, Query

Goals, Achieve Goals, Maintain

Goals and Meta-level priority

</goals>

precondition, conditions and

triggers activating the goal are

represented by the Logic MLM

Slot

<plans>Action_MLM_Slot, Meta-

level priority </plans>

precondition, conditions and

triggers activating the plans are

represented by the Logic MLM

Slot

<servicedescription>…

</servicedescription>

</agent>

Code 1: Jadex agent ADF XML constructor.

HEALTHINF 2008 - International Conference on Health Informatics

146

3.4 Expert Agent Testing

Once the Agent ADF XML file and associated plans

are developed the implementation needs to be

thoroughly tested to ensure it represents the original

guideline’s motivations, logic and knowledge.

Guidelines are autonomous self-contained entities;

therefore the agent must act in a similar fashion. If

the implementation of the guideline achieves this

then it is uploaded into the main agent platform and

can be used as part of the ASK-agent group.

3.5 Upload and Execute Agent Module

The developed ADF XML file and Java plans which

represent the guideline are loaded into the JADE

Remote Agent Management. Using the JADE

Remote Agent Management GUI each agent is

selected in turn using the “Start New Agent” button

and loaded into the manager. Once installed the

agent is able to act as part of the social group. The

uploaded agents can be switched on, off or

suspended by using the JADE Remote Agent

Management GUI.

3.6 Review Guideline Conversion to

ASK-Agent

If the agent module autonomous action does not

represent the intended operation and understanding

of the original narrative guideline, its encoding

should be reviewed. This review continues until the

agent represents the true operation of the guideline.

4 CONCLUSIONS

The purpose of this research is not to dismiss the

CIG approach, but re-examine it from a processing

point of view. This research demonstrates the

agency approach offers a solution to the

management of medical guidelines electronically, in

a manner similar to that provided by the original

narrative guidelines themselves. This is because of

the synergy between the knowledge base, plans,

decisions, action, goals and the self-contained

components between guidelines and agents. It

illustrates that this method permits the guideline

content to be stored within one standalone agent

module, and the entire knowledge, logic and data

can be interfaced with by other agents when

necessary. The ASK-agent approach permits a single

guideline to be expressed within a standalone agent,

but for true patient-centred validation to occur these

separate agents must be able to communicate with

other modules and collaborate. These last two

aspects are covered in more detail in separate papers

presented at this conference. So in summary the key

differences between the CIG and ASK-agent

approaches are detailed in Table 4.

Table 4: Generalised guideline extract.

Aspect CIG ASK-Agent

Processing Centralised Distributed

Guideline

content

Fragmented within CIG

engine.

Integrated as a

standalone

module.

Method of

accessing

information

Data entry and the

execution of CIG rules.

Message passing.

Encoding of

guideline

content

Menu or/and graphical. XML and Java.

Size of

file(s)

created

For a single guideline

the CIG engine is

small. However, as

more MLM’s are added

the CIG engine

application file

becomes very large.

Processing cannot be

distributed.

For a single

guideline the

ASK-agent is

larger than the

CIG. However, as

model is

distributed the

system file size is

not a limitation

ACKNOWLEDGEMENTS

The authors wish to acknowledge and thank the

work undertaken by developers of the Jadex agent

platform at Distributed Systems and Information

Systems Group, Computer Science Department,

University of Hamburg. http://vsis-

www.informatik.uni-hamburg.de/projects/jadex/

REFERENCES

Browne E.D., 2005. Workflow Modelling of Coordinated

Inter-Health-Provider Care Plans, School of

Computer and Information Science, University of

South Australia, Adelaide, PhD Thesis January 2005.

Oosterhuis W.P., Bruns D.E., Watine J., Sandberg S.,

Horvath A. 2004. Evidence-Based Guidelines in

Laboratory Medicine: Principles and Methods,

published in Clin Chem, year 2004, Vol50 pgs 806-818.

Peleg M., Tu S., Bury J., Ciccarese P., Fox J., Greenes R.,

Hall R., Johnson P., Jones N., Kumar A., Miksch S.,

Quaglini, S., Shortliffe E, Stefanelli M. 2003.

Comparing Computer-interpretable Guideline

Models: A Case-study Approach, accessed via Journal

of the American Medical Informatics Ass. Volume 10

Number 1 Jan / Feb 2003.

Rao A., Georgeff M., 1995. BDI Agents: From Theory to

Practice, proceedings of the first international

conference on multi agent systems (ICMMAS-95) San

Francisco USA 1995.

SOFTWARE AGENTS REPRESENTING MEDICAL GUIDELINES

147
