USING WEB SERVICES TO DYNAMICALLY EMBED MEDICAL

CONTENT IN A CLINICAL INFORMATION SYSTEM

Martin Luethi

Picis, Inc., 9550 W. Higgins Rd, Rosemont, IL, 60018, USA

Keywords: Web services, medical calculators, drug dosage calculators, dynamic user interface.

Abstract: This paper describes a prototype software application that makes use of Web services to retrieve medical

content from an external Application Service Provider (ASP) service. The retrieved data is used by the sys-

tem to dynamically generate user interface components within a user-customizable department information

system and by clinicians to obtain results that will assist with medical decision-making. Medical forms are

frequently built and rearranged by medical system administrators. From the perspective of clinical end users

the content is seamlessly integrated and allows querying of dosages, interactions, and formulations using

collected parameters such as age, weight, and physiological data. Whereas the use of standalone personal

digital assistant (PDA) devices provides measurable benefits to clinicians, the feasibility of a seamless inte-

gration with user-customizable information systems has not been researched well. This paper describes one

approach that could be taken to integrate such medical calculators with a web-based clinical information

system. The solution described is not intended to represent functionality available in any actual or planned

product.

1 INTRODUCTION

Medical content and knowledge such as drug inter-

actions, medical calculators, drug dosing calculators,

drug formulations, and illustrations provide a high

benefit to clinicians and may decrease patient risk

significantly (Knollmann et al., 2005). Medical

knowledge has been made available in vast compen-

diums and in more recent days on the internet or as

standalone applications on mobile devices such as

PDAs. Whereas these applications provide a meas-

urable benefit, they lack integration and documenta-

tion capabilities with clinical information systems

that are concurrently used in the department. Conse-

quently retrieved results have to be duplicated using

the departmental procedures and systems in place.

Often departmental systems provide this medical

content as well. It is either provided by the software

vendor directly or external databases are purchased

from vendors and then tightly integrated with the

application. However, the conventional approach has

two major disadvantages: First, changing content

requires a new release or system maintenance cycle.

Second, the integration is often static and does not

allow the user to modify the clinical content.

The presented approach provides a solution to

these problems. Using an ASP model, the content is

directly queried from the content provider via Web

services. Updates of data and newly added function-

ality are immediately available at sites where the

system is in use. Further, the user interface (UI) is

instantiated in an ad hoc fashion and the content is

integrated within the dynamic structure. Updated

content is immediately available for use and required

UI elements are rendered. Patient data already avail-

able in the departmental system such as age, weight,

and height is automatically pulled into the calcula-

tors. Once all necessary parameters are collected an

additional Web service call is made to retrieve the

calculated result based on the parameters provided

by clinicians.

This paper also describes security challenges

specific to the use of external Web services with

medical data. Availability and reliability issues are

discussed as well as general patient safety risks and

testing strategies. Scenarios are discussed from the

perspective of the service requester.

291

Luethi M. (2008).

USING WEB SERVICES TO DYNAMICALLY EMBED MEDICAL CONTENT IN A CLINICAL INFORMATION SYSTEM.

In Proceedings of the First International Conference on Health Informatics, pages 291-297

 SciTePress

2 CLINICAL CONTENT

Medical knowledge is increasing rapidly. It is diffi-

cult for clinicians to keep up-to-date with new evi-

dence-based studies, medical literature, and FDA-

approved medications and their interactions, even

though they should be considered during medical

decision making. Prescription errors and adverse

drug events are a leading cause for malpractice liti-

gation (De Sousa, 1996). Improving access to this

knowledge could lead to better decision-making,

improve patient outcome, reduce costs, and increase

bed utilization (Pronovost et al., 2002).

Portable devices, namely PDAs, have been used

to make this knowledge accessible for clinicians

(Lapinsky et al., 2004). The largest criticism of these

systems besides data-related issues is their lack of

integration with departmental information systems,

their lacking ease of use, and the need to manually

update the devices’ databases. Content is preferably

accessed in one single application and used on desk-

top computers when away from the bedside. Subse-

quently, examples are provided for often accessed

content types.

2.1 Drug Dosage Calculators

Drug dosage calculators are used to calculate medi-

cation doses taking into account individual patient

data such as weight and age and other relevant in-

formation. The applied formulas may vary by treated

disease and type of medication.

The following table presents an example of a

simple calculation formula (1) for IV Dobutamine.

The parameters required for the calculation a-d are

listed.

a = drug amount (mg)

b = per fluid (ml)

c = weight (kg)

d = dose (mg/kg/min)

x = drip (ml/min)

x = a / b * c * d (1)

2.2 Medical Calculators

Medical calculators are used to generate a numeric

or textual result that is used for further medical deci-

sion making. Typical examples are the calculation of

probabilities of diseases and outcomes, index num-

bers, and scales. They can have one or multiple data

entry parameters, which can be numeric or chosen

from a selected textual option.

The following example is Basal E Expend for

females (2), which requires weight, height, and age

as input parameters and results the calorie use per

day.

a = weight (kg)

b = height (cm)

c = years

x = kcal/day

x = 9.6 * a + 655 + 1.8 * b – 4.7 * c (2)

2.3 Drug Interactions

The intake of more than one drug can result in se-

vere interactions. Before prescribing or applying

drugs, possible interactions have to be checked.

With the current prototype several dozens can be

checked simultaneously and the seriousness of inter-

actions is rated on a scale of 1-5. Each interaction is

accompanied with an explanation of the effects of

the interaction.

As an example the interaction between Aspirin

and Atenolol is provided. The result contains the

severity of the interaction and its description. To

obtain the desired result the drug identifiers have to

be provided.

a = Aspirin (drug 1)

n = Atenolol (drug n)

x = drug interaction (level, message)

x = a, …, n (3)

2.4 Other Content

A simple case of medical content is the provision of

textual and visual data regarding a contextual topic.

The difficulty is to provide an appropriate search

term to retrieve the data dynamically depending on

the context and to link it with the application.

2.4.1 Text Content

Medical text content requires one or more search

terms and a product code. Access of an encyclopae-

dic database is currently not supported. The service

returns a result of drugs and products in textual rep-

resentation.

2.4.2 Illustrations

Images are used for educational purposes. They pro-

vide explanations and textual values (Figure 1). Im-

ages are static and do not need any input parameter

except the expected graphic format and the illustra-

HEALTHINF 2008 - International Conference on Health Informatics

292

tion identifier. The binary output is embedded in the

XML body as base-64 encoded string.

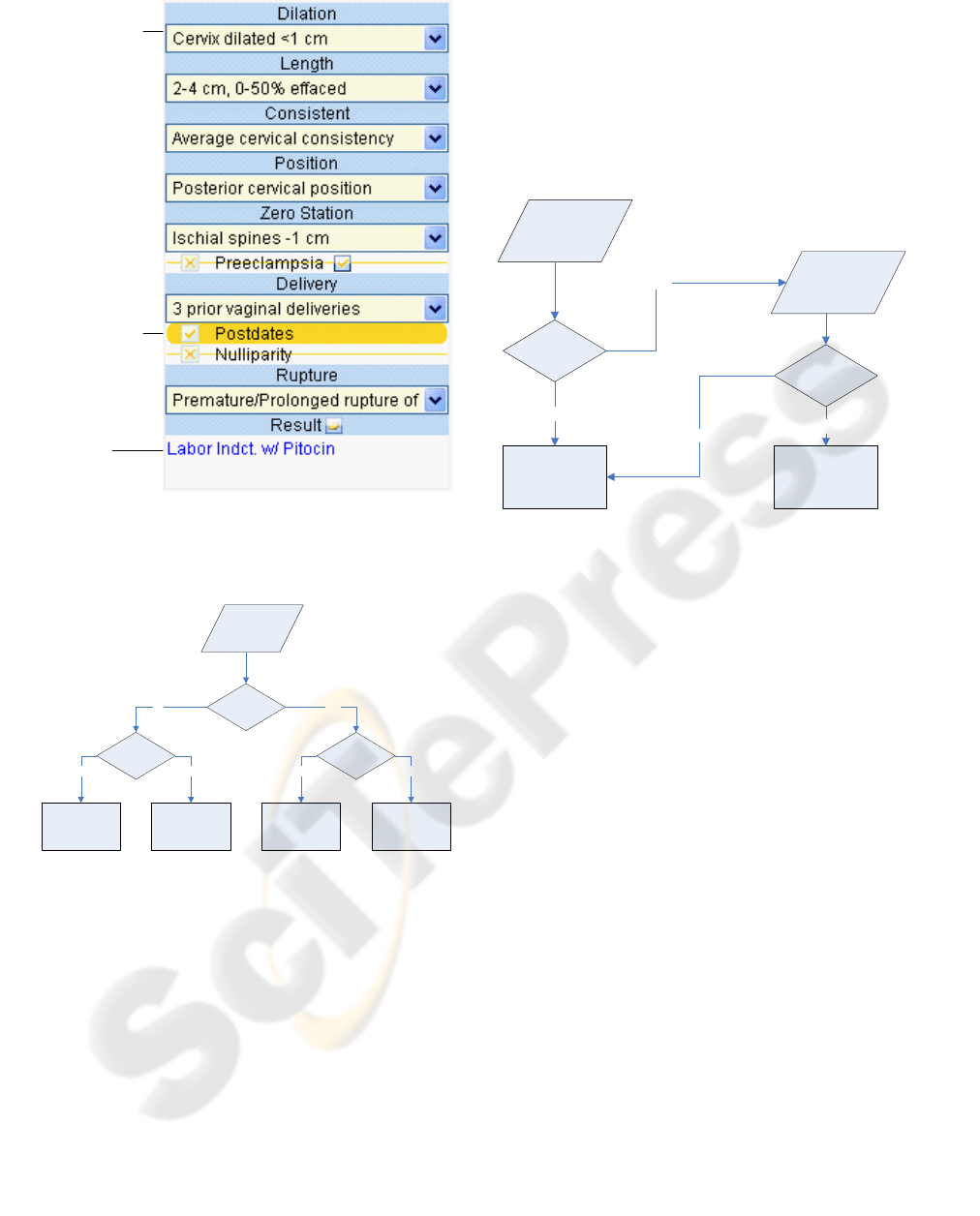

Figure 1: Example of a medical illustration.

3 WEB SERVICES

A Web service is a software system that is designed

to support interoperable machine-to-machine inter-

action over a network. Its interface is described in a

machine-processable format so that other systems

can interact with the service exchanging messages

(W3C 2004). For a successful message exchange

mechanics and semantics of a message have to be

defined and mutually agreed upon.

The mechanics describe the message format, data

types, transport protocols, and transport serialization

protocols. Commonly these definitions can be found

in a Web services Description Language (WSDL)

document. The semantics give the message meaning

and its definitions are less standardized and not nec-

essarily written or negotiated.

The use of Web services in a Service-Oriented

Architecture (SOA) allows for the flexible and loose

coupling of applications in platform and language

independent manner. It accelerates application inte-

gration and facilitates rearranging the sequence of

required components as needed. However, commu-

nications of distributed systems are naturally less

reliable and slower than direct code invocation and

shared memory. Further, there are additional secu-

rity and privacy consideration in particular for ser-

vices transmitting confidential patient information

and cases in which the Web service data is directly

used for patient treatment.

Application of Web services in clinical areas and

related-fields as opposed to payer and business areas

are not very common. A few examples of their use

have been described (Cheng, Yang, Chen, Chen, &

Lai, 2004; Eaton, 2006; Jiang, 2004; Mykkänen,

Riekkinen, Sormunen, Karhunen, & Laitinen, 2007).

3.1 Standards

The Web services programming stack (Figure 2) is a

collection of standardized protocols that are used to

implement Web services (Gottschalk, Graham, Kre-

ger, & Snell, 2002). The foundation of distributed

Web services is the network layer. It is based on

HTTP allowing accessing the service from within a

hospital network through its firewalls. On top of the

network layer, an Extensible Markup Language

(XML)-based messaging protocol ensures the me-

chanics of the Web services. The Simple Object

Access Protocol (SOAP) is used to invoke method

calls for the content needed. Descriptions in WSDL

give details of the mechanics and the available ser-

vices of the interface. Available services and their

location (URI) are known to the service requesters

by informal means. However, publication and dis-

covery of Web services could be implemented using

the Universal Description Discover and Integration

(UDDI) standard. The service flow layer allows the

composition of services to an application. It has been

implemented proprietarily.

Figure 2: Web services programming stack.

Security, manageability, and quality of service apply

to all the discussed layers.

3.2 Security and Reliability

Web services are suspect to common threats of net-

worked data exchanges such as message alteration,

confidentiality, man-in-the-middle, spoofing, denial

of service, and replay attacks (W3C 2004). Such

attacks can be prevented by point-to-point security

technologies that secure the transmission from one

Web services to another or, if routed through multi-

ple services, by end-to-end security measures.

For the use of medical content as described,

message alteration and denial of service are possible

security risks. However, point-to-point technologies

are sufficient to secure the transmission since mes-

sages are not routed among service providers. To

USING WEB SERVICES TO DYNAMICALLY EMBED MEDICAL CONTENT IN A CLINICAL INFORMATION

SYSTEM

293

achieve this security, password authentication of the

requester and encryption of the communications link

using the Secure Socket Layer (SSL) protocol are

considered sufficient. Confidentiality attacks and

privacy concerns are not relevant for the discussed

system since there is not enough data transmitted to

identify a patient. Age and gender in conjunction

with physiological data alone is in most cases not

sufficient to deduce the identity of a patient.

Additionally, since the information system is

used in an information technology (IT) environment

that is not directly controlled by either party, it is

important to consider that Web service calls need to

be able to flow through organizations’ firewalls. It

can be tunnelled through existing ports and proto-

cols, which makes this less of an issue.

Requesting services over a public network in-

volving a requesting and providing agent, is intrinsi-

cally less reliable than local services. It can be dis-

tinguished between message reliability and service

reliability. If no answer can be retrieved an error

message is thrown. It would be possible to offer a

fail-over service provider that could be hosted within

a hospital network. Before values are submitted to

the service, the values are checked on the client.

They are checked for their validity and reviewed by

the clinician when documenting a visit. Failures are

not safety critical.

4 APPLICATION

The Web services consuming software application is

a web-based emergency department information

system (EDIS) that provides functionality required

by clinicians such as patient tracking, registration,

clinical workflow and task management, physician

and nursing documentation, orders, and post-

disposition management. The server-based applica-

tion is interfaced with several other information sys-

tems in the hospital such as the main registration

system, laboratory systems, pharmacy systems, bill-

ing and coding systems, etc.

The workflow in emergency departments de-

pends on forms and documentation requirements

vary significantly from site to site. Therefore, the

clinical documentation component allows medical

administrators to build and customize their own

forms. The form building process may be performed

via a drag-and-drop interface where UI elements are

selected from a library of elements. Further, meta-

data such as charge codes, clinical identifiers, risk

elements, and wording data can be attached. The

content elements could be stored in a library.

Once customizations have been finished the con-

tent is published and is used for documentation by

clinicians. Documentation is complaint-driven and

can consist of many different forms, whose sections

are selected dependent on patient attributes such as

age and gender.

4.1 Architecture

Clinical documentation forms are created in the con-

tent builder component. The elements that make up a

form are stored in a relational database containing

the metadata, but no presentation layer data. The

data is separated from the presentation layer, which

allows using the form definition data in a different

context such as for PDAs and paper forms for digital

pen devices.

Figure 3 illustrates the process of using the Web

service. In the content builder component the clini-

cal form is assembled. At the location where a medi-

cal or dosage calculation is required, a generic calcu-

lator widget is positioned. A list of available calcula-

tors is presented to the user. This list could be re-

trieved through the Web service also, but is kept

locally for performance and manageability reasons.

The current prototype can contain hundreds of dif-

ferent calculators.

When the calculator is selected a Web service

call is made to the ASP service with the needed cal-

culator identifier (1). The Web service responds with

an XML document containing the field data for the

requested calculator. In the response, each required

data field is specified with label, variable name, and

data type. If the data type is an enumeration all pos-

sible options including their text and data representa-

tion are included. Further the formula used to calcu-

late the result is provided in Reverse Polish Notation

(RPN), where applicable.

The response is parsed and the UI elements are

dynamically generated (2). Since the presentation

layer is built using an object-oriented hierarchy of

classes the received data has to be mapped so that

the necessary objects can be instantiated. The entire

form containing also non-Web service retrieved

elements is then rendered to be used in the applica-

tion. During form creation, response time and per-

formance are not a primary concern since the form is

compiled into an intermediary format and cached

locally.

HEALTHINF 2008 - International Conference on Health Informatics

294

Web Service

Content

Builder

Application

(

)

UI Generation

(

)

Figure 3: Architecture.

The response is parsed and the UI elements are

dynamically generated (2). Since the presentation

layer is built using an object-oriented hierarchy of

classes the received data has to be mapped so that

the necessary objects can be instantiated. The entire

form containing also non-Web service retrieved

elements is then rendered to be used in the applica-

tion. During form creation, response time and per-

formance are not a primary concern since the form is

compiled into an intermediary format and cached

locally.

During system use by clinicians the required pa-

rameters are filled in and an Asynchronous

JavaScript and XML (Ajax) request is made to the

Web service to calculate the results (3). The

score/result field is populated with the result as soon

as available. The value can be a string or numeric

type depending on the calculator. Due to the asyn-

chronous nature of the call, the response does not

have to be instantaneous and some delays are toler-

able. If the service is unavailable or does not provide

the expected result an error message is thrown. Al-

ternatively, the request could be routed to a different

service, handled locally, or queued for later retrieval.

4.2 Visualization

The XML response of the Web service containing

the calculator data looks as presented below. Addi-

tionally there is a WSDL service description avail-

able that describes the expected response.

<Title>Bishop</Title>

<Input>

<Name>Dilation</Name>

…

<Text>Cervix … <1 cm</Text>

</Option>

…

</Options>

</Input>

…

</Inputs>

</MedCalcInfo>

The response is parsed and the object hierarchy

is instantiated. The response also specifies the de-

fault values for enumerations as well as data types

that are required. The rendered interface enforces

data type checking using client-side validation. The

UI also consists of data types unknown to the Web

service. For example, in medicine the concept of

pertinent negatives is constantly encountered. This

means that such an element can assume three differ-

ent states: not answered, positive, or negative. In the

UI this concept is implemented as a checkbox that

can be negated by cycling through its different states

by clicking the mouse repeatedly. Positive values are

represented in a circled manner; negative values are

displayed slashed. This application specific UI com-

ponent could be considered a type of “SuperCheck-

box”.

Figure 4 shows how the different data types are

displayed for the end users. This concept has to be

mapped from the Web service response. Enumera-

tions that are specified as yes/no option value are

visualized as SuperCheckbox instead of a dropdown.

USING WEB SERVICES TO DYNAMICALLY EMBED MEDICAL CONTENT IN A CLINICAL INFORMATION

SYSTEM

295

Enum Field

(1...n option)

Enum Field

(yes/no

option)

Result

Field

Figure 4: Dynamically generated user interface.

The UI element types are selected according to

the criteria presented in Figure 5.

Enumeration

Yes/no options

Yes

TextField

DropDown SuperCheckbox

YesNo

Check data

type

Datetime

Calendar

Yes

Figure 5: Data type mapping.

Additional to the field definitions received from

the Web service, a result field is rendered to present

the calculated scores or results. The results and val-

ues do not only have to be submitted to the Web

service for calculation but also documented in the

EDIS according to site-specific guidelines. The re-

quest and response are validated by the service

whether they lie in a sensible range.

4.3 Integration

Many values that are used in calculators are already

available in the system either through manual data

entry using different forms or through data interfaces

with external systems. Such values include vital

signs, weight, height, age, gender, etc. These values

can be automatically imported and pre-selected in

the appropriate UI elements. To provide real seman-

tic integration, a system would require the use of a

common nomenclature. String parsing, mapping,

and data type checking could be applied, which in

conjunction would provide the required reliability.

Check field

identifier

Match

Empty field

Retrieve

field value

Yes

Populate field

Correct data

type

Yes

Figure 6: Populate fields with existing data.

The quality of the described system can be assured by

automated unit tests that query the Web services for sev-

eral test cases. They also record the access time and la-

tency of the service response time. The UI is also tested

via a test automation framework.

4.4 Measurements

As indicated above, response times and reliability of

the discussed Web services are of some concern.

This is in particular the case for the calculation of

medical results. Whereas some delays are acceptable

due to asynchronous calls, response times should

generally not be beyond a 4 second threshold.

The measurements were taken querying the Web

services over the internet over a distance of 14 hops.

The average roundtrip time was 43 milliseconds.

The services were tested with 1 to 20 concurrent

clients. For each client 100 samples were taken. The

infrastructure is scalable but further prototype de-

velopment is required to identify practical limits.

Table 1 shows the results for retrieving the calcu-

lator data during form administration. During the

test, all requests could be completed successfully.

Generally not more than 5 concurrent users are ex-

pected to use the administration tool at any given

time. Rendering times of the data are negligible.

Table 1: Response times in seconds of calculator service.

HEALTHINF 2008 - International Conference on Health Informatics

296

Clients Average Minimum Maximum Deviation

1 0.4930 0.3750 0.7500 0.0638

5 1.8393 0.4220 2.5310 1.1898

10 3.7522 0.4840 12.3140 1.8493

20 8.8832 0.3590 62.3220 5.7396

Table 2 lists the response times of the Web ser-

vice that calculates the results. It performs slightly

better using the same number of concurrent clients.

An acceptable wait time is arbitrarily set at 4 sec-

onds. To process more concurrent clients beneath

that threshold the infrastructure would need to be

load-balanced.

Table 2: Response times in seconds of result service.

Clients Average Minimum Maximum Deviation

1 0.6528 0.3120 3.0160 0.3870

5 3.1357 0.3440 14.1410 3.8315

10 3.4759 0.4530 12.9840 1.3377

20 7.8717 0.6250 27.4390 3.3215

Table 3: Conclusions.

Advantages

Immediate updates of frequently changing medication

information and no maintenance of additional servers.

Vast amount of available medical content for immedi-

ate use with minimal integration effort.

Seamless integration with clinical documentation.

Ability of user customization of clinical content.

Disadvantages

Dependence on external service.

Potential service outages and response time problems.

Regulatory and liability implications need to be deter-

mined.

5 CONCLUSIONS

This paper showed how medical content can be dy-

namically integrated into a clinical information sys-

tem. The primary challenge was the seamless inte-

gration of external content into a customizable UI.

The components are rendered on-demand but still

can be transparently arranged by medical system

administrators.

Whereas the retrieval of the form definition data

is only performed during system customization, the

retrieval of results occurs during the documentation

by clinicians and requires a higher level of availabil-

ity. Reliability was found to be high for the de-

scribed service and security requirements can be

fulfilled by point-to-point security technologies.

It was found that the advantages generally out-

weigh the disadvantages. The potential of having a

vast amount of external content available without a

significant integration effort was considered to be

the biggest advantage. Further, having this content

available using an ASP concept as opposed to in-

house hosting reduces maintenance to a minimum

for the service requester.

Future research is needed to address the accep-

tance of this content by clinicians. Also, the re-

sponse times and reliability over a high number of

customers needs to be considered. In a next step,

patient history from other systems could be inte-

grated using Web services across network bounda-

ries. Also, legal and regulatory concerns need to be

addressed.

REFERENCES

Cheng, P., Yang, C., Chen, H., Chen, S., & Lai, J. (2004).

Application of HL7 in a collaborative healthcare in-

formation system. Paper presented at the Engineering

in Medicine and Biology Society, 26th Annual Inter-

national Conference of the IEEE.

De Sousa, B. (1996). Prescription problems: clinical phar-

macology and lawsuits. Texas Medicine, 92(5), 57.

Eaton, A. D. (2006). HubMed: a web-based biomedical

literature search interface. Nucleic Acids Research, 34,

W745–W747.

Gottschalk, K., Graham, S., Kreger, H., & Snell, J. (2002).

Introduction to web services architecture. IBM Systems

Journal 41(2), 170-177.

Jiang, K. (2004). Integrating clinical trial data for deci-

sion making via web services. Paper presented at the

Engineering in Medicine and Biology Society, 26th

Annual International Conference of the IEEE.

Knollmann, B., Smyth, B., Garnett, C., Salesiotis, A.,

Gvozdjan, D., Berry, N., Lee, H., & Min, D. (2005).

Personal digital assistant-based drug reference soft-

ware as tools to improve rational prescribing: Bench-

mark criteria and performance. Clinical Pharmacology

& Therapeutics, 78(1), 7-18.

Lapinsky, S. E., Wax, R., Showalter, R., Martinez-Motta,

J. C., Hallett, D., Mehta, S., et al. (2004). Prospective

evaluation of an internet-linked handheld computer

critical care knowledge access system. Critical Care,

8(6), 414-421.

Mykkänen, J., Riekkinen, A., Sormunen, M., Karhunen,

H., & Laitinen, P. (2007). Designing web services in

health information systems: from process to applica-

tion level. International Journal of Medical Informat-

ics, 76(2-3), 89-95.

Pronovost, P. J., Angus, D. C., Dorman, T., Robinson, K.

A., Dremsizov, T. T., & Young, T. L. (2002). Physi-

cian staffing patterns and clinical outcomes in criti-

cally ill patients. The Journal of the American Medical

Association, 288(17), 2151-2162.

W3C (2004). Web services architecture. Retrieved 2007-

06-11, 2007, from http://www.w3.org/TR/ws-arch/wsa.pdf

USING WEB SERVICES TO DYNAMICALLY EMBED MEDICAL CONTENT IN A CLINICAL INFORMATION

SYSTEM

297
