CLASSIFICATION OF PREMATURE VENTRICULAR BEAT

USING BAYESIAN NETWORKS

Lorena S. C. de Oliveira, Rodrigo V. Andreão and Mário Sarcinelli-Filho

Federal University of Espírito Santo, Graduate Program on Electrical Engineering

Av. Fernando Ferrari, 51, Goiabeiras, CEP 29075-910, Vitória, ES, Brazil

Keywords: Artificial Intelligence, Medical Informatics, Bayesian Networks, Decision-Support Systems, PVC detection.

Abstract: This paper presents a system based on Bayesian networks (BN) to support medical decision-making. The

proposed approach is able to learn from available data, and provides an intuitive graphical interpretation of

the problem, which can be easily configured by a physician. This approach is evaluated for the first time in

the problem of premature ventricular contraction (PVC) detection, using a representative set of records of

the MIT-BIH database. The results obtained emphasize the capability of the Bayesian network to make

decisions even when the information about some symptoms or events is not complete. Moreover, the good

performance obtained opens many perspectives for the use of BN to deal with beat classification.

1 INTRODUCTION

In the last two decades a great effort has been

invested to develop systems to automatically

interpret long-term electrocardiogram (ECG)

records. Two important reasons are the great

demand for those exams and the long time

specialists spend to make a complete diagnosis

based on such records. The particular interest for

ECG is due to its efficiency in the diagnosis of

arrhythmia and the great incidence of cardiac

diseases in industrialized countries (Kadish et al.,

2001).

Most of the automatic analyses of ECG are

made through rule-based systems conceived by

experts in the fields of artificial intelligence and

pattern recognition. In general, a rule-based system

consists in acquiring the knowledge about a given

process or problem through a set of examples or

facts already happened in order to apply it to new

situations related to the same problem. Several

works in this field employ heuristic rules, neural

networks and statistical approaches to build such

systems.

Heuristic approaches model the human reasoning

through a set of deterministic rules, which are very

dependent on how the individual deals with a

particular problem. The cause-effect relations among

the rules can be graphically represented, allowing

the individual to follow the decision logic and

criticize the results. However, this kind of approach

does not necessarily consider the uncertainty, a key

feature when regarding decision-making systems.

An example of a heuristic approach for PVC

classification is presented in (Andreão, Dorizzi and

Boudy, 2006), where the limitation of the heuristic

rule is dealt with through using regions of certainty

related to the possible values of a certain variable.

On the other hand, statistical approaches are

built after a learning phase based on a set of selected

examples. Thus, the classification capability of this

class of approaches is highly dependent on the

information learned a priori. However, they embed a

certain potential of evolution (through using a new

set of examples in the learning phase).

A method which is in evidence nowadays to

deal with arrhythmia classification is the use of

neural networks (Farrugia, Yee and Nickolls, 1991;

Kuppuraj, 1993). However, such approaches

perform as black boxes, making too hard to an

expert in cardiology to interpret and configure the

classifier. Another weak point associated to the use

of neural networks is their inflexibility to adapt

themselves to new examples, since the learning

procedure demands a large set of examples.

Moreover, the uncertainty related to the

classification problem is not really treated. That is

186

S. C. de Oliveira L., V. Andre

ao R. and Sarcinelli-Filho M. (2008).

CLASSIFICATION OF PREMATURE VENTRICULAR BEAT USING BAYESIAN NETWORKS.

In Proceedings of the First International Conference on Health Informatics, pages 186-191

 SciTePress

why many systems employing neural networks

should be improved before aiming at being

considered as a tool for the decision-making

associated to a diagnosis (Crawford et al., 1999).

In order to overcome the limitation of the NN

to deal with uncertainty, Gao et al. (2005) used a

probability measure in the output layer of an NN for

each beat class. However, the other limitations of the

NN above mentioned continue unsolved.

Finally, other statistical approaches, such us

those employing Bayesian networks, have shown to

be promising to address most of the limitations of

the NN. Indeed, Bayesian networks are quite

suitable to deal with uncertainty (Pearl, 1988), they

are flexible enough to learn from new examples and

they provide a very intuitive graphical representation

that could easily be configured by a cardiologist.

Following this reasoning, a rule-based system is

here proposed to assist the cardiologist in the

diagnosis of premature ventricular beats, a quite

common arrhythmia present in long-term

electrocardiograms. Such a system is based on the

Bayesian network framework, which is quite

suitable to take into account the uncertainty

associated to human interpretation. To the extent of

the author’s knowledge, this is the first time such

framework is used for the particular problem of

beat-classification. The major characteristics of such

approach are hereinafter stressed, and experiments

validating it are presented as well.

2 METHODOLOGY

2.1 Bayesian Networks

Probabilistic methods are a well-known topic in the

field of artificial intelligence (AI), and are quite

useful to model uncertainty.

To know probability is a need when one should

deal with the idea of a random experiment, which

generates events having an assigned uncertainty of

occurrence (Clarke and Disney, 1970). In the theory

of probability one finds the Theorem of Bayes,

which is employed to compute P(A|B) the

conditional probability of the occurrence of an event

A given the evidence B, i.e., the event B was

observed. Such a theorem states that

)(

)()|(

)|(

APABP

BAP =

(1)

where P(A|B) is the posterior probability of A given

B, P(B|A) is the prior probability of B given A, P(A)

is the prior probability of A, and P(B) is the prior

probability of B.

The Bayesian networks are based on the

Theorem of Bayes, working on the causal relations

among random variables. They are direct acyclic

graphs, whose nodes represent random variables

with assigned uncertainty whose arcs represent the

direct causal relation between the connected nodes.

These causal relations are quantified through

conditional probability distributions (Pearl, 1988).

The network does not necessarily have nodes

corresponding to all causes of a given event, since

the influence of irrelevant factors is modelled by the

probability. Thus, using just a few variables it is

possible to deal with a large number of causes.

The Bayesian networks can be composed of

discrete random variables (multinomial distribution),

continuous random variables (Gaussian and

exponential distributions (Shachter, 1986; Buntine,

1991)), or a mixture of both.

2.2 ECG Analysis

The automatic analysis of the ECG signal has been a

topic of research over the three last decades. The

ECG is a record of the heart electrical activity in

which changes in the elementary waveforms of the

signal (P, QRS complex and T waves) characterizes

an abnormal beat (see Figure 1).

In particular, the premature ventricular

contraction (PVC) is a heart beat which is generated

by an electrical impulse which does not follow the

normal electrical conduction path through the heart

(sinus node, atrioventricular node, and ventricles).

Instead, it starts at the ventricles earlier than

expected. A PVC beat is characterized by a heart

beat without the P wave (atrial contraction), a

premature and large QRS complex and a

compensatory pause just after, as shown in Figure 2.

Figure 1: Heartbeat observed on an ECG with elementary

waveforms and intervals identified (Andreão, Dorizzi and

Boudy, 2006).

CLASSIFICATION OF PREMATURE VENTRICULAR BEAT USING BAYESIAN NETWORKS

187

Because of its characteristics and the availability

of ambulatory ECG signal databases rich on this

arrhythmia, most work in the field of ECG analysis

evaluate the performance classifying systems

through the detection of PVC beats

Taking the characteristics of the PVC beat,

however, it is very difficult to precise how much

premature it is. Actually, a beat is premature when

the R-R interval, which means the time interval

between its peak and the peak of the previous beat,

is shorter than it should be. The problem here is that

the decision of how long should this interval be to

characterize a premature beat depends on the point

of view of the cardiologist, which characterizes an

uncertainty that should be taken into account by the

system during classification.

2.3 Bayesian Network for PVC

Classification

The first step to be followed when building a

Bayesian network is to identify, from the problem

given, the random variables and their causal

relations. Figure 3 illustrates the graphical

representation of the Bayesian network implemented

here. The nodes, represented as rectangles, are

discrete random variables, while the nodes,

represented as circles, are continuous random

variables. RR is the random variable modelling the

time interval between two consecutive QRS-

complexes (or heart beats), whose probability

density function (pdf) is a Gaussian function. The

node LL is also a random variable with a Gaussian

pdf, now representing the measure of the duration of

the QRS-complex, in terms of likelihood (Andreão,

Dorizzi and Boudy, 2006).

Every time a PVC episode occurs (PVC node is

true) the related beat is premature (Premature Beat

node is true), and if its QRS-complex is larger than

the normal one the Ventricular Node is also true.

Since the nodes PVC, Premature Beat and

Ventricular Beat are discrete, their conditional

probabilities are represented by a table in which the

binary possibilities true (T) and false (F) have their

related probabilities.

After identifying all random variables, it is

necessary to estimate their respective probabilities.

This procedure can be accomplished by a specialist

having the prior knowledge about each variable of

the system. In our case, the knowledge of the

specialist about the distributions (pdfs) of the RR

and LL random variables was obtained through a

labelled database, where each heart beat of the ECG

record has a Normal or a PVC label (see Section 3).

However, the RR and LL values are not provided by

the database. In this paper, it was used the HMM-

ECG system developed by Andreão, Dorizzi and

Boudy (2006), which automatically labels the signal,

returning as a result the RR and LL values of each

detected heartbeat. The values are normalized

according to the value of the last normal beat

detected.

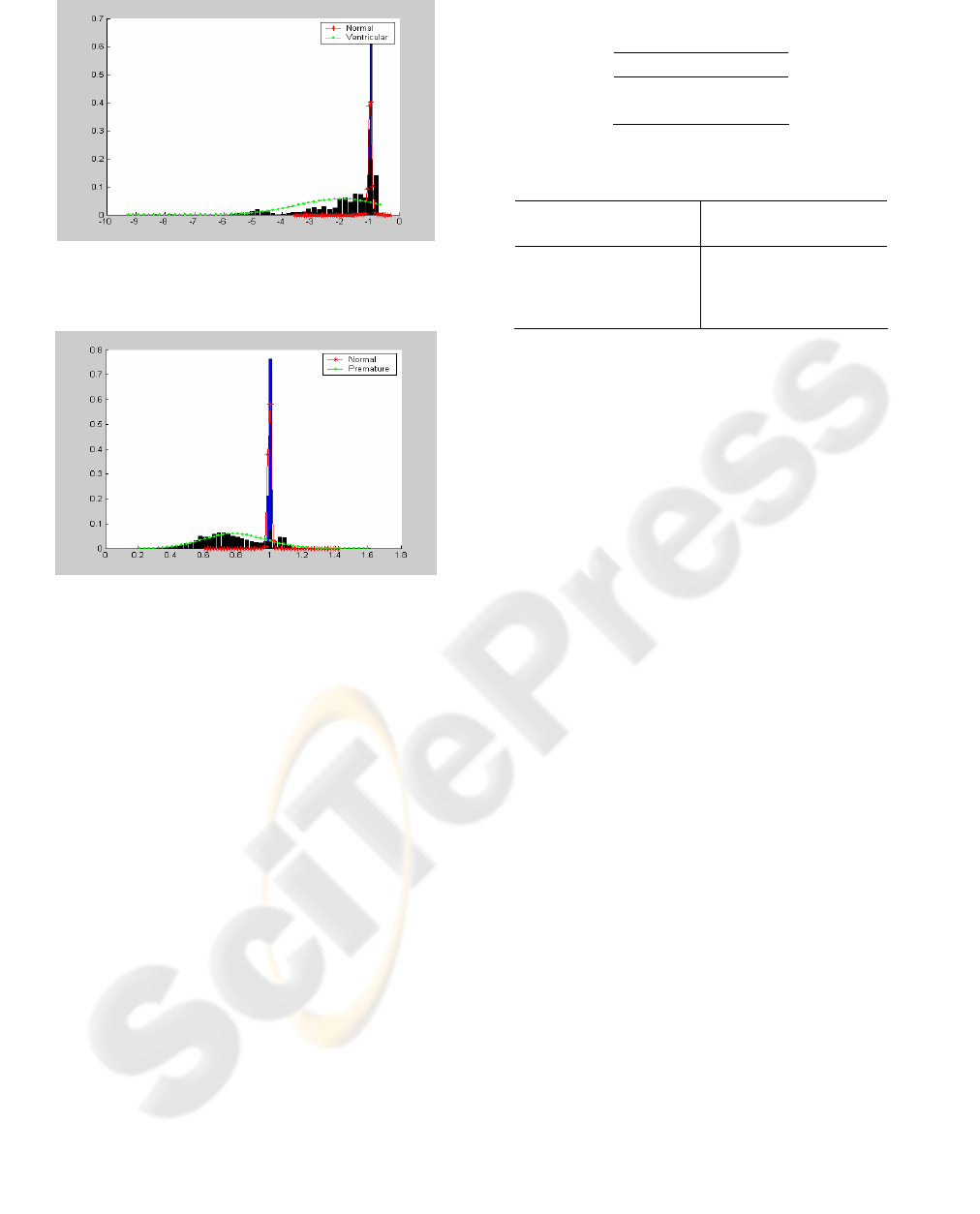

The mean and variance of the LL and RR pdfs

were estimated over a training set extracted from the

MIT-BIH (1997) database, and the results are shown

in Figures 4 and 5, respectively. There, one can

observe that the normal values are all normalized as

one and the abnormal ones are spread to the right for

the LL values and to the left for the RR values.

The other variables of the network are modelled

through tables of conditional probability, which are

shown in Tables 1 and 2.

PVC

Premature

Beat

Ventricular

Beat

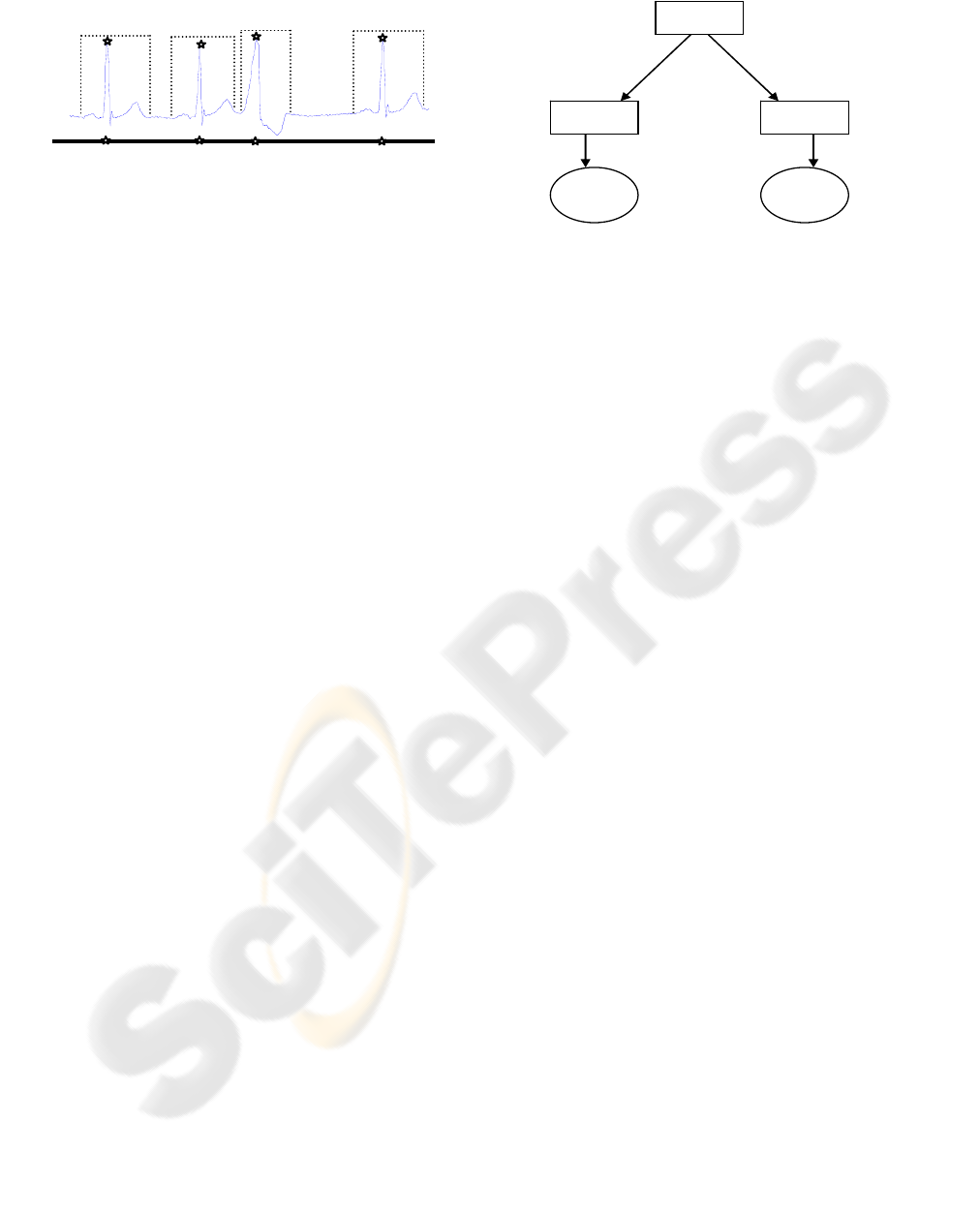

Figure 3: Graphical representation of the Bayesian

etwork for PVC beat classification.

Normal

interval

Shorter

interval

Longer interval

Normal Normal PVC Normal

Figure 2: Electrocardiogram containing PVC beat.

HEALTHINF 2008 - International Conference on Health Informatics

188

The estimation of the variables individually does

not model the relations of dependency among

variables suitably. This is why we have implemented

a learning step where all network parameters are

adjusted from a training set of examples. Such a

learning step is performed in two different ways: 1)

it is firstly considered that the five nodes are all

observable. This means that from the labels of the

database we can identify the right value for each

node, given the observations of RR and LL; 2) the

second learning strategy considers that some nodes

are non-observable (hidden) nodes. In this paper, the

nodes RR, LL and PVC are observable, while the

nodes Premature Beat and Ventricular Beat are non-

observable. The necessary information is provided

by the HMM-ECG system (Andreão, Dorizzi and

Boudy, 2006) and the cardiologist labels as well.

Since there are non- observable nodes in the second

strategy, the expectation-maximization learning

algorithm has been used to train the network based

on a training data set. For the first strategy the

classical junction-tree method (Pearl, 1988) was

adopted, which also maximizes the probability of the

observations given the model.

Table 1: Probability of PVC after a process of heuristic

learning.

PVC Probability

T 60%

F 40%

Table 2: Probability of Premature Beat and Ventricular

Beat after a process of heuristic learning.

PVC Prem.

Beat

% PVC Ventr.

Beat

F F 95% F F 95%

T F 5% T F 5%

F T 5% F T 5%

T T 95% T T 95%

3 RESULTS

All experiments have employed the MIT-BIH

database, which possesses forty eight sequences of

heart beats. However, only forty three of such

sequences were used here, because recorded

sequences containing pace beats or too much signal

amplitude distortion were removed.

The forty three sequences used were split in a

training set, which was used to adjust the parameters

of the Bayesian network, and a test set, necessary to

evaluate the performance of the trained network in

terms of PVC classification. The total number of

beats (normal and PVC) correspond to 95,257 beats,

where 64,074 beats were used for training and

31,183 were used for testing. It is important to

remark that the MIT-BIH database contains other

types of beats, which were considered as normal in

our experiments.

The Bayesian network was built using a

MATLAB toolbox called BNT (2002). The

Expectation Maximization and Junction Tree

learning algorithms were used to train the network.

The performance of the network is assessed in

terms of: 1) confusion matrix; 2) sensibility, here

understood as the capacity of the system to correctly

identify normal beats (true positives); 3) specificity,

here understood as the probability of classifying the

PVC beats (true negatives); 4) positive predictive,

which is the probability that an event detected as

normal effectively belongs to this class of beats; 5)

negative predictive, which is the probability that an

event detected as PVC effectively belongs to this

class of beats.

The first experiment evaluates the performance

of the network after manually estimating the

probabilities of each random variable based on the

training data set (a try-and-error methodology), as

Figure 5: Histogram of the RR interval of the Normal an

Premature beats. Two Gaussians functions are used to

approximate both histograms.

Figure 4: Histogram of the likelihood of the Normal an

Ventricular QRS complexes. Two Gaussian functions are

used to approximate both histograms.

CLASSIFICATION OF PREMATURE VENTRICULAR BEAT USING BAYESIAN NETWORKS

189

described in the previous section. The results

obtained for the test data set are in Table 3.

The second experiment considers the effect of

the learning-from-data step, which results in a better

modelling of the relationship among variables, for

which just observable nodes are considered. The

network parameters were adjusted based on the same

training data set, and the results for the same test

data set are shown in Table 4.

The third experiment also performs parameter

estimation through a learning strategy. However, in

this case, observable and non-observable nodes were

considered, for the same training data set used in the

previous experiments. The results for the same test

data set are shown in Table 5.

One can observe from Table 3 that the negative

predictive value is very low, showing that the PVC

detection provided by the system is not trustful

enough yet, since these type of beat has a probability

of just 32,34% of being the correct one. On the other

hand, the adoption of a learning-from-data step

improves significantly the system performance. This

means that the strategy to be adopted for estimating

the contribution of each variable requires some

knowledge about the other variables, which is

fulfilled by the training method adopted, as well as

means that the estimation of the parameters for each

variable independently is a quite poor strategy.

Table 3: Classification results for the Bayesian network

without the learning-from-data step.

Confusion Matrix

Classification

Label N

26.427 3.007

Label V

312 1.437

Sensibility

98,83%

Specificity

82,16%

Positive Predictive

89,78%

Negative Predictive

32,34%

Table 4: Classification results for the Bayesian network

after the learning from data step and considering only

observable nodes.

Confusion Matrix

Classification

Label N

29.244 190

Label V

388 1.361

Sensibility

98,69%

Specificity

77,82%

Positive Predictive

99,35%

Negative Predictive

87,75%

Table 5: Classification results for the Bayesian network

after the learning from data step and considering

observable and non-observable nodes.

Confusion Matrix

Classification

Classification V

Label N

29.344 90

Label V

358 1.391

Sensibility

98,79%

Specificity

79,53%

Positive Predictive

99,69%

Negative Predictive

93,92%

When comparing the two training strategies, one

can observe that the one with hidden nodes is

significantly better in terms of negative predictive (a

smaller number of false positive PVC beats has been

identified). The main reason for this improvement is

the inclusion of a certainty zone in the values of LL

and RR generated by the HMM-ECG system

(Andrião, Dorizzi and Boudy, 2006). Thus, the

hidden nodes have been left free to be estimated by

the learning method and, hence, a more appropriate

value is computed regarding the observed events.

Finally, the good results (see Table 5) obtained

confirmed that the Bayesian network is a powerful

tool to acquire knowledge from an available data set

labelled by an expert. Moreover, when used as a tool

for diagnostic aid it can indicate the degree of

certainty associated to each result, through using the

concept of probability.

In Christov et al (2006), the PVC wave is

classified using two approaches, knowing

Morphological Descriptors (MD) and Matching

Pursuits for extracting time-frequency beat

descriptors (TFD), and the result found for MD and

TFD were, respectively, 96,27% and 94,77% for

Sensibility; 99,13% and 99,08% for specificity;

89,87% and 89,19% for positive predictive and

finally 99,70% and 99,58% for negative predictive.

As a comparison, the Bayesian approach presents a

better result in terms of sensibility and predictive

negative. However, it is necessary to stress that in

Christov et al (2006) more than one channel is used,

while in this work it was used just one channel

(regarding the recorded ECG).

In the approach proposed by Andreão, Dorizzi

and Boudy (2006), the result for just one channel is

64.36% for Sensibility and 66.14% for Positive

Predictive. When using two channels, however, the

results are significantly improved: 87,20% for

Sensibility and 85,64 % for Positive Predictive

The performance of the Bayesian network for

only one channel has confirmed that the method is

HEALTHINF 2008 - International Conference on Health Informatics

190

suitable for the proposed application. Although the

performance is not yet as good as those of the best

systems, some improvements can be carried out in

the model, through the use of channel fusion.

4 CONCLUSIONS

For the first time this framework is employed in this

particular problem. The Bayesian network presents a

more comprehensive graphical representation, deals

with uncertainty through its probabilistic

representation, and can work with incomplete data

through its inference engine.

The capability of learning the network

parameters from a training data set was verified

using two training strategies, and the result is that

when working with non-observable nodes the

training method based on the EM algorithm

produces a better modelling of the uncertainty

related to the observed data and the labels defined by

a cardiologist.

Our future work will focus on evaluating the

performance of this system using a fusion strategy in

order to explore information obtained from multiple

channels. On the other hand, this network will be

extended to classify more arrhythmias, as ischemic

episodes.

We hope that this system can be further

developed and then implemented to assist an expert

in the analysis of such events in ECG signals.

ACKNOWLEDGEMENTS

This research has received financial support from

CAPES (a foundation of the Brazilian Ministry of

Education), CNPq (an agency of the Brazilian

Ministry of Science and Technology) and FAPES (a

foundation of the Secretary of Science and

Technology of the Government of the State of

Espirito Santo, Brazil).

REFERENCES

Andreão, R. V., Dorizzi B. and Boudy, J. (2006) ‘ECG

Signal Analysis Through Hidden Markov Models’,

IEEE Transactions on Biomedical Engineering, vol.

53, no. 8, August, pp. 1541-1549.

BNT, How to use the Bayes Net Toolbox (2002) viewed

06/07/2007 http://boole.cs.iastate.edu/book/1-

Science/1-ComputerScience/3-Paper/1-

AI/Bayesian/How%20to%20use%20the%20Bayes%2

0Net%20Toolbox.htm.

Buntine, W. L. (1991) ‘Theory Refinement on Bayesian

Networks’, Proceedings of the 7

Conference on

Uncertainty in Artificial Intelligence, 13-15 July,

1991, Morgan Kaufmann, Los Angeles, California, pp.

52-60.

Clarke, A. B. and Disney, R. L. (1970) Probability and

Random Processes for Engineers and Scientists, New

York: John Wiley & Sons, Inc.

Crawford M. H. et al. (1999) ‘ACC/AHA Guidelines for

Ambulatory Electrocardiography’, Journal of the

American College of Cardiology, vol. 34, no. 3, pp.

912-948.

Christov I. et al (2006), ‘Comparative study of

morphological and time-frequency ECG descriptors

for heartbeat classification’, Journal of Biomedical

Engineering, Medical Engineering & Physics’, vol 28,

no.7, pp. 876-887.

Farrugia S., Yee, H. and Nickolls, P. (1991) ‘Neural

Network Classification of Intracardiac ECGs’,

Proceedings of the IEEE and INNS Int. Joint Conf. on

Neural Networks, 18-21 November, 1991, Singapore,

pp. 1278-1283.

Gao, D. et al. (2005) ‘Bayesian ANN Classifier for ECG

Arrhythmia Diagnostic System: A Comparison Study’,

Proceedings of International Joint Conference on

Neural Networks, July 31 - August 4, 2005, Montreal,

Canada, vol. 4, pp. 2383-2388.

Kadish A. et al. (2001) ‘ACC/AHA Clinical Competence

Statement on Electrocardiography and Ambulatory

Electrocardiography’, Journal of the American

College of Cardiology, vol. 38, no. 7, pp. 2091-2100.

Kuppuraj, R. N. (1993) ‘A Neural Network System to

Classify Simulated ECG Rhythms’, Proceedings of the

IEEE Biomedical Engineering Conference, New

Orleans, Louisiana, USA.

Lauritzen, S. L. and Spiegelhalter, D. J. (1988) ‘Local

Computations with Probabilities on Graphical

Structures and their Application to Expert Systems

(with discussion)’, Journal of the Royal Statistical

Society Series B (Methodological), vol. 50, no. 2, pp.

157-224.

MIT-BIH Harvard-MIT Division of Health Sciences and

Technology Biomedical Engineering Center (1997)

‘Arrhythmia DataBase Directory’, viewed 06/07/2007,

http://www.physionet.org/physiobank/database/html/

mitdbdir/mitdbdir.htm.

Pearl, J. (1988) Probabilistic Reasoning in Intelligent

Systems: Networks of Plausible Inference, 2nd

printing, San Francisco: Morgan Kaufmann.

Shachter, R. D. (1986) ‘Evaluating Influence Diagrams’,

Operations Research, vol. 34, no. 6, December, pp.

871-882.

CLASSIFICATION OF PREMATURE VENTRICULAR BEAT USING BAYESIAN NETWORKS

191
