MINING OF HEALTH INFORMATION FROM ONTOLOGIES

Maja Hadzic

Research Lab for Digital Health Ecosystems, Curtin Universityof Technology, Austria

Fedja Hadzic, Tharam Dillon

Digital Eciossytems and Business Intelligence Institute (DEBII), Curtin Universityof Technology, Austria

Keywords: Data mining, Tree mining, Ontology, Ontology mining, Human disease ontology, Human disease study,

Health information system.

Abstract: Data mining techniques can be used to efficiently analyze semi-structured data. Semi-structured data are

predominantly used within the health domain as they enable meaningful representations of the health

information. Tree mining algorithms can efficiently extract frequent substructures from semi-structured

knowledge representations. In this paper, we demonstrate application of the tree mining algorithms on the

health information. We illustrate this on an example of Human Disease Ontology (HDO) which represents

information about diseases in 4 ‘dimensions’: (1) disease types, (2) phenotype (observable characteristics of

an organism) or symptoms (3) causes related to the disease, namely genetic causes, environmental causes or

micro-organisms, and (4) treatments available for the disease. The extracted data patterns can provide

useful information to help in disease prevention, and assist in delivery of effective and efficient health

services.

1 INTRODUCTION

New modern techniques are providing huge, rapidly

accumulating amounts of information. To extract

and analyze the data poses a much bigger challenge

for researchers than to generate the data (Holloway

et al., 2002). Experienced scientists and doctors are

overwhelmed with this situation.

There is a need for an intelligent and efficient

system to make use of all the available information.

The true value of this information can be

significantly increased through smart information

processing and analysis. Such systems could play a

crucial role in filtering the flood of data to the point

where human experts could apply their knowledge

sensibly.

Information technologies must be effectively

implemented within health domain. In their paper,

Horvitz-Lennon et al. (2006) state that we need to

fully embrace information technology and its

potential for improving service efficiency and

develop a better information infrastructure for the

patient’s care.

Data mining is a set of processes that is based on

automated searching for actionable knowledge

buried within a huge body of data. Data mining

techniques extract information and find hidden

patterns and behaviors, and support making

predictive models for decision making and new

discoveries. Within the biomedical and health field,

data mining techniques have been predominately

used for tasks such as text mining, gene expression

analysis, drug design, genomics and proteomics

(Zaki et al., 2003). The data analysis necessary for

microarrays has necessitated data mining (Piatetsky-

Shapiro & Tamayo, 2003). Recently, use of data

mining methods has been proposed for the purpose

of mapping and identification of complex disease

loci (Onkamo & Toivonen, 2006). However, the

proposed methods are yet to be implemented.

Frequent pattern analysis has been a focused theme

of study in data mining. A lot of algorithms and

methods have been developed for mining frequent

sequential and structural patterns (Han & Kamber,

2001; Agrawal & Srikant, 1994; Tan et al., 2006a).

Implementation of data mining techniques within

health domain could help in disease prevention and

155

Hadzic M., Hadzic F. and Dillon T. (2008).

MINING OF HEALTH INFORMATION FROM ONTOLOGIES.

In Proceedings of the First International Conference on Health Informatics, pages 155-160

 SciTePress

assist in delivery of effective and efficient health

services.

Within the data mining field, tree mining has

recently attracted lots of interest. Our work in the

tree mining field is characterized by a Tree Model

Guided (TMG) (Tan et al., 2005; Tan et al., 2006b)

candidate generation approach. This non-redundant

systematic enumeration model uses the underlying

tree structure of the data to generate only valid

candidates. Using the general TMG framework a

number of algorithms were developed as follows.

MB3-Miner (Tan et al., 2005) mines ordered

embedded subtrees while IMB3-Miner (Tan et al.,

2006b) can mine both, induced or embedded ordered

subtrees by using the level of embedding constraint.

Razor algorithm (Tan et al., 2006c) was developed

for mining of embedded subtrees where the

distances of nodes relative to the root of the original

tree need to be considered. UNI3 algorithm (Hadzic

et al., 2007a) mines induced unordered subtrees.

Our algorithms were applied on large and complex

tree structures and their scalability was

experimentally demonstrated (Tan et al., 2005; Tan

et al., 2006b). From the application perspective, in

(Hadzic et al., 2006) we have applied our tree

mining algorithm for the analysis of Protein

Ontology (Sidhu et al., 2004) database for Human

Prion proteins which was represented in XML

format. In this paper, we explain how tree mining

techniques can be applied within the health domain

for deriving useful knowledge patterns that can help

disease prevention and management.

2 HUMAN DISEASE ONTOLOGY

We designed Human Disease Ontology (GHDO)

(Hadzic & Chang, 2005) to have the following four

branches or subontologies:

• disease types, describing different types of a

disease;

• phenotype, describing disease symptoms;

• causes responsible for that disease that can be

genetic, environmental and/or microorganism;

• treatments, providing an overview of all

treatments possible for a particular disease;

Top-level hierarchy of the HDO is illustrated in

Figure 1.

The information presented in Figure 1 state that a

disease may have different types, and associated

subtypes and sub-subtypes. For each disease, there

is a corresponding phenotype (or observable

characteristics of an ill individual), namely

symptoms of a disease. Disease cause can be genetic

(genotype), environmental or a microorganism.

Genetic causes can be a mutated gene, a complex of

genes or DNA region of interest. DNA region of

interest is a region in the DNA sequence that

potentially contains a gene responsible for the

disease. This region needs to be further examined in

order to correctly locate the mutated gene.

Environmental causes of a disease can be stress,

climate, drugs misuse, family conditions or

economic condition. Microorganisms that may cause

a disease may be virus or bacteria. Possible

treatments for a disease can be drug therapy,

chemotherapy, surgery, psychotherapy or

physiotherapy.

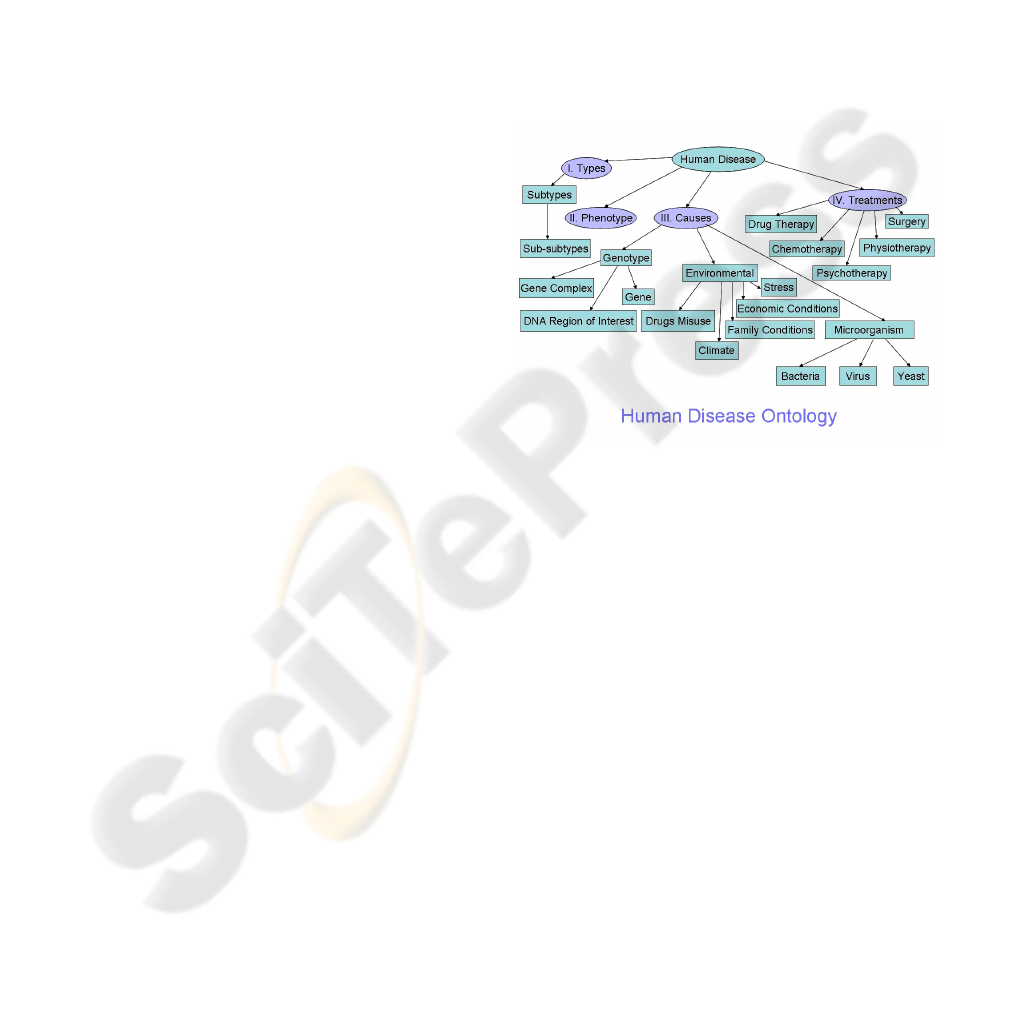

Figure 1: Top-level hierarchy of the HDO.

Researchers in the medical ontology-design

field have developed different terminologies and

ontologies in many different areas of medical

domain. In order to obtain some uniformity across

different ontologies, definitions from other

published and consensual ontologies can be reused

(Noy & Musen, 2000). We can use other ontologies

such as LinkBase (Montyne, 2001) and UMLS

(Bodenreider, 2004). These ontologies contain over

million concepts, and we do not require all of them.

The four different branches (subontologies) of the

GHDO ontology can serve as a reference point

against which the concepts from the existing

ontologies can be reorganized, aligned and merged.

Bimolecular ontologies such as TAMBIS ontology

(Stevens et al., 2002) that represents general

knowledge in regard to proteins and associated

genes may be suitable to cover the ontology part in

regard to genetical disease causes. So, we can use

terminology from existing ontologies but select and

organize the concepts in a way that can be used in

our application.

HEALTHINF 2008 - International Conference on Health Informatics

156

Note that the HDO has a tree (hierarchy)

structure which allows it to be analyzed using some

available tree mining techniques. The current

ontology languages allow the use of graph structures

to represent the domain knowledge in an ontology.

A large portion of current ontologies have

predominantly hierarchical structures. Furthermore,

it is often the case that the graph-structured

knowledge representation can be modelled using

tree structures without losing too much semantics.

The root of the complexity of mining graph

structures is in the existence of cycles, and in many

cases the number of cycles in graph instances is

limited. The complexity of processing tree structures

tends to be more manageable and is one of the

promising directions towards automatic analysis of

ontologies.

We assume that the available health information

can be represented according to the four HDO

‘dimensions’ or subontologies. In the rest of our

paper, we will use the term ‘HDO instance’ to refer

to a specific record found within a given

database/application that can be represented using

the HDO structure. In our previous publications

such as (Hadzic & Chang, 2005), this ‘HDO

instance’ corresponds to Specific Human Disease

Ontology.

3 TREE MINING CONCEPTS

The aim of this section is to provide the definitions

of some basic tree concepts necessary for

understanding the current work. Please refer to (Tan

et al., 2005; Tan et al., 2006b; Hadzic et al., 2007a)

for a more extensive overview of the tree mining

area including the discussion of implementation

issues and algorithm comparisons. A tree is a special

type of graph where no cycles are allowed. It

consists of a set of nodes (or vertices) that are

connected by edges. Each edge has two nodes

associated with it. A path is defined as a finite

sequence of edges and in a tree there is a single

unique path between any two nodes. The length of a

path p is the number of edges in p. A rooted tree has

its top-most node defined as the root that has no

incoming edges and for every other node there is a

path between the root and that node. A node u is

said to be a parent of node v, if there is a directed

edge from u to v. Node v is then said to be a child of

node u. Nodes with no children are referred to as

leaf nodes and otherwise they are called internal

nodes. If for each internal node, all the children are

ordered, then the tree is an ordered tree. The

problem of frequent subtree mining can be generally

stated as: Given a tree database T

and minimum

support threshold (σ), find all subtrees that occur at

least σ times in T

A HDO instance can be captured by an OWL

document analogous to the one shown in Figure 2.

In our example, the actual information content can

be viewed as an ordered labeled tree. This specific

instance aims to capture the information about

causal factors of a human disease and corresponds

with the Causes subontology shown in Figure 1.

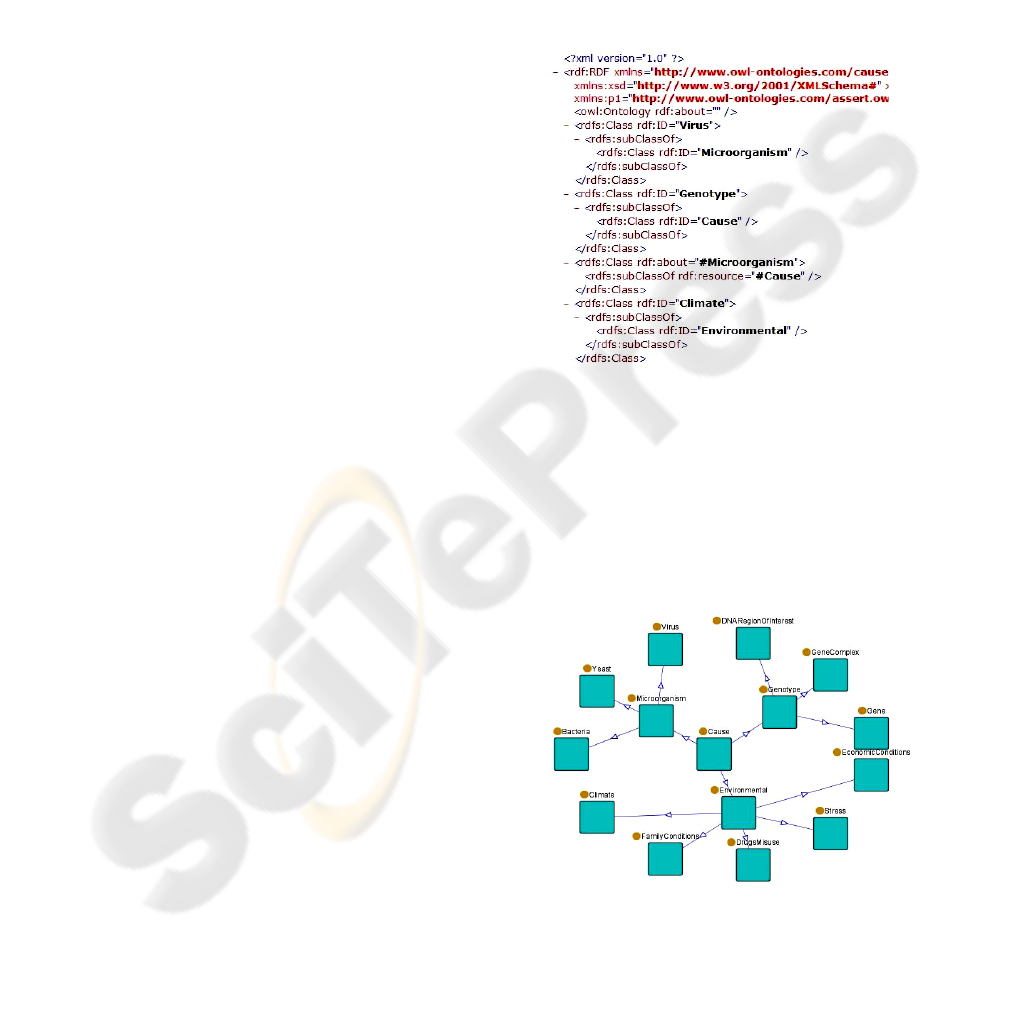

Figure 2: OWL representation of part of the HDO

subontology i.e. Causes subontology.

A tree can be denoted as T(V, L, E), where:

(1) V is the set of vertices or nodes;

(2) L is the set of labels of vertices, for any vertex

v∈V, L(v) denotes the label of v; and

(3) E = {(x,y)| x,y

∈

V } is the set of edges in the

tree.

Figure 3: Causes subontology of HDO (viewed in

Protégé).

MINING OF HEALTH INFORMATION FROM ONTOLOGIES

157

In Figure 3, we represent the OWL document

from Figure 2 as a tree with “Cause” as the root

node.

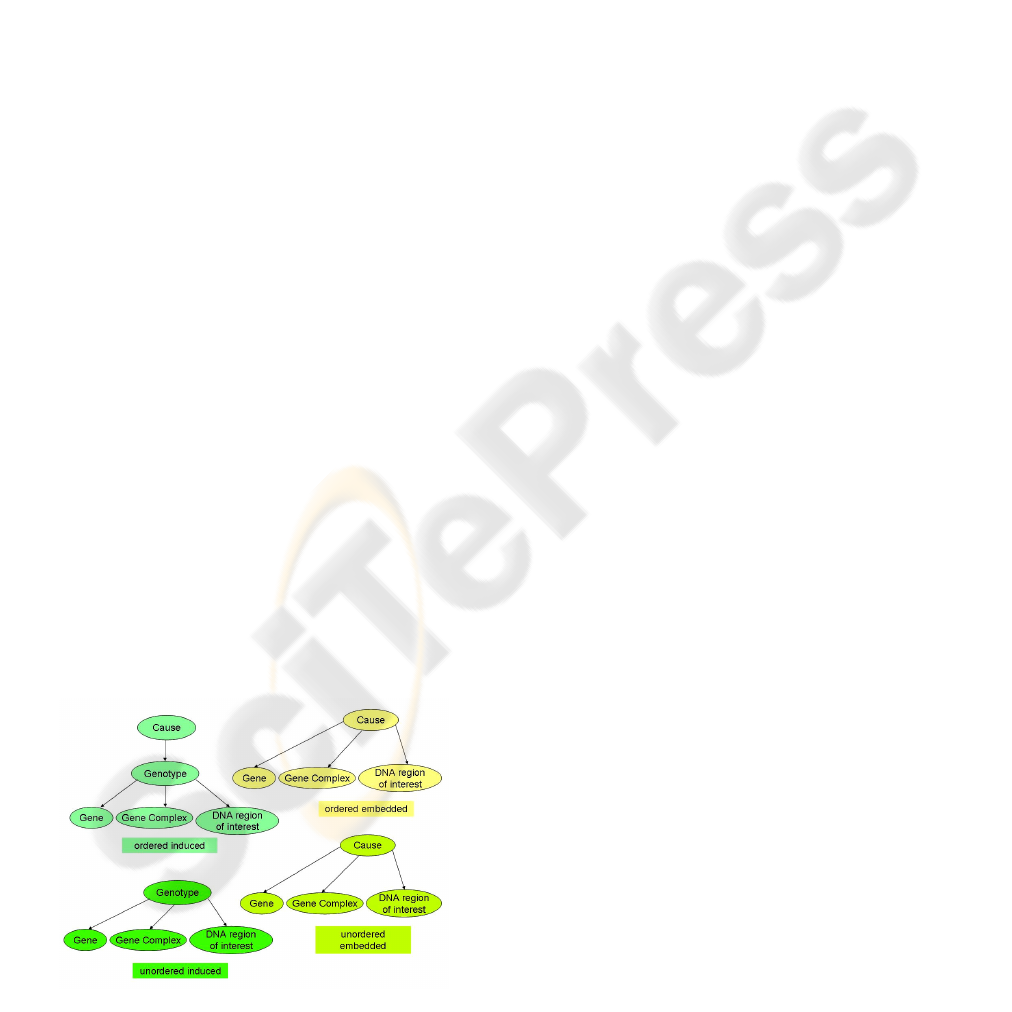

Most of the current tree mining algorithms are

mainly focused on extracting induced and embedded

subtrees. An induced subtree preserves the parent-

child relationships of each node in the original tree.

In addition to this, an embedded subtree allows a

parent in the subtree to be an ancestor in the original

tree and hence ancestor-descendant relationships are

preserved over several levels. Formal definitions

follow:

A tree T’(V’, L’, E’) is an induced subtree of a

tree T (V, L, E) iff (1) V’⊆V, (2) E’⊆E, (3) L’⊆L and

L’(v)=L(v), (4) ∀v’∈V’, ∀v∈V, v’ is not the root

node, and v’ has a parent in T’, then

parent(v’)=parent(v).

A tree T’(V’, L’, E’) is an embedded subtree of a

tree T(V, L, E) iff (1) V’⊆V, (2) if (v

) ∈ E’ then

parent(v

) = v

in T’, only if v

is ancestor of v

in T

and (3) L’⊆L and L’(v)=L(v).

The subtrees can further be distinguished

depending on the order of sibling nodes. An

ordered subtree preserves the left-to-right ordering

among the sibling nodes in the original tree. In an

unordered subtree the left-to-right ordering among

the sibling nodes does not need to be preserved. The

order of the sibling nodes (and the subtrees rooted at

sibling nodes) can be exchanged and the resulting

subtree would be considered the same. Examples of

different subtree types related to the Figure 3 are

given in Figure 4.

The available support definitions are transaction

based, occurrence-match, and hybrid support (Tan et

al., 2006b; Hadzic et al., 2007b). Transaction

based support only checks for the existence of

items in a transaction while occurrence-match

support takes the repetition into account and counts

the item occurrences in the database as a whole.

Using hybrid support with a threshold set to x|y, a

subtree will be considered as frequent iff it occurs at

least y times in x number of transactions.

Figure 4: Example of different subtree types.

4 MINING OF HEALTH

INFORMATION

In order to apply tree mining to the problem, the

following five phases take place: data selection and

cleaning, data formatting, tree mining, pattern

discovery, and knowledge testing and evaluation.

In the first phase, we focus on the Data Selection

and Cleaning. Most of the databases also contain

information that is not needed by the application.

The irrelevant information, as well as noise and

inconsistent data, should be removed from the data

set to be mined. Extra care should be taken during

this process since some data may appear to be noisy

but in fact represents a true exceptional case.

In the second phase, Data Formatting, all the

collected data needs to be represented using the

same format that is understandable by the tree

mining algorithm used.

The third phase is concerned with applying the

tree mining algorithms for extracting interesting

patterns from now a clean and correctly formatted

dataset. One needs to consider what particular type

of subtree is the most suitable one to mine for

satisfying the application needs. When the data to be

mined comes from one organization, the format and

ordering of the presented information is expected to

be the same, and hence mining of ordered subtrees

will be sufficient. On the other hand, if the collected

data originate from separate organizations, then

mining of unordered trees would be more suitable.

The organizations could order their concepts

differently, but since an unordered subtree with

different order among the sibling nodes is still

considered as the same candidate, the common

characteristics of a particular illness would still be

found. Another choice to be made is whether

induced or embedded subtrees should be mined.

When mining health related data it is important that

particular information stays in the context where it

occurred. With respect to tree patterns this implies

that the relationship of nodes in the extracted

subtrees should be limited to parent-child

relationships. Allowing ancestor-descendant

relationships would result in information loss about

the context where a particular disease characteristic

occurred. Some attributes in the dataset may have a

similar set of values and by mining induced subtrees

there the attribute to which each value belongs will

be indicated in the extracted pattern.

As a final consideration the support definition

chosen should be dependant on the way that the data

is organized. Next we provide three common ways

HEALTHINF 2008 - International Conference on Health Informatics

158

in which the data could be presented, and indicate

the suitable support definition that should be used.

Case 1: Each HDO instance is stored as a separate

subtree in the OWL document and HDO instances

describing different diseases are stored in separate

documents. In this case both, occurrence match or

transaction based support would be suitable.

Case 2: Each HDO instance is stored as a separate

subtree in the OWL document but now one OWL

document contains all HDO instances for all

investigated diseases. Here the transactional support

would be more appropriate.

Case 3: A collection of HDO instances related to

one particular disease is always contained in a

separate subtree of an OWL document. Hybrid

support definition is most suitable in this case.

In cases 1 and 2, the minimum support threshold

should be close to the number of HDO instances that

the dataset contains about a particular disease, in

order to find the commonality among all the records

related to that particular disease. However, since

noise is often present in the data, the support can

lowered but not too much so that irrelevant factors

are not picked up as important. In case 3, the

number of diseases described would be used as the

transactional part of the hybrid support, while the

minimum occurrence of a subtree within each

transaction should reflect the number of HDO

instances.

As a common data mining practice, the data set

at hand could be split into two subsets. One is used

for deriving the knowledge model (‘internal data’

from Figure 5) and while the second one is used for

testing the derived knowledge model (‘external data’

from Figure 5). When possible the data collected by

another organization can be used as external data.

During Pattern Discovery phase, new knowledge

about specific disease(s) emerges. For example,

these results may help to associate precise

combinations of genetic and environmental factors

with a specific disease type. The results could

increase the understanding of the disease under

study and make a breakthrough in the research,

control and prevention of this disease. Knowledge

Testing and Evaluation is illustrated in Figure 5. The

‘external data’ is used to verify a formed hypothesis

before it can extend the current body of knowledge.

The choice of the tree mining parameters often

affects the nature and granularity of the obtained

results. In cases where the hypothesis is not

supported by the ‘external data’, the parameters will

be adjusted and the previous steps alternated.

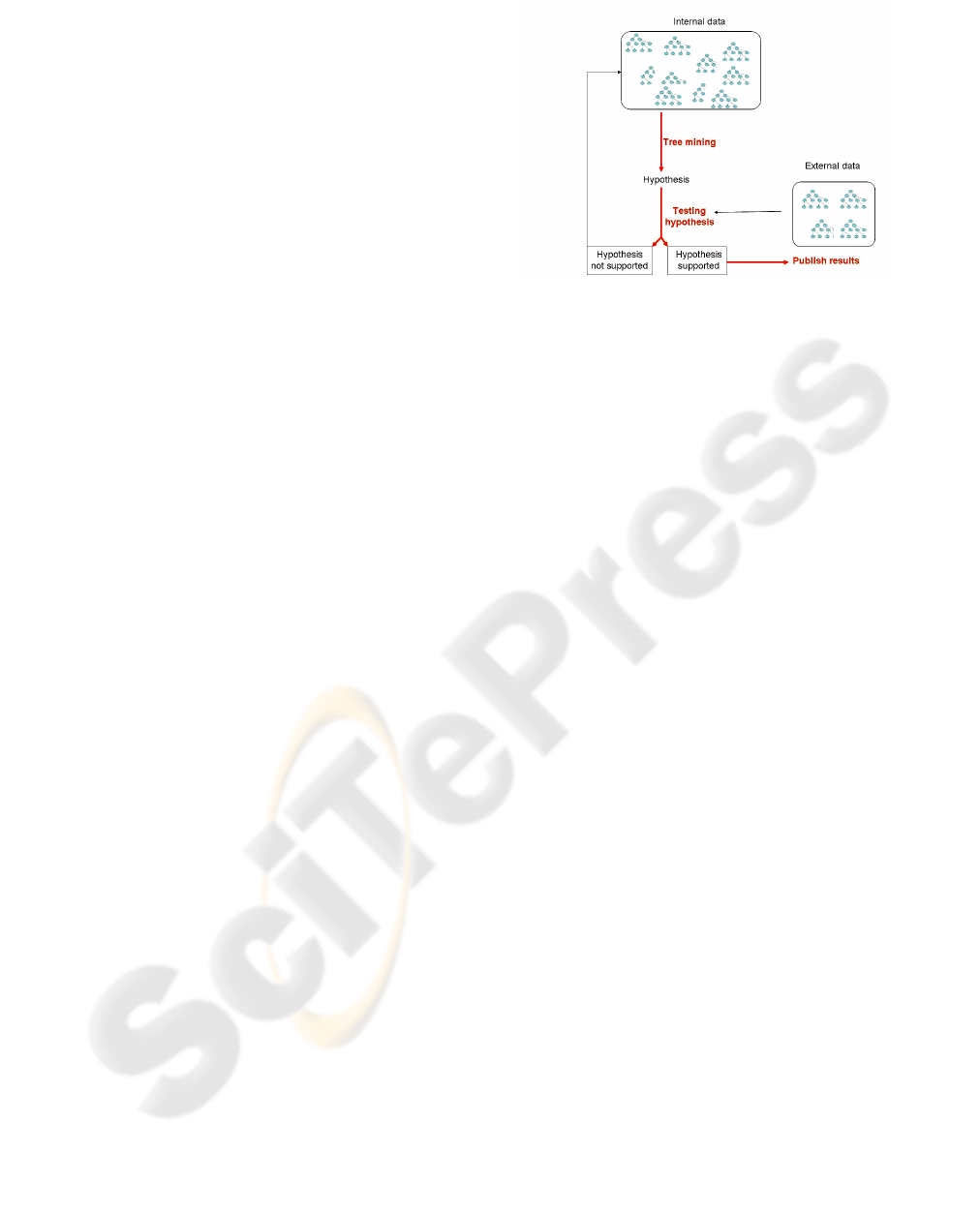

Figure 5: Testing and evaluation of the derived

knowledge.

5 CONCLUSIONS

Data mining systems in general could play a crucial

role in deriving knowledge and assisting in the

prevention, diagnosis, treatments and control of

human diseases. In this paper, we have illustrated

application of the data mining technology within the

health domain. We have explained how the tree

mining algorithms can be effectively used for

mining of information about human diseases. We

aim to apply those techniques on the real-word data.

The newly derived knowledge could help in

prevention of human diseases and assist in delivery

of effective and efficient health services. Various

community groups would greatly benefit from

application of data mining techniques on a large

scale, e.g. physician would receive support in early

diagnosis and treatment of diseases; patients would

receive support in dealing with, managing and

treating disease; accurate, reliable and up-to-date

information would be available for general public,

and medical researchers would receive support in

advancing their research. Furthermore, the cost of

the health budget would be significantly reduced by

providing better information use (Garber, 2006).

Such systems go some way to delivering what Patel

et al (2006) say is necessary to transform the quality

of health care. They improve the infrastructure for

evidence-based interventions and provide innovation

for improvement in health care.

REFERENCES

Agrawal, R, Srikant, R., 1994. Fast algorithms for mining

association rules. Very Large Databases, Chile.

MINING OF HEALTH INFORMATION FROM ONTOLOGIES

159

Bodenreider, O., 2004. The Unified Medical language

System (UMLS): integrating biomedical terminology,

Nucleic Acids Res, vol. 32, no. 1, pp. 267-270.

Garber, A.M., 2006. PERSPECTIVE: To Use Technology

Better. Health Affairs, pp. W51-W53.

Hadzic, F., Dillon, T.S., Sidhu, A., Chang, E., Tan, H.,

2006. Mining Substructures in Protein Data. ICDM’06

Wkshp on Data Mining in Bioinformatics, China.

Hadzic, F., Tan, H., Dillon, T.S., 2007a. UNI3 – Efficient

Algorithm for Mining Unordered Induced Subtrees

Using TMG Candidate Generation. IEEE Symposium

on Computational Intelligence and Data Mining, USA.

Hadzic, F., Tan, H., Dillon, T.S., Chang, E., 2007b.

Implications of frequent subtree mining using hybrid

support definition, Data Mining & Information

Engineering, UK.

Hadzic, M., Chang, E., 2005. Ontology-based Support for

Human Disease Study. Proc. of the 38th Hawaii Int’l

Conf. on System Sciences (HICSS-38), USA.

Han, J., Kamber, M., 2001. Data Mining: Concepts and

Techniques. San Francisco: Morgan Kaufmann.

Holloway, A., Van Laar, R.K., Tothill, R.W., and Bowtell

D., 2002. Options available - from start to finish - for

obtaining data from DNA microarrays II. Nature

Genetics Supplement, vol. 32, pp. 481-489.

Horvitz-Lennon, M., Kilbourne, A.M., Pincus, H.A.,

2006. From Silos To Bridges: Meeting The General

Health Care Needs Of Adults With Severe Mental

Illnesses. Health Affairs, vol. 25, no. 3, pp. 659-669.

Montyne, F., 2001. The importance of formal ontologies:

a case study in occupational health. Proc. of Int’l

Wkshp on Open Enterprise Solutions: Systems,

Experiences, and Organizations (OES-SEO2001), Italy.

Noy, N.F., Musen, M.A., 2000. PROMPT: Algorithm and

Tool for Automated Ontology Merging and

Alignment, Proceedings of the seventeenth national

conference on Artificial Intelligence (AAAI-2000), USA.

Onkamo, P., Toivonen, H., 2006. A survey of data mining

methods for linkage disequilibrium mapping. Human

genomics, vol. 2, no. 5, pp. 336-340.

Patel, K.K., Butler, B., Wells, K.B., 2006. What Is

Necessary To Transform The Quality Of Mental

Health Care. Health Affairs, vol. 25, no. 3, pp. 681-693.

Piatetsky-Shapiro, G., Tamayo, P., 2003. Microarray Data

Mining: Facing the Challenges. SIGKDD

Explorations, vol. 5, no. 2, pp. 1-6.

Sidhu, A.S., Dillon, T.S., Sidhu, B.S., Setiawan, H., 2004.

A Unified Representation of Protein Structure

Databases. Biotechnological Approaches for

Sustainable Development, pp. 396-408.

Stevens, R., Baker, P., Bechhofer, S., Ng, G., Jacoby, A.,

Paton, N.W., Goble, C.A., Brass, A., 2002. TAMBIS:

Transparent Access to Multiple Bioinformatics

Information Sources. Bioinformatics, vol. 16, no. 2,

pp.184-86.

Tan, H., Dillon, T.S., Hadzic, F., Chang, E., Feng, L.,

2005. MB3-Miner: mining eMBedded sub-TREEs

using Tree Model Guided candidate generation.

Workshop on Mining Complex Data, USA.

Tan, H., Dillon, T.S., Hadzic, F., Chang, E., 2006a.

SEQUEST: mining frequent subsequences using DMA

Strips. Data Mining and Information Engineering,

Czech Republic.

Tan, H., Dillon, T.S., Hadzic, F., Feng, L, Chang, E.,

2006b. IMB3-Miner: Mining Induced/Embedded

subtrees by constraining the level of embedding.

Pacific-Asia Conf. on Knowledge Discovery and Data

Mining, Singapore.

Tan, H., Dillon, T.S., Hadzic, F., Chang, E., 2006c. Razor:

mining distance constrained embedded subtrees. IEEE

ICDM’06 Wkshp on Ontology Mining and Knowledge

Discovery from Semistructured documents, China.

Zaki, M.J., Wang, J.T.L., Toivonen, H.T.T., 2003. Data

Mining in Bioinformatics: report on BIOKDD’03’.

SIGKDD Explorations, vol. 5, no. 2, pp. 198-200.

HEALTHINF 2008 - International Conference on Health Informatics

160
