AUTHENTICITY AND INTEGRITY OF PORTABLE

ELECTRONIC HEALTH RECORDS

Chung-Yueh Lien

Institute of Biomedical Engineering, National Yang-Ming University, No. 155, Sec. 2, Linong st.

Beitou District, Taipei 112, Taiwan

Chia-Hung Hsiao

Department of Medical Informatics, Tzu Chi University, Hualien City, Taiwan

Lu-Chou Huang, Tsair Kao

Institute of Biomedical Engineering, National Yang-Ming University, Taipei, Taiwan

Keywords: Security, Portable electronic health record, Digital signature, Integrity, Authenticity.

Abstract: In this paper, we proposed a method to secure an electronic health record stored on a portable data storage

media (CDs/DVDs, diskettes, flash drives). We applied cryptography to realize the authenticity and

integrity of the portable health record. A manifest signature mechanism was used to reduce the computation

time of the signing and verifying processes. A DICOM DIR consists of 166 DICOM MR images was tested

as an example of a portable medical record. The performance of this method is faster than the regular digital

signature mechanism.

1 INTRODUCTION

Electronic health records (EHRs) may be generated

by hospitals, examination laboratories, insurance

companies or patients themselves (Bates et al. 2003;

Wang et al. 2004; Pharow & Bolbel 2005; Tang et

al. 2006). To realize clinical data exchange between

healthcare providers, a trusted conduit is needed for

the EHR systems and users. The integrity and

authenticity of EHRs can be validated using a digital

signature mechanism (Ruotsalainen & Manning

2007; Schütze et al. 2006). A digest of the digital

document is calculated from an irreversible one-way

hash function. The hash check of digital data is

commonly used on the Internet to prevent

unauthorized modification. The digital signature can

be implemented by a combination of the hash

algorithm and public-key cryptography such as the

RSA algorithm. When the RSA algorithm is used to

calculate a digital signature, the signer encrypts the

digest of the digital document with his/her own

private key. The recipient, with access to the

signer’s public key then verifies the digital

signature.

The implementation of EHRs has to conform to

security regulations, laws and standards, such as

Digital Imaging and Communication in Medicine

(DICOM), Health Level 7 (HL7), World Wide Web

Consortium (W3C), Health Insurance Portability

Accountability Act (HIPAA) and ISO/TS 17090.

According to the healthcare standards, a legal signed

EHR must contain one digest, one digital signature

and one timestamp signature. Under public-key

infrastructure (PKI), the use of the RSA algorithm

makes it possible to work with the certificate and

trusted third party (TTP) to process inter-

institutional applications such as the verification of

an EHR and referral information (Lekkas & Gritzalis

2007). An EHR may contain hundreds of digital

files, and then require the same number of digital

signatures. However, it is impractical to implement

these lengthy signing and verifying processes in the

real world due to the high computation time.

In this paper, a manifest signature mechanism is

proposed to reduce the computation time of the

signing and verifying processes used when dealing

Lien C., Hsiao C., Huang L. and Kao T. (2008).

AUTHENTICITY AND INTEGRITY OF PORTABLE ELECTRONIC HEALTH RECORDS.

In Proceedings of the First International Conference on Health Informatics, pages 67-71

 SciTePress

with a portable EHR. A DICOM DIR consists of

166 DICOM MR images was tested as an example

of a portable EHR.

2 METHODS

We used a smart card system that supports the

Microsoft Cryptography Service Provider (CSP) as

the digital signature module. The use of the health

professional card (HPC) with a smart card-based

certificate is a good example and can be found in the

healthcare environments of Taiwan (Yang et al.

2006), Germany (Schütze et al. 2006; Schurig,

Heuser & Wedekind 2001), Belgium (France,

Bangels & De Clercq 2007), etc. A health

organization certificate card (HOC) holds the digital

official seal of every health organization and can be

used for EHRs exchange among organizations. The

Health Certificate Authority Timestamping

Authority (HCA-TSA) provides the timestamp

service as the TTP.

2.1 The Characteristics of a Portable

EHR

The flowchart of the security protection process is

shown in Fig. 1. The clinical documents, integrated

from various systems in a hospital stored in the

portable storage media. The signed list has to be

managed through the metadata that define these data

in a portable EHR. The metadata has to identify the

information, structures and formats to meet the

needs of multimedia data exchange. The signed list

is used to sign the clinical documents from the

signing hospital; the documents described in the

signed list will be signed using the hospital

certificate with a digital time signature. According to

the signed list, the digest values of the clinical

documents are calculated and packaged as the digest

of these documents. The hospital and TTP generate

the digital signature and digital time signature to

verify the authenticity of the clinical documents. The

hospital certificate is used as identification on the

exchanged clinical documents and to authenticate

the source site, and the site receiving the data can

then verify whether or not the exchanged clinical

documents are valid. Table 1 summarizes the use of

the characteristics of a portable EHR.

Document M

Digest M

Document M

Digest M

Manifest

Digital time

signature

Portable EHR

Manifest

Resources

Reference Link

Manifest

Signature

SIG digest

Timestamp

Signed List

Metadata

Manifest

Signature

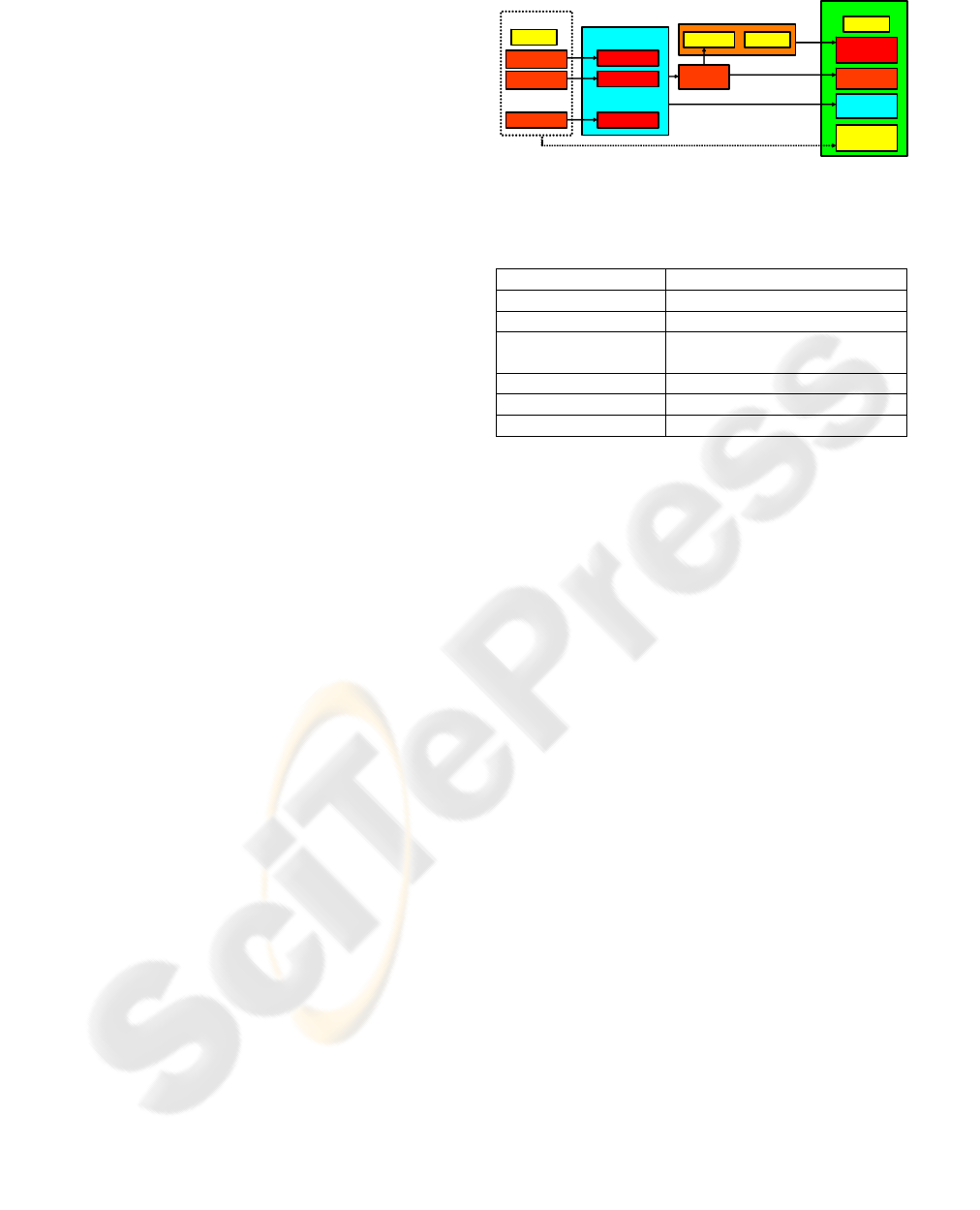

Figure 1: The characteristics of a portable EHR

architecture.

Table 1: The use of the characteristics of a portable EHR.

Characteristics Use

Metadata Definition of the portable EHR

Signed List Information of signed EHR

Digital Time

Signature

Authenticity

Manifest Integrity

Manifest Signature Authenticity

Resource The physical EHR structure

2.2 The Manifest Signature Mechanism

The manifest signature process is shown in Fig. 2. In

the signed list, there are N documents M

, M

…

, M

need to be signed. For each file

Ref(M

)=ID(M

)^H(M

) is calculated. The

symbol ’^’ means cascade. Ref(M

) represents the

metadata of M

, and some information related to M

can be defined in ID(M

), such as data type, creation

time, purpose, etc., for exchange among various

EHR systems. H(M

) is the digest of M

, where H is

the hash function, such as MD5, SHA1, etc. We can

reconstruct Ref(M

) as the manifest of N documents’

digest MD

defined as:

= Ref(M

)^Ref(M

)^...^Ref(M

)

Based on the RSA algorithm, using the signer’s

private key P

to encrypt H(MD

), the digest value

, as the digital sitnature of MD

, we then define

the digital signature process as follows:

SIG(MD

)= RSA

Enc

H(MD

)),

Where RSA

Enc

is the RSA encryption function.

SIG(MD

) is the manifest signature. We send the

digest H(SIG(MD

)) to a TSA to obtain a qualified

digital time signature TSA

SIG

, defined as:

TSA

SIG

= RSA

Enc

((P

rTSA,

H(SIG(MD

)||T

))

The symbol ’||’ represents the concatenation,

rTSA,

is the TSA’s private key and T

is the

Greenwich Mean Time (GMT) timestamp.

This is an efficient mechanism to ensure the

integrity and authenticity of a portable EHR. From

the aspect of data integrity, Ref(M

) ensures the

HEALTHINF 2008 - International Conference on Health Informatics

integrity of a document M

. The manifest signature

SIG(MD

) and the digital time signature TSA

SIG

provide verification of the authenticity for the

documents in the signed list and the T

confirms the

synchronized time.

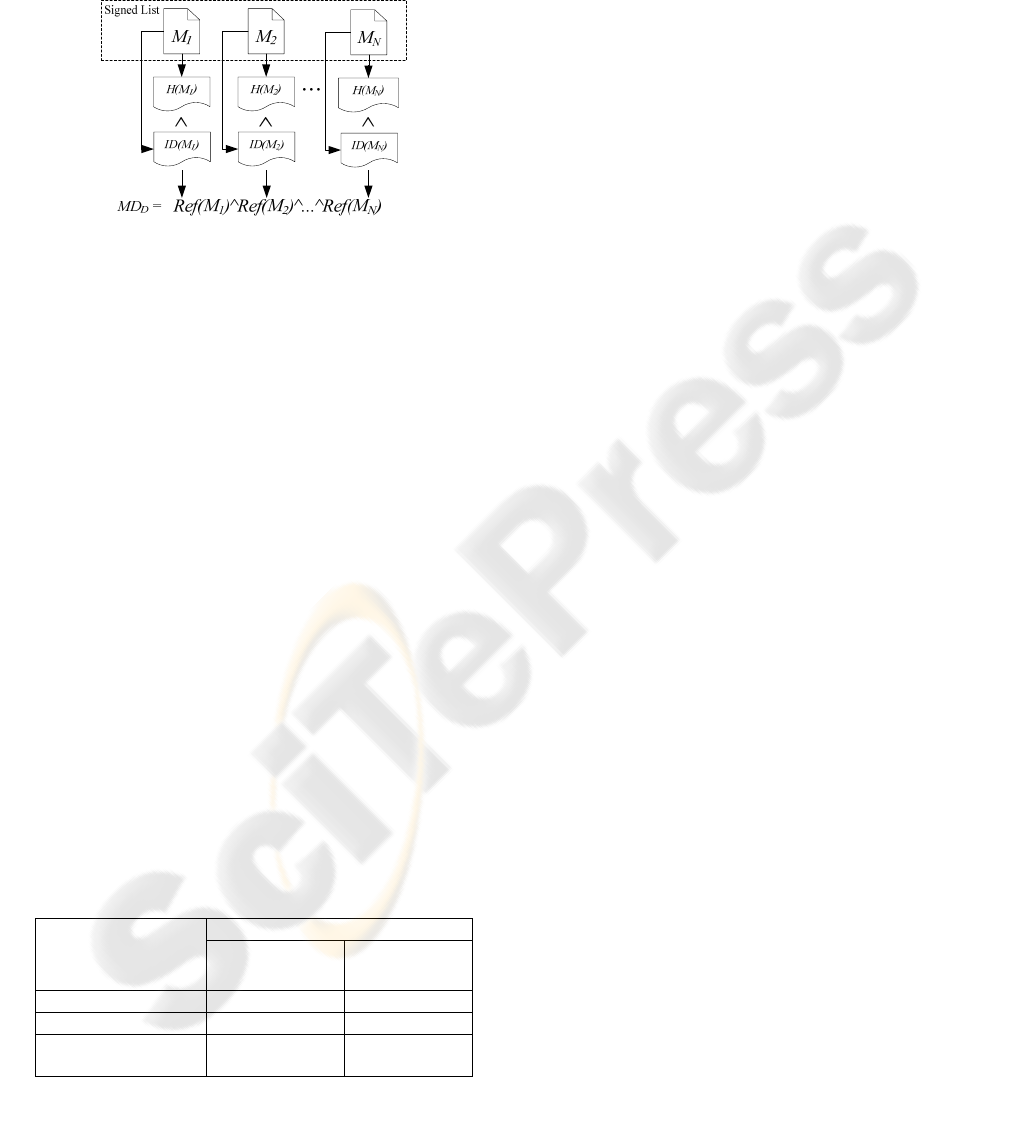

Figure 2: Manifest of the documents’ digest process.

2.3 Performance Analysis of the

Manifest Signature Mechanism

Assuming the time required for hashing, signing and

digital time signature retrieval are T

, T

and S

respectively, where 1

≤ n ≤ N. The timestamp

retrieval time depends on the network status; here S

is just for reference. If we create digital signature for

each document one by one, the total calculation time

is:

total

∑

+N×T

∑

However, using the method proposed in this stuy,

the total time will be reduced to:

total

∑

is the computation time of H(MD

). The

number of calculations needed for verification

process is still the same. Table 2 shows the number

of calculations in hashing, signing and digital time

signature retrieval for different methods.

Table 2: Comparison of the number of calculations

between the proposed method and the one-by-one method.

Calculation time

Operations

Proposed

method (sec)

One-by-one

method (sec)

Hashing N+1 N

Signing 1 N

Digital time

signature retrieval

1 N

*N is the number of documents in the signed list.

3 RESULTS

3.1 The Manifest Signature

Architecture Implemented using

XML

We tested an example of the manifest signatures of

166 DICOM MR images (packaged as DICOM DIR)

to be signed using both our method and the one-by-

one method regulated in the DICOM standards.

First, system will search all of files in selected

folder and mark the URI of files to generate the

signed list. According to the URI of the signed list,

system will find the direction pathway of file and

calculate the digest value of each file. The ID(M

) is

created from the DICOM head tags such as Transfer

syntax UID (0020, 0010), SOP Instance UID (0008,

0018)…etc, and we use XML encoding to present

Ref(M

)=ID(M

)^H(M

Fig. 3 shows the Ref(M

) structure presented as

XML. In Fig. 3, a unit of Ref(M

) is represented by

the tag name “Reference”. The attribute “URI” of

<Reference> is the related directory pathway in

addition to an identification of the resource file.

H(M

) is represented by <DigestValue> and ID(M

)

is represented by <DigestMethod Algorithm> and

<Transforms>. Transforms means the namespace of

this referenced document, which identifies the data

format. In this example, the value in <Transform

Algorithm> is urn:oid:1.2.840.10008.1.2.1, which

expresses the explicit little endian coding for

DICOM. This attribute can deal with different cases

of different data formats for EHR exchange between

hospitals; in addition, it can be extended for multiple

data formats, which are defined by the user.

We reconstruct Ref(M

) as the manifest digest

, and put MD

into <Object> tag as the signing

range of manifest signature and the attribute “Id” of

<Manifest> is represent the identifier of MD

. The

cascade of the element in XML as the manifest of

these DICOM files is shown in Fig. 4. We calculate

H(MD

) and using HOC’s private key to encrypt

H(MD

) and generate the manifest signature

SIG(MD

) complies with the W3C XML enveloped

signature standard is shown in fig. 5. All value is

encode by Baase64, the value “Object” in attribute

“URI” of <Reference> means sign the <Object>

described above, H(SIG(MD

)) is represented by

<DigestValue>; the manifest signature is

represented by <SignatureValue> the singing

certificate is put in <X509Certificate> tag.

AUTHENTICITY AND INTEGRITY OF PORTABLE ELECTRONIC HEALTH RECORDS

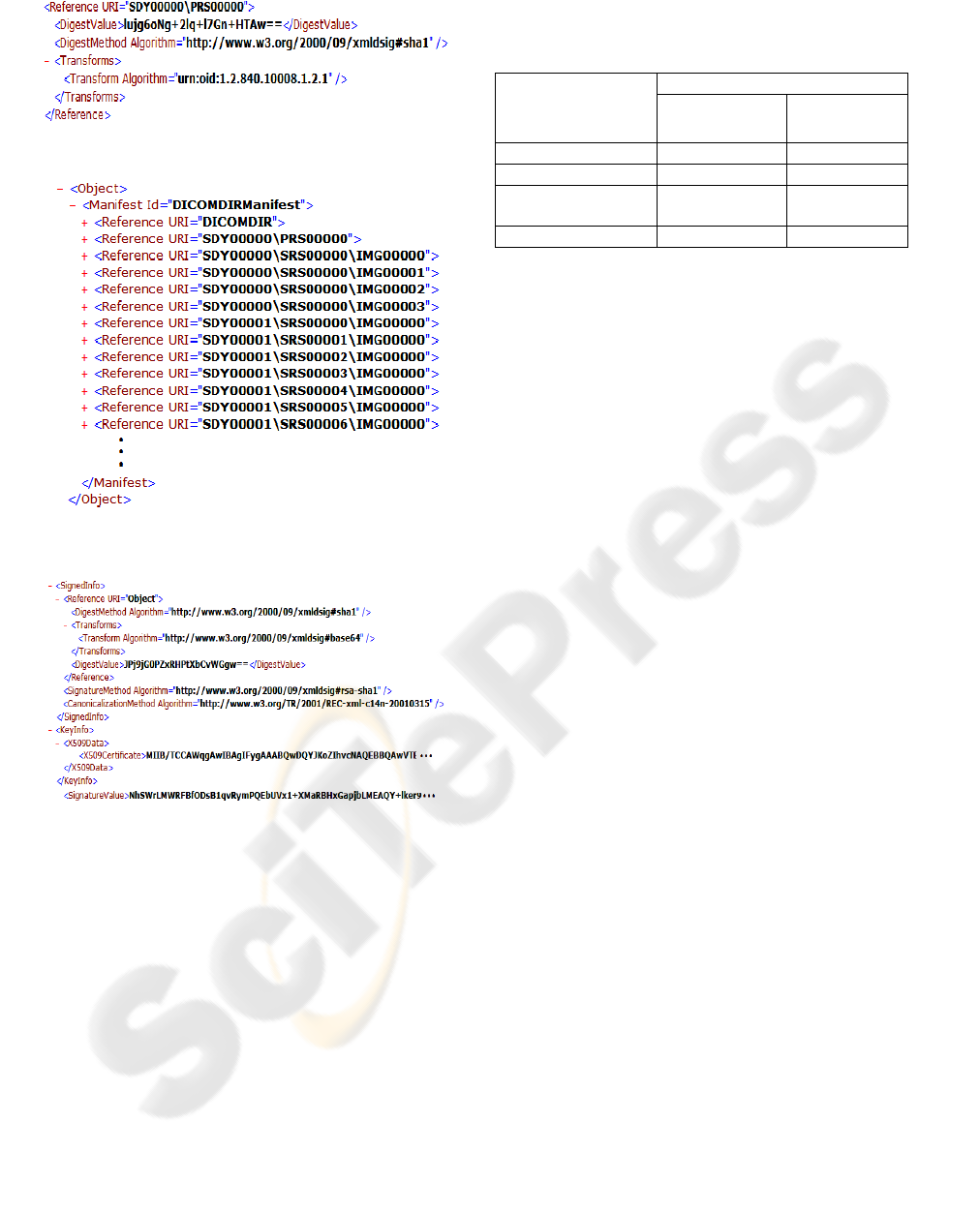

Figure 3: A unit of Ref(Mn) of one image in DICOM DIR.

Figure 4: The manifest structure of DICOM DIR presented

as XML.

Figure 5: The manifest digital signature presented as W3C

XML enveloped signature standard.

3.2 Performance Test

Table 3 shows a comparison of the operation time

for test files by different methods. In the one-by-one

method, each image has to be hashed, RSA

encrypted and timestamp retrieved once, for which

the total time needed was about 167.89 seconds. In

the proposed method, however, the total time was

reduced to 2.81 seconds. The demonstrating PC is a

Pentium D 2.8 GHz, with 4 GB memory; the size of

each image is about 516KB~1.58 MB; the total data

size of the images is 82.3 MB; the type of the smart

card is e-gate. The test of digital time signature time

is retrieved from the Taiwan HCA-TSA.

Table 3: Comparison of the time needed for signing 166

DICOM MR images between the proposed method and the

one-by-one method.

Calculation time

Operations

Proposed

method (sec)

One-by-one

method (sec)

Hashing 1.34 1.34

Signing 1.27 148

Digital time

signature retrieval

0.2 18.55

Total time 2.81 167.89

4 DISCUSSION

If a portable EHR is to be exchanged with other

organizations, the presence of a removable storage

media is also required. To verify the authenticity of

the EHR, the sender site creates the digital signature

of the EHR as the organizational stamp. The receiver

can then verify whether the EHR is valid by

Certificate Authority (CA) and TTP. The digital

signature created by the hospital and the digital time

signature created by the TSA can record the

authenticity of the EHR for inter-organization

exchange. In terms of cryptography, the digital

timestamp mechanism is not used to provide a

qualified digital signature, but to certify a qualified

time signature. Some infrastructures, such as patient

identification, certificate management, and standards

should be established as well. And some security

issues should be noticed in implementation: e.g.,

data backup, audit trail, register loss, maintenance,

recovery, etc.

A portable EHR contains clinical data and

related setting data, the combination of these data

can reconstruct representation of EHR. The signing

range should contain all of the data related to clinical

data. It is very important to ensure the integrity of

representation of EHR. If only signing clinical data

and related setting data is not singed, it could be

happened in inconsistency of representation of EHR

while setting data had been modified. The security

protection of EHR should include all of data in

portable storage media.

In general, most of the medical information

standards and national regulations regulating the

legal EHR do not use the manifest signature. If

existing medical information digital signature rules

are followed, as the practice is not feasible due to the

high computational time of the signing and verifying

processes. However, the signing time and timestamp

retrieval time need to be reduced because a portable

EHR may contain many clinical documents and

HEALTHINF 2008 - International Conference on Health Informatics

images, all of which need to be protected. For

example, a study may contain hundreds of DICOM

images, and following the DICOM standards in

these cases is impracticable in real-world clinical

operations. The manifest signature can be used not

only for the exchange of EHR, but also for EHR

long-term storage in hospitals.

Fast and reliable proof of authenticity and

integrity is needed for security considerations when

an EHR became portable. It is common that patients

collect their own health records from different

hospitals and manage the process by themselves.

The implementation of a centralized health record

containing personal health records is very difficult

when taking into considerations of the physicians’

intellectual property rights and patient privacy.

5 CONCLUSIONS

The computational time of this prototype is much

lower than that of the one by one digital signature

method. Following the existing medical information

digital signature rules, the practice is not feasible.

Using the proposed method, the computational time

is reduced. In addition, this method can be used not

only for the exchange of EHRs, but also for their

long-term storage.

ACKNOWLEDGEMENTS

This work was supported by the National Science

Council of Taiwan under Grant NSC 95-2221-E010-

003.

REFERENCES

Bates, DW, Ebell M, Gotlieb, E, Zapp, J, & Mullins, HC

2003, ‘A Proposal for Electronic Medical Records in

U.S. Primary Care’, Journal of the American Medical

Informatics Association, vol. 10, no. 1, pp. 1-10.

France, FHR, Bangels, M & De Clercq, E 2007, ‘Purposes

of health identification cards and role of a secure

access platform (Be-Health) in Belgium’,

International Journal of Medical Informatics, vol. 76,

no. 2-3, pp. 84-88.

Lekkas, D & Gritzalis, D 2007, ‘Long-term verifiability of

the electronic healthcare records’ authenticity’,

International Journal of Medical Informatics, vol. 76,

no. 5-6, pp. 442-448.

Lekkas, D, Gritzalis, S & Katsikas, S 2002, ‘Quality

assured trusted third parties for deploying secure

internet-based healthcare applications’, International

Journal of Medical Informatics, vol. 65, no. 2, pp. 79-

96.

Makoul, G, Curry, RH & Tang, PC 2001, ‘The Use of

Electronic Medical Records: Communication Patterns

in Outpatient Encounters’, Journal of the American

Medical Informatics Association, vol. 8, no. 6, pp.

610-615.

Pharow, P & Blobel, B 2005, ‘Electronic signatures for

long-lasting storage purposes in electronic archives’,

International Journal of Medical Informatics, vol. 74,

no. 2-4, pp. 279-287.

Schurig, A, Heuser, H & Wedekind, R 2001, ‘Introduction

of the health professional card into the

SAXTELEMED-Project’, International Congress

Series, vol. 1230, pp. 867-871.

Tang, PC, Ash, JS, Bates, DW, Overhage, JMS & Sands,

DZ 2006, ‘Personal Health Records: Definitions,

Benefits, and Strategies for Overcoming Barriers to

Adoption’, Journal of the American Medical

Informatics Association, vol. 13, no. 2, pp. 121-126.

Wang, M, Lau, C, Matsen, FAIII & Kim, Y 2004,

‘Personal health information management system and

its application in referral management’, IEEE

Transactions on Information Technology in

Biomedicine, vol. 8, no. 3, pp. 287-297.

Yang, CM, Lin, HC, Chang P & Jian, WS 2006, ‘Taiwan’s

perspective on electronic medical records’ security and

privacy protection: Lessons learned from HIPAA’,

Computer Methods and Programs in Biomedicine, vol.

82, no. 3, pp. 277-282.

Zhou, XQ, Huang, HK & Lou, SL 2001. ‘Authenticity and

integrity of digital mammography images’, IEEE

Transactions on Medical Imaging, vol. 20, no. 8, pp.

784-791.

AUTHENTICITY AND INTEGRITY OF PORTABLE ELECTRONIC HEALTH RECORDS
