FORMAL ANALYSIS OF INTELLIGENT AGENTS

FOR MODEL-BASED MEDICINE USAGE MANAGEMENT

Mark Hoogendoorn, Michel Klein, Zulfiqar Memon and Jan Treur

Vrije Universiteit Amsterdam, Department of Artificial Intelligence

De Boelelaan 1081a, 1081 HV Amsterdam, The Netherlands

Keywords: Model-based, agent, medicine usage management, formal analysis.

Abstract: A model-based agent system model for medicine usage management is presented and formally analysed.

The model incorporates an intelligent ambient agent model that has an explicit representation of a

dynamical system model to estimate the medicine level in the patient’s body by simulation, is able to

analyse whether the patient intends to take the medicine too early or too late, and can take measures to

prevent this.

1 INTRODUCTION

A challenge for medicine usage management is to

achieve in a non-intrusive manner that patients for

whom it is crucial that they take medicine regularly,

indeed do so. Examples of specific relevant groups

include independently living elderly people,

psychiatric patients or HIV-infected persons. One of

the earlier solutions reported in the literature

provides the sending of automatically generated

SMS reminder messages to a patient’s cell phone at

the relevant times; e.g., (Safren, Hendriksen,

Desousa, Boswell, and Mayer, 2003). A

disadvantage of this approach is that patients are

disturbed often, even if they do take the medicine at

the right times themselves, and that due to this after

some time a number of patients start to ignore the

messages.

A more sophisticated approach can be based on a

recently developed automated medicine box that has

a sensor that detects whether a medicine is taken

from the box, and can communicate this to a server;

cf. SIMpill (Green, 2005). This enables to send SMS

messages only when at a relevant point in time no

medicine intake is detected. A next step is to let a

computing device find out more precisely what

relevant times for medicine intake are. One way is to

base this on prespecified prescription schemes that

indicate at what time points medicine should be

taken. However, this may be inflexible in cases that

a patient did not follow the scheme precisely. To

obtain a more robust and flexible approach, this

paper explores and analyses possibilities to use an

automated medicine box in combination with model-

based intelligent agents to dynamically determine

the (estimated) medicine level over time.

The agent-based model for medicine usage

management discussed was formally specified in an

executable manner and formally analysed using

dedicated tools. The system incorporates a model-

based intelligent agent that includes an explicitly

represented dynamic system model to estimate the

medicine level in the patient’s body by simulation.

Based on this it is able to dynamically determine at

what point in time the patient should take medicine,

and given that, to analyse whether the patient

intends to take medicine too early or too late, and to

take measures to prevent this.

In this paper, Section 2 describes the multi-agent

system introduced, whereas Section 3 present

detailed information about the specific agents.

Furthermore, Section 4 presents simulation results,

and Section 5 formal analysis of these results.

Finally, Section 6 is a discussion.

2 OVERVIEW OF THE SYSTEM

Figure 1 presents an overview of the entire system

as considered. The top right corner shows the

patient, who interacts with the medicine box, and

communicates with the patient cell phone. The

Medicine Box detects whether medicine is taken out

of the medicine box. The Medicine Box Agent

(MBA) observes this medicine box. In case, for

example, the patient intends to take the medicine too

148

Hoogendoorn M., Klein M., Memon Z. and Treur J. (2008).

FORMAL ANALYSIS OF INTELLIGENT AGENTS FOR MODEL-BASED MEDICINE USAGE MANAGEMENT.

In Proceedings of the First International Conference on Health Informatics, pages 148-155

 SciTePress

soon after the previous dose, it finds out that the

medicine should not be taken at the moment (i.e., the

sum of the estimated current medicine level plus a

new dose is too high), and communicates a warning

to the patient by a beep. Furthermore, all

information obtained by this agent is passed on to

the Usage Support Agent (USA). All information

about medicine usage is stored in the patient

database by this agent. If the patient tries to take the

medicine too early, a warning SMS with a short

explanation is communicated to the cell phone of the

patient, in addition to the beep sound already

communicated by the Medicine Box Agent.

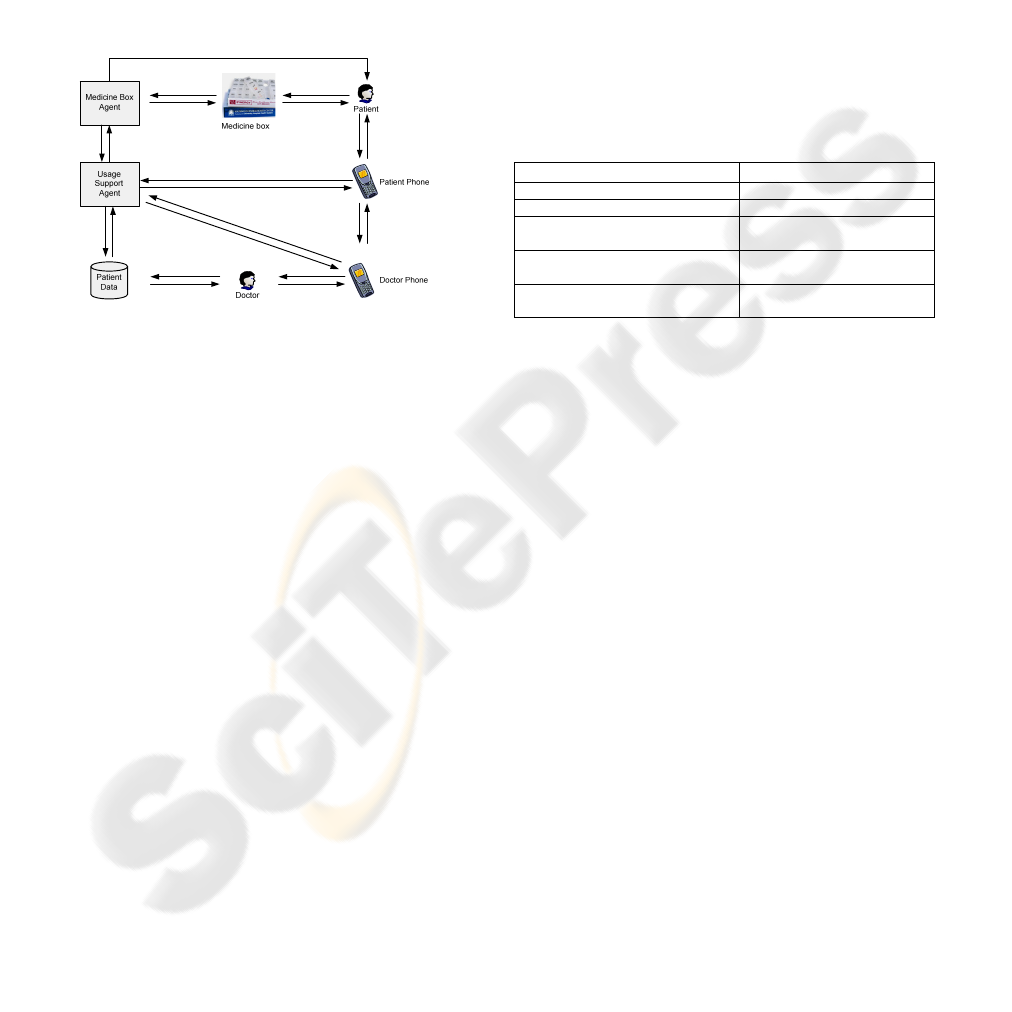

Figure 1: Multi-Agent System: Overview.

On the other hand, in case the Usage Support

Agent finds out that the medicine is not taken early

enough (i.e., the medicine concentration is estimated

too low for the patient and no medicine was taken

yet), it can take measures as well. First of all, it can

warn the patient by communicating an SMS to the

patient cell phone. This is done soon after the patient

should have taken the medicine. In case that after

some time the patient still does not take medicine,

the agent can communicate an SMS to cell phone of

the appropriate doctor. The doctor can look into the

patient database to see the medicine usage, and in

case the doctor feels it is necessary to discuss the

state of affairs with the patient, he or she can contact

the patient via a call using the doctor cell phone to

the patient cell phone.

3 AGENT PROPERTIES

The model used for the Usage Support Agent (USA)

makes (re)use of elements of the Generic Agent

Model GAM described in (Brazier, Jonker, and

Treur, 2000). In addition, it makes use of an

explicitly represented dynamical model to for the

medicine level over time within the patient.

Moreover, the model for the Usage Support Agent

includes a reasoning method (based on simulation)

to estimate the current medicine level based on the

dynamical model and information on medicine

taking in the past.

To express the agent’s internal states and

processes, a state ontology partly shown in Table 1

was specified. An example of an expression that can

be formed by combining elements from this

ontology is

belief(leads_to_after(I:INFO_EL, J:INFO_EL, D:REAL))

which expresses that the agent has the knowledge

that state property I leads to state property J with a

certain time delay specified by D. This type of

expression is used to represent the agent’s

knowledge of a dynamical model of a process.

Using the ontology, the functionality of the agent

has been specified by generic and domain-specific

temporal rules.

Table 1: Ontology for the Usage Support Agent Model.

Note the formal form of the agent properties has

been omitted below for the sake of brevity. Generic

rules specify that incoming information (by

observation or communication) from a source that is

believed to be reliable is internally stored in the

form of beliefs. When the sources are assumed

always reliable, the conditions on reliability can be

left out:

IB(X) From Input to Beliefs

If agent X observes some world fact, then it will believe this.

If X gets information communicated, then it will believe this.

Execution of a dynamical model is specified by:

SE(X) Simulation Execution

If it is believed that I holds at time T, and it is believed that I

leads to J after time duration D, then it is believed that J holds

at time T+D.

This temporal rule specifies how a dynamic model

that is represented as part of the agent’s knowledge

can be used by the agent to extend its beliefs about

the world at different points in time.

Domain-specific rules for the Usage Support

Agent are shown below. The Usage Support Agent’s

specific functionality is described by three sets of

temporal rules. First, the agent maintains a dynamic

model for the concentration of medicine in the

patient over time in the form of a belief about a

leads to after relation.

USA1: Maintain dynamic model

The Usage Support Agent believes that if the medicine level for

medicine M is C, and the usage effect of the medicine is E, then

Formalisation Description

belief(I:INFO_EL)

information I is believed

world_fact(I:INFO_EL)

I is a world fact

has_effect(A:ACTION,

I:INFO_EL)

action A has effect I

leads_to_after(I:INFO_EL,

J:INFO_EL, D:REAL)

state property I leads to state

property J after duration D

at(I:INFO_EL, T:TIME)

state property I holds at time

FORMAL ANALYSIS OF INTELLIGENT AGENTS FOR MODEL-BASED MEDICINE USAGE MANAGEMENT

149

after duration D the medicine level of medicine M is C+E minus

G*(C+E)*D with G the decay value. Formally:

In order to reason about the usage information, this

information is interpreted (USA2), and stored in the

database (USA3).

USA2: Prepare storage usage

If the agent has a belief concerning usage of medicine M and

the current time is T, then a belief is generated that this is the

last usage of medicine M, and the intention is generated to store

this in the patient database.

USA3: Store usage in database

If the agent has the intention to store the medicine usage in the

patient database, then the agent performs this action.

Finally, temporal rules were specified for taking the

appropriate measures. Three types of measures are

possible. First, in case of early intake, a warning

SMS is communicated (USA4). Second, in case the

patient is too late with taking medicine, a different

SMS is communicated, suggesting to take the

medicine (USA5). Finally, when the patient does not

respond to such SMSs, the doctor is informed by

SMS (USA6).

USA4: Send early warning SMS

If the agent has the belief that an intention was shown by the

patient to take medicine too early, then an SMS is

communicated to the patient cell phone that the medicine should

be put back in the box, and the patient should wait for a new

SMS before taking more medicine.

USA5: SMS to patient when medicine not taken on time

If the agent has the belief that the level of medicine M is C at

the current time point, and the level is considered to be too low,

and the last message has been communicated before the last

usage, and at the current time point no more medicine will be

absorbed by the patient due to previous intake, then an SMS is

sent to the patient cell phone to take the medicine M.

USA6: SMS to doctor when no patient response to SMS

If the agent has the belief that the last SMS to the patient has

been communicated at time T, and the last SMS to the doctor

was communicated before this time point, and furthermore, the

last recorded usage is before the time point at which the SMS

has been sent to the patient, and finally, the current time is later

than time T plus a certain delay parameter for informing the

doctor, then an SMS is communicated to the cell phone of the

doctor that the patient has not taken medicine M.

USA7: Communicate Current Concentration

If the agent has the belief that the level of medicine M is C at

the current time point then the agent informs the medicine box

agent about this level.

The Medicine Box Agent has functionality

concerning communication to both the patient and

the Usage Support Agent. Generic temporal rules

are included as for the Usage Support Agent (see

above). Domain-specific temporal rules are both

shown below. First of all, the observed usage of

medicine is communicated to the Usage Support

Agent in case the medicine is not taken too early, as

specified in MBA1.

MBA1: Medicine usage communication

If the Medicine Box Agent has a belief that the patient has taken

medicine from a certain position in the box, and that the

particular position contains a certain type of medicine M, and

taking the medicine does not result in a too high medicine

concentration of medicine M within the patient, then the usage

of this type of medicine is communicated to the USA.

In case medicine is taken out of the box too early, a

warning is communicated by a beep and the

information is forwarded to the Usage Support Agent

(MBA2 and MBA3).

MBA2: Too early medicine usage prevention

If the Medicine Box Agent has the belief that the patient has

taken medicine from a certain position in the box, that this

position contains a certain type of medicine M, and taking the

medicine results in a too high medicine concentration of

medicine M within the patient, then a warning beep is

communicated to the patient.

MBA3: Early medicine usage communication

If the Medicine Box Agent has a belief that the patient was

taking medicine from a certain position in the box, and that the

particular position contains a certain type of medicine M, and

taking the medicine would result in a too high concentration of

medicine M within the patient, then this is communicated to the

Usage Support Agent.

4 SIMULATION

In order to show how the above presented system

functions, the executable properties have been

implemented in a dedicated software environment that

can execute such specifications (Bosse, Jonker, Meij,

and Treur., 2007). To enable creation of simulations, a

patient model is used that simulates the behaviour of

the patient in a stochastic manner. The model specifies

four possible behaviours of the patient, each with its

own probability: (1) too early intake, (2) correct intake

(on time), (3) responding to an SMS warning that

medicine should be taken, and (4) responding to a

doctor request by phone. Based upon such

probabilities, the entire behaviour of the patient

regarding medicine usage can be simulated. In the

following simulations, values of respectively 0.1, 0.8,

0.9 and 1.0 have been used.

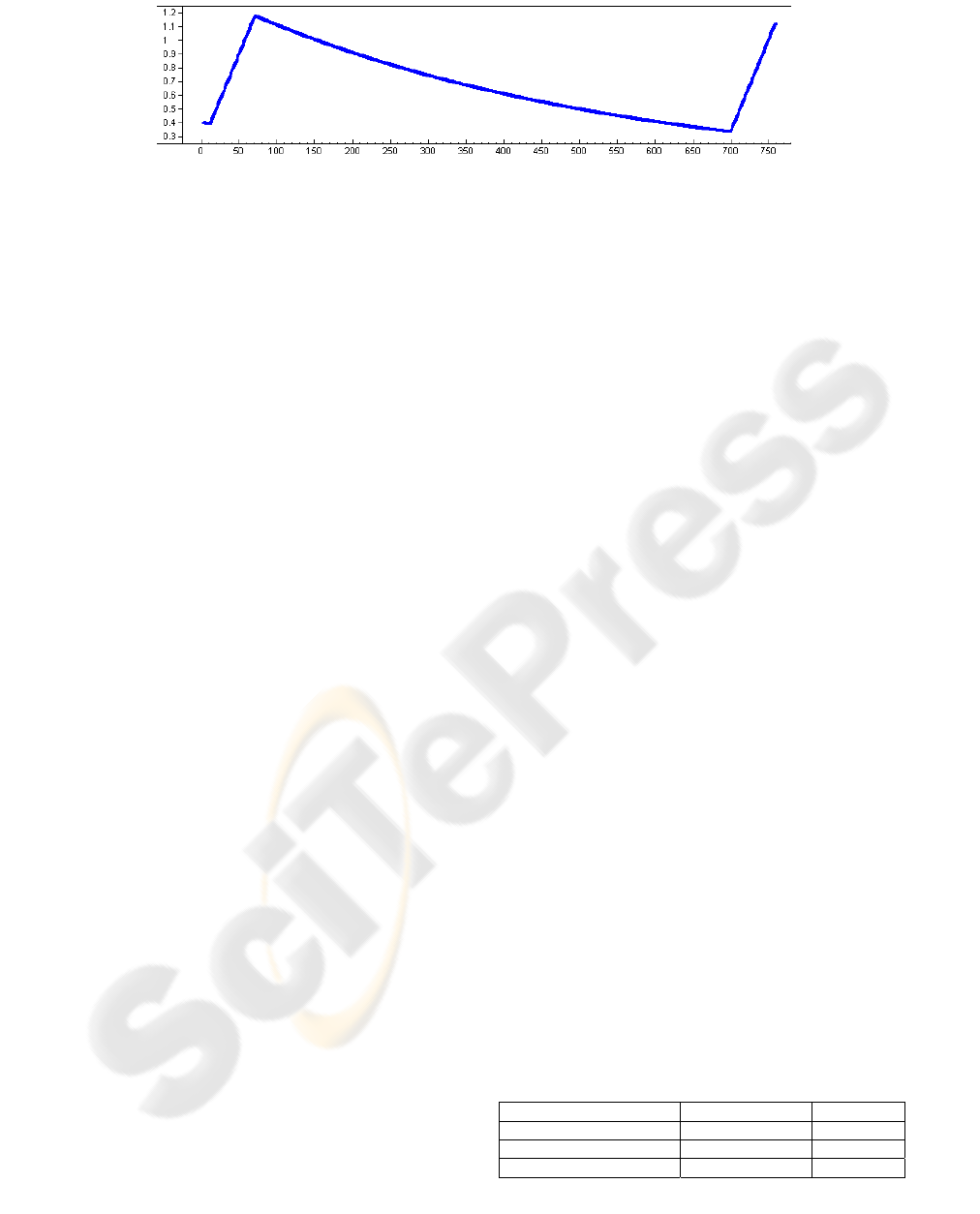

Figure 2 shows an example of a simulation trace

whereby the medicine support system is active.

The figure indicates the medicine level over time as

estimated by the agent based on its dynamic model.

Here the x-axis represents time whereas the y-axis

represents the medicine level.

Note that in this case, the minimum level of medicine

within the patient is set to 0.35 whereas the maximum

level is 1.5. These numbers are based on the medicine

half-life value, that can vary per type of medicine. For

more details on the formal properties behind the

simulation, and a more elaborate discussion of the

results, see (Hoogendoorn, Klein, and Treur, 2007).

HEALTHINF 2008 - International Conference on Health Informatics

150

Figure 2: Medicine level over time.

5 FORMAL ANALYSIS

When a model such as the one described above, has

been specified, it is easy to produce various

simulations based on different settings, initial

conditions and external events offered. Moreover, it

is possible to incorporate nondeterministic

behaviours by temporal rules that involve

probabilistic effects (cf. Bosse, et al., 2007). Thus

large sets of traces can be generated. When such a

set is given, it is more convenient to check them on

relevant properties automatically, than going

through them by hand. Furthermore, it may also be

useful when insight is provided how dynamic

properties of the multi-agent system as a whole

depend on dynamic properties of the agents within

the system, and further on, how these relate to

properties of specific components within the agents.

This section shows how this can be achieved. To

this end a number of dynamic properties have been

specified for different aggregation levels of the

multi-agent system, cf. (Jonker and Treur 2002;

Bosse, Jonker, Meij, Sharpanskykh, and Treur, ,

2006). The main property considered for the system

as a whole is: will the medicine level in the patient

be maintained between the required minimum and

maximum level? This desired situation is called ‘S’.

That a value V of a variable P should be within a

specific range between the lower threshold TL and

the upper threshold TU, is specified as follows:

has_value(P,V) ∧ (V > TU ∨ V < TL) (S)

This has been applied to the variable

‘medicine_level’.

GP1 At any point in time the medicine level is between TL and

TU.

∀T:TIMEPOINT, V:REAL:

state(M, T) |= has_value(P,V) ⇒ ( V ≤ TU ∧ V ≥ TL)

Here M is a trace, and state(M, T) denotes the state in

this trace at time

T. Moreover, state(M, T) |= p denotes

that state property

p holds in state state(M, T).

Related to this, global properties can be defined

that specify that the total number of violations of the

threshold values is smaller than some maximum

number, or that the total duration of the violation is

smaller than some maximum period. In these

definitions

∑ case(p, 1, 0) is a special construct in the

language that calculates the sum of timepoints for

which a state holds.

GP2 The total number of times that the medicine level falls

below TL or raises above TU is smaller than

MAX_OCCURANCES.

∀M:TRACE: ∀T1, T2:TIMEPOINT:

∑ case(T1≤T & T ≤T2 & state(M, T) |= S &

state(M, T+1) |= ¬S, 1, 0) < MAX_OCCURANCES

GP3 The total time period that the medicine level is not between

TL and TU is smaller than MAX_DURATION.

∀M:TRACE ∀T1, T2:TIMEPOINT:

∑ case(T1≤T & T ≤T2 & state(M, T) |= ¬S, 1, 0) <

MAX_DURATION

5.1 Evaluation of Traces

The formal properties have been used to evaluate the

usefulness of the medicine usage management

system. For this, 60 simulation traces of the

medicine level within a patient have been generated,

with a length of 36 hours. In half of the traces the

medicine usage management system was supporting

the patient, in the other half the system did not take

any action, but was still monitoring the medicine

usage. As a consequence of the stochastic patient

model (the probabilities used are the ones mentioned

in Section 5), this resulted in 60 different simulation

traces.

For all traces it has been checked whether, how

often and how long, the medicine level is between

the required values of 0.5 and 1.35. It has also been

checked whether this is the case for preferred

values. It can be assumed that, in addition to the

required range for the medicine level, there is also

an optimal or preferred range. Table 2 lists the total

number of violations in the 30 traces with support of

the system and the 30 traces without support for

different maximum and minimum levels. Table 3

shows the duration of the violations time in minutes

for the same set of traces.

Table 2: Total number of violations of the threshold

values (used in property GP2).

number of violations with support without

above 1.5 (required) 2 8

below 0.35 (required) 5 18

total required 7 26

FORMAL ANALYSIS OF INTELLIGENT AGENTS FOR MODEL-BASED MEDICINE USAGE MANAGEMENT

151

Table 3: Total duration of violations of the threshold

values (used in property GP3).

From the figures in tables it is immediately apparent

that the medicine level is much more often and for a

much longer time between the required or preferred

values. However, it is also clear that even with

support of the system the medicine level is

sometimes outside the required range. In fact,

property GP1 did not hold in 5 out of the 30

simulation traces in which the system was active. An

analysis of these traces revealed that this is a side-

effect of the specification of the simulation: as every

communication between agents and between

components within agents costs at least one time-

step, it takes a number of time-steps before a

message of the system has reached the patient (in

fact 24 minutes). In between sending and receiving a

message, it could happen that the medicine level has

dropped below the minimum value, or that the

patient has taken a pill already. For violations of the

minimum level it is possible to compensate for this

artificial delay by allowing an additional decrease

that is equivalent to the decay of the medicine

during the time of the delay. This means that

medicine level should not drop below the 0,3335 if

the delay is taken into account. Table 4 shows the

duration of the violations for the corrected minimum

level. In this case, there are no violations of the

lower threshold in traces where the system is active.

Unfortunately, a similar correction for violations

of the maximum level is not possible, as these

violations are caused by taking two pills within a

short period, which is a non-monotonic effect.

Table 4: Corrected values for duration the violations of the

minimum level.

5.2 Relating Global Properties to

Executable Properties

Besides the verification of properties against

simulation traces, the correctness of the entire model

can also be proven (given certain conditions). This

proves that for all possible outcomes of the model

the global properties are indeed achieved under

these specific conditions. Such correctness of a

model can be proved using the SMV model checker

(MacMillan, 1995). In order to come to such a

proof, an additional property level is introduced,

namely the external behavioural properties for the

components within the system. Thereafter, the

relationship between the executable properties of the

Medicine Box Agent, and the Usage Support Agent

are related to these behavioural properties, and

furthermore, these behavioural properties are shown

to entail the top-level properties.

5.2.1 External Behavioural Properties

First a number of external properties for the Usage

Support Agent (USA) are introduced. The first

property specifies that the patient should be warned

that medicine should be taken in case the medicine

level is close to being too low (EUSA1). Secondly,

property EUSA2 specifies that the USA should warn

the doctor in case such a warning has been sent to

the patient, but there has been no response.

Moreover, the storage of the usage history is

specified in EUSA3, and the sending of an early

warning message is addressed in EUSA4. Finally,

EUSA5 describes that the USA should communicate

the current medicine level within the patient. Note

that in all properties a parameter e is used, which

specifies the maximum delay after which these

communications or actions should occur. Such a

parameter can vary per property, and is used

throughout this section for almost all non-executable

properties.

EUSA1: Usage Support Agent Behaviour External View

Patient Warning Take Medicine

If the Usage Support Agent received communicated medicine

intake, and based on these, the estimated accumulated

concentration is C, and C<TL, then it communicates an SMS to

the Patient Cell Phone that medicine should be taken.

∀t:TIME, γ:TRACE, M:MEDICINE, C:REAL

history_implied_value(γ, input(USA), t, M, C) & C < TL ⇒

∃t’ t≤ t’≤ t+e & state(γ, t’, output(USA)) |=

communication_from_to(sms_take_medicine(M),

usage_support_agent, patient_cell_phone)

EUSA2: Usage Support Agent Behaviour External View

Doctor Warning

If the Usage Support Agent sent out a warning message to the

patient, and the patient did not take medicine within X time steps

after the warning, the Usage Support Agent sends a message to

the Doctor Cell Phone.

∀t:TIME, γ:TRACE state(γ, t, output(USA)) |=

communication_from_to(sms_take_medicine(M),

usage_support_agent, patient_cell_phone) &

¬∃t2:TIME [ t2 ≥ t & t2 < t + X & state(γ, t2, input(USA)) |=

communicated_from_to(medicine_used(M),

medicine_box_agent, usage_support_agent) ]

⇒ ∃t’:TIME t + X ≤ t’≤ (t + X) +e state(γ, t’, output(USA)) |=

communication_from_to(sms_not_taken_medicine(M),

usage_support_agent, doctor_cell_phone)

duration (in minutes) with support without

above 1.5 (required) 0.8 25.36

below 0.35 (required) 3.53 179.13

total required 4.33 204.49

above 1.2 (preferred) 161.6 328.20

below 0.5 (preferred) 218.1 327.63

total preferred 379.7 655.83

duration (in minutes) with support without

below 0.3335 0 164.77

HEALTHINF 2008 - International Conference on Health Informatics

152

EUSA3: Usage Support Agent Behaviour External View

Store Information in Database

If the Usage Support Agent receives a communication that

medicine has been taken, then the agent stores this information in

the patient database.

∀t:TIME, γ:TRACE, M:MEDICINE state(γ, t, input(USA)) |=

communicated_from_to(medicine_used(M),

medicine_box_agent,

usage_support_agent) &

⇒ ∃t’:TIME t ≤ t’≤ t + e [ state(γ, t’, output(USA)) |=

performing_in(store_usage(M, t),

patient_database) ]

EUSA4: Usage Support Agent Behaviour External View

Store Send Early Warning Message to Patient

If the Usage Support Agent receives a communication that the

patient attempted to take medicine too early, then the agent sends

an SMS to the patient cell phone.

∀t:TIME, γ:TRACE, M:MEDICINE state(γ, t, input(USA)) |=

communicated_from_to(too_early_intake_intention,

medicine_box_agent, usage_support_agent) &

⇒ ∃t’:TIME t ≤ t’≤ t + e [ state(γ, t’, output(USA)) |=

communication_from_to(put_medicine_back_and_wait_for_signal,

usage_support_agent, patient_cell_phone) ]

EUSA5: Usage Support Agent Behaviour External View Send

Approximated Concentration to Medicine Box Agent

If the history of medicine usage implies a certain medicine level,

then the Usage Support Agent communicates this value to the

Medicine Box Agent.

∀t:TIME, γ:TRACE, M:MEDICINE, C:REAL

history_implied_value(γ, input(USA), t, M, C) ⇒

∃t’ t≤ t’≤ t+e & state(γ, t’, output(USA)) |=

communication_from_to(medicine_level(M,

C),

usage_support_agent, medicine_box_agent)

Besides the Usage Support Agent, the Medicine Box

Agent (MBA) plays an important role within the

system as well. From an external perspective, the

MBA has three behavioural properties. The first

(EMBA1) expresses that the MBA should

communicate to the Usage Support Agent that

medicine has been taken by the patient. This only

occurs when the medicine is not taken too early.

Properties EMBA2 and EMBA3 concern the

communication in case of an early intake. First of

all, the MBA should sound a beep (EMBA2), and

furthermore, the MBA should communicate this

information to the USA (EMBA3). Again, a

parameter e is used to specify the maximum delay

for these properties. Note that these properties are

later referred to as EMBA, which is the conjunction

of the three properties specified below.

EMBA1: Medicine Box Agent Behaviour External View

Communicate Usage Non-Early Intake

When the medicine box agent observes medicine is taken from

position X,Y in the box and the medicine is of type M, and the

medicine level of M communicated to the agent is C, and

furthermore, the medicine level plus a dose does not exceed the

overall maximum, then the medicine box agent outputs medicine

has been taken to the Usage Support Agent.

∀γ:TRACE, t:TIME, X, Y:INTEGER, C:REAL, M:MEDICINE

state(γ, t, input(medicine_box_agent) |=

observed_result_from(medicine_taken_from_position(

x_y_coordinate(X, Y)), medicine_box) &

state(γ, t, input(medicine_box_agent) |=

communicated_from_to(medicine_level(M, C),

usage_support_agent, medicine_box_agent) &

C+DOSE <= MAX_MEDICINE_LEVEL &

medicine_at_location(X, Y, M)

⇒ ∃t’:TIME t ≤ t’≤ t + e [ state(γ, t’, output(medicine_box_agent) |=

communication_from_to(medicine_used(M),

medicine_box_agent,

usage_support_agent) ]

EMBA2: Medicine Box Agent Behaviour External View

Communicate Beep when Early Intake

When the medicine box agent observes medicine is taken from

position X,Y in the box and the medicine is of type M, and the

medicine level of M communicated to the agent is C, and

furthermore, the medicine level plus a dose exceeds the overall

maximum, then the medicine box agent outputs a beep to the

Patient.

∀γ:TRACE, t:TIME, X, Y:INTEGER, C:REAL, M:MEDICINE

state(γ, t, input(medicine_box_agent) |=

observed_result_from(medicine_taken_from_position(

x_y_coordinate(X, Y)), medicine_box) &

state(γ, t, input(medicine_box_agent) |=

communicated_from_to(medicine_level(M, C),

usage_support_agent, medicine_box_agent) &

C+DOSE > MAX_MEDICINE_LEVEL &

medicine_at_location(X, Y, hiv_slowers)

⇒ ∃t’:TIME t ≤ t’≤ t + e [state(γ, t’, output(medicine_box_agent) |=

communication_from_to(sound_beep, medicine_box_agent,

patient) ]

EMBA3: Medicine Box Agent Behaviour External View

Communicate Early Intake to Usage Support Agent

When the medicine box agent observes medicine is taken from

position X,Y in the box and the medicine is of type M, and the

medicine level of M communicated to the agent is C, and

furthermore, the medicine level plus a dose exceeds the overall

maximum, then the medicine box agent outputs a communication

concerning this early intake intention to the Usage Support Agent.

∀γ:TRACE, t:TIME, X, Y:INTEGER, C:REAL, M:MEDICINE

state(γ, t, input(medicine_box_agent) |=

observed_result_from(medicine_taken_from_position(

x_y_coordinate(X, Y)), medicine_box) &

state(γ, t, input(medicine_box_agent) |=

communicated_from_to(medicine_level(M, C),

usage_support_agent, medicine_box_agent) &

C+DOSE > MAX_MEDICINE_LEVEL &

medicine_at_location(X, Y, hiv_slowers)

⇒ ∃t’:TIME t ≤ t’≤ t + e [ state(γ, t’, output(medicine_box_agent) |=

communication_from_to(too_early_intake_intention,

medicine_box_agent, usage_support_agent) ]

Furthermore, a number of properties are specified

for the external behavior of the other components.

These properties include basic forwarding of

information by the patient cell phone (PCP), the

doctor cell phone (DCP), communication between

various communicating components (CP).

Furthermore, it includes the specification of the

observation results of performing actions in the

medicine box (EMD), the storage of information in

the database (PDP), and the transfer of those actions

and observations (WP).

Finally, in order for such external behavioral

properties to establish the global property, certain

assumptions need to be made concerning the

behavior of the doctor and of the patient. For the

proof, the minimal behavior of the patient is used.

This minimal behavior is specified by stating that

the patient should at least respond to the doctor

FORMAL ANALYSIS OF INTELLIGENT AGENTS FOR MODEL-BASED MEDICINE USAGE MANAGEMENT

153

communication. Of course, most likely would be

that the patient already responds to the SMS being

sent, but using the minimal behavior it can already

be proven that this is not even required, as long as

the patient responds to the doctor communication.

This ensures, that even if the patient does not

respond on an SMS his medicine level will still

remain within the boundaries set. The behavior of

the patient is expressed in property PB. Besides the

patient, also the doctor needs to respond to the SMS

of the system in a particular way, namely that he

immediately contacts the patient, as expressed in

property DB.

PB: Respond to Doctor request

When a patient receives a doctor warning that the patient should

take medicine M, then the patient takes the medicine from the

appropriate place in the box.

∀γ:TRACE, t :TIME, M:MEDICINE, X, Y:INTEGER

state(γ, t, input(patient) |=

communicated_from_to(doctor_request_take_medicine(M),

patient_cell_phone, patient)

medicine_at_location(X, Y, M)

⇒ ∃t’:TIME t ≤ t’≤ t + e

state(γ, t’, output(patient) |=

performing_in(take_medicine_from_position(x_y_coordinate(X, Y)),

medicine_box)

DB: Warn patient after SMS

When the doctor has received an SMS concerning a patient that

has not used medicine, then the doctor uses its cell phone

communicating that the patient to take medicine.

∀γ:TRACE, t :TIME, M:MEDICINE

state(γ, t, input(doctor) |=

communicated_from_to(sms_not_taken_medicine(M),

doctor_cell_phone, doctor)

⇒ ∃t’:TIME t ≤ t’≤ t + e [ state(γ, t’, output(doctor) |=

communication_from_to(doctor_request_take_medicine(M),

doctor,

doctor_cell_phone)]

5.2.2 Relating Properties

The relation between the external behavioral

properties introduced in Section 6.2.1 and the top-

level global property is shown in Figure 4. The

figure also shows the relationship between the

executable properties of the Usage Support Agent,

and the Medicine Box Agent and the external

behavioral properties thereof. Note that the external

level of both the Usage Support Agent as well as the

Medicine Box Agent has been represented in the

figure as EUSA and UMBA respectively. This is

simply the conjunction of the external properties of

these agents. Furthermore, the external behavioral

properties of the other components directly translate

to executable properties in the specification. The

following relations hold from the local to the

external level.

Usage Support Agent External Behavior

IB & SE & USA1 & USA5 ⇒ EUSA1

IB & USA2 & USA5 & USA6 ⇒ EUSA2

IB & USA2 & USA3 ⇒ EUSA3

IB & USA4 ⇒ EUSA4

IB & SE & USA1 & USA7 ⇒ EUSA5

Medicine Box Agent External Behavior

IB & MBA1 & MBA2 & MBA3 ⇒ EMBA

Furthermore, the global property GP1 has the

following relationship with the external properties of

the various components.

Global Behavior

EMBA & EUSA & PCP & DCP & CP & EMD & PDP & WP &

PB & DB ⇒ GP1

In order to prove the above specified relationships,

the relations have been checked within the SMV

model checker. Using the following parameters, the

inter-level relations within the tree expressed in

Figure 4 are indeed shown to hold using SMV: The

initial medicine level is set to 60, the reduction level

per step is set to 98 (i.e. 0.98), the maximum

medicine level is set to 150 and the minimum level

to 30. Furthermore, the warning level is set to 60

(after which an SMS is sent to the patient). Finally,

the delay for a doctor message is set to 10 time

steps. Note that in the case of the SMV checks no

communication delay is specified. Therefore, this

formal verification shows that without this delay the

model indeed entails the global property.

6 DISCUSSION

In this paper, possible support in the domain of

medicine usage management was addressed. A

multi-agent system model that supports the users of

medicine in taking their medicine at the appropriate

time was discussed and formally analysed by

simulation and verification. The system has been

specified using a formal modeling approach which

enables the specification of both quantitative as well

as qualitative aspects (Jonker and Treur 2002;

Bosse, Jonker, Meij, and Treur, 2006). To specify

the model, both generic and domain specific

temporal rules have been used, enabling reuse of the

presented model. The analysis of the model has been

conducted by means of (1) generation of a variety of

simulation runs using a stochastic model for

patients; (2) specification of dynamic properties at

different aggregation levels; (3) specification of

interlevel relations between these properties; (4)

automated verification of properties specified in (2)

against traces generated in (1), and (5) automated

verification of the interlevel relations specified in

(3).

The simulation execution in (1) has been

achieved making use of the LEADSTO software

automated verification of such properties against set

of simulation traces in (4). Verification of interlevel

relations in (5) has been performed using the SMV

HEALTHINF 2008 - International Conference on Health Informatics

154

Figure 3: Property hierarchy in the form of an AND tree.

model checking environment (MacMillan, 1995).

Evaluation of the system with actual users is part of

future work.

The presented analysis fits well in the recent

developments in Ambient Intelligence (Aarts,

Collier, Loenen, Ruyter, 2001; Aarts, Harwig, and

Schuurmans, 2003; Riva et al., 2005). Furthermore,

it also shows that multi-agent system technology can

be of great benefit in health care applications, as

also acknowledged in (Moreno and Nealon, 2004).

More approaches to support medicine usage of

patients have been developed. Both in (Greene,

2005) as well as (Floerkemeier and Siegemund,

2003) models are presented that do not simply

always send an SMS that medicine should be taken

such as proposed by (Safren, et al., 2003). Both

approaches only send SMS messages in case the

patient does not adhere to the prescribed usage. The

model presented in this paper however adds an

additional dimension to such a support system,

namely the explicit representation and simulation of

the estimated medicine level inside the patient.

Having such an explicit model enables the support

agent to optimally support the patient; see also

(Bosse, Memon, and Treur, 2007) for the use of

such a model for mental processes of another agent.

REFERENCES

Aarts, E.; Collier, R.; van Loenen, E.; Ruyter, B. de (eds.)

(2003). Ambient Intelligence. Proc. EUSAI 2003.

LNCS vol. 2875. Springer Verlag, 2003, pp. 432.

Aarts, E., Harwig, R. , and Schuurmans, M. (2001),

Ambient Intelligence. In: P. Denning (ed.), The

Invisible Future, McGraw Hill, pp. 235-250.

Bosse, T., Jonker, C.M., Meij, L. van der, Sharpanskykh,

A, and Treur, J. (2006). Specification and Verification

of Dynamics in Cognitive Agent Models. In: Nishida,

T. et al. (eds.), Proceedings of IAT'06. IEEE Computer

Society Press, 2006, pp. 247-254.

Bosse, T., Jonker, C.M., Meij, L. van der, and Treur, J.

(2007). A Language and Environment for Analysis of

Dynamics by Simulation. Int. Journal of Artificial

Intelligence Tools, vol. 16, 2007, pp. 435-464.

Bosse, T., Memon, Z.A., and Treur, J. (2007). A Two-

level BDI-Agent Model for Theory of Mind and its

Use in Social Manipulation. In: P. Olivier, C. Kray

(eds.), Proceedings of AISB'07. AISB Publications,

2007, pp. 335-342.

Brazier, F.M.T., Jonker, C.M., and Treur, J. (2000).

Compositional Design and Reuse of a Generic Agent

Model. Applied Artificial Intelligence Journal, vol. 14,

2000, pp. 491-538.

Floerkemeier, C., Siegemund, F. (2003). Improving the

Effectiveness of Medical Treatment with Pervasive

Computing Technologies. Workshop on Ubiquitous

Computing for Pervasive Healthcare Applications at

Ubicomp 2003, Seattle, October 2003

Green D.J. (2005). Realtime Compliance Management

Using a Wireless Realtime Pillbottle – A Report on

the Pilot Study of SIMPILL. In: Proc. of the

International Conference for eHealth, Telemedicine

and Health, Med-e-Tel’05, 2005, Luxemburg.

Hoogendoorn, M., Klein, M., and Treur, J., Formal Design

and Simulation of an Ambient Multi-Agent System

Model for Medicine Usage Management. In:

Proceedings of the International Workshop on

Ambient Assisted Living (AAL 2007), to appear, 2007.

Jonker, C.M., and Treur, J. (2002). Compositional

Verification of Multi-Agent Systems: a Formal

Analysis of Pro-activeness and Reactiveness. Intl. J. of

Coop. Inf. Systems, vol. 11, 2002, pp. 51-92.

McMillan, K.L., (1993). Symbolic Model Checking: An

Approach to the State Explosion Problem. PhD thesis,

School of Computer Science, CMU, Pittsburgh, 1992.

Published by Kluwer Academic Publishers, 1993.

Moreno, A., Nealon, J.L. (eds.), Applications of Software

Agent Technology in Health Care Domain. Birkhäuser

Basel, 2004.

Riva, G., F. Vatalaro, F. Davide, M. Alcañiz (eds). (2005).

Ambient Intelligence. IOS Press, 2001.

Safren, S.A., Hendriksen, E.S., Desousa, N., Boswell,

S.L., Mayer, K.H., (2003). Use of an on-line pager

system to increase adherence to antiretroviral

medications. In: AIDS CARE, vol. 15, pp. 787 – 793.

DB PBWPPDPEMDEUSAEMBA CP DCP PCP

MBA3MBA2 MBA1 IB

USA4USA3

USA2

USA1 USA6 USA5 USA7SE

FORMAL ANALYSIS OF INTELLIGENT AGENTS FOR MODEL-BASED MEDICINE USAGE MANAGEMENT

155
