MEDICAL KNOWLEDGE REPRESENTATION WITHIN

HEARTFAID PLATFORM

Dragan Gamberger, Marin Prcela, Alan Jović, Tomislav Šmuc

Rudjer Boskovic Institute, Bijenicka 54, Zagreb, Croatia

Ganfranco Parati, Mariaconsuelo Valentini

Cardiology II, S.Luca Hospital, Istituto Auxologico Italiano, Milano, Italy

Kalina Kawecka-Jaszcz, Katarzyna Styczkiewicz, Andrzej Kononowicz

I Cardiac Department, Jagiellonian University Medical College, Cracow, Poland

Antonio Candelieri, Domenico Conforti, Rosita Guido

Department of Electronics, Informatics and Systems, University of Calabria, Rende (Cosenza), Italy

Keywords: Heart failure, knowledge representation, ontology, production rules.

Abstract: The paper presents the results of the development of the knowledge base for the HEARTFAID platform.

The means and methods used to collect, systematize and formalize medical knowledge, as well as to test the

developed knowledge representation are described. The descriptive part of the knowledge base is realized as

an ontology which conceptualizes the heart failure medical domain. The procedural part of the knowledge

base is realized through sets of production rules. The procedural knowledge covers the tasks of heart failure

diagnosis, severity assessment, treatment process, medication prescription and dosage, medication

contraindications, prognosis estimation, and acute decompensation detection. Finally, medical plans are

used to present medical actionable knowledge. Currently they are used only to systemize procedural

knowledge development process but they present a challenge for the future work in the field of medical

knowledge representation.

1 INTRODUCTION

Medicine is the field characterized by the enormous

amount of existing expert knowledge and at the

same time there is a need for constant and reliable

decision making. This is an ideal scenario for

building and using automated knowledge based

decision systems. Building an effective knowledge

base is a challenge relevant not only for the

Heartfaid platform, but for all artificial intelligence

applications as well. It is also known as a hard

problem with possibly many different solutions

among which none can be selected as ideal or

optimal for all situations.

The knowledge representation is actually a very

lively research field, especially in medical

application. Heartfaid platform is a good example of

a real medical environment for which automated

intelligent decision making is necessary. In our work

we first tried to test different knowledge

representation options and then to select and use

modern and most appropriate technology for solving

concrete decision making problems.

2 MEDICAL MOTIVATION

Heart failure is increasingly frequent in western

world, carrying a high mortality rate and being

responsible for a consistent increase in healthcare

costs related to the multiple therapeutic interventions

307

Gamberger D., Prcela M., Jovi

c A., Šmuc T., Parati G., Valentini M., Styczkiewicz K., Kawecka-Jaszcz K., Kononowicz A., Candelieri A., Conforti D. and

Guido R. (2008).

MEDICAL KNOWLEDGE REPRESENTATION WITHIN HEARTFAID PLATFORM.

In Proceedings of the First International Conference on Health Informatics, pages 307-314

 SciTePress

and the high frequency of hospital admissions

required by these patients. There is therefore an

increasing need for a better care, that might be

provided not only by highly specialized centers, but

also by small hospitals and by field cardiologists, a

need that has to be matched with a policy of cost

containment. Progress in technology may offer an

important support to make this possible, allowing

adequate knowledge to be made available to all

health care providers in this field. It might also offer

new methods for regular and accurate collection of

biological signals in patients living in their home

environment, making use of sensors, either

traditional or wearable, able to provide a continuous

monitoring also through telemedicine facilities.

More recent progress might further offer an

advanced platform of services for the automated

integration between the signals collected both at

home and in the clinic environment on one side, and

the available state-of-the-art knowledge on the other

side, providing an artificial intelligence support to

clinical decision. The proper adoption of these tools

might help improving the daily care of chronic heart

failure patients, through a prompt titration of

treatment in response to early detection of even

minor changes in clinical conditions, as well as

through a reduction of diagnostic and therapeutic

errors, by reinforcing the implementation of the

most advanced recommendations provided by

international clinical guidelines. Such an approach

might also help improving the cost/effectiveness of

heart failure care facilitating the implementation of a

disease management approach, in which therapy,

education and follow-up are tailored for each patient

by a multidisciplinary team constantly supported by

an advanced platform of computerized services

guiding the clinical decision through a continuous

update of patient’s clinical conditions allowed by

advanced wireless telecommunication technology.

The Heartfaid project is aimed at developing such a

tool and at testing its feasibility and usefulness in the

management of chronic heart failure patients,

focussing in particular on those with advancing age.

3 RELATION WITH DECISION

SUPPORT SUBSYSTEM

Decision support subsystem (DSS) is the part of the

platform responsible for its intelligent behaviour and

the knowledge base (KB) is the representation of the

medical knowledge necessary for the DSS

operability. In order that this knowledge can be used

by the DSS, it must be presented in a formally sound

way. The task of building the knowledge base

consists of collecting the relevant medical

knowledge, its systematization, and technical

formalization.

User services are not supposed to directly access

the knowledge available in the KB. They can only

ask for the assistance of the DSS, which can then

decide to use the KB for its decision making

process. It means that during normal platform

operation, the KB, with exception of DSS, is isolated

from other platform parts. In contrast to that, during

the platform development the KB is perhaps the

most relevant integrative part between medical and

technical partners. Building it presents the challenge

of transferring all aspects of relevant medical

knowledge into the platform. The success in this

work significantly determines the overall

performance of the system.

On the other side, DSS completely determines

the requirements set on formal aspects of the

knowledge representation task. The final goal is

effective interplay between the DSS and the KB.

Already in the project definition it has been

determined that the ontological form of knowledge

representation is the most appropriate for the

concrete task. In the DSS development phase the

semantic web OWL ontology form with integrated

rules in the SWRL form have been selected as

optimal solution. The main reason for these

decisions is that only relative simple representation

forms without explicit time component and with

deterministic logic can be effectively handled by

available open source interpreters and reasoning

systems.

In our work we have also experimented with

some other systems, especially those specifically

designed for medical applications and guideline

modelling. We have worked with Arden syntax,

GLIF, Asbru, and PROforma.

Arden syntax (Hripcssak et al, 1993) is a rule-

based system adopted in the year 1992 and it is now

part of HL7 standard. The main idea of the Arden

syntax is to add as much as possible human-readable

information to machine-readable rules. Each rule is

stored in a single file and is called a Medical Logic

Module (MLM). The drawback of Arden syntax is

that it does not refer to any kind of domain

description (ontology). Due to this, the system needs

to interact directly with a clinical database in order

to provide alerts and reminders, which strongly

hiders knowledge sharing. Also, the execution

components are not freely available (mostly because

of Arden’s institution dependency). However, unlike

HEALTHINF 2008 - International Conference on Health Informatics

308

the vast majority of other systems, it has found a

practical usage in real clinical environments.

GLIF (Peleg et al, 2000) provides a framework

for developing medical guidelines that are both

easily understandable by humans (medical experts)

and interpretable by machines. Each GLIF guideline

is modelled in the form of a flowchart (directed

graph). GLIF is suitable for describing logic

sequence of actions. Within the HEARTFAID

platform GLIF may be used to represent the logical

flow of actions, e.g. sequence of tests performed for

diagnosing disease or prescribing therapy but the

problem is that there exists only commercial

execution engine (Glee).

Asbru (Shahar et al, 1998) is a guideline

modelling tool which focuses on representing

medical plans. It is highly aware of the time

dimension in the medical procedures and actions. A

plan in Asbru is a set of actions that are performed

when certain preconditions hold. Each plan is

decomposed into more sub-plans that are performed

sequentially, concurrent (parallel execution) or

cyclical. Within the HEARTFAID platform, Asbru

can be used in situations where actions are taken in a

predefined order, e.g. to describe the procedure at

the baseline evaluation or additional patient visits to

the clinics. However, there are no freely available

execution engines that may be integrated into

HEARTFAID platform.

PROforma (Sutton et al, 2003) is a knowledge

composition language that aims to assist patient care

through active decision support and workflow

management. Similar to the GLIF model, it

represents also guidelines as a directed graph in

which nodes represent instances from the PROforma

task ontology. PROforma contains a number of tools

for developing guidelines. A major focus point is on

guideline safety by defining additional safety-related

operators such as integrity and safety constraints.

Considering the execution engines, Arezzo is a

commercial version of PROforma, while Tallis is a

version available for educational and research

purposes (under license agreement).

4 DESCRIPTIVE HEART

FAILURE KNOWLEDGE

The first step in the development of the knowledge

base for the Heartfaid platform has been

development of the heart failure (HF) ontology. It

presents the formalized description of concepts for

the whole heart failure domain. It includes basic HF

concepts, properties that characterize patients, all

relevant diagnostic examinations and tests, and

treatment procedures. The ontology also includes

other cardiovascular system related concepts as well

as concepts related to other organs when they are

connected with HF. The information presented in the

ontology has been obtained by human interpretation

of guidelines for congestive and acute heart failure

(http://www.escardio.org/knowledge/guidelines/),

Heartfaid reports, as well as from other medical

knowledge sources, including, but not limited to

UMLS (Unified Medical Language System), Mayo

clinic web site and Open Clinical web site.

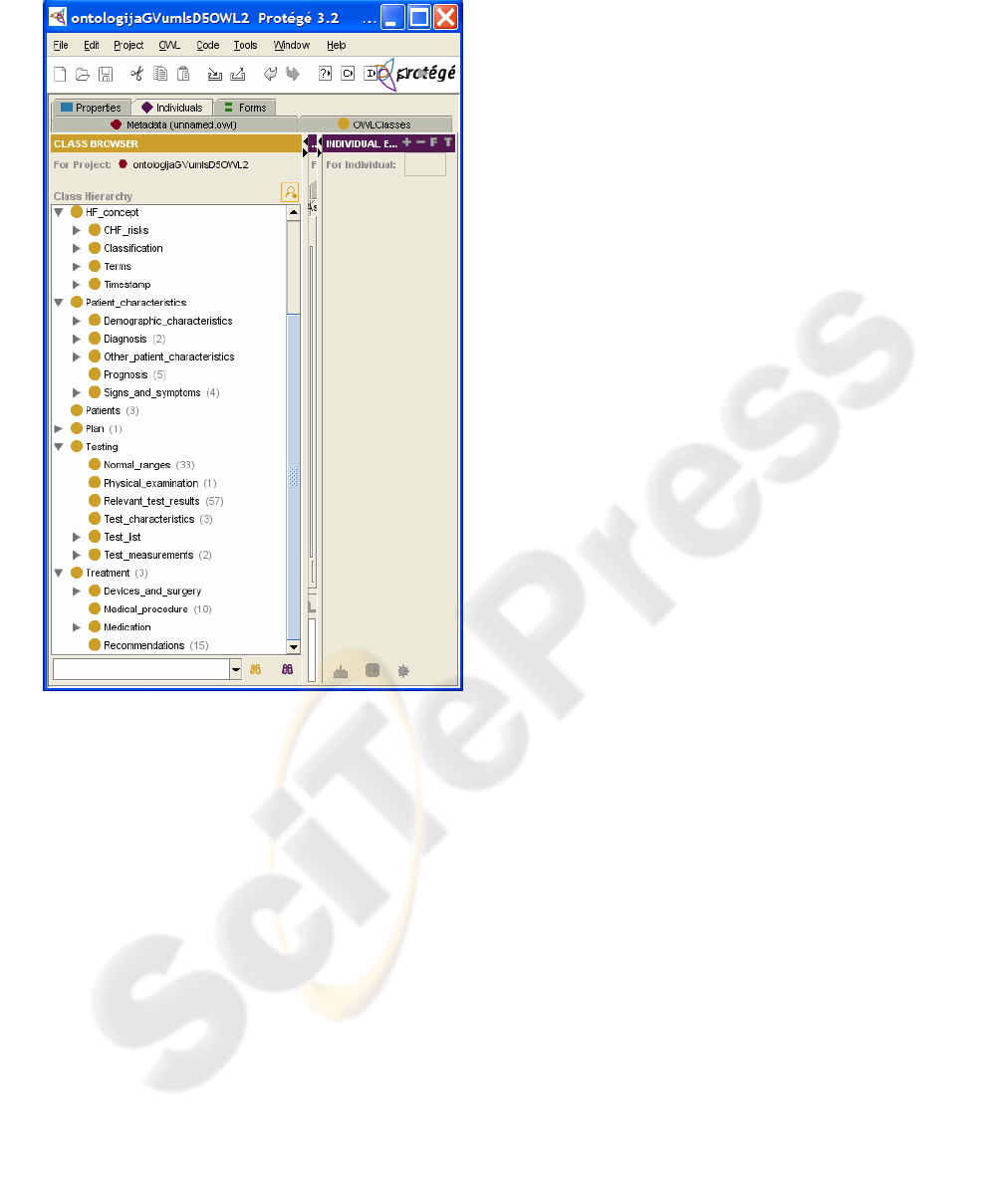

In its current form the ontology presents the

detailed taxonomic overview of the HF domain with

around 200 classes describing HF related concepts.

Examples are "Cardiac_hypertrophy", "Blood_

pressure_signs" or "Heart_murmurs". These

concepts are interconnected with super-class and

sub-class properties into a hierarchical tree-like

structure. At the basic level there are five relavant

super-classes: "HF_concept", "Patient_characte-

ristic", "Patients", "Testing", and "Treatment".

Figure 1 presents the Protégé tool displaying these

five super-classes with some of their most relevant

sub-classes.

Individuals or instances are members of the

classes and typically present exhaustive list of

concrete concepts relevant for the class. For

example, the "Cardiac_hypertrophy" class has

following six instances: "Cardiomegaly",

"Combined ventricular hypertrophy", "Left_atrial_

hypertrophy", "Left_ventricular-hypertrophy",

"Right_atrial_hypertrophy", and "Right_ventricular_

hypertrophy". The ontology includes more than

2000 individuals. When possible, classes are

specified with their CUI number (Concept Unique

Identifier according to UMLS) and with a list of

synonyms. For example, for the class

"Heart_diseases" its CUI is C0018799 and its

synonyms are "Disorder_of_heart", "Cardiac_

diseases", "Cardiopathy".

Finally, the ontology contains properties that

connect individuals in different classes. These

properties are relevant because they enable

introduction of relations among concepts. For

example, individual "Valvular_heart_disease" from

the class "Heart_valve_diseases" is indicated by the

individual "Dyspnea" from the class of

"Signs_and_symptoms". Or that "Hyperkalemia"

from the class "Potassium_disorder" may be caused

by medications like "Potassium_sparing_diuretics"

or "Spironolactone". The names of these properties

are "Indicated" and "MayBeCausedByMedication".

MEDICAL KNOWLEDGE REPRESENTATION WITHIN HEARTFAID PLATFORM

309

The HF ontology includes definitions of more than

100 properties.

Figure 1: Protégé tool used to display a part of the HF

ontology.

The ontology presents descriptive domain

knowledge. This knowledge is of two types. The

first is defined by the generality relations among

instances and classes, as well as by the generality

relations among sub-classes and super-classes. In

this way for each concept presented by some

instance there is a series of is-a relation. For

example, it means that "Cardiomegaly" is-a

"Cardiac_hypertrophy" while "Cardiac_

hypertrophy" is-a "Heart_disease". The second type

of descriptive knowledge contained in the ontology

comes from properties that define relations between

classes, such as "Indicated" or "MayBe

CausedByMedication", mentioned before.

Descriptive HF ontology is publicly available in

the web form from the project web site at

http://www.heartfaid.org/links.php.

5 PROCEDURAL KNOWLEDGE

The HF ontology presents the detailed taxonomic

overview of complete heart failure domain including

relevant relations among concepts. It represents

descriptive knowledge about the domain. Platform

should also be able to perform some actions,

typically in the form of suggestions for patients and

medical personnel. The knowledge representing

sufficient and necessary conditions that some actions

can be done is the so called procedural knowledge.

Descriptive and procedural knowledge together

present the knowledge base of the HF platform.

5.1 Production Rules

Production rules in a form "IF some condition is true

THEN make some action" are a widely used

approach for the presentation of procedural

knowledge. Their advantages are natural

interpretation by humans and modularity during

construction. It is also relevant that production rules

are also a formal way of presenting knowledge and

in this way a good starting point for practical

realization of the decision support system. For the

integration of descriptive and procedural knowledge

it is important that production rules can use only the

concepts defined in the HF ontology.

At the knowledge presentation level it is very

important that production rules can be easily

understood and corrected by medical experts. In this

way the major advantage of presenting procedural

knowledge in the form of production rules is that

they present formal enough way to present

knowledge that can be used by the platform and that

at the same time medical experts can easily control

the expected performance of the platform. The

correction of rules or adding them should only be

performed by the authorized medical personnel.

The HF procedural knowledge has been divided

into 10 functional subtasks in order to enable easier

human control of the completeness and consistency

conditions. They are:

1. HF diagnosis

2. Alternative or additional diagnosis

3. Heart failure severity assessment – specifying

NYHA class for patient, which is required for

general patient treatment approach

4. HF general treatment process based on severity

assessment

5. HF medications contraindications, adverse

effects & additional treatment rules

6. Prognosis estimation for HF patients

HEALTHINF 2008 - International Conference on Health Informatics

310

7. Non-pharmacological management and

recommendations

8. Specific medication prescription and dosage

9. Acute decompensation of congestive heart

failure

10. Heart failure cause and CAD risk factors

An example for a rule from the diagnosis subtask is:

Diagnosis: Systolic heart failure

Patient has either heart failure signs or heart failure

symptoms

AND

ECG abnormal (left bundle branch block AND

anterior Q waves)

AND

patient has (ischemic heart disease)

AND

Chest X-ray abnormal (cardiothoracic ratio > 0.5)

AND

natriuretic peptides abnormal (BNP > 100 pg/ml))

5.2 Soft Computing

Intelligent medical applications require the ability to

work with imprecise or only partially true data. The

goal is to ensure robustness and efficiency of the

decision making process in a real world

environment. Soft computing techniques including

fuzzy systems and probabilistic reasoning can be

used to solve these problems. These techniques

typically lead to relative complex systems whose

performance and final decisions are rather difficult

to predict. For the platform we have decided to solve

the problem by a) a mixture of deterministic

production rules with fuzzy output values

(consequences) and b) complex but deterministic

computation of some input values that mimic fuzzy

inputs.

5.2.1 Fuzzy Consequences from

Deterministic Rules

The approach means that we have deterministic

rules, deterministic rule inputs, and deterministic

outputs which may have different, but in advance

predefined levels of reliability or probability.

An example of the deterministic rule with fuzzy

consequence is that Heart failure is possible IF

Patient has either heart failure signs or heart failure

symptoms AND cardiothoracic ratio > 0.5. Such

rule has precisely defined conditions but the level of

the reliability of the consequence is rather low.

Higher level of reliability is the rule with the

consequence Heart failure is probable, while the

highest level is that Heart failure diagnosis is

suggested.

The advantage of this approach is that decision

making process is deterministic and consequently

relatively simple. The application of this approach is

possible for the HF platform because decisions are

directed to humans who must decide upon their

acceptability and they are not automatically

executed. Medical doctors are the only ones who can

confirm and follow these suggestions. In this

framework we do not have closed loop decisions.

Suggestions with a predefined level of reliability are

completely acceptable. Moreover, they are easier to

interpret by humans than the numerical values

produced by probabilistic reasoning and completely

fuzzy systems.

In addition to different levels of the diagnosis

reliability in which we have four levels (suggested,

probable, possible, unlikely), we use fuzzy

conclusions for the prognosis (good, worse, very

poor), for medication recommendation (suggested,

consider) etc.

5.2.2 Computation of Complex Patient

Descriptors

Some deterministic rules require inputs that describe

patient status that are difficult to define by absolute

values. Such inputs can be described as fuzzy

because the same value can in different situations

have different meaning. Good examples are all

values that should be interpreted relative to some

other, current or previous, patient characteristics and

measured values.

We avoid using fuzzy values by implementing

complex computation in the process of preparing the

inputs for decision making. This means that in this

computation we must take into account, besides

basic patient characteristic, also all other properties

that significantly determine its previous or current

status relevant for the interpretation of the basic

characteristic. For example, for the input significant

arterial drop we have to look into the complete

patient history, compute mean blood pressure

values, and then based on the current value that is

more than 30 mmHg lower conclude on significant

arterial drop.

The computation of complex descriptors can be

effectively realized inside the factual knowledge

building block. It has access to the complete set of

patient data and this enables that all data necessary

for complex computations can be acquired. If some

data can not be found in the patient record then the

final patient descriptor will have unknown value and

MEDICAL KNOWLEDGE REPRESENTATION WITHIN HEARTFAID PLATFORM

311

this will prevent the respective rule to fire. For the

sake of decision reliability, the rules should have

also simple security cut-off points, like present

systolic blood pressure below 90 mmHg in the

previous example that will fire also if data necessary

for complex computations are not available.

The main disadvantage of this approach is that

rather complex computations relevant for the

decision making process are built into fixed

programmed logic with the consequence that they

can not be changed easily. The advantages are

simplicity of procedural knowledge and the

reliability of the DSS process.

5.3 Ontological Representation of

Procedural Knowledge

Presentation of HF procedural knowledge in the

form of production rules does not mean that their

practical realization for the decision support

purposes must be in the same form. It is true that

these rules may be used to build a rule based expert

system, but these rules can also be used for

representing procedural knowledge in other forms.

For the HF platform, the integration with descriptive

knowledge presented in the HF ontology is relevant.

In this situation, an appropriate form for procedural

knowledge is SWRL (Semantic Web Rule

Language), which is a logical extension of the OWL

(Web Ontology Language).

But there is also another possibility. The unique

property of OWL is the ability to represent logical

operations between classes and between classes and

individuals using the so called concept constructors.

It enables that logical relations contained in

production rules can be presented in the ontological

form. The result is the ontology that contains both

descriptive and procedural knowledge. The

advantage of the approach is a tight connection and

conceptualized representation of complete domain

knowledge which may potentially lead to a more

intuitive representation of medical knowledge. In the

future this can also enable web based distributed

decision support, but this is not relevant for the

current platform realization.

By integrating all of the ten sets of production

rules, we have built the procedural HF ontology. It

is different than the descriptive HF ontology because

it has two root classes: "Patient" and

"Patient_caracteristics". The "Patient_characteris-

tics" class contains descriptive knowledge necessary

for logical relations in production rules. All of its

subclasses and individuals, including the class

hierarchy, are based on and can be thought of as a

subset of the HF ontology. Theoretically the

complete descriptive HF ontology could be

integrated here but this was not done because of

reasoning efficiency. So the "Patient_characteristics"

class contains only descriptive knowledge necessary

for reasoning with current version of procedural

knowledge.

The class "Patient" contains the complete

procedural knowledge. In order to be compatible

with production rules organization it has ten

subclasses, each of them representing one rule set.

They are further divided into many subclasses.

Every class with no subclasses has necessary and

sufficient conditions defined, and this is where

procedural knowledge is stored. Each of the class

definitions can be found as a rule in one of the rule

sets. Fulfilling conditions for being in the class is

perceived as a suggestion for a particular patient,

e.g. class Patient_Severity_assessment has subclass

NYHA_IV. Conditions for this class are: patient has

dyspnoea, fatigue or palpitations at rest and patient

has heart failure. The patient with these

characteristics fulfils the conditions for being in this

class.

Testing is always the significant part of the KB

development process. By presenting production

rules in the ontological form we have enabled that

the problem can be solved by developing a java-

based OWL interpreter with added concept

“negation-as-failure” into the logic semantics of

OWL. The hybrid instance checking process

obtained in that manner aims to combine the OWL

syntax with the closed world assumption semantics.

The developed Protégé plug-in integrates the

interpreter into the Protégé with a simple user

interface. In this way, the interpreter is introduced

directly into the knowledge base building facility,

which eases the process of building and maintaining

the knowledge base.

6 MEDICAL PLANS

Medical plans are textual and visual presentations of

procedures that take place after detection of some

events. Events can be any type of health disorder

including signs, symptoms, and diagnosis. The main

characteristic of medical plans is that they are event

driven and because of that they present actionable

view of the medical knowledge. This actionable

view is a special case of the more general procedural

knowledge.

HEALTHINF 2008 - International Conference on Health Informatics

312

In the Heartfaid platform medical plans are only

a middle step between experts and the guideline

modelling tools which persuade the experts to

clearly state the procedure they would normally

perform when facing a specific problem. At the

same time they enable technicians to understand it

and encode it in a machine readable form (de Clercq

et al, 2004). They are similar to medical pathways

but in contrast to medical pathways which are

designed to be used by medical doctors in order to

systemize and standardize their work, medical plans

are designed for technical people in order to better

understand medical concepts. In the HF domain we

have used medical plans as an auxiliary tool for

systemizing procedural knowledge development and

to enable some verification of the implemented

knowledge base.

The syntax of the medical plans highly

resembles the traditional workflow management.

The difference is that the medical plans will not be

executed by machines; they are written in an almost-

free graph/text form with main purpose to be fully

understandable by humans. Their main characteristic

is that they are event driven and their main

advantage is a clear systematization of the medical

procedures and interconnections among them.

Additionally, their visual presentation facilitates

understandability by medical experts.

For the heart failure platform, medical plans

describe the disorders that can occur as events to the

patient who is treated by the platform. These

disorders have assigned urgency levels which

correspond to the type of response needed from the

medical team. For example, pulmonary edema has

the highest urgency level, requiring immediate

admission to the hospital. An example of a symptom

that has a low urgency level is cough. Cough does

not require for the patient to report to the hospital,

but rather if it is persistent, he should contact his

general practitioner. The urgency levels solve the

problem of entering the appropriate medical plan in

situations when more than one triggering event

occurs. The plans of the lower urgency level can be

interrupted if another event of the higher urgency

level happens.

At the moment, the heart failure system has 38

interconnected plans for signs, symptoms and

diagnosis assessment and treatment and 15 plans for

medications prescription and dosage. Most of them

have been presented in both graphical and textual

form. Figure 2 presents the medical plan for

handling heart failure patients with increased body

temperature.

The usual way of designing medical plans is in

close resemblance to the medical doctor’s way of

thinking when handling a patient. The most common

procedure would be to ask for other symptoms in

relation to the one the patient complains about and to

do the examination and find the appropriate signs.

These other signs and symptoms can either confirm

the initial suspicion, or request that some tests

should be taken, or completely disprove the

existence of the disorder. Usually, the next thing a

medical doctor would do is to order a series of tests.

These tests can also confirm the suspicions or give

rise to a new possible diagnosis. The next course of

action is to prescribe the appropriate treatment or to

give recommendations.

6.1 Further Research Topics

In the HF project the medical plans have been

developed by technical people in the phase of

procedural knowledge development. The goals were

to demonstrate medical domain understanding and to

systemize acquired knowledge. Their significance is

in the fact that they present a middle step between

the experts and their expert knowledge and technical

people that formalize the knowledge.

Development of medical plans opened some

potentially interesting questions that might be very

relevant as further research topics. The first is

weather all types of useful medical procedural

knowledge (or at least its major part) can be

described by medical plans. If the answer is positive,

then it would be interesting to think about the

possibility to make medical plans executable directly

without their transformation to other forms (rules,

ontologies, workflows) or to try to enable their

automatic conversion without human intervention

(de Clercq et al, 2004). Based on the work and

results in the HF project, these options seem

interesting because the approach based on medical

plans as the first and potentially the only creative

part requiring human intervention, could

significantly change the traditional way of designing

procedural knowledge.

7 CONCLUSIONS

The paper presents the main results of the work

related to collection, systematization, and

formalization of the knowledge related to the heart

failure domain. The main results are: descriptive HF

MEDICAL KNOWLEDGE REPRESENTATION WITHIN HEARTFAID PLATFORM

313

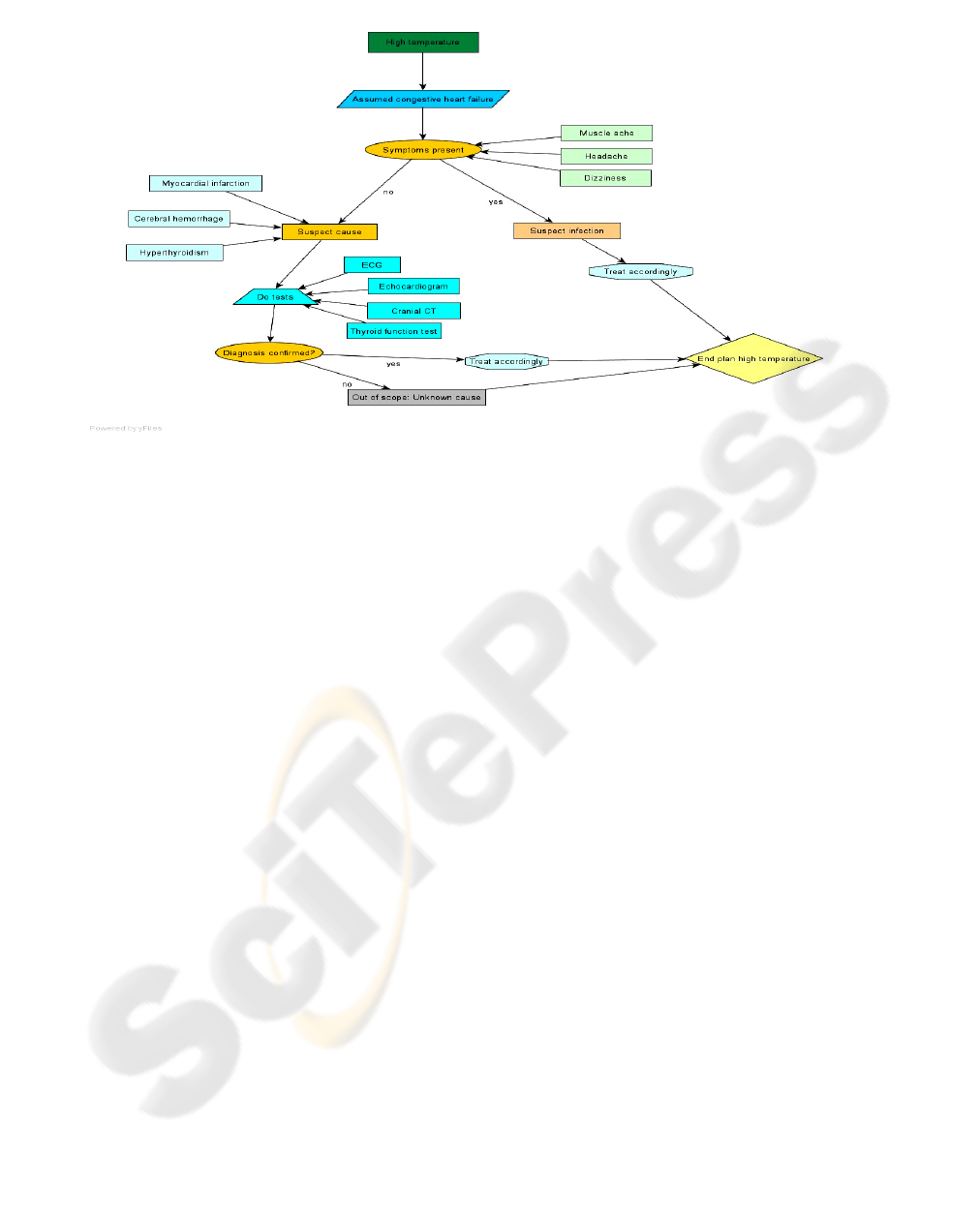

Figure 2: Medical plan for heart failure patients with increased body temperature.

ontology, procedural knowledge base, HF medical

plans, and ontological presentation of procedural

knowledge.

Although the constructed knowledge base has

been partially verified and improved by medical

doctors, the current version presents technical

formalization of medical guidelines and starting

point for Heartfaid platform implementation. It can

be expected that tests with prototypes will

demonstrate deficiencies in the form and content of

the knowledge base. By these improvements we

expect to be able to collect and formalize also the

tacit medical knowledge related to HF. Long and

detailed experimental work with the platform is the

necessary condition for the success of this process.

Moreover, even in the operational life of the

platform it can be expected that continuous

improvements in the knowledge base will be

necessary.

ACKNOWLEDGEMENTS

The work was done for EU FP6 project "Heartfaid:

A knowledge based platform of services for

supporting medical-clinical management of the heart

failure within the elderly population". It was

supported by Croatian Ministry of Science,

Education and Sport project "Machine Learning

Algorithms and Applications".

REFERENCES

Hripcsak, G., Clayton, P.D., Pryor, T.A., Haug, P.,

Wigertz, O.B., Van der lei, J., 1993. The arden syntax

for medical logic modules. Forteenth Annual

Symposium on Computer Applications in Medical

Care, 200-204. IEEE Computer Society

Press.

Peleg, M., Boxwala, A., Ogunyemi, O., 2000. GLIF3: The

Evolution of a Guideline Representation Format.

Proceedings of the American Medical Informatics

Association (AMIA) Annual Symposium. (20

Suppl):645-649. Washington DC: AMIA.

Shahar, Y., Miksch, S., Johnson, P., 1998. The Asgaard

project: a task-specific framework for the application

and critiquing of time-oriented clinical guidelines.

Artificial Intelligence in Medicine, 14(1-2), 29-51.

Springer, 1998.

de Clercq, A., Blom, J.A., Korsten, H.M., Hasman, A.,

2004. Approaches for creating computer-interpretable

guidelines that facilitate decision support. Artificial

Intelligence in Medicine 31(1), 1-27. Springer, 2004.

Sutton, D.R., Fox, J., 2003. The Syntax and Semantics of

the PROforma guideline modelling language. Journal

of the American Medical Informatics Association:

JAMIA, 2003 Sep-Oct;10(5):433-43. Hanley &

Belfus.

HEALTHINF 2008 - International Conference on Health Informatics

314
