SYNCHRONIZATION ISSUES IN SURGICAL TRAINING

Álvaro Marco, Héctor Gracia, Ángel Asensio, Carlos Guallart

José Ignacio Artigas and Roberto Casas

Instituto de Investigación e Ingeniería de Aragón (TecnoDiscap group), Universidad de Zaragoza

María de Luna 1, Zaragoza, España

Keywords: Synchronization, Training systems, Wireless sensor networks, Video.

Abstract: Surgical training systems allow novel surgeons to acquire the required skills to successfully carry out an

operation without harming a real patient. These systems emulate the situation of a real operation, replicating

the information gathered by sensors, movements of the surgeon, patient response, etc. All this information

must be synchronized to provide an experience to the novel surgeon as closest to reality as possible. A

special case of information synchronization is when using video images from the operation. In this paper,

we analyze these synchronization issues —video, movements, sensors, etc. — and show a particular case

that bring all together: an endoscopic video-surgery learning system.

1 INTRODUCTION

Endoscopy or tele-surgery, are medicine techniques

that require a special skill from surgeons, as they

have not a direct vision of what they are doing.

Learning these techniques is supported by training

systems that allow the surgeon to acquire the

required skills to successfully carry out an operation

without harming a patient.

(Ballaro et al. 1999) propound a training system

where the surgeon manipulates synthetic images of a

prostate. (Gomes et al. 1999) and (Kumar et al.

2002) improve it by providing a tactile feedback of

the manipulation with an artificial prostate. (Chen

and Marcus, 1998) offers also a feedback with an

adapted resectoscope, analyzing the anatomic tissues

virtually touched and generating the opposing force.

To properly emulate real situations where the

surgeon can be involved, it is necessary to collect a

lot of data from different sensors in real operations.

Besides that, surgical training is often supported by

use of pre-recorded video images (Gambadauro and

Magos, 2007).

Although most of training systems offering

haptic feedback use virtual simulations instead of

real video, augmented reality systems combining

these videos with graphics images systems provide a

better simulation environment (Botden et al. 2007).

Real videos can be used for training with motorized

mock-ups driving surgeon’s hands while playing

video-images of the operation, reproducing the

movements displayed in the video. Obviously, it is

needed that the information used to drive them to a

position is synchronized with the related frames of

the video.

In this paper, we discuss some synchronization

issues we have faced during the development of a

video-surgery learning utility, which implements

also a wireless-synchronization between classroom

workbenches.

Next section outlines the learning utility and its

synchronization issues, which are discussed in

sections three and four. Section five details

synchronization integration in the classroom and its

operation, and finally, conclusions are presented.

2 VIDEO-SURGERY LEARNING

TOOL

Our application consists on a classroom for training

surgeons on prostatic surgery, whose system layout

is presented in figure 1, and consists of several

mock-ups. All the mock-ups are wireless connected,

which allows an easy deployment and configuration

of the classroom.

Marco Á., Gracia H., Asensio Á., Guallart C., Ignacio Artigas J. and Casas R. (2008).

SYNCHRONIZATION ISSUES IN SURGICAL TRAINING.

In Proceedings of the First International Conference on Biomedical Electronics and Devices, pages 82-86

DOI: 10.5220/0001052000820086

 SciTePress

One of them —master—, includes a motion

monitoring system which extracts all the movements

the instructor surgeon makes; this one is called

sensing mock-up. The others —slaves—, transmit

these previously recorded movements to the practice

surgeon so he can first learn the instructor

movements and, after that, be evaluated by

comparing his movements with the ones made by

the instructor; this ones are called motor mock-up.

Master mock-up

Bluetooth

Management PC

Slave mock-up

Slave mock-upSlave mock-up

Slave mock-up

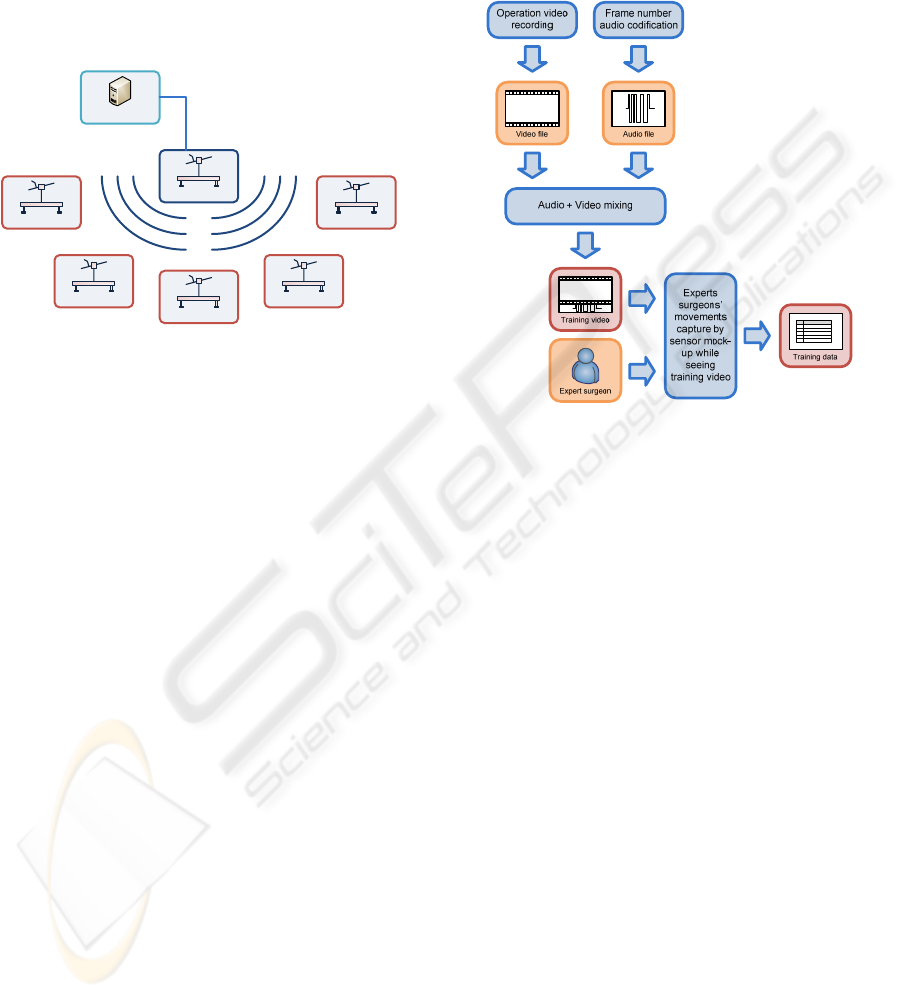

Figure 1: Video-surgery classroom. Master mock-up is

video-synchronized and slave mock-ups are wireless-

synchronized.

In order to get a real-like feedback, a big video

display is used. At this moment, it seems clear there

is heavy need of synchronization for this system, so

video and captured instructor movements are

correctly recorded and, this way, the learning and

evaluation processes are synchronized with the

video displayed.

It is also necessary to propagate this

synchronization through the different motor mock-

ups so all of them reproduce the movements at the

same time the action is being taken at the video they

see.

In short, we can group synchronization in two

terms:

a) Video-synchronization, between the pre-

recorded images and the surgeon’s

movements.

b) Wireless-synchronization between the mock-

ups.

In the next sections, these synchronization issues

are discussed in deep.

3 VIDEO SYNCHRONIZATION

In this case, a little misalignment between images

and movement —below several milliseconds— is

admissible, but playing must be fluid and without

cuts that will hinder learning. If the training system

core runs in a PC, a possibility for synchronizing

surgeon’s movements with video is to play the video

in the PC, and to stream the movement information

to the mock-up —through a serial port, by

TCP/IP…—, but common multi-task Operating

Systems (OS) can lead to cuts or undesired delays,

so a real-time OS will be needed to do that.

Figure 2: Block diagram for video synchronization. Expert

surgeon’s movements are captured and time-stamped with

the corresponding frame number of the operation video.

To properly synchronize the video and the data, we

decide to integrate the data directly into the video

stream. AVI file formats allow integrating multiple

streams into the same file (e.g. the video, audio,

subtitles, chapters… of a movie). A possibility is to

integrate a data stream with the movement

information like a “subtitle”, but we need also to

extract that information and to stream it to the mock-

ups, outside the PC, which can lead to an

“asynchronous playing”. The easiest way to avoid

that is recurring to the audio channel. Audio is send

by the OS to the sound card, and is synchronized

with the video, so if we code our data in the audio

track, the mock-ups can listen to the sound card and

get the data synchronously with the video.

Moreover, we could record the file in a DVD and

play the video on a DVD player without the need of

a PC.

In addition to that, there is another big issue

about how to compound the operation information

and the video images to get a synchronized training

data set. If all the information of the operation is

obtained “online”, while the operation is carried out,

as all the sensors must be synchronized, the training

data set can be generated directly.

However, if the information related to the

surgeon’s movements cannot be real-time acquired,

SYNCHRONIZATION ISSUES IN SURGICAL TRAINING

an offline synchronization is required. The way to do

this is that an experimented surgeon, while seeing

the video images, replicates the movements over a

sensor mock-up. That mock-up captures the

movement information, and synchronizes it with the

video.

Again, streaming the movement data to or from a

PC can lead to a bad synchronization. The ideal

solution would be to directly record the movement

data on the audio track of the video, but this is not

trivial. Fortunately, there is an easiest method.

Strictly, we don’t need to extract the data directly

from the video, and it’s enough by knowing the

timestamp of the video, or the frame number.

For the movement data capture, we have coded

the frame number of the video in the audio track,

and the sensor mock-up listen to the video the expert

surgeon is viewing. When the capture starts, the

surgeon reproduces the movements displayed on the

operation, and the mock-up store them together with

the frame numbers listened. This way, we obtain a

training data set where each frame of the video has

synchronized information relative to the movements

of the expert surgeon.

3.1 Frame Number Codification

To code the frame number into the audio track, we

have generated an audio wave with a Manchester

code, suitable for binary data transmissions. The

data rate will be constrained by the audio

characteristics and the sound card hardware. With a

sampling frequency of 44.100 Hz, and using two

samples to codify each bit (one sample for both high

and low part of the wave), will give us a maximum

data rate of 22.050 bps, but resulting sound wave

cannot be correctly played by every sound card. A

safer ratio of six samples per bit allows 7.350 bps,

enough to codify more than 200 frame numbers per

second with 32 bits resolution.

Frame number codes must be placed in the audio

wave at the exact moment the frame is displayed in

the video, which can be easily done with any video

editing tool. To prevent errors when decoding the

audio wave, a hamming code of distance three is

also applied to the frame number.

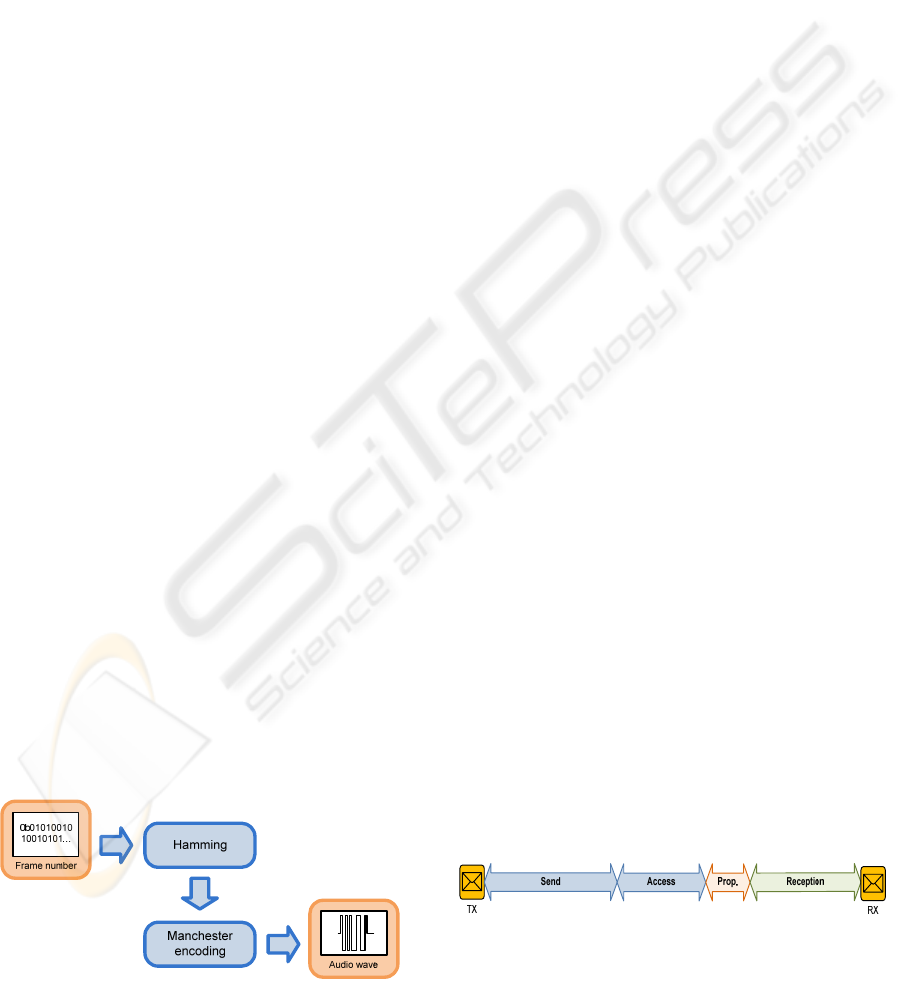

Figure 3: Frame number codification.

4 WIRELESS COMMUNICATION

AND SYNCHRONIZATION

Once we have established synchronization between

video and movements on the master mock-up, this

synchronization must be propagated to the slave

mock-ups, so we need that they are wireless

synchronized. Every mock-up calculates its local

time basing on its own oscillator, and these timings

tend to diverge one from another. This is caused by

the lack of precision on their oscillators, as there can

be errors from 20 ppm to 100 ppm. The more time

they keep running their clocks free, the bigger the

misalignment will be.

This is a familiar matter on wireless sensor

networks. Creating a common temporal reference

using wireless communication capabilities has been

widely studied keeping in mind the energy, cost and

size limitations of the devices used in wireless

sensor networks (Sivrikaya and Yener, 2004). The

regular clock corrections needed to keep wireless

networks synchronized are usually performed by

exchanging reference messages time-stamped with

the reference time. The more accurate that

timestamp is the higher accuracy the

synchronization achieves. Some protocols that

achieve high synchronization accuracy with a

reduced traffic load are the TMSP —Timing-sync

Protocol for Sensor Networks— (Ganeriwal et al.,

2003) or the FTSP —Flooding Time

Synchronization Protocol— (Maróti et al., 2004).

Their main advantage is that they can gain access to

the MAC layer, so they can precisely timestamp

messages when they pass through the lower layers.

According to the time-analysis performed by

Maróti et al, the most problematic delays when

transmitting messages over a wireless link are those

from the send, receive and access processes (see

figure 4). Besides bigger than propagation time, they

are not deterministic, so they have a big influence on

synchronization accuracy.

This way, methods which can access to MAC layer

and precisely timestamp messages, such as TMSP or

FTSP, can achieve a high accuracy. However, the

use of standard wireless hardware such as ZigBee or

Bluetooth —as in our case— to ease deployment,

block access to lower layers, preventing from a

precise timestamp.

Figure 4: Times on sending, accessing, propagating and

receiving reference messages. Propagation time is

negligible versus send, access or reception times.

BIODEVICES 2008 - International Conference on Biomedical Electronics and Devices

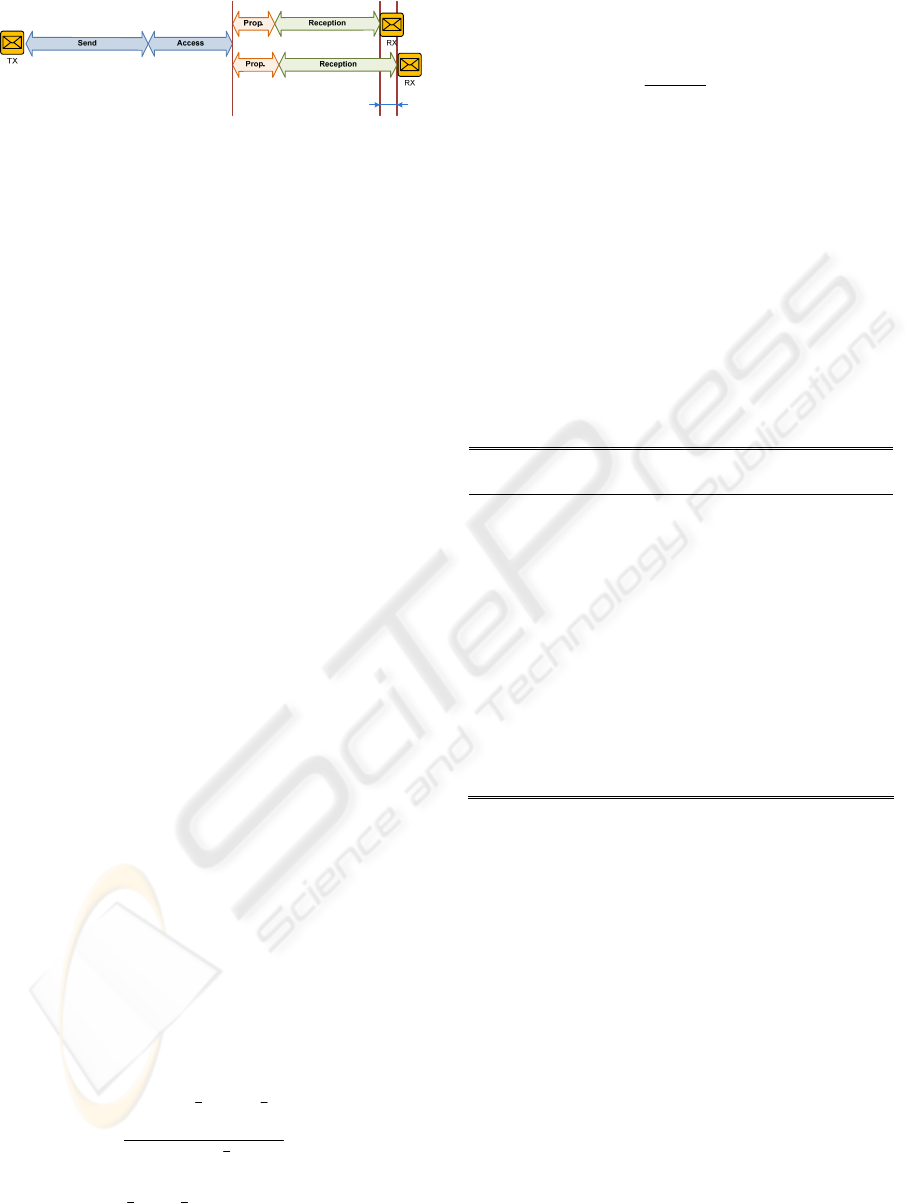

Figure 5: Misalignment on reception time. The non

deterministic times on the sender side are eliminated.

In order to reduce as much as possible the

uncertainties in this process, a receiver-receiver

synchronization scheme is used. There is a common

time reference for every member of the network,

which is propagated through all the mock-ups using

a broadcast message sent by the network coordinator

(whose local hour is taken as the global time). After

that, each mock-up receives this global hour and

thus, can correct its own clock with the just received

information.

With this receiver-receiver message

synchronization method, medium access time

variation is avoided (fig.5), so the biggest part of the

non-deterministic error is eliminated. This method

compares the local hours when the master mock-up

and the different slaves receive the same message, so

they can refer their local time to the master global

time and hence, correct it. This is possible, because

the uncertainty associated with the time involved in

sending the message affects the same way both

receivers, and so, doesn’t have influence on the

overall timing error. The propagation can be

assumed as equal for the two nodes (because the

distance is not significant enough to cause a

measurable time difference in the propagation of a

radio signal).

Thus, synchronize the clock of the mock-up i

implies estimate and compensate its clock skew s

and offset k

. The most used procedure to perform

these adjustments is broadly described in literature

(Sivrikaya et al. 2004, Maróti et al. 2004, Elson et al.

2002, Cox et al. 2005). There is a reference clock

which all the mock-ups will be synchronized to (t

A sync-point is defined as a pair of timestamps

collected at the same time t

in the reference node

and in the node that want to be synchronized: {t

}. Once each mock-up stores several sync-points

at different instants, the offset (k

*) and slope (s

differences with the reference are calculated using

linear regression:

(

)

(

)

()

riii

tstk

tttt

−=

−

−−

∑

(1)

This way, every node can estimate the global time

(tr*) from its local clock:

−

(2)

Table 1 shows the results obtained when using

the below described process to correct local times

using Bluetooth and ZigBee technologies compared

to other synchronization methods.

By these resynchronizations, clocks can be kept

with a misalignment considerably lower than the

precision required to cover our timing correction

goals. The response time of the mock-up kinematics

is considerably bigger than 1 ms, so achieving this

misalignment between the different mock-up clocks

is more than enough for this application.

Table 1: Misalignment on reception time. Results obtained

by using different synchronization methods.

Sync Method Average

Worst

case

Sender – Receiver

Zigbee (Motes-2.4GHz)

[Cox 2005]

14.9 μs 61.0 μs

TPSN (Motes-916MHz)

[Ganeriwal 2003]

16.9 μs 44.0 μs

FTSP (Motes-433MHz)

[Maróti 2004]

1.4 μs 4.2 μs

Receiver – Receiver

RBS (Motes)

[Elson 2002]

29.1 μs 93.0 μs

RBS (Bluetooth) 4.5 μs 18.0 μs

RBS (ZigBee) 22.2 μs 52.0 μs

5 CLASSROOM INTEGRATION

Once we know how to perform video-

synchronization and wireless-synchronization, it is

time to integrate them into the classroom. In the

layout shown in figure 1, the sensor mock-up —

master— is connected to the PC, which controls

video playing. The mock-ups form a Bluetooth

piconet that allows communicate them and keep

them synchronized with an absolute error below 1

millisecond, small enough for the classroom

requirements.

For synchronizing the data with the video, we

have generated an audio file in Matlab, containing a

frame number every 10 milliseconds, and mixed it

with the video containing the images of the

operation for training. In the configuration of the

mock-ups, it is possible to set an amount of frame

SYNCHRONIZATION ISSUES IN SURGICAL TRAINING

numbers to drop out when decoding audio, reducing

the effective frame rate.

There are two basic operating modes: capture

and playing. Combinations of them allow recording

movements of the expert surgeon and reproducing

them for training the novel surgeon, capturing

movements of the novel surgeon for evaluating,

guiding, etc.

In the capture mode, the surgeon reproduces the

movements related to the video sequence. The

sensor mock-up receives the audio in the training

video, and decodes the frame numbers, which are

periodically distributed. When a frame number is

decoded, the mock-up captures the values of the

position encoders and stores them together with the

frame number. When the capture ends, the mock-up

sends the data to the PC, where can be saved as the

training data file related to the video, or be evaluated

with a previously stored data.

In the playing mode, all the motor mock-ups

previously store the training data, and wait for the

start command from the sensor mock-up. When the

PC starts video, the sensor mock-up decode the first

frame number, and timestamp it with the global

hour. Then, it broadcasts that information to the

motor mock-ups, which can compute the timestamp

for the next frames, and synchronize playing.

The sensor mock-up periodically broadcast

frame-time pairs for prevent errors, and when there

is an unexpected value in the frame number

sequence, which means a change in the video

playing (pausing the video for an explanation,

advance the video, looping some technique… etc.).

6 CONCLUSIONS

In this paper we have discussed two different

synchronization issues we have faced during the

development of a video-surgery learning utility.

Video synchronization was performed by a cost

effective and simple method recurring to the audio

channel. It allows accurate synchronization without

the need of a complex system. Even it is possible to

eliminate a PC by using a dedicated video player and

controlling playing from the sensor mock-up.

Wireless synchronization between mock-ups was

also analyzed using a similar criterion of wireless

sensors networks. We use a synchronization protocol

over Bluetooth (we also tested ZigBee with similar

results) that largely achieves our requirements. The

method avoids accessing the lower layers of the

protocol while performing similar accuracy as others

that use the MAC layer.

With the strategies described in this article, we

conclude in a surgical training classroom in which

images displayed will be correctly synchronized

with the sensor information and the mock-up

movements, so the novel surgeons can acquire the

needed skills in a real-like environment without

harming any patient. This is obtained at low cost by

using off-the-shelf components to build up this

surgical classroom.

ACKNOWLEDGEMENTS

This work has been partially supported by the

Spanish Ministry of Science and Technology under

CICYT project numbers TIC2003-07766 and

TIN2006-15617-C03-02.

REFERENCES

Ballaro, A., et al., 1999. A computer generated interactive

transurethral prostatic resection simulator. In Journal

of Urology, 162 (5), pp. 1633-1635.

Gomes, M.P.S.F., et al., 1999. A computer-assisted

training/monitoring system for TURP structure and

design. In IEEE Trans. Information Technology in

Biomedicine, 3 (4), pp. 242-251.

Kumar, P.V.S., et al., 2002. A computer assisted surgical

trainer for transurethral resection of the prostate. In

Journal of Urology, 168 (5), pp. 2111-2114.

Chen, E., Marcus, B., 1998. Force feedback for surgical

simulation. In Proceedings of the IEEE, pp. 524-530.

Gambadauro, P., Magos, A., 2007. Digital video

technology and surgical training. In European Clinics

in Obstetrics and Gynaecology, 3 (1), pp. 31-34.

Botden, S.M.B.I., et al., 2007. Augmented versus Virtual

Reality Laparoscopic Simulation: What Is the

Difference? In World Journal of Surgery, 31 (4), pp.

764-772.

Sivrikaya, F., Yener, B., 2004. Time Synchronization in

Sensor Networks: A Survey. In IEEE Network. 18 (4),

pp. 45-50.

Ganeriwal, S., et al., 2003. Timing-sync protocol for

sensor networks. In Proceedings of the 1st

International conference on Embedded networked

sensor systems, pp. 138-149.

Maróti, M., et al., 2004. The flooding time

synchronization protocol. In Proceedings of the 2nd

international conference on Embedded networked

sensor systems, pp. 39-49.

Elson, J. et al., 2002. Fine-Grained Time Synchronization

using Reference Broadcasts. In Proc. 5th Symp. Op.

Sys. Design and Implementation, pp. 147–163.

Cox, D. et al., 2005. Time Synchronization for ZigBee

Networks. In Proceedings of the 37th Southeastern

Symposium on System Theory (SSST2005), pp. 135–

138.

BIODEVICES 2008 - International Conference on Biomedical Electronics and Devices
