MPSOC

ARCHITECTURAL DESIGN AND SYNTHESIS FOR

REAL-TIME BIOMEDICAL SIGNAL PROCESSING IN GAMMA

CAMERAS

Kai Sun, Hongxing Wei, Tianmiao Wang

Robot Research Institute, Beihang University, Beijing 100083, China

Meng Wang, Zili Shao

∗

Department of Computing, Hong Kong Polytechnic University, Hung Hom, Kowloon, Hong Kong

Hui Liu

Software Engineering Institute, Xidan University, Xi’an, China

Keywords:

MPSoC, Gamma Camera.

Abstract:

In this paper, we propose an MPSoC architecture for implementing real-time signal processing in gamma

camera. Based on a fully analysis of the characteristics of the application, we design several algorithms to

optimize the systems in terms of processing speed, power consumption, and area costs etc. Two types of

DSP core have been designed for the integral algorithm and the coordinate algorithm, the key parts of signal

processing in a gamma camera. We implement our MPSoC architecture on FPGA, and synthesize DSP cores

and Network-on-Chip using Synopsys Design Compiler with a UMC 0.18um standard cell library. The results

show that our technique can effectively accelerate the processing and satisfy the requirements of real-time

signal processing for 256 × 256 image construction.

1 INTRODUCTION

The growing demand for increasing sophisticated

biodevices requires high-performance processing

techniques. MPSoC (Multi-Processor System-on-

Chip) is an ideal architecture for biomedical applica-

tions with its high throughput. With MPSoC, we can

integrate multiple heterogeneous processors, hierar-

chy memory systems, custom logic, and on-chip inter-

connection to implement complex functions. There-

fore, in the previous work, application-speciﬁc MP-

SoC architecture has been studied for biomedical ap-

plications. In (Khatib et al., 2006), a novel MPSoC ar-

chitecture is proposed for real-time ECG (Electrocar-

diogram) analysis. By employing multi-issue VLIW

DSPs with system interconnect from STMicroelec-

tronics and commercial off-the-shelf biomedical sen-

sors, the proposed MPSoC architecture can perform

real-time ECG analysis with high sampling frequen-

cies. In this paper, we propose an MPSoC architecture

to solve real-time digital signal processing for gamma

∗

The

corresponding author.

cameras, most commonly used medical imaging de-

vices in nuclear medicine.

Gamma cameras generate images based on gamma

radiation detection. PMT (PhotoMultiplier Tube) is

one of the key components in a gamma camera which

can detect ﬂuorescent ﬂashes generated by a crystal

and produce current. Then the current and voltage are

converted to digital signals by ADC (Analog to Dig-

ital Converter) behind a PMT, and ﬁnally images are

obtained by processing the digital signals. To gen-

erate images, multiple PMTs are placed in hexagon

conﬁgurations behind the absorbing crystal. In a typi-

cal scheme, a PMT array may consist of more than 30

PMTs. Using a serial 2D images obtained by gamma

cameras from the different angles, 3D information

can be acquired by SPECT (Single Photon Emission

Computed Tomography).

To accelerate data processing, in current gamma cam-

eras, DSP (Digital Signal Processing) boards based

on PC platforms are widely used. With such plat-

forms, typically, it takes about 15 - 30 seconds to

generate one 64 × 64 image and 15 - 20 minutes to

279

Sun K., Wei H., Wang T., Wang M., Shaoâ

U Z. and Liu H. (2008).

MPSOC ARCHITECTURAL DESIGN AND SYNTHESIS FOR REAL-TIME BIOMEDICAL SIGNAL PROCESSING IN GAMMA CAMERAS.

In Proceedings of the First International Conference on Biomedical Electronics and Devices, pages 279-284

DOI: 10.5220/0001053802790284

 SciTePress

ﬁnish a complete scan in SPEC. The platforms can

not efﬁciently produce higher-quality images such as

256×256. Their slow processing speed and big size

limit the effective use of gamma cameras. The prob-

lem become particularly severe for portable gamma

cameras (Sanchez et al., 2004; Sanchez et al., 2006)

which work with nuclear radiation detectors with

room-temperature. To improve image construction

speed, a technique called PMT-PSPMT (Position Sen-

sitive PhotoMultiplier Tube) (Jeong et al., 2004) is

proposed. PMT-PSPMT is very effective in optimiz-

ing image construction times. But it reduces the im-

age quality and cannot construct 256 × 256 image

dynamically.

To solve these problems, we propose an MPSoC

architecture for PMT data processing in a gamma

camera. Our MPSoC architecture consists of the

following four parts: one general-purpose embed-

ded processor, a high speed data interface (HSDI),

application-speciﬁc DSP cores and a Network-on-

Chip with an interconnection bus. In the paper, we

design two types of DSP core to implement two

key algorithms, integral and coordinate, for real-time

biomedical applications. We implement a prototype

of our MPSoC architecture with FPGA, and synthe-

size DSP cores and Network-on-Chip using Synop-

sys Design Compiler with a UMC 0.18um standard

cell library. The results show that our technique can

effectively accelerate the processing and implement

communication with small area cost. It can satisfy the

requirements of real-time signal processing for 256 ×

256 image construction.

The rest of this paper is organized as follows: in

Section 2, we introduce necessary backgrounds re-

lated to gamma camera technique. In Section 3, we

present the MPSoC system design. Section 4 presents

the implementation of the prototype system. Sec-

tion 5 provides the experimental results and discus-

sions. In Section 6, we conclude the paper.

2 BACKGROUND

In this section, we provide an overview of basic

knowledge related to gamma cameras. We ﬁrst intro-

duce the basic operating mechanism of gamma cam-

eras and then present the algorithms used for image

processing.

2.1 The Mechanism of Gamma

Cameras

A gamma camera is a commonly used medical imag-

ing device in nuclear medicine. In a gamma camera,

images are generated by detecting gamma radiation.

Basically, the counts of gamma photons that are ab-

sorbed by a crystal are accumulated, and the crystal

produces a faint ﬂash of light at the same time. The

PMT array behind the crystal detects the ﬂuorescent

ﬂashes and generates current. The current signal gen-

erated by the PMT is captured by the ADC, and two

corresponding voltage signals are converted into dig-

ital signals. Digital signals are used to calculate the

coordinate and energy of the gamma photons. With

these coordinate and energy data, the ﬁnal image can

be produced.

2.2 Image-Construction Algorithms in

Gamma Camera

During the whole medical imaging procedure, three

algorithms, the integral, coordinate and amendment

algorithms, are applied to the collected data.

The integral algorithm, as shown in Figure 1, is

to calculate the energy of the voltage signal. In this

algorithm, the serial data of each PMT is accumulated

based on system status conditions.

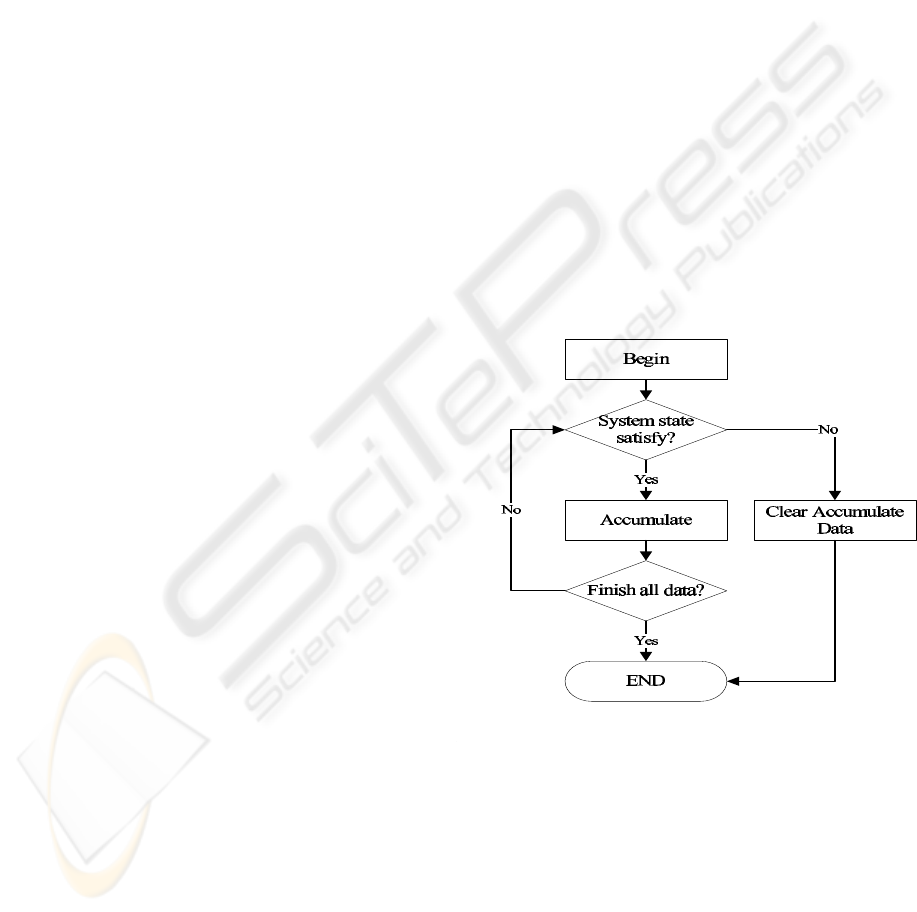

Figure 1: The integral algorithm.

The coordinate algorithm, as shown in Algorithm 2.1,

includes the calculation for two parts, position and en-

ergy. In this algorithm, P

, P

···P

and N

, N

···N

are the internal data obtained from the two voltage

signals, m is the count of the PMTs, and T

, T

···T

and R

, R

···R

are constant numbers. With these

position and energy data, the gamma photon pulse can

be determined. Then, an image can be constructed

with a serial of the gamma photon pulse.

The amendment algorithm is used to amend energy

BIODEVICES 2008 - International Conference on Biomedical Electronics and Devices

280

Algorithm 2.1 The Coordinate Algorithm.

Require: P

, P

···P

,{ the internal data from the

two voltage signal, m is the count of the PMTs}

, N

···N

, { the internal data from the two

voltage signals, m is the count of the PMTs}

, T

···T

,{ constant numbers}

, R

···R

,{ constant numbers}

1: X

⇐

∑

i=1

×T

)

∑

i=1

, Y

⇐

∑

i=1

×R

)

∑

i=1

, X

⇐

∑

i=1

×T

)

∑

i=1

, Y

⇐

∑

i=1

×R

)

∑

i=1

2: calculate the position: x ⇐

−X

)

, y ⇐

−Y

)

3: calculate the energy: E ⇐

∑

i=1

∑

i=1

and position data with three table-lookup operations.

This algorithm consists of two parts, energy and lin-

earity emendation. After the data of every pulse is

corrected by the correction table, a two-dimensional

image of the relative spatial count density is con-

structed. With more pulse data, we can obtain more

accurate image. To achieve that, multiple PMTs are

placed in a hexagon array. In practical, a typical

scheme usually uses 37 PMTs. The frequency of the

pulse is limited to 1KHz in a typical gamma camera

in order not to keep pulse data. Thus, with such a

gamma camera, it takes about 15-30 seconds to build

up one 64 × 64 image.

To reduce the image construction time, we can in-

crease the pulse frequency of gamma photons. But

with the limitation of the device, the maximum pulse

frequency currently we can achieve is 500KHz-1

MHz. Correspondingly, we have to improve the speed

of digital signal processing in order to generate im-

age with such high pulse frequency. In this paper, our

goal is to design an MPSoC architecture that can gen-

erate one 256 × 256 image in less than one second for

gamma cameras with 1 MHz pulse frequency.

3 MPSOC SYSTEM DESIGN

In this section, we ﬁrst introduce the MPSoC archi-

tecture in Section 3.1. Then we present issues related

to general processors and HSDI in Section 3.2 and

Section 3.3, respectively. Finally, the design of DSP

cores and interconnection synthesis are discussed in

Section 3.4 and Section 3.5, respectively.

3.1 Architecture Overview

Our MPSoC architecture is a typical heterogeneous

multi-core architecture targeting on the application of

gamma camera. It is specially designed for process-

ing PMT data in parallel with multi-processors. In

practice, fast image processing speed and high-quality

image are the two of the most important performance

metrics for gamma cameras. In order to achieve these

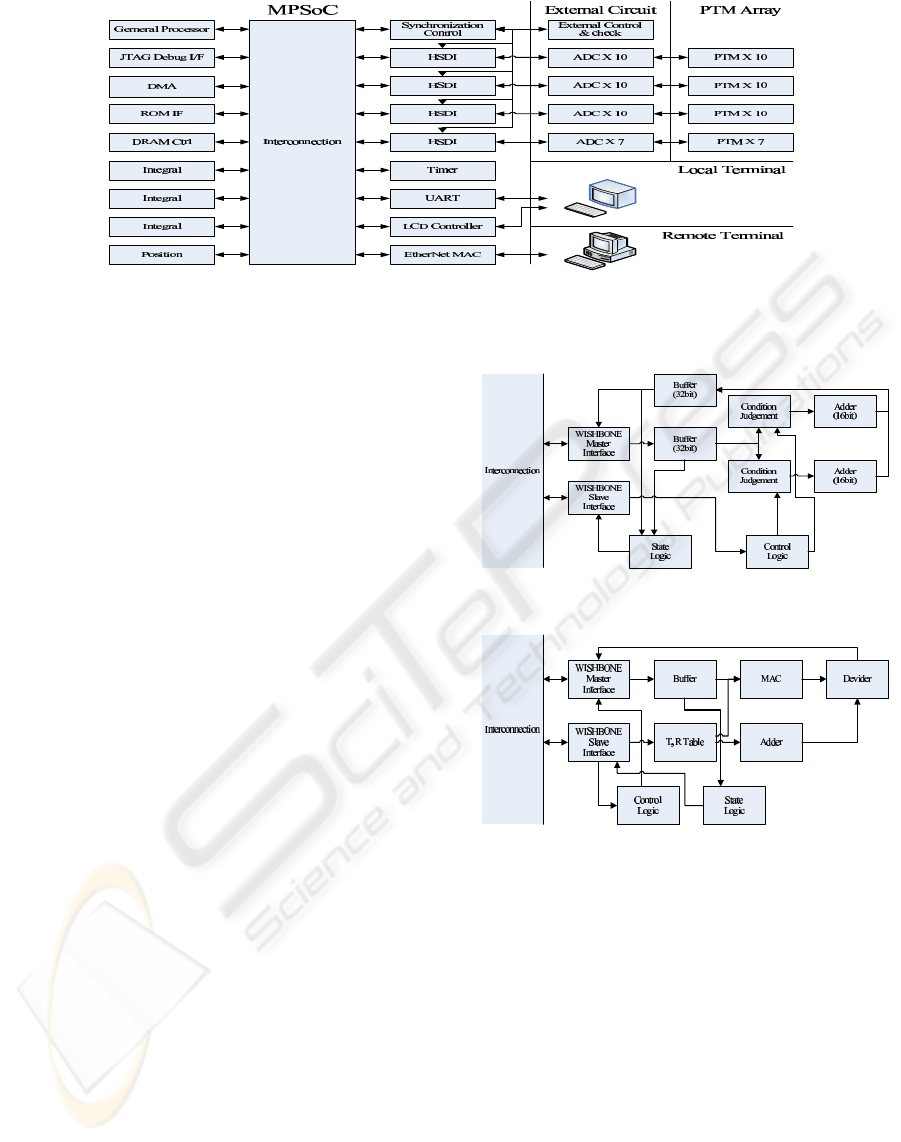

goals, an MPSoC architecture, as shown in Figure 2

is proposed to speed up the image generation and im-

prove image quality.

As shown in Figure 2, our MPSoC architecture

consists of four parts: general processor, HSDI (High

Speed Data Interface), DSP, and interconnection syn-

thesis. Besides the four key parts, the MPSoC archi-

tecture also consists other components, e.g., the gen-

eral embedded micro-controllers. In this architecture,

the processor speed and the 32-bit on-chip intercon-

nection are 200MHz, which are compatible with the

0.18um ASIC technology and the 32-bit bus interface

IP cores. Next, we present the design issues for each

key part of MPSoC architecture.

3.2 The General Processor

The general processor has one general purpose pro-

cessor and some necessary IP cores, such as timer,

UART, and SPI etc. Among these IP cores, the

most important components are the on-chip RAM,

SRAM/Flash controller, SDRAM controller and Eth-

ernet MAC controller. The amendment algorithm and

other general purpose computing are implemented in

the general processor. The SRAM/Flash controller

provides an interface to SRAM, ROM, NOR Flash

and NAND Flash. The instruction code is stored in

NOR Flash which is boot memory of the general pro-

cessor. A reliable ﬁle system that stores the conﬁg-

urations using in the amendment algorithm is imple-

mented in the NAND Flash. With an external Ether-

net PHY chip, the Ethernet MAC controller is used

to establish the communications with remote comput-

ers. In this way, the images and videos can be trans-

ferred to the remote computers through network, thus

to help the doctors do some diagnosis. The on-chip

RAM capacity is 512KB with 5 partitions. The ﬁrst

2 partitions contain two amendment tables which are

256 × 256 × 16 bit. The third partition contains one

256 × 256 × 8 bit amendment table. The fourth par-

tition contains the image constructed, which is 256

pixel × 256 pixel × 16 bit. The last partition is used

as a high speed memory.

3.3 The High Speed Data Interface

(HSDI)

The HSDI has a PMT data buffer and several LVDS

(Low Voltage Differential Signaling) interfaces which

MPSOC ARCHITECTURAL DESIGN AND SYNTHESIS FOR REAL-TIME BIOMEDICAL SIGNAL PROCESSING

IN GAMMA CAMERAS

281

Figure 2: The MPSoC Architecture.

build a connection with external high speed ADCs.

Since the sample speed of the ADC for PMTs is far

lower than the processing time, buffers are used to

store the PMT data of the external ADC. To exert the

processing capability and diminish the interconnec-

tion area, the mount of the HSDI is determined by two

factors: 1) the ADC sample speed; and 2) the on-chip

interconnection speed. Usually, the common sample

speed of the ADC for PMTs is 30MHz with the data

width less than 16 bit, and the typical processor speed

and on-chip interconnection with 0.18um technology

and 32 bit width are 200MHz. Considering the bus

arbitration cost, the maximum capacity of one HSDI

is to take charge on 11 ADC data channels. For all of

the 37 ADC data channels as discussed above, we use

4 HSDI as shown in Figure ??(a) in which 3 of them

take charge of 10 ADC data channels, and the last one

takes charge of 7 ADC data channels.

3.4 The DSP Core Design

The customized DSPs used in our MPSoC architec-

ture are designed for implementing the integral al-

gorithm and the coordinate algorithm. We design

two types of DSP, integral and coordinate, to imple-

ment the integral and coordinate algorithm, respec-

tively. The corresponding block diagrams of the inte-

gral DSP and coordinate DSP are shown in Figure 3

and Figure 4, respectively.

The integral DSP has two bus interfaces, Master

and Slave. The Master interface implements the data

load/store, and the Slave interface implements the

control and status logic accessing from other devices.

The parameters for the integral algorithm are obtained

through the Slave interface. Since there are 60 16-bit

data for every gamma photons with two groups, upper

and lower, which are implemented in the same inte-

gral algorithm, the data from HSDI is placed into the

Figure 3: The Integral DSP.

Figure 4: The Coordinate DSP.

buffer with 32-bit format, 16-bit for the upper group

and 16-bit for the lower group. In other words, the

integral algorithm is processed in parallel in the in-

tegral DSP. Thus, the integral DSP is designed with

same units to accelerate the processing speed. For 30

PMTs data, the integral DSP uses 36 cycles to pro-

cess them in which each integral DSP processes 10

gamma photons pulses within 2us. Thus, 4 integral

processors are needed to process all of the 37 channel

PMTs data.

The block diagram of the coordinate DSP is

shown in Figure 4. The main components of the coor-

dinate DSP are MAC (Multiply Accumulate) and Di-

vider. The coordinate DSP has two bus interfaces,

Master and Slave, which are as same as those of the

BIODEVICES 2008 - International Conference on Biomedical Electronics and Devices

282

integral DSP. The T and R parameter tables are ac-

cessed through the Slave interface, and the data to be

processed is placed in the buffer through the Master

interface. As the MAC and Adder can work in par-

allel, we can process the numerator and denominator

in algorithm 2.1 simultaneously. Since the throughput

of the coordinate algorithm is much lower than the in-

tegral algorithm, only one coordinate DSP is required

in the DSP design.

3.5 Interconnection Synthesis

As shown in Figure 2, interconnection serves

the communication among DSP cores and other

components. In most on-chip bus standards,

such as AMBA(SPE, 2001), CoreConnect(SPE, ),

STBus(SPE, 2003) and WISHBONE(SPE, 2002), a

share structure is used in the embedded processor. In

the structure, the total bandwidth of the interconnec-

tion is limited to the bandwidth of each node since all

buses are connected to one node and only one master

can access the interconnection at one time. In order

to fully utilize bandwidth, we need to perform careful

analysis. In (Wang et al., 2007), we propose an inter-

connection synthesis algorithm to solve the problem.

4 PROTOTYPE

IMPLEMENTATION

We have implemented the MPSoC prototype in an Al-

tera Cyclone II FPGA EP2C35F672. In the imple-

mentation, we use the OpenRisc 1200 processor core

as the general processor that runs at 20MHz which is

10% of the speed of the ﬁnal ASIC implementation.

We add one 512KB ZBT SRAM to our prototype

since the on-chip RAM in Cyclone II FPGA can not

meet our requirements. Besides the external SRAM,

the prototype has 64MB SDRAM, 32MB NOR Flash

ROM, 128MB NAND Flash ROM, 10M/100M Ether-

net PHY, 640 × 480 16bit TFT LCD and other chips.

Table 1: The information for the prototype.

LEs RAM(KB) Multiplier(9-bit)

23468 (71%) 54 (92%) 16 (23%)

IO PLL Max Speed(MHz)

465 (98%) 1 (25%) 42

We test the prototype with input signals based on

a real gamma camera, and check the output signals.

The results show that it functions correctly. The num-

bers of resources we use are shown in Table 1. In

this table, LEs denotes logical elements, RAM rep-

resents the on-chip-memory, and PLL denotes phase

loop lock. The number inside the brackets for each

resource represents the percentage between the num-

ber of resource we really use and the total number of

resource provided by the system.

5 EXPERIMENTAL RESULTS

AND DISCUSSIONS

To compare our MPSoC architecture with the general

architecture, we have implemented the integral and

coordinate algorithm both with an ARM9 processor

and with our custom designed DSPs. In the exper-

iment, we obtain the results of processing time, the

area, RAM, power cost of our custom DSPs. For the

interconnection, we have implemented our intercon-

nection with WISHBONE protocol and our bus in-

terconnection synthesis algorithm. We compare our

technique with the crossbar and the reduce crossbar

structure in terms of the area cost. In this section,

we ﬁrst present the results of processor comparison

in Section 5.1, and then we present and analyze the

results of interconnection optimization in Section ??.

5.1 Processor Comparison

The typical sustaining time of the PMT reactivity

electric current signal for gamma photons pulse is

2us. In this time interval, the ADC produces 60 data

in which every 30 data is applied with the integral

algorithm. The cycles and time for the integral and

coordinate algorithm to process data that is produced

within 2us are shown in table 2. We have tested the

ARM9 program in SimpleScalar (Burger and Austin,

1997) and a hardware platform based on ARM 920T

(ARM 920T, 2001) running with 203 MHz. The re-

sults are shown in Table 2.

Table 2: The testing results of ARM9 program in Sim-

pleScalar and S3C2410.

Condition Cycle Time

(us)

The Integral SimpleScalar 2104 10.5

Algorithm S3C2410 21.6

The Coordinate SimpleScalar 1692 8.5

Algorithm S3C2410 24.2

In the table, we can see that it takes 2104 and 1692

clock cycles to ﬁnish the integral and coordinate al-

gorithms, respectively, on the SimpleScalar simulator.

MPSOC ARCHITECTURAL DESIGN AND SYNTHESIS FOR REAL-TIME BIOMEDICAL SIGNAL PROCESSING

IN GAMMA CAMERAS

283

Based on the hardware platform, the times we need

are 21.6 and 24.2 µs, respectively.

We design two types of DSP to implement the al-

gorithms separately. In order to accelerate the pro-

cessing speed, we use several integral DSPs with

same design. The integral and coordinate DSPs are

coded in Verilog HDL, and are synthesized to gate-

level circuits using Synopsys Design Compiler and a

UMC 0.18um standard cell library. The results gener-

ated by our technique is shown in Table 3. The com-

parison of the results generated using ARM9 and our

customized DSP is shown in Table 4. From the ta-

ble, we can see that our customized DSPs can pre-

form with very high performance. With 5 integral

DSP cores, we can achieve the requirements. The re-

sults show great performance improvement and cost

reduction with our MPSoC architecture.

Table 3: The results with our DSP cores.

Integral DSP Coordinate DSP

Cycle 37 340

Time(us) 0.185 1.700

Area(um

) 0.14 2.03

RAM(KB) 1 4

Power(mW) 18 264

Table 4: The comparison of the results from ARM9 and our

DSP cores.

DSP ARM920 Processor

Quantity 5 197

Area(um

) 2.59 1026.8

RAM(KB) 8 3152

Power(mW) 336 120

6 CONCLUSIONS

In this paper, we have proposed an MPSoC architec-

ture for implementing real-time signal processing in

gamma camera. Based on a fully analysis of the char-

acteristics of the application, we designed several al-

gorithms to optimize the systems in terms of process-

ing speed, power consumption, and area costs etc.

Two types of DSP core have been designed for the

integral algorithm and the coordinate algorithm, the

key parts of signal processing in a gamma camera.

A prototype of our MPSoC architecture has been im-

plemented with FPGA, and the test results show that

it can function correctly. Various experiments have

been conducted and discussed. We synthesized DSP

cores and Network-on-Chip using Synopsys Design

Compiler with a UMC 0.18um standard cell library.

The results show that our technique can effectively

accelerate the processing and satisfy the requirements

of real-time signal processing for 256 × 256 image

construction.

ACKNOWLEDGEMENTS

The work described in this paper was partially sup-

ported by the grants from the Research Grants Coun-

cil of the Hong Kong Special Administrative Region,

China (PolyU A-PH13, PolyU A-PA5X, PolyU A-

PH41, and PolyU B-Q06B), the National Nature Sci-

ence Foundation of China (60525314), the 973 Pro-

gram of China (2002CB312204-04) and the 863 Pro-

gram of China (2006AA04Z206).

REFERENCES

Ibm on-chip coreconnect bus architecture.

www.chips.ibm.com.

(2001). Arm amba speciﬁcation (rev2.0). www.arm.com.

(2002). Wishbone system-on-chip (soc) interconnection

architecture for portable ip cores revision: B.3.

www.opencores.org.

(2003). Stbus communication system: Concepts and deﬁni-

tions, reference guide. STMicroelectronics.

ARM 920T, R. . (2001). Technical Reference Manual.

Burger, D. and Austin, T. M. (1997). The simplescalar tool

set, version 2.0. SIGARCH Comput. Archit. News,

25(3):13–25.

Jeong, M. H., Choi, Y., Chung, Y. H., Song, T. Y., Jung,

J. H., Hong, K. J., Min, B. J., Choe, Y. S., Lee, K.-H.,

and Kim, B.-T. (2004). Performance improvement of

small gamma camera using nai(tl) plate and position

sensitive photo-multiplier tubes. Physics in Medicine

and Biology, 49(21):4961–4970.

Khatib, I. A., Poletti, F., Bertozzi, D., Benini, L., Bechara,

M., Khalifeh, H., Jantsch, A., and Nabiev, R.

(2006). A multiprocessor system-on-chip for real-

time biomedical monitoring and analysis: architec-

tural design space exploration. In DAC, pages 125–

130.

Sanchez, F., Benlloch, J. M., Escat, B., Pavon, N., Porras,

E., Kadi-Haniﬁ, D., Ruiz, J. A., Mora, F. J., and Se-

bastia, A. (2004). Design and tests of a portable mini

gamma camera. Medical Physics, pages 1384–1397.

Sanchez, F., Fernandez, M. M., Gimenez, M., J.M., J. M. B.,

Rodriguez-Alvarez, M. J., Quiros, F. G. D., Lerche,

C. W., Pavon, N., Palazon, J. A., Martinez, J., and Se-

bastia, A. (2006). Performance tests of two portable

mini gamma cameras for medical applications. Medi-

cal Physics, pages 4210–4220.

Wang, T., Sun, K., Wei, H., Wang, M., Shao, Z., and Liu,

H. (2007). Interconnection synthesis of mpsoc archi-

tecture for gamma cameras. In EUC.

BIODEVICES 2008 - International Conference on Biomedical Electronics and Devices

284
