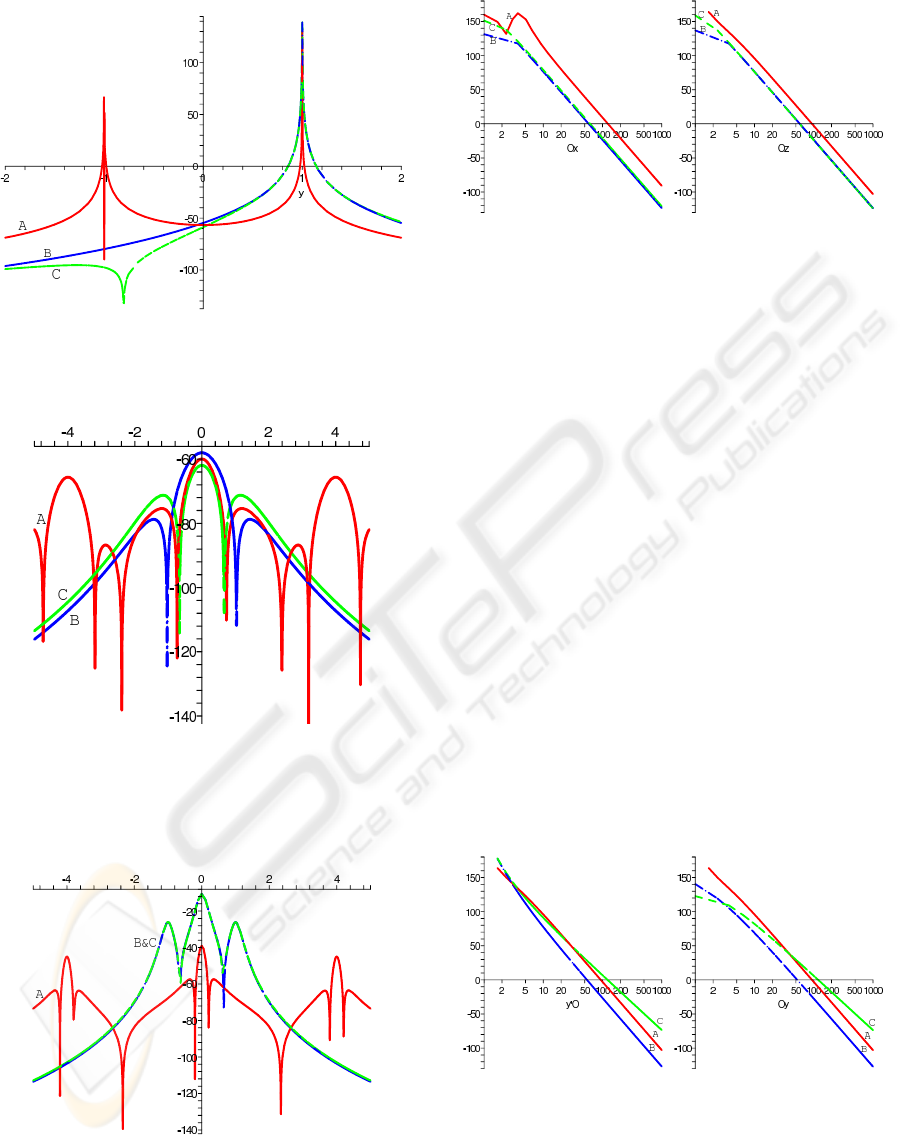

to have the better rejection of parasitic signals, the
wrapped hexagonal patch has a sensitivity decreasing
slowly along this Oy axis. In fact, the bent hexago-
nal patch only begins to have larger sensitivity than
the tripolar cuff for action potentials placed at more
than fifty times the radius of the cuff, corresponding
to approximately 7cm. At this distance, the parasitic
signal could be neglected in comparison to ENG sig-
nal.
6 CONCLUSIONS AND
PERSPECTIVES
We have presented here a method to build multipo-
lar cuff electrodes and how to extract useful informa-
tions from the multiple channels. Although numeri-
cal investigations are still necessary to an exhaustive
comparison of multipolar structures, the comparison
between the classical tripolar cuff electrode for ENG
recording and a multipolar electrode has shown that
this new type of the design is very promising. In ev-
ery simulation, multipolar electrodes prove to be more
sensitive to sources located inside the nerve, and in al-
most every case they show better far source rejection.
We hope the improvement of the recorded signal
given by this new design will allow the use of sig-
nal processing techniques such as source separation.
Then, multipolar configurations could make it possi-
ble to estimate more precise parameters like the speed
and the direction of propagation of the AP (Taylor
et al., 2004; Rieger et al., 2006).
Future works include the complete test of the
seven-channel amplifier. It requires special attention
to electromagnetic interferences due to the high gain
it can reach. Then, we will be able to process the in
vivo qualification of the whole system.
REFERENCES
Andreasen, L. N. S. and Struijk, J. J. (2002). Signal strength
versus cuff length in nerve cuff electrode recordings.
49(9):1045–1050.
Demosthenous, A. and Triantis, I. F. (2005). An adaptive
ENG amplifier for tripolar cuff electrodes. 40(2):412–
421.
Djilas, M., Azevedo Coste, C., Yoshida, K., and Cath´ebras,
G. (2006). Interpretation of ENG signal for FES
closed-loop control. In IFESS’06: 11th Annual
Conference of the International Functional Electrical
Stimulation Society, pages 85–87, Miyagi-Zao, Japan.
Gonzales, R. C. and Woods, R. E. (1992). Digital Image
Processing. Addison-Wesley.
Haugland, M. K., Hoffer, J. A., and Sinkjaer, T. (1994).
Skin contact force information in sensory nerve sig-
nals recorded by implanted cuff electrodes. IEEE
Transactions on Rehabilitation Engineering, 2(1):18–
28.
Jensen, W., Sinkjaer, T., and Sepulveda, F. (2002). Improv-
ing signal reliability for on-line joint angle estimation
from nerve cuff recordings of muscle afferents. IEEE
Transactions on Neural Systems and Rehabilitation
Engineering, 10(3):133–139.
Pflaum, C., Riso, R. R., and Wiesspeiner, G. (1996). Per-
formance of alternative amplifier configurations for
tripolar nerve cuff recorded ENG. In Engineering in
Medicine and Biology Society, 1996. Bridging Disci-
plines for Biomedicine. Proceedings of the 18th An-
nual International Conference of the IEEE, volume 1,
pages 375–376, Amsterdam.
Ramachandran, A., Sacristan, J., Lago, N., D¨orge, T., Os`es,
M., Koch, K., and Hoffmann, K. (2005). Multipolar
cuff electrodes with integrated pre-amplifier & filter
to interface peripheral nerves for FES application. In
10th Annual Conference of the International FES So-
ciety, Montreal, Canada.
Rieger, R., Schuettler, M., Pal, D., Clarke, C., Langlois,
P., Taylor, J., and Donaldson, N. (2006). Very low-
noise ENG amplifier system using CMOS technology.
IEEE Transactions on Neural Systems and Rehabilita-
tion Engineering, 14(4):427–437.
Stein, R. B. (1980). Nerve and Muscle. Plenum Press.
Struijk, J. J. and Thomsen, M. (1995). Tripolar nerve cuff
recording: stimulus artifact, EMG and the recorded
nerve signal. In Engineering in Medicine and Biol-
ogy Society, 1995. IEEE 17th Annual Conference, vol-
ume 2, pages 1105–1106, Montreal, Que.
Taylor, J., Donaldson, N., and Winter, J. (2004). Multiple-
electrode nerve cuffs for low-velocity and velocity-
selective neural recording. Medical and Biological
Engineering and Computing, 42(5):634–643.
Weisstein, E. W. (2002). Tessellation. From MathWorld–A
Wolfram Web Resource. http://mathworld.wolfram.
com/Tessellation.html.
Winter, J., Rahal, M., Taylor, N., Donaldson, N., and Stru-
ijk, J. (2000). Improved spatial filtering of ENG sig-
nals using a multielectrode nerve cuff. In 5th Annual
Conference of the International Functional Electrical
Stimulation Society, Aalborg, Denmark.
