A REGION BASED METHODOLOGY FOR FACIAL

EXPRESSION RECOGNITION

Anastasios C. Koutlas

Dept. of Medical Physics, Medical School, University of Ioannina, Ioannina, Greece

Dimitrios I. Fotiadis

Unit of Medical Technology and Intelligent Information Systems, Dept. of Computer Science

University of Ioannina, Ioannina, Greece

Keywords: Facial expression recognition, Gabor filters, filter bank, artificial neural networks, Japanese Female Facial

Expression Database (JAFFE).

Abstract: Facial expression recognition is an active research field which accommodates the need of interaction

between humans and machines in a broad field of subjects. This work investigates the performance of a

multi-scale and multi-orientation Gabor Filter Bank constructed in such a way to avoid redundant

information. A region based approach is employed using different neighbourhood size at the locations of 34

fiducial points. Furthermore, a reduced set of 19 fiducial points is used to model the face geometry. The use

of Principal Component Analysis (PCA) is evaluated. The proposed methodology is evaluated for the

classification of the 6 basic emotions proposed by Ekman considering neutral expression as the seventh

emotion.

1 INTRODUCTION

Facial expression recognition is an active research

field that spawns across different subjects such as

Human Computer Interaction (HCI), Smart

Environments and medical applications.

Recognizing facial expressions is a difficult task and

therefore several limitations exist such as limitation

due to lighting conditions, facial occlusions or facial

hair.

In 1971 Ekman et.al determined 6 basic

emotions; anger, fear, surprise, happiness, disgust

and sadness (Ekman and Friesen, 1971). The neutral

face expression is usually considered as the seventh

basic emotion. Basic emotions are universal and

exist in different human ethnicities and cultures.

Even though the term emotion is used for

categorization, emotions do not rely solely on visual

information (Fasel and Luettin, 2003).

The task of Facial Expression Recognition can

be divided into three main steps which are face

recognition so that the face in an image is known for

further processing, facial feature extraction which is

the method used to represent the facial expressions

and finally classification which is the step that

classifies the features extracted in the appropriate

expressions.

In general there are two approaches to represent

the face and consequently the facial features. The

first, often referred to as holistic approach, treats the

face as a whole. Essa (Essa and Petland, 1997)

treated the face holistically using optical flow and

measured deformations based on the face anatomy.

Donato (Donato et. al. 1999) has used several

methods for facial expression recognition. Fisher

linear discriminates (FLD) were used to project the

images in a space that provided the maximal

separability between classes and Independent

Component Analysis (ICA) to preserve higher order

information.

Instead of using the whole face, one can isolate

and use the prominent features of a face, such as

eyes, eyebrows, mouth, etc. Using fiducial points to

model the position of the prominent features one can

symbolize the face geometry in a local manner. The

number of fiducial points used varies and mainly

depends on the desired representation, as it is

reported that different positions hold different

218

C. Koutlas A. and I. Fotiadis D. (2008).

A REGION BASED METHODOLOGY FOR FACIAL EXPRESSION RECOGNITION.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 218-223

DOI: 10.5220/0001056602180223

 SciTePress

information regarding the expressions (Lyons et. al.,

1999). The way that these fiducial points are

identified in an image can either be automatic (Gu

et. al., 2005) or manual (Lyons et. al. 1999), (Guo

and Dyer, 2005), (Zhang et. al. 1998).

It has been shown that simple cells in the

primary visual cortex can be modeled by Gabor

functions (Dougman, 1980), (Dougman, 1985). This

solid physiological connection between Gabor

functions and human vision has yielded several

approaches to facial expression recognition (Lyons

et. al. 1999), (Gu et. al., 2005), (Guo and Dyer,

2005), (Zhang et. al. 1998), (Liu and Wang, 2006),

(Lyons and Akamatsu, 1998). Zhang (Zhang et. al.,

1998) compared the Gabor function coefficients

with the coordinate positions of the fiducial points

and concluded that the first represent the face better

than the latter. Donato (Donato et. al., 1999)

reported that Gabor functions performed better than

any other method used in both analytic and holistic

approaches.

In this work we present a methodology for the

classification of human emotions which is based on

Gabor coefficients of the fiducial points. The

methodology is based on Gabor coefficients which

are extracted from a region around the fiducial

points. It is noted in the literature that the feature

vector is formed using single pixel values at the

locations of the fiducial points. The proposed

approach forms the feature vector from a region

around each fiducial points gathering more

information and avoiding in such a way artifacts

which might exist close to the fiducial point.

Furthermore, an alternate set of fiducial points is

presented using just 19 landmark positions. We also

attempted to reduce the number of fiducial points

and to make the approach more efficient using PCA.

The methodology is evaluated using the Japanese

Female Facial Expression (JAFFE) database (Lyons

and Akamatsu, 1998) in two cases: (a) using its full

annotation and (b) excluding fear.

2 MATERIALS AND METHODS

The proposed methodology includes three stages (a)

construction of the Gabor Filter Bank, (b) extraction

of the Feature vector and (c) classification (Fig. 1).

2.1 Gabor Function

A two dimensional Gabor function (, )

xy is the

product of a 2-D Gaussian-shaped function referred

as the envelop function and a complex exponential

Image with fiducial points marked

Application of 18 Gabor Filters

(,) (, ) (, )Guv I x y g x y=∗

Image Convolution

Feature Vector Formation

xk yk

kN ij

ix kjy k

=− =−

⎧

⎫

⎪⎪

⎨⎬

⎪

⎭

⎩

∑∑

Feature Extraction

Classification

3& 6SK==

Image with fiducial points marked

Application of 18 Gabor Filters

(,) (, ) (, )Guv I x y g x y=∗

Image Convolution

(,) (, ) (, )Guv I x y g x y=∗

Image Convolution

Feature Vector Formation

xk yk

kN ij

ix kjy k

=− =−

⎧

⎫

⎪⎪

⎨⎬

⎪

⎭

⎩

∑∑

Feature Extraction

Classification

3& 6SK==

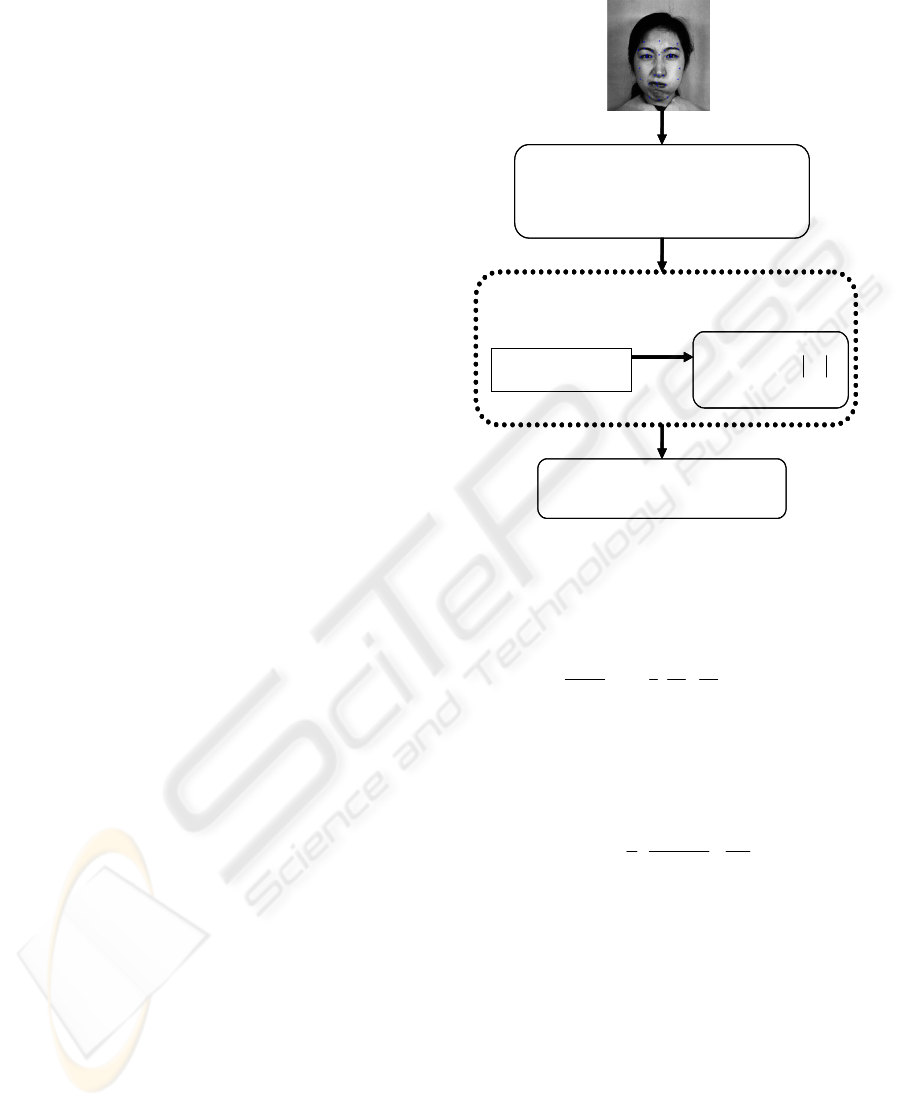

Figure 1: Flow chart of the proposed method.

(sinusoidal) known as the carrier and can be written

as (Dougman, 1980), (Dougman, 1985), (Manjunath

and Ma, 1996):

(, ) exp 2 ,

gxy jW

πσ σ

σσ

=−++

⎡

⎛⎞⎤

⎛⎞

⎜⎟

⎢

⎥

⎝⎠

⎣

⎝⎠⎦

(1)

where

y are the image coordinates,

are

the variances in the

y coordinates respectively

and

W is the frequency of the sine wave.

Its Fourier Transform

(,)Guv can be written as:

1( )

(,) exp ,

uW v

Guv

σσ

−

=− +

⎧

⎡⎤⎫

⎨

⎬

⎢

⎥

⎩⎣ ⎦⎭

(2)

where

1/2

πσ

and 1/ 2

πσ

= .

2.2 Gabor Filter Bank

A Gabor filter bank can be defined as a series of

Gabor filters at various scales and orientations. The

application of each filter on an image produces for

each pixel a response. The above representation (Eq.

(1)) combines the even and odd Gabor functions as

are defined in (Dougman, 1980).

(, )

is the mother function, we can derive

the Filter bank functions using a series of rotations

and dilations on the mother function:

A REGION BASED METHODOLOGY FOR FACIAL EXPRESSION RECOGNITION

219

cos sin

(, ) ( , ), ,

sin cos

gxy gxy

θθ

′

−

′′′

′

⎛⎞⎛ ⎞⎛⎞

⎜⎟⎜ ⎟⎜⎟

⎝⎠⎝ ⎠⎝⎠

(3)

where

/nK

, K is the total number of

orientations and

0, 1, , 1nK=−… .

Manjunathan showed that Gabor filters form a

nonorthogonal basis and that redundant information

is included in the images produced by the filter

(Manjunath and Ma, 1996), (Guo and Dyer, 2005).

This leads to the following equations for the filter

parameters

and

aWaU

−

⎛⎞

⎜⎟

⎝⎠

(4)

(1)

(1)2ln2

−

(5)

()

tan ,

2ln2

=−

(6)

where

a is the scaling factor, S is the number of

scales,

0, 1, , 1mS=−…

, and

U and

U are the

high and low frequencies of interest.

In this work we have chosen

,24 216UU

with three scales ( 3S

)

and six orientations (

6K = ) differing each by 6

Thus 18 complex Gabor filters were defined in total

which will be used to extract the feature vector for

each image. In Figure 2 the real part of the resulting

filters is displayed.

Figure 2: The real part of the Gabor filter when

at all scales used.

2.3 Gabor Features

For any given image

(, )

its Gabor decomposition

at any given scale and orientation can be obtained by

convolving the image with the particular Gabor

filter.

(,) (, ) (, )Guv I x y g xy

∗

(7)

The magnitude of the resulting complex image is

given:

() ()GReGImG=+

(8)

All features derive from

G and the feature

vector

,kN

is formed according to the following

formula:

, 0,1, , , 0,1, ,5,

xk yk

kN ij

ix kjy k

FGlNk

=− =−

⎧

⎫

⎪⎪

===

⎨⎬

⎪

⎭

⎩

∑∑

……

(9)

where

N is the number of the fiducial points,

equalled to 19 and 34 respectively here.

is the

number of neighbouring pixels used to form the

regions. The feature vector can be portrayed as a

square 1-norm of the matrix when

0k ≠

, which

corresponds to the intensity values of the mask

around each fiducial point.

(a) (b)

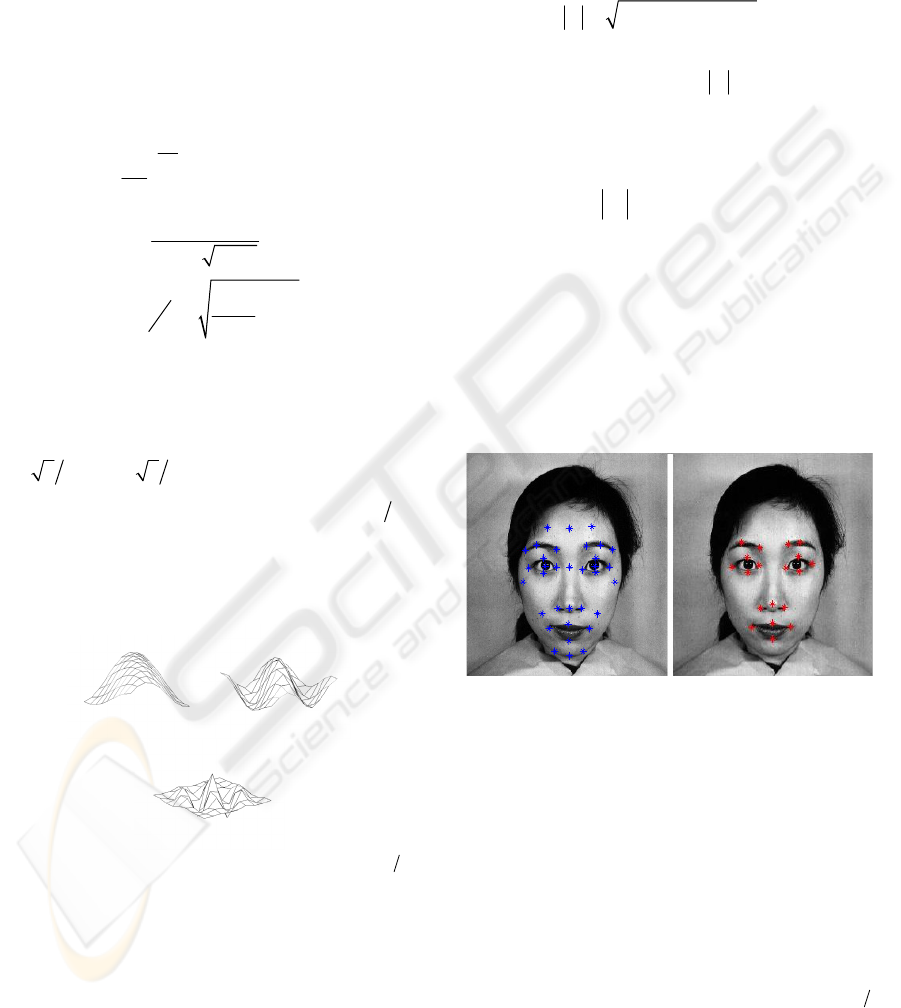

Figure 3: Typical Positions of fiducial points (a) 34 points

(b) 19 points.

2.4 Artificial Neural Networks

Artificial Neural Networks (ANNs) are well known

classifiers and can be used in multi-class problems.

In the presented work we employed feed forward

back propagation ANNs. The architecture of the

ANNs consists of three layers. The first layer (input

layer) consist of

T input nodes where T is the

dimension of the feature vector (

FR∈

). The

second layer (hidden layer) consists of

2TC+

neurons, where

C is the number of the classes. The

sigmoid function is used as activation function for

these hidden neurons. Finally the third layer (output

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

220

layer) consists of

C neurons. The activation function

of the output neurons is the linear function. In order

to train the ANNs the mean square error function is

used and the number of epochs are 500.

2.5 Principal Component Analysis

In several cases

is quite large (for example when

N in Eq. (9) is set to 34, the resulting feature vector

has a dimension of 612). PCA is applied to reduce

the input number features so that the retained

features account for 95% of the total variance (sum

of variances).

2.6 Dataset

The JAFFE (Lyons and Akamatsu, 1998) database

was used for the evaluation of the proposed method.

It features ten different Japanese women posing 3 or

4 examples for each basic emotion containing a total

of 213 images. Including in the annotation of the

dataset, neutral position is considered as a seventh

basic emotion.

An alternate dataset derives from JAFFE database

containing 181 images when fear is excluded. This

can be justified in (Zhang et. al., 1998). Hereafter

the two different datasets would be addressed as

JAFFE-7 and JAFFE-6 with the latter excluding

fear.

3 RESULTS

Several different sets of experiments were contacted

with respect to:

The annotation used for classifications (i.e.

either JAFFE-6 or JAFFE-7 datasets)

ii.

The number of fiducial points used ( N in

Eq. (9) is equal to 19 or 34 )

iii.

The neighborhood size used to construct the

feature vector (Single Pixel, 3x3, 5x5, 7x7,

9x9, 11x11)

iv.

The employment or not of PCA for

dimensionality reduction

The combination of the aforementioned sets leads to

48 different feature sets. For the evaluation the ten

fold stratified cross validation method was used.

In the tables that will be presented below the

abbreviations used correspond to the emotions, (SU

for surprise, DI for disgust, FE for fear, HA for

happy, NE for neutral, SA for sadness and finally

AN for anger).

3.1 JAFFE-7

In this series of experiments the full annotation of

the JAFFE dataset was used along with both facial

representations (34 and 19 fiducial points). Table 1

displays the accuracy of each approach; the best

performance was obtained when a neighborhood

11x11 of pixels was used with 34 fiducial points

representing the face. When 19 fiducial points were

used the accuracy declined only by 0.9% at max.

Table 1: Performance using the JAFFE-7 Dataset.

Region

Points

34 PCA

Points

19 PCA

Single

Pixel

72.8% 53.5% 63.4% 47.4%

3x3 81.7% 74.6% 73.2% 60.1%

5x5 84.0% 79.3% 78.4% 71.4%

7x7 85.0% 78.9% 82.2% 73.7%

9x9 87.3% 82.6% 84.0% 80.8%

11x11 87.8% 83.6% 86.9% 82.6%

Table 2 displays the confusion matrix for the best

performing approach. It can be seen that the poorest

performance was obtained for the emotions of

disgust and fear where the first was classified often

as anger and the latter as sadness. Following the

reasoning of Zhang (Zhang et. al., 1998) a second

series of experiments were conducted.

Table 2: Confusion matrix for 34 fiducial points and

11x11 region.

SU DI FE HA NE SA AN

SU 30 0 0 0 0 0 0

DI 0 24 0 0 0 1 4

FE 1 1 23 2 1 3 1

HA 0 0 0 27 3 1 0

NE 0 0 0 0 29 1 0

SA 1 0 1 1 1 27 0

AN 0 2 1 0 0 0 27

3.2 JAFFE-6

In this series of experiments fear was excluded from

the classification process. The accuracy for each

approach is shown in Table 3. The best performance

was still obtained when using 34 fiducial points with

accuracy 92.3%. Still the alternate dataset with 19

fiducial points provided similar results with

accuracy 90.1%.

A REGION BASED METHODOLOGY FOR FACIAL EXPRESSION RECOGNITION

221

Table3: Performance using the JAFFE-6 Dataset.

Region

Points

34 PCA

Points

19 PCA

Single

Pixel

75.7% 60.2% 65.2% 53.0%

3x3

85.6% 79.0% 76.8% 68.5%

5x5

87.3% 81.2% 81.8% 72.9%

7x7

89.5% 82.9% 84.0% 79.0%

9x9

91.7% 85.1% 85.6% 85.1%

11x11

92.3% 87.3% 90.1% 86.2%

In Table 4 and Table 5 the confusion matrices of

these best performing experiments are presented.

Disgust still is confused with anger in both cases.

This yields that both these sets of fiducial points are

not adequate enough to separate correctly these two

emotions.

Table 4: Confusion matrix for 34 fiducial points and

11x11 region excluding fear.

SU DI HA NE SA AN

SU 29 0 0 1 0 0

DI 0 24 0 0 2 3

HA 0 0 31 0 0 0

NE 0 0 0 30 0 0

SA 3 0 1 1 26 0

AN 0 3 0 0 0 27

Table 5: Confusion matrix for 19 fiducial points and

11x11 region excluding fear.

SU DI HA NE SA AN

SU 29 0 0 1 0 0

DI 0 24 0 0 2 3

HA 0 0 31 0 0 0

NE 0 0 0 30 0 0

SA 3 0 1 1 26 0

AN 0 3 0 0 0 27

4 DISCUSSION

A facial expression recognition method, using a

Gabor Filter Bank was presented. All redundant

information in the construction of the filter bank was

avoided by specially designing the filters. Two

different facial representations were used using 19

and 34 fiducial points, respectively. Furthermore, the

employment of a region based approach was

investigated to avoid misclassification due to

artefacts.

The manual feature reduction performed with the

alternate dataset has reduced the feature vector by a

factor of 0.4. The use of PCA, produced competitive

results and has decreased the dimension of the

feature vector by a factor of 0.9. In this work the

fiducial points in the image were marked manually.

This approach is possible to introduce errors, for

example choosing a different point of interest

instead of the one indented. By using regions the

possibility of such errors taking place was

minimized. The classifier performed weakly when

tried to classify disgust and anger. Larkin (Larkin et.

al., 2002) reported that males also made errors when

decoding facial expressions of disgust, confusing it

with anger. Facial expression recognition is a multi-

class problem. Zhang (Zhang et. al. 1998), using a

slightly different ANN, have reported accuracy

~90% when dealing with JAFFE-7 and 92.2% when

using JAFFE-6. Guo (Guo and Dyer, 2005) had used

JAFFE-7 and compared the performance of different

classifiers. When the same feature vector was used

(dimension equaled to 612) they reported accuracy

63.3% for the Simplified Bayes, 91.4% when using

linear Support Vector Machines and 92.3% when

using non linear (Gaussian Radial Basis Function

Kernel) Support Vector Machines. Both of these

approaches use a pixel-based feature extraction

approach; in our case we employed a region-based

feature extraction process, which permits some

flexibility in the selection of the fiducial points and

the affect of artifacts is minimized.

Further improvement of the presented method

consists primarily of making the method automated.

This is mainly related to the identification of the

fiducial points that currently are manually marked.

Furthermore, the use of a three-dimensional filter

bank will be investigated by using time as a third

constant and applied in a new, preferably video

based, dataset.

ACKNOWLEDGEMENTS

This work was partly funded by the European Union

and the General Secretariat for Research and

Technology of the Hellenic Ministry of

Development (PENED 2003 03OD139).

REFERENCES

Ekman, P, Friesen, WV, 1971, “Constants Across Cultures

in the Face and Emotion”, J. Pers. Psycho., vol. 17,

no. 2, pp. 124-129.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

222

Fasel, B, Luettin, J, 2003, “Automatic Facial Expression

Analysis: a survey”, Pattern Recognition, vol. 36, no.

1, pp. 259-275.

Essa, I, Pentland, 1997, “Coding, Analysis, Interpretation,

Recognition of Facial Expressions”, IEEE Trans.

Pattern Analysis and Machine Intelligence, vol. 19,

no. 7, pp. 757-763.

Donato, G, Bartlett, MS, Hager, JC, Ekman, P, Sejnowski,

TJ, 1999, “Classifying Facial Actions”, IEEE Trans.

Pattern Analysis and Machine Intelligence, vol. 21,

no. 10, pp. 974-989.

Lyons, MJ, Budynek, J, Akamatsu, S, 1999, “Automatic

Classification of Single Facial Images”, IEEE Trans.

Pattern Analysis and Machine Intelligence, vol. 21,

no. 12, pp. 1357-1362.

Gu, H, Zhang, Y, Ji, Q, 2005, “Task Oriented Facial

Behaviour Recognition with Selective Sensing”,

Computer Vision and Image Understanding, vol. 100,

no. 1-2, pp. 385-415.

Guo, G, Dyer, CR, 2005, “Learning From Examples in the

Small Sample Case: Face Expression Recognition”,

IEEE Trans. System, Man and Cybernetics-Part B:

Cybernetics, vol. 35, no. 3, pp. 477-488.

Zhang, Z, Lyons, M, Schuster, M, Akamatsu, S, 1998,

“Comparison Between Geometry Based and Gabor

Wavelet Based Facial Expression Recognition Using

Multi Layer Perceptron”, In Proc. 3

Int. Conf.

Automatic Face and Gesture Recognition, pp. 454-

459.

Dougman, J, 1980, “Two-Dimensional Spectral Analysis

of Cortical Receptive Field Profiles”, Vision Research,

vol. 20, pp. 846-856.

Dougman, J, 1985, “Uncertainty Relation for Resolution

in Space, Spatial Frequency and Orientation

Optimized by Two-Dimensional Visual Cortical

Fields”, J. Opt. Soc. Am. A., vol. 2, no. 7, pp. 1160-

1169.

Liu, W, Wang, Z, 2006, “ Facial Expression Recognition

Based on Fusion of Multiple Gabor Features”, In Proc.

18th Int. Conf. on Pattern Recogntion,vol. 3, pp. 536-

539.

Lyon, M, Akamatsu, S, 1998, “Coding Facial Expressions

with Gabor Wavelets”, In Proc. 3

Int. Conf.

Automatic Face and Gesture Recognition, pp. 200-

205.

Manjunath, BS, MA, WY, 1996, “Texture Features for

Browsing and Retrieval of Image Data”, IEEE Trans.

Pattern Analysis and Machine Intelligence, vol. 18,

no. 8, pp. 837-842.

Larkin, KT, Martin, RR, McClain, SE, 2002, “Cynical

Hostility and the Accuracy of Decoding Facial

Expressions of Emotions”, J. Behavioural Medicine,

vol. 25, no. 3, pp. 285-292.

A REGION BASED METHODOLOGY FOR FACIAL EXPRESSION RECOGNITION

223
