AN EVOLUTIONARY APPROACH TO MULTIVARIATE FEATURE

SELECTION FOR FMRI PATTERN ANALYSIS

Malin

Aberg, Line L

oken and Johan Wessberg

Institute of Neuroscience and Physiology, G

oteborg University, Box 432, SE-40530 Goteborg, Sweden

Keywords:

fMRI, pattern recognition, feature selection, evolutionary algorithms.

Abstract:

Multivariate pattern recognition has recently gained in popularity as an alternative to univariate fMRI ana-

lyis, although the exceedingly high spatial dimensionality has proven problematic. Addressing this issue, we

have explored the effectiveness of evolutionary algorithms in determining a limited number of voxels that,

in combination, optimally discriminate between single volumes of fMRI. Using a simple multiple linear re-

gression classiﬁer in conjunction with as few as ﬁve evolutionarily selected voxels, a subject mean single trial

binary prediction rate of 74.3% was achieved on data generated by tactile stimulation of the arm compared

to rest. On the same data, feature selection based on statistical parametric mapping resulted in 63.8% correct

classiﬁcation. Our evolutionary feature selection approach thus illustrates how, using appropriate multivariate

feature selection, surprising amounts of information can be extracted from very few voxels in single volumes

of fMRI. Moreover, the resulting voxel discrimination relevance maps (VDRMs) showed considerable overlap

with traditional statistical activation maps, providing a model-free alternative to statistical voxel activation

detection.

1 INTRODUCTION

We recently showed that the evolutionary algorithm

is an effective tool for classiﬁer and feature subset

optimization for single-trial discrimination of electro-

encephalography (EEG) (

Aberg and Wessberg, 2007).

In this study, we extend our approach to functional

magnetic resonance imaging (fMRI).

Similar to the EEG, fMRI data is non-stationary,

multivariate, noisy and very high-dimensional. These

properties are typically dealt with by applying statis-

tical parametric mapping (SPM) methods, where the

average level of voxel activity is computed ofﬂine in a

univariate, model-based fashion (Friston et al., 1994).

However, by being univariate, the SPM-based

method is not appropriately sensitive to cognitive in-

formation that is encoded in the combined effect of

numerous voxels. Pattern recognition approaches, on

the other hand, provide tools that are multivariate,

that is, based on the combined effect of several vox-

els. Moreover, trained pattern classiﬁers can be used

in situations that demand real-time results, including

online detection and identiﬁcation of brain patterns.

Several recent studies have established the feasibility

of multivariate methods (Norman et al., 2006; Haynes

and Rees, 2006).

Due to the vast spatial dimensionality (in the or-

der of tens to hundreds of thousands of voxels), ef-

ﬁcient feature selection has been identiﬁed as a ma-

jor challenge in the development of pattern classiﬁca-

tion algorithms for fMRI (Norman et al., 2006). In

this study we therefore present an algorithm based on

evolutionary techniques, proven effective in numer-

ous optimization areas, including feature subset se-

lection (Hussein, 2001; Reeves and Rowe, 2002), that

detects which number and combination of individual

voxels that optimally carry information relevant to a

stimulus. These voxels are used as features in a classi-

ﬁer, and we have chosen to use rudimentary multiple

linear regression (MLR) to show that even a very sim-

ple classiﬁcation scheme can detect and distinguish

relevant cortical information in noisy fMRI data given

proper feature selection.

Our algorithm also generates a voxel selection

302

ËŽAberg M., Löken L. and Wessberg J. (2008).

AN EVOLUTIONARY APPROACH TO MULTIVARIATE FEATURE SELECTION FOR FMRI PATTERN ANALYSIS.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 302-307

DOI: 10.5220/0001064203020307

 SciTePress

frequency ranking, illustrating how relevant each

voxel is in discriminating between given patterns.

This ranking can be presented slicewise as a two-

dimensional image, or what we propose to call a voxel

discrimination relevance map (VDRM), showing the

anatomical location of brain regions involved in the

stimulus.

In this study we thus aim to evaluate the effective-

ness of the evolutionary approach in automatic voxel

subset selection, aspiring to improve single-volume

discrimination of cortical patterns. We also explore

how the results compare with established statistical

methods for detecting activated areas of the brain.

The data is acquired from a tactile stimulation exper-

iment where the physiology of brain activation is rea-

sonably well understood (Olausson et al., 2002). Part

of the ﬁndings have been previously presented in ab-

stract format (

Aberg et al., 2006).

2 METHODS

Data Acquisition and Paradigm

A 1.5 T fMRI scanner (Philips Intera, Eindhoven,

Netherlands) with a sense head coil (acceleration fac-

tor 1) and a BOLD (blood oxygenation level depen-

dent) protocol with a T2*-weighted gradient echo-

planar imaging sequence (TR 3.5 s; TE 51 ms; ﬂip an-

gle 90

◦

) was used to acquire brain scans in six healthy

human volunteers. The scanning planes (6 mm thick-

ness, 2.3 x 2.3 mm in-plane resolution) were oriented

parallel to the line between the anterior and posterior

commissure and covered the brain from the top of the

cortex to the base of the cerebellum. Each scan vol-

ume contained 25 slices at a spatial resolution of 128

x 128 voxels.

Following cues from the scanner, an experimenter

stroked a 7 cm wide soft brush over a 16 cm distance

in the distal direction on the right arm. Each brushing,

lasting 3.5 seconds (one single scan volume), was re-

peated three times and rest periods of equal duration

were interleaved. The Regional Ethical Review Board

at Goteborg University approved the study, and the

experiments were performed in accordance with the

Declaration of Helsinki.

Data Pre-processing

Data pre-processing was carried out with soft-

ware developed at the Montreal Neurologi-

cal Institute (Montreal, Canada; available at

http://www.bic.mni.mcgill.ca/software/). Functional

data were motion corrected and low-pass ﬁltered with

a 6 mm full-width half-maximum Gaussian kernel.

Slices and voxels not containing brain matter were

discarded. To correct for hemodynamic delay, the re-

maining data (slices 2-20) was shifted by one volume.

An arm/rest data set containing 456 3.5 second pat-

terns of each class was formed per subject and slice,

and the samples were linearly normalized to the range

[0 1]. The ﬁrst 80% of the patterns were randomized

and used in the evolutionary process (training data).

The remaining volumes were exclusively used in esti-

mating the prediction accuracy on already optimized

classiﬁers (validation data).

Feature Selection using Evolutionary Algorithms

An evolutionary algorithm is an optimization scheme

inspired by Darwinian evolution (Reeves and Rowe,

2002). The aim of the algorithm in this study is to se-

lect a limited number of voxels that, in combination

with a classiﬁer, are maximally optimal in discrimi-

nating between the brain states induced by brushing

on the skin compared to rest.

Tournament selection is used here, where, for each

parent, a subset of individuals is randomly chosen

from the population and the ﬁttest of these is selected.

The tournament size is set to a third of the total popu-

lation size. Reproduction is asexual, meaning that the

offspring is identical copies of the parents.

The ﬁtness is computed as the proportion of cor-

rectly classiﬁed patterns using multiple linear regres-

sion. In order to avoid overﬁtting, the classiﬁer pa-

rameters are established on the training data, whereas

a designated 25% of the training data (termed testing

data) is used for ﬁtness computation.

The only mutation operation is substitution of a

voxel in the individual voxel subset with another, un-

used voxel. The frequency of mutation is regulated by

a constant mutation rate parameter.

Due to the stochastic nature of evolutionary algo-

rithms and the low signal-to-noise levels in the data,

the algorithm is unlikely to evolve the same voxel sub-

set at every attempt. To achieve robust results, the

algorithm is thus run numerous times.

The algorithm was implemented in Matlab (The

Mathworks, Massachusetts, USA) and C on a stan-

dard PC by one of the authors (M.

Aberg).

Brain State Discrimination Performance

The prediction accuracy was evaluated on the valida-

tion data using the classiﬁer and voxels from the run

that achieved best results on the training and testing

data. A discrimination accuracy of 50% corresponds

to chance.

AN EVOLUTIONARY APPROACH TO MULTIVARIATE FEATURE SELECTION FOR FMRI PATTERN

ANALYSIS

303

For comparison, the prediction accuracy using the

voxels with highest activation according to a statisti-

cal parametric mapping (SPM) method was also de-

termined. To this end, a statistical reference analysis

was performed on the training data (Worsley et al.,

2002).

Voxel Discrimination Relevance Maps

By aggregating the best feature subsets from each al-

gorithm run a voxel discrimination relevance ranking,

specifying the number of times each voxel has been

selected, can be obtained. This can be presented as a

slicewise two-dimensional voxel discrimination rele-

vance map (VDRM).

In order to mimic a classic block-design study

for comparison with the univariate SPM approach, all

data were used in the training process and there was

no prediction involved when generating the VDRMs.

3 RESULTS

Brain State Prediction Performance

The classiﬁcation algorithm was applied to all sub-

jects individually using ﬁve voxels and 500 runs. The

prediction accuracies are well above chance (ﬁgure

1); a subject mean maximum prediction accuracy of

74.34% (range 65.79%-81.58%) was achieved. Us-

ing the ﬁve most active voxels as judged by the SPM

analysis, the subject mean maximum prediction ac-

curacy was signiﬁcantly lower at 63.81% (Wilcoxon,

p=0.031; range 59.21-73.68%). Random classiﬁca-

tion results in a prediction rate of 50%. Measuring the

prediction success in terms of information bits (Krip-

pendorf, 1986; Laubach et al., 2000), the difference

between methods is even more apparent: the SPMt-

based subject mean result is 0.094 bits (range 0.025-

0.22 bits), whereas the EA-based approach achieves

more than the double at 0.21 bits (range 0.077-0.32

bits).

The primary and secondary sensory cortices (SI

and SII), expected to be activated by tactile stimuli,

are approximately found in slices 4-7 and 11-12 (slice

numbers in the dorsal-ventral direction). As shown

in the bar chart in ﬁgure 2, the subject mean predic-

tion accuracies obtained in these slices are markedly

higher than in less relevant slices. Interestingly, the

prediction trend is clearly similar to the behavior of

the highest |SPMt|-value, a measure of brain activa-

tion (ﬁgure 2). It should be noted, however, that all

data is analyzed individually in native space rather

than at group level and that any anatomical congru-

ence between subjects is approximate at best.

1 2

|SPMt|-based

EA-based

prediction accuracy (%)

subject

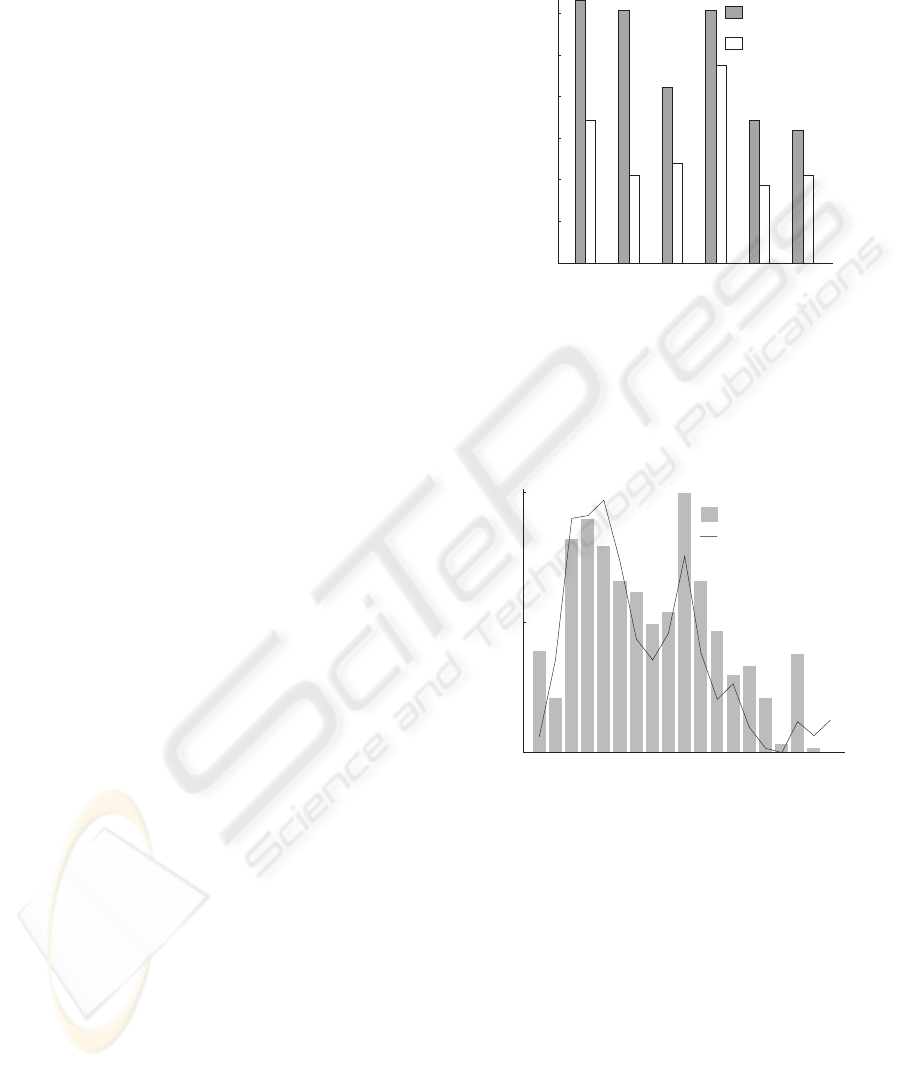

Figure 1: Brain state prediction accuracies for all sub-

jects, as evaluated on the validation data set using the ﬁve

best voxels and corresponding classiﬁers obtained after 500

training runs. The prediction accuracy using the ﬁve most

activated voxels according to SPMt computations of the

training data is also shown. The level of chance is 50%.

slice number, dorsal-ventral direction –›

scaled measure

prediction accuracy

max |SPMt|-value

5 15 20

Figure 2: The subject mean brain state prediction perfor-

mance and maximum |SPMt|-values per slice. The two

variables show high correlation, and slices with voxels

where a BOLD response was expected (SI: slices 4-7, SII:

slices 11-12) show consistently higher values. The mea-

sures have been scaled to the range [0 1] within subjects to

emphasize trends.

Voxel Discrimination Relevance Maps

The VDRMs also show striking visual similarity to

the SPMt (ﬁgure 3), although the VDRMs appear less

noisy overall. SI (slices 5-6), for example, is detected

in the SPMt as well as in the VDRM. Similarly, the

location of SII (slices 11-12) and also the insular cor-

tex (slices 11), to which unmyelinated tactile afferents

project (Olausson et al., 2002), is clear from either

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

304

VDRM VDRM

SPM SPMSPM

VDRM

8.2-8.8

VDRM

SPMt

11 12

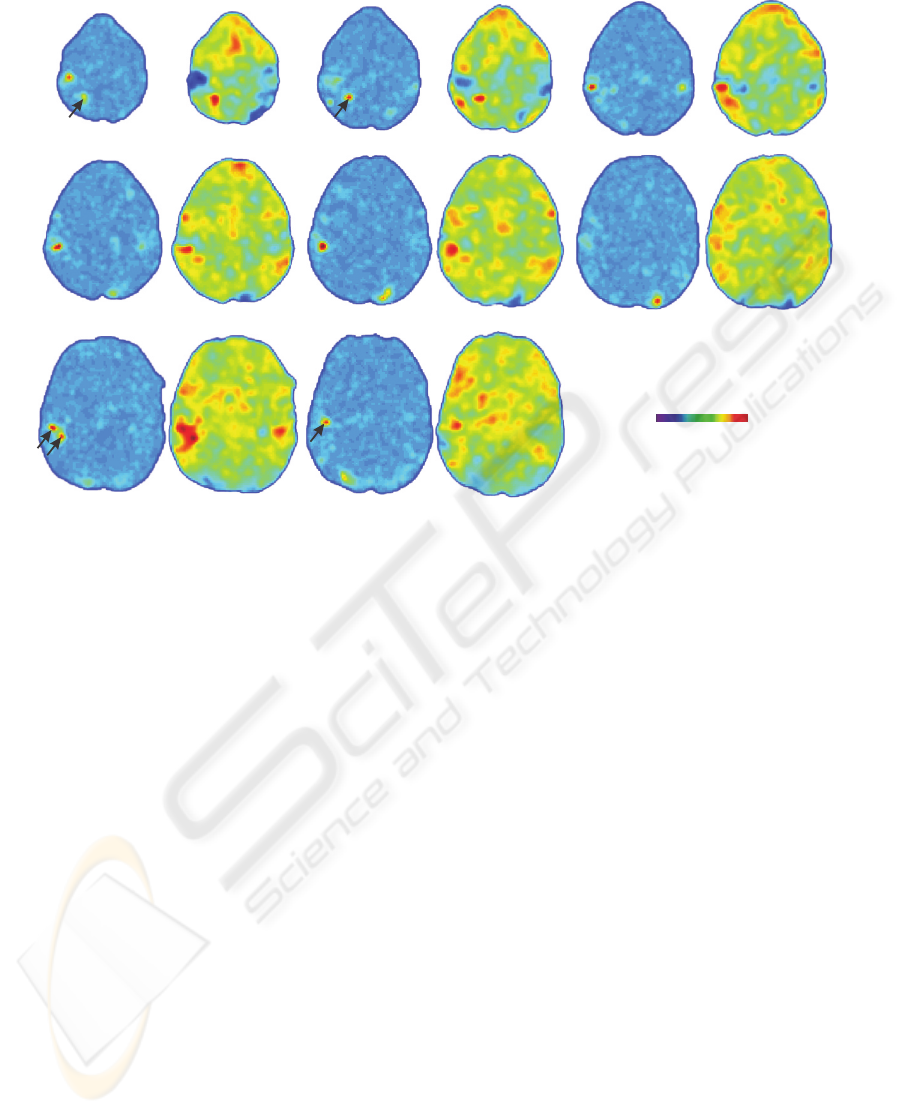

Figure 3: Voxel discrimination relevance maps for subject one, generated using ﬁve voxels over 500 runs, with corresponding

SPMts. The VDRMs and SPMts are clearly correlated. The right side of the images corresponds to the right side of the brain.

map. The SPMt also suggests several activated areas

that are not found in the VDRM. It should be noted,

however, that the SPMt maps are not thresholded, and

that all voxels with a |t|-value of less than 5.2 are

below the required signiﬁcance levels. The VDRM

appears to detect highly activated negative and posi-

tive BOLD responses equally well, but does not dis-

tinguish between them (e.g. slice 5).

The Rffect of Voxel Subset Size

Including as few as two evolutionarily selected vox-

els yields voxel discrimination relevance maps where

some visual correlation with the SPM is clear (ﬁg-

ure 4A). Further addition of voxels results in more

pronounced clustering at relevant sites, but also adds

noise. At 30 voxels the noise levels render the map

barely interpretable. Similarly, the subject mean

evolution-based prediction accuracy (ﬁgure 4B), in-

creases rapidly with the addition of up to three vox-

els, after which it levels out. Addition of more than 11

voxels decreases the performance drastically. SPMt-

based voxel selection behaves differently: the per-

formance for low numbers of voxels is poor, and in-

creases linearly with addition of voxels. Note that the

maximum number of available voxels is in the order

of thousands.

4 DISCUSSION

This study demonstrates the effectiveness of evolu-

tionary algorithms in selecting an optimal combina-

tion of voxels for highly accurate discrimination be-

tween single volumes of brain patterns — even in con-

junction with an exceedingly simple classiﬁer. Us-

ing as few as ﬁve evolutionarily selected voxels and

a standard multiple linear regression classiﬁer, a sub-

ject mean single-trial brain state prediction accuracy

of over 74% was achieved. Moreover, the voxel dis-

crimination relevance maps correlate clearly with sta-

tistical parametric maps, and the expected patterns

of brain activation were detected. Not surprisingly,

evolutionary feature selection achieved higher clas-

siﬁcation accuracy than voxel selection using SPM

ranking. The latter approach merely selects voxels

that show the largest individual average difference be-

tween brain states, whereas the evolutionary method

determines a combination of voxels that is tailored

for brain pattern discrimination. The feasibility of the

multivariate approach is further established by the fact

that the contribution of so little temporal and spatial

information — 3.5 seconds worth of data from only

ﬁve voxels — allows for accurate brain state predic-

tion. The maximum prediction accuracy using evolu-

tionary feature selection is achieved at drastically less

AN EVOLUTIONARY APPROACH TO MULTIVARIATE FEATURE SELECTION FOR FMRI PATTERN

ANALYSIS

305

2 voxels 4 voxels 10 voxels 18 voxels

SPMt

Number of voxels

Prediction

accuracy

2010

|SPMt|

SPMt

-8.88.2

VDRM

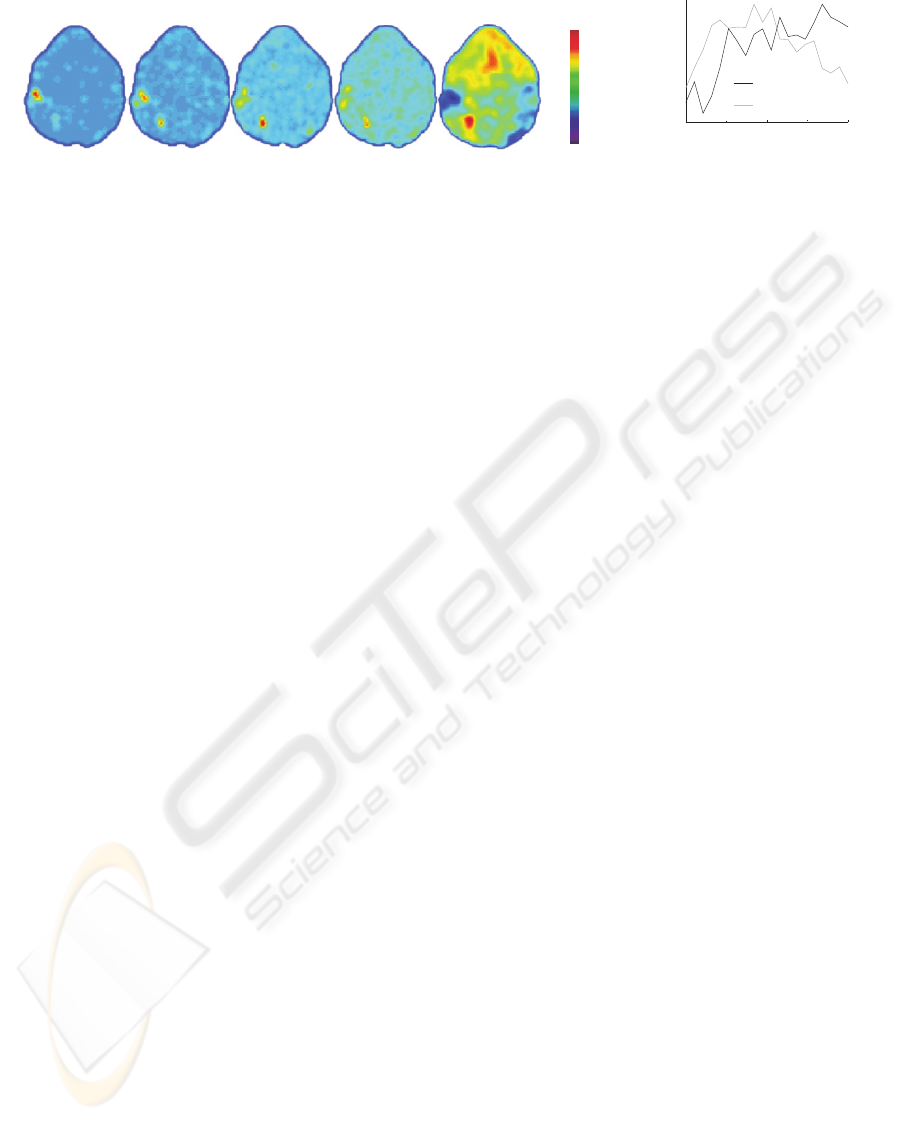

Figure 4: A: The effect of number of included voxels on the voxel discrimination relevance maps for subject one, slice

ﬁve. The maximum number of possible voxels is in the order of thousands. B: Subject mean evolutionary and SPMt-based

prediction accuracy as a function of voxels subset size. The SPMt-based feature selection peaks at 65 voxels. The data has

been scaled within subjects to the range [0 1] to emphasize trends.

voxels than the SPMt approach (ﬁgure 4), indicating

that a large number of SPMt voxels are irrelevant for

the discrimination task. In addition, univariate fMRI-

analysis requires averaging over time to overcome the

inherently low signal quality, and lacks any prediction

qualities.

Our approach is not limited to brain state identi-

ﬁcation, but also provides two distinct approaches to

information localization. The fact that the slicewise

prediction accuracy correlates very well with the cor-

responding maximum |SPMt|-value — the classical

method of detecting activation — is a clear indication

that the information revealed by the prediction perfor-

mance is physiologically related to the stimulus (ﬁg-

ure 2). The algorithm can be applied to voxel clusters

of any size and shape, deﬁned either beforehand or

through evolution, thus optimizing the classiﬁcation-

based information localization. Alternatively, the

voxel discrimination relevance maps serve as relative

activation detection charts, visually showing which

voxels are highly related to the stimulus. Signiﬁ-

cance levels akin to SPMt values can be computed

using boot-strap statistical methods, involving data

permutations, allowing for proper VDRM threshold-

ing (Efron and Tibshirani, 1993). Although not done

here, the algorithm can be applied to a whole head

volume, resulting in a global rather than slicewise

VDRM.

In combination with excessive amounts of data,

typical for fMRI studies, the time taken to run an

evolutionary algorithm can be staggering. However,

in our design the number of included voxels is very

small, and using a standard PC (3.20GHz processor,

3GB RAM) one ﬁve-voxel training run on one indi-

vidual (20 slices) takes only approximately 1.5 min-

utes, whereas the validation is done in (biological)

real-time. Furthermore, several reﬁnements can be

added to make the algorithm considerably more ef-

ﬁcient.

The multiple linear regression method used for

classiﬁcation in this study is sensitive to noise and

limited to linearly separable problems. In its sim-

plicity, however, the MLR effectively illustrates the

power of evolutionary algorithms in extracting rel-

evant information buried in substantial amounts of

noise. Pattern analysis using advanced non-linear al-

gorithms, such as artiﬁcial neural networks, have been

attempted and show promising results. Additional

discrimination algorithms, such as support vector ma-

chines and other state-of-the-art classiﬁers, can easily

be incorporated into the evolutionary scheme as re-

quired.

5 CONCLUSIONS

We have shown that evolutionary based multivoxel

feature selection is effective in extracting relevant

characterizing information from single volumes by

utilizing the multivariate properties of fMRI. More-

over, our approach provides a data-driven alternative

to voxel activation detection based on statistical meth-

ods.

ACKNOWLEDGEMENTS

This study was supported by the Swedish Research

Council (grant 3548), the Sahlgrenska University

Hospital (grant ALFGBG 3161), and the foundation

of Magnus Bergvall.

REFERENCES

Aberg, M., L

oken, L., and Wessberg, J. (2006). A multi-

variate pattern recognition approach to fMRI analysis

using linear classiﬁers combined with evolutionary al-

gorithms for voxel selection. Society for Neuroscience

36th Annual Meeting, Atlanta, USA, (492.11).

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

306

Aberg, M. and Wessberg, J. (2007). Evolutionary op-

timization of classiﬁers and features for single-trial

eeg discrimination. BioMedical Engineering OnLine,

6(1):32.

Efron, B. and Tibshirani, R. (1993). An introduction to the

bootstrap. Chapman & Hall Ltd.

Friston, K. J., Holmes, A. P., Worsley, K. J., Poline, J. P.,

Frith, C. D., and Frackowiak, R. S. J. (1994). Statisti-

cal parametric maps in functional imaging: A general

linear approach. Human Brain Mapping, 2(4):189–

210.

Haynes, J.-D. and Rees, G. (2006). Decoding mental states

from brain activity in humans. Nature Reviews Neu-

roscience, 7(7):523–534.

Hussein, F. (2001). Genetic algorithms for feature selec-

tion and weighting, a review and study. In ICDAR

’01: Proceedings of the Sixth International Confer-

ence on Document Analysis and Recognition, page

1240, Washington, DC, USA. IEEE Computer Soci-

ety.

Krippendorf, K. (1986). Information theory: Structural

models for qualitative data. Sage University Paper

Series on Quantitative Applications in the Social Sci-

ences.

Laubach, M., Wessberg, J., and Nicolelis, M. (2000). Corti-

cal ensemble activity increasingly predicts behaviour

outcomes during learning of a motor task. Nature,

405:567–571.

Norman, K. A., Polyn, S. M., Detre, G. J., and Haxby, J. V.

(2006). Beyond mind-reading: multi-voxel pattern

analysis of fmri data. Trends in Cognitive Sciences,

10(9):424–430.

Olausson, H., Lamarre, Y., Backlund, H., Morin, C., Wallin,

B. G., Starck, G., Ekholm, S., Strigo, I., Worsley, K.,

Vallbo, A. B., and Bushnell, M. C. (2002). Unmyeli-

nated tactile afferents signal touch and project to insu-

lar cortex. Nature Neuroscience, 5(9):900–904.

Reeves, C. R. and Rowe, J. E. (2002). Genetic Algorithms

- Principles and Perspectives: A Guide to GA Theory.

Kluwer Academic Publishers, Norwell, MA, USA.

Worsley, K. J., Liao, C. H., Aston, J., Petre, V., Duncan,

G. H., Morales, F., and Evans, A. C. (2002). A gen-

eral statistical analysis for fmri data. NeuroImage,

15(1):1–15.

AN EVOLUTIONARY APPROACH TO MULTIVARIATE FEATURE SELECTION FOR FMRI PATTERN

ANALYSIS

307
