SHORT-TERM CEPSTRAL ANALYSIS APPLIED TO VOCAL

FOLD EDEMA DETECTION

Silvana Cunha Costa

Federal Center of Techological Education of Paraíba-CEFET-PB, Federal University of Campina Grande-UFCG

Av.1º de Maio, 720, João Pessoa, Paraíba, Brazil

Benedito G. Aguiar Neto

Federal University of Campina Grande-UFCG, Intitute of Technology of Washington

University of Washington

Tacoma, USA

Joseana Macêdo Fechine

Federal University of Campina Grande-UFCG, Campina Grande,Paraíba, Brazil

Menaka Muppa

Intitute of Technology of Washington -University of Washington Tacoma, USA

Keywords: Acoustic voice analysis, speech processing, acoustic features, cepstral parameters, disordered voices,

speech pathology.

Abstract: Digital signal processing techniques have been used to perform an acoustic analysis for vocal quality

assessment due to the simplicity and the non-invasive nature of the measurement procedures. Their

employment is of special interest, as they can provide an objective diagnosis of pathological voices, and

may be used as complementary tool in laryngoscope exams. The acoustic modeling of pathological voices is

very important to discriminate normal and pathological voices. The degree of reliability and effectiveness of

the discriminating process depends on the appropriate acoustic feature extraction. This paper aims at

specifying and evaluating the acoustic features for vocal fold edema through a parametric modeling

approach based on the resonant structure of the human speech production mechanism, and a nonparametric

approach related to human auditory perception system. For this purpose, LPC and LPC-based cepstral

coefficients, and mel-frequency cepstral coefficients are used. A vector-quantizing-trained distance

classifier is used in the discrimination process.

1 INTRODUCTION

A great range of diseases causes modifications in the

voice. These are related to the vocal tract

pathologies, as well as many others which are

provoked by neuro-degenerative diseases (Davis,

1979; Quek et al, 2002).

Voice quality of patients have been evaluated by

several techniques, most of which are based on

listening to the patient's voice and on the inspection

of the vocal folds through laryngoscopy. The first

method is subjective, which could provide different

results, depending of the professional experience.

The second one has the advantage of being more

accurate, but it requires high cost tools such as

special light sources and specialized video-camera

equipments. In addition, it is considered an invasive

technique, which may cause discomfort to the

patients

Non-invasive techniques based on acoustic

analysis of the speech signal can be used to

110

Cunha Costa S., G. Aguiar Neto B., Macêdo Fechine J. and Muppa M. (2008).

SHORT-TERM CEPSTRAL ANALYSIS APPLIED TO VOCAL FOLD EDEMA DETECTION.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 110-115

DOI: 10.5220/0001066901100115

 SciTePress

diagnosis and evaluation of medical treatments of

diseases which provoke vocal disorders. Moreover,

acoustic analysis can be employed to the precocious

detection of pathologies in the vocal folds or the

evaluation of the vocal quality of patients subject to

surgical processes in the vocal folds.

Some researchers have dedicated their efforts for

obtaining efficient methods to discriminate normal

and pathological voices using acoustic analysis

(Godino-Llorente et al, 2006; Shama et al, 2007;

Murphy and Akande, 2007; Dibazar et al, 2006;

Umapathy et al, 2005). Those methods have

employed techniques based on the estimation of

glottal noise, feature extraction from decomposed

time-frequency parameters, linear prediction

modeling-based measures and measures based on

auditory modeling. However, there is limited

agreement on which parameters are more suitable

for acoustic modeling of particular pathology. An

efficient and reliable acoustic modeling of the

pathology is necessary, when pattern classification

of vocal disorders is being used. Thus, the vector of

acoustic characteristics of the pathological voice

should be carefully chosen to be quite

representative.

In this research, techniques of digital signal

processing are used to carry out an acoustic analysis

of pathological voice. The study is focused on the

case of voice disorders provoked by edemas in the

vocal folds, using the evaluation of following

features: LPC coefficients, LPC-based cepstral

coefficients and mel-frequency cepstral coefficients.

The irregularities in the features of the normal voice

in comparison with the pathological voice are

observed and analyzed. A vector quantization

technique (VQ) was used associated with a

distortion measurement to classify the speech signal.

The VQ was trained with voices affected by the

considered pathology.

The results can be used in order to build an

effective method basis for detecting pathological

voices. The outline of the paper is as follows: basis

for an acoustic modeling of disordered voices,

database and methods, results and conclusions.

2 ACOUSTIC MODELING BASIS

Feature extraction of speech signals is frequently

employed to acoustic evaluation of pathological

voices. Specific statistical parameters based on the

linear model of speech production can be used as

significant acoustic features. It is known that the

voice signal is produced as a result of glottal pulses

or a signal varying randomly, like noise excitation

filtered by the vocal tract (Rabiner and Schafer,

1978).

Vocal fold pathology such as vocal fold edema

affects the vocal fold or other components of the

vibratory system, producing an irregular vibration.

In fact, it is widely known that pathological vocal

folds can present variation in the cycle of the

vibratory movement because of changes in the vocal

folds elasticity. This occurs due to incomplete

closure of the vocal folds in all glottal cycles. The

changes in the vocal folds morphology can provoke

significant modifications to the acoustic signal.

Although the pathology is located in the vibratory

system it can affect the regular articulatory

movement during the speech production.

Furthermore, components of the resonating system

can be affected, resulting in changes of the vocal

shape, producing irregularities on the spectral

properties. A modification in the fundamental

frequency and on the spectral shape can be observed

as a result of the vocal disorders (Godino-Llorente et

al, 2006).

The understanding of changes in the acoustic

features involving excitation and resonance effects is

the key to an efficient disordered voices modeling.

The speech signal contains information about both

vocal tract and excitation source.

The handle of the variability present in the

speech signal is one of the main challenges of

acoustic modeling. The variability arises from the

dynamic nature of the vocal tract. Thus, speech is

dynamic or time-varying and the modeling needs to

consider two aspects: 1) the explicit temporal

dependencies of the pathological voice, and 2) the

estimation of the features have to be based on

statistical short-time analysis. The model has to

represent the irregularities behaviour introduced by

the pathology itself.

Two parametric methods based on the linear

model for the human speech production mechanism

approaches have been considered on the literature so

far: 1) linear predictive coding (LPC) analysis; 2)

LPC-based cepstral analysis (Godino-Llorente et al,

2006, Marinaki et al, 2004, Parsa and Jamieson,

2001; Gavidia-Ceballos, 1996).

The LPC estimates each speech sample based on

a linear combination of the p previous samples; a

larger p enables a more accurate model. It provides a

set of speech parameters that represent the vocal

tract (Rabiner and Schafer, 1978). It is expected that

any change in the anatomical structure of the vocal

SHORT-TERM CEPSTRAL ANALYSIS APPLIED TO VOCAL FOLD EDEMA DETECTION

111

tract, because of pathology, affects the LPC

coefficients. A linear predictor with p prediction

coefficients, α

is defined as a system whose output

() ()( )

nksnk

=−

∑

(1)

In the LPC-based cepstral analysis is considered

that speech signal is the result of convolving

excitation with vocal tract sample response by

cepstral analysis, and it is possible to separate the

two components. One step in cepstral deconvolution

transforms a product of two spectra into a sum of

two signals. In practice, the complex cepstrum is not

needed. The real cepstrum suffices, obtained with

digital algorithm as follows (Rabiner and Schafer,

1978; O’Shaugnessy, 2000):

( ) log[ ( )] 0,1,...., -1

jknN

cn X k e n N

−

∑

(2)

Cepstral coefficients can be computed

recursively from the linear predictor coefficients, α

by means of (Furui, 1981):

(1) (1)

() () (1 ) ( ) ( ) 1

ci i kci k i p

αα

⎧

=−

⎪

−

⎨

=− − − − < ≤

∑

⎪

⎩

(3)

Other authors have investigated the use of mel-

frequency cepstral (MFC) analysis which is a

measure based on the human auditory perception

system (O’Shaughnessy, 2000). A nonparametric

MFC-based approach can be derived from fast

Fourier transform (FFT-MFC) (Godino-Llorente et

al, 2006, Dibazar et al, 2006, Murphy and Akande,

2007, Bou-ghazale and Hansen, 2000).

Cepstrum analysis is based on the human

auditory perception system, which incorporates

some aspects of audition. This method provides a

logarithm relationship between the real and the

perceived frequency scales (mels). Mel-frequency

cepstral coefficients c(n) are calculated by means of

(O’Shaughnessy, 2000):

( ) log( ).cos[ ( )]. 0,1, ...., M,

cn S nk n

∑

=−=

(4)

where M is the number of mel bands in the mel scale

and S(k) is given by

( ) ( ). ( ) 1, ..., ,

NFFT

Sk W j X j k M

∑

(5)

where W

(j) is the triangular weighting windows

associated with the mel-scales, and X(j) is the NFFT-

point magnitude spectrum (Godino-Llorente et al,

2006, O’Shaughnessy, 2000).

A common model for the relationship between

frequencies in mel and linear scales is as follows

(O’Shaughnessy, 2000):

()

2595 log (1 ),

700

linear

mel

FHz

F =⋅ +

(6)

where F

linear

is the linear frequency (in Hertz), and

mel

is the perceived frequency (in Mel).

3 DATABASE AND METHODS

The database used in this work was recorded by the

Massachusetts Eye and Ear Infirmary (MEEI) Voice

and Speech Lab (Kay Elemetrics, 1994). It includes

more than 1,400 voice samples (i.e., sustained /a/)

from approximately 700 subjects. The database

including samples from patients with a wide variety

of voice disorders, was collected in a controlled

environment with the following features: low-noise-

level, constant microphone distance, direct digital

16-bit sampling and robust signal conditioning.

Sampling rates of 25 kHz (pathological voices) or

50 kHz (normal voices) were employed. The normal

voice signals were downsampled to 25 kHz, to

maintain the same sample frequency to all signals.

The selected cases of people presenting edemas

in the vocal folds are: 33 women (17 to 85 years old)

and 11 men (23 to 63 years old), most of them (32)

with bilateral edema. The database of normal voices

is composed of 53 patients - 21 male (26 to 59 years

old), and 32 female (22 to 52 years old). We also

used 23 signals, under other pathologies, such as

cysts, nodules and paralysis (07 male and 16 female

voices).

First, a 20 ms Hamming window with an overlap

of 50% is employed to obtain frames from the

dataset for the short-term voice analysis.

A Vector Quantization technique is employed in

the classification process, associated with a

distortion measurement to discriminate among

voices affected by vocal fold edema, normal voices

and voices presenting other vocal fold pathologies.

The Vector Quantization is carried out individually

for each feature using just voices under vocal fold

edema. Thus, different VQ-trained distance

classifiers are obtained by the discrimination

process. The VQ-classifiers are applied to static

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

112

feature vectors, which are computed for every 10 ms

frame of the speech samples over a dynamic input

sustained vowel /a/.

A codebook is generated, after the feature

extraction, consisting of N discrete level generation

that each input vector could assume. An N-level

vector quantizer can be defined as a mapping Q of a

K-dimensional Euclidean space R

into a finite

subset W of R

, such as Q:R

→W.

The codebook W={w

; i=1, 2, ….N} is the set of

codevectors, K is the dimension of the quantizer and

N is the number of codevectors in W.

The mapping Q assigns to a K-dimensional real-

valued input vector x a K-dimensional codevector

=Q(x). VQ defines a partitioning of the K-

dimensional Euclidean space into non-intercepting

cells S

= {x : Q(x) = w

}, i = 1, 2, …, N.

As the Voronoi cell, S

, collects together all input

vector mapping to the i-th codevector, the

codevector w

may be viewed as a pattern-class label

of the input patterns belonging to S

The mapping of the input vector x to a

codevector w

occurs if the distortion function is

such as d(x,w

) < d(x,w

∀

≠

It follows the nearest neighbour rule is applied to

find the codevector that presents the greatest

similarity to x. In this work, LBG algorithm and the

least mean square distance were used (Linde et al,

1980).

4 RESULTS AND DISCUSSION

To reduce the dimensionality of feature vectors, a

Vector Quantizer (VQ) to each parameter was

employed, using dimension K=12 and N=64 levels.

The VQ was trained with 20 voice signals under

vocal fold edema. In the test phase 53 normal voices,

24 signals under vocal fold edema and 23 speech

signals of speakers, affected by other vocal fold

pathologies as nodules, cysts and paralysis, were

used. The Euclidean distance measure to classify the

signals was used to analyze the effect of pathologies

in vocal tract response. For this purpose, LPC,

cepstral and mel-cepstral coefficients were extracted

from the database signal.

A predictor order p=12 was applied the LPC

analysis. The LPC coefficients were obtained using

the autocorrelation method by Levinson-Durbin

algorithm (Rabiner and Schafer, 1978). Figure 1

shows the distribution of vocal fold edema, normal

voices and other pathologies. It is clear the excellent

separation of the two classes analyzed: normal

voices and voices affected by vocal fold edema. This

results in a high correct rejection rate. In

comparison, the edema behaviour and the other

pathologies have a certain similarity that suggests

difficulties in recognizing each pathology.

A threshold value to provide the best separation

between the classes in the classification process was

chosen. For cepstral analysis it was used an

algorithm based on Eq. (3). A number of 12

coefficients were obtained and the same process of

quantization used to LPC method was employed.

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1 3 5 7 9 11131517192123252729313335373941434547495153

Distort ion

Voice signals

other pathologies normal vocal fold edema

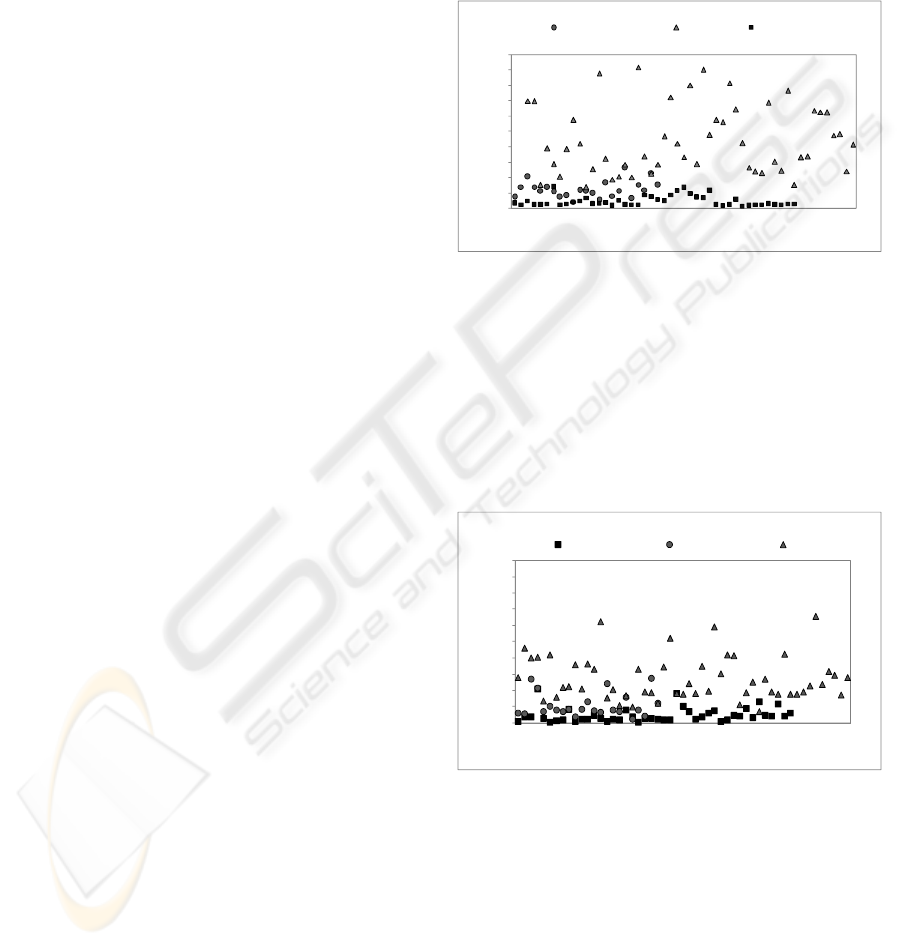

Figure 1: Distortion behaviour for normal, vocal fold

edema and other pathologies, obtained by Euclidian

distortion on LPC method.

The behaviour of classes, on cepstral

analysis, is shown in Figure 2. The graphic provides

a great way to observe the relevance of each

parameter in classifying a pathological voice. The

good separation of normal and pathological voices is

well defined as in LPC method.

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53

Distort ion

Voice signals

vocal f old edema ot her pathologies normal

Figure 2: Distortion behaviour for normal, vocal fold

edema and other pathologies obtained by Euclidian

distortion on cepstral method.

The number of filter bank bands employed to

MFCC method was 30 (3ln(Fs), where Fs is the

sampling frequency (Fs = 25kHz) and a number of

12 MFC coefficients were obtained as described in

section 2. An algorithm of Voicebox - Speech

Processing Toolbox for MATLAB

(http://www.ee.ic.ac.uk/hp/staff/dmb/voicebox) was

used.

SHORT-TERM CEPSTRAL ANALYSIS APPLIED TO VOCAL FOLD EDEMA DETECTION

113

The behaviour of classes in mel-cepstral method is

presented in Fig. 3. In this method, as in the others, it has a

good separation of normal and pathological voices.

However, the differences among the pathologies are not

evident. LPC and cepstral methods seem to be better in

representing the pathologies specificities.

0,05

0,1

0,15

0,2

0,25

0,3

0,35

0,4

0,45

1357911131517192123252729313335373941434547495153

Distort ion

Voice signals

other pathologies normal vocal fold edema

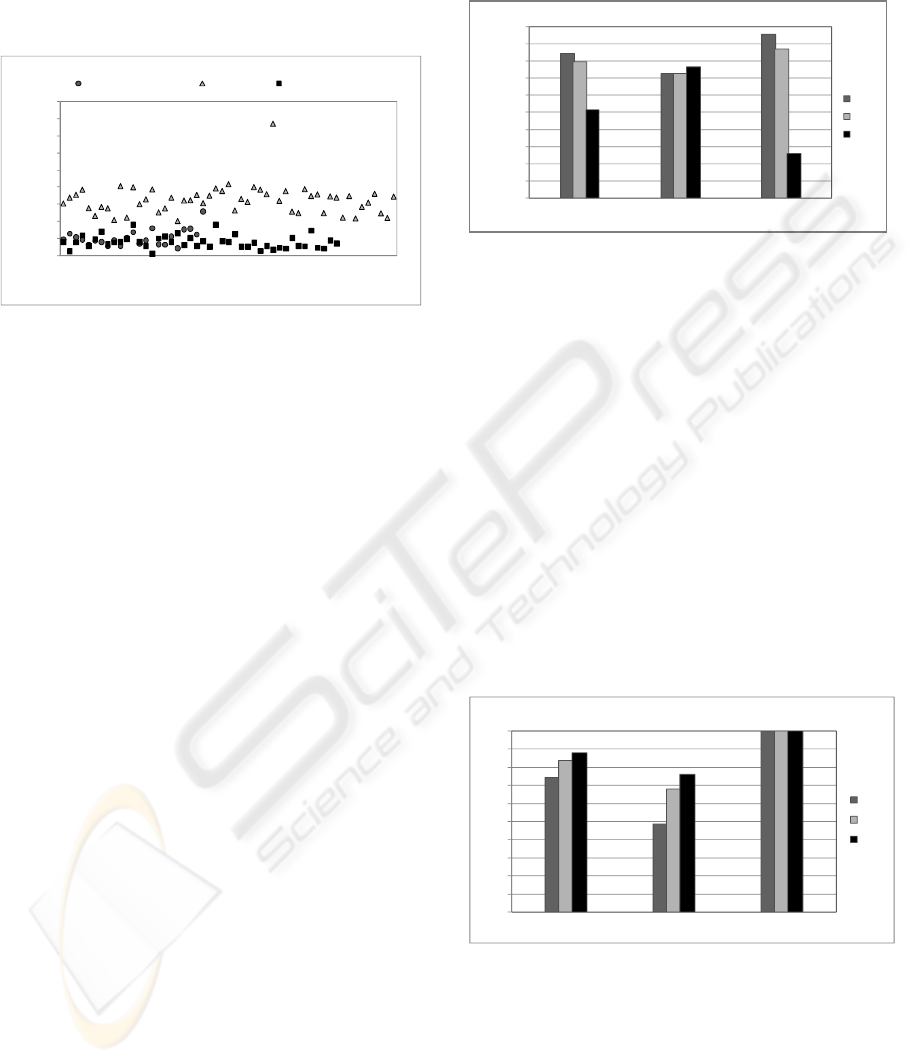

Figure 3: Distortion behaviour for normal, vocal fold

edema and other pathologies obtained by Euclidian

distortion on mel-cepstral method.

The evaluation of performance was made by the

use of the following measurements: 1) Correct

acceptance rate (CA), in which the presence of the

pathology is detected when that is really present; 2)

Correct rejection (CR), that gives the rate of the

detection of the correct absence of the pathology; 3)

False acceptance rate (FA) that detects the presence

of the pathology when it is not present; 4) False

rejection rate (FR), that quantifies the rejection of

the presence of the pathology when, in fact, it is

present.

Related to the rates mentioned it was computed:

• Specificity - SP: represents the likelihood that

the pathology is detected when it is present,

given by SP=CR/(CR+FA)x100.

• Sensitivity – SE: represents the likelihood that

the pathology is detected when it is present,

obtained by SE(%)=(CA/(CA+FR)x100.

• Efficiency-E: gives the correct classification of

a given class when that is present given as

E(%)=(CR+CA)/(CR+CA+FA+FR)x100.

Figure 4 presents results to the measurements

above obtained for the three applied methods

considering other pathologies as a separate class of

edema. It is seen that LPC gives the best method.

However, the false rejection rate obtained for this

method was 27%. It is important to emphasize that

the classifier was trained to accept vocal fold edema

signals and reject any other signal as being

pathological.

It is also observed that mel-cepstral method was

not efficient in discriminating each pathology class.

Mel-cepstral analysis represents the perceptual

auditory aspect that is similar in some vocal fold

pathologies as nodule, cyst and edema.

100

E ( %) SE ( %) SP ( %)

LPC

CEP

MEL

Figure 4: Performance evaluation considering vocal fold

edema and the other pathologies as different classes.

The hoarseness and severely noisy-speech are

some of common aspects that occur to speakers

affected by the mentioned pathologies. The ability of

MFCC method in representing the irregular

vibration of vocal folds is common in the

pathologies in this study and it is reflected on the

results. The behaviour of the pathological signals is

similar in mel-cepstral domain. Therefore, to

discriminate pathologies occurring on vocal folds is

not an easy task.

Figure 5 shows a comparison of the LPC,

cepstral and mel-cepstral methods, when using the

classifier to all pathologies in the same classes. It is

clear that mel-cepstral method is better than the

other methods in representing the behaviour

differences of the pathological signals relating to

normal cases.

100

E ( %) SE ( %) SP ( %)

LP C

CEP

MEL

Figure 5: Performance evaluation considering vocal fold

edema and the other pathologies in the same class.

The ability of methods employed in rejecting

correctly the classes out of classifier training class is

excellent (SP).

Figure 6 shows results obtained for Specificity,

Efficiency and Sensitivity comparing pathological

voices under vocal fold edema and normal voices.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

114

The other pathologies are not considered here. The

ability of FFT-MFCC in modeling the irregular

vibration of the vocal folds provoked by the

pathology is shown in the results. Good results are

also obtained to LPC and cepstral analysis.

100

E ( % ) SE( %) SP ( %)

LPC

CEP

MEL

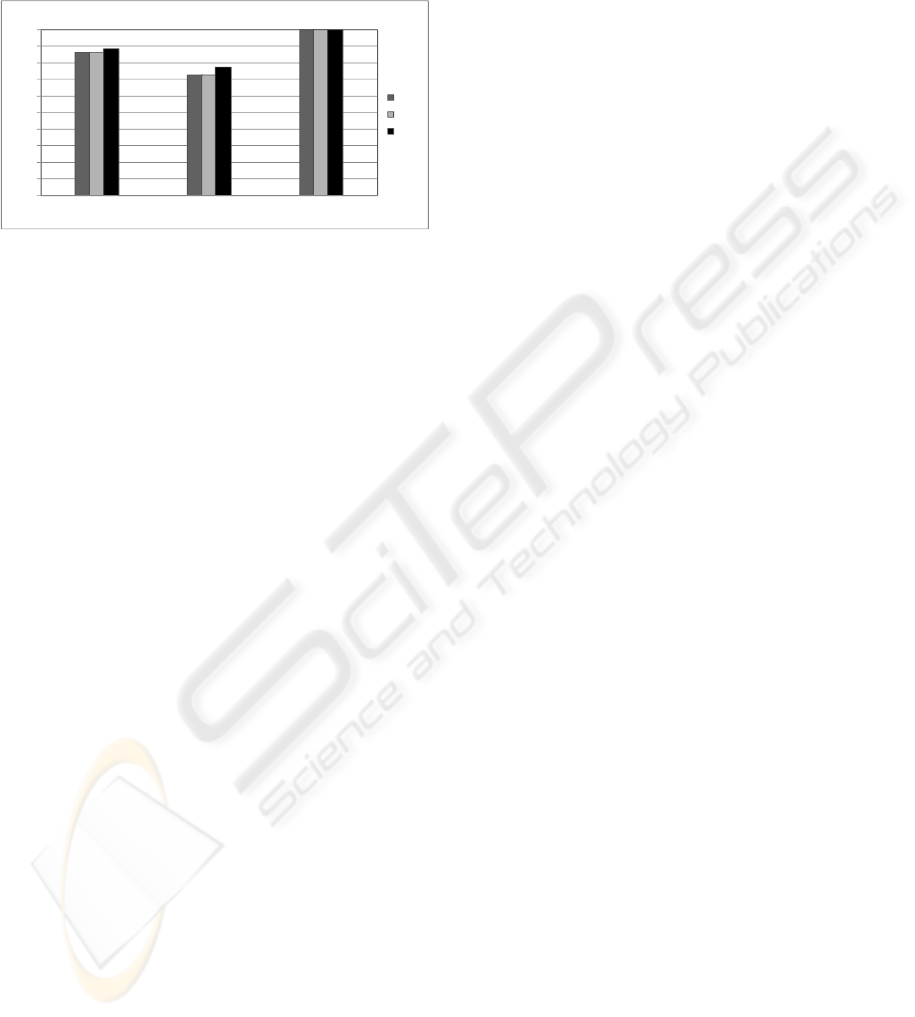

Figure 6: A comparison of the performance evaluation of

LPC, cepstral and mel-cepstral analysis to the cases of

vocal fold edema and normal voices.

5 CONCLUSIONS

The changes on LPC, cepstral and mel-cepstral

coefficients describe the abnormal behaviour of the

vocal folds movements caused by the pathologies.

The efficiency in characterizing pathological voices

using short-time cepstral analysis is well described

by results.

It is noted that mel-cepstral coefficients are very

good to detect the presence of pathology. They

provide a good separation of normal and

pathological voices. However, this method is not

efficient in discriminating distinct pathologies. The

differences among pathologies which belong to

similar class of diseases are not evident. LPC and

cepstral methods seem to be better in representing

the pathologies specificities.

In order to improve the performance of the

classification process, two aspects are suggested: 2)

the use of non-linear analysis to improve the

acoustic modeling of non-linear characteristics

inherent to speech signal, and 2) the employment of

other classifiers based on Artifitial Neural Networks

or Hideen Markov Models, for example.

REFERENCES

Bou-Ghazale, S.E., Hansen, J.H.L., 2000. A Comparative

Study of Traditional and Newly Proposed Features for

Recognition of Speech Under Stress. IEEE

Transactions on Speech & Audio Processing. Vol. 8,

no. 4, pp. 429-442, July.

Davis, S. B, 1979. Acoustic Characteristics of Normal and

Pathological Voices. Speech and Language: Advances

in Basic Research and Practice. Vol. 1, pp. 271–335.

Dibazar, A. A., Berger, T.W., and Narayanan, S. S., 2006.

Pathological Voice Assessment. Proceedings of the

28th IEEE EMBS Annual International Conference.

New York, USA, Aug. 30-Sept. 3.

Furui, S., 1981. Cepstral Analysis Technique for

Automatic Speaker Verification. IEEE Transactions

on Acoustics, Speech and Signal Processing. Vol. 29,

No. 2, pp 254-272, April.

Gavidia-Ceballos, Liliana and Hansen, John H. L., 1996.

Direct Speech Feature Estimation Using an Interactive

EM Algorithm for Vocal Fold Pathology Detection.

IEEE Trans. on Biomedical Engineering. Vol. 43, No.

4, April.

Godino-Llorente, J. I., Gomes-Vilda, P. and Blanco-

Velasco M., 2006. Dimensionality Reduction of a

Pathological Voice Quality Assessment System Based

on Gaussian Mixture Models and Short-Term Cepstral

Parameters. IEEE Transactions on Biomedical

Engineering. Vol. 53, No. 10, pp. 1943-1953, October,

Kay Elemetrics Corp. Disordered Voice Database, 1994.

Model 4337, 03 Ed.

Linde, Y., Buzo, A., and Gray, R. M., 1980. An Algorithm

for Vector Quantizer Design, IEEE Transaction on

Communications. Vol. COM-28, N0.I, pages 84-95,

January.

Marinaki, M., Contropoulos, C., Pitas, I., and Maglaveras,

N., 2004. Automatic Detection of Vocal Fold

Paralysis and Edema, Proc. of 8th Conf. Spoken

Language Processing (Interspeech 2004). Jeju, Korea,

October.

Murphy, Peter J. and Akande, Olatunji O., 2007. Noise

Estimation in Voice Signals Using Short-term

Cepstral, Journal of the Acoustical Society of America.

pp. 1679-1690, Vol. 121, No. 3, March.

O’Shaughnessy, Douglas, 2000. Speech Communications:

Human and Machine. 2nd Edition, NY, IEEE Press.

Parsa, Vijay and Jamieson, Donald G., 2001. Acoustic

Discrimination of Pathological Voice: Sustained

Vowels versus Continuous Speech. Journal of Speech,

Language, and Hearing Research. Vol. 44, pp 327–

339, April.

Quek, F., M. Harper, Haciahmetoglou, Y., Chen, L. and

Raming, L. O., 2002. Speech pauses and gestural

holds in Parkinson´s disease. Proceedings of

International Conference on Spoken Language

Processing. pp. 2485-2488.

Rabiner L. R. and Schafer R. W., 1978. Digital Processing

of Speech Signals. New Jersey: Prentice-Hall.

Shama, K., Krishna, A. and Cholayya, N. U., 2007. Study

of Harmonics-to-Noise Ratio and Critical-Band

Energy Spectrum of Speech as Acoustic Indicators of

Laryngeal and Voice Pathology. EURASIP Journal on

Advances in Signal Processing. Vol. 2007.

Umapathy, K., Krishnan, S., Parsa, V., and Jamieson D.,

2005. G. Discrimination of Pathological Voices Using

a Time-Frequency Approach.

IEEE Transactions on

Biomedical Engineering. Vol. 52, No. 3, March.

SHORT-TERM CEPSTRAL ANALYSIS APPLIED TO VOCAL FOLD EDEMA DETECTION

115
