EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION

OF SPEECH

Szu-Chen Stan Jou and Tanja Schultz

International Center for Advanced Communication Technologies

Carnegie Mellon University, Pittsburgh, PA, USA

Karlsruhe University, Karlsruhe, Germany

Keywords:

Electromyography, Speech Recognition, Articulatory Feature, Feature Extraction.

Abstract:

In this paper, we present our research on automatic speech recognition of surface electromyographic signals

that are generated by the human articulatory muscles. With parallel recorded audible speech and electromyo-

graphic signals, experiments are conducted to show the anticipatory behavior of electromyographic signals

with respect to speech signals. Additionally, we demonstrate how to develop phone-based speech recogniz-

ers with carefully designed electromyographic feature extraction methods. We show that articulatory feature

(AF) classiﬁers can also beneﬁt from the novel feature, which improve the F-score of the AF classiﬁers from

0.467 to 0.686. With a stream architecture, the AF classiﬁers are then integrated into the decoding framework.

Overall, the word error rate improves from 86.8% to 29.9% on a 100 word vocabulary recognition task.

1 INTRODUCTION

As computer technologies advance, computers have

become an integral part of modern daily lives and our

expectations for a user-friendly interface grow every-

day. Automatic speech recognition (ASR) is one of

the most efﬁcient front-end for human-computer in-

terface because it is natural for humans to commu-

nicate through speech. ASR is an automatic com-

puterized speech-to-text process which converts hu-

man speech signals into written words. It has vari-

ous applications, such as voice command and control,

dictation, dialog systems, audio indexing, speech-to-

speech translation, etc. However, these ASR applica-

tions usually do not work well in noisy environments.

Besides, they usually require the user to speak aloud,

which may be disturbing to bystanders and brings up

concern of privacy loss. In this paper, we describe our

research of integrating signals based on electromyog-

raphy with traditional acoustic speech signals for the

purpose of speech recognition.

The input speech signal of the traditional ASR

process is usually recorded with a microphone, e.g., a

close-talking headset or a telephone. However, from

the ASR point of view, microphone recordings of-

ten suffer from ambient noise or in other words the

noise robustness issue, because microphones pick up

vibration from the air-transmitted channel; therefore,

while picking up air vibration generated by human

voices, microphones also pick up air-transmitted am-

bient noises. In most cases, ambient noise deterio-

rates the ASR performance and the decrease in perfor-

mance depends on how badly the original voice signal

has been corrupted by noise. Besides the noise ro-

bustness issue, microphone-based ASR often has ap-

plicability issues, by which we mean that it is often

suboptimal to use microphones as the input device of

speech applications in certain situation. For exam-

ple, in an on-line shopping system, it is often required

to input conﬁdential information such as credit card

numbers, which may be overheard if the user speak

aloud via the air-transmitted channels. Usually this

kind of overhearing results in conﬁdentiality or pri-

vacy infringement. Besides, another issue of applica-

bility is that speaking aloud usually annoys other peo-

ple. Just imagine how annoying it would be if your

ofﬁcemate spends all day dictating to the computer to

write a report, let alone many people dictate simulta-

neously.

In order to resolve the noise robustness and the ap-

plicability issues, we have applied electromyographic

(EMG) method to our speech recognition research.

The motivation is that the EMG method is inherently

robust to ambient noise and it enables silent speech

recognition to avoid disturbance and conﬁdentiality

issues. The EMG method measures muscular electric

potential with a set of electrodes attached to the skin

where the articulatory muscles underlie. In the physi-

Stan Jou S. and Schultz T. (2008).

EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION OF SPEECH.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 3-12

DOI: 10.5220/0001067100030012

 SciTePress

ological speech production process, as we speak, neu-

ral control signals are transmitted to articulatory mus-

cles, and the articulatory muscles contract and relax

accordingly to produce voice. The muscle activity

alters the electric potential along the muscle ﬁbers,

and the EMG method can measure this kind of po-

tential change. In other words, the articulatory mus-

cle activities result in electric potential change, which

can be picked up by EMG electrodes for further sig-

nal processing, e.g., speech recognition. The EMG

method is inherently robust to ambient noise because

the EMG electrodes contact to the human tissue di-

rectly without the air-transmission channel. In ad-

dition, the EMG method has better applicability be-

cause the EMG method makes it possible to recognize

silent speech, which means mouthing words without

making any sound.

For silent speech recognition with EMG, Man-

abe et al. ﬁrst showed that it is possible to recog-

nize ﬁve Japanese vowels and ten Japanese isolated

digits using surface EMG signals recorded with elec-

trodes pressed on the facial skin (Manabe et al., 2003;

Manabe and Zhang, 2004). EMG has been a use-

ful analytic tool in speech research since the 1960’s

(Fromkin and Ladefoged, 1966), and the recent appli-

cation of surface EMG signals to automatic speech

recognition was proposed by Chan et al. They fo-

cused on recognizing voice command from jet pi-

lots under noisy environment, so they showed digit

recognition in normal audible speech (Chan et al.,

2002). Jorgensen et al. proposed sub auditory speech

recognition using two pairs of EMG electrodes at-

tached to the throat. Sub vocal isolated word recogni-

tion was demonstrated with various feature extraction

and classiﬁcation methods (Jorgensen et al., 2003;

Jorgensen and Binsted, 2005; Betts and Jorgensen,

2006). Maier-Hein et al. reported non-audible EMG

speech recognition focusing on speaker and session

independency issues. (Maier-Hein et al., 2005).

However, these pioneering studies are limited to

small vocabulary ranging from ﬁve to around forty

isolated words. The main reason of this limitation is

that the classiﬁcation unit is restrained to a whole ut-

terance, instead of a phone as a smaller and more ﬂex-

ible unit. As a standard practice of large vocabulary

continuous speech recognition (LVCSR), the phone

is a natural unit based on linguistic knowledge. From

the pattern recognition’s point of view, the phone as

a smaller unit is preferred over a whole utterance be-

cause phones get more training data per classiﬁcation

unit for more reliable statistical inference. The phone

unit is also more ﬂexible in order to constitute any

pronunciation combination of words as theoretically

unlimited vocabulary for speech recognition. With

the phone unit relaxation, EMG speech recognition

can be treated as a standard LVCSR task and we can

apply any advanced LVCSR algorithms to improve

the EMG speech recognizer.

In this paper, we introduce such an EMG speech

recognition system with the following research as-

pects. Firstly, we analyze the phone-based EMG

speech recognition system with articulatory features

and their relationship with signals of different EMG

channels. Next, we demonstrate the challenges of

EMG signal processing with the aspect of feature

extraction for the speech recognition system. We

then describe our novel EMG feature extraction meth-

ods which makes the phone-based system possible.

Lastly, we integrate the novel EMG feature extrac-

tion methods and the articulatory feature classiﬁers

into the phone-based EMG speech recognition sys-

tem with a stream architecture. Notice that the ex-

periments described in this paper are conducted on

normal audible speech, not silent mouthing speech.

2 RESEARCH APPROACH

2.1 Data Acquisition

In this paper, we report results of data collected from

one male speaker in one recording session, which

means the EMG electrode positions were stable and

consistent during this whole session. In a quiet room,

the speaker read English sentences in normal audi-

ble speech, which was simultaneously recorded with

a parallel setup of an EMG recorder and a USB

soundcard with a standard close-talking microphone

attached to it. When the speaker pressed the push-

to-record button, the recording software started to

record both EMG and speech channels and generated

a marker signal fed into both the EMG recorder and

the USB soundcard. The marker signal was then used

for synchronizing the EMG and the speech signals.

The speaker read 10 times of a set of 38 phonetically-

balanced sentences and 10 times of 12 sentences from

news articles. The 380 phonetically-balanced utter-

ances were used for training and the 120 news article

utterances were used for testing. The total duration

of the training and test set are 45.9 and 10.6 minutes,

respectively. We also recorded ten special silence ut-

terances, each of which is about ﬁve seconds long

on average. The format of the speech recordings is

16 kHz sampling rate, two bytes per sample, and lin-

ear PCM, while the EMG recording format is 600 Hz

sampling rate, two bytes per sample, and linear PCM.

The speech was recorded with a Sennheiser HMD 410

close-talking headset.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

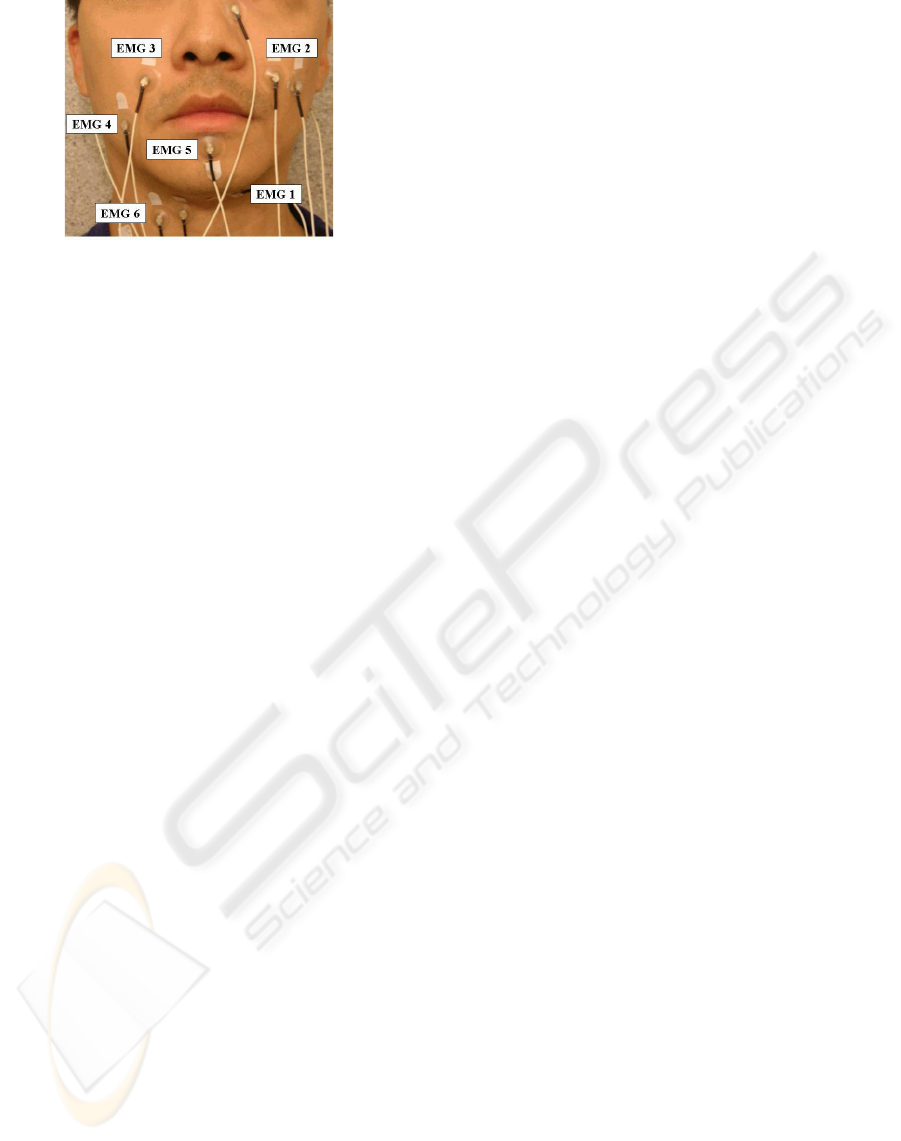

Figure 1: EMG positioning.

The EMG signals were recorded with six pairs of

Ag/Ag-Cl surface electrodes attached to the skin, as

shown in Fig. 1. Additionally, a common ground ref-

erence for the EMG signals is connected via a self-

adhesive button electrode placed on the left wrist.

The six electrode pairs are positioned in order to pick

up the signals of corresponding articulatory muscles:

the levator angulis oris (EMG2,3), the zygomaticus

major (EMG2,3), the platysma (EMG4), the orbic-

ularis oris (EMG5), the anterior belly of the digas-

tric (EMG1), and the tongue (EMG1,6) (Chan et al.,

2002; Maier-Hein et al., 2005). Two of these six chan-

nels (EMG2,6) are positioned with a classical bipo-

lar conﬁguration, where a 2cm center-to-center inter-

electrode spacing is applied. For the other four chan-

nels, one of the electrodes is placed directly on the

articulatory muscles while the other electrode is used

as a reference attached to either the nose (EMG1) or

to both ears (EMG 3,4,5).

In order to reduce the impedance at the electrode-

skin junctions, a small amount of electrode gel was

applied to each electrode. All the electrode pairs were

connected to the EMG recorder (Becker, 2005), in

which each of the detection electrode pairs pick up

the EMG signal and the ground electrode provides a

common reference. EMG responses were differen-

tially ampliﬁed, ﬁltered by a 300 Hz low-pass and a

1Hz high-pass ﬁlter and sampled at 600 Hz. In or-

der to avoid loss of relevant information contained

in the signals we did not apply a 50 Hz notch ﬁlter

which can be used for the removal of line interference.

Also note that all care was taken such that wearing the

close-talking headset does not interfere with the EMG

electrode attachment.

2.2 EMG-based Speech Recognition

We used the following approach to bootstrap the

phone-based EMG speech recognizer. First of all, the

forced alignment of the audible speech data is gen-

erated with a Broadcast News (BN) speech recog-

nizer (Yu and Waibel, 2000), which is trained with

the Janus Recognition Toolkit (JRTk). Since we have

parallel recorded audible and EMG speech data, the

forced-aligned labels of the audible speech were used

to bootstrap the EMG speech recognizer. Since the

training set is very small, we only trained context-

independent acoustic models. The trained acoustic

model was used together with a trigram BN language

model for decoding. Because the problem of large

vocabulary continuous speech recognition is still very

difﬁcult for state-of-the-art EMG speech processing,

we restricted the decoding vocabulary to the words

appearing in the test set in this study. This approach

allows us to better demonstrate the performance dif-

ferences introduced by different feature extraction

methods. To cover all the test sentences, the decod-

ing vocabulary contains 108 words in total. Note

that the training vocabulary contains 415 words, 35

of which also exist in the decoding vocabulary. Also

note that the test sentences were not applied for lan-

guage model training.

2.3 Articulatory Feature Classiﬁer and

Stream Architecture

Compared to widely-used cepstral features for au-

tomatic speech recognition, articulatory features are

expected to be more robust because they represent

articulatory movements, which are less affected by

speech signal variation or noise. Instead of measur-

ing the AFs directly, we derive them from phones as

described in (Metze and Waibel, 2002). More pre-

cisely, we use the IPA phonological features for AF

derivation. In this work, we use AFs that have binary

values. For example, each of the positions of the dor-

sum, namely FRONT, CENTRAL and BACK is an

AF that has a value either present or absent. To clas-

sify the AF as present or absent, the likelihood scores

of the corresponding present model and absent model

are compared. Also, the models take into account a

prior value based on the frequency of features in the

training data.

The training of AF classiﬁers is done on middle

frames of the phones only, because they are more

stable than the beginning or ending frames. Identi-

cal to the training of EMG speech recognizer, the AF

classiﬁers are also trained solely on the EMG signals

without speech acoustics. There are 29 AF classiﬁers,

each of which is a Gaussian Mixture Model (GMM)

containing 60 Gaussians. To test the performance, the

AF classiﬁers are applied and generate frame-based

hypotheses.

The idea behind the stream architecture with AF

classiﬁers is that the AF streams are expected to pro-

vide additional robust phonological information to the

EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION OF SPEECH

phone-based hidden Markov model (HMM) speech

recognizer. The stream architecture employs a list of

parallel feature streams, each of which contains one of

the acoustic or articulatory features. Information from

all streams are combined with a weighting scheme to

generate the EMG acoustic model scores for decoding

(Metze and Waibel, 2002).

2.4 Feature Extraction

2.4.1 Traditional Spectral Feature

The recorded EMG signal is transformed into 18-

dimensional feature vectors, with 54-ms observation

window and 10-ms frame-shift for each channel.

For each channel, hamming-windowed Short

Time Fourier Transform is computed, and then its

delta coefﬁcients serve as the ﬁrst 17 coefﬁcients of

the ﬁnal feature. The 18th coefﬁcient consists of the

mean of the time domain values in the given observa-

tion window (Maier-Hein et al., 2005). In the follow-

ing experiments, features of one or more channels can

be applied. If more than one channel are used for clas-

siﬁcation, the features of the corresponding channels

are concatenated to form the ﬁnal feature vector.

2.4.2 Special EMG Feature

Since the EMG signal is very different from the

speech signal, it is necessary to explore feature ex-

traction methods that are suitable for EMG speech

recognition. Here we describe the signal preprocess-

ing steps and feature extraction methods we designed

for EMG signals.

As noted above, the EMG signals vary across dif-

ferent sessions. Nonetheless, the DC offsets of the

EMG signals vary, too. In the attempt to make the

DC offset zero, we estimate the DC offset from the

special silence utterances on a per session basis, then

all the EMG signals are preprocessed to subtract this

session-based DC offset. Although we only discuss

a single session of a single speaker in this paper, we

expect this DC offset preprocessing step makes the

EMG signals more stable.

To describe the features designed for EMG sig-

nals, we denote the EMG signal with normalized

DC as x[n] and its short-time Fourier spectrum as X.

We also denote the nine-point double-averaged signal

w[n], high frequency signal p[n], and the correspond-

ing rectiﬁed signal r[n].

We then deﬁne the time-domain mean features

w, and

r of the signals x[n],w[n], and r[n], respec-

tively. Besides, we use the power features P

and P

and we deﬁne z as the frame-based zero-crossing rate

of p[n].

To better model the context, we use the fol-

lowing contextual ﬁlters, which can be applied

on any feature to generate a new one. The

delta ﬁlter: D(f

) = f

− f

j−1

. The trend ﬁlter:

T (f

,k) = f

j+k

− f

j−k

. The stacking ﬁlter: S(f

,k) =

j−k

j−k+1

,...,f

j+k−1

j+k

], where j is the frame in-

dex and k is the context width. Note that we always

apply linear discriminant analysis (LDA) on the ﬁnal

feature in order to reduce the dimensionality to 32.

3 EXPERIMENTS AND

ANALYSES

The performance metrics used in this paper are F-

score and word error rate (WER). F-score (α = 0.5)

is reported for the AF performances and WER is re-

ported for the speech recognition performances

3.1 Articulatory Feature Analysis

3.1.1 Baseline System

First of all, we forced-aligned the speech data us-

ing the aforementioned BN system. In the baseline

system, this time-alignment was used for both the

speech and the EMG signals. Because we have a

marker channel in each signal, the marker signal is

used to offset the two signals to get accurate time-

synchronization. Then the aforementioned AF train-

ing and testing procedures were applied both on the

speech and the six-channel concatenated EMG sig-

nals. The averaged F-scores of all 29 AFs are 0.814

for the speech signal and 0.467 for the EMG sig-

nal. Fig. 2 shows individual AF performances for the

speech and EMG signals along with the amount of

training data. We can see that the amount of training

data (given in frames of 10 ms) has an impact on the

EMG AF performance.

3.1.2 Channel Synchronization

It is observed that human articulator movements are

anticipatory to the speech signal as speech signal is

a product of articulator movements and source ex-

citation (Chan et al., 2002). This means the time

alignment we used for bootstrapping our EMG-based

With α = 0.5, F-score = 2PR/(P+R), where precision

P = C

t p

/(C

t p

f p

), recall R = C

t p

/(C

t p

f n

), C

t p

= true

positive count, C

f p

= false positive count, C

f n

= false neg-

ative count.

WER =

S+D+I

, where S = word substitution count, D =

word deletion count, I = word insertion count, N = number

of reference words.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

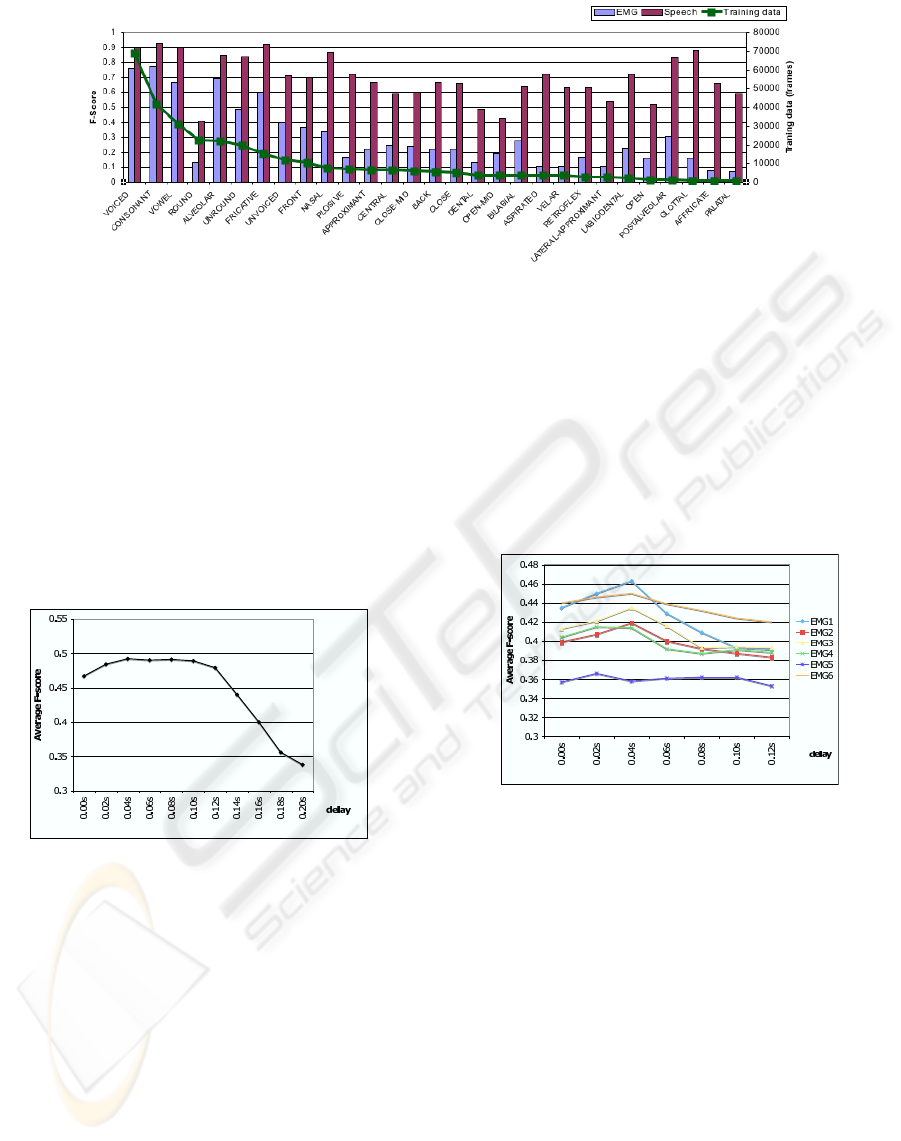

Figure 2: Baseline F-scores of the EMG and speech signals vs. the amount of training data.

system is actually mis-aligned for the EMG signals,

because the speech and the EMG signals are inher-

ently asynchronous in time. Based on this, we de-

layed the EMG signal with various duration to the

forced-alignment labels of speech signal, and con-

ducted the training and testing experiments respec-

tively. As shown in Fig. 3, the initial time-alignment

does not have the best F-score, while the best F-scores

come with time delays around 0.02 second to 0.12

second. This result suggests that a time-delayed ef-

fect exists between the speech and the EMG signals.

Figure 3: F-scores of concatenated six-channel EMG sig-

nals with various time delays (a delay of 0.1 means that the

EMG signal is delayed to the acoustic signal by 0.1 sec-

onds).

3.1.3 Articulator-Dependent Synchronization

To explore the time-delayed effect of EMG signals,

we conducted the same experiments on the level of

single EMG channels, instead of previously concate-

nated six-channels. The rationale is that articulators’

behaviors are different from each other, so the re-

sulted time delays are different on the corresponding

EMG signals. The effect of different time delays can

be seen in Fig. 4. We observed that some EMG sig-

nals are more sensitive to time delay than others, e.g.

EMG1 vs. EMG6, where EMG6 is more consistent

with different time delays. The delays to achieve peak

performance vary for each channel and the variation

is within the range of 0.02 to 0.10 seconds. To fur-

ther show the time-delay effect, we also conducted an

experiment which is identical to the baseline, except

each channel is offset with its known best time de-

lay. This approach gave a better F-score of 0.502 than

the baseline’s 0.467. It also outperforms the uniform

delay of 0.04 second which gave 0.492.

Figure 4: F-scores of single-channel EMG signals with var-

ious time delays with respect to the speech signals.

3.1.4 Complementary EMG Pairs

As suggested in (Maier-Hein et al., 2005), concate-

nated multi-channel EMG features usually work bet-

ter than single-channel EMG features. Therefore,

based on aforementioned time-delayed results, we

conducted experiments on EMG-pairs in which each

EMG signal is adjusted with its best single-channel

time offset. The ﬁrst row of values in Table 1 shows

the F-scores of single-channel baseline (i.e. without

any time delay) and the second row shows those with

the best single-channel time delay, while the rest of

the values are F-scores of EMG pairs. The F-scores

suggest that some EMG signals are complementary to

each other, e.g. EMG1-3 and EMG2-6, which pairs

perform better than both their single channels do.

EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION OF SPEECH

Table 1: F-Score of EMG and EMG Pairs.

F-Scores EMG1 EMG2 EMG3 EMG4 EMG5 EMG6

single 0.435 0.399 0.413 0.404 0.357 0.440

+delay 0.463 0.419 0.435 0.415 0.366 0.450

EMG1 0.439 0.465 0.443 0.417 0.458

EMG2 0.440 0.443 0.414 0.464

EMG3 0.421 0.414 0.449

EMG4 0.400 0.433

EMG5 0.399

3.1.5 Performance of Individual Articulators

In Table 2 and 3, we list the top-4 articulators that

have the best F-scores. For single channels, EMG1

performs the best across these top-perfomance artic-

ulators, while EMG1-3, EMG1-6, and EMG2-6 are

the better paired channels. Interestingly, even though

EMG5 performs the worst as a single channel clas-

siﬁer, EMG5 can be complemented with EMG2 to

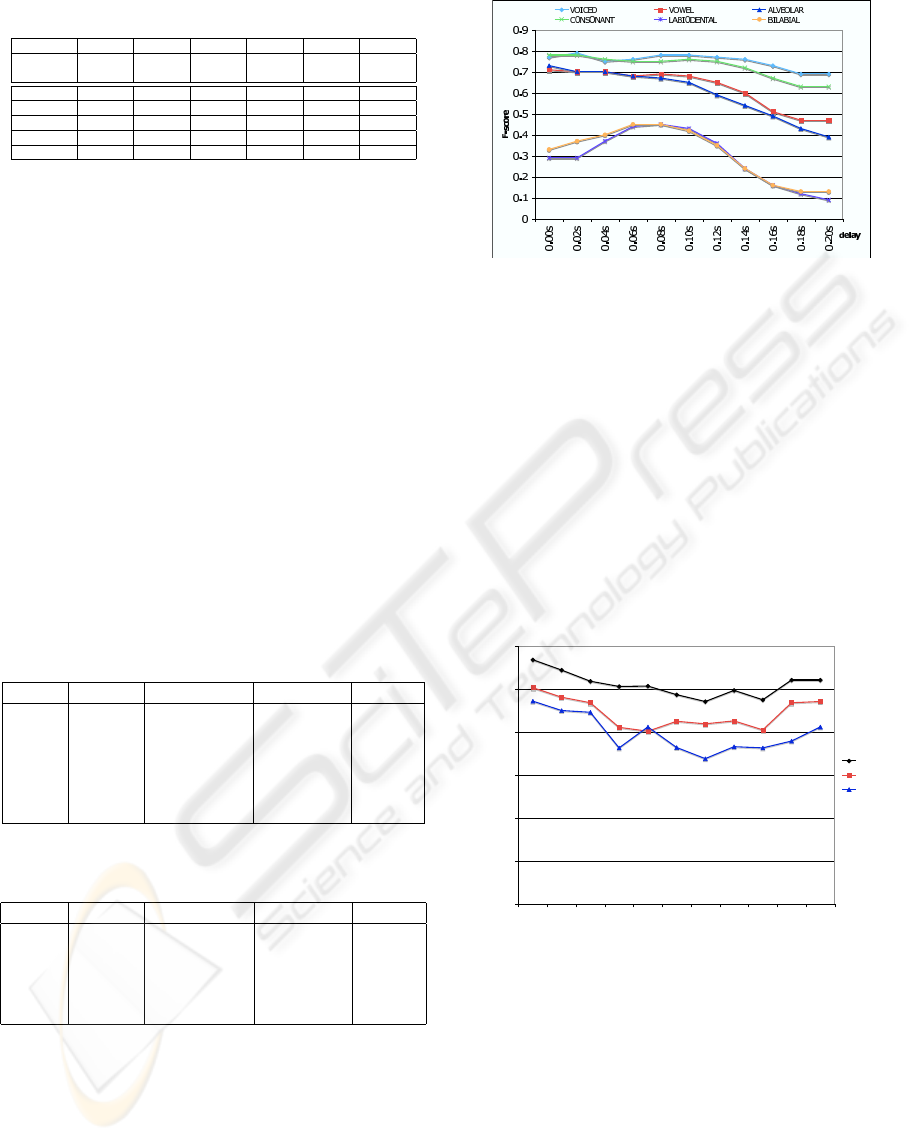

form a better pair for VOWEL. In Fig. 5, we show

six AFs that represent different characteristics of per-

formance changes with different delays. For example,

VOICED’s F-scores are rather stable with various de-

lay values while BILABIAL is rather sensitive. How-

ever, we do not have conclusive explanation on the

relation between the AFs and the delays. Further ex-

ploration shall be conducted.

Table 2: Best F-Scores of Single EMG channels w.r.t. AF.

AFs VOICED CONSONANT ALVEOLAR VOWEL

1 0.80 2 0.73 1 0.65 1 0.59

Sorted 6 0.79 3 0.72 3 0.61 2 0.59

F-score 3 0.76 1 0.71 2 0.59 6 0.56

4 0.75 6 0.71 6 0.56 3 0.52

2 0.74 4 0.69 4 0.55 4 0.51

5 0.74 5 0.63 5 0.45 5 0.51

Table 3: Best F-Scores of Paired EMG Channels w.r.t. AF

AFs VOICED CONSONANT ALVEOLAR VOWEL

1-6 0.77 1-6 0.76 1-3 0.69 2-6 0.64

Sorted 1-3 0.76 2-3 0.75 1-6 0.67 2-4 0.62

F-Score 1-2 0.76 3-6 0.74 1-2 0.66 2-5 0.62

2-6 0.75 2-4 0.74 2-6 0.66 1-6 0.62

3-6 0.75 2-6 0.74 2-3 0.65 1-3 0.61

3.2 Feature Extraction Experiments

In the following experiments, the ﬁnal EMG features

are generated by stacking single-channel EMG fea-

tures of channels 1, 2, 3, 4, 6. We do not use chan-

nel 5 because it is relatively noisy for this experiment.

The ﬁnal LDA dimensions are reduced to 32 for all

the experiments.

Figure 5: Performances of six representative AFs.

3.2.1 EMG ASR using Spectral Features

It was reported that the spectral coefﬁcients are better

than cepstral and LPC coefﬁcients on EMG speech

recognition (Maier-Hein et al., 2005). Therefore, we

use the spectral features as baseline in this paper. As

their WER is shown in Fig. 6, the spectral features are

S0 = X, SD = [X,D(X)], and SS = S(X, 1). We can

see that the contextual features improve WER. Addi-

tionally, adding time delays for modeling the antic-

ipatory effects also helps. This is consistent to the

articulatory feature analysis above.

0 10 20 30 40 50 60 70 80 90 100

Time Delay (millisecond)

Word Error Rate (%)

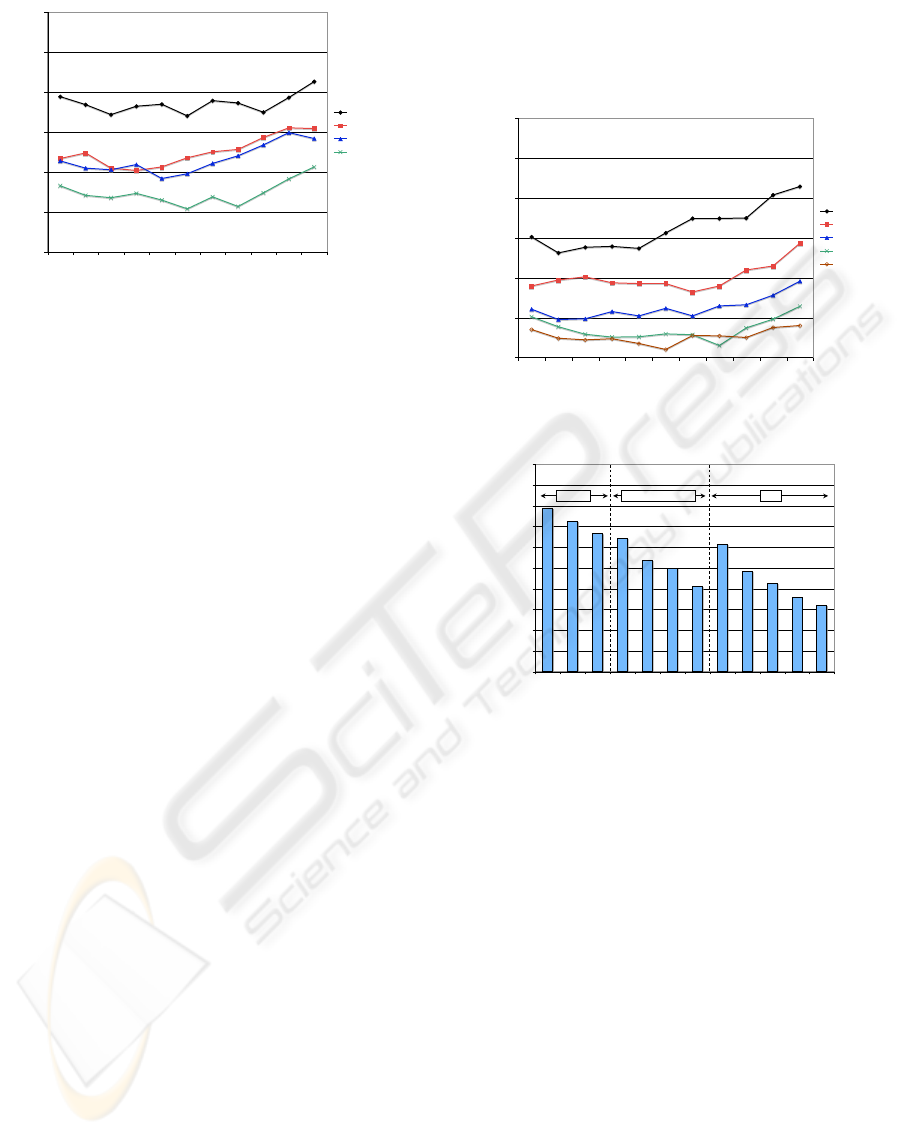

Figure 6: Word Error Rate on Spectral Features.

3.2.2 EMG ASR Systems using

Spectral+temporal (ST) Features

Is was also reported that the time-domain mean fea-

ture provided additional gain to spectral features

(Maier-Hein et al., 2005). Here we also added the

time-domain mean feature, as their WER is shown in

Fig. 7: S0M = X

, SDM = [X

,D(X

)], SSM =

S(X

,1), and SSMR = S(X

,1). where X

= [X,

and X

= [X,

r,z].

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

0 10 20 30 40 50 60 70 80 90 100

Time Delay (millisecond)

Word Error Rate (%)

S0M

SDM

SSM

SSMR

Figure 7: Word Error Rate on Spectral+Temporal Features.

3.2.3 EMG ASR Systems using EMG Features

We have observed that even though the spectral fea-

tures are among the better ones, they are still very

noisy for acoustic model training. Therefore we de-

signed the EMG features that are normalized and

smoothed in order to extract features from EMG sig-

nals in a more robust fashion. The performance of the

EMG features are shown in Fig. 8, where the EMG

features are

E0 = [f0,D(f0),D(D(f0)),T (f0, 3)],

where f0 = [

w,P

]

E1 = [f1,D(f1),T (f1,3)],

where f1 = [

w,P

,z]

E2 = [f2,D(f2),T (f2,3)],

where f2 = [

w,P

,z,

E3 = S(E2,1)

E4 = S(f2,5)

The essence of the design of feature extraction meth-

ods is to reduce noise while keeping the useful in-

formation for classiﬁcation. Since the EMG spectral

feature is noisy, we decide to ﬁrst extract the time-

domain mean feature, which is empirically known to

be useful in literature. By adding power and con-

textual information to the time-domain mean, E0 is

generated and it already outperforms all the spectral-

only features. Since the mean and power only rep-

resent the low-frequency components, we add the

high-frequency power and the high-frequency zero-

crossing rate to form E1, which gives us another 10%

improvement. With one more feature of the high-

frequency mean, E2 is generated. E2 again improves

the WER. E1 and E2 show that the speciﬁc high-

frequency information can be helpful. E3 and E4

use different approaches to model the contextual in-

formation, and they show that large context provides

useful information for the LDA feature optimization

step. They also show that the features with large con-

text are more robust against the EMG anticipatory ef-

fect. We summarize by showing the performance of

all the presented feature extraction methods in Fig. 9,

in which all the feature extraction methods apply a

50-ms delay.

0 10 20 30 40 50 60 70 80 90 100

Time Delay (millisecond)

Word Error Rate (%)

Figure 8: Word Error Rate on EMG Features.

100

S0M

SDM

SSM

SSMR

Feature Extraction Methods

Word Error Rate (%)

Spectral

Spectral+Temporal

EMG

Figure 9: WER of Feature Extraction Methods.

3.3 Integration of Special EMG Feature

and AF Classiﬁers

3.3.1 AF Classiﬁcation with the E4 Feature

Identical to the aforementioned experiments, we

forced-aligned the speech data using the BN speech

recognizer. In the baseline system, this time-

alignment was used for both the speech and the

EMG signals. Because we have a marker channel

in each signal, the marker signal is used to offset

the two signals to get accurate time-synchronization.

Then the AF training and testing procedures were

applied both on the speech and the ﬁve-channel

concatenated EMG signals, with the ST and E4

features. The averaged F-scores of all 29 AFs are

0.492 for EMG-ST, 0.686 for EMG-E4, and 0.814

for the speech signal. Fig. 10 shows individual AF

performances for the speech and EMG signals along

with the amount of training data in frames. The E4

EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION OF SPEECH

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

VOICED

CONSONANT

VOWEL

ROUND

ALVEOLAR

UNROUND

FRICATIVE

UNVOICED

FRONT

NASAL

PLOSIVE

APPROXIMANT

CENTRAL

CLOSE-MID

BACK

DENTAL

OPEN-MID

BILABIAL

ASPIRATED

VELAR

RETROFLEX

LATERAL-APPROXIMANT

LABIODENTAL

OPEN

POSTALVEOLAR

GLOTTAL

AFFRICATE

PALATAL

F-Score

10000

20000

30000

40000

50000

60000

70000

80000

Traning data (frames)

EMG-ST EMG-E4 Speech Training data

Figure 10: F-scores of the EMG-ST, EMG-E4 and speech articulatory features vs. the amount of training data.

signiﬁcantly outperforms ST in that the EMG-E4

feature performance is much closer to the speech

feature performance.

0.30

0.35

0.40

0.45

0.50

0.55

0.60

0.65

0.70

0.00s

0.02s

0.04s

0.06s

0.08s

0.10s

0.12s

0.14s

0.16s

0.18s

0.20s

delay

Average F-score

E4-LDA1

E4-LDA3

E4-LDA5

E4-LDA7

E4-LDA9

E4-LDA11

Figure 11: F-scores of concatenated ﬁve-channel EMG-ST

and EMG-E4 articulatory features with various LDA frame

sizes on time delays for modeling anticipatory effect.

We also conducted the time-delay experiments as

done in previous ones to investigate the EMG vs.

speech anticipatory effect. Fig. 11 shows the F-scores

of E4 with various LDA frame sizes and delays. We

observe similar anticipatory effect of E4-LDA and ST

with time delay around 0.02 to 0.10 second. Com-

pared to the 90-dimension ST feature, E4-LDA1 has

a dimensionality of 25 while having a much higher F-

score. The ﬁgure also shows that a wider LDA context

width provides a higher F-score and is more robust for

modeling the anticipatory effect, because LDA is able

to pick up useful information from the wider context.

3.3.2 EMG Channel Pairs

In order to analyze E4 for individual EMG channels,

we trained the AF classiﬁers on single channels and

channel pairs. The F-scores are shown in Fig. 12. It

shows E4 outperforms ST in all conﬁgurations. More-

over, E4 on single-channel EMG 1, 2, 3, 6 are already

0.30

0.35

0.40

0.45

0.50

0.55

0.60

0.65

0.70

EMG1

EMG2

EMG3

EMG4

EMG6

EMG12

EMG13

EMG14

EMG16

EMG23

EMG24

EMG26

EMG34

EMG36

EMG46

EMG Position and Position Pair

Average F-Score

Feat-ST Feat-E4

Figure 12: F-scores of the EMG-ST and EMG-E4 AFs on

single EMG channel and paired EMG channels.

better than the all-channel ST’s best F-score 0.492.

For ST, the paired channel combination only provides

marginal improvements; in contrast, for E4, the ﬁg-

ure shows signiﬁcant improvements of paired chan-

nels compared to single channels. We believe this

signiﬁcant improvements come from a better decor-

related feature space provided by E4.

3.3.3 Decoding in the Stream Architecture

We then conducted a full decoding experiment with

the stream architecture. The test set was divided into

two equally-sized subsets, on which the following

procedure was done in two-fold cross-validation. On

the development subset, we incrementally added the

AF classiﬁers one by one into the decoder in a greedy

approach, i.e., the AF that helps to achieve the best

WER was kept in the streams for later experiments.

After the WER improvement was saturated, we ﬁxed

the AF sequence and applied them on the test subset.

Fig. 13 shows the WER and its relative improvements

averaged on the two cross-validation turns. With ﬁve

AFs, the WER tops 11.8% relative improvement, but

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

there is no additional gain with more AFs.

Among the selected AFs, only four of them are

selected in both cross-validation turns. This inconsis-

tency suggests a further investigation of AF selection

is necessary for generalization.

25.00

26.00

27.00

28.00

29.00

30.00

31.00

32.00

33.00

34.00

35.00

No AF

VOICED / FRICATIVE

DENTAL / LABIODEN

POSTALV / BACK

UNROUND / VELAR

GLOTTAL / LATERAL-AP

BACK / CONSONANT

CENTRAL / UNROUND

CONSONANT / VOICED

Incrementally Added Articulatory Features

Word Error Rate (%)

0.00

2.00

4.00

6.00

8.00

10.00

12.00

14.00

Relative Improvement (%)

WER (Dev) WER (Test) Relative Improvement (Test)

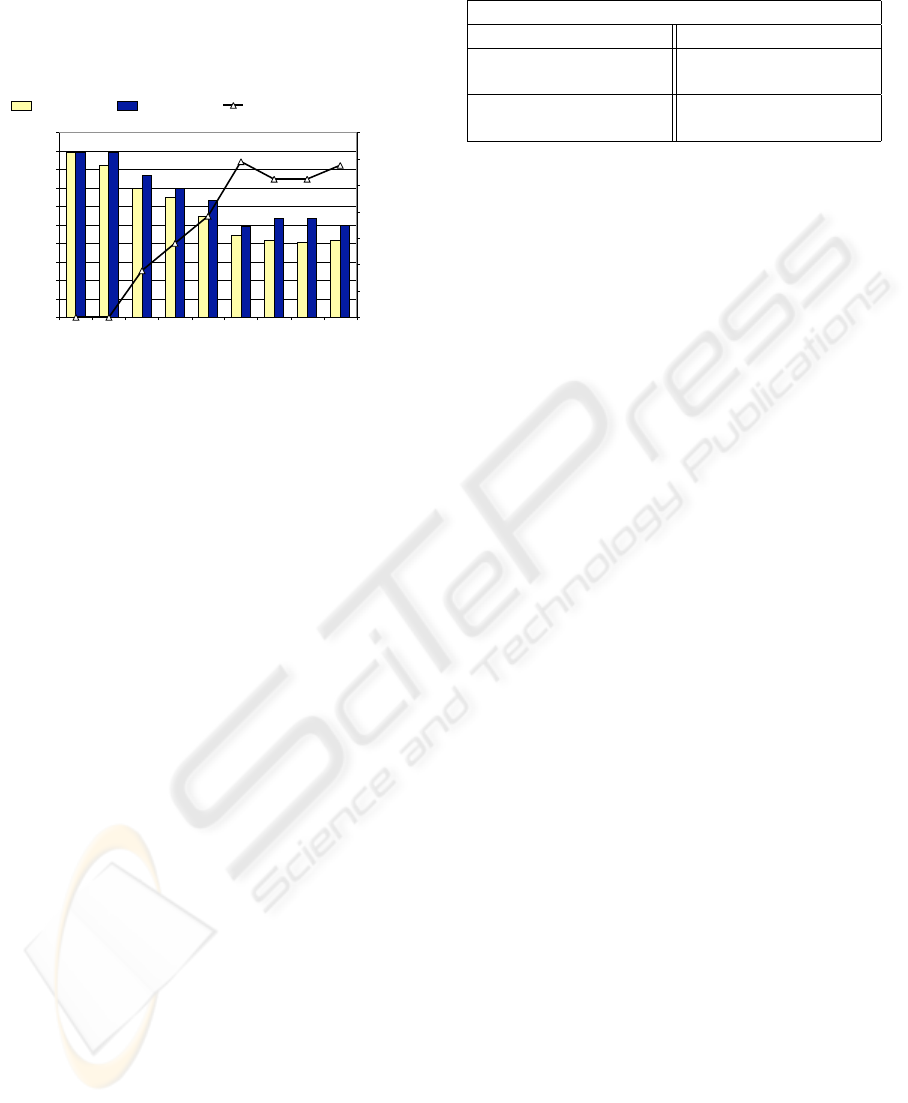

Figure 13: Word error rates and relative improvements of

incrementally added EMG articulatory feature classiﬁers in

the stream architecture. The two AF sequences correspond

to the best AF-insertion on the development subsets in two-

fold cross-validation.

4 COLLECTING MORE DATA

We are making efforts on larger-scale data collection

of EMG speech. The targeted total number of speak-

ers is in dozens and the recording modalities include

acoustic speech, EMG, and video. Each speaker par-

ticipates in two recording sessions, each of which in-

cludes a part of normal audible speech recording and

a part of silent mouthing speech recording. In each

part, two sets of phonetically balanced sentences are

collected. One set is referred to as the general set and

it exists in every part of every speaker. The other set

is a speaker speciﬁc set, which is different for dif-

ferent speakers. Per part, the general set contains 10

sentences and the speaker speciﬁc set contains 40 sen-

tences.

The data collection process is designed to be as

unbiased as possible, e.g., to eliminate the fatigue fac-

tor. The two sessions are recorded one week apart.

Besides, the order of the silent part and the audible

part is reversed in the two sessions. In each recording

part, the two sentence sets are mixed together into a

set of 50 sentences and the sentences appear in ran-

dom order. Table 4 shows the data details per speaker.

With this larger EMG corpus, we expect to be able

to study the effects of speaker dependency, session de-

pendency, audible versus mouthing speech kinemat-

ics, just to name a few.

Table 4: Data per speaker.

Speaker

Session 1 Session 2

Part 1 audible speech Part 1 silent speech

rand(10+40 sentences) rand(10+40 sentences)

Part 2 silent speech Part 2 audible speech

rand(10+40 sentences) rand(10+40 sentences)

5 CONCLUSIONS

We have presented our recent advances on EMG

speech recognition research, which has the advan-

tages of better noise robustness and better applicabil-

ity compared to traditional acoustic speech recogni-

tion. With the special EMG feature extraction meth-

ods and articulatory feature analyses, we have ad-

vanced the EMG speech recognition research from

isolated word recognition to phone-based continuous

speech recognition. Besides, the introduction of an-

ticipatory effect modeling also plays an important role

in this study. In summary, the EMG articulatory fea-

ture performance improves from 0.467 to 0.686 and

the overall speech recognition word error rate im-

proves from 86.8% to 29.9%.

This research topic is relatively new and unex-

plored with many questions waiting for answers. Al-

though the proposed special EMG feature extraction

methods do improve the performance, we believe they

are still sub-optimal. Designing a better EMG feature

extraction method for speech recognition is still an

open problem and we are continuously working on it.

Another issue is that the multi-channel EMG signals

are inherently asynchronous with respect to articula-

tory apparatus movements. How to model this asyn-

chronicity remains an open problem. We believe this

modeling would beneﬁt the study of speech recogni-

tion as well as articulatory kinematics.

REFERENCES

Becker, K. (2005). Varioport. http://www.becker-

meditec.de.

Betts, B. and Jorgensen, C. (2006). Small vocabulary com-

munication and control using surface electromyogra-

phy in an acoustically noisy environment. In Proc.

HICSS, Hawaii.

Chan, A., Englehart, K., Hudgins, B., and Lovely, D.

(2002). Hidden Markov model classiﬁcation of my-

oelectric signals in speech. IEEE Engineering in

Medicine and Biology Magazine, 21(4):143–146.

Fromkin, V. and Ladefoged, P. (1966). Electromyography

in speech research. Phonetica, 15.

EARS: ELECTROMYOGRAPHICAL AUTOMATIC RECOGNITION OF SPEECH

Jorgensen, C. and Binsted, K. (2005). Web browser control

using EMG based sub vocal speech recognition. In

Proc. HICSS, Hawaii.

Jorgensen, C., Lee, D., and Agabon, S. (2003). Sub auditory

speech recognition based on EMG signals. In Proc.

IJCNN, Portland, Oregon.

Maier-Hein, L., Metze, F., Schultz, T., and Waibel, A.

(2005). Session independent non-audible speech

recognition using surface electromyography. In Proc.

ASRU, San Juan, Puerto Rico.

Manabe, H., Hiraiwa, A., and Sugimura, T. (2003). Un-

voiced speech recognition using EMG-Mime speech

recognition. In Proc. CHI, Ft. Lauderdale, Florida.

Manabe, H. and Zhang, Z. (2004). Multi-stream HMM

for EMG-based speech recognition. In Proc. IEEE

EMBS, San Francisco, California.

Metze, F. and Waibel, A. (2002). A ﬂexible stream archi-

tecture for ASR using articulatory features. In Proc.

ICSLP, Denver, CO.

Yu, H. and Waibel, A. (2000). Streaming the front-end of a

speech recognizer. In Proc. ICSLP, Beijing, China.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing
