COGNITIVE STATE ESTIMATION FOR ADAPTIVE LEARNING

SYSTEMS USING WEARABLE PHYSIOLOGICAL SENSORS

Aniket A. Vartak

, Cali M. Fidopiastis

, Denise M. Nicholson

, Wasfy B. Mikhael

Department of Electrical Engineering and Computer Science,

Institute of Simulation & Training

Univerisity of Central Florida,Orlando, FL, U.S.A.

Dylan D. Schmorrow

Office of Naval Research, U.S.A.

Keywords: Intelligent tutoring, psychophysiological metrics, augmented cognition, signal processing, wearable sensors.

Abstract: This paper presents a historical overview of intelligent tutoring systems and describes an adaptive

instructional architecture based upon current instructional and adaptive design theories. The goal of such an

endeavor is to create a training system that can dynamically change training content and presentation based

upon an individual’s real-time measure of cognitive state changes. An array of physiological sensors is used

to estimate the cognitive state of the learner. This estimate then drives the adaptive mitigation strategy,

which is used as a feed-back and changes how the learning information is presented. The underlying

assumptions are that real-time monitoring of the learners cognitive state and the subsequent adaptation of

the system will maintain the learner in an overall state of optimal learning. The main issues concerning this

approach are constructing cognitive state estimators from a multimodal array of physiological sensors and

assessing initial baseline values, as well as changes in baseline. We discuss these issues in a data processing

block wise structure, where the blocks include synchronization of different data streams, feature extraction,

and forming a cognitive state metric by classification/clustering of the features. Initial results show our

current capabilities of combining several data streams and determining baseline values. Given that this work

is in its initial staged the work points to our ongoing research and future directions.

1 INTRODUCTION

The design of metrics to determine cognitive state

changes in real-time of persons performing tasks in

their work environment is an emerging field of

research. For example, Human Factors and

Augmented Cognition research endeavors suggest

the use of psychophysiological measures to

determine best practices when developing trainers

for military (Nicholson et al., 2006) and medical

(Scerbo, 2005) occupations in an effort to optimize

the learning state of the user. Further, a valid and

reliable metric of cognitive state has far reaching

utility in the field of intelligent tutoring, which has

further implications for cognitive rehabilitation and

assistive brain-computer interfaces.

This type of research is not possible without

portable, unobtrusive psychophysiological sensing

devices. However, utilizing physiological metrics

such as electroencephalography (EEG) is difficult

due to the many factors that influence cognitive

processes intra and interpersonally. Some such

factors include external demands (e.g., loud noises),

trait characteristics (e.g., personality), and physical

states (e.g., levels of fatigue). More importantly, the

neurobiology underlying constructs defining

cognitive states (e.g. working memory) are not fully

elucidated (Cabeza & Nyberg, 2003), thus

operationally defining “cognitive state” is difficult

as is identifying a theoretical approach for studying

it. Thus, the most straight forward approach to

developing these metrics is by establishing a

convergent methodology that is multimodal in

nature (Karamouzis, 2006).

In this paper, we discuss the historical aspects of

developing adaptive intelligent tutoring using

psychophysiological metrics. Additionally, we

describe our Adaptive Instructional Architecture,

147

A. Vartak A., M. Fidopiastis C., M. Nicholson D., B. Mikhael W. and D. Schmorrow D. (2008).

COGNITIVE STATE ESTIMATION FOR ADAPTIVE LEARNING SYSTEMS USING WEARABLE PHYSIOLOGICAL SENSORS.

In Proceedings of the First International Conference on Bio-inspired Systems and Signal Processing, pages 147-152

DOI: 10.5220/0001068601470152

 SciTePress

which features multimodal sensors. We discuss

challenges in developing a convergent methodology

for using multimodal sensors. Finally, we present

initial work on data fusion techniques necessary for

driving the adaptive tutoring system.

2 ADAPTIVE TUTORING

SYSTEMS

In 1958, Skinner challenged educators to become

more efficient and effective in their teaching

strategies by using “teaching machines”. These

machines would not only deliver learning content,

but also allow the learner to interact with the system

in a manner appropriate for learning to occur. The

strength of this approach was the potential for

customized instruction in an anytime anywhere

format. However, teaching machines from this era

neglected the knowledge base of the learner and

focused more on “contingencies of reinforcement”

or the presentation of learning material (Wenger,

1987).

“Intelligent Tutoring Systems” (ITS) was first

coined by Sleeman & Brown (1982); however, it

was Wenger (1987) who advocated for cross-talk

among education, cognitive, and artificial

intelligence researchers to shape the future of ITS

design. This collaborative approach shifted emphasis

from purely computational solutions to those that

integrated Cognitive Psychology constructs (e.g.,

working memory) and new research in Education

Psychology (e.g., experiential learning). The

improved flexibility of these designs supported the

successful transition of some adaptive systems into

classrooms and workplaces (Anderson, et. al., 1995;

Parasuraman et. al., 1992).

While previous ITS theories emphasized the

knowledge state of the learner, current instructional

design methods consider the learner’s cognitive

state, (i.e., cognitive load state) as more predictive of

learning outcomes (Paas et. al., 2004). Cognitive

load theorists contend that learning complex tasks

(e.g., performing surgery) is optimal when the

learning environment matches the cognitive

architecture of the learner (Sweller, 1999). Thus, the

learning environment should account for individual

differences in the unique ways that individuals

cognitively process data.

Physiological metrics of cognitive load such as

pupil dilation and heart rate may map a learner’s

cognitive state to the learning task (Paas et al, 2003,

p. 66). Another suggested use of psychometric data

is to drive the adaptive response in the ITS

(Karamouzis, 2006; Scerbo, 2006). In previous

work, we have proposed an Adaptive Instructional

Architecture (AIA) that merges the constructs of

experiential learning, cognitive load, and adaptive

trainers into a testbed simulation capable of

measuring multimodal psychophysical responses

(Nicholson et al., 2007). In the next sections we

provide an overview of the AIA and give a

description of the sensors used within the training

environment. In addition, we provide pilot data from

current studies which use multiple sensors to

determine the learner’s cognitive states. These

studies are discussed in the context of data fusion

strategies and point to future work in the field

3 OVERVIEW AIA, SENSORS,

FEATURE EXTRACTION &

DATA FUSION

3.1 Adaptive Instructional

Architecture Overview

Figure 1 provides an overview of the Adaptive

Instructional Architecture (AIA) within a simulator

testbed. As shown the learner interacts with context

based stimuli that follow the continuum from real

world to simulated real world multi-sensory content.

The psychophysiological sensors (e.g., heart rate)

attached to the learner collect information about the

learner’s cognitive state. The sensor data streams are

sent through a signal processing block (Figure 3)

where data fusion techniques determine such

constructs as learner engagement, arousal, and

workload.

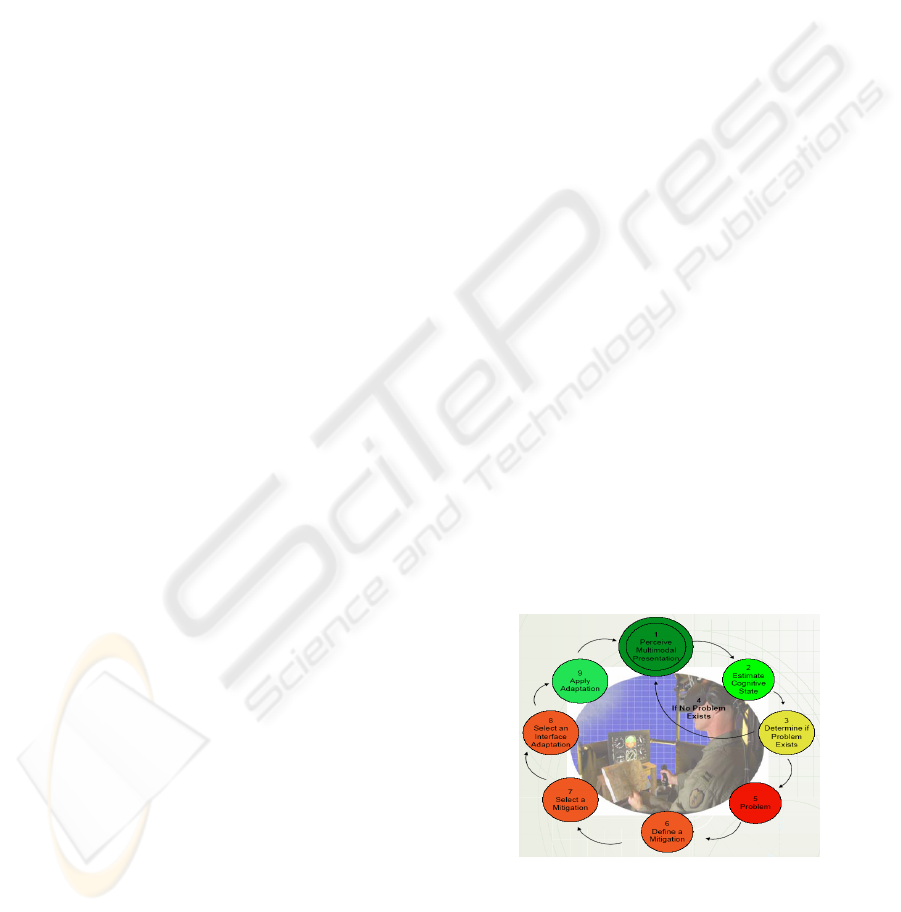

Figure 1: Adaptive Instructional Architecture Overview.

If the learner is experiencing higher than

baseline values of these state references, the system

chooses an appropriate mitigation strategy from a

database of options. The system interface is then

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

148

adapted to adjust to the learner and the training

scenario continues. This decision tree cycle is

continued until the training session ends.

The novel features of the AIA are the potential to

assess the cognitive state changes of the learner in

real-time, change the learning scenario as the learner

transitions in knowledge states, and assess

performance outcomes concomitantly with the

cognitive state assessment. Two main design issues

faced are: 1) defining metrics derived from the

mutimodal data streams that reliably predict the

learner’s cognitive state and 2) determining the

relationship of the metric and that of mitigation

selection. Our current focus is on deriving

meaningful metrics from the multimodal data

stream. In the next sections, we introduce the

psychophysical sensors and measures that we are

currently exploring.

3.2 Physiological Sensors and

Cognitive State Estimation

Various proposed cognitive states such as arousal,

and workload are quantified in terms of

physiological parameters. For example, heart rate

variability (HRV) can provide a measure of arousal

(Hoover & Muth, 2005). Eye position tracking may

indicate visual attention and stress. The EEG can

provide brain based measures of psychological

constructs such as cognitive workload. Thus, a

multi-modal data acquisition strategy may be

necessary for accurate cognitive state estimation

(Erdogmus et al., 2005; Cerutti et al., 2006).

However, synchronizing and determining relevant

meaning of the multiple data streams is an ongoing

issue.

Figure 2 represents examples of state-of-the-art

psychophysiological sensing devices within our lab.

The ASL 6000 eye tracker (www.a-s-l.com) shown

in Figure 2 utilizes a head tracker with pan tilt

capabilities to track the corneal reflection of the

user. The B-Alert EEG (

www.b-alert.com) provides

classifications for engagement, mental workload,

distraction and drowsiness (Berka et al., 2005). The

Wearable Arousal Meter (WAM,

www.ufiservingscience.com) also measures arousal

however does so by utilizing inter-heartbeat interval

(IBI) changes associated with task performance.

Changes in IBI reflect the Respiratory Sinus

Arrhythmia (RSA), which correlates with autonomic

nervous system states (Hoover & Muth, 2004). Also

shown are the respiratory, temperature, and GSR

sensors of Thought Technologies InfinitiPro wireless

system (www.thoughttechnologies.com). Overall,

the sensors provide a portable solution for capturing

real-time neural and behavioral responses training in

a naturalistic environment.

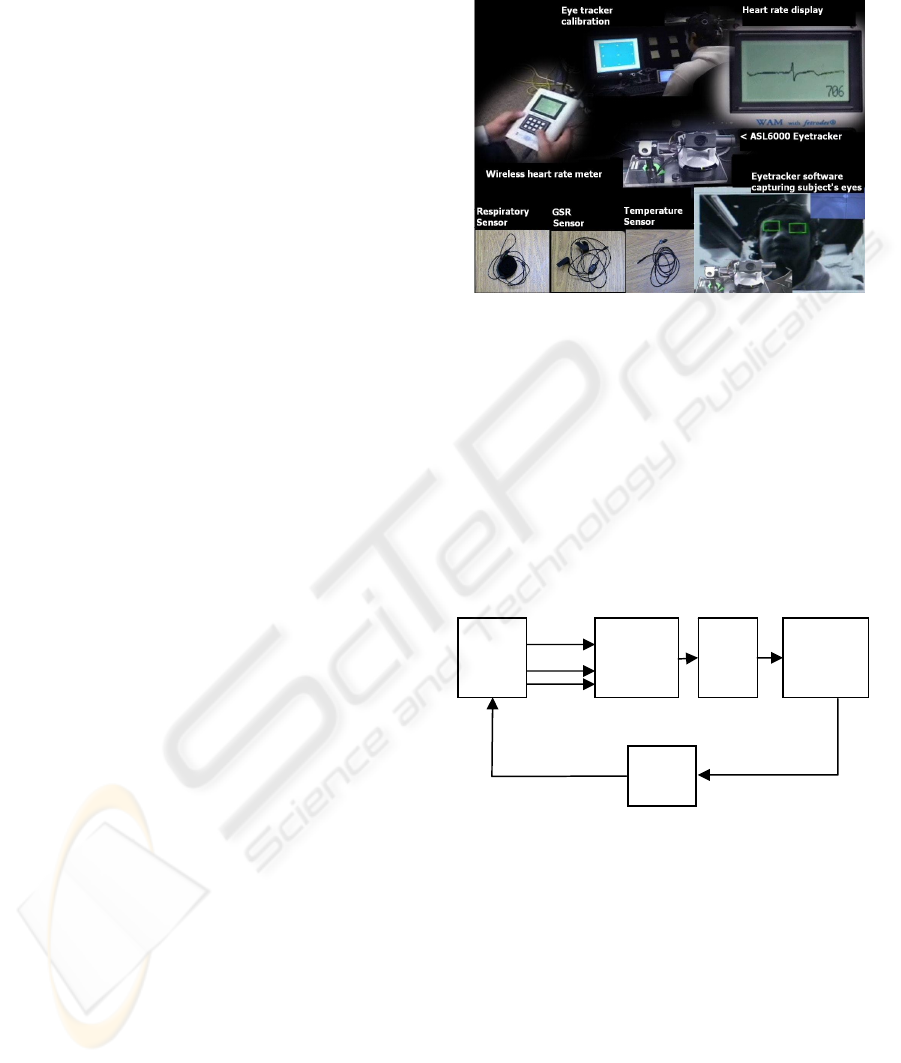

Figure 2: Sensor suite examples.

3.3 Block-wise Multimodal Signal

Processing/ feature Extraction

The data generated from various sensors over time is

enormous. To draw meaningful conclusions and to

classify cognitive state in real-time, while also

providing the feedback to the learner, the data may

be effectively handled in a block processing

procedure. Figure 3 provides a general overview of

block processing as it applies to multimodal signal

processing.

Figure 3: Multi-modal signal processing block.

The first block of the system synchronizes the

data from various sensors. Multi-rate Digital Signal

Processing (DSP) techniques such as

decimation/interpolation are used to match the

sampling frequency of various sensors. The data also

needs to be time-synchronized to a unique clock-

time, so that there is no error interpreting the data in

further blocks.

The next block of feature extraction is a very

important step in processing the data emanating

from the sensor suite. The physiological measure

will dictate what type of feature is to be extracted

and the level to which this feature will provide

...

Learner

Raw Multimodal

Sensor data

Synchronization

/Anti-alias

Filtering

Feature

Extraction

Classification/

Cognitive State

Estimation

Mitigation

Strategy

COGNITIVE STATE ESTIMATION FOR ADAPTIVE LEARNING SYSTEMS USING WEARABLE

PHYSIOLOGICAL SENSORS

149

meaningfulness to the derived metric. In the

following sub-section we will give an overview of

typical features used from various sensors in the

literature.

3.3.1 Heart Rate Features

The most popular feature used from the ECG data is

the power spectral density (PSD) of the IBI. The

PSD analysis provides a means to evaluate various

autonomic nervous system influences on the heart

efficiently. Most of the recent research focuses on

quantifying the change in RSA as a measure of vagal

tone activity influencing the heart (Hoover & Muth,

2005; Keenan & Grossman, 2006; Aysin & Aysin,

2006).

3.3.2 Blood Pressure Features

Blood pressure also affects heart rate modulation

through the baroreceptor reflexes (Sleight &

Casadei, 1995). The main challenge is to obtain a

continuous measure of arterial blood pressure

(ABP). The photoplethysmogram (PPG) signal is

much more accessible and easily acquired in

continuous manner as compared to direct

measurement of the ABP signal. Recent work by

Shaltis et al, (2005) discusses the calibration of the

PPG signal to ABP signal.

3.3.3 Eye Tracking Features

The ASL 6000 eye tracker uses an IR camera to

capture images of the eye. An image processing

algorithm detects the dark pupil area in the eye and

the glint of light coming off of the eye. Using these

two measures, the learner’s point of gaze (POG) is

calculated. After proper calibration, the learner’s

POG can be transformed into a point on the screen

correspond to where he or she is looking.

Various features could be extracted from the

horizontal and vertical co-ordinate data, such as

fixation intervals, speed of eye movement, and

direction of eye movement. Marshall (2007) used

these features as inputs to a neural network to

classify cognitive states such as relaxed/engaged,

focused/distracted, and alert/fatigued. The authors

also state that as the data captured at the rate of 60-

250 Hz, the states could be predicted in real time.

3.4 Data Fusion, Cognitive State

Estimation

Once appropriate features psychometric data are

extracted, a strategy is needed for defining the

mathematical relationship between the feature the

state change. For example, Marshall (2007) used

features extracted from the eyetracker (e.g., eye

blinks, eye movement, pupil size, and divergence) to

classify cognitive activity into ‘low’ and ‘high’

activity measures. The authors used discriminant

function analysis to create a linear classification

model. A feed-forward neural network architecture

was trained with backpropagation learning scheme

to create a non-linear classification using the

eyetracker features.

We are in the process of creating

multidimensional classifiers based upon feature

analysis across multiple psychophysiological

metrics. These classifiers will eventually index

levels of cognitive state, which in turn will drive the

mitigation selection process of the AIA. The pilot

work presented in the next section highlights current

results.

4 PRELIMINARY RESULTS

4.1 Sensor Sensitivity in Cognitive

State Estimation

We are currently investigating the sensitivity of the

multimodal sensors to define cognitive state changes

dynamically. For example, Figure 4 shows

eyetracker data merged with the instantaneous

arousal level of the observer, as the observer

passively views a series of varying visual stimuli.

The arousal metric is calculated from the heart rate

data and was obtained using the WAM (Hoover &

Muth, 2005).

In Figure 4(d), the ellipse represents the current

viewing location of the observer. When the observer

moves his or her eyes in a vertical direction, the

major axis of the ellipse appears as vertical. A

diagonal movement of the eyes will produce a circle

as shown in Figure 4(a) and 4(c). Fixations are

illustrated in 4(c). As the observer fixates onto a

point of interest, the ellipse becomes a dot. The

fixation time can be presented along with the

fixation point in real-time or in an after action

review format.

The arousal levels are mapped to the ellipse via

colors ranging from red for high, yellow for

medium, and green for low. The scale used to

change the color will be verified experimentally

using a variation of the International Affective

Picture Sort (Lang et al., 2005). These transformed

features may further be used to develop

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

150

multidimensional metrics with which to predict

visual attention and arousal states of the learner.

Figure 4: Four screen captures from our system, showing

the observer’s current gazing location along with the

arousal (Images: Lang et al., 2005).

4.2 Identifying Baseline Values

Understanding how multimodal psychometric data

combine to predict cognitive states is only one part

of the problem in AIA design. Another issue is

identifying initial baseline values that will set the

system indices and determine the appropriate

classification of the learner’s cognitive state. Not

only will these baseline values vary based upon

individual difference, they may also vary during the

training session.

In a recent study, we monitored the arousal state

of persons placed in a mixed reality scenario

representing an every day social experience. The

social interaction was classified as friendly (e.g.,

mutual regard) or rude (e.g., confrontational). Figure

5 shows the percent high engagement as measured

by the EEG and the mean skin conductance for a

single participant. We used a multiple baseline

approach to identify points in the scenario that may

indicate a new baseline score.

100

B1 VE B2 Friendly Rude VE B3 B4

% High Engagement

Skin condcutance (microS)

%HighEng

Sk in Conductance

Figure 5: Skin conductance mean amplitude with 95%

Confidence Interval and % High Engagement as measured

by the EEG.

As shown, high engagement alone would not capture

the change in state of the participant accurately.

Regardless of variability, the sustained arousal

carried over from experiencing the rude interaction

may indicate a change in baseline that must be

account for in order to appropriately select the next

mitigation. Multimodal data is necessary to construct

an appropriate metric to capture this type of

sustained effect.

5 CONCLUSIONS

In this paper we reviewed the historical aspects of

ITS design and discussed a new direction in

combining current learning theory with adaptive

system theory. The resulting AIA represents a step

forward in providing on-demand training in a

complex and contextually relevant training

environment. The addition of physiological

measures to estimate the cognitive state of the

learner is not a novel; however, the data fusion

techniques and the use of the multimodal data drive

mitigation selection may present a worthwhile

contribution to the field.

ACKNOWLEDGEMENTS

This work was supported by the Office of Naval

Research and an In-House Grant provided by UCF’s

Institute for Simulation and Training.

REFERENCES

Nicholson, D., Stanney, K., Fiore, S., Davis, L.,

Fidopiastis, C., Finkelstein, N., & Arnold, R. 2006,

‘An adaptive system for improving and augmenting

human performance’, In D.D. Schmorrow, L.M.

Reeves, and K.M. Stanney (eds.): Foundations of

Augmented Cognition 2

Edition, Arlington, VA:

Strategic Analysis, Inc., pp. 215-222.

Scerbo, M. 2005 ‘Biocybemetic systems: Information

processing challenges that lie ahead’, Proceedings of

the 11

International Conference on Human-

Computer Interaction.

Cabeza, R., Nyberg, L. 2000, ‘Imaging cognition II: An

empirical review of 275 PET and fMRI studies’,

Journal of Cognitive Neuroscience, vol. 12, pp. 1–47.

Karamouzis, S. 2006, ‘Artificial Intelligence Applications

and Innovations’, IFIP Intemational Federation for

Information Processing, Vol. 204, Springer, Boston,

pp. 417-424.

c d

COGNITIVE STATE ESTIMATION FOR ADAPTIVE LEARNING SYSTEMS USING WEARABLE

PHYSIOLOGICAL SENSORS

151

Sleeman, Brown, J. 1982, Intelligent tutoring systems,

New York: Academic Press.

Nicholson, D., Fidopiastis, C., Davis, L., Schmorrow, D.

& Stanney, K. 2007, ‘An adaptive instructional

architecture for training and education’, Proceedings

of HCI International (in press).

Skinner, B. 1958, Teaching Machines, Science 128, pp.

969-77.

Wenger, E. 1987, Artificial Intelligence and Tutoring

Systems: Computational and Cognitive Approaches to

the Communication of Knowledge, Morgan Kaufmann

Publishers, Inc., Los Altos, CA.

Anderson, J., Corbett, A., Koedinger, Pelletier, K. 1995,

‘Cognitive Tutors: Lessons Learned’, Journal of the

Learning Sciences, vol. 4, no. 2, pp. 167-207.

Parasuraman, R., Bahri, T., Deaton, J. E., Morrison, J. G.,

& Barnes, M. 1992, Theory and design of adaptive

automation in adaptive systems (Progress Report No.

NAWCADWAR–92033–60). Warminster, PA: Naval

Air Warfare Center, Aircraft Division.

Paas, F., Renkl, A., & Sweller, J. 2004, ‘Cognitive load

theory: Instructional implications of the interaction

between information structures and cognitive

architecture’, Instructional Science, vol. 32, pp. 1–8.

Sweller, J. 1999, Instructional Design in Technical Areas.

Australian Council for Educational Research Press,

Camberwell, Australia.

Paas, F., Tuovinen, J., Tabbers, H., & Van Gerven, P.W.

M. 2003 ‘Cognitive load measurement as a means to

advance cognitive load theory’, Educational

Psychologist, vol. 38, pp. 63–71.

Hoover, A., Muth, E. 2005, ‘A real-time index of vagal

activity’, International Journal of Human-Computer

Interaction, vol. 17 no. 2, pp. 197-209.

Erdogmus, D., Adami, A., Pavel, M., Lan, T., Mathan, S.,

Whitlow, S., Dorneich, M. 2005, ‘Cognitive state

estimation based in EEG for augmented cognition’,

Proceedings of the 2

International IEEE EMBS

Conference in Neural E engineering, Arlington,

Virginia, March 16-19.

Downs, J., Downs, T., Robinson, W., Nishimura, E.,

Stautzenberger, J. 2005, ‘A new approach to fNIR:

The optical tomographic imaging spectrometer’,

Proceedings of the 1st International Conference on

Augmented Cognition, Las Vegas, NV, 22-27 July

2005.

Berka, C., Levendowski, D., Cvetinovic, M., Davis, G.,

Lumicao, M., Zickovic, V., Popovic, M., Olmstead, R.

2005, ‘Real-time analysis of EEG indexes of alertness,

cognition, and memory acquired with a wireless EEG

headset’, International Journal of Human-Computer

Interaction, vol. 17 no. 2, pp. 151-170.

Takahashi, M., Kubo, O., Kitamura, M., Yoshikawa H.

1994, ‘Neural network for human cognitive state

estimation’, Proceedings of the IEEE/RSJ/Gi

International Conference on Intelligent Robots and

Systems ’94.

Cerutti, S., Bianchi, A., Reiter, H. 2006, ‘Analysis of sleep

and stress profiles from biomedical signal processing

in wearable devices’, Proceedings of the 28

IEEE

EMBS Annual International Conference, New York

City, USA, Aug 30-Sept 3.

Crosby, M., Ikehara C. 2005, ‘Using physiological

measures to identify individual differences in response

to task attributes’, In D.D. Schmorrow, L.M. Reeves,

and K.M. Stanney (eds.): Foundations of Augmented

Cognition 2

Edition, Arlington, VA: Strategic

Analysis, Inc., pp. 162-168.

Keenan, D., Gorssman, P. 2005, ‘Adaptive filtering of

heart rate signals for an improved measure of cardiac

autonomic control’, International Journal of Signal

Processing, vol. 2, no. 1, pp. 52-8.

Aysin, B., Aysin, E. 2006, ‘Effect of respiration in heart

rate variability (HRV) analysis’, Proceedings of the

IEEE EMBS Annual International Conference,

New York City, USA, Aug 30-Sept 3.

Sleight, P., Casadei, B. 1995, ‘Relationships between

Heart rate, respiration and blood pressure

variabilities’, Heart Rate Variability, Futura

Publishing Company, Armonk, NY.

Shaltis, P., Reisner, A., Asada, H. 2005, ‘Calibration of

the photoplethysmogram to arterial blood pressure:

capabilities and limitations for continuous pressure

monitoring’, Proceedings of the 27

IEEE EMBS

Annual International Conference, Shanghai, China,

Sept 1-4.

Salvucci, D., Anderson, J. 1998, ‘Tracing eye movement

protocols with cognitive process models’, Proceedings

of the Twentieth Annual Conference of the Cognitive

Science Society, pp. 923-8.

Marshall, S., 2007, ‘Identifying cognitive state from eye

metrics’, Aviation, Space and Environmental

Medicine, Vol. 78, no. 5, pp. 165-75.

Lang, P., Bradley, M., Cuthbert B. 2005, ‘International

affective picture system (IAPS): Affective ratings of

pictures and instructional manual”, technical report A-

6, University of Florida, Gainesville, FL.

BIOSIGNALS 2008 - International Conference on Bio-inspired Systems and Signal Processing

152
