MODEL-FREE MARKERLESS TRACKING FOR REMOTE

SUPPORT IN UNKNOWN ENVIRONMENTS

Alexander Ladikos, Selim Benhimane, Nassir Navab

Department of Computer Science, Technical University of Munich, Boltzmannstr. 3, 85748 Garching, Germany

Mirko Appel

Siemens Corporate Technology, Munich, Germany

Keywords:

Tracking, Real-Time Vision, Remote Support, Augmented Reality.

Abstract:

We propose a complete system that performs real-time markerless tracking for Augmented Reality-based

remote user support in a priori unknown environments. In contrast to existing systems, which require a prior

setup and/or knowledge about the scene, our system can be used without preparation. This is due to our

tracking algorithm which does not need a 3D-model of the scene or a learning-phase for the initialization.

This allows us to perform fast and robust markerless tracking of the objects which are to be augmented. The

proposed solution does not require artiﬁcial markers or special lighting conditions. The only requirement is

the presence of locally planar objects in the scene, which is true for almost every man-made structure and in

particular technical installations. The augmentations are chosen by a remote expert who is connected to the

user over a network and receives a live stream of the scene.

1 INTRODUCTION

Remote Support is highly interesting for the service

industry, as it can help ﬁeld service technicians to

carry out their tasks more efﬁciently. Due to increas-

ing complexity and availability demands of plants and

products, quick intervention in case of failures, in-

volving highly specialized experts, is becoming a key

requirement. Remote Support enables on-site person-

nel, which is often rather universally trained than spe-

cialized, to obtain interactive assistance by globally

distributed experts. Supported by a combination of

technologies such as Remote Service, Video Confer-

encing and Augmented Reality, ﬁeld service person-

nel can solve a broader range of tasks faster and more

efﬁciently. First steps towards this direction have

been taken within the ARVIKA project (Friedrich,

2004). In this case the augmentation was purely

marker-based, requiring scene preparation and limit-

ing the ﬁeld of view of the on-site technician. The

approach presented in this paper better ﬁts the needs

of the service industry, as it can be used in an un-

known environment without any preparation and does

not limit the operating range of the service technician.

This is achieved by using a learning-free markerless

tracking system, which is based on template-based

and feature-based tracking algorithms. The tracking

system can handle commonly occurring real-world

tracking conditions including partial occlusions, mo-

tion blur, fast object movement and changing lighting

conditions. A 3D-CAD model of the scene is not re-

quired. We use this tracking system in a remote sup-

port application, which allows a remote expert to help

a local user by providing appropriate augmentations

for objects in the scene. The remote support is real-

ized by streaming a live video to the expert who can

select regions in the image and choose from several

possible types of augmentations including text, im-

ages and drawings.

2 RELATED WORK

Markerless tracking methods comprise different ap-

proaches. The most common are template-based

tracking (Hager and Belhumeur, 1998; Baker and

Matthews, 2004) and feature-point-based tracking

(Lowe, 2004; Lepetit et al., 2005) since they are fast

and stable under many conditions. There also exist

tracking methods combining multiple visual tracking

627

Ladikos A., Benhimane S., Navab N. and Appel M. (2008).

MODEL-FREE MARKERLESS TRACKING FOR REMOTE SUPPORT IN UNKNOWN ENVIRONMENTS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 627-630

DOI: 10.5220/0001071206270630

 SciTePress

cues such as lines, feature-points and texture (Vac-

chetti et al., 2004; Pressigout and Marchand, 2006;

Ladikos et al., 2007).

In particular the combination of template-based track-

ing and feature-based tracking gives robust results.

Template-based tracking works well for small inter-

frame displacements, image blur, oblique viewing an-

gles and linear illumination changes, while feature-

based tracking works well with occlusions and large

interframe displacements. Therefore, we based our

algorithm on combining template-based tracking and

feature-based tracking. For template-based tracking,

we use the ESM algorithm of (Benhimane and Malis,

2004) due to its high convergence rate and accuracy,

while the feature-based tracking is based on Harris

Corner points.

In (Ladikos et al., 2007) the authors assume that they

have a textured 3D-model of the object and that the

camera is calibrated. In our application we do not

have this information since we want to use it for in-

teractive tracking in unknown scenes with unknown

cameras. Our contributions therefore focus on mak-

ing this tracking approach work under the constraints

imposed by our application. To accommodate track-

ing in unknown scenes we parameterized the camera

motion using a homography instead of the pose in the

cartesian space. This is sufﬁcient for our application

since we only want to superimpose labels over the ob-

jects. This simpliﬁes the Jacobian so that we obtain a

signiﬁcant speed increase for the tracking. We also

included an online illumination compensation by es-

timating the gain and the bias for the tracked pattern.

To accommodate interactivity we use a learning-free

SIFT-based initialization instead of a learning-based

Randomized Tree initialization.

Augmented Reality-based remote support has re-

ceived much attention in the past. However, most ex-

isting work has focused on the interaction (Barakonyi

et al., 2004) between the remote user and the local

user and very little work (Lee and H

ollerer, 2006)

has been devoted to markerless tracking. Therefore,

most systems make use of ﬁducial markers or explicit

scene knowledge which precludes an ad-hoc use in

unknown environments. Our contribution is to use

a reference template for markerless tracking to avoid

drift and combine both template-based and feature-

based tracking to overcome problems with jittering,

fast object motion and partial occlusions.

3 THE TRACKING SYSTEM

Our tracking system combines template-based and

feature-based tracking. This design is based on sev-

eral simulations and experiments that were conducted

in order to determine the properties of both tracking

methods. Some of these experiments are presented

in the experimental section of this paper. The results

suggest that no single method can deal well with all

tracking situations occurring in practice. It is rather

the case that the two tracking approaches are com-

plementary. Therefore, efﬁciently combining those

methods yields robust and accurate tracking results.

In the remainder of this section, we will ﬁrst discuss

the design of the tracking system and then go on to

describe each component in detail.

3.1 System Design

Once the initialization module, which uses SIFT de-

scriptors, has determined the pose of the object in

the current image, our algorithm adaptively switches

between template-based tracking and feature-based

tracking depending on the value of the Normalized-

Cross-Correlation (NCC) computed between a refer-

ence image of the object and the object’s appearance

in the current image. During template-based track-

ing, a low NCC score usually means that the object

is being occluded or that the interframe displacement

is outside the convergence radius of the minimization

algorithm. In both cases, feature-based approaches

give higher quality results. Therefore, the proposed

algorithm automatically switches over to the feature-

based tracking. As soon as the NCC score gets high

enough, it is safe to go back to template-based track-

ing. If the score remains low, the feature-based track-

ing is invoked as long as there are enough inlier points

for a stable pose estimation. If this is not the case, the

algorithm invokes the global initialization.

3.2 Initialization

The initialization is performed using SIFT descrip-

tors. The choice of SIFT descriptors over other ap-

proaches is based on the fact that they do not need

a learning phase and that they have been shown to

be very robust with respect to different image trans-

formations. The runtime performance of SIFT is not

real-time, but since it is only used for initialization

this is not a critical issue.

3.3 Template-based Tracking

We use the ESM algorithm to perform template-based

tracking because it enables us to achieve second-order

convergence at the cost of a ﬁrst-order method. Given

the current image I and the reference image I

∗

a planar target, we are looking for the homography

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

628

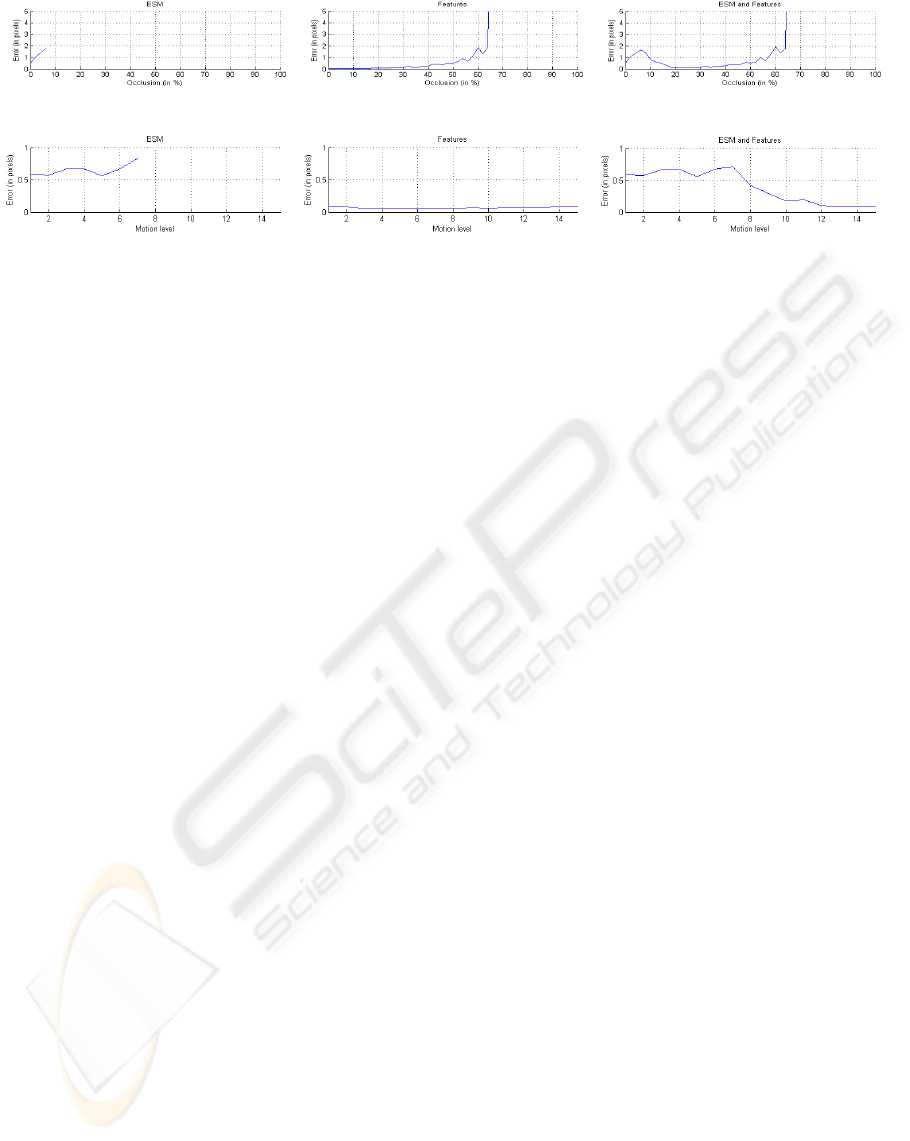

(a) Tracking accuracy under occlusions. Our method witches to feature-based tracking under signiﬁcantocclusions.

(b) Tracking accuracy under fast motion. Our method adaptively switches between template- and feature-based tracking.

Figure 1: Tracking results on simulated sequences.

which transforms the reference image into the current

image. The ESM algorithm iteratively updates the ap-

proximation

H of the homography by ﬁnding the pa-

rameters x of the incremental homography H(x). In

addition, we also estimate an incremental gain α to

the current gain

α and an incremental bias β to the

current bias

β for the template in order to minimize

the photometric error. This allows the method to be

used with changing lighting conditions. The gain is

parametrized through the exponential function to im-

prove the conditioning of the Jacobian and to guar-

antee that it is always positive. The SSD-based cost

function to be minimized is:

∑

exp(

α + α)I



HH(x)p



β+ β)− I

∗

(p)

(1)

where p are the pixel coordinates and w performs

the division by the homogeneous coordinate. In or-

der to speed up the optimization, we use a multi-scale

approach for optimizing the cost function.

3.4 Feature-based Tracking

Our feature-based tracking algorithm makes use of

Harris Corner points and NCC for matching. The

Harris features are extracted on the same reference

template used for tracking and matched to Harris

features found in the current image. However,

because NCC is not scale and rotation invariant, we

add an additional step to ensure that the changes in

pose between the reference template and the current

image are small. This is done by using the inverse

of the homography

H found in the previous frame to

warp the current image so that the NCC can still be

used as a similarity measure. The feature points are

then extracted in the warped image and the pose is

estimated using RANSAC.

4 THE REMOTE EXPERT

APPLICATION

We use the tracking algorithm presented in section

3 in a remote support application. The application,

called the Remote Expert, allows a user to receive in-

structions from a remote expert, which are augmented

onto objects in the scene.

The workﬂow of the application is as follows. First

the expert connects to the user’s machine to receive

a live video-stream. When the expert wants to add

an annotation to an object he can select a region in

the image and select either a text, a sketch or an im-

age augmentation. When selecting the region the ex-

pert application is requesting an uncompressed frame

at the full resolution from the worker, in order to se-

lect and send back the template in the actual resolu-

tion and quality of the input camera. The selected

region in the image and the augmentation are sent to

the user’s application, which starts tracking the ob-

ject using the reference template and augmenting it on

screen. For every frame the user’s application sends

the pose of the object determined by the tracking sys-

tem back to the expert application which uses this

pose to augment the video locally.

To reduce bandwidth requirements the video is en-

coded to MPEG-2 at a resolution of 320x240 pixels

and 15 fps independent of the actual size and frame

rate of the user’s camera. In order to keep the delay

low the tracking is performed on the user’s machine.

This also yields superior tracking results, because the

user can make use of the full resolution and speed of

the camera.

5 RESULTS

In order to evaluate both the tracking algorithm and

the remote support application, we performed two

MODEL-FREE MARKERLESS TRACKING FOR REMOTE SUPPORT IN UNKNOWN ENVIRONMENTS

629

sets of experiments. The ﬁrst set was designed to test

the accuracy and the robustness of the tracking algo-

rithm while the second set was meant to evaluate the

Remote Expert application.

To test the robustness of the tracker we performed

several kinds of simulations, whose results are shown

in Figure 1. In all experiments the performance of

the ESM algorithm and the feature-based tracking by

themselves were compared to the combined approach.

The error was measured by computing the displace-

ment of the corner points of the template from their

true position after optimization. Apart from synthetic

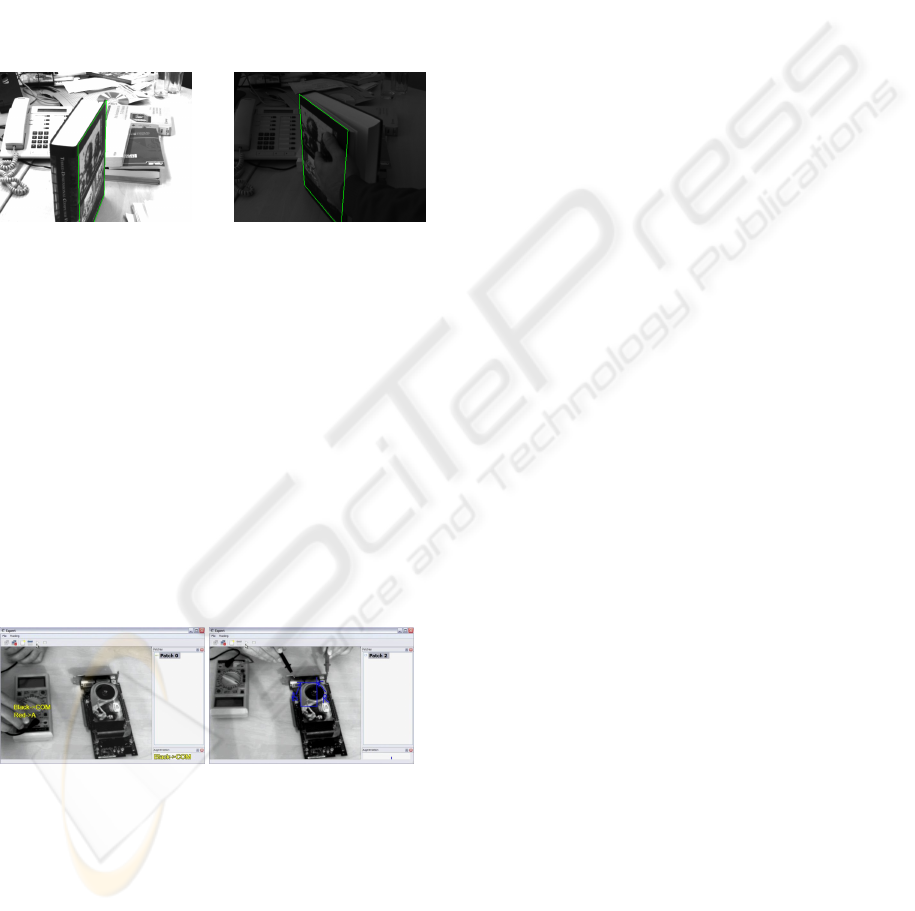

Figure 2: Tracking results on a real-world sequence.

experiments, we also performed real-world tests. We

found that our algorithm can successfully deal with

partial occlusions, blur, oblique viewing angles and

low lighting conditions (see ﬁgure 2).

The Remote Support application was used in a remote

support scenario. Figure 3 shows some screenshots of

the Remote Expert application during the remote sup-

port session. The expert and the user are located at

two different locations and are connected over the In-

ternet. The user has a measuring device and a piece

of hardware and the remote expert assists him in per-

forming the measurement correctly. The user follows

the instructions given by the remote expert and ﬁn-

ishes the experiment successfully.

Figure 3: Screenshots from the Remote Expert application.

6 CONCLUSIONS

We presented a complete system based on a real-time

markerless tracking algorithm which enables us to

perform Augmented Reality in a priori unknown en-

vironments containing approximately planar patches.

The presented system combines template-based and

feature-based tracking algorithms in a homography-

based model-free tracking framework and includes il-

lumination compensation as well as a learning-free

initialization procedure. This yields fast and robust

tracking results which overcomes the problems most

tracking algorithms have under real-world conditions,

including partial occlusions, motion blur, fast object

motion and changing lighting conditions. The remote

support application allows a remote expert to interact

with a local user by providing suitable augmentations

for objects in the scene without requiring markers or

knowledge about the scene.

In order to validate the proposed method, we per-

formed multiple tracking experiments on both syn-

thetic and real data. In addition, we evaluated the re-

mote expert application with a support scenario.

REFERENCES

Baker, S. and Matthews, I. (2004). Lucas-kanade 20 years

on: A unifying framework. IJCV, 56(3):221 – 255.

Barakonyi, I., Fahmy, T., and Schmalstieg, D. (2004). Re-

mote collaboration using augmented reality video-

conferencing. In Proceedings of the Conference on

Graphics Interface, pages 89–96.

Benhimane, S. and Malis, E. (2004). Real-time image-

based tracking of planes using efﬁcient second-order

minimization. In IROS, pages 943–948.

Friedrich, W. (2004). ARVIKA - Augmented Reality f

ur En-

twicklung, Produktion und Service. Publicis, ﬁrst edi-

tion.

Hager, G. and Belhumeur, P. (1998). Efﬁcient region track-

ing with parametric models of geometry and illumina-

tion. PAMI, 20(10):1025–1039.

Ladikos, A., Benhimane, S., and Navab, N. (2007). A real-

time tracking system combining template-based and

feature-based approaches. In VISAPP.

Lee, T. and H

ollerer, T. (2006). Viewpoint stabilization

for live collaborative video augmentations. In ISMAR,

pages 241–242.

Lepetit, V., Lagger, P., and Fua, P. (2005). Randomized

trees for real-time keypoint recognition. In CVPR,

pages 775–781.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. IJCV, 60(2):91–110.

Pressigout, M. and Marchand, E. (2006). Hybrid tracking

algorithms for planar and non-planar structures sub-

ject to illumination changes. In ISMAR, pages 52–55.

Vacchetti, L., Lepetit, V., and Fua, P. (2004). Combining

edge and texture information for real-time accurate 3d

camera tracking. In ISMAR, pages 48–57.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

630
