GLOBAL DEPTH ESTIMATION FOR MULTI-VIEW VIDEO

CODING USING CAMERA PARAMETERS

Xiaoyun Zhang, Weile Zhu

University of Electronic Science and Technology of China, Chengdu, Sichuan, China

George Yang

Panovasic Technology Co. Ltd., China

Keywords: Multi-view video coding, multi-view video plus depth, global depth, depth-based view synthesis.

Abstract: Multi-view video plus depth (MVD) data format for Multi-view Video Coding (MVC) can support

rendering a wide range continuum of views at the decoder for advanced 3DV and FVV systems. Thus, it is

important to study global depth to reduce the rate for depth side information and to improve depth search

efficiency. In this paper, we propose a global depth estimation algorithm from multi-view images using

camera parameters. First, an initial depth is obtained from the convergent point of the camera system by

solving a set of linear equations. Then, the global depth is searched around the initial depth to minimize the

absolute difference between the synthesized view and the practical view. Because the initial depth can

provide appropriate depth search range and step size, the global depth can be estimated efficiently and

quickly with less computation. Experimental results verify the algorithm performance.

1 INTRODUCTION

It has been recognized that multi-view video coding

(MVC) is a key technology that serves a wide

variety of future interactive multimedia applications,

including FVV (free-viewpoint video systems),

3DTV (3D television), immersive tele-conference

and surveillance. Because of the huge amount of

data, efficient compression is more important than

ever in the storage and transmission of multi-view

video. In MVC related techniques, one crucial point

is to improve the coding efficiency by utilizing the

inter-view correlations besides the temporal and

spatial correlations within a single view video.

In April 2007, Smolic et al. propose multi-view

video plus depth (MVD) data format for advanced

3D video systems in the JVT (Joint Video Team of

ISO/IEC MPEG & ITU-T VCEG) proposal (Smolic

et al. 2007). The proposal points out that MVD can

meet the central requirement of 3DV and FVV

applications, i.e., a format that allows rendering a

wide range continuum of views at the decoder, and

JVT is considering to work align with MVD format.

Therefore, block-based or pixel level depth map

estimation from multi-view has been an important

issue for MVC.

Although there have been a lot of related work

(Okutomi, et al. 1993) (Kauff, et al. 2007) (Zitnick,

et al. 2004) on depth estimation from images, most

of them are only suitable for image pairs captured by

parallel cameras or calibrated image pairs. In these

work, horizontal disparity is first computed using

stereo correspondence algorithms, and then the depth

is computed according to the relationship that depth

is inverse proportional to disparity. Readers may

refer to the work of Scharstein (Scharstein, et al.

2002) for a good review of stereo matching.

However, in many multi-view video applications,

cameras are arranged in arc or along a curved line

with rotated angles in order to capture the same

scene from different viewpoints, where projection

distortion exists between views and the translational

block based disparity estimation is not suitable.

Thus, depth search method (Yea, et al. 2006) is

developed to estimate the depth directly and

efficiently for view synthesis prediction for rotated

camera systems.

In the disparity compensated multi-view video

coding, the JVT proposal (Ho, et al. 2006) propose

631

Zhang X., Zhu W., Zhu W., Zhu W., Yang G., Yang G. and Yang G. (2008).

GLOBAL DEPTH ESTIMATION FOR MULTI-VIEW VIDEO CODING USING CAMERA PARAMETERS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 631-634

DOI: 10.5220/0001071706310634

 SciTePress

global disparity compensation, where the global

disparity between two views is calculated as the

displacement vector minimizing the mean absolute

difference between the one translated view and the

other view. After global disparity compensation, the

disparity vectors mainly distribute around zero

value, and thus the search range for disparity can be

reduced to improve coding efficiency.

Similarly, in MVC using view synthesis

prediction and MVD data format, global depth is

studied to reduce rate for depth side information and

to improve depth search efficiency (Vetro, 2007). In

addition, appropriate depth search range and step

size play important roles in the depth estimation

(Yea, et al. 2007), and estimating global depth can

provide useful information for determining range

and step size. Therefore, global depth estimation also

becomes a key problem for MVC and depth search.

In this paper, we propose a method for global

depth estimation from multi-view images using

camera parameters. First, an initial depth value is

obtained from the convergent point of the camera

system by solving a set of linear equations. Then, the

global depth is searched to minimize the absolute

difference between the synthesized view and the

practical views.

2 INITIAL DEPTH

Suppose the camera coordinate system of camera

),,1( mic

L= is

iiii

zyxo − and

is the number

of cameras. The orientation and position of the

camera coordinate system

iiii

zyxo − relative to the

world coordinate system

o − is described by a 3

by 3 rotation matrix

R and a translation vector

t .

If a scene point is described as

],,[ zyxp = in

yzo − and ],,[

iiii

zyxp = in

iiii

zyxo − , then they

satisfy the following equation

iii

tpRp += (1)

And, according to perspective projection, the

camera coordinate

p is mapped into the image

plane with pixel coordinate

],[

vu by

iiii

pAPz = (2)

where

]1,,[

iii

vuP = is the homogeneous coordinate

of the pixel

],[

vu , and

A is the intrinsic matrix of

camera

c which contains information about focal

length, aspect ratio and principal point.

In order to capture the same scene from different

viewpoints, in many multi-view video applications

cameras are arranged in arc or along a curved line

with rotated angles with optical axes convergent to

one common point. In practice, although the optical

axes of all cameras may not converge to one point, it

is always possible to determine one 3D point which

is closest to all optical axes.

The 3D convergent point is generally the center

of the observed scene, and can be considered as the

representative point of the scene. Therefore, the

depth of the convergent point provides important

information about the scene depth, and can be set as

the initial value and used to determine appropriate

search range and step size for the global depth

search. In the following, the convergent point is

computed by solving a set of linear equations.

Suppose the convergent point is represented by

and

in the world and camera coordinate

system respectively. Because the point is on the

optical axes,

M has non-zero value only in

component and can be expressed as follows

],0,0[

(3)

According to the formula (1), we have

iiic

tMRM +

(4)

From (3)(4), we can get 3 m linear equations about

and the depth values

zzz ,,,

L for a capture

system with

m cameras, which can be easily solved

by linear least square method.

For parallel camera systems, since there is no

convergent point, we can first compute the global

disparity using the method in the JVT proposal (Ho,

et al. 2006), and then get depth information

according to the inverse proportion relation between

depth and disparity.

3 GLOBAL DEPTH SEARCH

To reduce the rate for depth side information and to

improve code efficiency, in this section the global

depth is searched to minimize the absolute difference

between the synthesized view and the practical view.

And the search range and step size is determined

according to the initial depth value.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

632

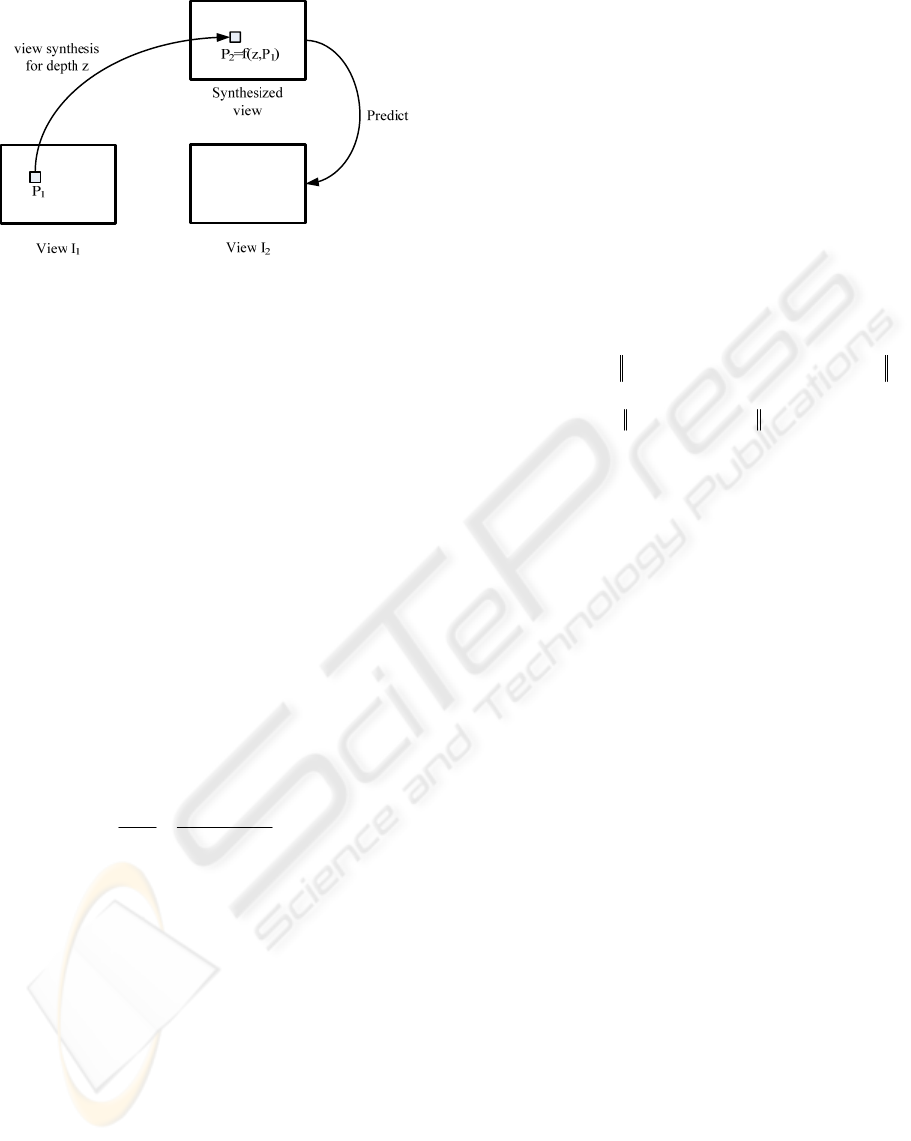

Figure 1: Depth based view synthesis and prediction.

Suppose a pixel

P in view

I has depth value

z in its correspondent camera coordinate system,

and its correspondent pixel

P in view

I has depth

value

z in the correspondent camera coordinate

system. Then, according to formula (1) (2), we have

22211

111

tPARztPARz

+=+

−

(5)

From (5), we can further derive that

2211

PzCtBPz

+ (6)

where

−

= RAC ,

−−

= ARRAB and

ttt

−

Because

P and

P are homogeneous coordinates

with the third component being one, we can get the

correspondent pixel

P in view

I for pixel

P in

view

I by eliminating depth

),(

3131

Pzf

tcPbz

CtBPz

== (7)

where

b and

c are the third rows of B and C

respectively. Formula (7) shows that the

correspondent pixel

P in view

I for pixel

P in

view

I is the function of the image coordinate

and its depth

z when given with known camera

parameters.

For view synthesis prediction using depth

information, the pixel

P in view

I with the given

depth

is projected to the correspondent pixel

in the synthesized view using the camera parameters.

According to the common assumption that the same

scene point has the same intensity value in different

views, thus the image value at pixel

P for the

synthesized view

_ IdSynthesize are set the same

P in view

I , i.e.,

)()),((_)(_

111222

PIPzfIdSynthesizePIdSynthesize =

(8)

The synthesized view is then used to predict view

I ,

and the prediction error between synthesized and

practical view is encoded, as shown in Fig. 1. In

order to improve code efficiency, it is reasonable to

minimize the absolute difference between the

synthesized view and the practical view. Define the

global sum of absolute difference between the

synthesized view and the practical views as

∑∑

=∈

−=

kIP

PzfIPI

PzfIPzfIdSynthesisezGSAD

)),(()(

)),((),((_)(

(9)

where the absolute difference is summed over the

whole image and the other

-1 views. Then, the

global depth is obtained by solving the following

problem

)(

min

}z,,,{

maxstepminmin

zGSAD

zzzz L+∈

(10)

where

],[

maxmin

zz is the depth search range and

step

is the step size.

It is asserted that the search range and step size

have a substantial effect on coding gains. Yea et al.

(Yea, et al. 2007) present a method to determine

appropriate range and step using matching points,

which is only effective when the feature track

algorithm succeeds in finding the right match points

robustly. However, in our work, the initial depth

value provides important reference information for

determining the search range and step size.

Generally, we can set a local search range centered

at the initial depth, and set the step size as a scale of

the initial depth.

4 EXPERIMENTS

Experiments is tested on the standard test data "Uli"

for MVC, which is provided by Heinrich-Hertz-

Institute (HHI, German) and available at

https://www.3dtv-research.org/3dav_CfP_FhG_HHI.

"Uli" data is captured by 8 convergent cameras.

GLOBAL DEPTH ESTIMATION FOR MULTI-VIEW VIDEO CODING USING CAMERA PARAMETERS

633

(a) view 6 (b) view 7 (c) view 8

(d) (e)

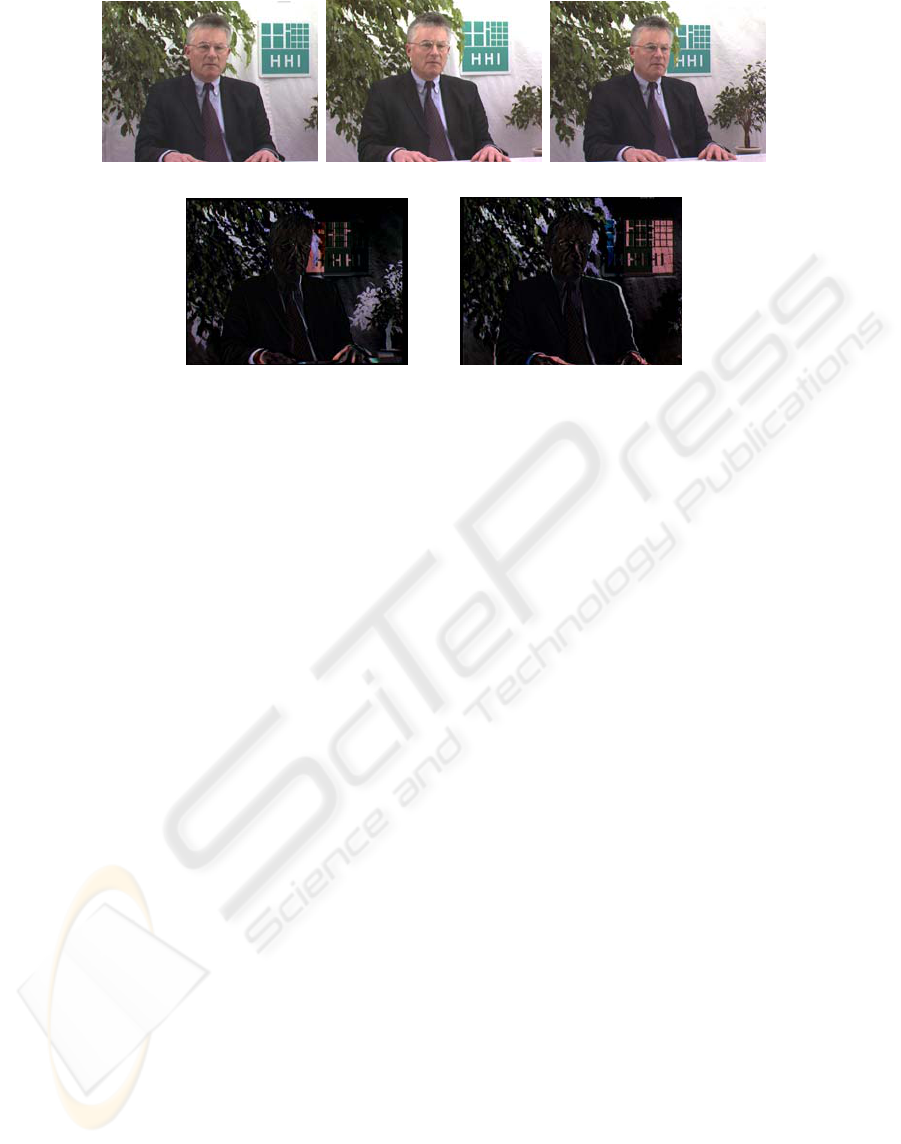

Figure 2: "Uli" images and difference images: (a)~(c): images from view 6, 7 and 8 respectively; (d)~(e): the difference

images between practical views and synthesized views using estimated global depth, (d) for view 6 and (e) for view 8.

For simplicity, we only use view 6, 7 and 8 in

the experiment, as shown in Fig.2. With the given

camera parameters, the initial depth value is obtained

by computing the convergent point through solving

linear equations. The computed initial depth for view

7 is 3030.7mm, and the ground truth value of the

bright reflection on the glasses of left eye is

3076.2mm, which is computed from the provided

scene point M

=[35.07, 433.93, -1189.78] in world

coordinates. Since the depth change of the "Uli"

scene is not large, the estimated initial depth is

reasonable.

After get the initial depth, we can set appropriate

search range and step size which makes the global

depth estimated efficiently and quickly with less

computation. In the experiment, the search range is

set

%20± of the initial depth, and the step size is set

1% of the initial depth. When the projected pixel in

the synthesized view does not fall on the integer-grid

point, it is rounded to the nearest integer pixel. If the

projected pixel is out of image, the image value for

the pixel is set as that of the nearest image edge

point. And the difference between the synthesized

view and practical view is summed over the whole

image using all the RGB components. The final

estimated global depth for view 7 is 3151.9mm.

To intuitively show the estimation performance

of the global depth, we give out the difference image

between the practical view and the synthesized view

based on the estimated global depth. From Fig. 2 (d)

(e), we see that the differences in most areas are

around zero (black areas), which show the estimated

global depth is reasonable and right.

REFERENCES

Smolic, A. and Mueller, K. et al., 2007. Multi-View Video

plus Depth (MVD) Format for Advanced 3D Video

Systems. ISO/IEC JTC1/SC29/WG11,Doc.JVT-W100.

San Jose, USA.

Scharstein, D. and Szeliski, R., 2002. A Taxonomy and

Evaluation of Dense Two-Frame Stereo Correspon-

dence Problem. International Journal of Computer

Vision 47(1/2/3): 7-42.

Okutomi, M. and Kanade, K., 1993. A Multiple-Baseline

Stereo. IEEE Transaction on Pattern Analysis and

Machine Intelligence 15 (4): 353– 363.

Kauff, P. and Atzpadin, N. et al., 2007. Depth Map

Creation and Image-Based Rendering for Advanced

3DTV Services Providing Interoperability and

Scalability. Signal Processing: Image Communication,

Volume 22, Issue 2, Special Issue on 3D Video and

TV, pp. 217-234.

Zitnick, C.L., Kang, S.B., Uyttendaele, M. Winder, S. and

Szeliski, R., 2004. High-quality Video View

Interpolation Using a Layered Representation. In

Proceedings of the ACM SIGGRAPH, Los Angeles,

CA, USA, pp. 600–608.

Ho, Y. S., Oh, K. J., et al., 2006. Global Disparity

Compensation for Multi-view Video Coding. ISO/IEC

JTC1/SC29/WG11,Doc.JVT-T136, Klagenfurt,

Austria.

Vetro, A., 2007. Summary of BoG Discussion on View

Interpolation Prediction. ISO/IEC JTC1/SC29/ WG11,

Doc. JVT-W133

，

San Jose, USA.

Yea, S. and Vetro, A., 2007. Report of CE6 on View

Synthesis Prediction. ISO/IEC JTC1/SC29/WG11

，

Doc. JVT-W059, San Jose, USA.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

634
