EFFECT OF FACIAL EXPRESSIONS ON FEATURE-BASED

LANDMARK LOCALIZATION IN STATIC GREY SCALE

IMAGES

Yulia Gizatdinova and Veikko Surakka

Research Group for Emotions, Sociality, and Computing, Tampere Unit for Computer-Human Interaction (TAUCHI)

University of Tampere, Kanslerinnrinne 1, 33014, Tampere, Finland

Keywords: Image processing and computer vision, segmentation, edge detection, facial landmark localization, facial

expressions, action units.

Abstract: The present aim was to examine the effect of facial expressions on the feature-based landmark localization

in static grey scale images. In the method, local oriented edges were extracted and edge maps of the image

were constructed at two levels of resolution. Regions of connected edges represented landmark candidates

and were further verified by matching against the edge orientation model. The method was tested on a large

database of expressive faces coded in terms of action units. Action units described single and conjoint facial

muscle activations in upper and lower face. As results demonstrated, eye regions were located with high

rates in both neutral and expressive datasets. Nose and mouth localization was more attenuated by variations

in facial expressions. The present results specified some of the critical facial behaviours that should be taken

into consideration while improving automatic landmark detectors which rely on the low-level edge and

intensity information.

1 INTRODUCTION

Facial expressions result from contractions and/or

relaxations of facial muscles. These non-rigid facial

movements result in considerable changes of facial

landmark shapes and their location on the face,

presence/absence of teeth, out-of-plan changes

(showing the tongue), and self-occlusions (bitted

lips). The best known and most commonly referred

linguistic description of facial expressions is the

Facial Action Coding System (FACS) (Ekman and

Friesen, 1978; Ekman,

Friesen, and Hager, 2002).

The FACS codes an expressive face in terms of

action units (AUs). The numerical AU code

describes single and conjoint facial muscle

activations. It is anatomically-based and therefore

represents facial expressions as a result of muscle

activity without referring to emotional or otherwise

cognitive state of a person on the image.

It was suggested that structural changes in the

regions of facial landmarks (eyebrows, eyes, nose,

and mouth) are important and in many cases

sufficient for AU recognition. In automatic AU

recognition, manual preprocessing is typically

needed to select a set of fiducial points (for example,

eye centres and mouth corners) in static image or

initial frame of the video sequence. Fiducial points

are further used to track changes in the face resulted

from its expressive behaviour or to align an input

image with a standard face model. Currently, there is

a need for a system that can automatically locate

facial landmarks in the image prior to the following

steps of the automatic facial expression analysis.

In static facial image, there is no temporal

information on facial movements available. Facial

landmark localization in this case is generally

addressed by modelling a local texture in the regions

of landmarks and by modelling a spatial

arrangement of the found landmark candidates

(Hjelmas and Low, 2001; Pantic and Rothkrantz,

2000; Yang, Kriegman, and Ahuaja, 2002). The

main challenge is to find a representation of the

landmarks that efficiently characterizes a face and

remains robust with respect to facial deformations

brought about by facial expressions.

Addressing the problem of expression invariant

localization of facial landmarks in static grey scale

images, the feature-based method was introduced

(Gizatdinova and Surakka, 2006). In the method,

259

Gizatdinova Y. and Surakka V. (2008).

EFFECT OF FACIAL EXPRESSIONS ON FEATURE-BASED LANDMARK LOCALIZATION IN STATIC GREY SCALE IMAGES.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 259-266

DOI: 10.5220/0001072602590266

 SciTePress

edge representation of the face was taken at ten edge

orientations and two resolution levels to locate

regions of eyes (including eyebrows), lower nose,

and mouth. The resulted edge map of the image

consisted of regions of connected local oriented

edges presumed to contain facial landmarks. To

verify the existence of a landmark on the image, the

extracted landmark candidates were matched against

the edge orientation model. Figure 1 illustrates the

main steps of the method. The description of edge

detection, edge grouping, and edge orientation

matching steps is given in more detail in Appendixes

A and B.

A degradation in the landmark localization rates

was reported for expressive dataset as compared to

neutral dataset. The further analysis (Guizatdinova

and Surakka, 2005) suggested that there were certain

AUs which significantly deteriorated the

performance of the method. It was assumed that

AUs activated during happiness (AU12), disgust

(AU 9 and 10), and sadness (AU 1 and 4) would be

such central AUs. Having such a ground, the main

motivation for the present study was the fact that

although a degradation in the landmark localization

rates due to expression variations is generally

appreciated in the computer vision society; however,

a little attempt has been done to analyze what

muscle activations cause the degradation. To

estimate more accurately what facial muscular

activity affects the feature-based landmark

localization, a more detailed study was needed.

The present aim was to evaluate the developed

method on a larger AU-coded database of expressive

images and investigate the impact of single AUs and

AU combinations on the facial landmark localization

in static facial images.

2 DATABASE

The Cohn-Kanade AU-Coded Facial Expression

Database (Kanade, Cohn, and Tian, 2000) was used

to test the method. The database consists of image

sequences taken from 97 subjects of both gender

(65% female) with ages varying from 18 to 30 years.

The database represents subjects with different

ethnic background (81% Caucasian, 13% African-

American, and 6% Asian or Latino). There were no

images with eye glasses and strong facial hair.

Each image sequence starts with a neutral face

that gradually transforms to an expressive one.

Expressions from different sequences can differ in

levels of intensity. Expressive images are labelled in

terms of AUs, and AUs occur both alone and in

combinations. The AU descriptors taken from the

FACS manual (Ekman,

Friesen, and Hager, 2002)

are as follows. Upper face AUs: 1 - inner eyebrow

raiser, 2 - outer eyebrow raiser, 4 - eyebrow lowerer,

5 - upper lid raiser, 6 - cheek raiser and lid

compressor, 7 - lid tightener, 43 - eye closure, and

45 - blink. Lower face AUs: 9 - nose wrinkler, 10 -

upper lip raiser, 11 - chin raiser, 12 - lip corner

depressor, 14 - lips part, 15 - jaw drop, 16 - mouth

stretch, 17 - lower lip depressor, 18 - lip pucker, 20 -

lip tightener, 23 - lip presser, 24 - nasolabial furrow

deepener, 25 - lip corner puller, 26 - lip stretcher,

and 27 – dimpler.

From each image sequence, the first and the last

frames were selected which corresponded to neutral

and expressive faces, respectively. A total of 468

neutral and 468 expressive images were selected. All

images were scaled to approximately 300 by 230

pixel arrays. No face alignment was performed.

Image indexes were masked by white boxes.

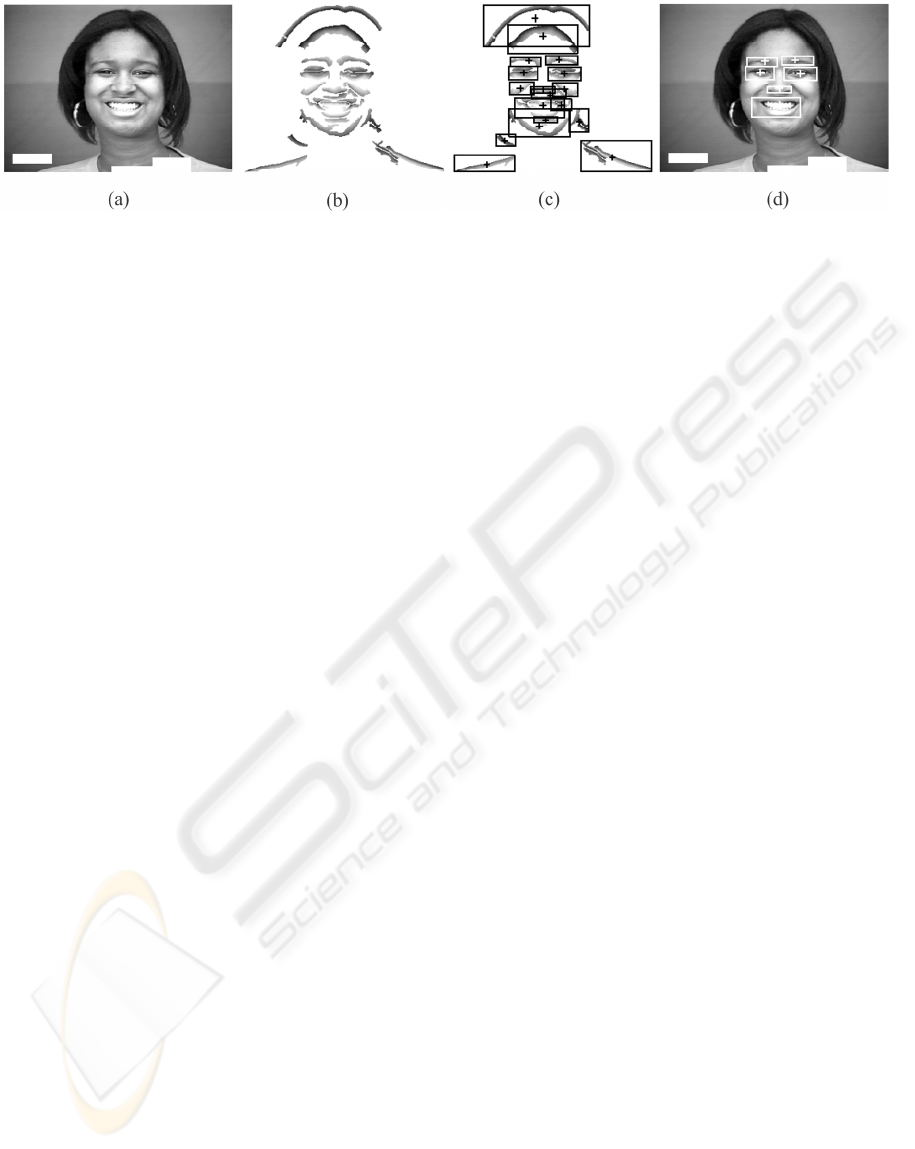

Figure 1: Facial landmark localization: (a) original image, (b) parts of the image located as regions of connected edges; (c)

landmark candidates; (d) final localization result after edge orientation matching. Bounding boxes indicate locations an

crosses define mass centres of the found regions. Image indexes are masked by white boxes. Images are courtesy of the

Cohn-Kanade AU-Coded Facial Expression Database (Kanade, Cohn, and Tian, 2000). Reprinted with permission.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

260

3 LANDMARK LOCALIZATION

All the localization results were checked manually

and classified into one of the following groups:

correct, wrong, and false localization. Different from

systems in which a point defines the localization

result, in this study the localization result was

defined as a rectangular bounding box placed over

the located region. The mass centre of the located

region indicated an estimate of the centre of the

landmark.

A correct landmark localization was considered

if the bounding box overlapped approximately more

than a half of the visible landmark and enclosed the

area surrounding a landmark less than the actual area

of the landmark (Figure 2). Eye localization was

counted correct if the bounding box included both

eye and eyebrow, or eye and eyebrow were located

separately. In case if eyebrow was located as a

separate region, it was obligatory that a

corresponding eye was also found.

A wrong landmark localization was considered

if the bounding box covered several neighbouring

facial landmarks. Wrong landmark localization was

observed in 0.54 cases per image. For this type of

localization error, the failure in nose and mouth

localization was mainly due to the effect of lower

face AUs 9, 10 and 12. These AUs, occurring alone

or in combinations, produced the erroneous grouping

of nose and mouth into one region. AUs 4, 6, 7, and

their combinations with other AUs sometimes

caused the merging of the eye regions.

A false landmark localization was considered if

the bounding box included some non-landmark

regions as, for example, elements of clothing, hair or

face parts like wrinkles, shadows, ears, and

eyebrows located without a corresponding eye. The

procedure of orientation matching reduced the

average number of candidates per image into almost

a half for neutral (from 6.57 to 3.49) and expressive

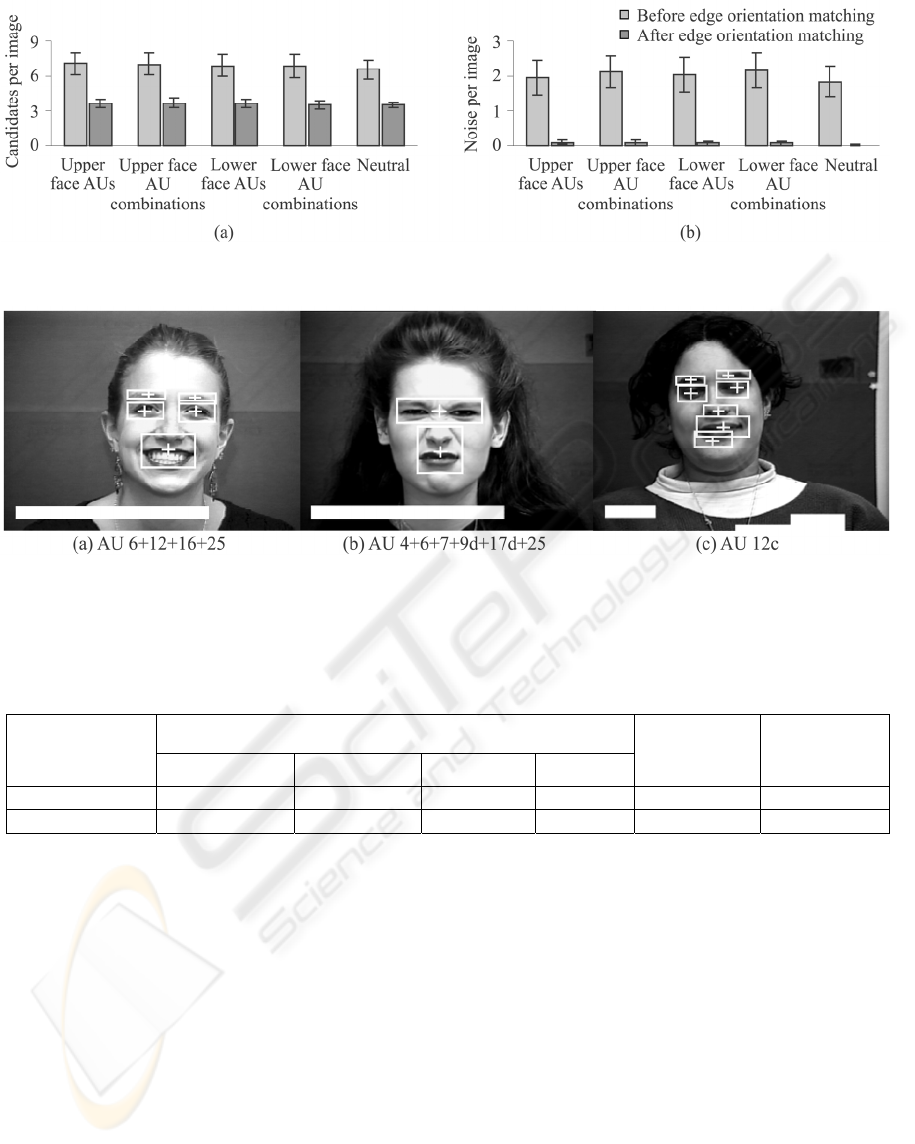

(from 6.97 to 3.60) images, see Figure 3,a.

Accordingly, the average number of false

localizations per image was reduced from 1.84 to

0.01 for neutral and from 2.07 to 0.08 expressive

images, see Figure 3,b. Figure 4 shows some

examples of the localization errors.

Table 1 summarizes the performance of the method.

For each landmark, a rate of its localization was

defined as a ratio between the total number of

correctly located landmarks and the total number of

images used in testing (as there was one landmark

per image). A false positive was defined as a number

of false localizations.

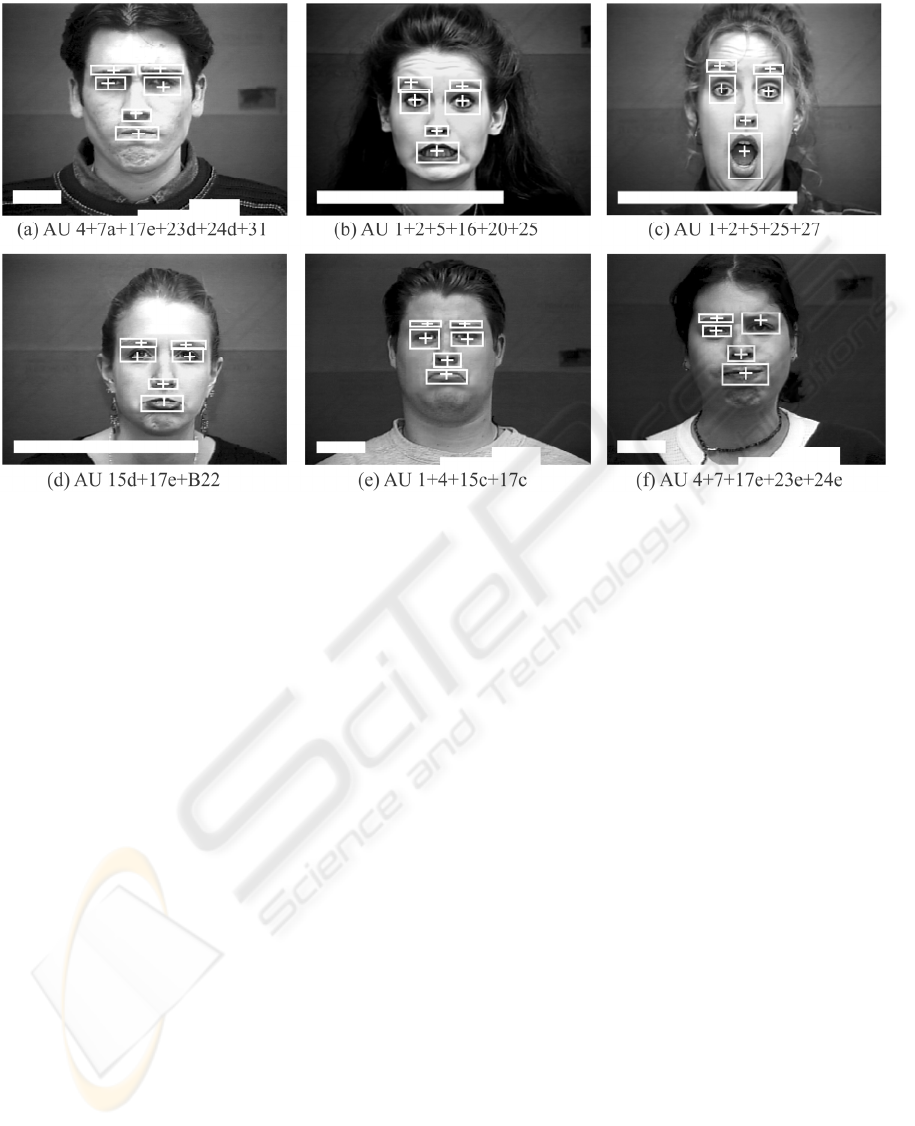

Figure 2: Examples of correctly located facial landmarks. Bounding boxes indicate locations and crosses define mass

centres of the found regions. Image indexes are masked by white boxes. Images are courtesy of the Cohn-Kanade AU-

Coded Facial Expression Database (Kanade, Cohn, and Tian, 2000). Reprinted with permission.

EFFECT OF FACIAL EXPRESSIONS ON FEATURE-BASED LANDMARK LOCALIZATION IN STATIC GREY

SCALE IMAGES

261

The method achieved average localization rate

of 84% in finding all facial landmarks. On the

whole, localization rates were better for neutral than

for expressive images. Thus, eye regions were

located with high rates in both neutral and

expressive datasets. However, nose and mouth

localization rates were considerably better for

neutral than for expressive images. In the next

sections, the effect of single AUs and AU

combinations on the landmark localization rates will

be considered.

3.1 Effect of Facial Expressions on

Landmark Localization Rates

The results of the previous section demonstrated the

degradation of the landmark localization rates in

case of expressive dataset. The same results can be

interpreted in a way that specifies what facial

behaviours caused the degradation. At this point we

aimed to analyze the effect of upper and lower face

AUs on the landmark localization rates. To do that

the localization results were classified systematically

using the following approach. The results were

combined into four AU groups according to AUs

presented in the test image, see Table 2. Thus, if

image label included single AU, the localization

result was classified into group I or II. If image label

included a combination of two AUs, the localization

result was classified into group III or IV. AU43 (eye

closure) and AU45 (blink) were combined together

because they both have the same visual effect on the

facial appearance and different durations of these

AUs can not be measured from the static images.

Figure 3: Average number of landmark candidates per image before and after the procedure of orientation matching. The

error bars show plus/minus one standard deviation from the mean values.

Figure 4: Examples of errors in facial landmark localization: (a) nose and mouth wrong localization; (b) eye region wrong

localization and nose and mouth wrong localization; (c) false localization. Bounding boxes indicate locations and crosses

define mass centres of the found regions. Image indexes are masked by white boxes. Images are courtesy of the Cohn-

Kanade AU-Coded Facial Expression Database (Kanade, Cohn, and Tian, 2000). Reprinted with permission.

Table 1: Performance of the method on neutral and expressive datasets.

Dataset

Rates of landmark localization

Total False positive

R eye region L eye region Nose Mouth

Neutral

98% 99% 93% 91%

95% 9

Expressive

93% 93% 55% 55%

74% 55

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

262

Due to the fact that some AUs were not presented in

the database or the number of images was too few

(less than 6), only a limited number of AUs and AU

combinations was used. The classification allowed

the results to belong to more than one group. On the

next step, average landmark localization rates were

calculated for each AU subgroup. Tables 3 and 4

illustrate the effect of chosen AU groups on the

landmark localization rates. In the tables, AUs and

AU combinations were defined as having no or

slight effect if average localization rates were in the

range of 90-100%, as medium if localization rates

were in the range of 80-89%, and strong if

localization rates were below 79%. Table 3

demonstrates that eye region localization was

consistently good in the context of the presented AU

groups. Among all the facial behaviours, upper face

AU9 and AU combinations 4+6, 9+25, and 10+17

had the most deteriorating effect on the eye region

localization. Lower face AU 9 and AU combinations

4+6, 9+17, 12+20, 12+16 had the most deteriorating

effect on the nose and mouth localization in Table 4.

In the tables, bold font defines AUs and AU

combinations which had the strongest effect on both

upper and lower face landmark localization.

4 DISCUSSION

The effect of facial expressions on the feature-based

localization of facial landmarks in static facial

images was evaluated. In this section, the impact of

upper and lower face AUs and AU combinations on

the landmark localization rates will be analyzed and

discussed.

4.1 Effect of Upper Face AUs on Eye

Region Localization Rates

On the average, the results demonstrated that eye

region localization was robust in some extent with

Table 2: AU groups for analysis of the effect of upper and lower face AUs on the method performance.

AU groups AU subgroups

I. Upper face AUs 1, 2, 4, 5, 6, 7, 43&45

II. Lower face AUs 9, 10, 11, 12, 14, 15, 16, 17, 18, 20, 23, 24, 25, 26, 27

III. Upper face AU combinations 1+2, 1+4, 1+5, 1+6, 1+7, 2+4, 2+5,4+5, 4+6, 4+7, 4+45, 6+7

IV. Lower face AU combinations

9+17, 9+23, 9+25, 10+17, 10+20, 10+25 11+20, 11+25, 12+16, 12+20,

12+25, 15+17, 15+24, 16+20, 16+25, 17+23, 17+24, 17+25, 18+23, 20+25,

23+24, 25+26

Table 3: Effect of upper and lower face AUs and AU combinations on the eye region localization rates.

Effect

I. Upper

face AUs

II. Lower face

AUs

III. Upper face AU

combinations

IV. Lower face AU combinations

No or

Slight

1, 2, 5

11, 12, 14, 15, 16,

20, 25, 26, 27

1+2, 1+4, 1+5, 1+6,

1+7, 2+4, 2+5, 4+5

10+20, 10+25, 11+20, 11+25, 12+16, 12+20,

12+25, 15+17, 15+24, 20+25, 25+26, 25+27

Medium

4, 6,

43&45

17, 18, 23, 24 - 9+23, 16+20, 16+25, 17+24, 17+25, 18+23

Strong 7 9, 10, 4+6, 4+7, 4+45, 6+7 9+17, 9+25, 10+17, 17+23, 23+24

Table 4: Effect of upper and lower face AUs and AU combinations on the nose and mouth localization rates.

Effect

I. Upper

face AUs

II. Lower face

AUs

III. Upper face AU

combinations

IV. Lower face AU combinations

No or

Slight

- - - -

Medium 2m 27

(1+2)m, (1+5)m,

(2+5)m

15+24, 25+27

Strong

1, 2n, 4, 5,

6, 7,

43&45

9, 10, 11, 12, 14,

15, 16, 17, 18, 20,

23, 24, 25, 26

(1+2)n, 1+4, (1+5)n,

1+6, 1+7, 2+4,

(2+5)n, 4+5, 4+6,

4+7, 4+45, 6+7

9+17, 9+23, 9+25, 10+17, 10+20, 10+25,

11+20, 11+25, 12+16, 12+20, 12+25, 15+17,

16+20, 16+25, 17+23, 17+24, 17+25, 18+23,

20+25, 23+24, 25+26

Note: Letters n and m indicate different localization results for nose and mouth localization.

EFFECT OF FACIAL EXPRESSIONS ON FEATURE-BASED LANDMARK LOCALIZATION IN STATIC GREY

SCALE IMAGES

263

respect to facial expressions. Thus, upper face AUs

(1, 2 and 5) and AU combinations (1+2, 1+4, 1+5,

1+6, 1+7, 2+4, 2+5, 4+5) which result in raising of

eyebrows and widening of eyelids had a slight or no

effect on the eye region localization. The

degradation in the eye region localization rates was

mainly caused by activation of upper face AUs (4, 6,

7, and 43/45) and AU combinations (4+6, 4+7,

4+45, and 6+7) which typically narrow down a

space between the eyelids and/or cause the eyebrows

to draw down together. These facial behaviours were

the main reasons for wrong eye region localization

error.

Recently, studies on the feature-based AU

recognition, which performance depends on the

features used, reported similar results. In (Lien,

Kanade, Cohn, and Li, 2000), first-order derivative

filters of different orientations (horizontal, vertical,

and diagonal) were utilized to detect transient facial

features (wrinkles and furrows) for the purpose of

AU recognition. They reported AU recognition rate

of 86% for AU 1+2, 80% for AU1+4, and 96% for

AU4. In (Tian, Kanade, and Cohn,

2002), the

authors reported a decrease in performance of the

feature-based AU recognition for nearly all the same

AUs (AU 4, 5, 6, 7, 41, 43, 45, and 46) which

created difficulties in landmark localization in the

present study. Among all the upper face AUs, they

found AUs 5, 6, 7, 41, and 43 as the most difficult to

process with feature-based AU recognition method.

4.2 Effect of Lower Face AUs on Nose

and Mouth Localization Rates

The results demonstrated that nose and mouth

localization was significantly affected by facial

expressions in both upper and lower face. As it was

suggested in (Guizatdinova and Surakka, 2005),

AUs 9, 10, 11, and 12 were found to cause a poor

localization performance of the method.

There are certain changes in the face when the

listed AUs are activated. In particular, when AU12

is activated, it pulls the lips back and obliquely

upwards. Further, the activation of AUs 9 and 10 lift

the centre of the upper lip upwards making the shape

of the mouth resemble an upside down curve. AUs

9, 10, 11, and 12 all result in deepening of the

nasolabial furrow and pulling it laterally upwards.

Although, there are marked differences in the shape

of the nasolabial deepening and mouth shaping for

these AUs, it can be summed up that these AUs

generally make the gap between nose and mouth

smaller. These changes in the facial appearance

typically caused wrong nose and mouth localization

errors.

Especially, lower face AU 9 and AU

combinations 4+6, 9+17, 12+20, 12+16 caused

strong degradation in nose and mouth localization

rates. Similarly, in (Lien, Kanade, Cohn, and Li,

2000), degradation in the feature-based recognition

of the lower face AU combinations 12+25 and 9+17

was observed (84% and 77%, respectively).

However, regardless of considerable deterioration of

nose and mouth localization by the listed AUs,

mouth could be found regardless of whether the

mouth was open or closed and whether the teeth or

tongue were visible or not (Figure 2).

4.3 General Discussion

So far we discussed the effect of upper face AUs on

the eye region localization and the effect of lower

face AUs on the nose and mouth localization.

However, the results also revealed that expressions

in the upper face noticeably deteriorated nose and

mouth localization and some changes in the lower

face affected eye region localization. It is due to the

fact that occurring singly or in combinations, AUs

may produce strong skin deformations to be in a far

neighbourhood from those AUs. In the current

database, upper face AUs were usually represented

in conjunction with lower face AUs, and their joint

activation caused changes in both upper and lower

parts of the face. Because of this, the effect of single

AU or AU combinations was difficult to bring into

the light. The present study investigated only the

indirect effect of AUs and AU combinations on the

landmark localization.

The overall performance of the method can be

improved in several respects. First, the results

demonstrated that a majority of the errors was

caused by those facial behaviours which resulted in

the decrease of space between neighbouring

landmarks. Thus, wrong localization errors occurred

already on the stage of edge map construction. The

reason for that was that a distance between edges

extracted from neighbouring landmarks became less

than a fixed threshold and edges belonging to

different landmarks were erroneously grouped

together. To fix this problem, adaptive thresholds are

needed for edge grouping. To facilitate landmark

localization further, the merged landmarks can be

analyzed according to edge density inside the

merged regions. The results showed that the regions

of merged landmarks have non-uniform edge

density. Such regions can be processed subsequently

and separated into several regions of strong edge

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

264

concentration. Second, it is widely accepted that

analysis of spatial semantics among neighbouring

facial features helps in detecting and inferring

missed or occluded facial landmarks. To improve

the performance of the method, a constellation of

landmark candidates can be analyzed according to

face geometry at the stage of orientation matching.

As the results showed, eye regions were localized

robustly regardless of facial expression. It gives a

possibility to use eye region locations and overall

face geometry as a guide for localization of other

landmarks which were missed (occluded). It can also

decrease a false localization rate.

In summary, the method was effective in

localization of facial landmarks in neutral images. In

this case, the localization rates were higher than 90%

for all facial landmarks. In case of expressive faces,

the present results specified some of the critical

facial behaviours that caused the degradation of the

landmark localization rates. We believe that these

results can be generalized in some extent to other

methods of landmark detection which rely on the

low-level edge and intensity information. Further,

using only grey level information contained in the

image, the method was invariant with respect to

different skin colour. The edge orientation model

appeared to be effective in noise reduction. Thus the

method was able to locate landmarks in images with

hair and shoulders. Emphasizing simplicity and low

computation cost of the method, we conclude that it

can be used in the preliminary localization of

regions of facial landmarks for their subsequent

processing where coarse landmark localization is

following by fine feature detection.

ACKNOWLEDGEMENTS

This work was financially supported by the Finnish

Academy (project number 177857), the University

of Tampere, and the Tampere Graduate School in

Information Science and Engineering. The authors

thank the creators of the Cohn-Kanade AU-Coded

Facial Expression Database for the permission to

reprint the examples of expressive images.

REFERENCES

Ekman, P., Friesen, W., 1978. Facial Action Coding

System (FACS): A Technique for the Measurement of

Facial Action, Consulting Psychologists Press, Inc.

Palo Alto, California.

Ekman, P., Friesen, W., Hager, J., 2002. Facial Action

Coding System (FACS), A Human Face. Salt Lake

City, Utah.

Gizatdinova, Y., Surakka, V., 2006. Feature-Based

Detection of Facial Landmarks from Neutral and

Expressive Facial Images. In IEEE Transactions on

Pattern Analysis and Machine Intelligence, 28 (1), pp.

135-139.

Guizatdinova, I., Surakka, V., 2005. Detection of Facial

Landmarks from Neutral, Happy, and Disgust Facial

Images. In Proceedings of 13th Int. Conf. Central

Europe on Computer Graphics, Visualization and

Computer Vision, pp. 55-62.

Hjelmas, E.

Low, B., 2001. Face Detection: A Survey. In

Computer Vision and Image Understanding, 83, pp.

235–274.

Kanade, T.,

Cohn, J., Tian, Y., 2000. Comprehensive

Database for Facial Expression Analysis. In

Proceedings of 4th IEEE Int. Conf. Automatic Face

and Gesture Recognition, pp. 46-53.

Lien, J., Kanade, T., Cohn, J., Li, C., 2000. Detection,

Tracking, and Classification of Action Units in Facial

Expression. In J. Robotics and Autonomous Systems,

31, pp. 131-146.

Pantic, M., Rothkrantz, J., 2000. Automatic Analysis of

Facial Expressions: The State of the Art. In IEEE

Trans. Pattern Analysis and Machine Intelligence, 22

(12), pp. 1424–1445.

Tian, Y.-L., Kanade, T., Cohn, J., 2002. Evaluation of

Gabor Wavelet-Based Facial Action Unit Recognition

in Image Sequences of Increasing Complexity. In

Proceedings of 5th IEEE Int. Conf. Automatic Face

and Gesture Recognition, pp. 229-234.

Yang, M., Kriegman, D., Ahuaja, N., 2002. Detecting

Face in Images: A Survey. In IEEE Trans. Pattern

Analysis and Image Understanding, 24, pp. 34-58.

APPENDIX A: EDGE DETECTION

AND GROUPPING

The grey scale image representation was considered

as a two dimensional array

}{

bI =

of the

size. Each

element of the array

represented b intensity of the

},{ ji image pixel. If

there was a colour image, it was first transformed

into the grey scale representation by averaging of the

three RGB components. This allowed the method to

be robust with respect to small illumination

variations and skin colour. The high frequencies

were removed by convolving the image with a

Gaussian filter to eliminate noise and small details

(Equation 1).

EFFECT OF FACIAL EXPRESSIONS ON FEATURE-BASED LANDMARK LOCALIZATION IN STATIC GREY

SCALE IMAGES

265

∑

−

bab

)(

bb =

)1(

(1)

where

is a coefficient of the Gaussian

convolution; p and q define the size of a filter,

2 2, ÷−=qp ; 10

−

÷= Xi ; 10 −÷= Yj ; 2,1

define the level of image resolution.

The smoothed images were further used to

detect regions of image which were more likely to

contain facial landmarks. The original, high

resolution images were used to analyse the

candidates for facial landmarks in more detail. In

that way, the amount of information that was

processed at high resolution level was significantly

reduced.

Further, local oriented edges were extracted by

convolving the image with a set of ten convolution

kernels resulting from differences of two oriented

Gaussians (Equations 2-5).

)sin()cos(

ϕσϕσ

πσ

−+−

−

(2)

)sin()cos(

ϕσϕσ

πσ

+++

−

(3)

)(

+−

−=

ϕϕ

(4)

∑

+−

−= )(

GGZ

0>−

+−

(5)

where

2.1=

is a root mean square deviation of

the Gaussian distribution;

was an angle of the

Gaussian rotation,

⋅

= 5.22k

; 1410,62

÷=k ;

3 3, ÷−=qp .

The maximum response of all 10 kernels

defined the contrast magnitude of a local edge at its

pixel location (Equation 6). The orientation of a

local edge was estimated with orientation of a kernel

that gave the maximum response.

∑

−−

qjpi

Gbg

)(

ϕϕ

(6)

After the local oriented edges were extracted,

they were thresholded, and then grouped into the

regions of interest representing candidates for facial

landmarks. The threshold for contrast filtering of the

extracted edges was defined as an average contrast

of the smoothed image. Edge grouping was based on

the neighbourhood distances between edge points

and was limited by a number of possible neighbours

for each edge point. Regions with small number of

edge points were removed. The optimal thresholds

for edge grouping were determined using a small

image set randomly selected from the database.

To get more detailed description of the

extracted edge regions, the steps of edge extraction

and edge grouping were applied to high resolution

image (

l ) within the limits of these regions. In

this case, the threshold for contrast filtering was

determined as a double average contrast of the high

resolution image.

APPENDIX B: EDGE

ORIENTATION MATCHING

The procedure of edge orientation matching was

applied to verify the existence of a landmark on the

image. To do that, the detected regions were

matched against the edge orientation model. The

orientation model defined a specific distribution of

the local oriented edges inside the detected regions.

The following rules defined the edge

orientation model: 1) horizontal orientations are

represented by the greatest number of the extracted

edges; 2) a number of edges corresponding to each

of horizontal orientations is more than 50% greater

than a number of edges corresponding to any other

orientations; and 3) orientations cannot be

represented by zero number of edges.

The regions of facial landmarks had the specific

distribution of the oriented edges. On the other hand,

non-landmark regions like, for example, elements of

clothing and hair, usually had an arbitrary

distribution of the oriented edges and were discarded

by the orientation model.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

266
