AUTOMATED OBJECT SHAPE MODELLING BY CLUSTERING OF

WEB IMAGES

Giuseppe Scardino, Ignazio Infantino

Istituto di Calcolo e Reti ad Alte Prestazioni ICAR-CNR

Viale delle scienze, ediﬁcio 11 Parco d’Orleans - 90128 Palermo, Italy

Salvatore Gaglio

Dipartimento di Ingegneria Informatica DINFO

Viale delle scienze, ediﬁcio 6 Parco d’Orleans - 90128 Palermo, Italy

Keywords:

Visual image search, images clustering, image annotation.

Abstract:

The paper deals with the description of a framework to create shape models of an object using images from

the web. Results obtained from different image search engines using simple keywords are ﬁltered, and it is

possible to select images viewing a single object owning a well-deﬁned contour. In order to have a large set of

valid images, the implemented system uses lexical web databases (e.g. WordNet) or free web encyclopedias

(e.g. Wikipedia), to get more keywords correlated to the given object. The shapes extracted from selected

images are represented by Fourier descriptors, and are grouped by K-means algorithm. Finally, the more

representative shapes of main clusters are considered as prototypical contours of the object. Preliminary

experimental results are illustrated to show the effectiveness of the proposed approach.

1 INTRODUCTION

In this paper we explore the possibility to create auto-

matically prototypal shapes of an object using knowl-

edge extracted from the web: images are downloaded

by image search engines; given the name of ob-

ject, more keywords (synonyms, hyponyms, or hy-

pernyms, see (Wordnet, )) are selected from lexical

databases. Our approach is unsupervised and tries to

select automatically a controlled subset of images in

order to assure that image processing algorithm out-

put is correct and fast computed. A supervised ap-

proach is presented in (Fergus et al., 2005), using

probabilistic Latent Semantic Analysis (pLSA), in or-

der to learn object categories from Google.

In other approaches, user interaction is requested,

and for example in (Del Bimbo and Pala, 1997) im-

age retrieval is performed by shape similarity given

a user-sketched template. Another possibility is to

enforce low level processing by using learning algo-

rithms to recall or classify content of images: for ex-

ample in (Tieu and Viola, 2004) a very large set of

selective features are used and the system learns key

features trough given queries. The previous cited ref-

erences deal with image retrieval, but there are other

relevant studies dealing with annotation and cluster-

ing: an interesting approach considering colors and

textures to annotate images in real time is illustrated

in (Jia and Wang, 2003); (Zinger et al., 2006) com-

bines face detection algorithm and color segmentation

to cluster and classify images. In this work, we try to

use shape as principal feature without a-priori knowl-

edge to detect and to recognize objects in image.

2 FRAMEWORK DESCRIPTION

The proposed framework named POW (Prototypes of

Objects from the Web) allows to build shape models

of simple objects using web knowledge. Given the

name of an object, the main steps that characterize

the process (see ﬁgure 1) are the:

• searching other possible keywords strictly related

to given name (synonyms, hyponyms, or hyper-

nyms) using lexical web databases or web ency-

clopedias;

• collecting images from web using image search

252

Scardino G., Infantino I. and Gaglio S. (2008).

AUTOMATED OBJECT SHAPE MODELLING BY CLUSTERING OF WEB IMAGES.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 252-255

DOI: 10.5220/0001075002520255

 SciTePress

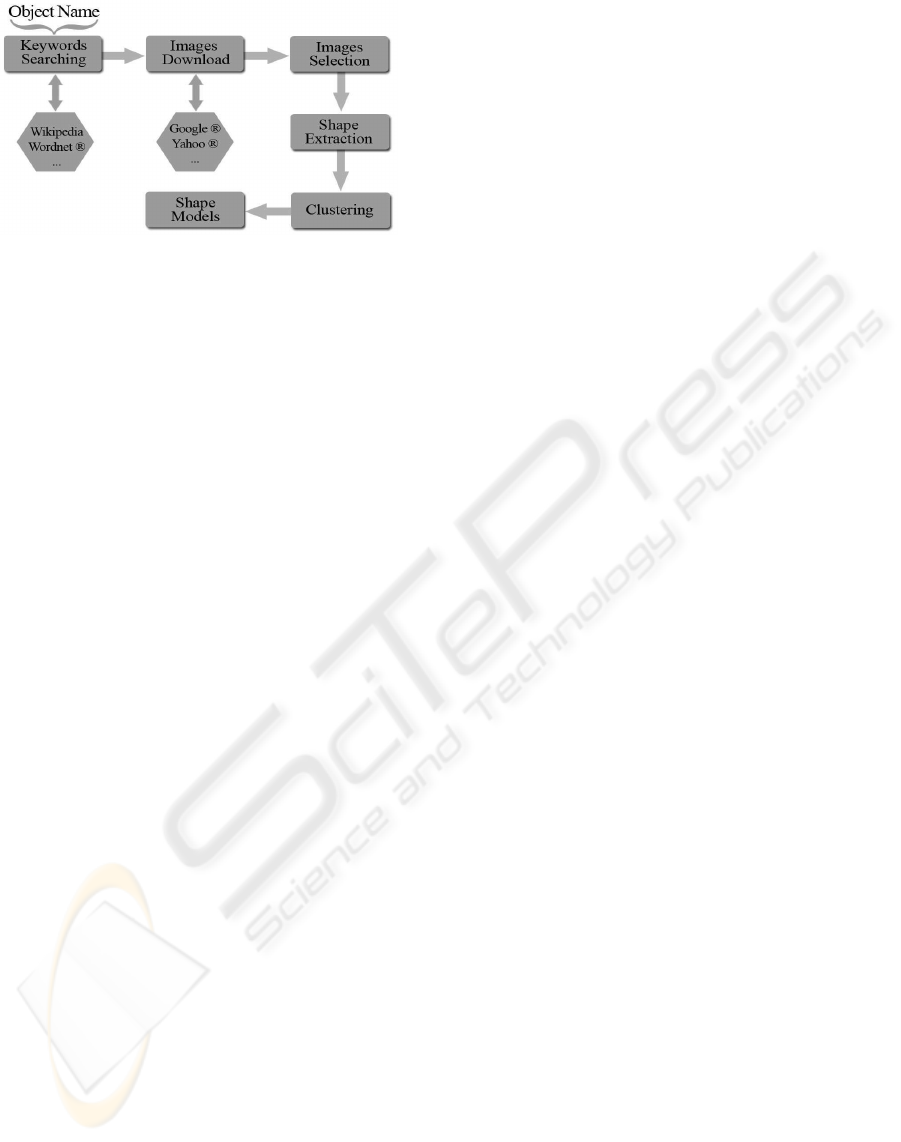

Figure 1: POW (Prototypes of Objects from the Web) -

Framework Model: given an object name, the aim is to au-

tomatically create a set of shape models of it.

engines using combinations of available key-

words;

• creating a set of valid images (deleting duplicates,

images too small, and so on);

• collecting closed contours by edge detection and

linking of pixels;

• clustering shapes in order to ﬁnd relevant proto-

types;

• validation of prototype searching partially oc-

cluded shapes in images previously not consid-

ered.

2.1 Populating the Dataset

Popular image search engines (Google



images,

Yahoo



images, and so on) use textual information

to ﬁnd images on the web. When a simple word like

chair is given as search keyword, image links returned

include a lot of ﬁles not relevant to ﬁnd a possible

shape of this object. To make more robust this critical

phase, it is possible to associate to ﬁrst simple search

some more restrictive queries using different combi-

nations of keywords related to chair. Merging the re-

sults of this multiple searches, we have empirically

observed that obtained dataset is optimal for our aims:

several images show a single chair and have a back-

ground that allows to extract easily object contour.

Where additional keywords could be found? Also in

this case, we gain this information from the web using

lexical web databases or web encyclopedias: the word

chair is given as keyword to Wordnet



(lexical word

database) (Wordnet, ) or Wikipedia



(on-line ency-

clopedia) (Wikipedia, ). We have a list of hyponyms

by Wordnet, and an html page by Wikipedia that is

processed to extract relevant words.

In order to extract valid shapes of the given object

and to speed up the computation, it needs to select

images that owns the following properties

• acceptable image size: small images are deleted

because the possible shape to ﬁnd is not relevant,

and large images are deleted because image pro-

cessing algorithms might be computationally in-

feasible;

• uniqueness: it’s created a dynamic list with the

MD5 signatures of images (Rivest, 1992), so

when a new image shows a signature present in

the list will be not considered;

• its link to download is valid;

• uniform background: gray level histogram of a

small area along the perimeter of the image is cal-

culated (3∼7 pixel of size), and if it cover a lim-

ited range of levels make available the image to

further elaboration. We indicate this interval of

gray levels as R

In this way, the dataset is constituted by images

that could be easily segmented by thresholding, and

that usually show one o more objects with well-

deﬁned shape.

The uniform background permits to characterize

an object to create a prototype not inﬂuenced by other

objects. In successive step the prototype will be used

to recognize the object in a generic image.

2.2 Shape Detection and Description

After this ﬁrst selection of images, we have to ﬁnd

closed contours that deﬁne shapes. Different solu-

tions have been tested, and the more robust is resulted

the application of following steps

1. choosing a threshold to have a binary image: we

select the local minima using only pixels on image

border that we suppose is related to background

and applying a mean ﬁlter;

2. applying an edge detector;

3. searching closed contours: an arbitrary edge point

is chosen, and we start to search edges that form a

closed path.

The last phase is quite complex and needs to explain

some details:

• a dynamic list L

of coordinates is created, adding

new edge points until it is possible or the starting

pixel is reached; loops are avoided because new

point will be considered if it is not in the list;

• the max hole admissible is dependent from image

size (∼20 % of minimum dimension);

• the starting point is the pixel of edge image near-

est left upper corner; if a closed contour is not

found or the resulting contour is too short (minor

of a given threshold), pixels recorded in contour

AUTOMATED OBJECT SHAPE MODELLING BY CLUSTERING OF WEB IMAGES

253

list L

are deleted in the edge image and step 3 is

repeated;

• algorithm to ﬁnd a closed path has a max ﬁxed

number of iterations in order to limit computa-

tional time; when time out is reached the same

search procedure is applied to a simpliﬁed edge

image; this edge map considers only external edge

points, i.e. with minor distance from image bor-

ders;

• when a closed contour is found, points in list L

are marked in the edge image with an incremen-

tal integer label, and step 3 is repeated in order

to ﬁnd other closed contours until there are un-

marked points in the edge image.

After that coordinates of the points of a contour

are referred to centroids of shape, Fourier descriptors

are used to describe it (see for example (Zhang and

Lu, 2002), or (Lee and Long, 2003)). In particular

only the ﬁrst 48 components are stored in order to ex-

clude details or noise from the shape description. This

description is independent of object scale and orienta-

tion. Moreover, when a metrics is applied in order to

evaluate similarity between shapes, it is also possible

to recognize specular shapes considering in reverse

order elements of a descriptor vectors.

2.3 Object Prototypes by Clustering

Collected shapes can be grouped using a clustering al-

gorithm (see for example (Oliver et al., 2006)) based

on similarity of Fourier descriptors (using Euclidean

distance). By default the number of clusters is equal

to number of keywords provided by Wordnet and

Wikipedia. To validate them we calculate the mean

distance of objects from cluster center and verifying if

a label (combination of keywords, see section 2.1) is

predominant. We have use k-Means algorithm choos-

ing at random the initial positions of cluster centers.

In our experiment we have used a number of clus-

ters equal to the number of keywords collected from

Wikipedia and from Wordnet. We have limited the

number of keywords to the maximum of 10 (if they

are available).

Some results are reported in ﬁgures 3: images are

placed in Cartesian space using the second and the

third component of Fourier descriptors (to have an

approximate idea of similarity), and bars of differ-

ent colors point to the various clusters. Isolated im-

ages, or clusters with few shapes are automatically

removed. Figure 2 reported explicative examples of

clustering results for screwdriver and chair (see de-

tails in the following section). The objects nearest

cluster centers are considered prototypal shapes of the

given object.

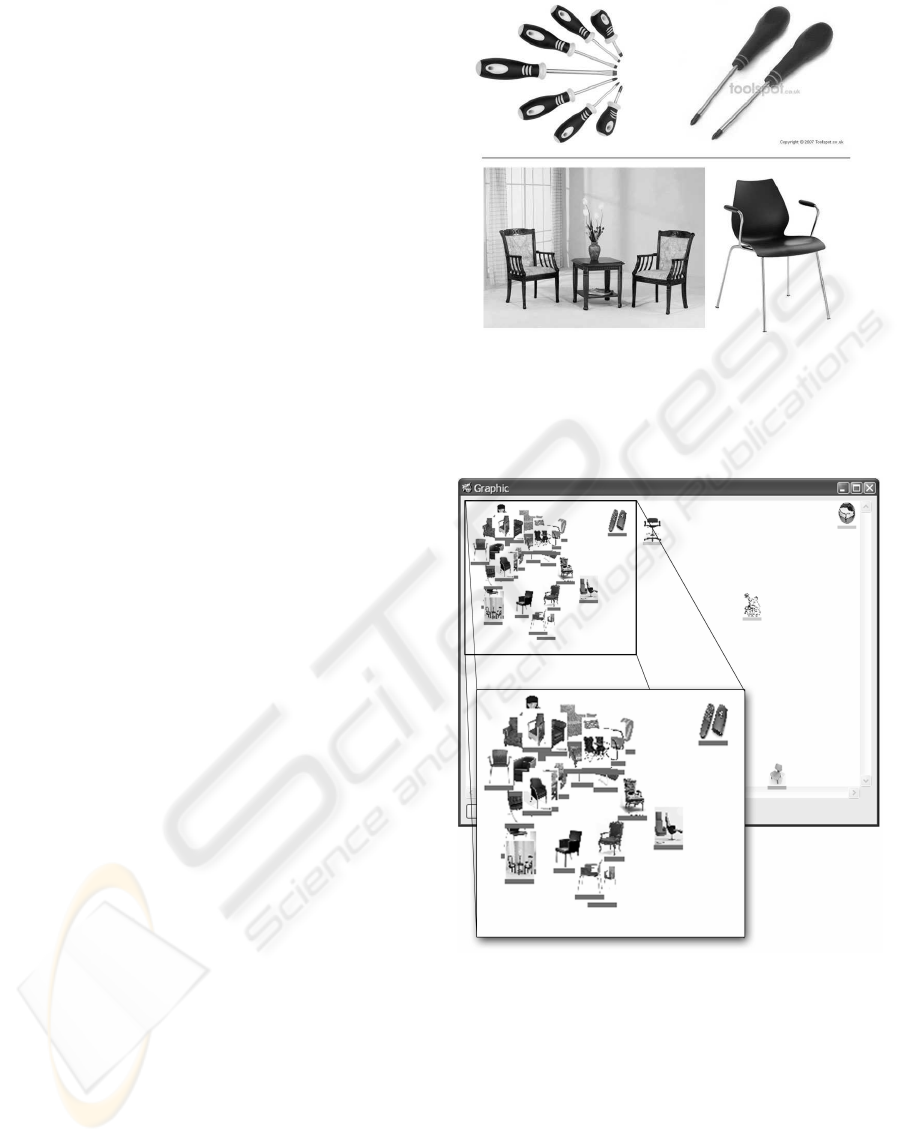

Figure 2: The shape descriptors are based on Fourier de-

scriptors, and they are independent of scale, orientation, and

mirroring by a suitably normalization. The ﬁgure reports

two examples of objects (screwdriver. and chair) that have

shapes recognized as similar.

Figure 3: Visualization of one example of clustering related

to the word chair: images are placed in Cartesian space us-

ing the second and the third component of Fourier descrip-

tors. Colored bars refer to different detected clusters.

3 EXPERIMENTAL RESULTS

A complete system based on the proposed framework

has been implemented, allowing us to perform exper-

imentations (the beta version is available to download

at (POW, )). In order to explain the results, we use

a subset of images, this example reported in ﬁgure 3

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

254

Table 1: Performance evaluations.

Collecting Selection Clustering

images Valid Images False negative False positive

Downloads N. % N. % N. %

Bowl 1596 140 9% 8 6% 25 18%

Candle 2032 139 7% 11 8% 32 23%

Chair 4862 602 12% 25 4% 40 7%

Desk 3185 344 11% 40 12% 55 16%

Door 3754 288 8% 00 3% 100 35%

Fork 2264 168 7% 12 7% 20 12%

Glass 4828 396 8% 250 63% 8 2%

Hammer 3561 422 12% 60 14% 55 13%

Knife 4506 551 12% 32 6% 66 12%

Lamp 4773 479 10% 30 6% 16 3%

Pen 3495 460 13% 28 6% 24 5%

Spoon 3699 150 4% 14 9% 22 15%

Sunglasses 962 190 20% 8 4% 25 13%

Torch 1585 112 7% 9 8% 36 32%

Watch 4050 510 13% 44 9% 45 9%

Total (%) 50324 5116 10% 590 12% 607 12%

is related to images of word chair using different hy-

ponyms from WordNet. In this case the list of ﬁrst

ﬁve keywords used for word “chair” is: “armchair”,

“barber”, “longue”, “chaise”, “daybed”. The ﬁltering

phase individuates 63 (of 602) images that have a de-

tectable shape, and 2 clusters are validated as source

of shape models: they have a sufﬁcient number of im-

ages (≥ 10), and a mean error under a given thresh-

old. The effectiveness of the approach could be high-

lighted by some speciﬁc examples: in bottom part of

ﬁgure 2 we see two images of chairs grouped in the

same cluster that are impossible to correlate if we con-

sider texture, color, or other image features different

from shape; the upper part reports images of screw-

driver that demonstrate the independence from scale,

orientation, and mirroring.

Results of an extensive experiment are reported in

table 1, using 16 different words of common objects.

The table shows the number of images downloaded

for each word (column 2), the number of valid images

to create prototypes and percentage with respect to

downloaded images (column 3 and 4), and the perfor-

mance of clustering (last 4 columns): absolute num-

ber and percentage with respect to the number of valid

images of images erroneously excluded from relevant

clusters, and absolute number and percentage of im-

age of object wrongly included in some clusters. In

general results could be considered positive, even if

some words are intrinsically difﬁcult to manage for

our aims: glass images report very different typolo-

gies of objects and in this case an interaction with user

could be necessary.

Future works will deal with integration in the

frameworkof other visual features (texture and color),

in order to have better results. Moreover, it is interest-

ing to explore the possibility to deﬁnes categories (or

typologies) of the same object using keywords, and to

ﬁnd or deﬁne some simple relation among them based

on visual features.

ACKNOWLEDGEMENTS

The work of this paper was partially supported by

project POR Sicilia 2000-2006,1999/IT.16.1.PO.011/

3.13/7.2.4/342.

REFERENCES

Del Bimbo, A. and Pala, P. (1997). Visual image retrieval by

elastic matching of user sketches. IEEE Trans. on Pat-

tern Analysis and Machine Intelligence, vol. 19 (no.

2), pp. 121-132.

Fergus, R., Fei-Fei, L., Perona, P., and Zisserman, A.

(2005). Learning object categories from google’s im-

age search. ICCV, pages 1816–1823.

Jia, L. and Wang, J. Z. (2003). Automatic linguistic in-

dexing of pictures by a statistical modeling approach.

IEEE transaction on pattern analysis and machine in-

telligence, vol 25, no. 9.

Lee, D. J. Antani, S. and Long, L. R. (2003). Similarity

measurement using polygon curve representation and

fourier descriptors for shape-based vertebral image re-

trieval. Proceedings of IS&T/SPIE Medical Imaging

2003: Image Processing, vol. SPIE 5032, pp. 1283-

1291.

Oliver, A., Munoz, X., Batlle, J., Pacheco, L., and Freix-

enet, J. (2006). Improving clustering algorithms for

image segmentation using contour and region infor-

mation. Automation, Quality and Testing, Robotics,

2006 IEEE Intl. Conf., pages 315–320.

POW. Download page:. http://www.pa.icar.cnr.it/ in-

fantino/demo/.

Rivest, R. L. (1992). The md5 message digest algorithm.

In: Internet, RFC 1321.

Tieu, K. and Viola, P. (2004). Boosting image retrieval.

Intl. Journal of Computer Vision, pages vol. 56(1/2),

pp. 1736.

Wikipedia. Home page. http://wikipedia.org.

Wordnet. Home page. http://wordnet.princeton.edu/.

Zhang, D. and Lu, G. (2002). Shape-based image retrieval

using generic fourier descriptor. Signal Processing:

Image Communication, vol.17, no. 10, pp. 825-848.

Zinger, S., Millet, C., Mathieu, B., Grefenstette, G., Hede,

P., and Moellic, P. A. (2006). Clustering and seman-

tically ﬁltering web images to create a large-scale im-

age ontology. Proc. Of IS-T/SPIE 18th Symposium

Electronic Imaging.

AUTOMATED OBJECT SHAPE MODELLING BY CLUSTERING OF WEB IMAGES

255
