DISPLAY REGISTRATION FOR DEVICE INTERACTION

A Proof of Principle Prototype

Nick Pears

Department of Computer Science, University of York, York, YO10 5DD, UK

Patrick Olivier and Dan Jackson

Culture Lab, King’s Walk, Newcastle University, Newcastle, NE7 1NP, UK

Keywords:

Human-Computer Interaction, Image Registration, Real-Time Vision.

Abstract:

A method is proposed to facilitate visually-driven interactions between two devices, which we call the client,

such as a mobile phone or personal digital assistant (PDA), which must be equipped with a camera, and the

server, such as a personal computer (PC) or intelligent display. The technique that we describe here requires

a camera on the client to view the display on the server, such that either the client or the server (or both) can

compute exactly which part of the server display is being viewed. The server display and the clients image

of the server display, which can be written onto (part of) the client’s display are then registered. This basic

principle, which we call “display registration” supports a very broad range of interactions (depending on the

context in which the system is operating) and it will make these interactions signiﬁcantly quicker, easier and

more intuitive for the user to initiate and control. In addition, either the client or the server (or both) can

compute the six degree-of-freedom (6 DOF) position of the client camera with respect to the server display.

We have built a prototype which proves the principle and usefulness of display registration. This system

employs markers on the server display for fast registration and it has been used to demonstrate a variety of

operations, such as selecting and zooming into images.

1 INTRODUCTION

The last decade has seen an explosion in mobile com-

munications, evidenced by the enormous take up of

mobile phones and personal digital assistants (PDAs)

or hand-heldcomputers. More recently there has been

a drive to integrate the many devices that might ex-

ist in our environment through the use of person-

nel area network (PANs) using technology such as

Bluetooth and infrared networking. Easy integration

means that a network connection can be established

between, for example, a PDA and the desktop com-

puter, and thus information can be exchanged be-

tween the two. Whilst Bluetooth connectivity is in-

deed easy for a user to establish, users are required to

use an additional application on the PDA (for exam-

ple ﬁle browser) to access the contents of the desktop

computer, and vice versa. Figure 1 illustrates the case

of downloading a folder on the desktop to a PDA us-

ing specialist software on the PDA. Here the handset

and the desktop are used as separate computers, just

as we might remotely access one desktop computer

from another.

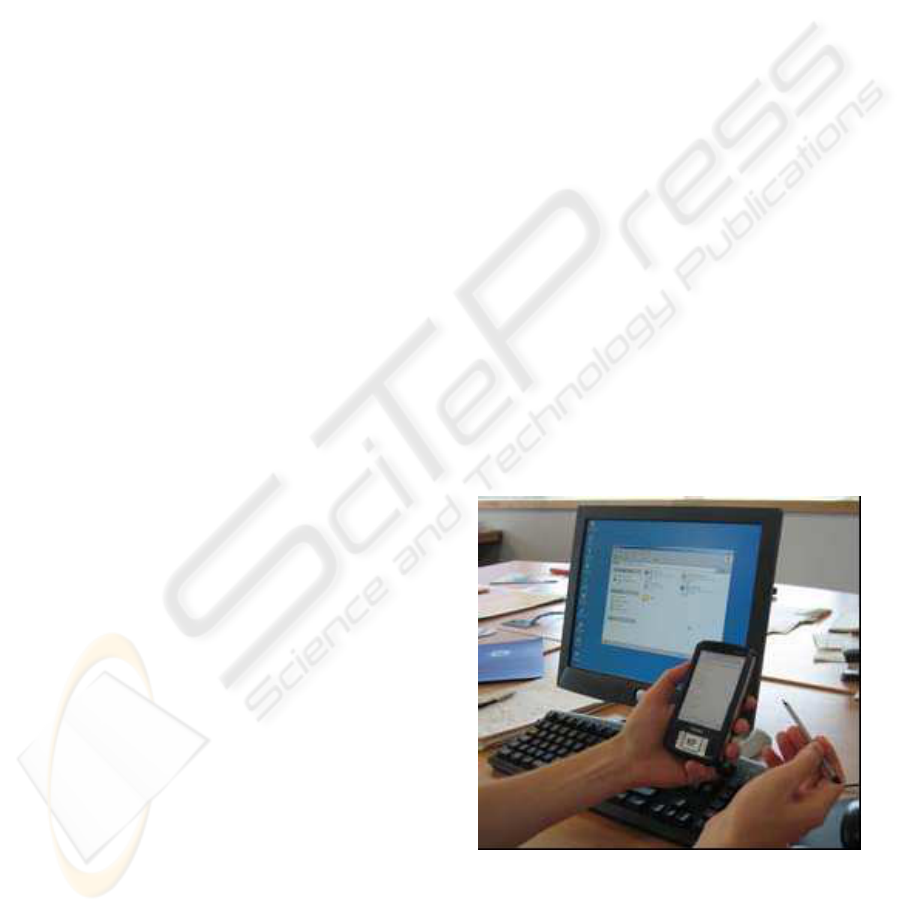

Figure 1: Transfer using separate application.

This physical separation of handset and desktop,

and the incumbent complexity for users in trying to

connect between the two, is the problem addressed

by this paper. Our vision is of a technology whereby

the display of the handset could be treated as an al-

446

Pears N., Olivier P. and Jackson D. (2008).

DISPLAY REGISTRATION FOR DEVICE INTERACTION - A Proof of Principle Prototype.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 446-451

DOI: 10.5220/0001075104460451

 SciTePress

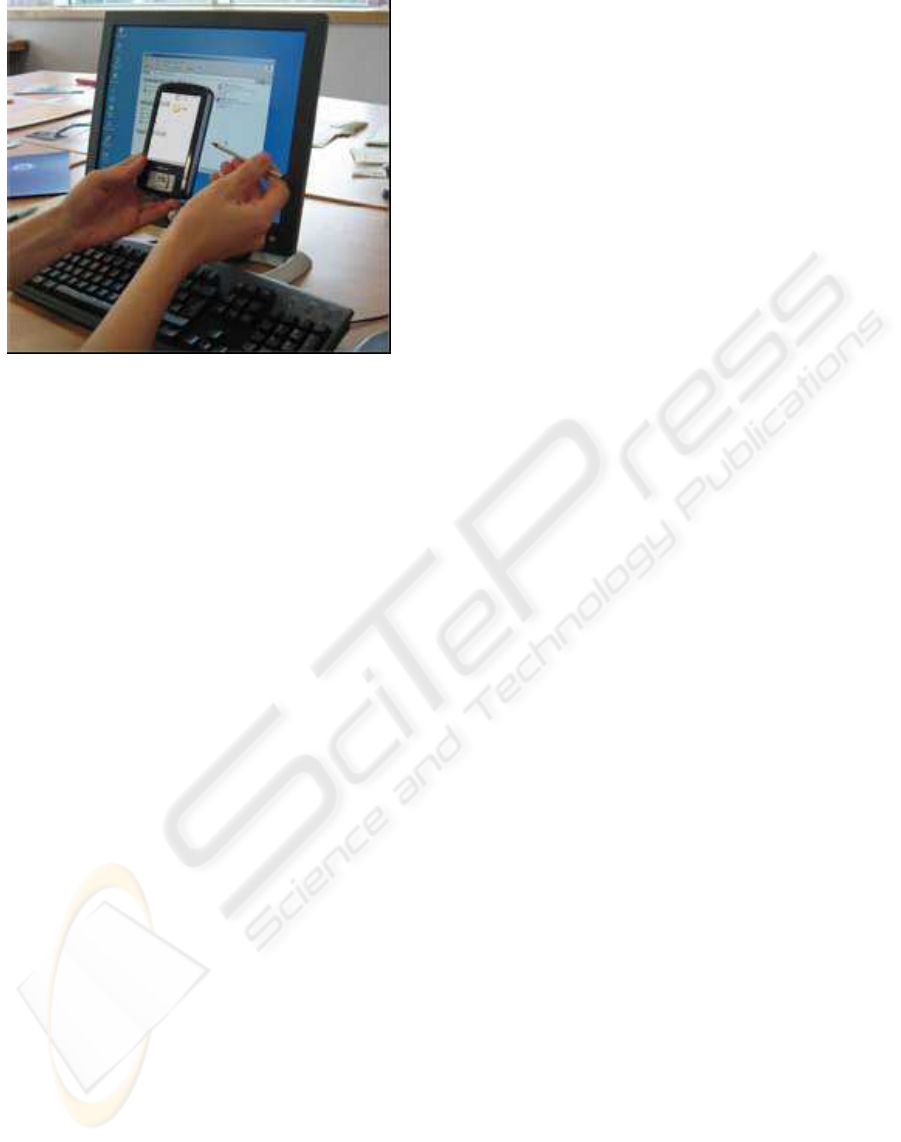

Figure 2: Transfer using display registration.

most indistinguishable part of the display of the desk-

top computer. For example, by holding the handset

over the desktop’s display, the content of the desktop

screen below the handset appears on a region of the

handset’s display. Figure 2 illustrates the concept; a

user holds the handset, equipped with rear-mounted

camera, over the desktop. In doing so the user can

see, on the handset, the contents of the display below

it, and manipulate elements of this display as if they

were elements of the handset’s display itself. This

functionality offers a wide range of applications, for

example:

(i) Data exchange between client and server (data

push/pull). Suppose that the user uses the client dis-

play to observe an icon of a ﬁle displayed on the

server system. Suppose that the user then clicks on

the image of this ﬁle icon using a button (or stylus)

click on the the client device. Since the position of

this click on the client display can be converted to the

corresponding position on the server display, which

is passed to the server over the data communication

channel (eg bluetooth), the server system can deter-

mine what ﬁle is being requested as it knows what has

been “virtually clicked” on the server display. Then it

can send the ﬁle data across the communication chan-

nel to be stored on the client system. In this way data

can easily be pulled from the server to the client de-

vice, or pushed from client to server.

(ii) Semantic magic-lens interaction. In an imple-

mentation of a semantic lens, the action that the user

requests is inferred from what the user is pointing at.

As an example, there may be a map of the UK on the

server display. By pointing the client camera at a par-

ticular town (York, for example), the application may

infer that all contacts from an address book database

that have the keyword “York” in the city ﬁeld of the

address book are copied across to the client address

book.

(iii) Using 6 DOF client pose to mediate inter-

action. It is possible to mediate interactions by us-

ing the client device in the role of a 2D and/or 3D

mouse. Given that the display registration has been

computed, the six degree of freedom pose of the client

can be computed, if the camera/display screen param-

eters (such as aspect ratio) are also known through de-

vice speciﬁcation or a standard calibration procedure.

The operation of a 2D mouse, for example, is straight-

forward: given that the two displays are registered,

the centre of the client display can be highlighted us-

ing cross-hairs, on the server display and thereby act

as a mouse pointing device. Selection of a ﬁle could

consist of pointing at a ﬁle icon and then ‘peeling it

off’ using a rotation of the hand. This rotation can be

detected on the client device and interpreted as a re-

quest to pull a copy of the ﬁle off the server system

and store it on the client system.

Such a technology has a number of possibili-

ties for intelligent public information displays, with

which users might pull and push information simply

using their PDAs or mobile phones, thereby opening

up a host of new commercial opportunities both for

handset vendors, retailers and service providers. Ex-

amples include retrieving the details of property for

sale in a estate-agent window, or purchase of cinema

tickets from an intelligent display.

The immediate realisation of these applications re-

quires one particular innovation: that the position of

the handset (PDAor mobile phone) can be tracked rel-

ative to the screen of the desktop display (or the dis-

play of any computer). We call this problem display

registration, and the notion of registering one display

with another, in this manner, is the core of the techni-

cal work required to realise our novel concept.

The rest of the paper is structured as follows. The

following section describes fully the concept of dis-

play registration. Section 3 describes the the two main

categories of display registration, namely marker-

based and markerless. Section 4 describes the pro-

totype marker-based system that we have built, while

the following section describes our ﬁrst evaluation of

that system. A ﬁnal section is used for conclusions

and suggestions for further work.

2 DISPLAY REGISTRATION

The work described here relates to the interaction of a

pair of devices, which can communicate data across

a communication channel (typically wireless, such

as wiﬁ or bluetooth), where one of these devices is

DISPLAY REGISTRATION FOR DEVICE INTERACTION - A Proof of Principle Prototype

447

equipped with or linked to an imaging device, such as

a camera, which is able to view the other device’s dis-

play, such that the camera’s image is registered with

that display. The term registered means that for any

(pixel) position in the viewed display we know its cor-

responding position in the captured image of the dis-

play. We call the concept of a display with a registered

image of that display display registration, as this is an

instance of image registration. The captured image of

the display, which is registered to the display itself,

can be passed to the display on the camera-equipped

device for the system operator to use in his/her cur-

rent task. In most applications, the camera equipped

device will be smaller and manoeuvrable by hand. We

call this the client device and movements and button

(or stylus) clicks of this device control the way in

which the system operates, within a certain context.

The other device, will, in general, be a larger static

device and we will call this the server device.

2.1 Device Interaction via Registered

Display Operations

In typical use of this method, the mobile client de-

vice is moved around by the user, whilst maintaining

at least a small part of the server display in it’s ﬁeld of

view. Throughout this motion, the client camera im-

age and hence the client’s display of that image to the

user are registered with the server display. That is,

irrespective of the change in relative position of the

client device, we can always compute where any po-

sition on the server display appears on the client cam-

era image and the display of that client camera image.

Also, since we can easily compute the inverse trans-

formation, we can choose any position on the client

camera image, such as the centre or one of the image

corners, and determine the corresponding position on

the server display. We call the concept of maintaining

the correspondencebetween client and server displays

maintaining display registration. The fact that the dis-

plays are registered enables a large range of possible

interactions and data exchanges between client and

server devices. It is envisaged that the user may con-

trol this interaction through a variety of modes, which

are effectively different contexts in which to interpret

registered display operations.

3 REGISTRATION METHODS

For a planar client image plane and a planar server

display systems, we need to ﬁnd a plane-to-plane

mapping that allows us to compute the display regis-

tration. This mapping encodes the (idealised) imaging

process of the camera (intrinsic parameters) and the

six degree-of-freedom pose of the client image plane

relative to the server display (extrinsic parameters). It

is well-known that this transformation, called a planar

homography, can be represented by a 3x3 matrix, H,

such that λx

= HX

, where X

is a point on the server

display, x

is the corresponding point in the client im-

age and λ is a constant. The matrix H, is deﬁned up to

a scale factor and hence has eight degrees of freedom.

Thus it can be estimated by standard linear methods if

four corresponding points are known across the client

image and server display, with the constraint that no

three are collinear. In this case we haveeight indepen-

dent constraints and H is fully deﬁned (up to scale).

More corresponding points can yield a more accurate

estimate of H, using some variant of a least-squares

technique. Various estimation techniques for H are

detailed by Hartley and Zisserman (Hartley and Zis-

serman, 2004).

The question now arises: how to we ﬁnd four or

more corresponding points across the server display

and client image of that display? This problem can be

divided into two categories: (i) marker-based and (ii)

natural (markerless).

In marker-based display registration, the server is

required to maintain a dynamic display of four dis-

tinctively coloured reference targets, no three if which

are collinear, which can easily be detected and seg-

mented by the client. Given that the position of these

can be detected in the client, these positions can be

transmitted to the server, which knows where the tar-

gets were displayed on the server display. A planar

homography estimation method can then be applied

to register the displays without any prior calibration

of the camera. Note that, since the homography trans-

formation between the server display and client dis-

play is known when the displays are registered, it is

possible to change the markers in the server display,

such that the shape, size and position of the markers

is constant in the client image irrespective of camera

viewing pose. This leads to more reliable detection

of the markers, since they do not become too small

to detect as the client camera moves away from the

server display.

In natural display registration, no dynamically

controlled markers are used to aid registration (ho-

mography computation). Registration is achieved by

matching the client image to the unmodiﬁed server

display (although one can choose to use textured

backgrounds and windows) and this may be achieved

using one of several techniques in the computer vi-

sion and pattern recognition literature. Perhaps the

simplest approach is to use corner extraction (Harris

and Stephens, 1988), (Smith and Brady, 1995) fol-

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

448

lowed by matching across the two views. The ob-

vious difﬁculty is solving the correspondence prob-

lem: which corners in the server display match the

corners in the client image? The spatial arrange-

ment of corners may be used as a matching con-

straint, for example, ﬁve corners in a general po-

sition provide a pair of cross-ratio invariants (Sin-

clair and Blake, 1996), although cross-ratio compu-

tation is noise sensitive. Rather than using the spa-

tial arrangement of corners, one can compute speciﬁc

features in the image that are distinctive and invari-

ant to the imaging process. Several researchers have

formulated invariant features, such as Schmid and

Mohr’s (Schmid and Mohr, 1997) rotationally sym-

metric Gaussian derivatives and Baumberg’s (Baum-

berg, 2000) second moment matrix, which gives in-

variance to afﬁne transforms. Lowe’s scale invariant

feature transform (SIFT), is perhaps the most success-

ful of these (Lowe, 2004). SIFT features are invari-

ant to similarity transforms (translation, rotation and

scale changes). Although this technique also provides

some robustness to afﬁne transforms, large non-afﬁne

distortions (caused by large pan and tilt rotations of

the client) are likely to cause the system to loose track.

4 A PROTOTYPE SYSTEM

We have implemented a working prototype by render-

ing distinct markers on the desktop display and track-

ing their position as seen by a smartphone with an

integrated camera, as shown in ﬁgure 3.

The ﬁrst stage was to choose a suitable dynamic

target pattern. We have elected to use four squares of

a distinctive green colour. Note that an image of the

four squares has a rotational ambiguity and so, on ini-

tialisation of the system, it is necessary to display a

target that is not rotationally symmetric. We used one

square with a hollowed out centre to break this sym-

metry and give us an unambiguous orientation. Fur-

thermore, by alternating between “full squares” and

“hollowed out squares” in subsequent frames, we are

able to deal with the time lag between image capture

and processing on the client side and the display of

the updated target position on the server screen, which

would otherwise cause instability in the tracking pro-

cess.

The computation of the planar homography be-

tween the actual marker positions on the desktop dis-

play, and their coordinates in the image seen by the

handset, allows the fast and highly accurate calcula-

tion of the mapping between pixels on the handset

and the desktop, thereby facilitating a range of appli-

cations.

The basic sequence of events for the system oper-

ation is as follows:

• The client and server establish a communication

channel over a Bluetooth link.

• The initialisation process starts with the server

moving the special initialisation target systemat-

ically around the server screen, starting from the

centre and working outwards towards the screen

edges. The user starts by aiming the camera ap-

proximately towards the centre of the server dis-

play.

• When the client is able to acquire the target, the

2D image positions of the four centres of the tar-

get squares (eight values) in the target are trans-

mitted to the server. The server then associates the

corresponding four display positions with these

target positions and computes the plane-to-plane

homography mapping between the two displays.

• The server then computes the corresponding

server display positions for the corners of the

markers in the client image. This indicates how

the target pattern should appear in the server dis-

play, for the pattern to remain constant in appear-

ance on the client display.

• For further cycles of operation, the four target cen-

tres are switched between “ﬁlled” and “hollow”so

that the time lag between server display of target

and client computation of target pose can be de-

termined.

We now explain the target segmentation and ac-

quisition in more detail

4.1 Target Segmentation and

Acquisition

The target colour that is detected on the client is mod-

elled using RG-chromaticity colour space. In this

space the red and green colour components are nor-

malised by dividing by intensity, which is the sum

of the RGB components. This gives some immu-

nity to intensity variations, but there are more sophis-

ticated approaches to colour normalisation, such as

those suggested by Alexander (Alexander, 1999). In

our approach the RG-plane in colour space is divided

into bins and the image of the targets is selected man-

ually. All of the manually selected pixels populate

these bins to give a colour model as a histogram in

RG-space. We can thus determine whether a pixel

falls within the modelled colour space and classify it

as either belonging to the target or not. The simple

approach that we use is to ﬁnd the mean pixel po-

sition for the segmented pixels and divide the image

DISPLAY REGISTRATION FOR DEVICE INTERACTION - A Proof of Principle Prototype

449

into four (not necessarily equal) segments in direc-

tions associated with tracked orientation of the target.

The mean positions in these segmented regions corre-

spond to the four centres of the square targets, which

is the information that we require.

5 EVALUATION

Usability testing has been performed using the talk-

aloud protocol, in which participants describe their

observations, thoughts and actions as they complete

speciﬁc tasks. Four participants were asked to each

complete two tasks. Both tasks used the display reg-

istration system deployed on a PC with a 17” LCD

display communicatingwith a smartphone implemen-

tation of the client software over Bluetooth. An image

of a user performing these tasks is shown in ﬁgure 3,

note that the segmented targets on the client smart-

phone are highlighted in red.

The ﬁrst task involved a specially-written photo

montage demonstration application, in which three

digital photographs were laid out in a particular start-

ing position, as in ﬁgure 4. The users were asked to

rearrange the photos to resemble a second conﬁgu-

ration with different positions, orientations and scale

(as shown in ﬁgure 5) using the display registration

system. A target was drawn on the PC display at the

centre of the smartphones camera view. By depress-

ing a trigger button on the smartphone, the user was

able to manipulate the targeted image. The images

could be moved by translating the phone parallel to

the display, rotated them by rotating the phone paral-

lel to the display, and scaled by translating the phone

towards or away from the display.

The second task used the system to replicate a spe-

ciﬁc outline drawing of a house, as shown in ﬁgure 6,

within the Microsoft Paint application. The software

set-up provided the correct brush size and colour, and

the participants were only required to make their own

brush strokes using the smartphone. An example out-

put from one of the participants is shown in ﬁgure 7.

In our tests, our client device was a Siemens

SX1 smartphone, with a series 60 phone proces-

sor (130MHz TI OMAP 310), running Symbian

OS V6.1. The system speciﬁcations were: frame

rate, 8 Hz; camera ﬁeld of view, 30; maximum

phone movement, 0.3m/s at 0.45m from a 17”

(0.34m 0.27m) display; target re-acquisition time,

2-3 seconds. AVI videos of the four users per-

forming these two tasks can be found online at

http://irgen.ncl.ac.uk/data/temp/displayreg/TaskVideos/.

Here we summarize the observations of usability

problems highlighted by the participants in the talk-

aloud evaluation described above. In performing the

ﬁrst task, all four participants appeared to compre-

hend the basic principal of the system with only the

briefest explanation of how the task should be per-

formed. In each trial, transient registration errors

while the user was performing a manipulation tended

to cause temporary changes in the manipulated im-

ages position, rotation or scale, which participants

generally found distracting. Two participants noted

that the direction for scale may not be obvious (it was

set up so dragging back from the image would make it

larger), and that scaling was more difﬁcult than trans-

lating or rotating in general. Three of the four par-

ticipants satisfactorily completed the task of reposi-

tioning the images from ﬁgure 4 to 5. One had prob-

lems that were due to not keeping the mobile phone

aimed at the screen itself and this appeared to be be-

cause they were observing the PC screen rather than

the smartphone itself. In general, it was clear that

whenever a transient registration error temporarily af-

fected the plotted cursor point, the ﬁnal brush strokes

would also be affected, further distracting the user.

Some disapproving comments on the aesthetics of the

green markers were made, and that the relatively slow

end-to-end communication speed affected the maxi-

mum allowable velocity of the smartphone. When-

ever the marker set could not be found (usually due to

the phone not being correctly pointed at a screen), the

system would timeout and successfully reacquire the

marker positions.

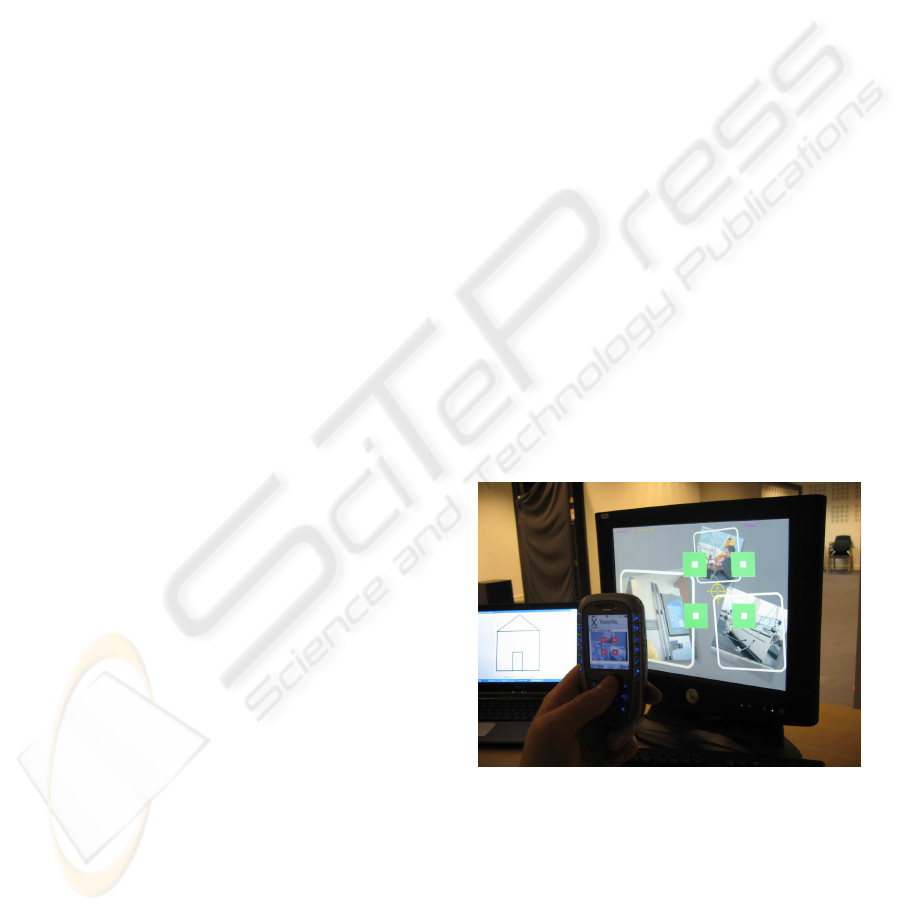

Figure 3: User tests.

6 CONCLUSIONS

We have proposed a new technique for device inter-

action, which relies on the registration of the display

on one device, with an image of that display, captured

on another device. This type of interaction opens up

a range of new possibilities, in particular those in-

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

450

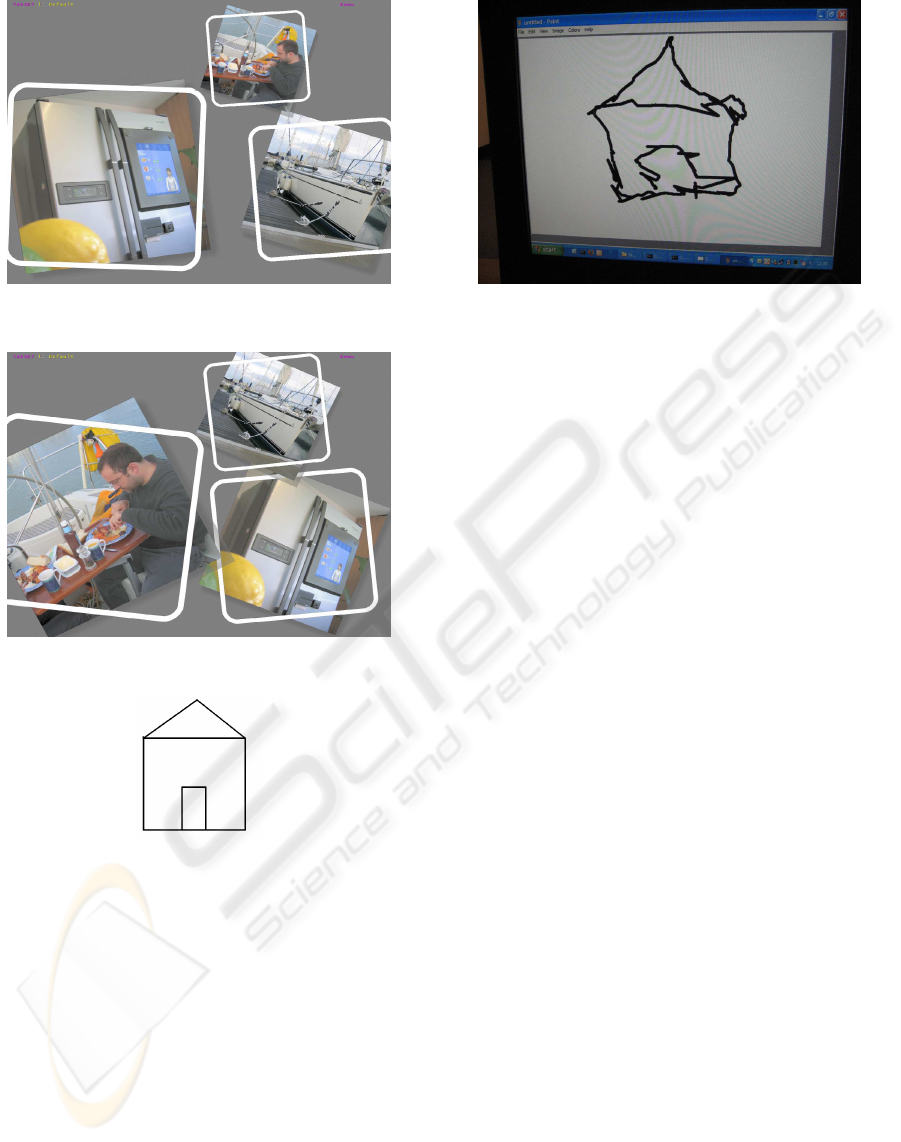

Figure 4: Start position of images on server display.

Figure 5: Target position of images on server display.

Figure 6: Outline of a template on the server display.

volved with interacting with public displays, using

hand-held devices such as smartphones and PDAs.

We have build a prototype of such a system which

uses coloured markers on the server screen to enable

a simple and reliable registration process. We have

used this system for translating, rotating and scaling

images on a PC screen and for simple drawing appli-

cations. Through user evaluations, we have proved

that the technique works in principle although fur-

ther work is required to develop the system for faster

frame rates, more robust tracking and to implement a

markerless registration process, which would provide

a better user experience.

Figure 7: Output of the client motion.

REFERENCES

Alexander, D. (1999). Advances in daylight statistical

colour modelling. In Proc. Conf. Computer Vision and

Pattern Recognition, pages 313–318.

Baumberg, A. (2000). Reliable feature matching across

widely separated views. In Proc. Conf. Computer Vi-

sion and Pattern Recognition, pages 774–781.

Harris and Stephens (1988). A combined corner and edge

detector. In 4th Alvey Vision Conference Manchester,

pages 147–151.

Hartley, R. I. and Zisserman, A. (2004). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press, ISBN: 0521540518, second edition.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 2(60):91–110.

Schmid, C. and Mohr, R. (1997). Local grayvalue invariants

for image retrieval. IEEE Trans. Pattern Analysis and

Machine Intell., 19(5):530–535.

Sinclair and Blake (1996). Quantitative planar region detec-

tion. Int. Journal of Computer Vision, 18(1):77–91.

Smith, S. M. and Brady, J. M. (1995). Susan-a new ap-

proach to low-level image processing. Int. Journal of

Computer Vision, 23(1):45–78.

DISPLAY REGISTRATION FOR DEVICE INTERACTION - A Proof of Principle Prototype

451
