ANISOTROPIC DIFFUSION BY QUADRATIC REGULARIZATION

Marcus Hund and B

arbel Mertsching

University of Paderborn, Faculty of Computer Science

Electrical Engineering and Mathematics, GET Lab, Germany

Keywords:

Edge Preserving Smoothing, Noise Removal, Anisotropic Diffusion, Regularization.

Abstract:

Based on a regularization formulation of the problem, we present a novel approach to anisotropic diffusion

that brings up a clear and easy-to-implement theory containing a problem formulation with existence and

uniqueness of the solution. Unlike many iterative applications, we present a clear condition for the step size

ensuring the convergence of the algorithm. The capability of our approach is demonstrated on a variety of well

known test images.

1 INTRODUCTION

The idea of anisotropic diffusion in image process-

ing, i. e. diffusion along a preferred orientation, was

ﬁrst introduced by Perona and Malik (Perona and Ma-

lik, 1990). Their method was designed to realize im-

age smoothing with simultaneous edge enhancement.

In this context an important issue is the relation of

the method to the scale space theory as introduced by

Witkin. In the last decade, the most important contri-

bution to the topic is the work of Weickert ((Weick-

ert, 1996), (Weickert, 1999)). Like Perona and Malik,

Weickert uses the diffusion equation

∂u

∂t

= ∇ · (D∇u) (1)

and provides a well-founded mathematical framework

(Weickert, 1996). He derives the diffusion tensor D

from a structure tensor description of the input image

in order to describe the local image structure. A ma-

jor drawback of the structure tensor description, espe-

cially combined with a Gaussian regularization, is the

high orientation uncertainty in the presence of junc-

tions in the image.

Even though there is a close relationship between

diffusion ﬁlters in the sense of eq. (1) and regu-

larization methods, one main difference is the fact

that the scale space in eq. (1) is given by the time

step t, i. e. the process converges to an one val-

ued image representing the maximum smoothed ver-

sion of the input image. Contrary to this the scale

space in regularization-based approaches is given by

a smoothing weight within an energy or cost func-

tional that has to be minimized. Although there ex-

ist a wide range of regularization-based approaches to

image processing (see e. g. (Ito and Kunisch, 1999),

(Nordstrom, 1989), (Aubert et al., 1997) and refer-

ences therein), we are not aware of a regularization-

based approach to anisotropic diffusion that brings

up a clear and easy-to-implement theory containing

a problem formulation with existence and uniqueness

of the solution and an iterative scheme with a scale

dependent step size that guarantees the convergence

of the method. Exactly this is what we present in

the following sections. In (Aubert et al., 1997) the

superiority of so called edge preserving models over

quadratic regularization is stated. Contrary to this, we

will show that edge preserving diffusion indeed can

be formulated as quadratic regularization.

The most suggesting application of edge preserving

regularization is image denoising. In (Portilla et al.,

2003) a good overview to existing denoising methods

is given. In an extensive quantitative evaluation Por-

tilla et al. show that their approach appears to be the

most accurate one compared to other state-of-the-art

methods. Therefore we will give a short comparison

to their method.

2 GLOBAL OPTIMIZATION

2.1 Problem Formulation

In our approach the discrete image is regarded as a

vector ξ

∈ R

(m·d)

with m being the total number of

101

Hund M. and Mertsching B. (2008).

ANISOTROPIC DIFFUSION BY QUADRATIC REGULARIZATION.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 101-107

 SciTePress

pixels in the image and d the number of colors used.

Two assumptions are made about the cost function.

First, it should cause costs if the image elements ξ

(x,k)

differ from the initial pixel values ξ

(x,k)

. Second,

neighboring elements must satisfy a continuity con-

straint. This leads to a cost function of the form

P(ξ) =

∑

k=1

∑

i=1

(ξ

(i,k)

− ξ

(i,k)

)

∑

k=1

∑

i=1

∑

j∈U

i j

(ξ

(i,k)

− ξ

( j,k)

)

(2)

with ξ = (ξ

(1,1)

,...,ξ

(m,1)

,ξ

(1,2)

,...,ξ

(m,d)

)

with a

smoothness or scaling factor c. Here, U

is the neigh-

borhood of a given pixel x with a weighting factor

> 0 with

∑

i∈U

≤ Q :=

∑

i∈U

1. Note that

6= w

is allowed. Due to the cost function there

must exist a minimum. The minimum ξ must satisfy

∇P(ξ) = 0, which leads to a system of linear equa-

tions

∇P(ξ) = A · ξ − ξ

= 0 (3)

with the elements of ∇P(ξ) given by

∂

∂ξ

(x,k)

P(ξ) = ξ

(x,k)

− ξ

(x,k)

(

∑

j∈U

x j

(ξ

(x,k)

− ξ

( j,k)

)

∑

{i|x∈U

}

(ξ

(x,k)

− ξ

(i,k)

)



(4)

Consequently, the matrix A = (a

i, j

)

i, j

∈ R

(m·d)×(m·d)

in (3) is given by

i, j



1 +

(

∑

) for i = j

+ w

i j

) else

(5)

with w

= 0 for l /∈ U

. Obviously, A is symmetric

and positive deﬁnite. Therefore, an inverse A

−1

must

exist and we have a unique solution of eq. (3).

2.2 Numerical Aspects

Due to round-off errors direct methods are less efﬁ-

cient for large systems than iterative ones. Further-

more, the computation of an inverse would destroy

the zeros in the system matrix A and it would thus

lead to a high storage and computation effort. Unfor-

tunately, in many iterative applications no theoretical

stability bound for convergence to a unique minimum

is available. This results in reducing the step size in

an experimental way, until the process remains sta-

ble ((Perona and Malik, 1990), (Scharr and Weick-

ert, 2000), (Aubert et al., 1997), (Nordstrom, 1989)).

Hence changing the system parameters in these cases

may cause serious problems. For the solution of (3),

we use the gradient descent method and from this we

will deduce a theoretical condition for the stability

bound.Starting with ξ

∈ R

(m·d)

the vector ξ

is itera-

tively updated via

k+1

= ξ

− λ

∇P(ξ

), λ

> 0 (6)

Instead of using the local optimal step size λ

)

(Ar

)

with the residuum r

, which has to be com-

puted for each iteration and therefore causes high

computational costs, we use the following consider-

ations for the choice of a constant step size λ. With a

given linear system of equations of the form Ax = b,

an iterative scheme φ : R

× R

→ R

is called lin-

ear, if matrices M,N ∈ R

exist, such that φ(x,b) =

Mx + Nb. The process is said to be consistent with

the matrix A, if the solution A

−1

is a ﬁxed point of

φ. A linear iteration scheme is consistent with the

matrix A if and only if M = I − NA. Furthermore,

the scheme is convergent if and only if the spectral

radius ρ(M) of the iteration matrix M satisﬁes the

condition ρ(M) < 1. If φ is convergent and consis-

tent with the matrix A, the limiting value of the se-

quence x

= φ(x

k−1

,b) solves Ax = b for any choice

of x

.Considering (3) and the iteration scheme (6)

with a constant step size λ

= λ, we receive the linear-

ity and consistence with the matrix A with N = λI and

M = I − NA. It remains to show under which condi-

tion ρ(M) < 1 is fulﬁlled. Let Q

∑

+ w

again with w

= 0 for l /∈ U

and let Q be the max-

imum number of pixels in a neighborhood U, i. e.

Q > Q

. Using ρ(M) ≤ kMk for any matrix norm

k  k we consider the row-sum norm k  k

∞

and claim

∑

m·d

k=1

| < 1 for any row i. This leads to

|1 − λ(1 + c · Q

)| + λ · c · Q

< 1 (7)

and hence

0 < λ <

1 + 2 · c · Q

(8)

In the following, we use

λ :=

1 + c · Q

1 + 2 · c · Q

≤

1 + 2 · c · Q

(9)

We receive a step size that is dependent on the scale,

i. e. the smoothness factor c and the maximum num-

ber of pixels Q in the neighborhood U . It has to be

noted that there is a difference between ξ

and ξ

The solution is independent from the starting vector

, but it depends on the initial image ξ

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

102

(a) (b) (c) (d)

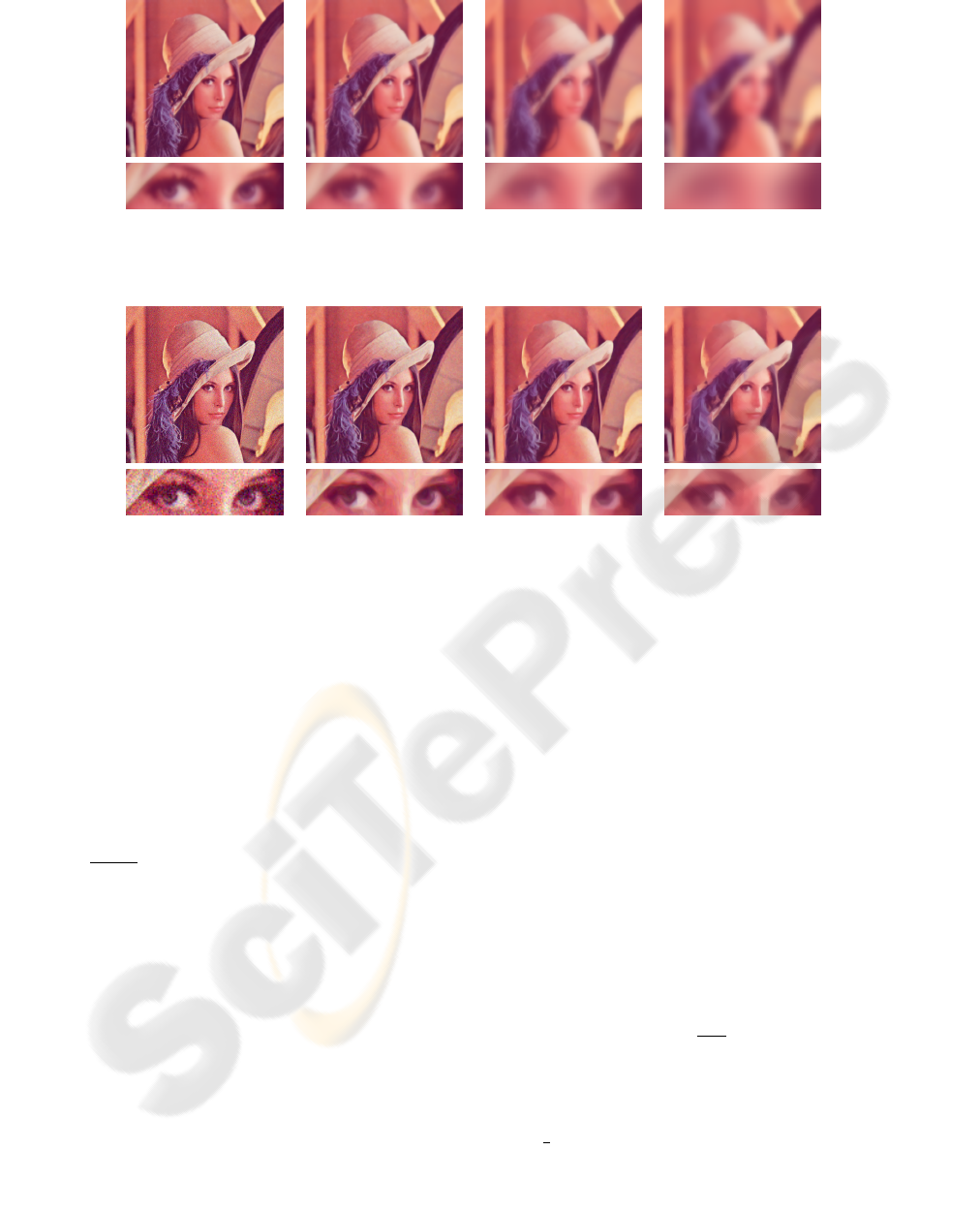

Figure 1: Linear isotropic scale space for the Lena image: (a) c=1, (b) c=3, (c) c=20 and (d) c=250.

(a) (b) (c) (d)

Figure 2: Anisotropic scale space for the Lena Image with 20% uncorrelated noise for each pixel in the input image: (a) Input

image, (b) c=3, (c) c=20 and (d) c=250.

3 DIFFUSION

3.1 Isotropic Diffusion

In the simpliest case we have a quadratic neighbor-

hood U

of a pixel i and symmetric weighting factors

i j

= w

= 1. Eq. (4) then is simpliﬁed to

∂

∂ξ

(x,k)

P(ξ) = ξ

(x,k)

− ξ

(x,k)

+ c

∑

j∈U

(ξ

(x,k)

− ξ

( j,k)

) (10)

This is the classic case of isotropic linear diffusion.

The isotropic diffusion as well as anisotropic dif-

fusion with symmetric weights, i. e. w

i j

= w

, was al-

ready used by us in the context of stereoscopic depth

estimation ((Hund, 2002), (Brockers et al., 2005)).

There, eq. (10) and eq. (6), respectively, were used

to eliminate the ambiguities in the stereoscopic dis-

parity space.

Fig. 1 demonstrates the linear isotropic diffusion

properties on the Lena image. With growing reg-

ularization parameter c the image is isotropically

smoothed until all image detail is lost.

3.2 Anisotropic Diffusion

An important advantage of our problem formulation

in (2) is the fact that we are free to choose the weight-

ing factors w

i j

without loosing existence or unique-

ness of the solution. To achieve an anisotropic dif-

fusion behaviour, we use the following deﬁnition for

the local support area. The orientation angle associ-

ated with a pixel is derived by applying an orienta-

tion selective Gaussian based ﬁlterbank to the input

image. Due to the given orientation angle of a pixel

the coordinates of its eight-point neighborhood are ro-

tated into the coordinates (x,y) and the corresponding

weighting factors w

i j

are determined from the follow-

ing function

f (x,y) =

(

0 for y > 0.7

1.0 + cos



π · y

0.7



else

(11)

Eq. (11) ensures a strict diffusion along one direction.

For a more generous behaviour, the constants 0 and

0.7 in eq. (11) have to be changed. It is clear that

∑

+ w

) < Q in eq. (9) and hence eq.

(11) is well posed.

Fig. 2 demonstrates the anisotropic case on the

Lena image. This time, 20% uncorrelated noise is

ANISOTROPIC DIFFUSION BY QUADRATIC REGULARIZATION

103

(a) (b) (c)

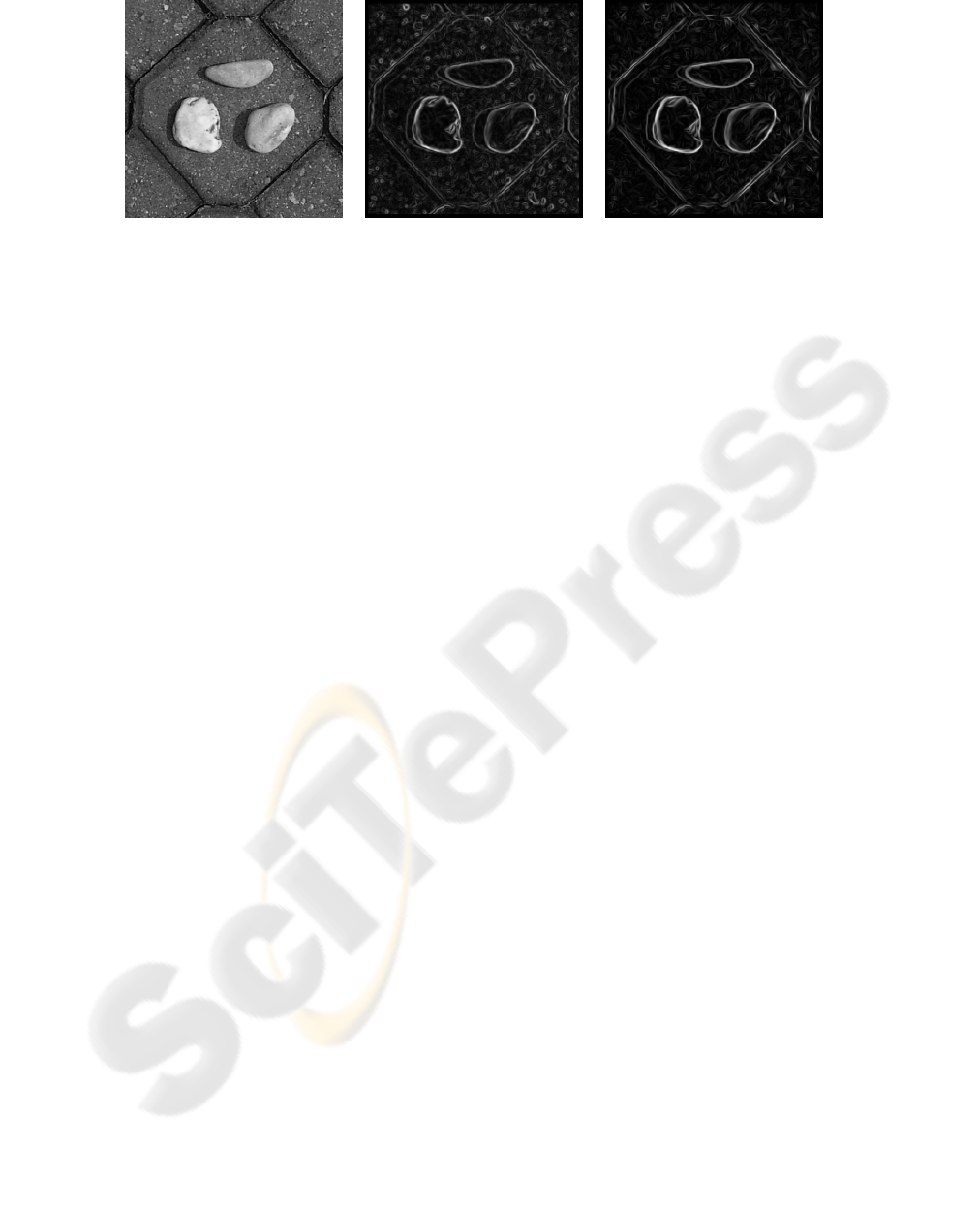

Figure 3: Stones image: (a) Input image, (b) gradient magnitude |∇g

| before and (c) after self-organization of the edge map.

added to each pixel of the input image. It becomes

obvious that for c → ∞, unlike in the linear isotropic

case, a local neighborhood can be deﬁned for which

the method does not diffuse to a constant value for all

image pixels

4 MODIFICATIONS

4.1 Self-Organization of the Edge Map

As it is mentioned above, we use a Gaussian based

ﬁlterbank to derive the orientation angle we need to

determine the weighting factors w

i j

. Unfortunately

gradient based ﬁlters are very sensitive to noise.

In order to overcome this problem, we apply the

anisotropic regularization to the edge map that is gen-

erated by the Gaussian based ﬁlterbank, i. e. we ap-

ply eq. (2) for d = 2 to the edge map that is deﬁned

by (ξ

(x,1)

,ξ

(x,2)

) = |∇g

|(cos(α

),sin(α

)) with |∇g

being the gradient magnitude and α

the associated

orientation at image position x.

During the iterative process, eq. (2) is reformu-

lated for each iteration step, since the weighting fac-

tors depend on the edge values that are modiﬁed. That

is, the orientation of an edgel determines the weight-

ing factors, that are used for one iteration step. This

step changes the edgel and therefore its orientation.

This leads to a self-organization of the edge map, en-

hancing salient contours. Note that this proceeding no

longer guarantees the uniqueness, the iteration con-

verges to a solution that depends on the starting vec-

tor. Nevertheless, regarding the numerical implemen-

tation in section 2.2 the convergence of the iteration is

still given since ρ(M) < 1. Furthermore, the problem

formulation for the image itself stays the same and

hence keeps the uniqueness property. Fig. 3 shows

the effect of a self-organizing edge map. High fre-

quencies in the input image Fig. 3(a) take effect on

the gradient-based edge map in Fig. 3(b). Applying

the self-organizing scheme emphasizes “important“

edges. This is also of interest for the topic of salient

contour inference, see (Mahamud et al., 2003) for ex-

ample.

4.2 Thresholding the Weighting Factor

To achieve an enhancement of discontinuities along

edges the weighting factors can be set to zero for

neighboring image elements i, j with |ξ

(i,k)

−ξ

( j,k)

| <

s for some threshold s. Note that again uniqueness is

lost and the result is highly dependent on the starting

vector ξ

. A good choice for ξ

is zero or a smoothed

version of the input image. For ξ

= ξ

and a small

threshold merely no effect will take place even for a

high smoothing factor.

5 EVALUATION

5.1 Qualitative Evaluation

The images in Fig. 4(a)-(d) are introduced in (Weick-

ert, 1996) as an example for the denoising properties

of different diffusion ﬁlters. 70% of the input image

in Fig. 4(a) are degraded by noise. Fig. 4(b) shows

the linear and (c) the nonlinear isotropic case while

Fig. 4(d) is computed with the proposed edge enhanc-

ing anisotropic diffusion approach.

In Fig. 4(f) the orientational approvement of the self-

organizing process we suggested in section 4.1 can

be seen compared to the initial values in Fig. 4(e)

that are received from an orientation selective, gaus-

sian based ﬁlter. Fig. 4(g) shows the solution of

the regularization term proposed in section 2.1 with

anisotropic weighting factors derived from the self-

organized edge map. Fig. 4(h) shows the same setting,

but with thresholded weighting factors. To achieve

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

104

(a) (b) (c) (d)

(e) (f) (g) (h)

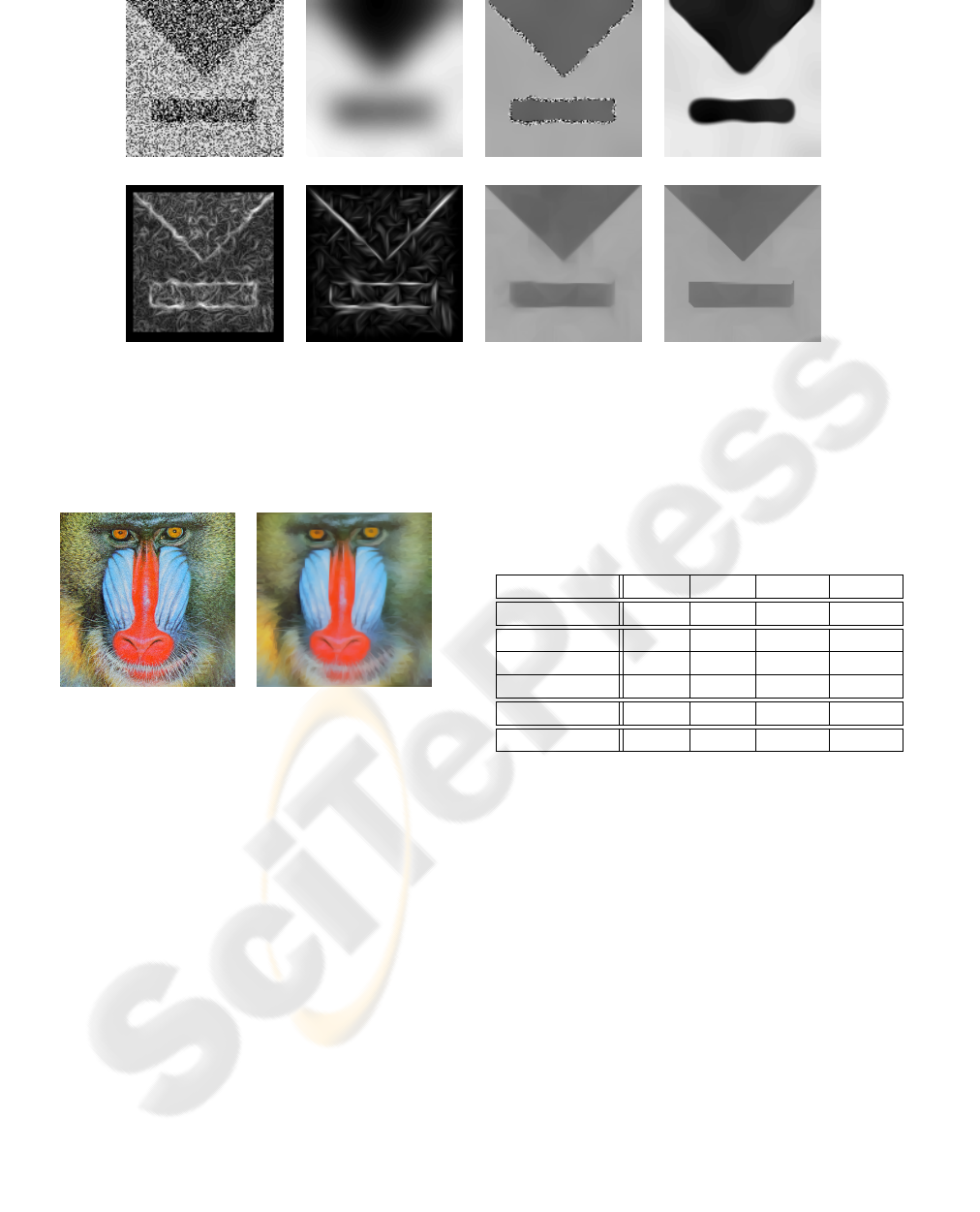

Figure 4: Images (a)-(d) taken from (Weickert, 1996) and (J

ahne, 2002) respectively: (a) Input image, (b) linear diffusion,

(c) nonlinear isotropic diffusion and (d) nonlinear anisotropic diffusion. Images (e)-(h) demonstrate our approach: (e) Gradient

magnitude, (f) gradient magnitude after self-organization of the edge map, (g) result for the anisotropic diffusion proposed in

section 3.2 and (h) result with thresholded weighting factors.

(a) (b)

Figure 5: Mandrill image: (a) N - input image with 10%

uncorrelated noise and (b) R

250

- anisotropic diffusion with

c = 250.

maximal diffusion, the scale parameter in both cases

was set to c = 1000. As can be seen in the results

our algorithm shows a good noise elimination prop-

erty with a signiﬁcant improvement in edge preserv-

ing.

5.2 Quantitative Evaluation

The results presented in table 1 are computed on the

mandrill image in Fig. 5(a) with 10 percent noise

added to each pixel of the input image. To compare

two images we take the percentage of pixels with an

absolute difference less than a threshold s compared

to the total number of pixels m · d. For a smoothness

factor c the result computed on the noisy input im-

age N is given by R

. Table 1 shows the similarity

between R

and the original image O.

Table 1: Mandrill image: similarity between noisy image

(N), original image (O) and computed images (R

Similarity s = 1 s = 6 s = 16 s = 21

N ∧ O 6.19 36.38 79.41 90.36

0.1

∧ O 4.04 40.88 85.60 94.40

0.3

∧ O 3.99 41.13 84.40 92.75

0.5

∧ O 3.90 40.24 81.75 90.29

0.1

∧ O 3.90 40.16 83.14 91.92

250

∧ R

250

29.18 98.83 99.97 99.99

Due to the high frequent image content in the orig-

inal image the diffusion process yields high similarity

values only for small smoothness factors. These re-

sults show a higher similarity to the original image.

than the noisy input image does. Of course, they also

show a higher similarity than an linear isotropic ﬁl-

tered image (R

0.1

). On the other hand it can be seen

that for a large scale the diffusion process comes to

similar results when the original image is taken as the

input image (R

250

) as well as when the noisy image

is taken as the input image (R

250

). This shows that

unoriented noise as well as high frequent unoriented

image information is eliminated from the input image.

To our knowledge, the noise removal method pro-

posed in (Portilla et al., 2003) and (Guerrero-Colon

and Portilla, 2005) respectively is the most accurate

one. We therefore compare our results to those given

in (Portilla et al., 2003). Here, the denoising perfor-

mance is measured with the peak signal to noise ra-

ANISOTROPIC DIFFUSION BY QUADRATIC REGULARIZATION

105

(a) (b) (c) (d)

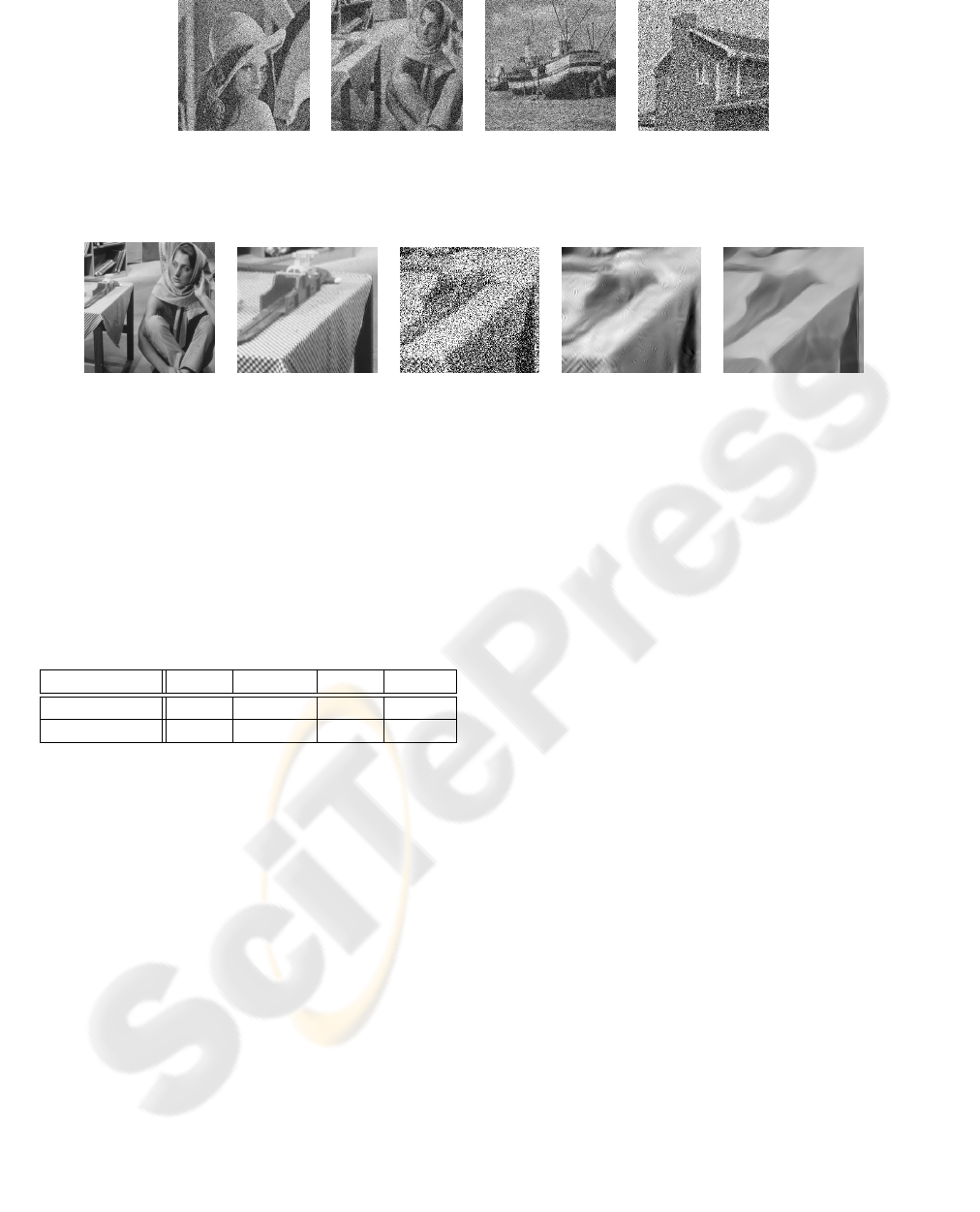

Figure 6: Images used for evaluation in table 2: (a) Lena, (b) Barbara, (c) Boats and (d) House. The input images are degraded

with additive Gaussian white noise. All images are taken from http://decsai.ugr.es/ javier/denoise/

(a) (b) (c) (d) (e)

Figure 7: Barbara image: (a) original image, (b) magniﬁcation of the table region, (c) part of noisy input image with σ = 100

and PSNR = 8.13, (d) denoising result of Portilla et al. (PSNR = 22.6) and (e) denoising result of our method (PSNR = 22.1).

Table 2: Comparison of our denoising results with the re-

sults of Portilla et al., the results are expressed as peak

signal to noise ratio (PSNR). The input images, which are

shown in Fig. 6, are contaminated with additive Gaussian

white noise (σ = 100). The parameters of our method are

tuned to show best performance on the Lena image. All

images are computed with the same parameters.

σ = 100 Lena Barbara Boats House

Portilla et al. 25.64 22.61 23.75 25.11

Our method 25.65 22.07 23.13 24.92

tio PSNR = 20log

(255/σ

) with σ

being the er-

ror standard deviation. Looking at the PSNR val-

ues our method reveals a notable disadvatage. The

smoothing, especially for large smoothness factors,

leads to a shrinkage of the histogram. For the sake

of comparability, we therefore applied a linear his-

togram equalization on our results, but, as can be seen

in Fig. 7(e), there still remains a systematic deviation

of a regions greyscale level compared to the original

image (Fig. 7(b)). Our results are computed with a

smoothing factor c = 4.0 and 60 iteration steps. The

starting vector is the noisy input image and in a pre-

processing step, we perform the self-organization of

the edge map as it is described in section 4.1. For the

self-organization, we used a smoothing factor c = 8.0.

As can be seen in table 2, except for the Lena im-

age, our approach is outperformed by the method pro-

posed in (Portilla et al., 2003). Nevertheless it can be

observed that for high noise levels, our method pro-

duces less artifacts, which can be a crucial issue, not

only for subsequent image processing steps, but also

for the viewers subjective appraisement of the image

quality.

6 MORE RESULTS

Anisotropic diffusion processes also feature artistic

aspects. In (Weickert, 1996) , paintings of van Gogh

were used for coherence enhancing anisotropic dif-

fusion resulting in images that yield very different

impressions compared to the original paintings. In

Fig. 8(b) the anisotropic regularization we propose in

section 3.2 is used to eliminate the pointillism in a

painting of Georges Seurat (Fig. 8(a)). In Fig. 8(c)

and (d) the isotropic case in section 3.1 is combined

with the thresholding in section 4 and an oversmooth-

ing of the images in order to alienate the original im-

ages.

7 CONCLUSIONS AND

OUTLOOK

We presented a novel regularization-based approach

to anisotropic diffusion that provides a clear mathe-

matical formulation of the regularized diffusion prob-

lem and its solution. The solution is unique and the

iteration process to derive this solution is shown to

be convergent for any scale, i. e. smoothness factor.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

106

(a) (b)

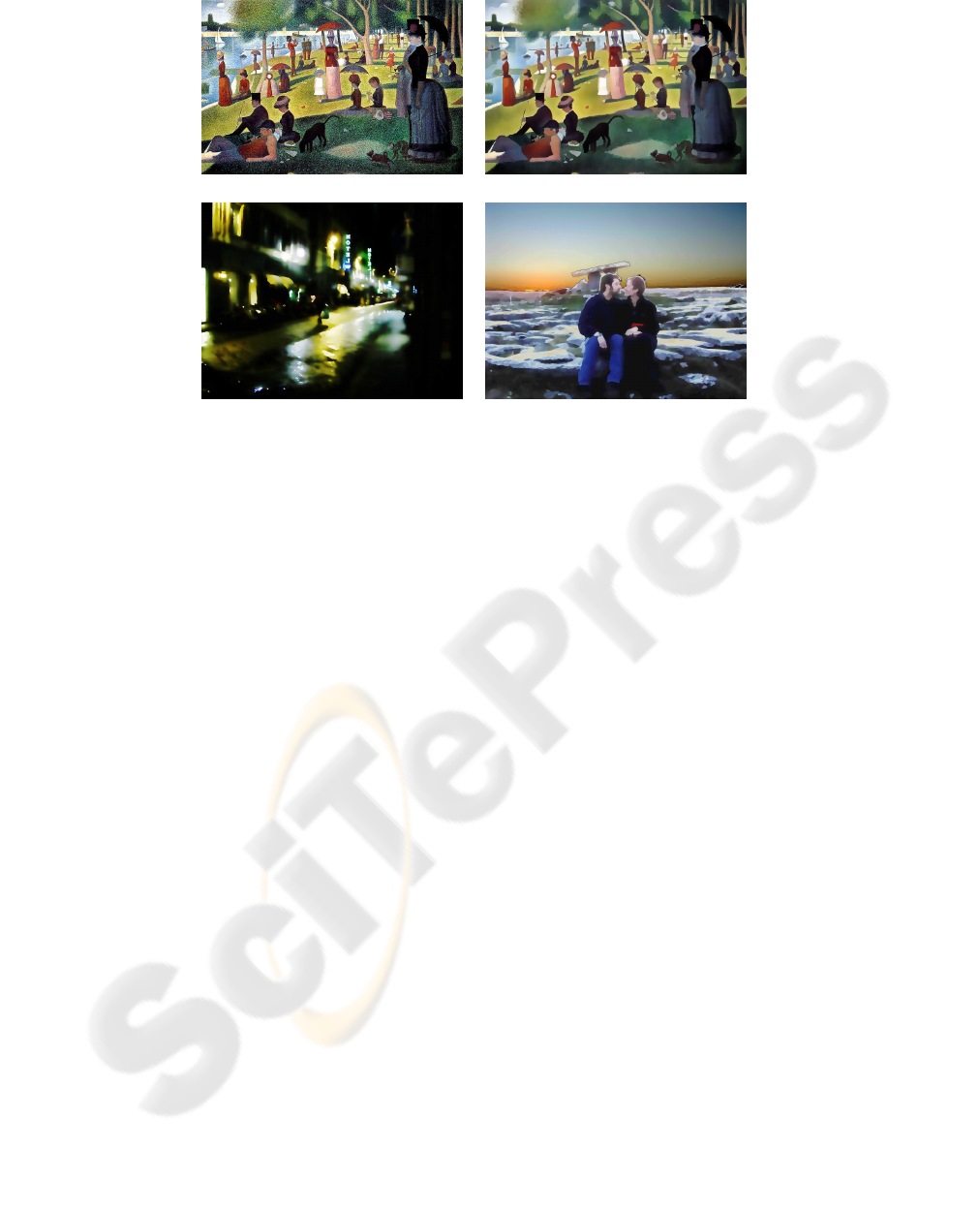

Figure 8: (a) Un dimanche apr

es-midi

a l’

ıle de la grande jatte, 1884 (b) Result after applying anisotropic diffusion (c) Street

scene in Florence (d) Somewhere in Ireland.

The capability of our approach was demonstrated on

a variety of greyscale and color images. By our ap-

proach we hope to have closed a gap between classic

diffusion ﬁlters and regularization methods. Future

examinations will include verifying the rotation in-

variance properties of the local support area proposed

in section 3.2. Future work also will address the effect

of histogram shrinkage mentioned above and the im-

provement of the comparability of the noise removal

results.
