HIGH-SPEED IMAGE FEATURE DETECTION USING FPGA

IMPLEMENTATION OF FAST ALGORITHM

Marek Kraft, Adam Schmidt and Andrzej Kasi´nski

Institute of Control and Information Engineering, Pozna´n University of Technology, Piotrowo 3A, 60-965 Pozna´n, Poland

Keywords:

Image processing, feature detection, FPGA.

Abstract:

Many of contemporary computer and machine vision applications require ﬁnding of corresponding points

across multiple images. To that goal, among many features, the most commonly used are corner points. Cor-

ners are formed by two or more edges, and mark the boundaries of objects or boundaries between distinctive

object parts. This makes corners the feature points that used in a wide range of tasks. Therefore, numerous

corner detectors with different properties have been developed.

In this paper, we present a complete FPGA architecture implementing corer detection. This architecture is

based on the FAST algorithm. The proposed solution is capable of processing the incoming image data with

the speed of hundreds of frames per second for a 512×512, 8-bit gray-scale image. The speed is comparable

to the results achieved by top-of-the-shelf general purpose processors. However, the use of inexpensive FPGA

allows to cut costs, power consumption and to reduce the footprint of a complete system solution. The paper

includes also a brief description of the implemented algorithm, resource usage summary, resulting images, as

well as block diagrams of the described architecture.

1 INTRODUCTION

Corner detection can be deﬁned as the process of ex-

tracting certain kinds of image features. These fea-

tures can be used in further processing stages. A cor-

ner can be deﬁned as a point, whose immediate neigh-

borhood contains two (or more) dominant edges of

different directions. Feature points detected by vari-

ous corner detectors often do not ﬁt the corner deﬁ-

nition – an example may be line endings or isolated

points. Therefore, most of the methods for corner de-

tection detect rather interest point, than corners in the

general case. The ability to detect corners, or corner-

like interest points is important in many computer vi-

sion applications, like 3D reconstruction, motion de-

tection, object recognition and tracking, image stitch-

ing, image registration, robot navigation etc. This

broad area of applications, makes fast implementa-

tions of feature detection algorithms desirable. While

today’s general purpose desktop computers offer suf-

ﬁcient processing power to handle most of the com-

puter vision task in real-time, the application of a

standard computer is in many cases (like mobile ap-

plications, autonomous robotics, compact smart vi-

sion systems) not desirable, or even impossible, due

to their high power consumption and signiﬁcant size.

Portable, embedded general-purpose processors may

however be unable to handle more complex compu-

tational tasks. One of the methods to achieve the

speed-up in algorithm’s execution in such embedded

systems is to use the potential of available FPGA-

circuits. They enable parallel processing of image-

data using custom digital structures. Over the years,

numerous corner detection algorithms have been pro-

posed, but the issue of efﬁcient corner detection is

still an open problem. None of the developed al-

gorithms is versatile enough – the performance is

strongly dependent on the processed image content

(type of corners, contrast noise type and character-

istics in the image etc.). Another issue is the cor-

ner detection algorithm’s speed. While some of the

algorithms offer great performance, their complexity

makes them too slow for real-time applications. Al-

though there are many different approaches to cor-

ner detection in gray-scale images, they can be clas-

siﬁed into one of three categories. First category is

the edge-related approach, that use differential geom-

etry operators. Examples of corner detectors using

this approach are the Kitchen-Rosenfeld (Kitchen and

Rosenfeld, 1982) and Wang-Brady (Wang and Brady,

174

Kraft M., Schmidt A. and Kasi

nski A. (2008).

HIGH-SPEED IMAGE FEATURE DETECTION USING FPGA IMPLEMENTATION OF FAST ALGORITHM.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 174-179

DOI: 10.5220/0001080801740179

 SciTePress

1995) algorithms. The second approach, used for ex-

ample in the Beaudet and Deriche (Deriche and Gi-

raudon, 1993) corner detectors, is the topology-based

approach. Finally, there is a group of corner detec-

tion methods based on autocorrelation. These meth-

ods include the Moravec (Moravec, 1979) and Har-

ris/Plessey (Harris and Stephens, 1988) algorithm.

There is also a number of methods, that do not fall

into the previously mentioned categories. An exam-

ple is the Curvature Scale Space (CSS) operator, that

detects corners by searching for local curvature max-

ima of the edges detected in the image (Mokhtarian

and Suomela, 1998). Another example is the SU-

SAN (Smallest Univalue Segment Assimilating Nu-

cleus) edge and corner detector, that relies more on

structural than mathematical properties of the image

(Smith and Brady, 1997). Another possible approach

to corner detection is to use machine learning (Tsai,

1997). Using corner-like image patches, a neural

network can be trained to effectively detect corners.

One of the recently developed corner detection algo-

rithms is the FAST (standing for features from ac-

celerated segment test) algorithm, ﬁrst presented in

(Rosten and Drummond, 2005) and further developed

in (Rosten and Drummond, 2006). We have decided

to implement this algorithm in hardware, because it

is very well suited for our future applications (track-

ing, simultaneous localization and mapping (SLAM)

and visual odometry). It is many times faster than

other existing corner detectors and shows very good

repeatability under large aspect changes and for dif-

ferent kinds of features. While the ﬁrst advantage is

not of very high importance (the original implemen-

tation of the method was in software and software-

attuned approach to achieve speedup), the second is

crucial for proper work of higher level algorithms and

is very desirable. Our investigation led to the conclu-

sion, that FAST algorithm can also be easily imple-

mented in hardware in its pure form, that performsex-

haustive search for every image pixel (such approach

is much less complicated to implement in hardware

than the decision tree used in (Rosten andDrummond,

2006)). The algorithm does not employ multi-scale

corner search – instead it looks for corners locally,

by analyzing successive image patches. This enables

the specialized hardware architecture to be organized

as pipeline, and does not require RAM memory for

data storage. The image that is subject of corner de-

tection does not require any preprocessing, which is

also an advantage. The algorithm has also some dis-

advantages. First, it is not robust to high levels noise.

However, in our target system we plan to use high

quality CameraLink camera, so the acquisition noise

level will be kept to the minimum. The algorithm is

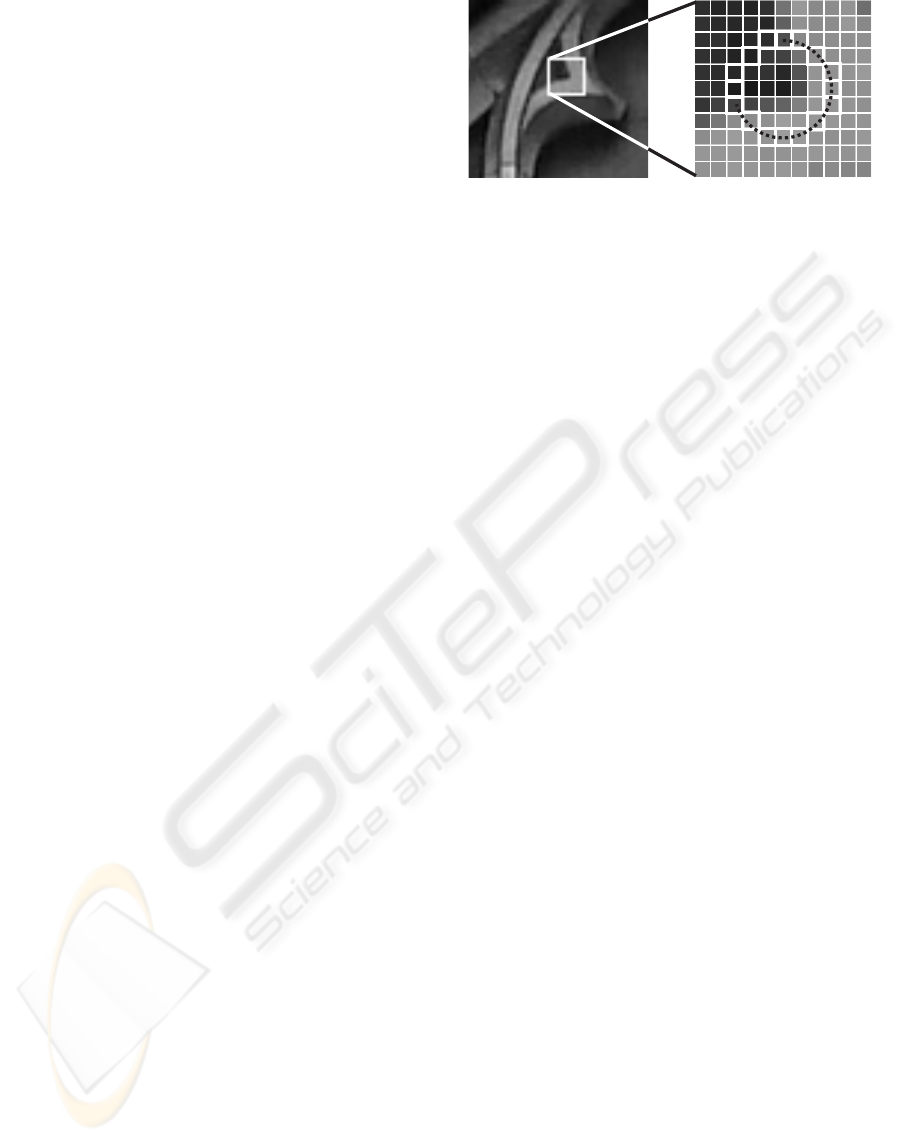

Figure 1: The illustration of segment test. The pixels 1

through 16 form the Bresenham circle. The contiguous

segment of pixels satisfying the thresholding condition is

marked with the dashed line.

dependenton a threshold, but many of the widelyused

corner detectors are also threshold-dependent. The al-

gorithm can also respond to single-pixel-wide lines at

certain angles, when the quantisation of the Bresen-

ham circle misses the line.

2 THE FAST ALGORITHM

In order to indicate whether the pixel p with a speciﬁc

intensity value I

is a corner, the FAST detector ana-

lyzes a 16 pixel Bresenham circle surrounding p. The

Bresenham circle is an approximation of the circle,

drawn on a raster)see ﬁgure 1. The positive detection

is declared if n points of this circle form a contiguous

segment which is either darker than the center point

minus a given threshold t, or brighter than the center

point plus the threshold (see ﬁgure 1).

Direct application of this criterion turned out to be

ineffective, thus to improve the performance n is set

to 12 in the ﬁrst version of the algorithm, and an ad-

ditional, coarse test was executed. During the coarse

test, four pixels lying on the main compass directions

(indexed 1, 5, 9 and 13) are analyzed. The reason for

this is that any 12-pixels arc on the tested circle in-

cludes 3 of those points. Only if at least 3 of them are

darker than I

− t or brighter than I

+ t, the appro-

priate corner candidate p is tested thoroughly. This

approachenables discarding many candidates quickly

and reduces effectively the image processing time.

The coarse test improves the detector’s performance,

however it has several weaknesses. The main dis-

advantage is that it is not valid for n < 12. More-

over, the choice of the 4 examined points involves

assumptions about the features’ appearance distribu-

tions and the information gained on this stage of pro-

cessing is discarded. To eliminate these ﬂaws Rosten

and Drummond created the decision tree using the

ID3 algorithm on the samples acquired with the di-

rect segment test (Rosten and Drummond, 2006). To

HIGH-SPEED IMAGE FEATURE DETECTION USING FPGA IMPLEMENTATION OF FAST ALGORITHM

175

reduce the occurrence of adjacent positive responses,

the non-maximal suppression is applied. As the seg-

ment test is a Boolean function, an additional mea-

sure is needed. The corner score function V, deﬁned

as the sum of absolute differences between central

point’s intensity and intensities of pixels on the con-

tiguous arc, is introduced. Corner score for all pos-

itive responses is computed and those with V lower

than its neighbors are discarded. Let us denote the

pixels brighter than brighter than I

+t by S

bright

, and

the pixels darker than I

− t by S

dark

. The complete

equation for corner score is given in equation 1.

V = max(

∑

x∈Sbright

p→x

− I

|−t,

∑

x∈Sdark

− I

p→x

|−t)

(1)

As mentioned before, our hardware architecture

does not perform any coarse test before actual corner

detection; it also does not employ the decision tree.

Instead, an exhaustive search is performed for all the

image pixels. Because the FPGA can perform com-

putations in parallel, such approach has no negative

effect on the performance.

3 THE HARDWARE

ARCHITECTURE

To process data in parallel, the designed architec-

ture requires to have simultaneous access to all pix-

els under investigation (the 16 pixels placed on the

Bresenham circle and the central pixel). This re-

quires constant access to a 7× 7 processing window.

To achieve this goal, 6 BlockRAM memories along

with read/write address generation logic were used as

FIFO delay buffers. The FIFO depth is equal to the

horizontal resolution of the image. Additionally, 49

8-bit registers were used to store pixel intensity val-

ues in the investigatedwindow. Theseintensity values

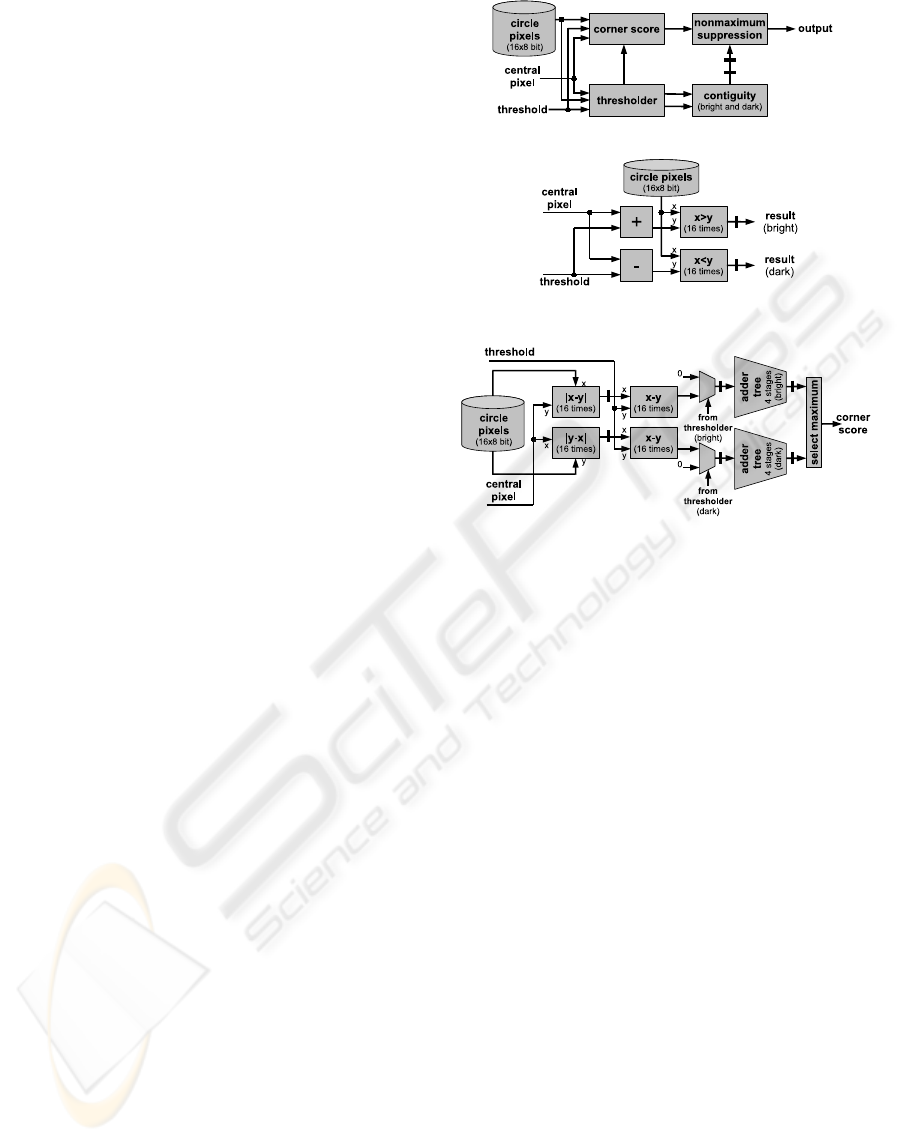

are then passed to the processor. The block diagram,

along with more detailed view on selected modules of

the processor, is given in ﬁgure 2.

The design is divided into modules: the thresh-

older, the contiguity module, the corner score mod-

ule and the non-maximum suppression module. The

thresholder module computes whether or not the pix-

els on the Bresenham circle have the intensity value

greater than the center pixel intensity value plus

threshold (‘bright’ pixels), or lower than the center

pixel intensity value minus threshold (‘dark’ pixels).

The output of this module is ‘1’ if the condition is sat-

isﬁed, and ‘0’ if not, and forms two 16-bit wide logic

vectors. The overall latency for this module is 1 clock

cycle. The corner score module computes the corner

(a) Block diagram

(b) Thresholder module

Figure 2: Block diagram of the architecture and selected

modules. Thick bars across datapaths indicate the pipeline

registers.

score according to equation 1. In the ﬁrst clock cycle,

for each pixel the absolute value of the differences

between the pixels on the Bresenham circle and the

center pixel (for the ‘bright’ pixels) and also the abso-

lute value of the differences between the center pixel

and the pixelson the Bresenham circle (for ‘dark’ pix-

els) is computed. This gives two groups of results,

each one of them composed of 16 values. In the next

clock cycle, the threshold value is subtracted from all

of these values. Depending on the results from the

thresholder block, the values from the two groups are

passed to their respective adder tree (one for ‘bright’

pixels and one for ‘dark’ pixels). If the bit in the

thresholder output is set, the corresponding value is

passed unchanged, otherwise it is replaced with zero.

The adder trees are pipelined, to keep the delays at

minimum. In the ﬁnal stage, the greater value from

the adder trees’ output is selected as the corner score.

The overall delay for this module is seven clock cy-

cles. The contiguity processor is the module which

monitors if there are n contiguous ‘bright’ of ‘dark’

pixels in the Bresenham circle surroundingthe central

pixel. The moduleoperates on the thresholder module

output. According to (Rosten and Drummond, 2006),

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

176

Table 1: Resource usage of the implemented design. The

values in percent are given with respect to all corresponding

resources available.

Parameter Value

No. of block RAMs 12 (100%)

No. of ﬂipﬂops 1547 (40%)

No. of LUTs 2368 (62%)

the best choice for n is 9, so the contiguity check for

each group is implemented as 16 9-input logical AND

functions. The results are then OR-ed, and the output

of ‘1’ corresponds to the potential corner presence.

This output, along with the corner score are passed

to the nonmaximum suppression (NMS) module. To

provide simultaneous access to the pixel under inves-

tigation and its 5 × 5 neighborhood, four BlockRAM

memories have been used as FIFO delay buffers. The

delay of the NMS stage is 4 clock cycles, so the over-

all delay introduced by the procesor is 12 line-scans

plus 11 clock cycles (the pipeline depth). To equalise

the delays introduced by different modules, adding of

some additional registers to delay the signals was nec-

essary. After ﬁlling the pipeline, the processor accepts

and outputs one byte of data on every clock cycle.

4 IMPLEMENTATION AND

PERFORMANCE EVALUATION

The described architecture was implemented in hard-

ware for testing. The processor was implemented us-

ing VHDL as hardware description language together

with Xilinx’s ISE 8.1 package and Mentor Graphics’

ModelSim XE III 6.1e. The design was targeted at the

FPGA’s from Xilinx’s Spartan 3 family, namely the

XC3S200-4 (slower speed grade). First stage of test-

ing was to provethe circuit’s correctoperation by sim-

ulating the behavioral and post place and route model.

Upon successful test completion, the design was im-

plemented in a physical device. We have used the

Xplorer script from Xilinx to determine the best im-

plementation settings with the maximum clock speed

chosen as the priority. The resulting images are given

in ﬁgures 3 and 4.

The design consumes 62% of available FPGA re-

sources (in terms of look-up tables (LUT)) and is

capable of achieving clock frequencies of up to 130

MHz, using (see table 1).

This corresponds to the throughput of nearly 500

frames per second for a 512×512, 8-bit grayscale im-

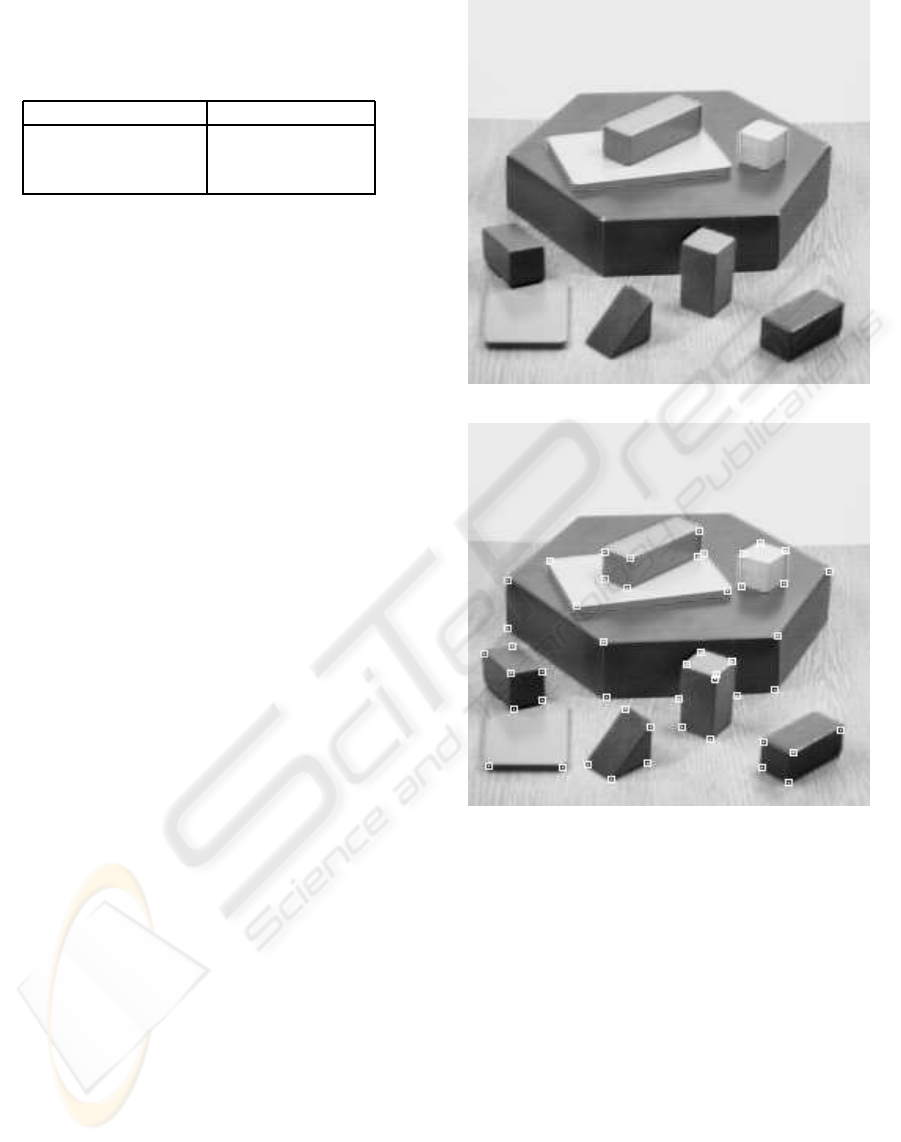

(a) Original ‘blocks’ test image

(b) The ‘blocks’ image with superimposed detected cor-

ners

Figure 3: ‘Blocks’ test image processed using the imple-

mented hardware corner detection processor, t = 35, n = 9.

age. For a real, physical circuit the maximum fre-

quency would be about 10% lower (taking into ac-

count such phenomena like clock jitter), but this pro-

cessor is still capable to detect image corners in real-

time, even though it has been implemented in a small,

low end, slower speed grade FPGA. The speed is

about 30% lower than that of the implementation pre-

sented in (Rosten and Drummond, 2006), but the cost,

size and power consumption of the hardware architec-

ture are many times lower. Additionally, the remain-

ing FPGA resources may be used to perform addi-

tional image ﬁltering or processing in parallel. This

HIGH-SPEED IMAGE FEATURE DETECTION USING FPGA IMPLEMENTATION OF FAST ALGORITHM

177

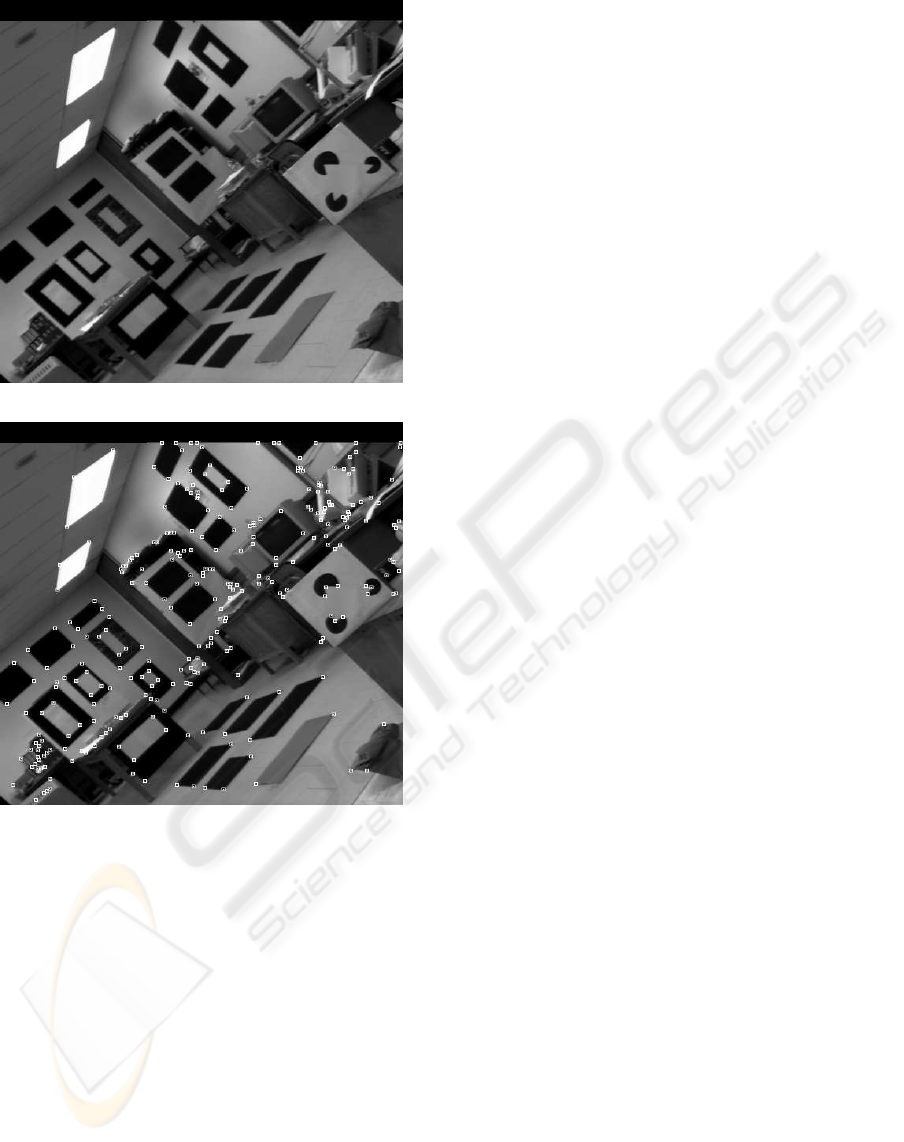

(a) Original ‘lab’ test image

(b) The ‘lab’ image with superimposed detected corners

Figure 4: ‘Lab’ test image processed using the implemented

hardware corner detection processor, t = 35, n = 9.

would result in an additional performance increase

over the software-oriented image processing algo-

rithm implementations. If the processing speed is crit-

ical, the architecture can easily be ported to a faster

FPGA – this would increase the procesing speed by

a factor of two. The implemented algorithm allows

to keep resource usage at a low level as compared

with other corner detectors that were implemented in

hardware. For example, the architecture presented in

(Cabani and MacLean, 2006) occupies 99% of the

79,040 logic elements (4-input look-up tables), which

is about 33 times more than the resource count for

our solution. Additionally, this complex design makes

also extensive use of many other FPGA resources

(344 multipliers and 230 RAM-based buffers). Please

note, that the architecture presented in this paper has

been implemented and tested on a physical device,

while the authors of (Cabani and MacLean, 2006)

describe a proposed architecture which has not been

implemented. In (Torres-Huitzil and Arias-Estrada,

2000), the authors present a compact implementation

of the SUSAN edge and corner detection algorithm

(Smith and Brady, 1997). It uses about two times less

resources than our solution. Please note however, that

it does not employ a non-maximumsuppression block

(which results in non-exact feature localization). Ad-

ditionally, the results presented in (Rosten and Drum-

mond, 2006) show, that the performance of SUSAN

detector (in terms of repeatability of features detected

in different views) is worse than the performance of

FAST, unless we have to deal with images corrupted

by strong noise.

5 CONCLUSIONS

In this paper we presented a fully functional hard-

ware implementation of the FAST corner detection

algorithm. The chosen corner detector is conceptu-

ally simple, which results in a compact implementa-

tion. The design is capable of meeting the demands

of real-time applications, as it can operate with the

speed of hundreds of frames per second without . The

use of FPGA circuits reduces the cost, size and power

consumption of the device and offers the ﬂexibility

to modify deﬁnition of features and let to incorpo-

rate new features in new hardware revisions. Further

research will be focused on the optimization of the

data ﬂow (eg. by adding additional pipeline stages

in the datapath, reusing the logic etc.). This should

result in further processing speed increase. The cor-

ner detection processor, along with the edge-detection

processor presented in (Kraft and Kasi´nski, 2007) are

planned to be parts of high-performance system for

tracking objects in high performance machine vision

applications, as well as for SLAM and visual odome-

try applications in robot vision. Such processor, oper-

ating directly on the image-data stream, can be incor-

porated into the system immediately after the camera,

forming a high-performance,compact machine vision

solution.

REFERENCES

Cabani, C. and MacLean, W. J. (2006). A proposed

pipelined-architecture for fpga-based afﬁne-invariant

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

178

feature detectors. In CVPRW ’06: Proceedings of

the 2006 Conference on Computer Vision and Pattern

Recognition Workshop, page 121, Washington, DC,

USA. IEEE Computer Society.

Deriche, R. and Giraudon, G. (1993). A computational ap-

proach for corner and vertex detection. International

Journal of Computer Vision, 10(2):101–124.

Harris, C. and Stephens, M. (1988). A combined corner and

edge detection. In Proceedings of The Fourth Alvey

Vision Conference, pages 147–151.

Kitchen, L. and Rosenfeld, A. (1982). Gray level corner

detection. Pattern Recognition Letters, 1(2):95–102.

Kraft, M. and Kasi´nski, A. (2007). Morphological edge de-

tection algorithm and its hardware implementation. In

Advances in Soft Computing, Computer Recognition

Systems 2 – CORES 2007: 5th International Confer-

ence on Computer Recognition Systems, volume 45,

pages 132–139.

Mokhtarian, F. and Suomela, R. (1998). Robust image cor-

ner detection through curvature scale space. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 20(12):1376–1381.

Moravec, H. (1979). Visual mapping by a robot rover. In

Proceedings of the 6th International Joint Conference

on Artiﬁcial Intelligence, pages 599–601.

Rosten, E. and Drummond, T. (2005). Fusing points and

lines for high performance tracking. In IEEE Inter-

national Conference on Computer Vision, volume 2,

pages 1508–1511.

Rosten, E. and Drummond, T. (2006). Machine learning for

high-speed corner detection. In European Conference

on Computer Vision, volume 1, pages 430–443.

Smith, S. M. and Brady, J. M. (1997). Susan – a new ap-

proach to low level image processing. International

Journal of Computer Vision, 23(1):45–78.

Torres-Huitzil, C. and Arias-Estrada, M. (2000). An fpga

architecture for high speed edge and corner detection.

In CAMP ’00: Proceedings of the Fifth IEEE Interna-

tional Workshop on Computer Architectures for Ma-

chine Perception (CAMP’00), page 112, Washington,

DC, USA. IEEE Computer Society.

Tsai, D. (1997). Boundary-based corner detection using

neural networks. Pattern Recognition, 30(1):85–97.

Wang, H. and Brady, M. (1995). Real-time corner detection

algorithm for motion estimation. Image Vision Com-

put., 13(9):695–703.

HIGH-SPEED IMAGE FEATURE DETECTION USING FPGA IMPLEMENTATION OF FAST ALGORITHM

179
