STRUCTURE FROM OMNIDIRECTIONAL STEREO RIG MOTION

FOR CITY MODELING

Michal Havlena, Tom´aˇs Pajdla

CMP, Department of Cybernetics, CTU in Prague, Czech Republic

Kurt Cornelis

PSI-VISICS, ESAT, Katholieke Universiteit Leuven, Belgium

Keywords:

Structure from Motion, City Modeling, Omnidirectional Vision.

Abstract:

This paper deals with a step towards a 3D reconstruction system for city modeling from omnidirectional

video sequences using structure from motion together with stereo constraints. We concentrate on two issues.

First, we show how the tracking and reconstruction paradigm were adapted to use omnidirectional images

taken by lenses with 180 degrees ﬁeld of view. This concerns mainly camera calibration transforming the

pixel locations into rays and solving the minimal problem for 3D-to-2D matches using RANSAC. Secondly,

we compare the results of the reconstruction using additional stereo constraints to the results when these

constraints are not used and show that they are needed to make the reconstruction stable. Performance of the

system is demonstrated on a sequence of 870 images acquired while driving in a city.

1 INTRODUCTION

3D scene modeling from images is an important prob-

lem of computer vision and photogrammetry. Albeit

large progress made recently in understanding the key

problems of geometry (Hartley and Zisserman, 2003),

optimization (Triggs et al., 1999), and related alge-

bra (Nist´er, 2004a), the design of systems working on

a large number of images is still an interesting and

open engineering problem. For some applications,

working or partially working solutions have already

been introduced. For instance, Boujou (2d3 Boujou,

2001) system is capable of reconstructing the camera

trajectory from a sequence containing several thou-

sands of images when image sequences are acquired

in a limited space and the camera does not make sharp

turns.

In this paper we deal with the problem of the auto-

matic reconstruction and modeling of real cities from

dense image sequences acquired by a pair of cam-

eras mounted on a survey vehicle. This application

calls for the ability to process a very large number of

images which span extended spaces and are acquired

along trajectories containing large camera rotations.

The processing must be done in, or at least close to,

real-time.

Previously, the city reconstruction has been ad-

dressed using aerial images (Gr¨un, 1997; Brenner and

Haala, 1998; Haala et al., 1998; Maas, 2001; Vestri

and Devernay, 2001; Vosselman and Dijkman, 2001)

which allowed reconstructing large areas from a small

number of images. The resulting models, however,

often lacked visual realism when viewed from the

ground level since it was impossible to texture the fa-

cades of the buildings.

Alternatively, survey vehicles equipped with laser

scanners and cameras were used to gather 3D depths

and textures at ground level (Fr¨uh et al., 2005; Fr¨uh

and Zakhor, 2001; Stamos and Allen, 2000; Sun et al.,

2002). These systems gave very nice and accurate 3D

models in some situations but they were complicated

and expensive. A city modeling system (Akbarzadeh

et al., 2006) from dense image sequences acquired si-

multaneously by 8 perspective cameras has been also

designed. The system records images and processes

them later off-line.

Recently, a framework for city modeling from im-

age sequences working in real-time has been devel-

oped in (Cornelis et al., 2006a). It uses structure from

motion (SfM) to reconstruct camera trajectories and

3D key points in the scene, fast dense image match-

ing, assuming that there is a single gravity vector in

407

Havlena M., Pajdla T. and Cornelis K. (2008).

STRUCTURE FROM OMNIDIRECTIONAL STEREO RIG MOTION FOR CITY MODELING.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 407-414

DOI: 10.5220/0001081104070414

 SciTePress

the scene and all the building facades are ruled sur-

faces parallel to it, and real-time texture mapping to

generate visually correct models from a very large

number of images.

The system gives good results but two major prob-

lems have been reported. First, cars parked along

streets were not correctly reconstructed since they did

not lie in the ruled surfaces representing either the

ground or the buildings on the side. This problem

has been solved by recognizing car locations and re-

placing them by corresponding computer generated

models (Cornelis et al., 2006b). Secondly, 3D recon-

struction could not survive sharp camera turns when

a large part of the scene moved away from the lim-

ited view ﬁeld of cameras. We propose to solve the

second problem by using “omnidirectional” cameras

with larger ﬁeld of view.

Omnidirectional cameras have been used on cars

and mobile platforms (Benosman and Kang, 2000)

mainly to estimate ego-motion of the vehicles or for

simultaneous localization and motion planning (Goe-

dem´e et al., 2007; Ehlgen and Pajdla, 2007). These

works used catadioptric cameras with views opti-

mized to see the complete surroundings of their ve-

hicles in a limited resolution. They do not provide

images of photographic quality needed for city mod-

eling. We therefore use 180

◦

ﬁsh-eye lenses which are

compact and provide better image quality (Miˇcuˇs´ık

and Pajdla, 2006).

Omnidirectional vision was previously used also

for city modeling to capture images with very large

resolution. Panoramic mosaicing was preferred to

using a ﬁsh-eye lens for recovering relative camera

poses very accurately from a small number of im-

ages (Antone and Teller, 2000; Antone and Teller,

2001) and to generate high resolution and high dy-

namic range images (Teller et al., 2003) from geo-

referenced positions. This approach provides very de-

tailed but large images and is not suitable for real-time

processing. We use two compact 4 Mpixel omnidi-

rectional cameras. Images of such size can be pro-

cessed in real-time. On the other hand, our images

are extremely radially distorted and a special projec-

tion model is needed to process them.

In this paper we present an extension of the frame-

work (Cornelis et al., 2006a) for an omnidirectional

stereo rig. We focus on presenting the extensions to

the camera tracking and structure from motion and

demonstrating the functionality of the modiﬁed SfM

framework in experiments. We also show that using

two omnidirectional cameras bound into a stereo rig

prevents the undesirable drift in the estimation of the

camera poses. Extensions to facade generation will

be reported elsewhere.

2 THE SFM FRAMEWORK FOR

AN OMNIDIRECTIONAL

STEREO RIG

Figure 1: Omnidirectional stereo rig with Kyocera Finecam

M410R cameras and Nikon FC-E9 ﬁsh-eye lens convertors.

Omnidirectional cameras differ from the perspective

ones primarily in their image projection. This differ-

ence inﬂuences (i) camera calibration, (ii) feature ex-

traction for image matching, and (iii) structure from

motion computation. We shall next describe the ex-

tension of the SfM framework (Cornelis et al., 2006a)

to be able to use the omnidirectional stereo rig of cam-

eras with 180

◦

ﬁeld of view lens convertors shown in

Figure 1.

2.1 Omnidirectional Camera

Calibration

We calibrate omnidirectional cameras off-line using

the technique (Bakstein and Pajdla, 2002) and Mi-

ˇcuˇs´ık’s two-parameter model (Miˇcuˇs´ık and Pajdla,

2006), which links the radius of the image point r to

the angle θ of its corresponding rays w.r.t. the optical

axis, see Figure 2, as

θ =

1+ br

. (1)

Projecting via this model provides good results even

when a low quality ﬁsh-eye lens is used because the

additional parameter b can compensate for improper

lens manufacturing.

All operations in the SfM framework that compute

a projection of a world 3D point into the image or a

ray casted through a pixel are using this lens model.

The mapping from pixel positions to the correspond-

ing rays is pre-computed and stored in a table to save

time in actual computations.

2.2 Features

Images are matched by detecting, describing and

tracking corner-like image features (Cornelis et al.,

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

408

(a)

(b)

Figure 2: Diagram (a) shows the equi-angular projection of

Nikon FC-E9 lens convertor. Angle θ measured between

the casted ray and the optical axis determines the radius r

of a circle in the image circular view ﬁeld where the pixel

representing the value of the projected 3D point will lie.

The Nikon FC-E9 lens convertor can be seen in (b).

2006a). The green image channel is divided into sec-

tions of 8×8 pixels and at most one salient feature per

section is used to limit the amount of computation.

The feature saliency F is computed from a square

region of pixels as

F = |(M

+ M

) − (M

+ M

)|, (2)

where M

, M

, and M

are average pixel

values inside the upper-left, upper-right, lower-left,

and lower-right quadrants.

These features were designed to detect corners of

buildings and their windows and they work reliably

for corners where horizontal and vertical lines meet.

The detection becomes worse for rotated corners.

Furthermore, objects captured in omnidirectional im-

ages are radially distorted as they come closer to the

border of the circular view ﬁeld. The feature saliency

can therefore differ dramatically if computed on an

object located in the center of the view ﬁeld or on the

same object when it appears close to the border. This

can be remedied by a local image rectiﬁcation (Mau-

thner et al., 2006) but we observed that the difference

is negligible when matching consecutive images of

our dense image sequences. Figure 3 shows an input

image and the detected feature points.

2.3 Initialization by 2D Tracking

The camera tracking and structure from motion com-

putation has to be initialized by computing initial 3D

structure. Internal parameters of the camera calibra-

tions (held constant for the whole sequence) and a few

initial camera poses are needed. Feature points are de-

tected and tracked in 2D over several consecutive im-

ages and then triangulated into world 3D points using

known camera poses.

Tracking in 2D is done by constructing tentative

matches from pairs of feature points in consecutive

Figure 3: Left: Input image. Right: Detected feature points

marked with coloured squares around them. Black area

around the circular view ﬁeld is excluded from feature de-

tection.

i+ j+1

i+ j

i+ j+1

i+ j

i,i+ j

i,i+ j+1

Figure 4: Left: 3D point X

i,i+ j

triangulated from x

and

i+ j

or x

and y

i+ j

and projected into new images acquired

by cameras C

i+ j+1

and C

i+ j+1

. Positions of the most simi-

lar feature points are denoted by y

i+ j+1

and x

i+ j+1

. Right:

The reﬁnement of the 3D point X

i,i+ j

into X

i,i+ j+1

using

triangulation from x

and y

i+ j+1

images, which have small differences in positions as

well as in their saliencies. Images used for initial-

ization thus should come from a slow camera motion

without sharp turns. Next, pixel regions of the tenta-

tive feature point pairs are correlated and only the suf-

ﬁciently and mutually most similar tentative matches

are joined to construct tracks. Only those tracks that

are tracked during all frames of the initialization are

used to triangulate cameras and compute the initial

3D structure. It is important to adjust the length of the

initial sequence to retain a sufﬁcient number of tracks

corresponding to a sufﬁciently large camera motion.

The initialization is done independently for the left

and right camera, so two sets of world 3D points are

computed.

2.4 Expansion of the Euclidean

Reconstruction

Once the Euclidean reconstruction is initialized, the

next image pair in the stereo sequence is taken and the

reconstruction is expanded using it. The expansion

consists of several steps described below in detail.

First, the camera poses of the new stereo pair

STRUCTURE FROM OMNIDIRECTIONAL STEREO RIG MOTION FOR CITY MODELING

409

must be established. 3D points reconstructed in pre-

vious frames are projected into the new images us-

ing the last established camera poses. The feature

points that could prolong the tracks connected with

the projected 3D points are found in small neighbour-

hoods of the projections using the same tests as dur-

ing the initialization. As can be seen in Figure 4,

every reconstructed 3D point, e.g. X

i,i+ j

triangulated

from feature point positions x

and x

i+ j

or x

and

i+ j

(depending on whether or not it has been re-

triangulated already), is projected into the right and

the left images as π

i,i+ j

) and π

i,i+ j

). To pro-

long tracks, we establish tentative 3D-to-2D matches

i,i+ j

i+ j+1

) between the 3D point X

i,i+ j

the feature point x

i+ j+1

found in the neighbourhood

of π

i,i+ j

) as the feature point whose saliency is

most similar to the saliency of x

i+ j

, and the feature

point y

i+ j+1

found in the neighbourhood of π

i,i+ j

)

as the feature point whose saliency is most similar

to the saliency of x

i+ j+1

. The tentative 3D-to-2D

matches are used as the input to RANSAC (Fischler

and Bolles, 1981) robust estimation technique which

estimates the camera poses and simultaneously rejects

wrong tentative matches.

Left camera pose can be computed from a minimal

sample of three 3D-to-2D correspondences by Nis-

ter’s algorithm (Nist´er, 2004b) and right camera pose

is then obtained using the rigid left-right transforma-

tion computed from the known camera poses during

the initialization. The main advantage of Nister’s al-

gorithm, originally designed for non-central cameras,

lies in the fact that the rays do not need to be concur-

rent and thus rays going through both the left and the

right cameras can be combined together in one sam-

ple. The algorithm (Nist´er, 2004a) leads to solving

an 8-degree polynomial using Sturm sequences and

bisection with a ﬁxed number of iterations and gives

accurate results in constant time.

The RANSAC stopping condition ensures stop-

ping dependent on the probability of ﬁnding a better

sample. As we are using samples of size 3, RANSAC

usually needs only tens of samples to meet the stop-

ping condition. However, not to exceed the maximal

processing time available, a threshold for the maxi-

mal number of samples has to be used. To save even

more time, the test for inliers is performed gradually

on partitions of the matches and the veriﬁcation is ter-

minated as soon as it is clear that the new hypothe-

sis cannot be better than the best hypothesis known at

the time. A similar idea is extended into a two-step

evaluation procedure in (Chum and Matas, 2002) and

further modiﬁed specially for on-line motion estima-

tion in (Nist´er, 2003). A match (X

i,i+ j

i+ j+1

)

is an inlier if and only if both matches (X

i,i+ j

i+ j+1

)

and (X

i,i+ j

i+ j+1

) are inliers.

Two runs of the Levenberg-Marquardt non-linear

optimization are used to reﬁne the camera poses us-

ing the computed set of inliers. The ﬁrst reﬁnement

uses reprojection error as the cost function and ﬁnds

the best solution according to the computed set. As

this set can be computed incorrectly and can contain

true outliers which might have a big inﬂuence on the

optimization, a ﬁxed cost value is used when the re-

projection error is bigger than a threshold during the

second reﬁnement to suppress this inﬂuence. Again,

reprojection errors in both the left and the right im-

ages are measured.

The tracks of the resulting inliers are prolonged

and 3D points connected with these tracks are reﬁned

by re-triangulation. The stereo rig rigidity constraint

is enforced again when feature points x

and y

i+ j+1

are used to triangulate the 3D point X

i,i+ j+1

. The

rest of the tracks, i.e. the tracks of the outliers and

the tracks that did not have a corresponding match,

are ended. If the same feature point is detected later

again, a new track with a new connected 3D point is

created with no binding to the old one.

There are also tracks that do not have a 3D point

connected with them because either they are too short

or the angle between the two rays used for triangula-

tion is not yet large enough. These tracks are pro-

longed using the following geometrical constraints

derived from the established camera poses to restrict

the set of possible locations of the feature points.

First, a homography through a virtual plane in a ﬁxed

distance in front of the camera is used to get an esti-

mate of the position of the feature point and a circular

neighbourhood around this location is searched. This

distance should be set to the expected average dis-

tance of the feature points. An additional condition

is the proximity to the matching epipolar line. When

having omnidirectional cameras, the residual distance

is computed as the distance between the feature point

position and the perpendicular projection of the ray

going through the position of the feature point into

the matching epipolar plane, projected to the image.

2.5 Bundle Adjustment

The data computed from the image sequences dur-

ing the expansion are divided into blocks, each of

them holding information from 60 images. Unlike

the on-line local bundle adjustment routine described

in (Mouragnon et al., 2006), our routine processes the

already ﬁnished data blocks with no back coupling to

the expansion. First, the positions of 3D points are

reﬁned with ﬁxed camera poses and then the camera

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

410

poses are reﬁned with ﬁxed positions of 3D points.

Left and right cameras are rigidly bound using the

left-right transformation and 3D point reprojection er-

rors in both the left and the right images are summed

together in the cost function. The whole routine runs

twice and a ﬁxed cost value is used when the reprojec-

tion error is bigger than a threshold during the second

run to suppress the inﬂuence of outliers.

The main reason of running the bundle adjustment

routine is to smooth the camera trajectories and to re-

move noise from 3D point clouds as only the tracks

of feature points visible in 4 frames or more are used

for reﬁnement and 3D points reconstructed from short

tracks are thrown away because these tracks are con-

sidered to be less reliable.

3 EXPERIMENTS

Next we shall demonstrate the structure from mo-

tion with an omnidirectional camera stereo rig. We

shall ﬁrst describe the stereo rig and then compare the

results of motion computation with and without the

modiﬁcations that enforce the stereo rig rigidity con-

straint described in Section 2.

3.1 Omnidirectional Stereo Rig

The important parameters of a camera rig are: view

angle, resolution, image quality, frame rate, exposure

synchronization, size and weight, and the length of

the base line. We have constructed a two-camera rig.

Each camera of the rig is a combination of Nikon FC-

E9 mounted via a mechanical adaptor onto a Kyocera

Finecam M410R digital camera, see Figure 1.

Nikon FC-E9 is a megapixel omnidirectional add-

on convertor with 180

◦

view angle. It is designed to

be mounted on top of lenses of standard Nikon digital

cameras. The lens is larger and heavier than similar

FC-E8 Nikon lens but it is designed for imagers with

higher resolution than FC-E8 and provides images

of photographic quality. Kyocera Finecam M410R

delivers 2272×1704 images at 3 frames per second.

Since the FC-E9 lens is originally designed for a dif-

ferent optical system, we used a custom made me-

chanical adaptor to ﬁt it on top of the Kyocera lens.

The resulting combination yielded a circular view of

diameter 1600 pixels in the image.

Since the FC-E9 lens is close to equiangular pro-

jection (Bakstein and Pajdla, 2002), we obtain angu-

lar resolution 0.11 = 180/1600 degrees per pixel in

the radial direction of the image. The tangential res-

olution depends on the distance from the view center.

It grows from 0.11 degrees per pixel in the center to

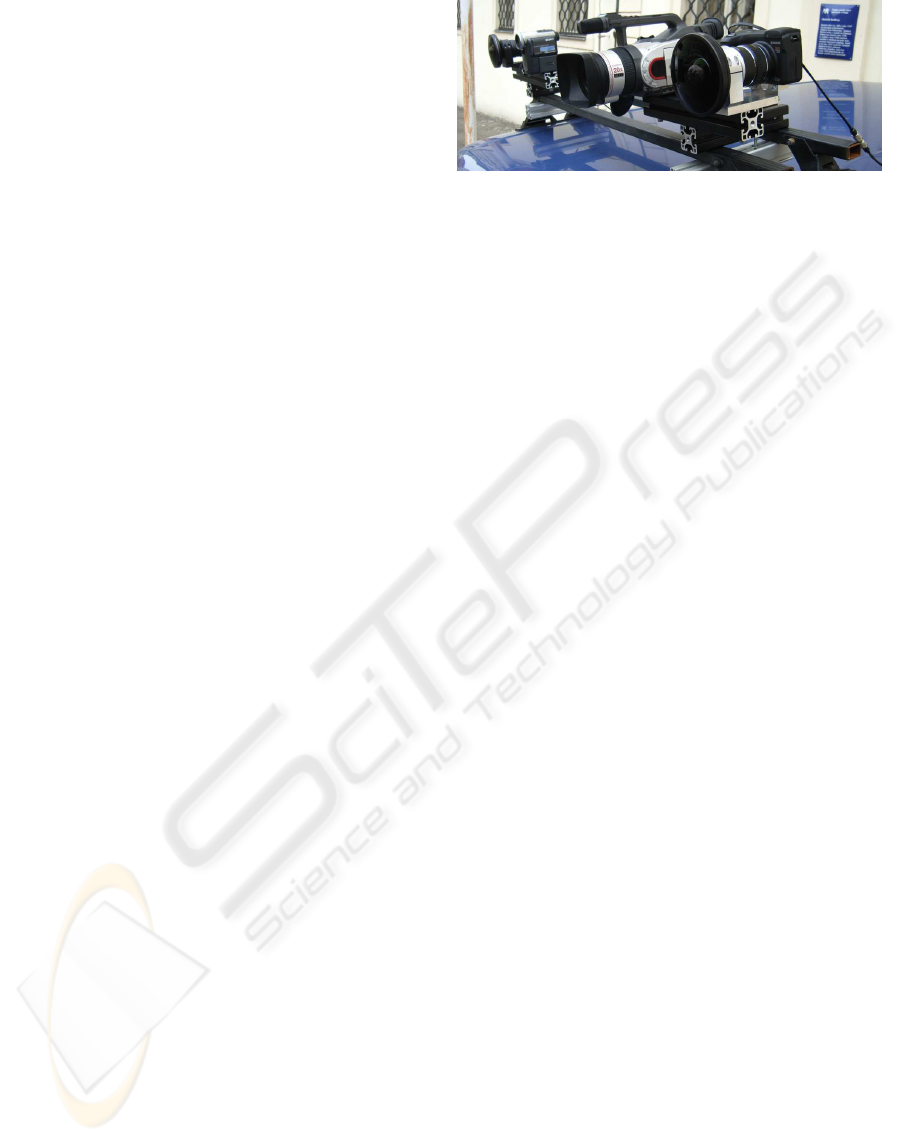

Figure 5: Kyocera Finecam M410R cameras with Nikon

FC-E9 ﬁsh-eye lens convertors and two conventional per-

spective cameras mounted on a survey vehicle. Perspective

cameras were not used in our experiments.

0.036 degrees per pixel at the periphery. For compar-

ison, consider that a 1024×768 camera with a com-

mon angle of view 40

◦

yields almost uniform reso-

lution 0.039 = 40/1024 degrees per pixel. Kyocera

cameras do not have external synchronization but we

were able to connect an external signal to start the ac-

quisition at the same moment. Figure 5 shows four

cameras mounted on a survey vehicle. The two cam-

eras with large ﬁsh-eye lenses form our stereo rig with

0.95 m base line.

3.2 SfM with the Stereo Rig Rigidity

Constraint

There are several ways to get the camera poses needed

for the initialization. If the cameras are mounted on

a vehicle riding at a constant known velocity with no

changes in the direction of the movement during one

second, starting camera poses for the left camera can

be computed easily. If the relative camera pose of the

right camera w.r.t. the left camera is known, starting

camera poses for the right camera can be obtained by

a simple transformation.

Another approach does not rely on a known stereo

rig calibration but computes the starting camera poses

directly. An extension of a WBS structure from mo-

tion (Matas et al., 2004) to omnidirectional images

can be used to get epipolar geometries between the

ﬁrst left and ﬁrst right, ﬁrst left and e.g. sixth left, and

ﬁrst right and sixth left cameras. These geometries

can be then combined together to get movement esti-

mation fulﬁlling the stereo rig rigidity constraint.

Both approaches were tested and work well. The

main advantage of the ﬁrst approach lies in the fact

that one needs no additional method to start the recon-

struction. On the other hand, the second approach can

be used even when the stereo rig calibration and/or

the movement of the car are not known.

Figure 6 shows a city segment with several blocks

of houses used for our experiments. We were driv-

ing our survey vehicle equipped with the camera rig

STRUCTURE FROM OMNIDIRECTIONAL STEREO RIG MOTION FOR CITY MODELING

411

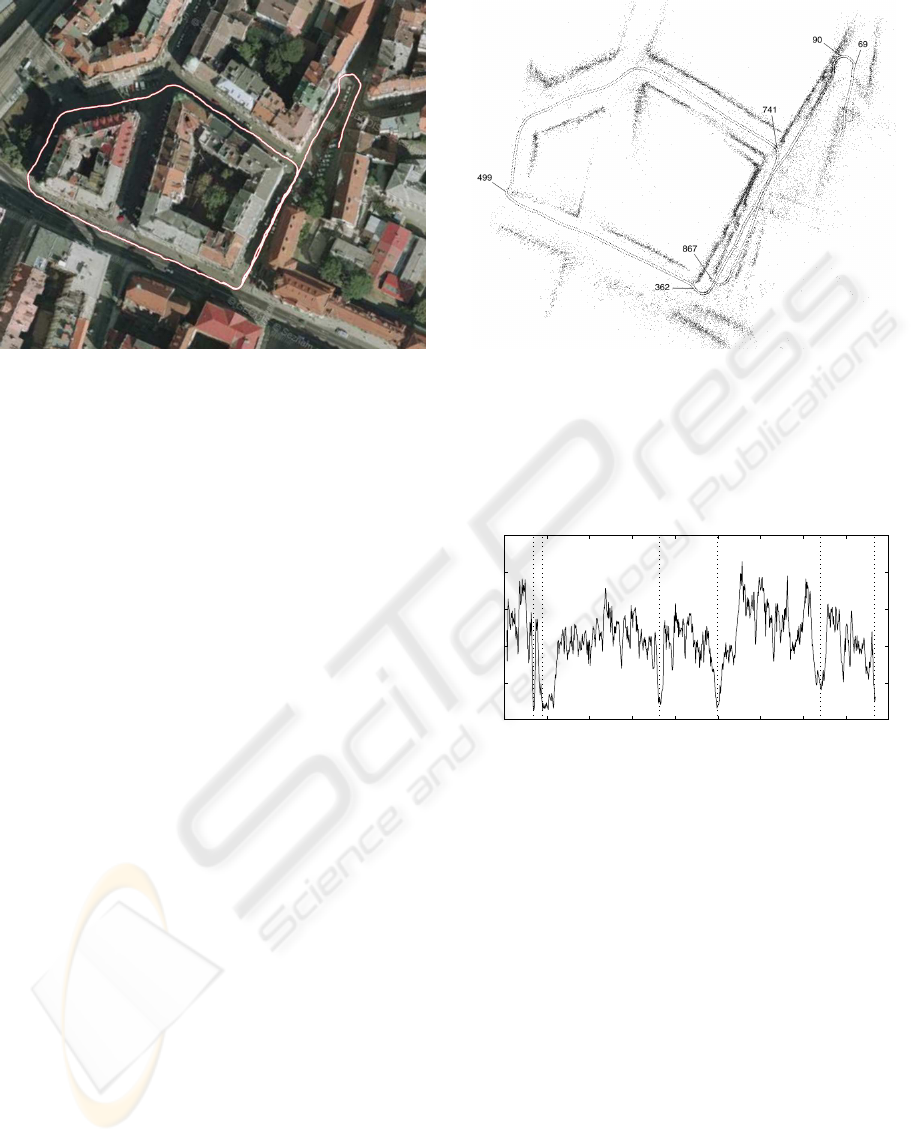

Figure 6: An aerial view of the city segment used for the

acquisition of our test sequence, the designed car trajectory

is drawn with a white line. The trajectory contains several

sharp turns and a round-trip around a block of houses.

slowly following the path drawn in the map. The de-

signed trajectory contains sharp turns to test the per-

formance under difﬁcult conditions and a closed loop

which allows us to measure the accuracy of the re-

construction. The data were acquired under normal

trafﬁc conditions with cars and pedestrians moving in

the streets.

Our test sequence was 870 frames long and the

ﬁrst and the sixth image were used to initialize the

SfM with more than 200 correct tracks for each cam-

era reconstructed into world 3D points. The top view

of the resulting reconstructed 3D model can be seen in

Figure 7. Straight street segments are quite easy, the

support of the RANSAC winner is usually more than

60% and only few tens of runs of the RANSAC loop

are needed to ﬁnd it. Segments with sharp turns are

much more difﬁcult, the support of the RANSAC win-

ner and also the number of active tracks drop dramati-

cally, see Figure 8. We hypothesize that this is caused

mostly by inaccurate camera and/or stereo rig cali-

bration because the world 3D points come closer to

cameras and start rotating, which causes the errors in

the estimations of their depths to become much more

important than when these 3D points are distant and

the movement is rotation-free.

The shape of the reconstructed trajectory corre-

sponds well to the actual one, we observe only small

problems at the beginnings of the turns when the

movement is still estimated as being forward although

the car is just starting to turn. This is probably caused

by ﬁnding a large number of feature points on the cor-

ner building and a lack of feature points in the other

parts of the scene. These “corner building” feature

points form a large set of inliers to a model which

Figure 7: The resulting 3D model from the top view. Cam-

era positions are represented by bigger dots, smaller dots

represent the reconstructed world 3D points. The loop is

not closed, mostly because of the errors arising in the sharp

turns where the number of active tracks drops dramatically.

Note that the reconstruction nearly failed in the sharp turn

at frame number 499.

0 100 200 300 400 500 600 700 800 900

100

150

200

250

frame number

number of active tracks

Figure 8: Variation of the number of active tracks for differ-

ent frames in the sequence. Note that the number of active

tracks drops dramatically in frames corresponding to sharp

turns.

does not describe the whole scene well.

The error accumulated along the 420 meters long

loop is less than 4.5 meters.

3.3 SfM Without the Stereo Rig

Rigidity Constraint

During the adaptation of the original SfM into an om-

nidirectional one, we ﬁrst adapted the geometry and

RANSAC without enforcing the stereo rig rigidity

constraint (Havlena et al., 2007) in the reconstruction.

Stereo information was used only in the RANSAC

loop where the left camera pose was estimated from

3D-to-2D matches from both cameras and the right

camera pose was computed using the stereo rig cali-

bration.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

412

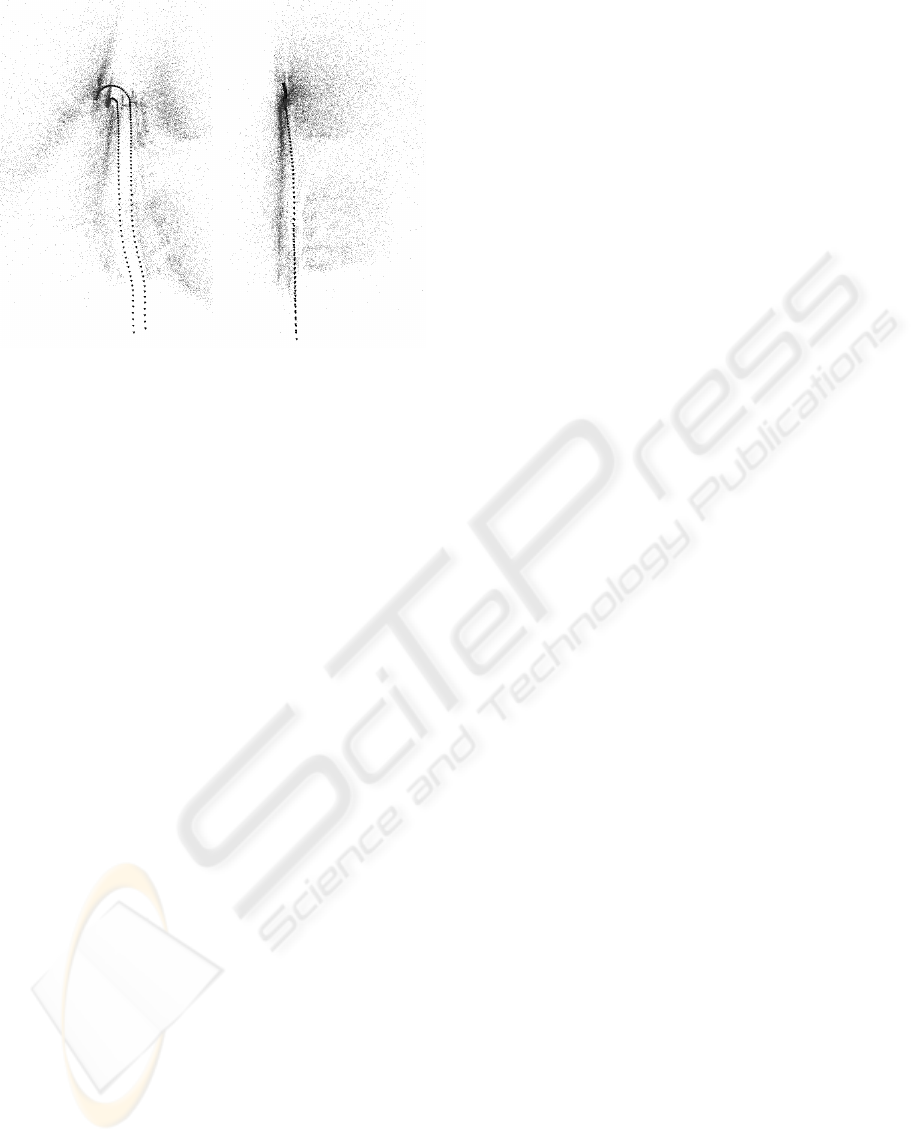

Figure 9: The resulting 3D model from the top (left) and the

side views (right). As the stereo rig rigidity constraint is not

enforced, scale of the reconstruction is being lost gradually

so the cameras are approaching the ground plane although

they were actually moving parallel to it. The reconstruction

fails in the ﬁrst sharp turn.

The SfM worked ﬁne when using additional

GPS/INS data but failed when these data were not

used. The resulting model reconstructed for the same

test sequence without enforcing the rigidity constraint

can be seen in Figure 9. The number of active tracks

drops under 10 in the ﬁrst sharp turn because the po-

sitions of world 3D points were not estimated well as

the scale of the reconstruction was gradually lost.

A comparison with the original framework using

perspective cameras was not performed but we hy-

pothesize that the result would be even worse not only

because of the missing stereo rig rigidity constraint

but also because of the lack of feature points caused

by a very small ﬁeld of view.

3.4 Performance

The original SfM framework is able to work in real-

time and it would be exciting to achieve the same

speed even with ﬁsh-eye cameras. Until now, we were

interested more in functionality than in performance

and the actual speed of our C++ implementation on a

standard 2GHz Intel Pentium 4 computer is about 1.3

frames per second. This is primarily caused by the

size of the input images which is 800×800 compared

to 360×288 used with perspective cameras. Work-

ing with smaller images makes it more difﬁcult to de-

tect and to correctly describe enough feature points

and making the images much smaller will be possi-

ble only if an extension to feature extraction would be

proposed and implemented. This extension would de-

scribe the features on a locally unwarped image. As

this unwarping would not be quick enough using the

CPU, GPU programming techniques should be used

via OpenGL.

On the other hand, it showed out that 3 frames per

second provided by our omnidirectional cameras are

enough for the reconstruction from a moving vehicle

because feature points do not get lost from the im-

age as quickly as when perspective cameras are used.

That is why it is not necessary to achieve 25 frames

per second computational performance, 3 frames per

second are enough for real-time processing.

4 CONCLUSIONS

We succeeded in adapting the structure from motion

part of a city modeling framework to using an omnidi-

rectional stereo rig. The major changes of the frame-

work originally working with one perspective camera

involve signiﬁcant changes in geometry, as rays repre-

sented by unit vectors have to be used instead of im-

age pixels, and enforcing the stereo constraints. We

have also shown how using two cameras bound into a

stereo rig improves the stability of the reconstruction

and helps to keep its overall scale.

Making the reconstruction more accurate is our

main goal for the near future. We believe that better

calibration of the cameras and of the stereo rig done

directly from the images together with merging the

tracks of the same feature points accidentally lost in

one or more of the frames due to occlusions or fast

camera movements should increase the number of in-

liers in difﬁcult sharp turns and would therefore help

us to get rid of the biggest sources of inaccuracies.

The rest of the future work lies in adapting the

other parts of the city modeling framework to using

omnidirectional cameras – starting with the facade

reconstruction, through topological map generation,

and texture generation, which could beneﬁt from us-

ing omnidirectional vision.

ACKNOWLEDGEMENTS

This work is supported by the European IST Pro-

gramme Project FP6-0027787 DIRAC. The author

was also supported by the Czech Science Founda-

tion under project 201/07/1136 and by the Grant

Agency of the Czech Technical University under

project CTU0705913.

This paper only reﬂects the authors’ views and

funding agencies are not liable for any use that may

be made of the information contained herein.

STRUCTURE FROM OMNIDIRECTIONAL STEREO RIG MOTION FOR CITY MODELING

413

We would like to acknowledgePavel Krsek for the

construction of the external trigger and Hynek Bak-

stein for mounting the cameras to the survey vehicle.

REFERENCES

2d3 Boujou (2001). http://www.boujou.com.

Akbarzadeh, A., Frahm, J.-M., Mordohai, P., Clipp, B., En-

gels, C., Gallup, D., Merrell, P., Phelps, M., Sinha, S.,

Talton, B., Wang, L., Yang, Q., Stew´eius, H., Yang,

R., Welch, G., Towles, H., Nist´er, D., and Pollefeys,

M. (2006). Towards urban 3d reconstruction from

video. In 3DPVT. Invited paper.

Antone, M. and Teller, S. (2000). Automatic recovery of

relative camera rotations for urban scenes. In CVPR

2000, pages II:282–289.

Antone, M. and Teller, S. (2001). Scalable, absolute posi-

tion recovery for omni-directional image networks. In

CVPR 2001, pages I:398–405.

Bakstein, H. and Pajdla, T. (2002). Panoramic mosaicing

with a 180

◦

ﬁeld of view lens. In Proc. IEEE Work-

shop on Omnidirectional Vision, pages 60–67.

Benosman, R. and Kang, S. (2000). Panoramic Vision.

Springer-Verlag.

Brenner, C. and Haala, N. (1998). Fast production of virtual

reality city models. IAPRS, 32(4):77–84.

Chum, O. and Matas, J. (2002). Randomized ransac with

d,d

test. In BMVC 2002, pages 448–457.

Cornelis, N., Cornelis, K., and Van Gool, L. (2006a).

Fast compact city modeling for navigation pre-

visualization. In CVPR 2006, pages II:1339–1344.

Cornelis, N., Leibe, B., Cornelis, K., and Van Gool, L.

(2006b). 3d city modeling using cognitive loops. In

3DPVT 2006, pages 9–16.

Ehlgen, T. and Pajdla, T. (2007). Maneuvering aid for large

vehicle using omnidirectional cameras. In WACV

2007, page 17.

Fischler, M. and Bolles, R. (1981). Random sample consen-

sus: A paradigm for model ﬁtting with applications to

image analysis and automated cartography. Comm.

ACM, 24(6):381–395.

Fr¨uh, C., Jain, S., and Zakhor, A. (2005). Data processing

algorithms for generating textured 3d building facade

meshes from laser scans and camera images. IJCV,

61(2):159–184.

Fr¨uh, C. and Zakhor, A. (2001). 3d model generation for

cities using aerial photographs and ground level laser

scans. In CVPR 2001, pages II:31–38.

Goedem´e, T., Nuttin, M., Tuytelaars, T., and Van Gool, L.

(2007). Omnidirectional vision based topological nav-

igation. IJCV, 74(3):219–236.

Gr¨un, A. (1997). Automation in building reconstruction. In

Fritsch, D. and Hobbie, D., editors, Photogrammetric

Week’97, pages 175–186, Stuttgart.

Haala, N., Brenner, C., and St¨atter, C. (1998). An inte-

grated system for urban model generation. In ISPRS

Congress Comm. II, pages 96–103.

Hartley, R. and Zisserman, A. (2003). Multiple View Geom-

etry in Computer Vision. Cambridge University Press,

second edition.

Havlena, M., Cornelis, K., and Pajdla, T. (2007). Towards

city modeling from omnidirectional video. In Grab-

ner, M. and Grabner, H., editors, CVWW 2007, pages

123–130, St. Lambrecht.

Maas, H. (2001). The suitability for airborne laser scanner

data for automatic 3d object reconstruction. In As-

cona01, pages 291–296.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2004). Ro-

bust wide baseline stereo from maximally stable ex-

tremal regions. IVC, 22(10):761–767.

Mauthner, T., Fraundorfer, F., and Bischof, H. (2006). Re-

gion matching for omnidirectional images using vir-

tual camera planes. In Chum, O. and Franc, V., edi-

tors, CVWW 2006, pages 93–98, Telˇc.

Miˇcuˇs´ık, B. and Pajdla, T. (2006). Structure from motion

with wide circular ﬁeld of view cameras. IEEE Trans.

PAMI, 28(7):1135–1149.

Mouragnon, E., Dekeyser, F., Sayd, P., Lhuillier, M., and

Dhome, M. (2006). Real time localization and 3d re-

construction. In CVPR 2006, pages I:363–370.

Nist´er, D. (2003). Preemptive ransac for live structure and

motion estimation. In ICCV 2003, pages 199–206.

Nist´er, D. (2004a). An efﬁcient solution to the ﬁve-point

relative pose problem. IEEE Trans. PAMI, 26(6):756–

770.

Nist´er, D. (2004b). A minimal solution to the generalized

3-point pose problem. In CVPR 2004, pages I:560–

567.

Stamos, I. and Allen, P. (2000). 3-d model construction

using range and image data. In CVPR 2000, pages

I:531–536.

Sun, Y., Paik, J., Koschan, A., and Abidi, M. (2002). 3d

reconstruction of indoor and outdoor scenes using a

mobile range scanner. In ICPR 2002, pages III:653–

656.

Teller, S., Antone, M., Bodnar, Z., Bosse, M., Coorg, S.,

Jethwa, M., and Master, N. (2003). Calibrated, reg-

istered images of an extended urban area. IJCV,

53(1):93–107.

Triggs, B., McLauchlan, P., Hartley, R., and Fitzgibbon, A.

(1999). Bundle adjustment: A modern synthesis. In

Vision Algorithms: Theory and Practice, pages 298–

372, Corfu.

Vestri, C. and Devernay, F. (2001). Using robust methods

for automatic extraction of buildings. In CVPR 2001,

pages I:133–138.

Vosselman, G. and Dijkman, S. (2001). Reconstruction of

3d building models from laser altimetry data. IAPRS,

34(3):22–24.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

414
