IMAGE ANNOTATION WITH RELEVANCE FEEDBACK USING

A SEMI-SUPERVISED AND HIERARCHICAL APPROACH

Cheng-Chieh Chiang

, Ming-Wei Hung

, Yi-Ping Hung

and Wee Kheng Leow

Department of Information Technology, Takming University of Science and Technology, Taipei, Taiwan

Graduate Institute of Networking and Multimedia, National Taiwan University, Taipei, Taiwan

Department of Computer Science, School of Computing, National University of Singapore, Singapore

Keywords: Image Annotation, Relevance Feedback, Semi-supervised Learning, Hierarchical Classifier.

Abstract: This paper presents an approach for image annotation with relevance feedback that interactively employs a

semi-supervised learning to build hierarchical classifiers associated with annotation labels. We construct

individual hierarchical classifiers each corresponding to one semantic label that is used for describing the

semantic contents of the images. We adopt hierarchical approach for classifiers to divide the whole semantic

concept associated with a label into several parts such that the complex contents in images can be simplified.

We also design a semi-supervised approach for learning classifiers reduces the need of training images by

use of both labeled and unlabeled images. This proposed semi-supervised and hierarchical approach is

involved in an interactive scheme of relevance feedbacks to assist the user in annotating images. Finally, we

describe some experiments to show the performance of the proposed approach.

1 INTRODUCTION

Image understanding and retrieval (Datta et al., 2005)

have become a very active research area since the

1990’s due to the rapid increase in the use of digital

images. However, the semantic gap between the

low-level features extracted from images and the

high-level concepts involved in human perception is

still a challenging problem. Image annotation, which

discovers the semantic contents from images, may

be potential for bridging the semantic gap. The goal

of image annotation is to annotate several labels to

an image to describe the semantic contents of the

image. Image annotation is helpful to many

applications, e.g., additional metadata within images

for retrieval, or archiving personal photos.

Unfortunately, it is a difficult task to build a

model that can describe the contents of images with

semantic labels. Regarding a simple case that images

with a single label involve the same semantic

meaning, the contents are not often homogeneous.

For example, Figure 1 shows the four images that

contain the same label “sky”, but their semantic

contents are very different – sunset, cloud or

cloudless, blue sky, and night. Obviously, it must be

more complex if many kinds of labels are mixed.

That is the main reason that most of the state-of-the-

art approaches cannot annotate images well. Our

opinion is to involve human feedbacks in image

annotation because human should make the final

decision for the semantic concept. Hence, we design

a method with interactive human feedbacks to assist

the user in annotating images in this paper.

Figure 1: Different image contents with label “sky”.

Image annotation is considered a supervised

learning problem in many state-of-the-art methods

(Carneiro and Vasconcelos, 2005). A main limit of

the supervised learning approach for image

annotation is that a large number of training images

is necessary to avoid overfitting. However, it is often

difficult to manually annotate a large set of images.

Moreover, the number of labeled images must be

also small at the beginning of annotating images.

This limit motivates us to design a semi-supervised

173

Chiang C., Hung M., Hung Y. and Kheng Leow W. (2008).

IMAGE ANNOTATION WITH RELEVANCE FEEDBACK USING A SEMI-SUPERVISED AND HIERARCHICAL APPROACH.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 173-178

DOI: 10.5220/0001082001730178

 SciTePress

approach for image annotation by integrating labeled

and unlabeled images to reduce the need of the

training images. On the other hand, we build

individual hierarchical classifiers each of them

associated with a semantic label. This method can

make the system more flexible because only the new

classifier needs to be re-trained if a new label is

added. Using an individual classifier with a label can

reduce the complexity of the semantic contents for

images, and the hierarchical approach can divide the

whole concept within a label into several parts that

could represent the different contents of images.

This paper is organized as the follows. Section 2

introduces related works, and Section 3 formulates

our problem and presents the overview of our

approach. Then, the details of classifier training and

confidence values are described in Section 4 and 5,

respectively. Section 6 presents our experiments to

show the effectiveness of our approach, and Section

7, in final, draws the conclusion and the future work.

2 RELATED WORK

Some of state-of-the-art works for image annotation

and concept detection were provided (Datta et al.,

2005). Many previous researches related to image

annotation were based on the probabilistic model

between features and labels, for example, a co-

occurrence model (Mori et al., 1999), a translation

model (Duygulu et al., 2002), a relevance model

(Lavrenko and Croft, 2001), Cross-Media Relevance

Model (CMRM) (Jeon et al., 2003), and Multiple

Bernoulli Relevance Model (MBRM) (Feng et al.,

2004), etc. Soft annotation is designed to give

images a confidence level for each trained semantic

label (Chang et al., 2003). Image annotation was

formulated as a supervised learning problem

(Carneiro and Vasconcelos, 2005). Jin et al.

designed a K-means clustering with pair-wise

constraints for image annotation (Jin et al., 2004).

Srikanth et al. proposed methods for image

annotation by use of a hierarchy defined on the

annotation labels derived from a textual ontology

(Srikanth et al., 2005).

In additional, we briefly review the related work

of semi-supervised learning and relevance feedback.

Semi-supervised learning in general is defined by

using both labeled and unlabeled data for learning,

and there are good reviews (Bilenko, 2004) (Zhu,

2005). In this paper, we design the learning model

based on the unsupervised K-means clustering and

apply labeled images to evaluate the clustering.

Relevance feedback is a query modification

technique that attempts to capture the user’s precise

needs through iterative feedbacks and query

refinement (Rui et al., 1998). Relevance feedback

has been widely used for image retrieval recently,

and we apply relevance feedback to assist the user in

image annotation.

3 OVERVIEW AND

FORMULATION

Let the entire dataset, denoted as D, contain M

images. Suppose that K annotation labels {L

, …,

} are predefined to describe the semantic contents

of the images. Because the number M is usually

huge, it is hard to annotate all images in D manually.

This paper proposes a method with relevance

feedback to assist the user in image annotation: the

user can easily annotate images with labels as

metadata, or summarize a set of images with

semantic concepts.

Our basic idea is like a retrieval task – (i) the

user submits which label she/he wants to annotate,

(ii) the system returns images to the user with the

most confident for the label, and (iii) the user

assigns which images are relevant. This method

focuses on a single label for image annotation at the

same time because the user could annotate images

more consistent in semantic contents.

Assume that the user annotates images for label

≤

. We denote all labeled images

associated with L

as D

, images labeled without L

, and other unlabeled images as D

. Note that

kkU

DDDM ∪∪=

for each

Kk ≤≤1

. Our goal is to

retrieve images in D

with the most confidence

values associated with label L

. Figure 2 shows the

flow that describes our interactive process for image

annotation. Considering a label L

, we do not have

any labeled images at the beginning of annotation,

i.e.,

and

0||||

. The user specifies

all positive images, D

, for label L

displayed by the

system, and then the other non-specified images are

negative,

. Next, we mix D

, D

, and

to train

a hierarchical classifier, denoted as C

, for label L

using a semi-supervised clustering. Then, all

unlabeled images are tested by the classifier C

compute the confidence values of the images

associated with label L

. Finally, the system returns

N (N=100 in our experiments) unlabeled images

with the highest confidence values to the user to

make the decision of the annotation.

This work designs an interactive method to assist

the user in image annotation. In general, we often

have only few positive examples at the beginning

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

174

iterations in the relevance feedbacks. That will make

the learning difficult for overfitting. Hence, we

integrate unlabeled images into the training images

for the classifier training to avoid this problem. Also,

we adopt the hierarchical approach to build a

classifier associated with each of labels. The main

reason is that we divide the whole semantic concept

of images with a label into several sub-concepts by

use of the hierarchical classifier such that the

complex contents, illustrated as Figure 1, of images

can be simplified. Moreover, our proposed method

by use of individual classifiers for image annotation

makes the system flexible because it is independent

of the number of labels.

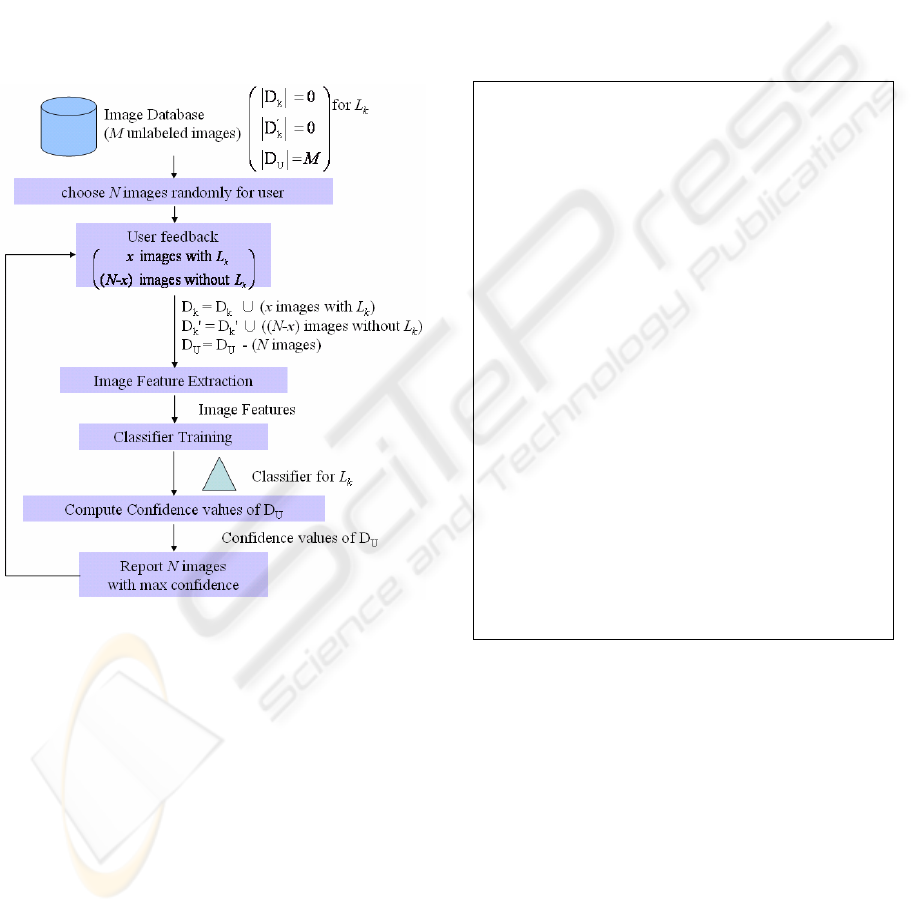

Figure 2: The flowchart of our approach.

4 CLASSIFIER TRAINING

Table 1 shows the algorithm that constructs the

hierarchical classifier C

for label L

. In this

algorithm, the root node

root

of the tree C

initially

contains the mixture of images D

, and D

. In

most cases,

||||

DD >>

; hence we randomly ignore

some of negative-labeled images such that

||||

DD =

to avoid the imbalance problem in the

training. In the algorithm, we first decide which

node needs to be split. If a node needs to be split, we

go on to decide how many branches are appropriate

to split the node. Here, K-means clustering is applied

to divide a node into several child nodes. We try a

range of branch number and calculate a score for

each branch number to select the best one. Our

proposed semi-supervised approach learns the

classifier in the two ways: (i) evaluate the stopping

criteria for node splitting according to the positive

and negative images in the node and (ii) split a node

by use of the mixture of labeled and unlabeled

images in order to cover more information in

learning. Finally, each leaf node in a hierarchical

classifier represents a sub-concept for the label.

Table 1: The algorithm of constructing the hierarchical

classifier C

for label L

Input: unlabeled images

, positive images

, and

negative images

Output: a hierarchical classifier C

for label L

Initialization: root node

root

contains

kkU

DDD ∪∪

: node i for the hierarchical classifier C

// construct the tree by splitting each node

1. for each leaf node

not fitting the

stopping

condition

{

2. for z = 2 to b

{ // b is the max number of the trying range

node splitting method

to divide

into z

classes.

4. compute

score

) ,( zN

// evaluate how many branches are appropriate for

node

}

) ,(minarg zNscorez

is divided into

classes

is divided into, w.l.o.g.,

NcNc

..., ,

}

In the algorithm, we need to design three tasks: (i)

the node splitting method (line 3), (ii) the stopping

condition (line 1) which checks whether a node

needs to be split, and (iii) the score function (line 4)

which evaluates how many branches for the node to

split are appropriate. Note that we use the two

notations given a node

is the number of

positive images in the node and

is the number of

negative images in the node.

4.1 Node Splitting

An unsupervised clustering is used to divide node

into several classes. Here we used K-means

clustering. To employ it in our work, an image

should first be converted into be a vector of image

IMAGE ANNOTATION WITH RELEVANCE FEEDBACK USING A SEMI-SUPERVISED AND HIERARCHICAL

APPROACH

175

features. We adopt the model of visual words (Fei-

Fei and Perona, 2005) to build the region-based

representation for an image, which is briefly

described as follows. All images are first segmented

into a set of regions, and then feature vectors are

extracted from these regions. The region features

can be divided into v clusters (using another K-

means clustering) in the feature space. The v clusters

are viewed as visual words for representing images.

An image can be then represented by a v-D vector

that is accumulated by the appearance of visual

words in the image. Note that either features or

unsupervised clustering method are independent of

the proposed algorithm.

4.2 Stopping Condition

A node containing consistent or unified information

means that this node is high confident to classify

data. Hence, a node shouldn’t be split if it only

contains either positive or negative data. We define

the stopping condition of splitting a node as:

⎪

⎩

⎪

⎨

⎧

otherwise if ,

)(or

or if ,

)(

false

Hdd

true

NStop

dii

(1)

where H

and H

are two thresholds, set 0.8 and 5,

respectively, in our experiments.

4.3 Score Function

When deciding how many branches to split a node,

we use the score function to calculate a score for

each number of a range of branch number, and

compare the scores to choose the most appropriate

number to split the node. Denote the score of branch

number z for splitting the node

as score(

, z).

Here, we hope the child nodes either can contain

much more positive images than negative images

that means this node can present a cluster of images

associated with this label, or can contain much more

negative images than positive images means this

node can present a cluster of images not associated

with this label. We adopt entropy to measure the

score of the branch number. For subnodes

split

from node

, we define:

,in with

images positive of ratio theis where

)),1(log)1(log()1()(

jik

ijij

ijijijij

NcL

ττττNcentropy

−−+×−=

(2)

and

. of childth theis where

z},1 , )( {min z) , (

Nj-Nc

jNcentropyNscore ≤≤=

(3)

In Equation (3), we use the minimal function

because we expect that there exists at least one node

with the best criteria in the next level. Other nodes

with worse scores can be divided again. Thus, the

best branch number for splitting node

) ,(minarg zNscorez

(4)

While dividing a node

into

nodes using K-

means clustering, the semantic label L

can be

grouped

subclasses according to the positive and

negative images in the node.

5 CONFIDENCE VALUE

Given an unlabeled image I

new

and the classifiers C

that is trained by the procedures in Section 4, we

compute the confidence value of image I

new

associated with label L

, which confidence is

denoted by

)| ,(

root new

INL

that is computed

according to the hierarchical classifier C

with root

node

root

for label L

. We therefore design a

recursive computation for the confidence values and

describe it as the follows.

Given a node

in the hierarchical classifier C

for label L

, the confidence value

)| ,(

i new

INL

can

be regarded as the confidence of image I

new

involving the sub-concepts in node

, and it can be

recursively computed by

⎪

⎩

⎪

⎨

⎧

∑

leaf a is if,

leaf anot is if,)|()| ,(

)| ,(

root

new

ijnew

ijk

new

NINcpINcL

INL

(5)

is a leaf node, we define

rooti

dd /

, where d

and d

root

are the number of positive images in node

and root

root

, respectively, to judge how

confident node

involves sub-concepts associated

with label L

. Note that we adopt

rooti

dd /

instead of

)/(

iii

ddd +

for the judgement; the main reason is

that overfitting will be obvious for the latter in most

nodes which contain a small number of images. If

is not a leaf node, it can be propagated by its

children,

, as well as the weight

)|(

new

INcp

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

176

that means the possibility of image I

new

belonging to

node

. The weight can be defined as the

normalized inverse of distances from I

new

to the

mean of the cluster, denoted as

in general, by

∑

jparentnew

inew

new

NcIdist

NIdist

INp

-1

),(

)|(

(6)

where J is the number of sibling nodes of

Figure 3 illustrates the computation, in equation

(5), of the confidence values. Assume that the

classifier is trained for label L

, and an unlabeled

image I

new

is annotated now. In initial,

100||||

, and the numbers of positive and

negative images in nodes are shown. The red digits

means

)|(

new

INp

of all nodes

. Then, the final

confidence value of I

new

associated with label L

the sum of all values computed in the leaves, and it

is 0.15745.

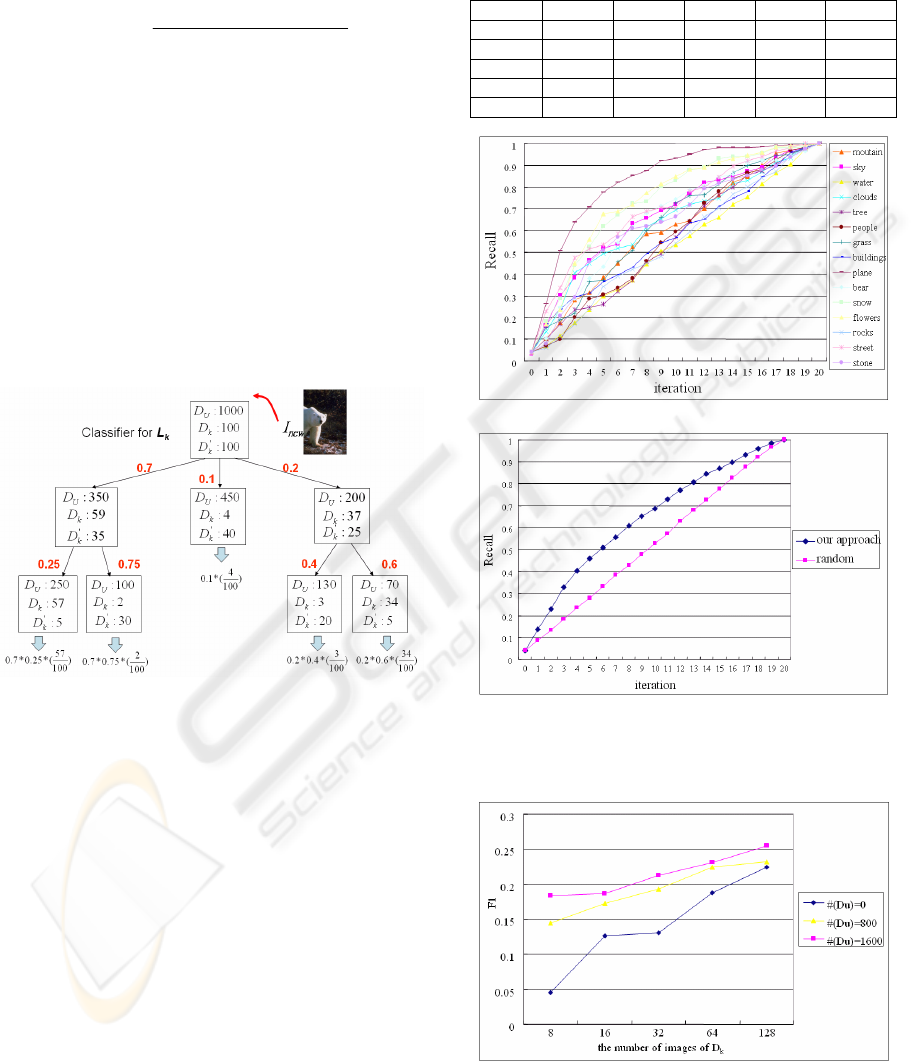

Figure 3: Illustration of computing the confidence of an

image I

new

associated with label L

. The total confidence

value is the sum of all values computed in the leaves.

6 EXPERIMENTAL RESULTS

In our experiments, we adopted the public dataset

(Duygulu et al., 2002) that is widely used for the

evaluation in image annotation. This dataset includes

a total of 5,000 images of Corel Photo, the ground

truth of labeling (1-5 labels for each image), a set of

region features (36D), and visual words generated

by K-means clustering (K=500). In the dataset, some

labels are associated with a huge number of images,

but some labels are not. For example, there are 1,120

images labeled by “water” but only one image

labeled by “glacier”. Because our method is

independent of the number of labels, we select 15

labels, shown in Table 2, that are associated with

images many enough.

Table 2: The labels used in the experiments and their

original numbers of associated images.

Label

# of images

label

# of images

label

# of images

Water 1120 sky 988 tree 948

People 744 grass 497 buildings 462

mountain 345 snow 298 flowers 296

clouds 280 rocks 250 stone 232

street 229 plane 224 bear 220

(a). recalls for each of 15 labels.

(b). average recalls of our methods and random choice.

Figure 4: The recalls of our proposed method with

different iterations.

Figure 5: The performances of our method with different

number of labeled images and with different number of

unlabeled images.

IMAGE ANNOTATION WITH RELEVANCE FEEDBACK USING A SEMI-SUPERVISED AND HIERARCHICAL

APPROACH

177

For the quantitative evaluation, we randomly and

roughly selected 200 images for each of the 15

labels and computed the average recalls of image

annotation for each label. Note that we adopted the

region features and the visual words that are provide

within the dataset. Figure 4(a) shows each of the

recalls for 15 labels with different iterations, and

Figure 4(b) draws the average recalls of all. For the

comparison, we depict the average recalls using

random choice.

Moreover, we perform another experiment,

without relevance feedback, to show the effect of

using unlabeled images in classifier training. We

adopt F1 value, which considers both precision and

recall, as the evaluation measure, where F1=(2×

precision×recall)/(precision+recall). We change the

numbers of the labeled images with |D

|=8, 16, 32,

64, and 128, and we also change the numbers of the

unlabeled images with |D

|=0, 800, and 1,600. The

result, in Figure 5, shows that using unlabeled

images can significantly improve the performance,

especially the cases with few labeled images (e.g.,

|=8 or 16). That will be very helpful for relevance

feedback because we cannot get many labeled

images at the beginning of the iterations for image

annotation. Using unlabeled images to help the

clustering can reach to a better performance at first

iterations for image annotation.

7 CONCLUSIONS AND FUTURE

WORK

This paper presents an interactive method for image

annotation using a semi-supervised and hierarchical

approach. We apply unlabeled images to assist

classifiers in training to reach a better performance

even though fewer training images are included. We

construct hierarchical classifiers each corresponds to

an individual label that can make the annotation

system more flexible. In the future, we will use

another unsupervised clustering instead of K-means

clustering in our method. We also plan to embed

prior knowledge, e.g., ontology, in the annotation

task. Moreover, we plan to apply the annotation

results to image retrieval.

ACKNOWLEDGEMENTS

This work was supported in part by the grants of 96-

2752-E-002-007-PAE and 96R0062-03.

REFERENCES

Bilenko, M., Basu , S., and Mooney, R. J. (2004).

Integrating Constraints and Metric Learning in Semi-

Supervised Clustering. Proceedings of ICM.

Fei-Fei, L. and Perona, P. (2005). A Bayesian Hierarchical

Model for Learning Natural Scene Categories.

Proceedings of CVPR, pp. 524-531.

Carneiro, G. and Vasconcelos, N. (2005). Formulating

Semantic Image Annotation as a Supervised Learning

Problem. Proceedings of CVPR.

Chang, E. Y., Goh, K., Sychay, G., and Wu, G. (2003).

CBSA: Content-based Soft Annotation for Multimodal

Image Retrieval Using Bayes Point Machines. IEEE

Transaction on Circuits and Systems for Video

Technology, 13(1):26– 38.

Datta, R., Li, J., and Wang, J. Z. (2005). Content-Based

Image Retrieval - Approaches and Trends of the New

Age. Proceedings of the ACM SIGMM international

workshop on MIR.

Duygulu, P., Barnard, K., de Freitas, J. F. G., and Forsyth,

D. A. (2002). Object Recognition as Machine

Translation: Learning a Lexicon for a Fixed Image

Vocabulary. Proceedings of ECCV, pp. 97-112.

Feng, S. L., Manmatha, R., and Lavrenko, V. (2004).

Multiple Bernoulli Relevance Models for Image and

Video Annotation. Proceedings of CVPR.

Jeon, J., Lavrenko, V., and Manmatha, R. (2003).

Automatic Image Annotation and Retrieval using

Cross-Media Relevance Models. Proceedings of ACM

SIGIR.

Jin, W., Shi, R., and Chua, T. –S. (2004). A Semi-Naïve

Bayesian Method Incorporating Clustering with Pair-

Wise Constraints for Auto Image Annotation.

Proceedings of ACMMM.

Lavrenko, V. and Croft, W. (2001). Relevance-Based

Language Models. Proceedings of ACM SIGIR.

Mori, Y., Takahashi, H., and Oka R., (1999). Image-to-

word transformation based on dividing and vector

quantizing images with words. Proceedings of First

International Workshop on Multimedia Intelligent

Storage and Retrieval Management.

Rui, Y., Huang, T. S., Ortega, M., and Mehrotra, S. (1998).

Relevance Feedback: A Power Tool for Interactive

Content-Based Image Retrieval. IEEE Transactions on

Circuits and Systems for Video Technology, vol. 8(5):

644-655.

Srikanth, M., Varner, J., Bowden, M., and Moldovan, D.

(2005). Exploiting Ontologies for Automatic Image

Annotation. Proceedings of ACM SIGIR.

Zhu, X. (2005). Semi-Supervised Learning with Graphs.

Ph.D. Thesis, CMU.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

178
