DEPTH-BASED DETECTION OF SALIENT MOVING OBJECTS IN

SONIFIED VIDEOS FOR BLIND USERS

Benoˆıt Deville

, Guido Bologna

, Michel Vinckenbosch

and Thierry Pun

Computer Vision and Multimedia Lab, University of Geneva, Route de Drize 7, Carouge, Switzerland

Laboratoire d’Informatique Industrielle, University of Applied Science, Geneva, Switzerland

Keywords:

Focus of attention (FOA), visual saliency, depth map, stereo image processing, mobility aid, visual handicap.

Abstract:

The context of this work is the development of a mobility aid for visually impaired persons. We present here an

original approach for a real time alerting system, based on the use of feature maps for detecting visual salient

parts in images. In order to improve the quality of this method, we propose here to beneﬁt from a new feature

map constructed from the depth gradient. A speciﬁc distance function is described, which takes into account

both stereoscopic camera limitations and users choices. We demonstrate here that this additional depth-based

feature map allows the system to detect the salient regions with good accuracy in most situations, even with

noisy disparity maps.

1 INTRODUCTION

See ColOr is a system that aims at creating a mo-

bility aid for people who lost their vision. With the

use of spatialized musical instrumental sounds, visu-

ally impaired users will be able to hear an auditory

reprensentation of the environment in front of them;

parts of this system are in the testing phase (Sec-

tion 2). However, as image points are represented

by sound sources and typical cameras capture hun-

dreds of thousand pixels, it is not feasible to transcribe

the whole scene without risking to create a cacophony

that would lead to miss important information. This

is why we developed an alerting system to attract the

user’s attention towards regions of importance.

This alerting system is based on a visual attention

model, built from conspicuity maps. A new feature

map, i.e. the depth gradient, which to our knowledge

has not been used before in this context, is added to

the model. The purpose of this feature map is to de-

tect objects that come towards the blind user, and that

should be avoided. A distance function is integrated

in our model. It lets users decide from which dis-

tance objects should be detected ; this function allows

to take into account both stereoscopic camera limita-

tions in distance computation, and user’s choices.

The focus of attention (FOA) is a cognitive pro-

cess that can be described as the decision to concen-

trate on one or more senses (e.g. both touch and vi-

sion) on a speciﬁc object, sound, smell, etc. This is for

instance the case with the well known cocktail party

effect, where one can follow a particular conversa-

tion out of a set of multiple and diverse sounds. This

ability to focus on a speciﬁc point is guided by our

senses, and our interests in a given situation. We are

interested here in the dectection of salient areas from

video sequences; we ground this detection on speciﬁc

visual properties of the scene, namely distance and

depth gradient.

It is shown here that the use of the depth gradient

is an important feature in a mobility aid system. It ob-

viously helps in the cases where objects might disturb

the movements of a blind user. We also demonstrate

that the combination of depth gradient and distance

function improves the results in cases where objects

in movement are not a threat for the user.

The article is organized as follows. In Section 2,

we brieﬂy describe the See ColOr system, and explain

how colours are transformed into musical instrument

sounds. The inherent limitation of this approach, that

is the soniﬁcation of only parts of the scene, leads to

the need for a visual saliency scheme, summarized in

Section 3. In that section, we introduce some known

methods that use visual attention models to infer a

FOA. We then describe our approach based on dis-

tance function and depth gradient. Section 4 analy-

ses the results provided by our method in comparison

with the use of depth information only Section 5 con-

434

Deville B., Bologna G., Vinckenbosch M. and Pun T. (2008).

DEPTH-BASED DETECTION OF SALIENT MOVING OBJECTS IN SONIFIED VIDEOS FOR BLIND USERS.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 434-439

DOI: 10.5220/0001084104340439

 SciTePress

cludes on these results, and offers some suggestions

on improvements that are to be made.

2 SEE COLOR

The objectiveof the See ColOr project (Bologna et al.,

2007a; Bologna et al., 2007b) is to develop a non-

invasive mobility aid for blind users. The system

uses auditive means to represent frontal image scenes

which are recorded by a stereoscopic camera. Each

colour is mapped into a set of up to three different

musical instruments with varying pitch, depending on

the three parameters of the colour in the HSL colour

space. Thus, it allows a user who lost his/her vision

to have access to the colour information of the envi-

ronment through a synesthetic process.

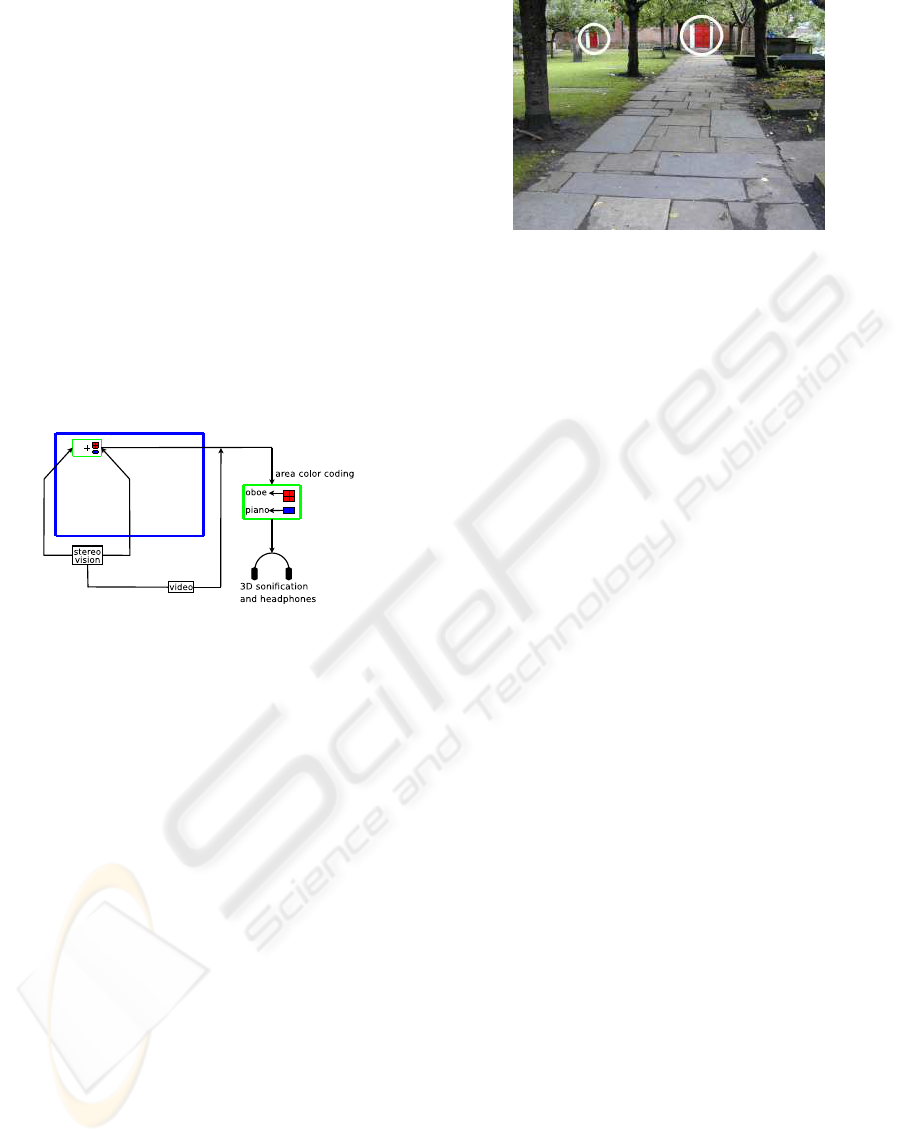

Figure 1: The See ColOr general framework.

The system does not sonify the recorded image as

a whole. Indeed, this would create misunderstanding

because a usual scene is composed of many differ-

ent colours, which would lead to a high number of

instruments playing at the same time. Since only a

small part of the image is actually soniﬁed, the risk of

missing important parts of the scene is however not

negligible. The effect of such a way of sonifying the

scene can be considered similar to the tunnel vision.

Furthermore, a previous experiment (Bologna et al.,

2007b) showed that it was not so easy for blindfolded

users to detect small regions on images, on the basis

of hearing as well as with the help of a tactile display.

In fact, they needed from 4 to 9 minutes to ﬁnd a red

door on a churchyard static image using only a tactile

version of this picture and the auditive output depend-

ing on the touched part of the image. These doors rep-

resent about 1% of the total surface area of the picture

(Figure 2), but are obviously visually salient. For this

reason an alarm system based on the mechanism of

visual saliency is being developed. This mechanism

allows the detection of parts of the scene that would

usually attract the visual attention of sighted people.

Once the program has detected such saliencies, a new

sound will indicate to the blind user that another part

of the scene is noteworthy.

Figure 2: Blindfolded users had to ﬁnd any of the two red

doors (circled) using only sound and tactile information.

Despite their saliency, the red doors only occupy 1.1% of

the image surface.

3 VISUAL SALIENCY

Saliency is a visual mechanism linked to the emer-

gence of a ﬁgure over a background (Landragin,

2004). During the pre-attentive phase of the visual

perception, our attention ﬁrst stops on elements that

arise from our visual environment, and ﬁnally focuses

the cognitive processes on these elements only. Dif-

ferent factors enter into account during this process,

both physical and cognitive. The See ColOr project

only focuses on physical factors. As a matter of fact,

blind users will use their own cognitive abilities to

understand the captured scene, given their personal

impressions, their particular knowledge of the envi-

ronment (e.g., if the user is inside or outside), and the

soniﬁed colours. Physical factors directly depend on

the perceived scene and the characteristics of the ob-

jects that compose it. Lightness contrast, opposition

of colours (e.g. red/green and blue/yellow), geometri-

cal features, singularity in a set of objects or in an ob-

ject itself (Hoffman and Singh, 1997) are some exam-

ples of these physical factors. Different computerized

approaches have been designed to digitally reproduce

this human ability, and we will brieﬂy present one of

them in the following.

3.1 Conspicuity Maps

In order to detect salient regions, some methods will

center on speciﬁc characteristics of images like en-

tropy (Kadir and Brady, 2001) or blobs, detected

with Difference of Gaussians (DoG) (Lowe, 1999) or

the speeded up robust features (SURF) (Bay et al.,

2006), a simpliﬁed form of the Determinant of Hes-

sian (DoH) approach. Other methods, based on con-

spicuity maps (Milanese et al., 1995; Itti et al., 1998),

try to mimic the physical properties of the Human Vi-

sual System (HVS).

DEPTH-BASED DETECTION OF SALIENT MOVING OBJECTS IN SONIFIED VIDEOS FOR BLIND USERS

435

Features inspired by the HVS are analysed sep-

arately to build a set of maps called feature maps,

denoted F

. These maps are ﬁltered so that the con-

spicuity map (C-map) of each feature map only con-

tains information concerning the few regions that di-

verge the most from their neighbourhood. All C-maps

are then combined by a Winner-Take-All approach

in order to determine the most salient region of the

recorded scene. Figure 3 summarizes the extraction

of the saliency map S on a colour image using con-

spicuity maps.

...

Filtering

Feature extraction

...

Normalized combination

Figure 3: General overview of the conspicuity map ap-

proach for saliency detection. S being the ﬁnal saliency

map, and F

, C

the feature maps and their associated con-

spicuity maps, respectively.

Salient region detection using conspicuity maps

have been proved to be efﬁcient, both in terms of rel-

evance of detected regions and speed, thanks to the

increasing computing power of CPUs.

3.2 Depth Map

Depth is an important information when one has to

decide whether an object is of interest or should be ig-

nored. Close objects might be dangerous or interest-

ing, thus implying an action from the user. Despite the

importance of such an information for the FOA, the

literature does not report much on approaches mak-

ing use of depth. Very few methods takes depth into

account to guide the FOA.

The ﬁrst to propose the use of depth in an attention

model (Maki et al., 1996) were only interested in de-

termining the closest object from the user. Each time

an object was closer than the previous match, the at-

tention model would simulate a saccade, just as a hu-

man would do. The problem of such an approach is

the absence of other importantfeatures, such as colour

opposition, edge magnitude, illumination, etc.

It has been suggested later to use depth in the usual

bottom-up approach of saliency-based visual atten-

tion models (Ouerhani and H¨ugli, 2000; Jost et al.,

2004). They proved the interest of depth informa-

tion as a new feature map, combined with common

feature maps like colour opposition, intensity, and in-

tensity gradient components. However, this does not

give any informationabout objects movements, which

is very important for a mobility aid, particularly when

an object comes towards the user. This is why we pro-

pose here to combine depth and depth gradient. These

features are computed and combined as follows.

Given a 3D point p = {p

, p

}, we consider

that close objects are more important than others.

Nevertheless, an object distant from less than d

min

(for

instance d

min

= 1 meter) should be detected by the

blind user’s white cane, which implies the following

distance function when we compute the value of the

feature map F

(p) =

(

max

− p

, if d

min

< p

≤ d

max

0, otherwise

(1)

where d

max

is the maximal considered distance from

the user. This parameter depends on the environment,

the stereoscopic device, and the user’s choice.

The depth gradient, in order to contain the infor-

mation of movement, is computed over time. Since

we consider that the only objects that are noteworthy

in term of gradient are the ones that get closer to the

user, we obtain the following gradient function :

∇

(p) =







−

∂z

∂t

, if

∂z

∂t

< 0

0, otherwise

(2)

To get the conspicuity mapC

from F

, we look for

maxima/minima of a DoG applied on F

= argminmax(F

∗ g

− F

∗ g

) (3)

where g

and g

are Gaussians at scale σ

and σ

respectively. For an image I, we consider the saliency

map as the weighted sum of the conspicuity maps :

= λ

·C

(I) + λ

∇

·C

∇

(I) (4)

where C

and C

∇

are the conspicuity maps computed

from the feature maps F

and F

∇

respectively, and λ

∇

(λ

+ λ

∇

= 1), constants that determine the im-

portance of each feature. The ﬁnal point of interest,

which will lead the user’s FOA, will be the point of

highest value in the obtained saliency map.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

436

4 EXPERIMENTS AND

EVALUATION

In this section we present some speciﬁc experiments

carried out to validate the hypothesis that depth gradi-

ent is a useful information in order to guide the FOA.

Depth itself having been proved to be of interest in

such a task (Ouerhani and H¨ugli, 2000), we consider

the combination of distance and depth gradient fea-

tures relatively to the depth feature alone.

4.1 Hypotheses

Four different cases are studied, and for each case, we

expect a speciﬁc result.

Completely Static Both camera and scene are static:

depth gradient should not give any additional in-

formation because no movement is present.

Camera Moving The camera moves towards the

scene: depth gradient should not give additional

information because the depth gradient’s feature

map is uniform, and no conspicuity arises from it.

Object Coming An object comes from the back-

ground and crosses the camera ﬁeld of view:

depth gradient should indicate the user as the most

salient region.

Object Leaving Same as previous, but the object

leaves the scene, from foreground to background:

depth gradient should ﬁrst indicates the object as

the most salient region if it is the closest object

from the camera, then no more additional infor-

mation should be given by the gradient.

4.2 Results and Discussion

In order to check the validity of the hypothesis, results

obtained with the combination of distance and depth

gradient have been compared to depth based results

for each case.

The method described in the previous section has

been tested on four different video sequences. These

videos were recorded using a STH-MDCS2

stereo-

scopic camera, and its development library, which

computes in real time the disparity map needed for

the determination of the depth. The resulting dispar-

ity map is unfortunately far from perfect : the depth

information is unaccurate or undetermined at many

points of the scene. However, given the importance of

real time in an alerting system, the presented method

is performed with this raw information.

Videre Design: http://www.videredesign.com

The results for each hypothesis describes previ-

ously are presented and analysed, and summarized in

Table 1. It shows the percentage of good match for

each sequence. The result on each picture of a video

sequence is said to be a good match whenever the ex-

pected area (deﬁned in Section 4.1) of the picture is

determined as the most salient. This table also points

out that the proposed method is almost real time, since

it only takes around 90 ms to process each picture in

a video sequence. A framerate of 11 image per sec-

ond is sufﬁcient for an alerting system, and for the See

ColOr framework, where images are soniﬁed around

three times per second.

Table 1: Percentage of good matches on four different video

sequences, with depth alone or with a combination of depth

and depth gradient, and average computating time in ms.

Depth and Average

Case Depth alone depth gradient CPU time

1 72.8% 93.1% 97.3ms

2 70.0% 63.8% 94.8ms

3 26.7% 49.3% 85.0ms

4 56.4% 75.2% 84.1ms

4.2.1 Camera and Scene are Static

The sequence shows an ofﬁce with different objects

(Figure 4). The closest object that can be detected

by the camera is a desk in the enlightened part of the

scene. Due to limitations of the camera used for the

recording, the closest object —the chair—, cannot be

selected. Even if the computation of stereoscopic dis-

parity creates many artifacts in the depth space, the

desk is still determined as the most salient object 70%

of the time. Here, the depth gradient is a mean to

smooth these artifacts, and allows the detection of the

desk in more than 90% of the sequence, which means

an increase of more than 25% of accuracy than when

depth alone is used.

4.2.2 Camera Moves

The camera moves towards some plants on the back-

ground (Figure 5). Again, even with the artifacts cre-

ated by the disparity computation, we obtain 70% of

good match. Including the gradient however reduces

the accuracy of results, because the movement is not

constant over the whole image. Thus some back-

ground objects have a higher gradient than foreground

ones, because they are farther away from the center

of the transformation the camera is subject to. An es-

timation of the camera motion could then give even

better results than the ones we get.

DEPTH-BASED DETECTION OF SALIENT MOVING OBJECTS IN SONIFIED VIDEOS FOR BLIND USERS

437

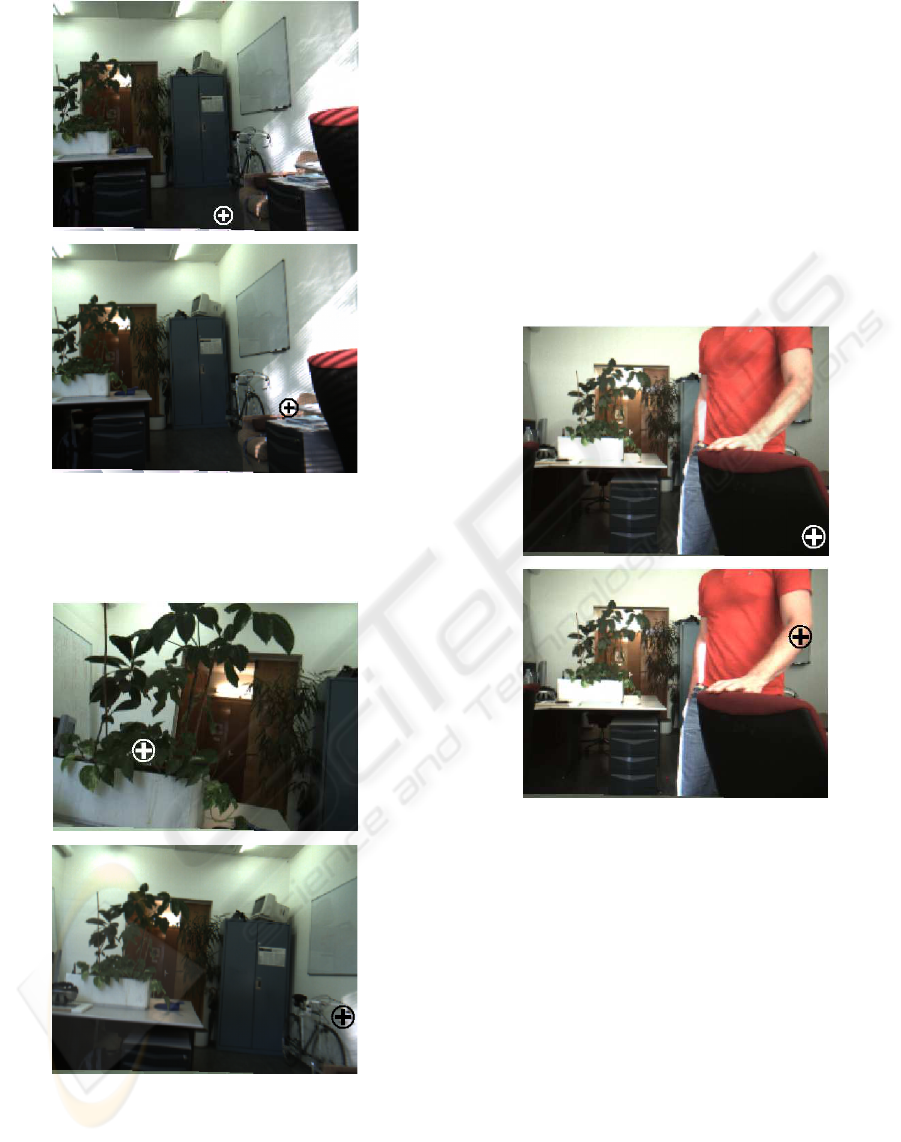

Figure 4: Results in the static case on the same image of the

video sequence, using depth only (A) or depth and gradient

(B). The detected FOA is indicated by a cross surrounded

by a cirle.

Figure 5: Good match (A) and false positive (B) when the

camera moves. The detected FOA is indicated by a cross

surrounded by a cirle.

4.2.3 Somebody Comes Towards the Camera

A person enters the ofﬁce, walks towards the cam-

era (Figure 6), arrives close to a chair in the fore-

ground, then sits, partially out of the ﬁeld of vision.

In this case, when using only depth, the objects de-

ﬁned as salient are the closest ones. This means that

along the video sequence, the character is determined

as the most salient area only when touching the clos-

est object, which is the case in approximately a quar-

ter of the video sequence. The use of depth gradient

is clearly of interest in this case, since it doubles the

number of times the person is detected. Mostly, the

incorrect selected object is the chair because it is the

closest. Thus, giving more importance to the depth

gradient in Equation 4 would increase the selection of

the object of interest.

Figure 6: Results obtained when a person comes towards

the camera, with depth only (A) or depth and gradient (B),

on the same image of the video sequence. The detected

FOA is indicated by a cross surrounded by a cirle.

4.2.4 Somebody Leaves the Scene

The character is sitting on a chair, which is the closest

object, thus the one to ﬁnd as the most salient (Fig-

ure 7). This person rises, walks towards the back-

ground of the scene, and ﬁnally disappears. Like in

the ﬁrst case (where scene and camera are static), the

disparity computation creates a lot of artifacts. Then,

depth gradient acts as a smoothing ﬁlter, and drasti-

cally improves results that are already interesting. In

fact, in more than three images over four in the se-

quence, the expected object is selected as the most

salient.

Finally, the results obtained with this framework

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

438

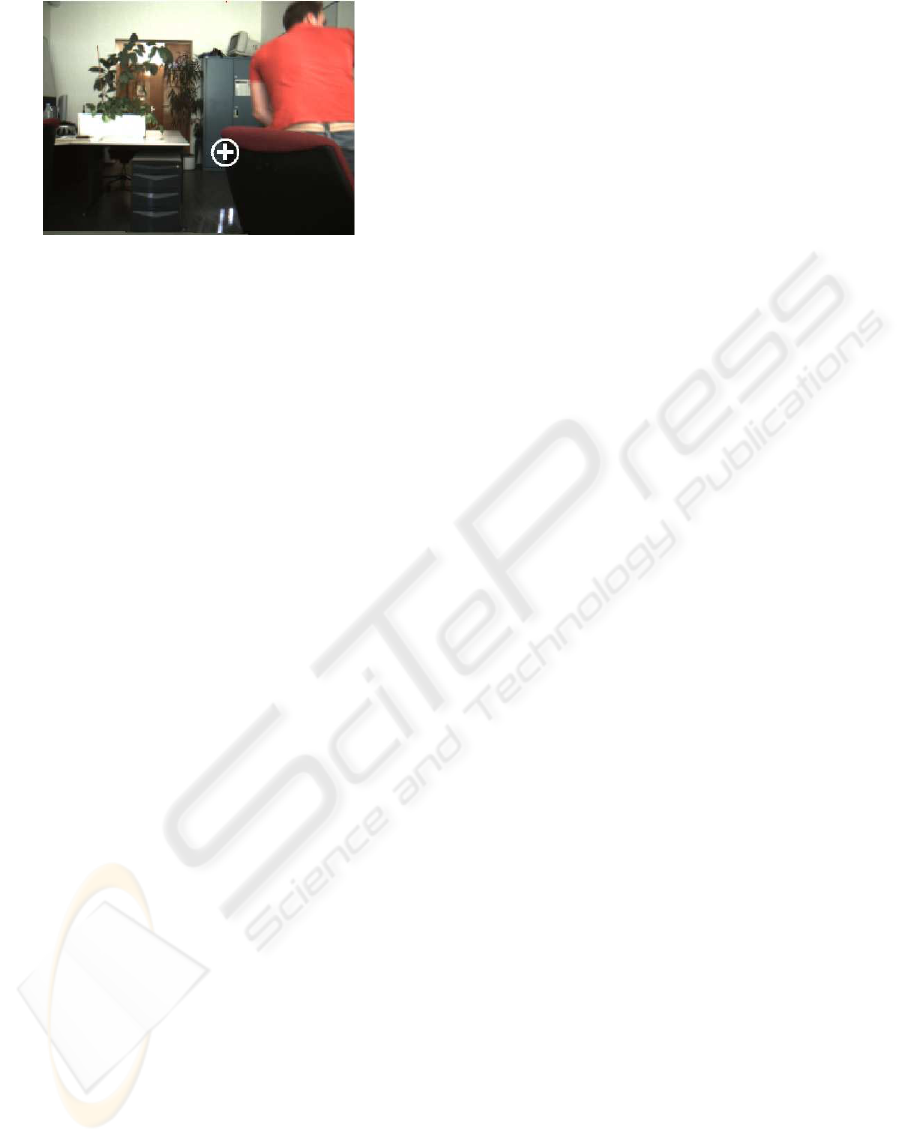

Figure 7: The detected FOA (indicated by a cross sur-

rounded by a cirle) is the closest object from the camera.

are promising, knowing that the computation of dis-

parity is a challenging task, specially in real time.

Some optimizations on the distance function, the

computation of the conspicuity map from the depth

gradient feature map, and the combination of the dif-

ferent feature maps will likely lead to better results.

5 CONCLUSIONS AND

PERSPECTIVES

In order to develop a mobility aid for blind people,

we have presented in this article a new approach to

detect salient parts in videos, using a depth based

FOA mechanism. Depth gradient is introduced as a

new feature map in an already known visual attention

model. We have proved that this feature map allows

for a better detection of objects of interest in video

sequences when using depth only, as proposed in pre-

vious works (Ouerhani and H¨ugli, 2000; Jost et al.,

2004). We have also proposed a speciﬁc distance

function, in order to take into account both hardware

limitations and user’s choices ; this allows the user

to decide if objects closer than his/her cane should be

detected or not. The results we obtained with this sim-

ple framework are promising, and some optimizations

such as a more realistic distance function or the deter-

mination of optimal coefﬁcients in Equation 4, should

lead to even better results.

Ongoing and future work concerns the following.

First, we will integrate some usual feature maps like

colour opposition, ﬂicker, or motion, to ensure that

the depth gradient brings useful information in a vi-

sual attention model. The presented method will then

be integrated in the See ColOr framework. It is partic-

ularly important to decide how the salient area will be

soniﬁed ; we do not want the user to be confused by

similar sounds meaning completely different things.

Once this will be done, the system will ﬁnally be eval-

uated by blind and blindfolded users.

ACKNOWLEDGEMENTS

We gratefully acknowledge the ﬁnancial support of

the Swiss Hasler Foundation.

REFERENCES

Bay, H., Tuytelaars, T., and Gool, L. V. (2006). Surf:

Speeded up robust features. In Proceedings of the 9th

European Conference on Computer Vision, pages 7–

13.

Bologna, G., Deville, B., Pun, T., and Vinckenbosch, M.

(2007a). Identifying major components of pictures by

audio encoding of colors. In IWINAC2007, 2nd. In-

ternational Work-conference on the Interplay between

Natural and Artiﬁcial Computation.

Bologna, G., Deville, B., Pun, T., and Vinckenbosch, M.

(2007b). Transforming 3d coloured pixels into mu-

sical instrument notes for vision substitution applica-

tions. EURASIP Journal on Image and Video Process-

ing.

Hoffman, D. and Singh, M. (1997). Salience of visual parts.

Cognition, 63:29–78.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Transactions on Pattern Analysis and

Machcine Intelligence, 20(11):1254–1259.

Jost, T., Ouerhani, N., von Wartburg, R., M¨uri, R., and

H¨ugli, H. (2004). Contribution of depth to visual at-

tention: comparison of a computer model and human.

In Early cognitive vision workshop, Isle of Skye, Scot-

land.

Kadir, T. and Brady, M. (2001). Scale, saliency and im-

age description. International Journal of Computer

Vision, 45(2):83–105.

Landragin, F. (2004). Saillance physique et saillance cogni-

tive. Cognition, Reprsentation, Langage, 2(2).

Lowe, D. (1999). Object recognition from local scale-

invariant features. In Seventh International Confer-

ence on Computer Vision (ICCV’99), volume 2.

Maki, A., Nordlund, P., and Eklundh, J. (1996). A computa-

tional model of depth-based attention. In Proceedings

of the International Conference on Pattern Recogni-

tion (ICPR ’96).

Milanese, R., Gil, S., and Pun, T. (1995). Attentive mech-

anism for dynamic and static scene analysis. Optical

Engineering, 34(8):2428–2434.

Ouerhani, N. and H¨ugli, H. (2000). Computing visual at-

tention from scene depth. In Proceedings of the 15th

International Conference on Pattern Recognition, vol-

ume 1, pages 375–378.

DEPTH-BASED DETECTION OF SALIENT MOVING OBJECTS IN SONIFIED VIDEOS FOR BLIND USERS

439
