EVOLVING ROI CODING IN H.264 SVC

Syeda Shamikha F. Shah and Eran A. Edirisinge

Loughborough University, Leicestershire LE11 3TU, UK

Keywords: SVC, ROI, Motion Estimation, Video Surveillance.

Abstract: Region-of-Interest (ROI) based coding is an integral feature of most image/video coding

techniques/standards and has im-portant applications in content based video coding, storage and

transmission. However, in the latest scalable extension of H.264 AVC video coding standard, i.e. H.264

SVC, motion estimation across the slice group boundaries does not preserve the coding quality and

compression rate of the ROI. In this paper novel enhancements to the ROI based coding for H.264 SVC

have been proposed to constrain the inter frame prediction across slice group boundaries. We show that the

proposed algorithms do not negatively affect the rate-distortion performance of the coded video, but provide

useful additional functionality that enables the extended use of the standard in many new application

domains. Further, we pro-pose a method for supporting the coding of moving ROI in the scalable video

coding domain, by adaptively changing the shape, size and position of the slice groups. We show that this

additional functionality is particularly useful in video surveil-lance applications to effectively compress and

transmit the ROI and reduce the storage and transmission requirements without any quality degradation of

the ROI.

1 INTRODUCTION

The Scalable extension of H.264-AVC, i.e. H.264

SVC addresses the challenges of supporting

heterogeneous users linked over heterogeneous

networks. Each user might have different

requirements and constraints. This includes different

screen resolution or different QOS requirement of

the application. Similarly, the condition of the

network is not a constant factor owing to congestion

and fluctuation of bandwidth. SVC provides the

flexible encoding to cater to these changing

requirements (Ziliani and Michelou, 2005). The

application areas of Scalable video coding include

digital video surveillance and network applications.

The scalable standard should be able to discard parts

of the video bit stream to meet channel requirements

and provide better compression and performance

efficiency (Mark et al., 2002).

ROI based coding is an important topic in video

coding. A considerable amount of research has been

carried out on enhancing the ROI coding as well as

adapting it to the scalability domain. Some problems

encountered in enabling ROI based coding, such as

carrying out motion compensation and intra coding

of macroblocks have been highlighted in Wang and

Hannuksela, 2002. Bae et al., 2006 takes it on

further and addresses the issues related to coding

ROI in scalable mode. It shows how to overcome the

problems posed by the dependency between slice

groups (ROI) in intra-prediction, motion estimation,

half-sample interpolation on the slice group

boundary and upsampling in intra-base mode on the

slice group boundary. It further suggests that the

dependency between slice groups for motion

estimation should be resolved by implementing

constrained motion estimation.

The importance of limiting the inter prediction

across slice group boundary has been realized by the

H.264 SVC standard (Wiegand et al., 2006) by

introducing the motion constrained SEI message.

This message signals to the decoder that the samples

from a given set of slice groups shall not refer to

samples outside this set. The encoder shall provide

the functionality to limit this reference and so should

the decoder.

In this paper, novel techniques to restrict the

motion estimation across slice group boundaries at

the encoder have been proposed. These techniques

do not require the transmission of the motion

constrained SEI or any special handling at the

decoder. Constrained inter-frame prediction across

slice group boundaries is important for the

Shamikha F. Shah S. and A. Edirisinge E. (2008).

EVOLVING ROI CODING IN H.264 SVC.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 13-19

DOI: 10.5220/0001085200130019

 SciTePress

independent decoding of ROI and preserving its

coding quality.

A further issue with ROI coding is the change in

the shape, size and position of the ROI. (Wang and

Hannuksela, 2002) proposes ways to code evolving

ROI, that is, the shape of the isolated region

grows/evolves with time. FMO map type 3, 4 and 5

provide the feature of growing and evolving slice

groups. However, these map types do not cater to a

moving slice group. The slice group can grow from

its initial position but not change shape, or move

horizontally or vertically across the frames.

Therefore, these map types cannot be used for

implementing moving ROI and special handling

needs to be provided for changing/moving slice

groups. In light of the above observations and

practical significance, support for moving ROI in

H.264 SVC has been proposed in this paper.

The rest of the paper is organized as follows.

Section 2 describes the proposed algorithms for

constrained inter frame prediction across slice group

boundaries. Changing slice groups (moving ROI)

feature is presented in Section 3. Section 4 provides

the experimental results and their analysis. The

conclusion to this research is drawn in Section 5

with suggestions for future work.

2 CONSTRAINED INTER FRAME

PREDICTION

Constrained inter prediction across the slice group

boundary is a useful functionality to allow for

independent decoding of slice groups, and hence the

ROI. The independent ROI decoding can increase

the error resilience by limiting the motion search for

the ROI to the same slice group in the reference

pictures. It will restrict motion compensation from

slice groups coded at lower quality. Restricted

motion compensation, in turn, maintains the

compression quality of different slice groups. A slice

group that is coded at a lower compression rate

would maintain its quality by not referring to the

samples that are outside this slice group and are

possibly coded with higher compression.

Three different techniques to constrain the inter

prediction across slice groups boundaries are

proposed as follows.

2.1 Boundary Padding of Non-ROI

The proposed method to restrict the inter-frame

prediction across slice group boundaries is to

eliminate the possibility of any sample in one slice

group finding its best match from the other slice

group. This can be done by padding the boundaries

of the ‘non-current’ (current slice group being the

one for whose samples, a best match is being found)

slice group.

The size of padding should be equal in width to

the minimum of search range specified in the

encoder configuration and the width of ‘non-current’

slice group. The value with which this region is

padded should be some value other than a

permissible pixel sample value (both luma and

chroma). This padding shall be applied to all

reference pictures used for inter prediction, and not

the current picture. The interpolation process for the

reference frame, for creating half pixel accurate and

quarter pixel accurate sample buffers, shall be

carried out after the padding.

Figure 1 illustrates the padding process. In figure

1(b), the macroblocks from slice group B are padded

with an undefined value. Although they fall inside

the search range of the current macroblock, their

undefined value cannot provide a match for this

macroblock. Based on the implementation it is

possible to restrict the motion vectors of just one

slice group or multiple slice groups. The one draw

back of this technique is that if the reference frames

are padded only once and used for all slice groups,

then the padded slice group can effect the motion

estimation of its own samples.This is because the

padded area would become ‘inaccessible’ to the

padded slice group as well. A way to solve this can

be to pad the reference frames for each slice group

separately.

2.2 Limiting the Search Rectangle

Constrained inter prediction can be implemented by

redefining the search range for each macroblock

according to its position in the slice group. In this

algorithm, the search range of the current

macroblock is defined in a way that the rows and

columns of macroblocks belonging to other slice

groups are excluded from the search rectangle of the

current macroblock. The technique is illustrated in

figure 2.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

(a) (b)

Legend

Slice Group A

Slice Group B

Padding of Slice Group B

Picture Boundary Padding

Current Macroblock

Search Rectangle

Search Range = 16 pixels = 1 macroblock.

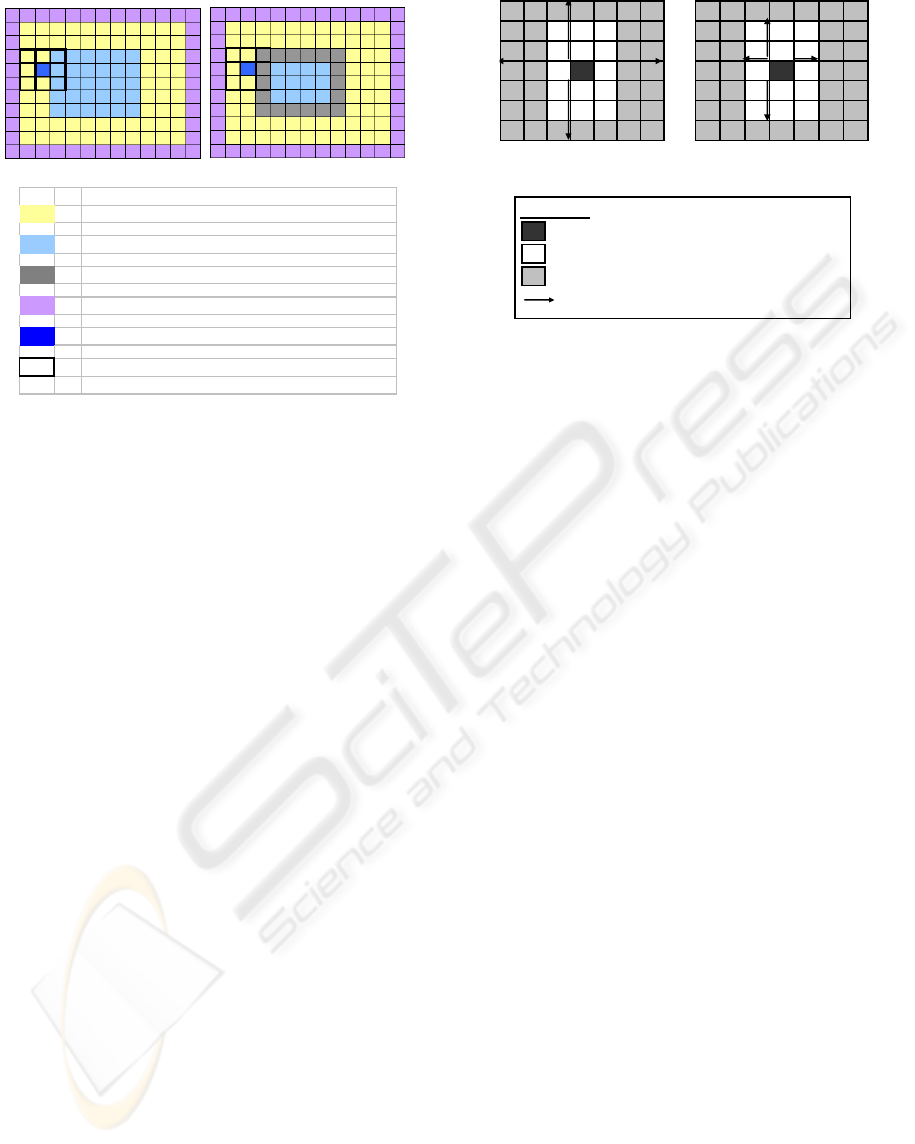

Figure 1: Padding slice group inner boundary (a) without

padding (b) with padding.

The implementation requires the initialization of

the macroblock for motion compensation to be

changed. This technique is ideally suited to restrict

inter-frame prediction for the foreground slice group

in FMO map type 2.

2.3 Constrained Inter-frame Prediction

at MB and Sub-MB Level

This technique involves restricting the motion

vectors of each macroblock to point inside the slice

group to which it belongs. This restriction has to be

implemented in the form of checks at the

macroblock and sub macroblock level, so that

neither the 16x16 macroblock, nor any of its

partitions have the motion vector pointing outside.

Further, the restriction should be active for both full

pel motion vectors and sub pel motion vectors.

The following algorithm is designed to check if

the motion vector points to a macroblock or

macroblock partition that belongs to the current slice

group. If so, the motion vector is valid, otherwise

this motion vector shall not be used in the motion

estimation process.

• Let the Motion Vector (Mv) to be checked be

(MvX, MvY).

• Let the partition size of the partition for

which the motion is being estimated be Px

(width) and Py (height).

• Let the coordinates of the current macroblock

(MB) be (MBx, MBy).

(a) (b)

Legend:

Current Macroblock (Foreground)

Foreground

Background

Search range

Figure 2: Limiting search rectangle (a) original search

range (b) limited search range.

Step 1: The starting coordinates (X, Y) of the

partition to be checked for best match, by calculating

the SAD with the current macroblock partition, are

derived as:

X = MBx + MvX

Y = MBy + MvY

Step 2: Determine the coordinates of the pixels

that mark the four corners of the partition to be

checked to give the best match.

• (X + Px, Y)

• (X, Y + Px)

• (X + Px, Y + Px)

• (X , Y)

The x and y coordinates of any of these pixels,

that is calculated to be lying outside the picture

boundary should be clipped to the nearest boundary

coordinate.

• x = min ( 0, max (x, picture width in pixels ))

• y = min ( 0, max (y, picture height in pixels))

Note that by doing so, the padded area outside

the pixel boundary is mapped to a macroblock

closest to the padded area but lying inside the

boundary. Thus the slice group of this part of padded

region would be inferred as the slice group of the

closest boundary macroblock.

Step 3: The owner macroblocks of the four

pixels, as given in step 2, shall be determined. If all

of these owner macroblocks belong to the same slice

group as the current macroblock, then the motion

vector is valid, otherwise it is invalid.

Usage of the algorithm. The algorithm given above

is used in the motion estimation process for

EVOLVING ROI CODING IN H.264 SVC

restricting the motion vectors to the current slice

group.

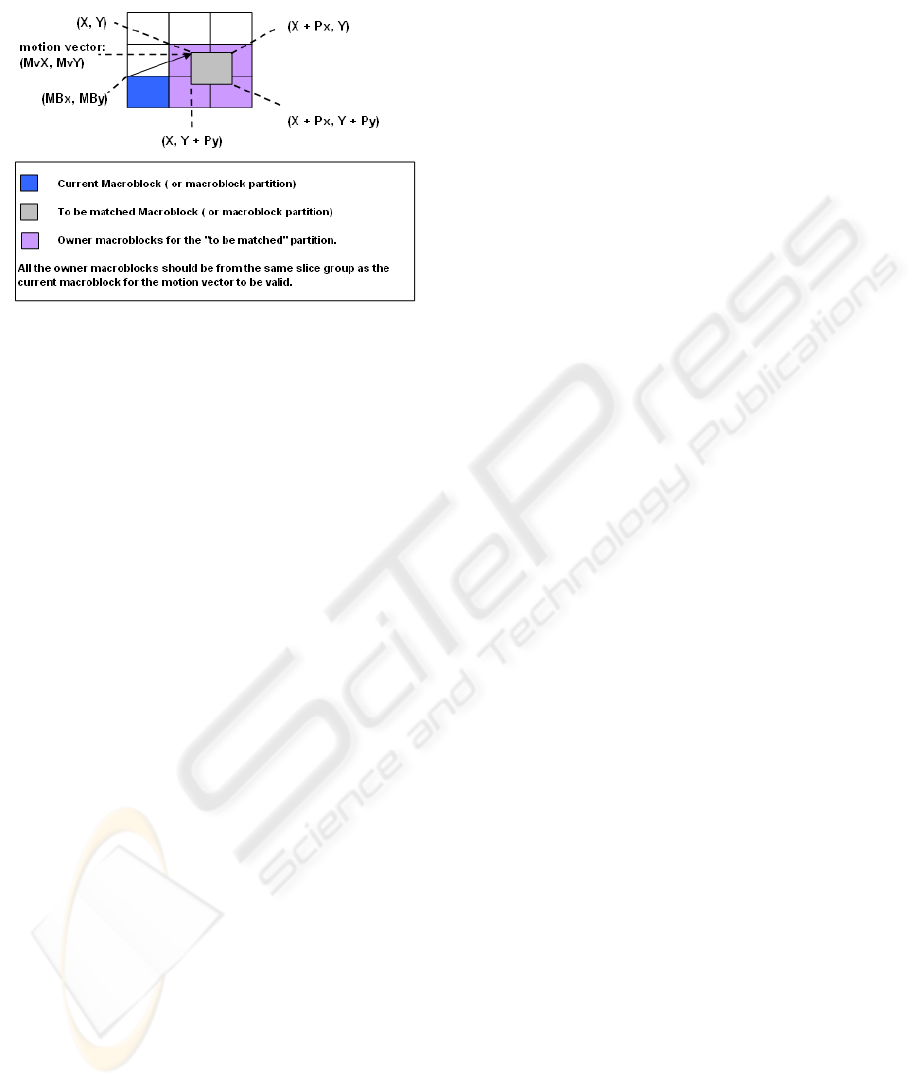

Figure 3: Determine valid motion vector.

Motion estimation process picks the predicted

motion vector as the first best estimate for refining

the motion vector. However, even when the

predictor blocks belong to the current slice group,

their motion vectors when translated to the current

macroblock may point outside the slice group.

Therefore the validity of the motion vector should be

checked by using the proposed algorithm.

The motion estimation of the macroblock and its

partitions, by zero vector and tree search

(hierarchical search), shall also be restricted by

applying the algorithm.

Moreover, this algorithm shall also be used in

sub-pel motion estimation. The sub pixel motion

estimation involves the half pel and quarter pel

interpolation. As the first step towards determining

if the motion vector points to a macroblock inside

the current slice group, the macroblock to which the

sub pel would belong should be identified. After the

mapping from sub-pel to full pel, the validity of the

motion vector shall be determined.

This technique is applicable to both the

rectangular slice groups (FMO map type 2) and

arbitrary shaped slice groups (FMO map type 6).

Moreover, it inter predicts each slice group

independently of the other, and is not restricted by

the number of slice groups in all.

3 CHANGING SLICE GROUPS

(MOVING ROI)

The FMO functionality in the SVC standard allows

defining multiple slice groups in the frame. In the

case of FMO type 2, the foreground slice group can

be selected as the ROI. However this selection is

fixed for the entire video sequence. In real life

applications, the object constituting the ROI changes

its position with time. This calls for updating the

place and shape of the ROI from time to time.

The support for changing slice groups/ROI, as

proposed in this paper, allows changing the ROI

definition at the encoder. The relevant information is

transmitted to the decoder in time to decode the

changing slice groups. The changes are transparent

to the decoder. Furthermore, it preserves the

encoded quality of each slice group as ensured

through constrained motion estimation techniques.

The following steps are involved in

implementing changing slice groups.

3.1 Slice Group Map Redefinition per

GOP

The slice group definitions for the video sequence

are provided to the SVC encoder as the

configuration parameters. The encoder subsequently

generates the macroblock to slice group mapping for

the entire video sequence, once it starts encoding the

sequence. In order to redefine a slice group, the

corresponding FMO parameters should be changed.

The new parameters, such as the starting and ending

MB for the ROI, should correspond to the updated

size, position and shape of the ROI. These

parameters can be obtained by repeated ROI

identification per GOP, through some computer

vision algorithm.

Following the parameter change, the FMO unit

shall be reinitialized to construct the macroblock to

slice group map according to the new definition of

the slice groups. The frequency of changing the slice

group can be as high as per frame. However, this

increases the computation cost of the encoder. Thus

it is advisable to change the slice group mapping

once per group of pictures (GOP).

3.2 Reference Slice Group Map for

Motion Estimation

In the reference SVC encoder (JSVM 8.13), one

slice group map is used for all the frames of the

video sequence. The constrained motion estimation

process refers to the slice group map to find the slice

group of a macroblock. This is to ensure that the best

match macroblock is only picked up from the same

slice group as the current macroblock.

When the moving ROI functionality is

implemented, the slice group map changes every

GOP. Since the key frame from the previous GOP is

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

used in the motion estimation process for the frames

of the current GOP, the need to have the current as

well as the old slice group mapping is essential. For

this reason, the slice group map is stored with each

frame. A macroblock from the reference frame is

selected as the best match only if it lies in the same

slice group according to the slice group map of the

reference frame.

3.3 Picture Parameter Set Update and

Transmission

The FMO parameters, which include the first MB in

a slice and the number of macroblocks in the slice

are transmitted by the encoder in the slice header.

However, the macroblock to slice group map is

communicated to the decoder in the picture

parameter set. Therefore, for moving ROI, the

picture parameter set NAL unit is updated and

transmitted by the encoder every time the slice

group mapping is changed.

Legend:

Foreground Slice group in reference Frame

Foreground Slice group in current Frame

Current Macroblock for ME

Search Window around zero vector for current MB

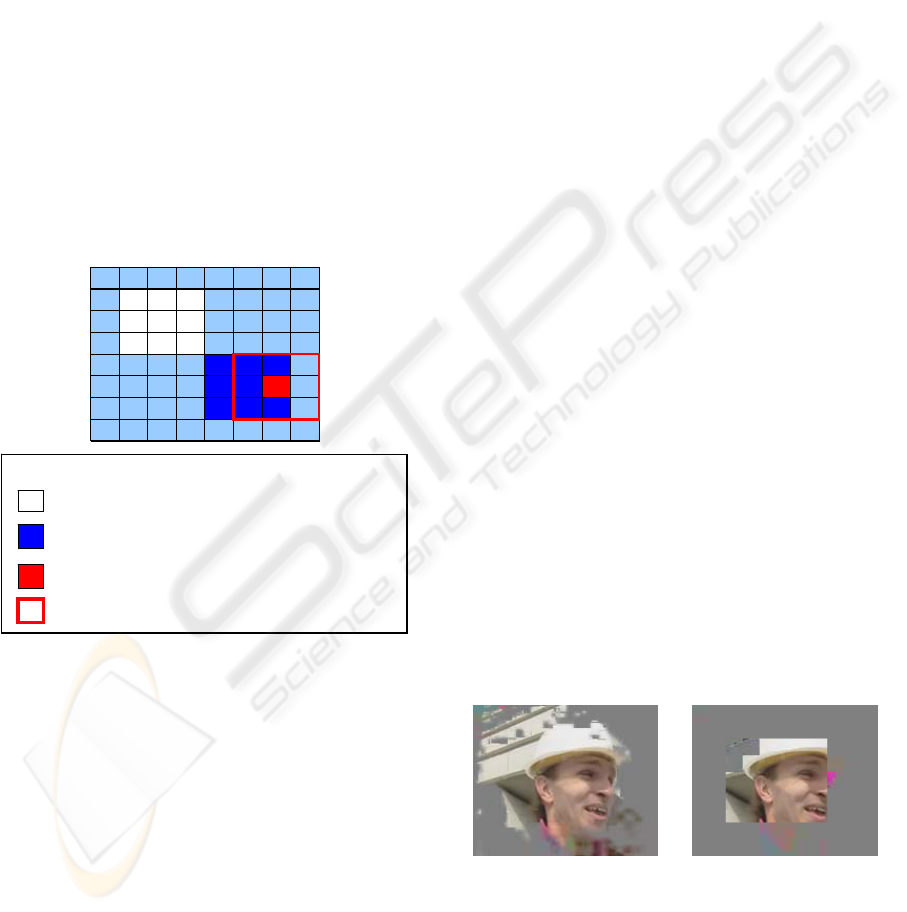

Figure 4: Non overlapping search window of current MB

with foreground SG in reference frame.

3.4 Increase in Search Range

The constrained motion estimation process considers

a macroblock in the reference frame as the best

match if it belongs to the same slice as the current

macroblock. Changing slice groups implies that the

slice group definition in the reference picture may be

different from that in the current picture. In the case

when the motion between the GOPs is fast, it is

possible that the search window for a macroblock

may not overlap with the slice group mapping of its

owner slice group in the reference frame. This is

illustrated in figure 4.

In this case, no macroblock in the reference

frame will fulfill the criteria that it belongs to the

same slice group as the current macroblock. For this

reason, even a macroblock with otherwise a very

low SAD, will not be selected to estimate motion of

the current macroblock, since this would be a

compromise to the coding quality of the ROI and

violate the principles of constrained motion

estimation. To resolve this issue, the search range in

the configuration parameters shall be increased. The

increased search range would be effective for all the

macroblocks in the entire video sequence.

4 EXPERIMENTAL RESULTS

The algorithms for constrained inter-frame

prediction and the support for moving ROI has been

implemented on JSVM reference software (version

8.13).

4.1 Constrained Inter-frame Prediction

In the experiments, Football and Foreman video

sequences were coded with 2 slice groups defined

using FMO map type 2. Constrained inter-frame

prediction at MB and sub-MB level was tested for

FMO map type 6 as well. Skip mode and Direct

mode for motion estimation were not enabled for the

constrained inter-frame prediction at MB and sub

MB level. The loop filter was disabled for the

experiments. Different QP values were set for the

two slice groups. One of the slice groups is coded

with QP value greater than 52. This is to make the

distinction between the two slice groups visually

apparent for testing purposes. The algorithms have

been tested for two spatial layers (QCIF and CIF).

(a) (b)

Figure 5: Decoded frame (Foreman QCIF) (a) without

constrained inter frame prediction (b) with boundary

padding of non-ROI (ROI in grey).

EVOLVING ROI CODING IN H.264 SVC

(a) (b)

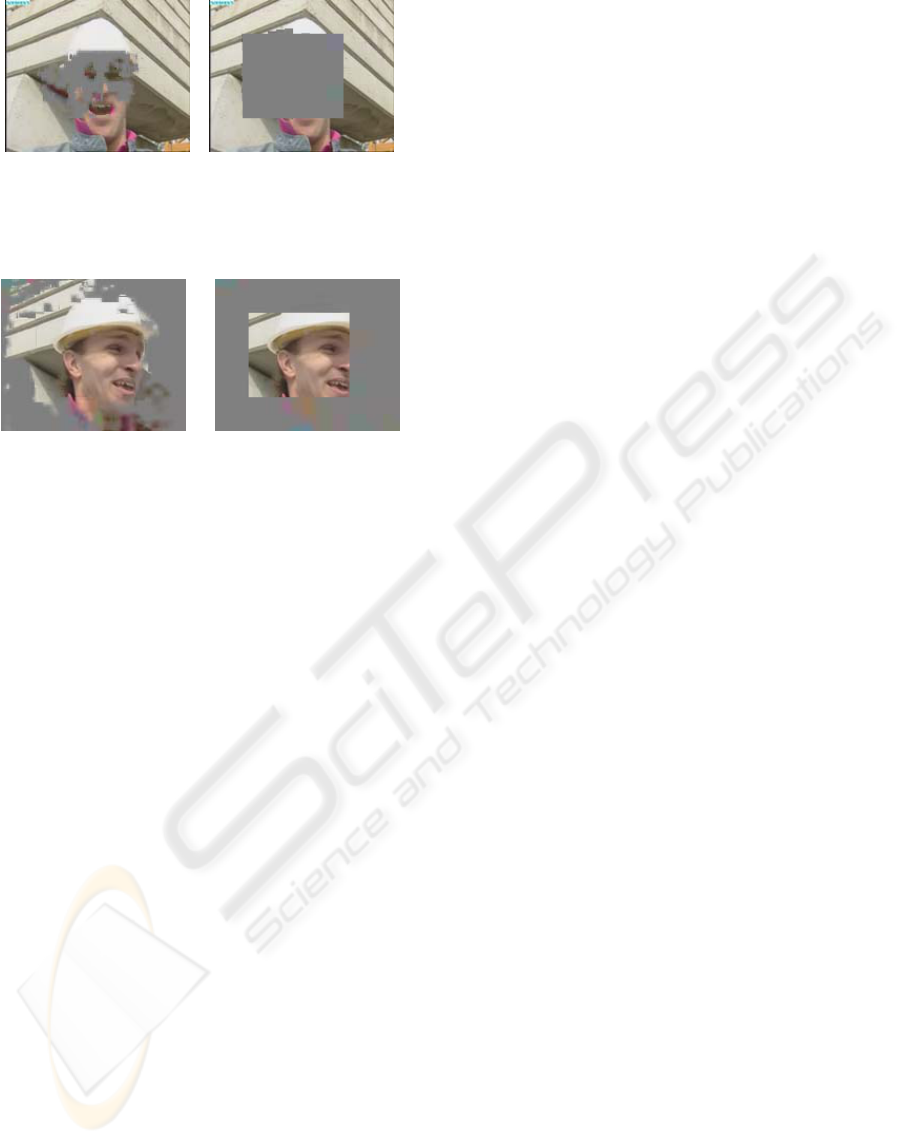

Figure 6: Decoded frame (Foreman QCIF) (a) without

constrained inter-frame prediction (b) with limiting the

search rectangle for ROI (ROI in grey).

(a) (b)

Figure 7: frame (Foreman QCIF) (a) without constrained

inter-frame prediction (b) with constrained inter-frame

prediction at MB and sub MB level.

Without constrained inter-frame prediction, the

samples from one slice groups are compensating

motion for the other slice group and hence no

distinct boundary is seen for P or B frames. This

distinction in quality is present with constrained

inter-frame prediction.

4.1.1 Effect on Bitrate and PSNR

The PSNR and bitrate values were obtained on

constrained inter-frame prediction at MB and sub

MB level encoded with two spatial layers. It is

observed that there is no significant difference in

PSNR with or without the constrained ME.

Therefore we conclude that the constrained ME

technique does not effect the overall quality of the

sequence.

Experiments were conducted for bitrate on

foreman and foreground test sequences with the two

slice groups coded with a base QP of 8 and 48

respectively. The experiments show a decrease in

the bitrate. However, for some values of QP and QP

difference between the two slice groups, the bitrate

may increase. This is because the bitrate is a balance

between the bits used to encode the error and the bits

used to encode the motion vector. With constrained

motion estimation, the magnitude of motion vector

is reduced, since it is constrained to the same slice

group. However, the error increases with the

constrained ME, since the best match is forced to be

selected from within the same slice group, which

otherwise could have existed somewhere outside the

slice group.

The magnitude of error as well as that of motion

vector also depends on the size of the slice groups

and the degree of motion between frames. Hence the

effect on bitrate is controlled by all these factors.

4.1.2 Computational Complexity

The constrained inter-frame prediction techniques

were implemented without any hardware

accelerator. No special emphasis was given to

optimized implementation of these techniques. The

computation time of the Constrained Inter Frame

Prediction techniques was computed using Intel®

VTune™ Performance Analyzer 8.0 for windows.

The computation time was calculated on both fast

motion sequence (football) and slower motion

sequence (foreman) with one and two spatial layers.

The technique with boundary padding of non-

ROI shows an increase in computation time of

roughly 23% for foreman and 7 to 10% for football.

Constrained inter-frame prediction at MB and sub-

MB level causes an increase of 32% for both test

sequences. A decrease of about 6% in computation

time is observed for constrained inter-frame

prediction by limiting the search rectangle.

4.2 Changing Slice Groups (Moving

ROI)

The support for moving ROI has been implemented

on JSVM (version 8.13). Experiments were

conducted on Foreman and Bus video sequence.

Testing was done with and without spatial

scalability. The loop filter was disabled for the

experiment.

The ROI was selected using FMO map type 2,

with the foreground slice group compressed with a

lower QP then the background slice group. The basic

QP for foreground slice group is set to 25 and as for

the background slice group, it is set to a much higher

value (out of range value to effectively nullify the

background).

ROI identification per GOP was done by

integrating the JSVM software with Intel OpenCV

(version 1.0) Library.

The results show effective coding of ROI with

change in position, size and rectangular shape across

GOPs.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

(a) 1

frame of 1

GOP (b) Middle frame of 2

GOP

GOP (d) Middle frame of 4

GOP

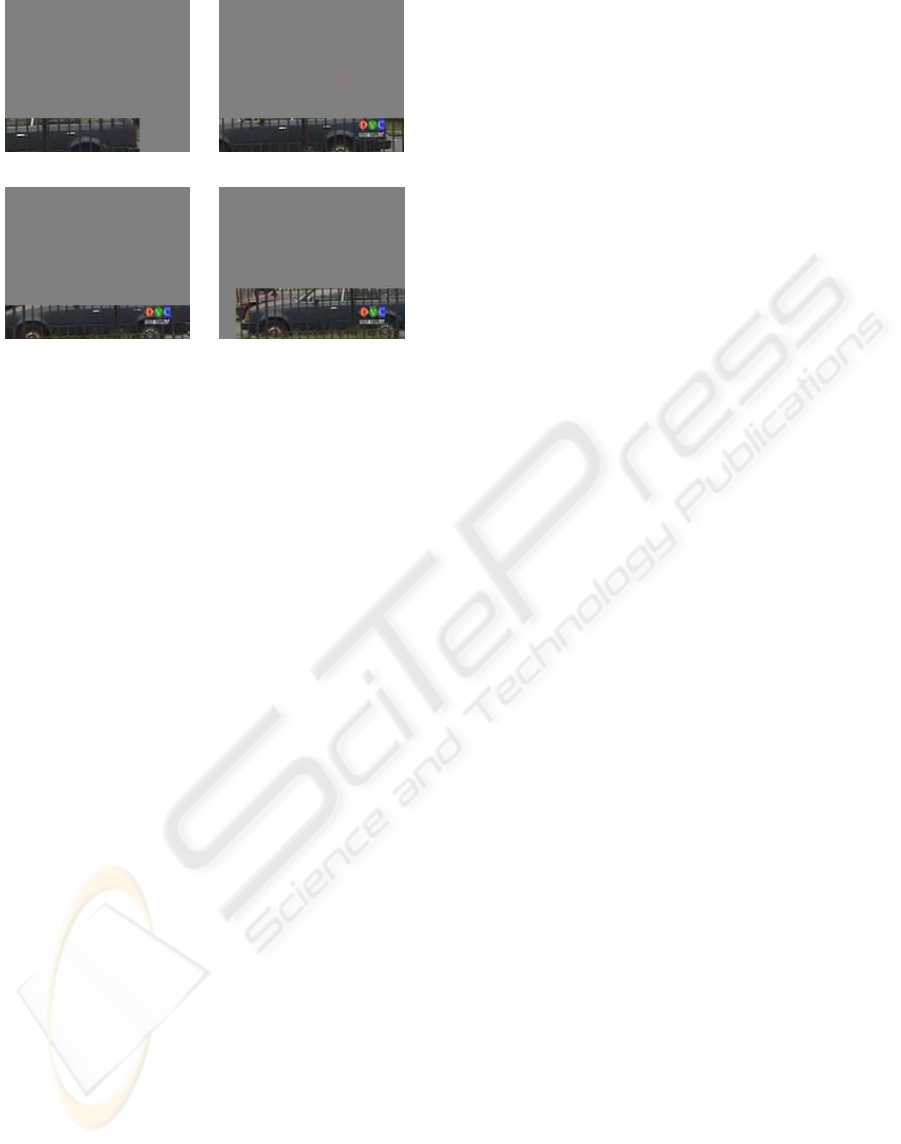

Figure 8: Decoded frames of BUS test sequence (QCIF).

5 CONCLUSIONS

In this paper, three novel algorithms for constraint

inter frame prediction have been proposed. The

implementation of constrained inter-frame

prediction algorithms on H.264 SVC reference

encoder (version 8.13) gives encouraging results.

There is no significant negative impact on the PSNR

or bitrate of the coded video for carefully selected

quantization parameter values. The computational

complexity of the proposed techniques is high, and

can be reduced in part by optimized implementation

in software or more effectively; through hardware

acceleration.

The paper also proposes the technique to support

changing slice groups (moving ROI) in H.264 SVC.

The technique, as implemented on JSVM (version

8.13), has been verified for both fast and slow

moving video sequences. The results show effective

encoding and decoding of the video sequence with

ROI of changing shape, size and position.

REFERENCES

Ziliani F. and Michelou, J. (VisioWave), “Scalable video

coding in digital video security”, VisioWave, SA,

2005.

Mrak, M., et al., “Scalable video coding in network

applications”, VIPromCom-2002, 4th EURASIP-IEEE

region 8 international Symposium on Video/Image

processing and multimedia communications, Zadar,

Croatia, June 2002.

Ye-Kui Wang and Hannuksela, M.H., “Isolated Regions:

Motivation, Problems, and Solutions”, Input

Document to JVT, JVT 3rd Meeting, Fairfax, Virginia,

USA, Document #JVT-C072, May 2002.

Bae, T.M., et al., “Multiple Region-of-Interest Support in

Scalable Video Coding”, ETRI Journal, Vol. 28,

Number 2, April 2006.

Wiegand, T. et al., Joint Draft 6, JVT 19

Meeting,

Geneva, Switzerland, Document #JVT-S201, April

2006.

EVOLVING ROI CODING IN H.264 SVC
