EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED

ON GEODESIC TIME FUNCTIONS

Jacopo Grazzini and Pierre Soille

Spatial Data Infrastructures Unit

Institute for Environment and Sustainability

European Commission - DG Joint Research Centre

Via E.Fermi 2749, TP 262 - 21027 Ispra (VA), Italy

Keywords:

Mathematical morphology, edge-preserving smoothing, nonlinear ﬁltering, geodesic time.

Abstract:

In this paper, we address the problem of edge-preserving smoothing of natural images. We introduce a novel

adaptive approach derived from mathematical morphology as a preprocessing stage in feature extraction and/or

image segmentation. Like other ﬁltering methods, it assumes that the local neighbourhood of a pixel contains

the essential information required for the estimation of local image properties. It performs a weighted av-

eraging by combining both spatial and tonal information in a single similarity measure based on the local

calculation of geodesic time functions from the estimated pixel. By designing relevant geodesic masks, it

can deal with speciﬁc situation and type of images. We describe in the following two possible strategies and

we show their capabilities at smoothing heterogeneous areas while preserving relevant structures in natural -

greyscale or multispectral - images displaying different features.

1 INTRODUCTION

Image smoothing is a common preprocessing stage

used to improve the visual information in an image,

and to simplify subsequent image processing stages

such as feature extraction, image segmentation or mo-

tion estimation (J

ahne, 1997). Traditionally, the prob-

lem of image smoothing is to reduce undesirable dis-

tortions - due to the presence of noise or the quality

of the image acquisition process - while preserving

important features such as homogeneous regions, dis-

continuities, edges and textures.

Smoothing techniques have been extensively used

in many ﬁelds of image processing (Saint-Marc and

Medioni, 1991; Winkler et al., 1999; Mr

azek et al.,

2006; Takeda et al., 2007). The generic continu-

ous expression of a low pass ﬁltering (smoothing) of

an image f is the convolution operation of this im-

age (J

ahne, 1997):

f (x)⊗K (x) =

K (x, y) f (y) dy (1)

where x = (x,y) are spatial coordinates, f (x) is the

local luminance (greylevel intensity or multispectral

value) in x and K is a kernel function (also called

”window function”) that is assumed to be normalised:

K (x, y)dy = 1 and shift invariant: K (x, y) =

K (x −y). In practical case, the integral

in Eq. (1)

becomes a discrete weighted summation

∑

and the

support size of the kernel K is ﬁnite, as it is often

desirable to estimate the intensity of a pixel from a

local neighbourhood. Depending on the functional

form of the kernel, smoothing algorithms are classi-

ﬁed into two categories: linear and nonlinear meth-

ods (J

ahne, 1997), allowing for different weighting

of the luminance values. For linear smoothing, lo-

cal operators are uniformly applied to the image to

form the output luminance (van den Boomgaard and

van de Weijer, 2003). The most straightforward and

the fastest technique consists in using an isotropic ker-

nel, with ﬁxed size and ﬁxed weights, over the image.

Such approach yields good results when all the pix-

els in the window (i.e. the kernel support) come from

the same ’population’ as the central pixel: in image

regions corresponding to the interior of an object, it

produces a desirable luminance which is representa-

tive of the region. However, difﬁculties arise when

the window overlaps a discontinuity: on the bound-

aries between different regions, it results in averaging

of edge values, and therefore signiﬁcant blurring of

the edges. Not only the noise is reduced but also the

image structures are smoothed. The problem remains

that a ﬁxed kernel K is not suited for images featur-

Grazzini J. and Soille P. (2008).

EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED ON GEODESIC TIME FUNCTIONS.

In Proceedings of the Third Inter national Conference on Computer Vision Theory and Applications, pages 20-27

DOI: 10.5220/0001087400200027

 SciTePress

ing real structures on various scales and with differ-

ent shapes: there is a trade-off between localisation

accuracy and noise sensitivity. Nonlinear smoothing

has been developed to overcome these shortcomings,

which tend to preserve important features along with

noise removal during smoothing (Narendra, 1981;

Brownrigg, 1984; Perona and Malik, 1990; Nitzberg

and Shiota, 1992). In this context, the need for an

adaptive approach to cope with inhomogeneities in

images is well recognised (Saint-Marc and Medioni,

1991; Gomez, 2000; Grazzini et al., 2004). Strong

relations have been established between a number of

widely-used adaptive ﬁlters for digital image process-

ing (Mr

azek et al., 2006). The most common strategy

is to locally vary the kernel over image regions ac-

cording to their contents (Takeda et al., 2007): around

a pixel x to be updated, one uses a kernel K = K

with proper weights depending on the actual image

variability in the neighbourhood of x. A critical issue

is then how to measure image variability for gener-

ating the weights of the kernel. A possible approach

consists in adapting the local effect of the ﬁlter by

using both the location of the nearby samples and

their luminance values. That is, the proposed ker-

nel K

takes into account two factors: spatial dis-

tances |x −y| and tonal distances |f (x) − f (y)|. In-

troducing a tonal weight, the mixing of different lu-

minance ’populations’ is prevented. Such approach is

known as the bilateral ﬁltering technique introduced

by (Tomasi and Manduchi, 1998) as an intuitive gen-

eralisation of the Gaussian convolution. In fact, it

is clear from the literature that there is a direct re-

lationship between this technique and other nonlinear

smoothing methods (van den Boomgaard and van de

Weijer, 2003; Mr

azek et al., 2006): anisotropic dif-

fusion (Barash, 2002), local-mode ﬁnding (van den

Boomgaard and van de Weijer, 2002) or mean-shift

analysis (Comaniciu and Meer, 2002).

Following the line of thought of (Tomasi and Man-

duchi, 1998), this paper introduces a new algorithm

for edge-preserving smoothing of natural images as a

preprocessing stage in feature extraction and/or image

classiﬁcation. The present method exploits an image-

dependent approach derived from concepts known in

mathematical morphology (Soille, 2004). It is based

on the deﬁnition of appropriate geodesic masks and

the local estimation of pairwise geodesic time func-

tions within these masks (Lantu

ejoul and Maison-

neuve, 1984; Soille, 1994a; Soille, 1994b; Soille and

Grazzini, 2007). Likewise bilateral ﬁltering, the main

idea is to associate with each pixel a weighted con-

volution of sample points within an adaptive neigh-

bourhood, where the weights depend not only on the

spatial distances but also on the tonal distance to the

centre pixel. With respect to other nonlinear tech-

niques, which often involve iterative operations (Per-

ona and Malik, 1990; Comaniciu and Meer, 2002),

this approach presents the advantage of not depending

upon any termination time. Moreover, it enables to

determine adaptively, directly from the unsmoothed

input data, the neighbouring sample points and the

associated weights. Namely, by designing relevant

geodesic masks, the geodesic time functions com-

puted from a single pixel provide a similarity measure

of the twofold spatial and tonal information in the lo-

cal neighbourhood of this pixel.

The rest of the paper is organised as follows. In

the next section, we recall the fundamental notions

of geodesic path, geodesic mask and geodesic time

known in mathematical morphology. In section 3, we

introduce a new ﬁlter for image smoothing based on

the estimation of local geodesic time on the gradient

magnitude. In section 4, we propose an alternative al-

gorithm based on the calculation of the geodesic time

on image variations able to deal with the presence of

noise. In section 5, we present and discuss some re-

sults and also compare the approach with other ex-

isting techniques. A conclusion regarding the current

results and a description of future foreseen develop-

ments are presented in section 6.

2 GEODESIC TIME ON

GREYLEVEL IMAGES

Geodesic transforms are classical operators in image

analysis (Lantu

ejoul and Maisonneuve, 1984; Verwer

et al., 1989). The geodesic distance between two pix-

els of a connected set (typically, a binary image) is de-

ﬁned as the length of the shortest path(s) linking these

points and remaining in the set (the so-called geodesic

paths). This idea can been generalised to greylevel

images (images with single-valued luminance) using

the geodesic time on geodesic mask (Soille, 1994b;

Ikonen and Toivanen, 2007). In such case, the image

is then treated as a ’height map’, i.e. a surface embed-

ded in a 3D space, with the third coordinate given by

the greylevel values. The geodesic paths are then con-

strained to the surface of the height map: typically, the

path between two close pixels can be long, if there is

a high ’ridge’ in the greylevel map between them.

If we consider a greylevel image as an inte-

grable function g (designed as the geodesic mask), the

time τ

(P ) necessary for travelling on a path P de-

ﬁned on the domain of deﬁnition of g is expressed as

the integral of g along P (Soille, 1994b):

(P ) =

|g(s)|ds . (2)

EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED ON GEODESIC TIME FUNCTIONS

The designation ’time’ is justiﬁed by considering

units equal to the inverse of that of a speed for the

image g. Following, the geodesic time τ

(p,q) sep-

arating two points p and q is the smallest amount of

time allowing to link p to q in g:

(p,q) = min{τ

(P ) | P is a path linking p to q}.

In the discrete case, a path P of length l going from p

to q is deﬁned as a l-tuple (x

,...,x

) of pixels such

that x

= p, x

= q, and (x

i−1

) deﬁnes adjacent pix-

els for all i ∈ [2,l]. Therefore, the greylevel values

intuitively represent the cost of traversing the pixels:

the lower the greylevel value, the faster the propaga-

tion. More precisely, the cost c

of travelling from a

pixel x

to an adjacent pixel x

i+1

(g(x

) + g(x

i+1

)) ·|x

−x

i+1

| (3)

where the spatial distance |x

−x

i+1

| can be either the

Euclidean distance or the optimal Chamfer propagat-

ing weights in a binary 3×3 mask (Borgefors, 1986).

The time τ

(P ) necessary to cover a discrete path P

then refers to the sum of the greylevel values of the

pixels along P ; the geodesic time τ

(p,q) ﬁnds the

path with the lowest sum of greylevel values along all

possible discrete paths linking p to q. This concept is

closely related to the notion of grey weighted distance

transform deﬁned in (Levi and Montanari, 1970) and

to the continuous formulation of the eikonal equa-

tion (Cohen and Kimmel, 1997).

3 SMOOTHING FILTER

DERIVED FROM LOCAL

GEODESIC TIME ON

GRADIENT MAGNITUDE

In many adaptive smoothing techniques, a way to cir-

cumvent mixing the values from different populations

is to introduce a similarity measure between the pix-

els of the image. We observe in particular that calcu-

lating the tonal weight in bilateral ﬁltering (Tomasi

and Manduchi, 1998) implicitly introduces an esti-

mate of the local gradient between neighbouring val-

ues, then using this estimate to weight the respective

measurements. Accordingly, we propose to combine

both spatial and tonal information into a single simi-

larity measure by estimating locally the geodesic time

A reason why we do not use the term ’distance’ for de-

signing this geodesic function is precisely Eq. (3): indeed,

it appears possible for the cost c

to be null between two

adjacent pixels.

with the magnitude of the spatial gradient of the im-

age as the geodesic mask. A related concept was de-

scribed in (Sumengen et al., 2006) within the continu-

ous framework of the eikonal equation for image seg-

mentation. The underlying idea is that the geodesic

paths associated to this function deﬁne the intrin-

sic neighbourhood relationship between the sample

points when the 2D image is projected onto the 3D

spatial-tonal domain (the ’height map’ described ear-

lier).

The values of the magnitude of the spatial gra-

dient |∇ f | of the image f are regarded as the cost

of crossing a pixel. By replacing the function g

by |∇ f | in Eq. (3), it implies that the time neces-

sary to travel between two pixels separated by high

gradient values is higher than the time necessary to

travel between two pixels separated by low gradient

values. In the case of multivalued image, the cal-

culation of the geodesic time must however be con-

sidered carefully, either processing channel by chan-

nel (i.e. calculating local gradient and local geodesic

time separately for each band), or processing si-

multaneously the information provided by the dif-

ferent channels of the image (i.e. using an estima-

tion of the local multispectral gradient). The ma-

jor advantage of the second approach is that it is

taking into account the actual multispectral edge in-

formation, so further smoothing will be more efﬁ-

cient along edges, and, thus, edges will be better pre-

served. A way to estimate the gradient magnitude

of a multichannel image f with components f

,n =

1,...,N is by means of the eigenvalue analysis of

the image squared differential proposed in (Di Zenzo,

1986), expressed by the so-called 2 ×2 matrix called

ﬁrst fundamental form (Scheunders and Sijbers,

2001):

∑

(

∂ f

∂x

)

∂ f

∂x

∂ f

∂y

;

∑

∂ f

∂x

∂ f

∂y

∑

(

∂ f

∂y

)

. The

direction of maximal and minimal change are given

by the eigenvectors of this matrix while the corre-

sponding (positive) eigenvalues λ

≥ λ

denote the

rate of change. In particular, for greylevel images

(N = 1), it is veriﬁed (Scheunders and Sijbers, 2001)

that the largest eigenvalue is given by the squared

gradient magnitude: λ

= |∇ f |

and the correspond-

ing eigenvector lies in the direction of the gradient.

Therefore, taking into account these observations, we

select the locally deﬁned function λ

(or indifferently

√

) as the natural estimate for the gradient magni-

tude of the image

For each pixel x, the similarity measure to all

other pixels in its neighbourhood can then be com-

is naturally used as being the derivative energy in the

most prominent direction, but other measure can be consid-

ered, e.g., λ

−λ

which is similar to λ

corrected for the

energy contributed by noise (Sapiro and Ringach, 1996).

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

puted as a (monotonically) decreasing function K of

the geodesic time τ

(x,·) from x within the geodesic

mask g(x) = λ

(x). Classically, a Gaussian func-

tion G

with standard deviation σ will provide desir-

able results:

K (x, y) = G

(τ

(x,y)) = exp {

(s)ds

} (4)

but other kernels are not excluded. We can ﬁnally

perform a weighted average of local samples by ap-

plying Eq. (1) with this kernel (ﬁgure 1, top). This

way, the effective sampling procedure of the pixels y

used for estimating the value of the central pixel x

is adapted locally to image features such as edges.

Indeed, larger weight should be assigned to pixels y

that involve low gradient values along the minimal

geodesic paths from x, and vice versa. In particu-

lar, luminance values from across a sharp feature are

given less weight because they are penalised by the

time on the gradient magnitude. In practise, due to

memory and computational limitations, the support

of K is limited to a ﬁxed size, i.e. sample pixels y that

are further away (in the spatial domain) than a ﬁxed

distance ω (e.g. given by an analysing window Ω)

to the central pixel x are not considered. Moreover,

we introduce a parameter α which controls the global

strength of the smoothing: the geodesic mask is re-

ﬁned and replaced by g(x) = α ·λ

(x). When α in-

creases, the geodesic time on the embedded surface

becomes more sensitive to image deformations: the

cost of crossing a pixel increases. α controls the rela-

tive inﬂuences of tone and space in the calculation of

the similarity measure of neighbour pixels.

Algorithms based on priority queue data struc-

tures (Soille, 1994b), implementing Dijkstra algo-

rithm, enable an efﬁcient implementation of the lo-

cal geodesic time with a computational complexity of

O(ω

logω

) (Ikonen, 2007). They take advantage of

the fact that the analysing windows Ω are ﬁnite and

totally ordered, and they guarantee that pixels that ef-

fectively contribute to the output are processed only

once. Thus, running the algorithm calculating the lo-

cal geodesic time from each pixel in the image results

in a total complexity of O(w ·h ·ω

logω

) where w

and h are respectively the width and the height of the

input image.

4 DENOISING FILTER DERIVED

FROM LOCAL GEODESIC

TIME ON IMAGE VARIATIONS

It is well-known that discontinuities in an image likely

correspond to important features. However, noise cor-

ruption can generate discontinuities as well. There-

fore, how to measure signiﬁcant discontinuities is a

nontrivial problem. In particular, spatial gradient is

known to be quite sensitive to noise. Owing to over-

locality, it is inadequate to detect signiﬁcant discon-

tinuities from a noisy image, which usually causes

adaptive smoothing algorithm based on gradient in-

formation to yield poor results. To tackle this prob-

lem, measures of higher order differentiations have

been proposed (Nitzberg and Shiota, 1992). How-

ever, these techniques involve higher computational

complexity since usually, in those approaches, a dis-

continuity measure has to be used in each iteration of

adaptive smoothing.

In order to have both a strong denoising effect and

a sharper image, we deﬁne a geodesic time that ac-

counts for both the distance between pixels and the

roughness of the ’height map’, i.e. a measure of the

shortest path drawn on the projection of the 2D image

onto the spatial-tonal domain. For this purpose, we

express the geodesic time in the continuous case by:

(P ) =

dg(s)

|ds . (5)

so that the cost c

of crossing pixels becomes:

|g(x

) −g(x

i+1

)|·|x

−x

i+1

| (6)

with the distance |x

−x

i+1

| deﬁned as before. The

similarity measure is then estimated by setting the

geodesic mask to the input noisy image: g(x) = f .

This deﬁnition derives from the so-called weighted

distance on curves space of (Ikonen and Toivanen,

2007), where the multiplication in Eq. (6) is replaced

by an addition. Its intuitive interpretation is that it rep-

resents the minimal amount of ascents and descents

to be travelled to reach a neighbouring pixel. This

notion also expresses a similar geometric notion as

the path variation deﬁned in (Arbel

aez and Cohen,

2003). Note that in fact the geodesic mask associ-

ated to the time τ

(P ) of Eq. (5) is constantly updated

through the propagation of the geodesic time (Ikonen

and Toivanen, 2007; Ikonen, 2007). For multichan-

nel images f , the norm in Eq. (6) must be under-

stood as a multispectral norm, e.g the L

∞

norm on

the different channels; in such case, we have, when

estimating the minimal path, |g(x

) −g(x

i+1

)| ≤ t if

and only if |f

)− f

i+1

)|≤t for all n = 1,..., N.

As a consequence, this approach depends, like bilat-

eral ﬁltering (ﬁgure 1, bottom right) and contrary to

the one presented in the previous section, on the di-

mension of the tonal space. Whereas the formulation

with Eq. (2) was going through the lowest values of

the spatial gradient (the mask being deﬁned as a func-

tion g(x) ∼ |∇(x)|), the geodesic time deﬁned with

EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED ON GEODESIC TIME FUNCTIONS

Eq. (5) (and g(x) ∼ f (x)) minimises the changes in lu-

minance values. Image denoising is ﬁnally performed

using a kernel like Eq. (4), and introducing similarly a

multiplicative control parameter α on the smoothing

(ﬁgure 1, bottom left).

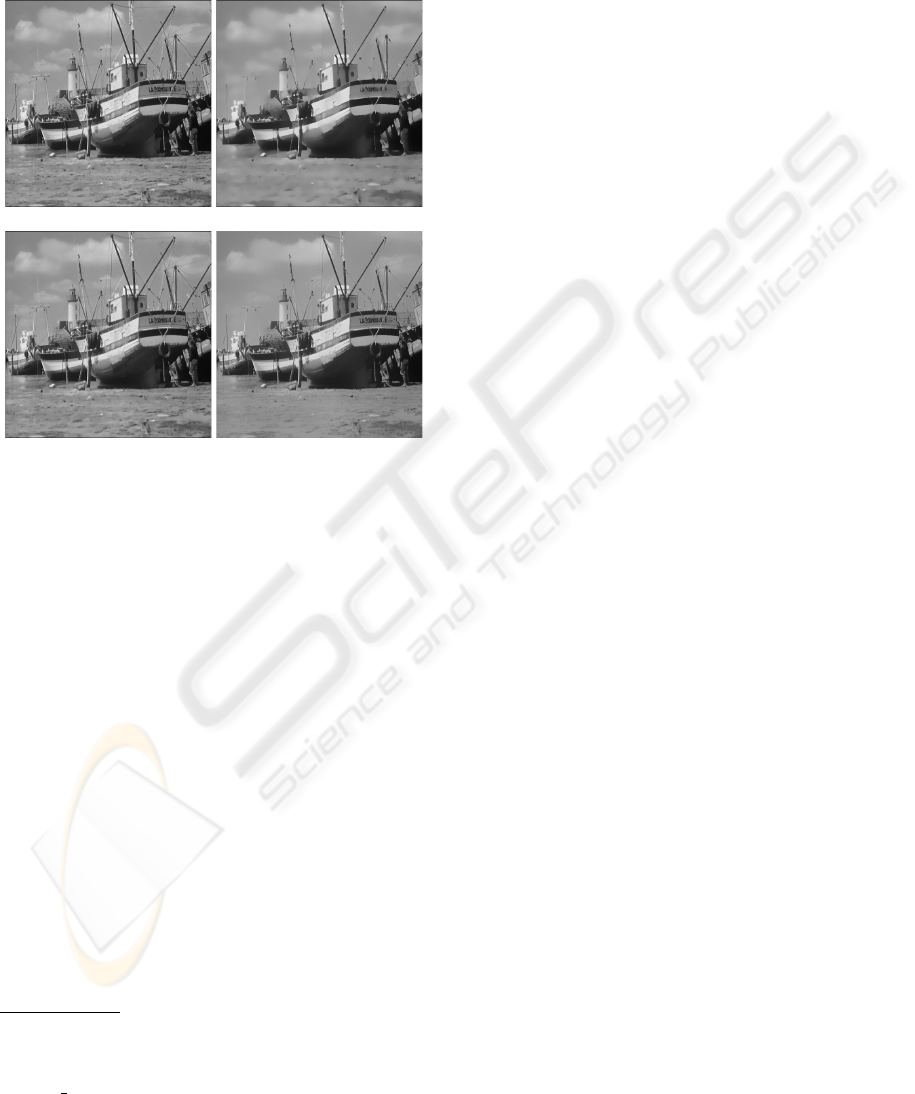

Figure 1: Results of smoothing applied on the image of the

boat La Cornouaille. Top: smoothing using the ﬁlter based

on the magnitude of the gradient as described in section 3

with a control parameter α = 20 (left, soft smoothing effect)

and α = 5 (right, strong smoothing). Bottom: smoothing

using the ﬁlter described in section 4 based on the image

variations with α = 20 (left) and the output of some bilateral

ﬁltering (right). For both ’geodesic’ ﬁlters, the parameters

σ = 1 and ω = 21 were ﬁxed.

5 EXPERIMENTS AND

COMPARISON WITH OTHER

TECHNIQUES

We show in this section the results of the new pro-

posed algorithms applied on different types of im-

ages

: greylevel or multispectral, displaying different

typical features: texture, edges or noise. Depending

on the input data and the ﬁnal purpose, we choose to

employ one of the two approaches: smoothing and

image simpliﬁcation with the algorithm described in

section 3, denoising with the algorithm of section 4.

Consult the online USC database http://sipi.usc.

edu/database/database.cgi?volume=misc and the web-

page http://homepages.inf.ed.ac.uk/rbf/CVonline/

LOCAL COPIES/GOMEZ1/results.html of (Gomez,

2000) for the original sample images.

Both ﬁltering techniques result in visually satis-

fying smoothed versions of the original images (ﬁg-

ure 1). Indeed, the generic approach enables to

conserve features through the combined spatial and

tonal actions represented in the similarity measure

based on the geodesic time functions. Both ﬁlters

nicely smooth homogeneous areas while preserving

important structures such as the boundaries of ob-

jects. Close inspection to the images also shows they

are good at enhancing subtle texture regions and they

suppress small elements corresponding to the main

heterogeneity (ﬁgure 2). The image structures are

not geometrically damaged, what might be fatal for

further processing like classiﬁcation or segmentation.

Indeed, it creates homogeneous regions instead of

points or pixels as carriers of features which should be

introduced in further processing stages. The amount

of smoothing can be controlled by the parameter α

(ﬁgure 2(a)). With a small α value, the estimated

image will be much smoother so that details have

been sacriﬁced to the effect of denoising, producing

a gaussian-like blurring effect. High values of α pre-

serve almost all contrasts, and thus lead to ﬁlters with

little effect on the image. For intermediate values of

α, the ﬁltering procedures result in a diffusion ef-

fect, amplifying or attenuating the given local con-

trast in parts of an image. The ﬁlter based on gra-

dient’s magnitude show higher capability at blurring

small discontinuities and sharpening edges when ap-

plied on noise-free images (ﬁgure 2(b)), whereas the

ﬁlter based on image variations performs better when

dealing with noisy images (ﬁgure 3). The intrinsic

dependence of the latter ﬁlter on the luminance dif-

ferences allows one to give less inﬂuence to outlier

pixels when denoising (suppressing peaks in lumi-

nance distribution). A possible improvement when

smoothing an image also regards the input central

pixel value f (x). As underlined in (van den Boom-

gaard and van de Weijer, 2002), using this value as

the ’reference’ for the estimation of the local geodesic

time assumes that it is more or less noise free. This

is naturally a questionable assumption when building

a noise suppression ﬁlter and may have effect on the

result. Following the authors’ suggestion we could re-

place the central pixel’s value with some estimate of

the true value, e.g. the median value in an window of

size 3 ×3.

As discussed in the introduction (section 1), the

bilateral ﬁlter of (Tomasi and Manduchi, 1998) uses,

as a simple and intuitive choice of the adaptive ker-

nel, separate terms for penalising the spatial and tonal

distances. In practise, Gaussian inﬂuence weight-

ing functions are used. Our ﬁlters and the bilat-

eral one result in very similar smoothed images (ﬁg-

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

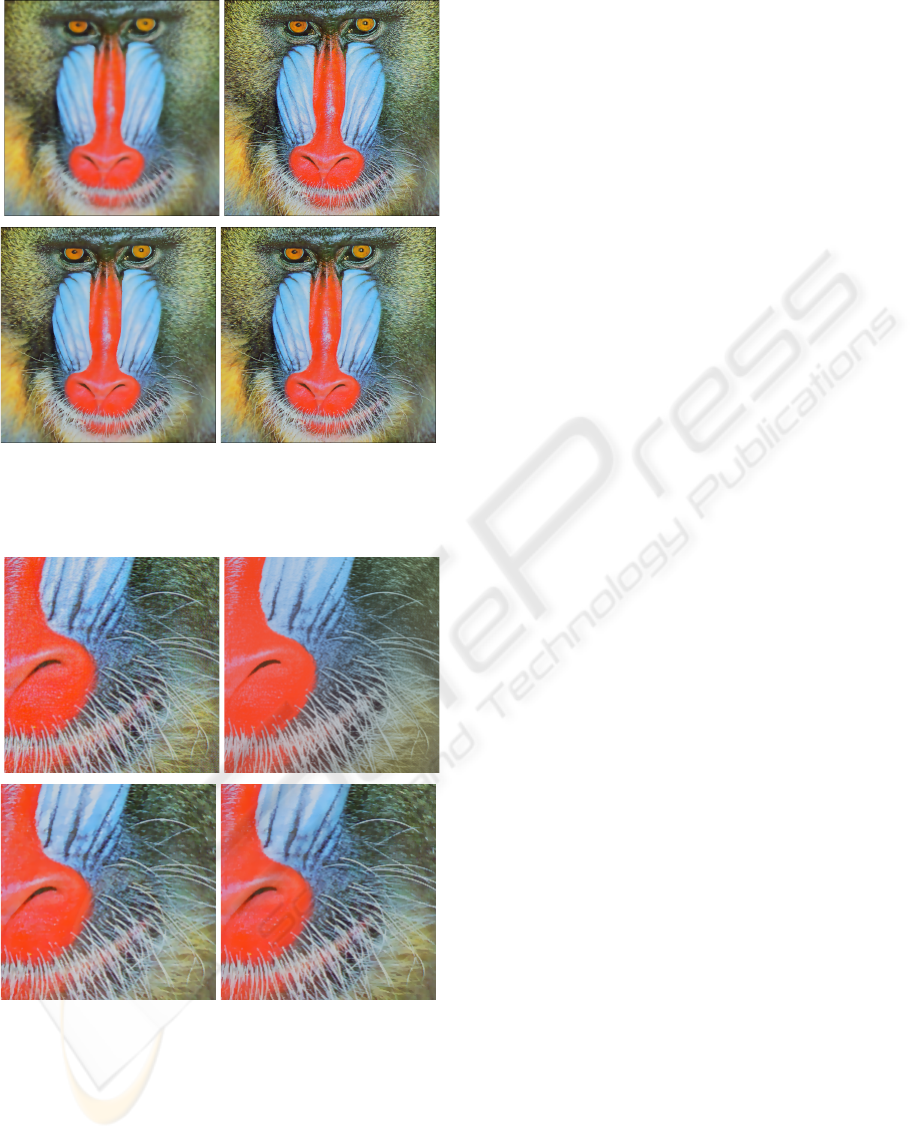

(a) Inﬂuence of the control parameter α on the ’geodesic’

ﬁlters, resp. based on the gradient’s magnitude (ﬁrst row,

with α = 1 and α = 20), and on image variations (second row,

with α = 5 and α = 10); the parameters σ = 1 and ω = 11 were

ﬁxed.

(b) Outputs of smoothing performed on a detail of the man-

drill (top left) with some bilateral ﬁlter (top right) and the

ﬁlters based resp. on the gradient’s magnitude (bottom left)

and image variations (bottom right); the parameters for both

’geodesic’ ﬁlters are α = 10, ω = 11 and σ = 1.

Figure 2: Smoothing applied to the mandrill image.

ure 2(b)). However, breaking the ﬁltering kernel into

spatial and tonal terms weakens the estimator perfor-

mance since it limits the degrees of freedom and ig-

nores correlations between the positions of the pixels

and their values. Using a twofold similarity measure

like the geodesic time, deﬁned on either the spatial

gradient or the image variation, enables to account

for these correlations. A smoothing technique de-

scribed in (Gomez, 2000) is based on adaptive Gaus-

sian ﬁlters. It adjusts locally the smoothing scale

(i.e. the standard deviation of the Gaussian kernel)

in a scale-space framework, through a minimal de-

scription length criterion. This way, the resulting

smoothed data values intuitively share, at every loca-

tion, a similar signal-to-noise ratio. Likewise the ap-

proach described in section 4, it is not based on partial

derivatives. However, this approach results in blurred

images when used for denoising (ﬁgure 3). Compared

to iterative schemes like anisotropic diffusion (Perona

and Malik, 1990), our approach is a non-iterative es-

timation technique, which makes it more efﬁcient and

more stable (ﬁgure 3).

6 CONCLUSIONS

In this paper, we explore the use of geodesic time

functions for edge-preserving smoothing of natural

images. The basic idea is similar to that of spatial-

tonal ﬁltering approaches, which consist in employ-

ing both geometric and luminance closeness of neigh-

bouring pixels. The originality of the approach we

propose lies in the deﬁnition of a new similarity mea-

sure combining both spatial and tonal information

and based on the local estimation of some geodesic

time functions. We show that, by designing relevant

geodesic masks, we can deﬁne new smoothing ﬁlters

enable at simplifying and/or denoising images, de-

pending on the input data and on the target purpose.

Finally, the proposed techniques show good results in

different situations and images, where they were able

to preserve the main structures, such as edges and

textures, while smoothing other homogeneous parts.

Likewise other spatial-tonal based techniques, the de-

gree of smoothing in the image can also be controlled

in order to adjust the ﬁdelity to the original image.

Current research is geared towards improving and

extending the present work. Improvements regard

mainly the parameters’ selection. There is in particu-

lar an issue regarding the spatial extent of the window

used for estimating the local geodesic time functions.

In this paper, we used a ﬁnite spatial window Ω with

size ω for limiting the calculations. An alternative

approach would be to limit the weighting average to

the sample pixels reached from the central pixel with

a time inferior to a given threshold value. This way,

it would be possible to determine when the neighbour

EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED ON GEODESIC TIME FUNCTIONS

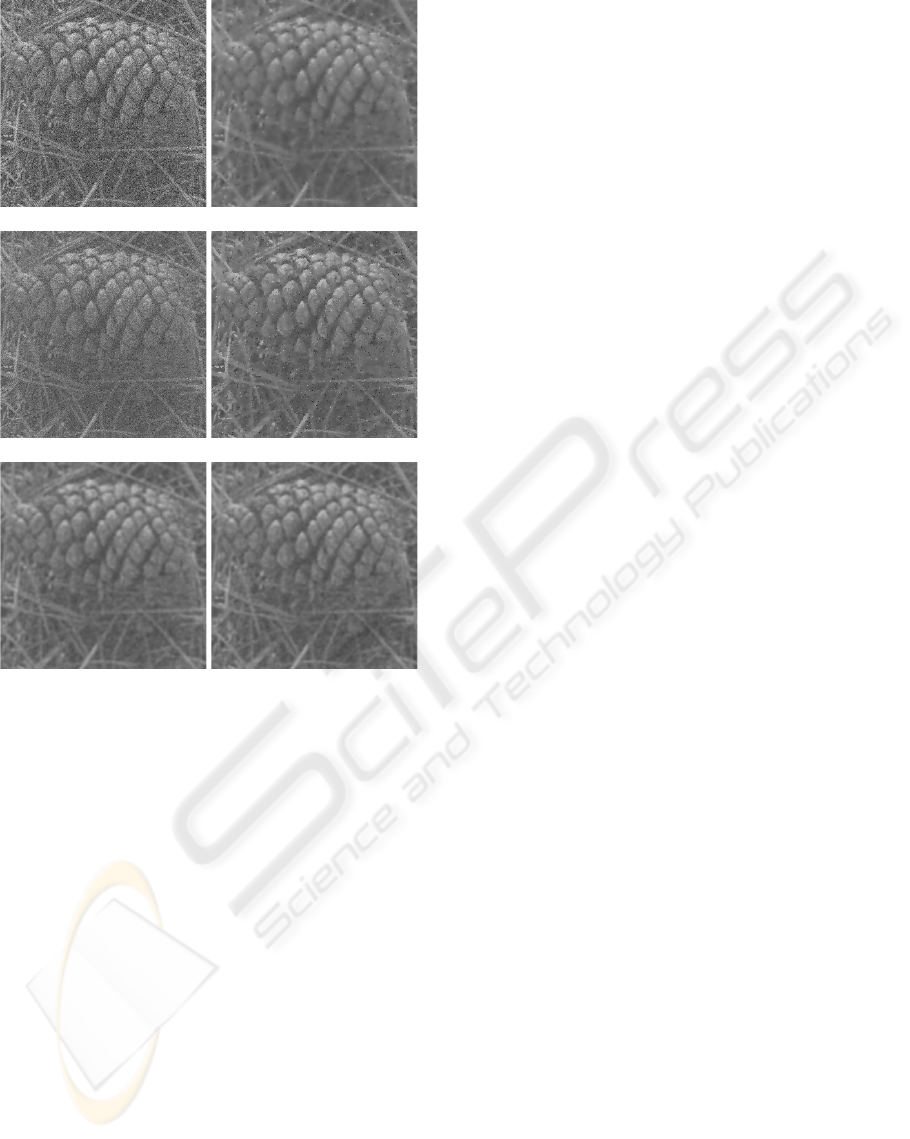

Figure 3: The results of smoothing of the pine cone im-

age corrupted with Gaussian noise (detail, top left) are dis-

played, in this order, for: the method of (Gomez, 2000),

some bilateral ﬁlter according to (Tomasi and Manduchi,

1998), anisotropic diffusion following (Perona and Malik,

1990) and the ’geodesic’ ﬁlters based on gradient magni-

tude and image variations.

pixels must be considered as outliers. The selection of

the smoothing control parameter α should also be in-

vestigated. Another issue regards directly the estima-

tion of the local geodesic time: the calculation could

be reﬁned by normalising locally the local cost of

pixel crossing, i.e. considering c

/max {c

| x

∈ Ω}

in the geodesic propagation instead of c

currently. A

natural extension to our approach is to consider me-

dian ﬁltering instead of weighted averaging of the pix-

els in local neighbourhoods. Selecting the (weighted)

median rather than the mean helps to prevent outlier

pixels from unduly distorting the result.

We believe that the proposed techniques are of

particular interest for ﬁltering data for which a dis-

crete approach should be adopted, instead of a contin-

uous one, in order to avoid creating spurious artifacts

through diffusion-like processes. We foresee in par-

ticular potential applications in the ﬁelds of medical

imaging and remote sensing.

REFERENCES

Arbel

aez, P. and Cohen, L. (2003). Path variation and image

segmentation. In Proc. of EMMCVPR, volume 2683

of LNCS, pages 246–260. Springer.

Barash, D. (2002). A fundamental relationship between bi-

lateral ﬁltering, adaptive smoothing and the nonlinear

diffusion equation. IEEE Trans. Patt. Ana. Mach. In-

tel., 24(6):844–847.

Borgefors, G. (1986). Distance transformations in digital

images. Comp. Vis. Graph. Im. Proc., 34:344–371.

Brownrigg, D. (1984). The weighted median ﬁlter. Comm.

of ACM, 27(8):807–818.

Cohen, L. and Kimmel, R. (1997). Global minimum for

active contour models: a minimal path approach. Int.

J. Comp. Vis., 24:57–78.

Comaniciu, D. and Meer, P. (2002). Mean shift: a robust

approach toward feature space analysis. IEEE Trans.

Patt. Ana. Mach. Intel., 24(5):603–619.

Di Zenzo, S. (1986). A note on the gradient of a multi-

image. Comp. Vis. Graph. Im. Proc., 33:116–125.

Gomez, G. (2000). Local smoothness in terms of variance.

In Proc. of BMVC, volume 2, pages 815–824.

Grazzini, J., Turiel, A., Yahia, H., and Herlin, I. (2004).

Edge-preserving smoothing of high-resolution images

with a partial multifractal reconstruction scheme. In

Proc. of ISPRS, pages 1125–1129.

Ikonen, L. (2007). Priority pixel queue algorithm for

geodesic distance transforms. Im. Vis. Comp.,

25:1520–1529.

Ikonen, L. and Toivanen, P. (2007). Distance and near-

est neighbor transforms on gray-level surfaces. Patt.

Recogn. Lett., 28:604–612.

ahne, B. (1997). Digital Image Processing: Concepts, Al-

gorithms and Scientiﬁc Applications. Springer-Verlag.

edition.

Lantu

ejoul, C. and Maisonneuve, F. (1984). Geodesic meth-

ods in image analysis. Patt. Recogn., 17:177–187.

Levi, G. and Montanari, U. (1970). A grey-weighted skele-

ton. Inform. Cont., 17:62–91.

azek, P., J. Weickert, J., and Bruhn, A. (2006). On robust

estimation and smoothing with spatial and tonal ker-

nels. In Klette, R., Kozera, R., Noakes, L., and Weick-

ert, J., editors, Geometric Properties from Incomplete

Data, pages 335–352. Springer.

Narendra, P. (1981). A separable median ﬁlter for image

noise smoothing. IEEE Trans. Patt. Ana. Mach. Intel.,

3(1):20–29.

Nitzberg, M. and Shiota, T. (1992). Nonlinear image ﬁlter-

ing with edge and corner enhancement. IEEE Trans.

Patt. Ana. Mach. Intel., 14(8):826–833.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

Perona, P. and Malik, J. (1990). Scale space and edge de-

tection using anisotropic diffusion. IEEE Trans. Patt.

Ana. Mach. Intel., 12:629–639.

Saint-Marc, P. Chen, J. and Medioni, G. (1991). Adap-

tive smoothing: A general tool for early vision. IEEE

Trans. Patt. Ana. Mach. Intel., 13:514–529.

Sapiro, G. and Ringach, D. (1996). Anisotropic diffusion

of multivalued images with applications to color ﬁl-

tering. IEEE Trans. Im. Proc., 5(11):15–82.

Scheunders, P. and Sijbers, J. (2001). Multiscale anisotropic

ﬁltering of color images. In Proc. of IEEE ICIP, vol-

ume 3, pages 170–173.

Soille, P. (1994a). Generalized geodesic distances applied

to interpolation and shape description. In Serra, J.

and Soille, P., editors, Mathematical Morphology and

its Applications to Image Processing, pages 193–200.

Kluwer Academic Publishers.

Soille, P. (1994b). Generalized geodesy via geodesic time.

Patt. Recogn. Lett., 15(12):1235–1240.

Soille, P. (2004). Morphological Image Analysis: Princi-

ples and Applications. Springer-Verlag.

Soille, P. and Grazzini, J. (2007). Extraction of river net-

works from satellite images by combining mathemati-

cal morphology and hydrology. In Proc. of CAIP, vol-

ume 4673 of LNCS, pages 636–644. Springer-Verlag.

Sumengen, B., Bertelli, L., and Manjunath, B. (2006). Fast

and adaptive pairwise similarities for graph cuts-based

image segmentation. In Proc. of IEEE POCV.

Takeda, H., Farsiu, S., and Milanfar, P. (2007). Kernel

regression for image processing and reconstruction.

IEEE Trans. Im. Proc., 16(2):349–366.

Tomasi, C. and Manduchi, R. (1998). Bilateral ﬁltering for

gray and color images. In Proc. of ICCV, pages 839–

846.

van den Boomgaard, R. and van de Weijer, J. (2002). On the

equivalence of local-mode ﬁnding, robust estimation

and mean-shift analysis as used in early vision tasks.

In Proc. of ICPR, volume 3, pages 927–930.

van den Boomgaard, R. and van de Weijer, J. (2003). Lin-

ear and robust estimation of local image structure. In

Proc. of Scale-Space, volume 2695 of LNCS, pages

237–254. Springer.

Verwer, B., Verbeek, P., and Dekker, S. (1989). An efﬁcient

uniform cost algorithm applied to distance transforms.

IEEE Trans. Patt. Ana. Mach. Intel., 11(4):425–429.

Winkler, G., Aurich, V., Hahn, K., and Martin, A.

(1999). Noise reduction in images: some recent edge-

preserving methods. Patt. Recogn. Im. Ana., 9(4):749–

766.

EDGE-PRESERVING SMOOTHING OF NATURAL IMAGES BASED ON GEODESIC TIME FUNCTIONS
