IMAGE RE-SEGMENTATION

A New Approach Applied to Urban Imagery

Thales Sehn Korting, Leila Maria Garcia Fonseca, Luciano Vieira Dutra and Felipe Castro da Silva

National Institute for Space Research (INPE), Av. dos Astronautas, 1758 – São José dos Campos, Brazil

Keywords:

Graph Based Segmentation, Re-Segmentation, Urban Imagery, Remote Sensing.

Abstract:

This article presents a new approach for image segmentation applied to urban imagery. The proposed method

is called re-segmentation because it uses a previous over-segmented image as input to generate a new set of

objects more adequate to the application of interest. For urban objects such as roofs, building and roads,

the algorithm tries to generate rectangular objects by merging and cutting operations in a weighted Region

Adjacency Graph. Objects whose union generate larger regular objects are merged or otherwise cut. In order

to verify the potential of the method, two experimental results using Quickbird images are presented.

1 INTRODUCTION

Segmentation is an important operation in various

image processing and computer vision applications,

since it represents the ﬁrst step of low-level process-

ing of an image. Many approaches have been pro-

posed in the literature (Lucchese and Mitra, 2001).

However, just some of them have been applied to ur-

ban scenes, although most of them do not take into

account the object shape information.

(Chen et al., 2006) deﬁne segmentation as parti-

tioning of an image into a subset of fairly homoge-

neous closed cells. Here we refer to “closed cells”

as regions or objects. Each region must have its own

characteristics such as spectral variability, shape, tex-

ture, and context, which can be distinguished from its

adjacent neighbors. Several algorithms use mainly the

region spectral properties to segment an image. More

elaborated approaches also deal with contextual and

multiscale segmentation (Baatz and Schäpe, 2000).

The details in a high resolution image holds its

spectral variability and may decrease the segmenta-

tion accuracy when traditional segmentation methods

are used. In urban scenes, one can observe that regu-

lar shapes such as rectangles can efﬁciently represent

the structure of a street, or a roof, for instance.

Therefore, this paper aims to present a novel ap-

proach for high resolution image segmentation. The

proposed methodology takes into account shape at-

tributes besides the spectral ones to produce more ac-

curate segmentation.

This paper is organized as follows. Section

2 presents a brief segmentation review focusing to

graph-based approaches and some aspects related to

urban imagery. Section 3 presents the proposed

method nemed re-segmentation. We also describe

how to build a Region Adjacency Graph and discuss

the procedure to ﬁnd regular shapes on it. Finally,

some results and conclusion are shown in Section 4

and Section 5, respectively.

2 SEGMENTATION BASED ON

GRAPH

The proposed segmentation method is called re-

segmentation because its input is a previously over-

segmented image and a merging strategy is applied

to generate a new regions set. Methods such as wa-

tershed (Duarte et al., 2006; Felzenszwalb and Hut-

tenlocher, 2004; Tremeau and Colantoni, 2000) and

region growing (Bins et al., 1996) can be used to pro-

duce the input segmentation. Spectral properties of

the regions are also input data and each region can be

connected to its neighbors when succeeding topologi-

cal operation “touch” (Egenhofer and Franzosa, 1991)

is applied. Such connections are stored in an undi-

rected graph and the distance between the nodes, also

called weights, is deﬁned by the difference of their

attributes.

Subsequently, a graph processing stage is per-

formed. Connected regions are merged when their at-

467

Sehn Korting T., Garcia Fonseca L., Vieira Dutra L. and Castro da Silva F. (2008).

IMAGE RE-SEGMENTATION - A New Approach Applied to Urban Imagery.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 467-472

DOI: 10.5220/0001088104670472

 SciTePress

tribute values are similar. The graph is built in a struc-

ture called Region Adjacency Graph (RAG) (Schet-

tini, 1993). The strategy used to join the nodes is

the principal characteristic of our re-segmentation ap-

proach, discussed with more detail in Section 3.

2.1 Region Adjacency Graph

A Region Adjacency Graph is a data structure which

provides spatial view of an image. One way to un-

derstand the RAG structure is to associate a vertex at

each region and an edge at each pair of adjacent re-

gions (Tremeau and Colantoni, 2000). Figure 1 de-

picts a simple RAG of a synthetic image.

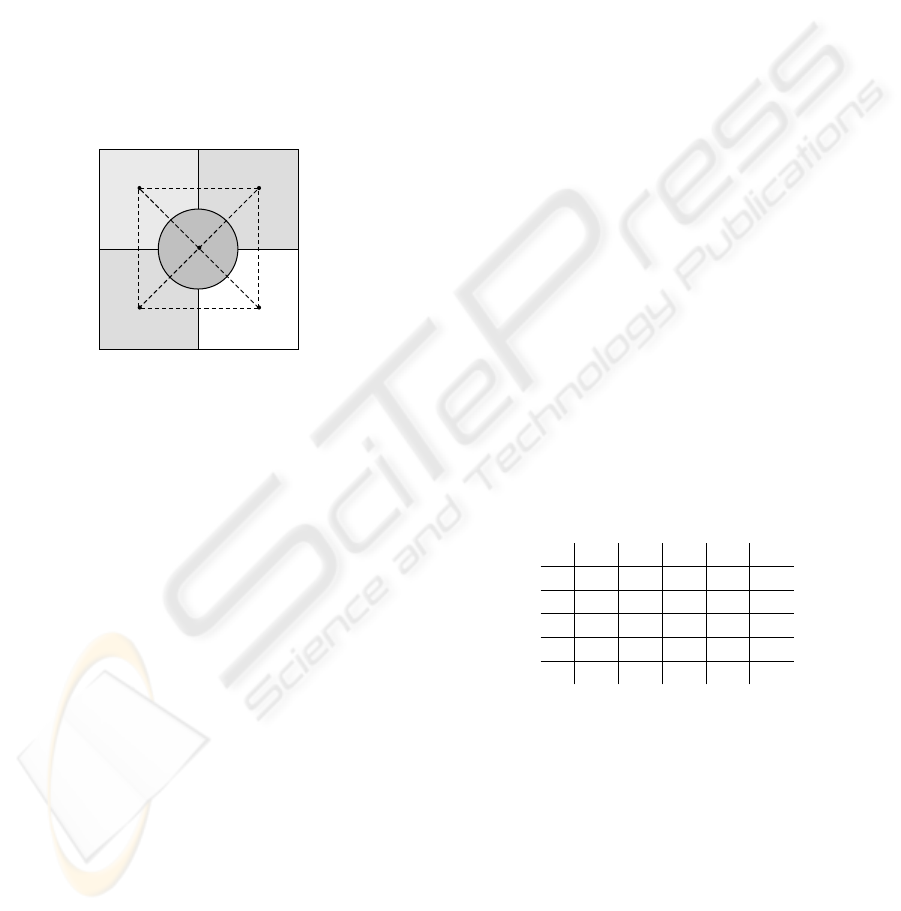

Figure 1: RAG example – Image with 5 regions and their

connections.

The RAG can be covered, merged, and partitioned

in different manners in accord with the expected re-

sults. For example, (Tremeau and Colantoni, 2000)

cover the graph and join a regions set (or vertices) if

its spectral distance is enough small. In this case, the

graph weights correspond to each region mean value.

(Duarte et al., 2006) use the so called hierarchical so-

cial metaheuristic for the merging operation, which is

based on human social behavior. First of all, the re-

gions are joined in a randomly way generating a set of

solutions controlled by groups of objective functions.

Iteratively, each group tries to improve its objective in

a cooperative fashion or competing with the neighbor

groups. The ambivalence between social cooperation

and competition aims to maximize the quality of the

results.

In the other hand, (Lezoray et al., 2003) apply a

preprocessing stage to smooth the RAG at each region

before merging similar regions. This stage is iterated

until the RAG satisﬁes some stop criterion such as the

number of iterations or some similarity threshold. Us-

ing a nonlinear function, they perform smoothing op-

eration over the iterations taking into account the re-

gions spectral attributes and connected region neigh-

bors.

Here, we propose a new merging strategy in the

RAG structure. The regions are merged if they are

similar in respect to their spectral attributes (e.g.

mean and variance) and if the resultant shape (after

merging operation) is regular. In order to carry out

this task, ﬁrstly, the regions are divided taking into

account their classes. In case of urban environment,

the classes can be buildings, streets, and trees. There-

fore, the regions are classiﬁed and several RAG are

built through connecting adjacent regions which be-

long to the same class. Afterward, the algorithm per-

form the graph searching and merging operations for

every classes. The knowledge about the class im-

proves the segmentation accuracy because each class

has speciﬁc shape regularity measure.

2.2 RAG Construction

Let be an image I and a group of M regions, P

, i =

1, . . . M, with

= I. Let be a graph, G =< V, E >,

where V = {1, . . . M} is the set of nodes and E ⊂

V × V is the set of edges or links between adjacent

regions. In the graph notation, each region P

matches

one vertex so that P

= V

, i = 1, . . . M.

Each region is a vertex V

. Adjacent regions have

the weights deﬁned by some spectral distance mea-

sure. Table 1 depicts the graph generated from Figure

1. Here, the weights are given by the mean differ-

ences between connected nodes. Weights denoted by

-1 means that there is not topological connection be-

tween the nodes.

Table 1: Graph generated from Figure 1.

1 2 3 4 5

1 0 20 30 30 -1

2 20 0 40 -1 20

3 30 40 0 60 30

4 30 -1 60 0 30

5 -1 20 30 30 0

3 RE-SEGMENTATION

APPROACH

The proposed re-segmentation approach is based on

the RAG construction. The graph is built taking into

account the topological relation “touch” between the

regions of same class. Therefore, if two regions are

connected, i.e. touch each other, they are candi-

date to be graph nodes. In order to perform the re-

segmentation the RAGs are preprocessed. This pre-

processing stage includes the procedure to ﬁnd the

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

468

graph minimal-cost paths. However, it is necessary

to know the class of each region. If urban objects

samples (trees, roads, buildings) are provided the al-

gorithm can treat them conform with their own prop-

erties. Another important parameter is the object reg-

ularity used to merge the regions. For instance, roads

and trees can be assigned to rectangular and irregular

shapes, respectively, in the merging operation.

Figure 2 shows the diagram of our re-

segmentation approach. Based on input patterns, as

those shown in Figure 3, it is possible to deﬁne differ-

ent strategies to merge the regions. Our objective is to

merge regions so that new larger regular objects are

obtained. For objects with irregular shapes, similar

regions are merged based on previous classiﬁcation

and their spectral attributes. The process ﬁnishes

when there is no more regions to merge.

Regions

Images

RAG's

Construction

Pattern

Classification

Patterns

Graph

Regions?

a priori

Knowledge

Resultant

Regions

yes

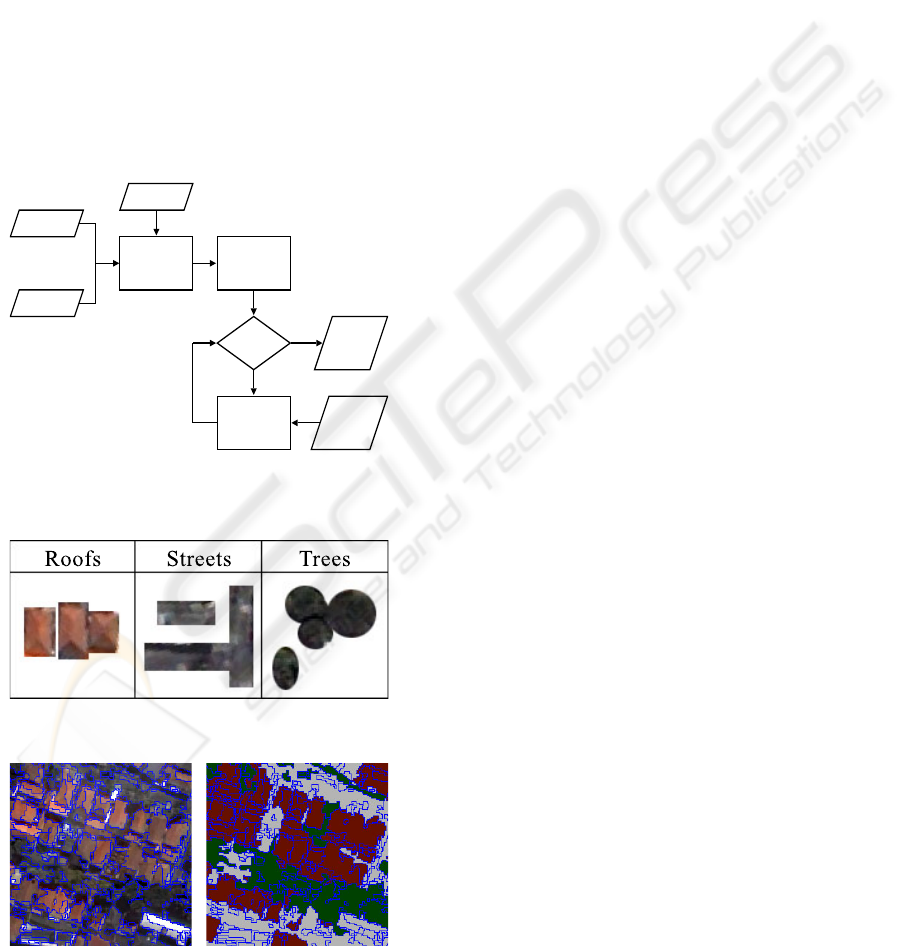

Figure 2: The re-segmentation diagram.

TreesStreetsRoofs

Figure 3: Input Patterns.

(a) (b)

Figure 4: Pattern classiﬁcation: a) input regions, b) classi-

ﬁed regions.

3.1 Pattern Classiﬁcation

The pattern classiﬁcation procedure is a very impor-

tant task in our approach. It reduces the attribute

space and allows the algorithm to work with few data

in the process of ﬁnding out regular shapes. In this

stage, similar regions are merged for further process-

ing.

Firstly, a supervised classiﬁcation is performed in

order to classify the regions in accord with their pat-

tern. Figure 4 presents a resultant classiﬁcation using

the Self Organizing Maps (Kohonen, 2001) and the

three classes depicted in the Figure 3. After the clas-

siﬁcation, the RAGs are built by connecting adjacent

regions belonging to the same class. Finally, the next

stage tries to ﬁnd the best way to connect the graphs,

to cut or merge the nodes so that the resultant regions

have better shape regularity.

3.2 Minimun-Cost Path

Several scientiﬁc problems related to connected el-

ements can be associated to the general problem of

ﬁnding a path through a graph (Hart et al., 1968). It

provides a structure whose nodes are connected to one

or more neighboring regions.

Several algorithms to ﬁnd the minimum-cost path

in a RAG have been proposed in the literature (Falcão

et al., 2004; Shi and Malik, 2000). A minimum-cost

path is a set of edges that connects all nodes in a graph

without cycles. As this graph connects all regions be-

longed to the same class, a minimum-cost path repre-

sents the best way to ﬁnd the cuts.

Regarding the urban imagery, the graph edges rep-

resent the regularity measures of the regions obtained

by the union of two or more sub-regions. The prob-

lem is to ﬁnd out which regions must be merged or

not. Next section, we will discuss about the param-

eter Q that indicates how rectangular a region is, in-

dependently of rotation and scale. The objective is

to merge regions to generate new objects with shapes

more appropriate to urban objects.

The following algorithm summarizes the pro-

posed approach shown in Figure 2:

Get input over-segmented images;

Classify the regions (identify the

classes);

Build RAGs for adjacent objects of same class;

For each RAG, find the best merging arrangement:

| Find minimal-cost path;

| Calculate regularity measure;

| Perform path cuts;

| Merge connected nodes;

Return resultant regions.

IMAGE RE-SEGMENTATION - A New Approach Applied to Urban Imagery

469

3.3 Rectangular Objects Generation

Some good examples of rectangular regions for urban

imagery are roofs and streets. However, in some cases

the segmented objects do not preserve such rectangu-

lar shape; they are broken apart into smaller irregu-

lar objects. Therefore, our aim is to join such over-

segmented regions.

In order to identify the object rectangularity de-

gree we calculate the ratio between its area AREA(P

)

and its bounding box area AREA(BOX (P

)). Due

to the rotation, this measure can not correctly repre-

sent the object regularity. Thus, a preprocessing step

is performed in order to transform the retangularity

measure invariant to rotation.

Given an object P

and its internal points coordi-

nates C = {{x, y}|{x, y} ∈ P} the eigenvectors are cal-

culated. Taking the ﬁrst eigenvector the main angle of

, α is obtained. Thus, a new region R

with bound-

ing box BOX(R

) is created by rotating it in relation

to the angle α. Afterward, the unbiased parameter Q

is obtained as following:

Q =

AREA(R

)

AREA(BOX(R

))

(1)

The range of Q is [0, 1]. The more rectangular the

object P

, the closer to 1 is the parameter Q. Figure 5

shows an example of a rectangular object with Q ≈ 1.

(a)

(b) (c)

Figure 5: Rectangular objects identiﬁcation: a) input re-

gion, b) the region and its bounding box, c) the rotated re-

gion and its new bounding box and Q ≈ 1.

(a) (b)

Figure 6: Objects merging process: a) Connected re-

gions, b) re-segmentation taking into account the rectangu-

lar shaped regions.

At this stage, the algorithm aims to ﬁnd rectangu-

lar objects. If irregular objects are found, two opera-

tions are performed: cutting and merging. The objec-

tive of these operations is to generate regions whose

parameter Q is about 1. As we can observe in Figure

6, some regions belonging to the same class can be

split into smaller regions instead of being merged in

the initial segmentation process. These are the main

problem that our algorithm proposes to solve.

4 PRELIMINARY RESULTS

This Section presents some experimental results ob-

tained by our re-segmentation approach. The method

was tested for Quickbird images of urban regions.

For the ﬁrst experiment, a segmented image superim-

posed on the original image (300 × 250 pixels), some

connected nodes (represented in different colors) and

the resultant re-segmentation are shown in Figures 7a,

7b and 7c, respectively. The over-segmentation was

obtained by the region growing method implemented

in SPRING (Câmara et al., 1996). In Figure 7c we ob-

serve that some regions did not merge although they

look like spectrally similar. This is due to the fact

that the approach aims to merge only those regions

which originate rectangular objects. Other merging

or cutting operations that originate irregular objects

are not performed. Consequently, the segmentation

gets more adequate results. In this case, the algorithm

took 37 seconds to generate the re-segmentation.

The second experiment took an image (256 ×256

pixels) as shown in Figure 8. Figures 8a and 8b dis-

play the regions superimposed on the original image

and the resultant re-segmentation, respectively. The

over-segmentation also was obtained by the region

growing method implemented in SPRING. The im-

age presents several instances of roofs that are broken

apart in the segmentation process as shown in Figure

7a. It is important to emphasize that the segmentation

is the key step for further image analysis. After apply-

ing our approach, posterior stages of image recogni-

tion or even geographical tasks can be more accurate

or adequate to the application. In spite of using small

image in this experiment, the number of input over-

segmented regions is very high. In this case, the algo-

rithm spent 216 seconds to accomplish the complete

re-segmentation process.

5 CONCLUSIONS

A new approach for image re-segmentation and some

aspects of its implementation have been described.

Moreover, in order to show the potential of our ap-

proach two experimental results have been presented.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

470

(a) (b) (c)

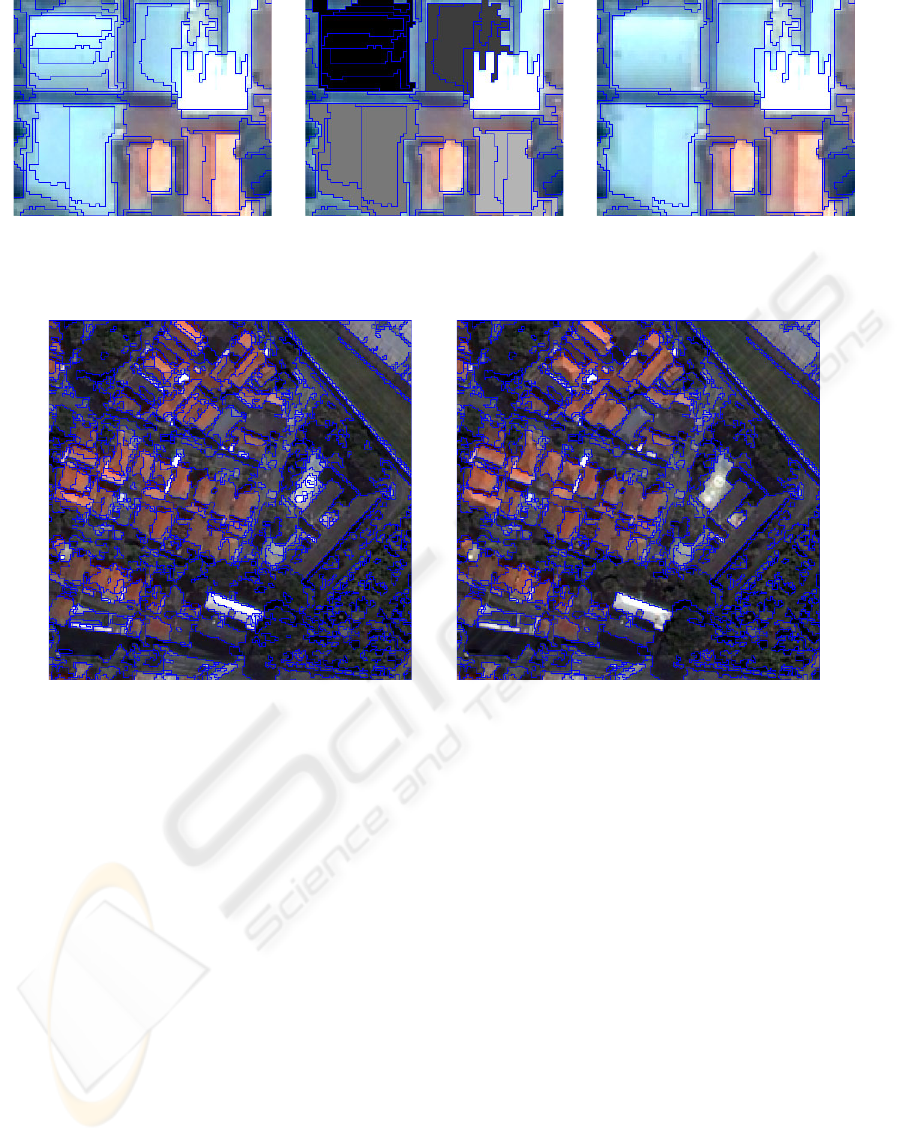

Figure 7: Image re-segmentation: a) regions superimposed on the image, b) some regions connected in the RAG, c) ﬁnal

re-segmentation.

(a) (b)

Figure 8: Urban image re-segmentation: a) Regions superimposed on the image and b) ﬁnal re-segmentation.

The main contribution of this paper is the proposed

strategy to ﬁnd regular regions in the urban imagery.

The re-segmentation approach uses spectral and shape

attributes as well the thematic map to deﬁne the merg-

ing and cutting strategies in the RAGs.

The algorithm complexity including the graph

searching operation is O(n

). One way to improve its

performance is generating a Minimum Spanning Tree

(MST) before the graph searching procedure. Nev-

ertheless, the MST generation has also a high cost.

Therefore, research have to be done to ﬁnd out the at-

tributes set used to ﬁnd the MST, which is not a trivial

task.

The algorithm has been developed in the Free C++

Library called TerraLib (Câmara et al., 2000) avail-

able at http://www.terralib.org/. Preliminary

results presented in this paper still have some errors

mainly due to the input segmentation. This process,

in certain cases, merges some objects that should be

broken apart. Future works include the algorithm op-

timization for faster execution and implementation of

different approaches for the graph cutting operation.

ACKNOWLEDGEMENTS

The authors thank National Council for Scientiﬁc

and Technological Development – CNPq for research

funding.

REFERENCES

Baatz, M. and Schäpe, A. (2000). Multiresolution

Segmentation–an optimization approach for high

quality multi-scale image segmentation. Ange-

wandte Geographische Informationsverarbeitung XII,

Wichmann-Verlag, Heidelberg, 12:12–23.

Bins, L., Fonseca, L., Erthal, G., and Ii, F. (1996). Satel-

lite imagery segmentation: a Region Growing ap-

IMAGE RE-SEGMENTATION - A New Approach Applied to Urban Imagery

471

proach. Simpósio Brasileiro de Sensoriamento Re-

moto, 8:677–680.

Câmara, G., Souza, R., Freitas, U., and Garrido, J. (1996).

Spring: integrating remote sensing and GIS by object-

oriented data modelling. Computers & Graphics,

20(3):395–403.

Câmara, G., Souza, R., Pedrosa, B., Vinhas, L., Mon-

teiro, A., Paiva, J., Carvalho, M., and Gatass, M.

(2000). TerraLib: Technology in Support of GIS In-

novation. II Workshop Brasileiro de Geoinformática,

GeoInfo2000, 2:1–8.

Chen, Z., Zhao, Z., Gong, P., and Zeng, B. (2006). A

new process for the segmentation of high resolution

remote sensing imagery. International Journal of Re-

mote Sensing, 27(22):4991–5001.

Duarte, A., Sánchez, Á., Fernández, F., and Montemayor,

A. (2006). Improving image segmentation quality

through effective region merging using a hierarchi-

cal social metaheuristic. Pattern Recognition Letters,

27(11):1239–1251.

Egenhofer, M. and Franzosa, R. (1991). Point-set topolog-

ical spatial relations. International Journal of Geo-

graphical Information Science, 5(2):161–174.

Falcão, A. X., Stolﬁ, J., and Lotufo, R. A. (2004). The

Image Foresting Transform: Theory, Algorithms, and

Applications. IEEE Trans. on Pattern Analysis and

Machine Intelligence, 26(1):19–29.

Felzenszwalb, P. and Huttenlocher, D. (2004). Efﬁcient

Graph-Based Image Segmentation. International

Journal of Computer Vision, 59(2):167–181.

Hart, P., Nilsson, N., and Raphael, B. (1968). A Formal Ba-

sis for the Heuristic Determination of Minimum Cost

Paths. Systems Science and Cybernetics, IEEE Trans-

actions on, 4(2):100–107.

Kohonen, T. (2001). Self-Organizing Maps. Springer.

Lezoray, O., Elmoataz, A., SRC, I., EA, L., and Saint-Lo, F.

(2003). Graph based smoothing and segmentation of

color images. Signal Processing and Its Applications,

2003. Proceedings. Seventh International Symposium

on, 1.

Lucchese, L. and Mitra, S. (2001). Color image segmen-

tation: A state-of-the-art survey. Proc. of the Indian

National Science Academy (INSA-A), 67(2):207–221.

Schettini, R. (1993). A segmentation algorithm for color

images. Pattern Recogn. Lett., 14(6):499–506.

Shi, J. and Malik, J. (2000). Normalized Cuts and Image

Segmentation. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 22(8):888–905.

Tremeau, A. and Colantoni, P. (2000). Regions adjacency

graph applied to color image segmentation. Image

Processing, IEEE Transactions on, 9(4):735–744.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

472
