AN ONLINE SELF-BALANCING BINARY SEARCH TREE FOR

HIERARCHICAL SHAPE MATCHING

N. Tsapanos, A. Tefas and I. Pitas

Department of Informatics, University of Thessaloniki, Box 451, 54124 Thessaloniki, Greece

Keywords:

Hausdorff Distance, Hierarchical Shape Matching, Binary Search Trees.

Abstract:

In this paper we propose a self-balanced binary search tree data structure for shape matching. This was

originally developed as a fast method of silhouette matching in videos recorded from IR cameras by ﬁremen

during rescue operations. We introduce a similarity measure with which we can make decisions on how to

traverse the tree and backtrack to ﬁnd more possible matches. Then we describe every basic operation a binary

search tree can perform adapted to a tree of shapes. Note that as a binary search tree, all operations can be

performed in O(logn) time and are very fast and efﬁcient. Finally we present experimental data evaluating the

performance of our proposed data structure.

1 INTRODUCTION

Object recognition by shape matching traditionally

involves comparing an input shape with various

templates and reporting the template with the high-

est similarity to the input shape. As the template

database becomes larger, exhaustive search becomes

impractical and the need of a better way to organize

the database aiming to optimize the cost of the search

operations arises.

Recently, Gavrila proposed a bottom-up tree

construction based on grouping similar shapes

together in size-limited groups, then selecting a

representative of the group and repeating, until a tree

similar to B-trees is formed (Gavrila, 2007). While

searching, the traversal of more than one children of

any node is permitted. However, this structure does

not provide any worst case performance guarantee

and no way to add further shapes without having to

reconstruct the tree.

Self-balancing binary search trees are well

known data structures for quick search, insertion and

deletion of data. In this paper we propose a way to

adapt this kind of data structure to a tree of shapes.

By doing so we can search, insert and delete shapes

Research was supported by the project SHARE: Mo-

bile Support for Rescue Forces, Integrating Multiple Modes

of Interaction, EU FP6 Information Society Technologies,

Contract Number FP6-004218.

in logarithmic worst case time.

The main issue we have to address is that

shape similarity is much less strict than number

ordering (for example, shape dissimilarity is not

transitive). This means that in order for a node to

make a decision on which child to direct a search that

node must have a more complicated decision criterion

and undergo training for that criterion. The training

must also be independent of the number of nodes in

the tree. Conversely, we provide no guarantee that

the best match will be found. However, experimental

data indicate that, given enough tries to backtrack,

our trees can learn the training set almost perfectly.

For our purposes, we view a shape as a set

of points with 2-dimensional integer coordinates.

Sets of points are referred to by capital letters and a

single point of a set by the same letter in lowercase.

Shapes from the training set and those produced by

our algorithms at various points are referred to as

templates.

This paper is organized as follows: section

2 brieﬂy introduces the similarity measure that we

use to traverse our tree, section 3 explains the types of

tree nodes and their contents, section 4 describes all

the basic tree operations (search, insertion, deletion,

rotations), section 5 presents experimental data and

section 6 concludes the paper.

591

Tsapanos N., Tefas A. and Pitas I. (2008).

AN ONLINE SELF-BALANCING BINARY SEARCH TREE FOR HIERARCHICAL SHAPE MATCHING.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 591-597

 SciTePress

2 SIMILARITY MEASURE

The similarity measure of our choice is based on the

Modiﬁed Hausdorff Distance (MHD):

MHD

(X,T) =

|X|

∑

x∈X

d(x,T) (1)

We introduce an activation function through which

the individual distances d(x,T) = min

t∈T

||x−t||

are

passed before the sum. We call this similarity mea-

sure the Activated Hausdorff Proximity (AHP)

sim(X,T) = P

AHP

(X,T) =

|X|

∑

x∈X

−αd(x,T)

(2)

where X is the test set of points, T is the set of points

forming a template with which X is matched and α is

a constant.

We use this activation function in order to normal-

ize the similarity measure to (0, 1], 1 meaning that

there is a point in T exactly on every point in X and,

as dissimilarity increases, our measure tends to 0.

In practice we use a distance transform on the tem-

plate T that outputs a matrix {a

} such that each el-

ement a

is the integer approximation of the distance

of point x with coordinates (i, j) from the closest point

in T a

≈ d(x,T). We then use a precomputed array

with the values of e

−αk

for every integer k that we

expect from the distance transform. This way, for ev-

ery point x we can ﬁnd e

−αd(x,T)

with only 3 memory

references.

3 TREE NODES

There are two types of nodes in our binary search tree:

template nodes and internal nodes.

3.1 Template Nodes

A template node contains a single real template from

the training set. The template is stored as a set of

2-dimensional points with integer coordinates. The

distance transform of the template is stored here as

well. Template nodes can only be leaf nodes.

3.2 Internal Nodes

The internal nodes are dummy nodes. They do not

contain any real information and they are used to de-

termine the search path to the leaf nodes where the

actual data is stored. They cannot be leaf nodes them-

selves.

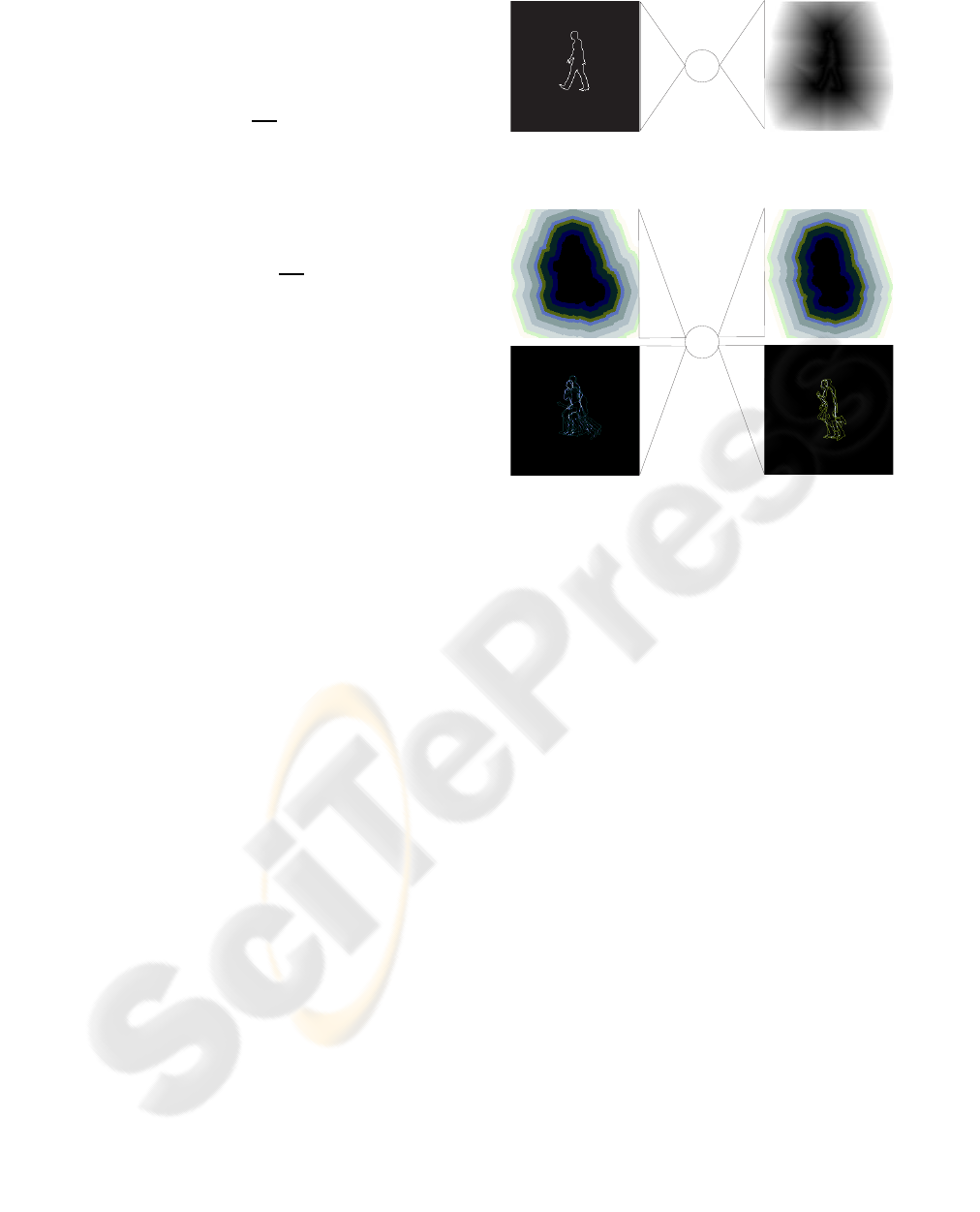

Figure 1: A template node.

Figure 2: An internal node.

Each internal node contains the distance transform

of a ”left” template T

and the distance transform of

a ”right” template T

, a matrix with the sum of every

real template that is under it’s left subtree S

, another

matrix with the sum of every real template under it’s

right subtree S

and also other information regard-

ing the structure and balance of the tree (pointers to

other nodes, node balance for AVL trees, colour for

red/black trees etc).

The decision on which path to follow for a test

set of points X is made by calculating sim(X,T

)

and sim(X,T

) and then directing the search to the

subtree that produces the largest value in our sim-

ilarity measure. Thus, an internal node directs the

search to it’s left subtree, if sim(X, T

) > sim(X,T

or the right subtree otherwise, with conﬁdence c =

|sim(X,T

) −sim(X,T

)|. This conﬁdence measure

will later help us backtrack the search in order to ﬁnd

better results we may have missed.

4 ONLINE TREE

Online trees are created by incrementally inserting ev-

ery template of the training set. In this section we will

describe how all the tree operations are performed.

4.1 Search

We will now describe how to ﬁnd the closest match

of a set of points X in our tree. Starting from the root

of the tree we follow the path of nodes as dictated by

comparing the similarities of X with each node’s T

and T

until we reach a leaf. Then we report the tem-

plate of that leaf as a possible result. Since we replace

the constant time operations of a binary search tree

with operations that also require constant time (with

respect to the number of nodes n), this can be done in

O(logn) time as per the binary search tree bibliogra-

phy.

Due to the non-strict nature of the Hausdorff dis-

tance and therefore our similarity measure too, we

cannot give any guarantees that the ﬁrst result of a

search is the best one. To overcome this we note the

conﬁdence of each node in the path to the previous

result and we backtrack through the path and reverse

the decision of the node with the lowest conﬁdence

and proceed to search the subtree we skipped in the

previous search. Once a nodes decision has been re-

versed, we set it’s conﬁdence to 1, so that it won’t

switch again until the search is over.

This way, if we allow r tries, we come up with r

template candidates. We determine the best match

by exhaustive search between these candidates. This

takes us O(rlogn) time to do.

Regarding the values of nodes’ conﬁdence along

the path to a leaf, what we expect is that the conﬁ-

dence will be lower toward the end of the path (be-

cause the templates with a low least common ances-

tor will be similar) and toward the root of the path

(because there will be a lot of templates to separate in

each subtree). It would be a good idea to replace the

conﬁdence by a function of |sim(X,T

) −sim(X,T

and the depth of a node, however we ﬁnd that it is

more practical to artiﬁcially restrict switching paths

at the higher levels in the ﬁrst few tries.

4.2 Insertion

To insert a new node q

n+1

with a template T

n+1

into

the tree we start by searching for T

n+1

in the current

tree. If we come to an internal node with only 1 child

during our search, we add the new node as it’s other

child. If the search stops at a leaf node q

, we replace

it with an internal node and add q

n+1

and q

as the new

internal node’s children. The template T

n+1

is also

added to the proper sum matrix (S

or S

) of every

node it traverses.

This means that the new template will be inserted

near similar templates and guarantees that if we

search for the template again, the search will ﬁnd it

in the ﬁrst try (provided no tree rotations have been

performed since it’s insertion).

After inserting a node, we then follow the reverse

path to the root, balancing and retraining every af-

fected node. Again, the changes we propose involve

constant time operations (node training is indepe-

dent from the number of nodes n), so insertion takes

O(logn) time as a property of binary search trees.

4.3 Deletion

Our tree only supports the deletion of leaf nodes.

Moreover, we feel that the task of deleting a node

based on an input shape is not well deﬁned. Trying

to delete a template we have not yet stored by search-

ing for it ﬁrst will result in the deletion of the template

that is the closest match for it, something that is prob-

ably not what we wanted. Even if the template exists

in the tree, the search operation is not guaranteed to

ﬁnd it.

In this section we will describe the deletion of a

leaf whose location must be known beforehand. De-

termining which leaf we want to delete is subject to

the deletion policy we wish to enforce (and using ad-

ditional data structures). For example, if we want to

delete the oldest template at a time we can maintain a

queue of pointers to the templates in the order they are

inserted into the tree. If we want to delete nodes on

a least recently used basis, we will probably need to

maintain a minimum-heap data structure for the use

of the nodes. While there is nothing preventing the

deletion of a search result, we must note that doing so

is unadvisable.

Starting from the node q

which want to delete, we

travel backwards to the root via parent node pointers.

The reverse path is what we need to proceed with the

deletion as per normal binary search trees. We sub-

tract the nodes template T

from the proper sum (S

) of each node traversed and rebalance where nec-

essary.

Deleting nodes and rebalancing can result in an in-

ternal node with no children. Since we do not allow

that, we check whether an internal node is left child-

less, mark that node for deletion and repeat the pro-

cess again.

S+

s2 s3

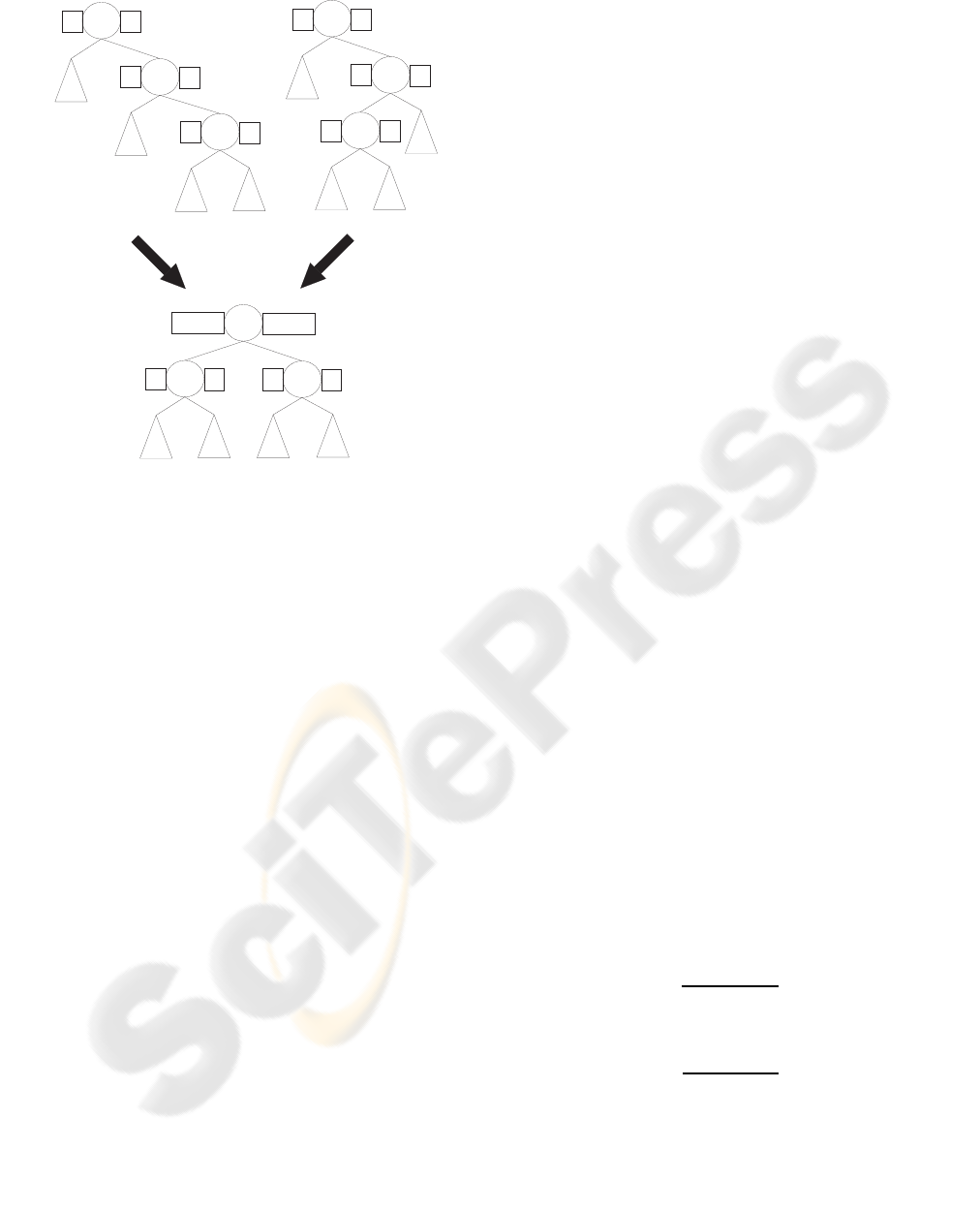

Figure 3: After proper assignment of the nodes and matri-

ces, the steps to perform the rotation are predetermined.

4.4 Balancing

The tree can be of any type of self-balancing tree that

achieves balance by using tree rotations. In our im-

plementation it’s an AVL-tree (Adelson-Velskii and

Landis, 1962).Here we will describe the LL and RL

rotations (the RR and LR cases are symmetrical).

To simplify the description and the implementation,

we name the three nodes involved in the rotation

, the subtrees from left to right s

and the sum of each subtree S

. See ﬁgure

3 for details.

After the rotation:

• n

is the parent of n

and n

with S

)

= S

+ S

and S

)

= S

+ S

• n

is the left child of n

with S

)

= S

and S

)

• n

is the right child of n

with S

)

= S

and

)

= S

Every rotation can be performed by properly as-

signing n

, n

, s

, S

and

performing a set reconnection.

4.4.1 Ll Rotation

This is a very straight forward case. See Figure 3.

4.4.2 RL Rotation

After an RL (or LR) rotation in a normal binary search

tree, a leaf maybe become an internal node and vice

versa. In our tree, template nodes cannot be internal

nodes and internal nodes cannot be leaf nodes. In our

tree, however, the ordering of the nodes is not strictly

numeric, so we can slightly alter the rotation to satisfy

our restrictions. See Figure 3.

4.5 Node Training

The object of node training is to ﬁnd the templates

and T

such that would, ideally, direct every leaf

node template to the correct subtree. Unfortunately,

we have no way of guaranteeing this without exceed-

ing logarithmic time. We try to approximate the tem-

plates T

and T

using two methods.

4.5.1 Fast Method

The fastest method is to simply extract the template

from S

and T

from S

. S

is the sum of every

template in the left subtree, so we can scan the ma-

trix to ﬁnd all the non-zero entries and build the set

of points for T

from the matrix coordinates of those

entries (likewise for T

4.5.2 Abstractive Method

Instead of select every point from S

and S

, we can

focus on selecting the points that differentiate the ma-

trices S

and S

. We do this by computing a weighted

centroidal voronoi tesselation (CVT) simpliﬁcation

(A. Hajdu and Pitas, 2007) of each set of points.

Let L be the set of points extracted from S

and R

be the set of points extracted from S

. For every point

l ∈ L we set the weight

ρ(l) =

1+ e

−αd(l,R)

(3)

and for every point r ∈ R

ρ(r) =

1+ e

−αd(r,L)

(4)

Note that the units in equation (3) are in fact e

−αd(l,L)

butsince l ∈L, d(l,L) = 0 (likewisefor equation (4) ).

Then we iteratively compute the CVT simpliﬁ-

cation of L and R to obtain T

and T

. Using the

Figure 4: T

and T

as extracted from S

and S

and after

their CVT simpliﬁcation.

above weight functions, the simpliﬁcation algorithm

for L is less likely to select points closer to R

favouring points that are further away from it (and

vice versa). The results of a CVT simpliﬁcation can

be seen in ﬁg. 4.

5 EXPERIMENTS

We tested our tree in the task of matching silhouettes

of humans in thermal videos available from a ﬁre de-

partment for the purposes of rescue operations. In or-

der to search for a template in our tree in an image

we proceed as follows: First, we perform edge detec-

tion on the image, then search in the edgemap. At any

point in the edgemap we ﬁnd the relative coordinates

of every edge in the search window. Then we try to

ﬁnd the best matching template for these points in our

tree (we ﬁnd T

best

= argmin

AHP

(X,T))) then we

compute the reverse proximity of that template to the

edgemap (P

AHP

best

,X)). We report the point and

template with the best overall reverse proximity.

Scale is addressed simply by adding the scaled tem-

plates into the same tree with the original templates.

The spatial search in the edge map is pruned by scan-

ning the image with a step of s = 16 and recursively

reducing the step by 1/2 if the reverse proximity ex-

ceeds a threshold. This threshold is determined by the

function e

−α

√

. The constant α is set to 0.1. Rota-

tion is not addressed, but we can handle it either by

inserting rotated templates into the tree, or searching

Figure 5: The original image, it’s edgemap, the pruned

search space and the ﬁnal result.

in rotated images (again pruning the search space us-

ing thresholds). Figure 5 shows some of the stages of

the process and ﬁgure 6 shows the output of our tree

for a few frames.

5.1 Learning Capabilities

We ﬁrst tried to determine whether our tree is capable

of learning the training set of templates and how many

tries does it take so that the search for every template

returns the exact template it was searching for.

Starting with a set of 43 human silhouettes, we con-

structed a training set for the tree that includes the

43 original templates, the templates scaled down by

10%, scaled up by 10%, 20%, 30% and 40% and the

mirror image of all the scaled templates. This resulted

in 516 templates that we inserted into an empty start-

ing tree. Below is a table with the number of cor-

rect answers and average time per search of our tree

with 1,2,4,8 tries and the time of the exhaustive search

(time in milliseconds).

Table 1: Tree learning capabilities.

1 2 4 8 Ex

500 504 516 516 516

0.081 0.165 0.295 0.512 3.0935

As evident, with as little as 4 tries to backtrack, our

tree can learn the 516 templates of our training set. In

our further experiments, the tries are set to 8 because

we will be dealing with real data. Note that even with

8 tries, our tree takes about 1/6 of the time the exhaus-

tive search needs.

5.2 Comparison with Exhaustive

Template Searching

We now compare the performance of our tree against

exhaustive search in 4 scenes of thermal video (all

scenes were 321 by 278 pixels). We measure time and

the difference in reverse proximity of both methods of

searching. The spatial search is pruned for both meth-

ods and the time for edge detection is not included.

Measurements are presented as mean (standard de-

viation) and measure the average time per search in

milliseconds and the difference in reverse proximity.

Table 2: Tree and exhaustive search results.

Scene 1 Scene 2

Frames 1176 426

Ex. time 7020(7906) 4851(3393)

Tr. time 757(872) 525(328)

Pr. diff -0.033(0.039) -0.033(0.034)

Scene 3 Scene 4

Frames 1026 226

Ex. time 13199(9187) 12076(10656)

Tr. time 1318(969) 1247(1113)

Pr. diff -0.044(0.039) -0.046(0.038)

Our tree takes about 1/10 of the time the exhaustive

search takes and the difference in the reverse proxim-

ity of the answers is minimal. Also note that on some

occasions our tree ﬁnds an answer with a larger re-

verse proximity than the exhaustive search.

5.3 Comparison with Fully Exhaustive

Searching

Finally, we measure the overall gain in time and

loss in quality between our tree in a pruned search

space and the fully exhaustive search (measures re-

verse proximity for every template at every location)

in a scene with 117 frames.

Table 3: Comparison with fully exhaustive search.

Full ex. time Tree time Prox. diff

305092(51134) 850(270) -0.039(0.037)

Compared to the fully exhaustive search, the tree

only takes 0.2% of the time, while the drop in quality

remains at the same negligible levels.

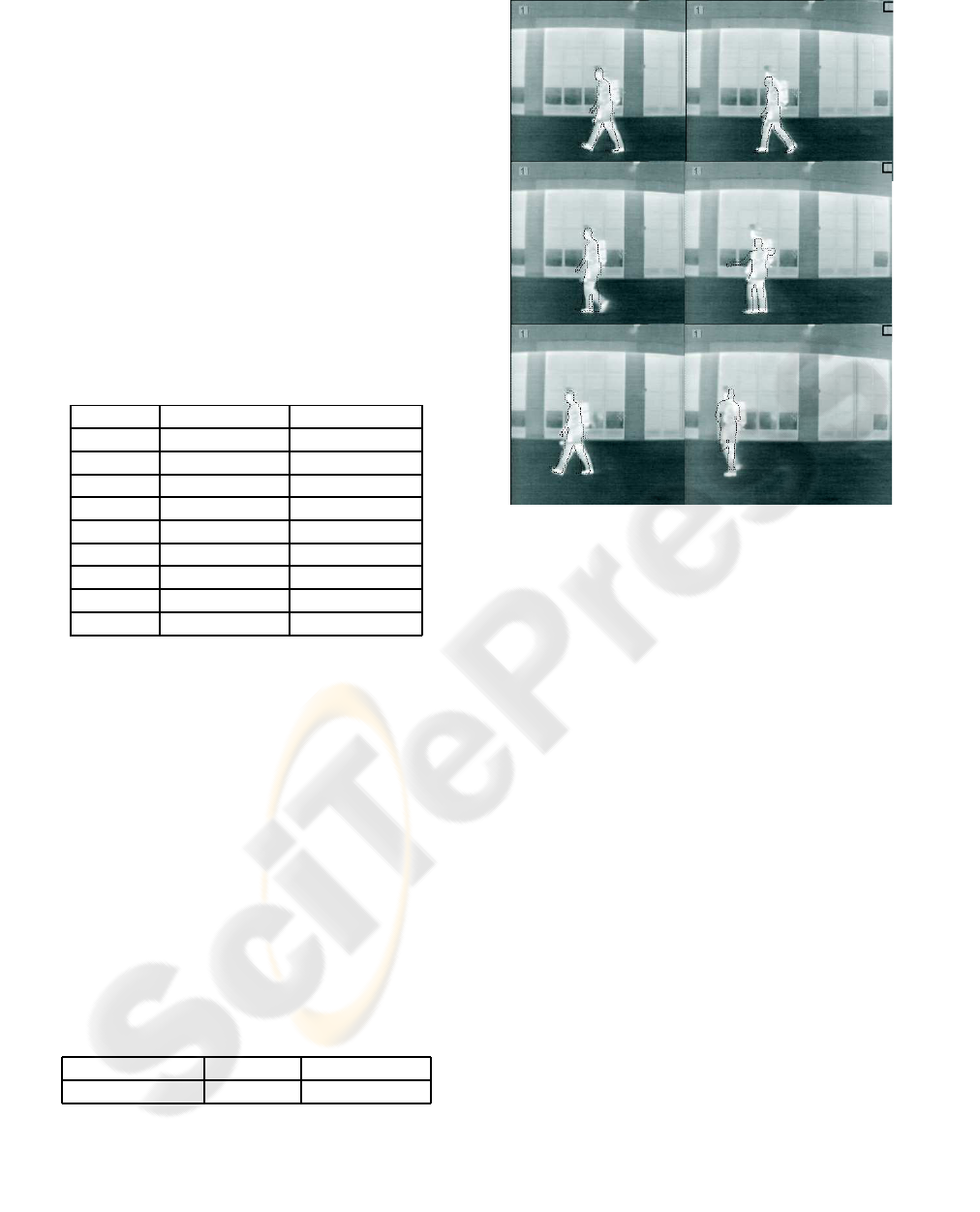

Figure 6: A few (non consecutive) frames showing the out-

put of our tree.

6 CONCLUSIONS

In this paper, we have described the basic operations

that a binary tree need to function, so that we can

quickly store and retrieve shapes instead of numbers

in a very fast and efﬁcient data structure. Insertion

does not require the complete or even partial recon-

struction of the tree. Using the fast training method,

insertion takes about the same time as a single search.

Early tests indicate that the quality of results

that our proposed data structure produces is very

close to those that an exhaustive search would pro-

vide. The strengths of a binary search tree, however,

lie in the it’s speed and the ability to dynamically

insert new nodes efﬁciently.

Now that we have found a way to traverse a bi-

nary search tree of shapes (with a couple of templates

and AHP) and seeing that such a data structure can

work just as well as exhaustively searching, we can

further study the possibility of training a tree ofﬂine.

We can take advantage of the ample training time to

guarantee that each template will end up on the node

that contains it on the ﬁrst try.

We can then study the generalization abilities of

the ofﬂine constructed trees and set a smaller number

of allowed tries for even faster searching and better

results. We can always add new nodes to an ofﬂine

constructed tree just like an online tree, if we need to.

REFERENCES

A. Hajdu, C. G. and Pitas, I. (July 2007). Object simpliﬁca-

tion using a skeleton-based weight function. In Inter-

national Symposium on Signals, Circuits and Systems,

Volume 2, pp. 1-4.

Adelson-Velskii, G. M. and Landis, E. M. (1962). An algo-

rithm for the organization of information. In Doklady

Akademii Nauk SSSR, Volume 146, pp. 263-266.

Borgefors, G. (June 1986). Distance transformations in dig-

ital images. In Computer Vision, Graphics, and Image

Processing, Volume 34 , Issue 3, pp. 344-371.

Borgefors, G. (Nov. 1988). Hierarchical chamfer matching:

a parametric edge matching algorithm. In IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

Volume 10, Issue 6, pp. 849-865.

D. Huttenlocher, G. K. and Rucklidge, W. (Sep. 1993).

Comparing images using the hausdorff distance. In

IEEE Trans. Pattern Analysis and Machine Intelli-

gence, vol. 15, no. 9, pp. 850-863.

Gavrila, D. M. (Aug. 2007). A bayesian, exemplar-based

approach to hierarchical shape matching. In IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, Volume 29, Issue 8, pp. 1408-1421.

L. Ju, Q. D. and Gunzburger, M. (Oct. 2002). Probabilistic

methods for centroidal voronoi tessellations and their

parallel implementations. In Parallel Computing, Vol-

ume 28 , Issue 10, pp. 1477-1500.

Q. Du, V. F. and Gunzburger, M. (Dec. 1999). Centroidal

voronoi tessellations: Applications and algorithms. In

SIAM Review archive Volume 41, Issue 4, pp. 637-676.

Rucklidge, W. (June 1995). Locating objects using the

hausdorff distance. In Proceedings of Fifth Interna-

tional Conference on Computer Vision, pp. 457-464.

S. Belongie, J. M. and Puzicha, J. (Apr. 2002). Shape

matching and object recognition using shape contexts.

In IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence Volume 24 , Issue 4, pp. 509 - 522.
