VIRTUAL ART GALLERY TOOL

Pedro Miguel Semião and Maria Beatriz Carmo

Faculdade de Ciências da Universidade de Lisboa, Campo Grande, 1749-016 Lisboa, Portugal

Keywords: Virtual Gallery, e-Exhibitions, X3D, Xj3D.

Abstract: This paper describes a set of two applications comprising the Virtual Art Gallery tool: the Space Picker

application and the Virtual Exhibition Builder application. The purpose of this tool is to allow users to in-

teractively create a virtual exhibition of artworks in a pre-built virtual model. We use X3D for the models

and Java with Xj3D for the display and handling. The works of art are handled through a MySQL database.

The solution is entirely based in free software.

1 INTRODUCTION

There are a large number of museums and art galler-

ies willing to share their exhibitions online, since

they realize it is not possible for all interested people

to visit them. These exhibitions usually display

scans of the works of art in an HTML page. Some

go a bit further, like the Louvre Museum (httpLou-

vre, 2007), using QuickTime VR (QTVR) movies

(httpQTVR, 2007) that allow a panoramic view of a

room from a single spot. This is done in an attempt

to bring the virtual visiting experience closer to the

real one. QTVR is very limited, not being based on

models but on panoramic pictures. In contrast,

VRML and X3D (httpWeb3d, 2007) provide the

description of 3D models allowing for a rich me-

dium in which one could base exhibitions that are

closer to reality. The task of creating the model of a

building can be achieved, in a matter of weeks by a

trained professional, with CAD tools and a blue-

print. As for the exhibition of art works in the cre-

ated model, it would be necessary to change the

model each time one wishes to have new content. As

is mentioned in (Wojciechowski, 2004), “The work

on setting up an exhibition should be performed by

museum staff (e.g., curators), which cannot be ex-

pected to be IT experts”. Our tool will allow for

people with no specific training to create a new art

exhibition in a previously made X3D model.

In the remainder of this paper we will present

work related to virtual exhibitions in Section 2 and a

brief view of the tool in Section 3. In Section 4 we

present one of the applications that comprise the

tool, the Space Picker, and in Section 5 we present

the main application, the Virtual Exhibition Builder.

In Section 6 we present ongoing work and some

prospects for future work and in Section 7 we draw

some conclusions from our work.

2 RELATED WORK

Despite the almost ubiquitous presence of the Inter-

net and the growing popularity of virtual visits, there

is still not much work being done in the area of

bringing these technologies to a level of usability

and affordability, in terms of organizing a virtual

exhibition.

In Virtual Art Gallery (Hrk, 2001), the user can

create a simple VRML 3D model and attach paint-

ings to the walls. Since the modeling part of the

application is very limited, it is not possible to pro-

duce quality models.

Taking a different approach, The Virtual Show-

case (Bimber, 2001) aims to merge the display of

real and virtual artifacts in the real location, using

3D virtual augmentation.

ARCO (httpArco, 2007) is a platform with a

very broad scope, ranging from tools for 3D infor-

mation acquisition to the organization and display of

collections. The visualization of the virtual represen-

tation of museums is achieved through the use of

X-VRML (Walczak, 2003), a high-level

XML-based procedural language that adds dynamic

modeling capabilities to virtual scene description

standards. Mixed reality presentations are also pro-

471

Miguel Semião P. and Beatriz Carmo M. (2008).

VIRTUAL ART GALLERY TOOL.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 471-476

DOI: 10.5220/0001094704710476

 SciTePress

vided (Walczak, 2005). These presentations can be

created through a user-friendly content management

application that uses templates with encoded visuali-

zation and interaction rules.

3 VIRTUAL ART GALLERY

TOOL

The Virtual Art Gallery tool was designed having

some particular goals in mind: it should only use

free software and the user is not required to have

any knowledge of X3D to use the software, allowing

for a broader user base. The tool is comprised of two

applications. The first, Space Picker, allows the user

to choose the surfaces that will be available for art

display in the X3D model. The application also

makes some changes in the X3D file, making it

compatible with the second application. The second

and main application, Virtual Exhibition Builder,

permits the user to add paintings to the available

surfaces, chosen in the first application. The applica-

tions were developed in Java. Xj3D’s libraries were

used for the display and interaction with the X3D

model. The task of painting selection is handled with

a MySQL database support.

4 SPACE PICKER APPLICATION

The Space Picker application readies the X3D file so

that it can be used with the Virtual Exhibition

Builder application. It also gives the user the possi-

bility to choose several surfaces on the model. These

surfaces will be available in the Virtual Exhibition

Builder application as possible targets for artwork

display. To be able to interact with any surface in

X3D there must be a sensor placed on the surface.

The application counters this by creating a tempo-

rary X3D scene with sensors on every surface. This

temporary scene is then loaded through an Xj3D

browser, where the user will select the surfaces

where expositions will be allowed. When the user is

satisfied with the results he can save a new X3D file.

This file will have sensors on the chosen sur-

faces and will be compatible with the Virtual Exhi-

bition Builder application.

A short description of the dataflow, as seen in

Fig. 1 and the general workflow of the application

follow.

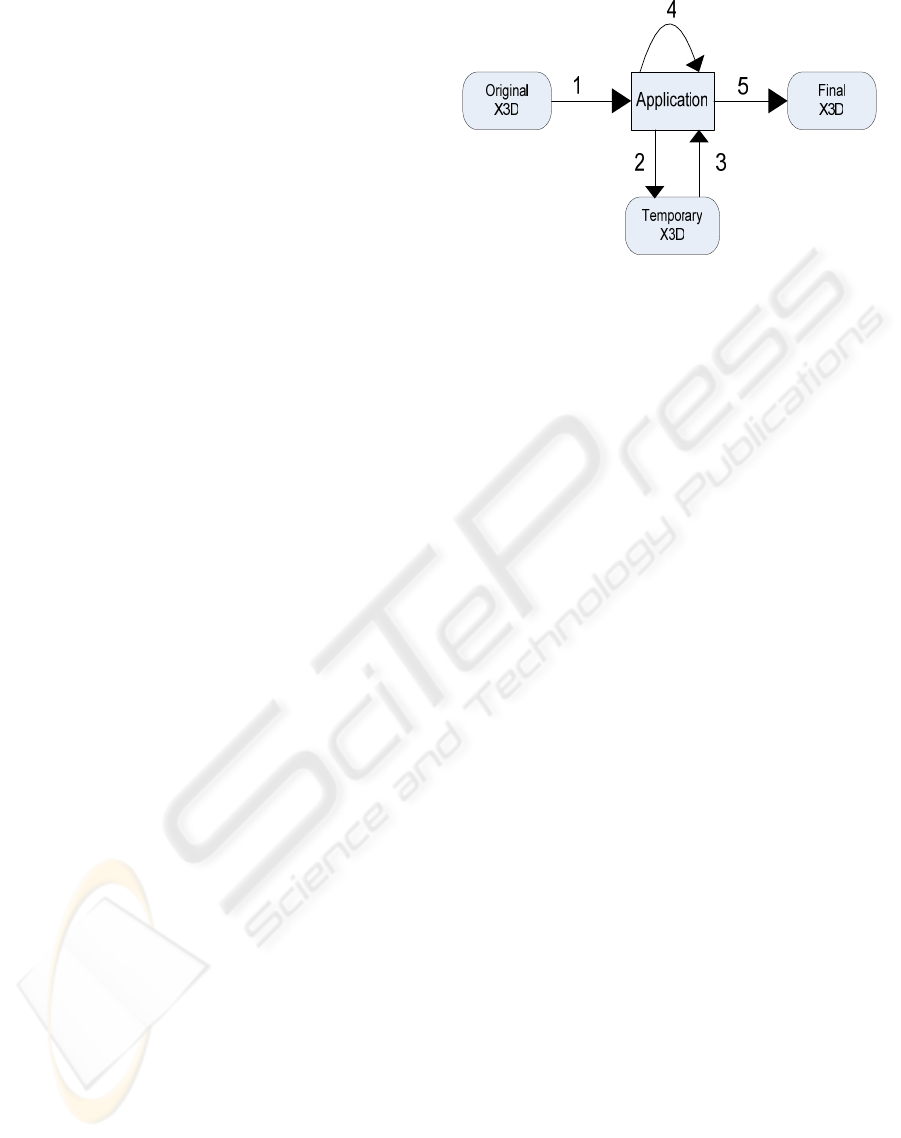

Figure 1: Space Picker Data Flow.

When the Original X3D is loaded (1), the code is

stored in two StringBuffers, named Pre and Pos, and

one Vector of StringBuffers, named Shapes:

 Pre: contains all the code until the first shape

creation.

 Shapes: contains one shape or transformation per

StringBuffer.

 Pos: contains all the X3D code after the last

shape definition.

This will provide individual shape code access to

and control of the application. The Temporary X3D

file is created (2) from these three elements, making

the necessary adjustments, as in the following se-

quence:

1. Pre is sent to file unaltered.

2. A new material definition to identify the selected

surfaces is sent to file.

3. Each shape is sent to file inside a new sensor. The

sensors are named SensorN, where N is a unique

sensor number. The appearance tag is also named

as SensorAN, with the same N, to allow access to

the appearance’s properties by the application.

4. Pos is sent to file unaltered.

The newly created Temporary X3D file is then

loaded into an Xj3D browser (3). The application

keeps spatial information about all the sensors as

well as their selection status. This information is

stored in a vector of instances of the Sensor class,

having a direct correspondence with the Shapes

Vector.

Surface selection is achieved through Xj3D’s

SAI (Scene Access Interface). User selected surfaces

will be presented in red, indicating their selection

status, as seen in Fig. 2. This is achieved by a

change in the surfaces material definition. If an

already selected surface is activated it will revert to

its former material definition, which was stored

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

472

when the first change was made, clearing the se-

lected status.

Figure 2: Space Picker Screenshot.

When the user chooses to save his work the Final

X3D file will be created, in the following manner:

1. Pre is sent to file unaltered.

2. For each shape in Shapes it is verified if the cor-

responding sensor is selected.

a. If it is not, the shape is written to file as is.

b. If it is, the shape is inserted into a group with

a sensor, named SensorN, N being a unique

number starting with one. The Coordinate

and IndexedFaceSet tags are also named in a

similar way, to allow access from the Virtual

Exhibition Builder application.

3. Pos is sent to file unaltered.

The file is then ready for use with the Virtual Exhi-

bition Builder application.

5 VIRTUAL EXHIBITION

BUILDER APPLICATION

The Virtual Exhibition Builder application builds

the virtual exhibition, using the X3D file that was

modified by the Space Picker application and the

paintings in the database, as seen in the application

layout in Fig. 3.

In section 5.1 we present the application’s sim-

plified class diagram along with a brief explanation

of each class’ responsibilities. In section 5.2 we

present our method of handling the X3D code and in

section 5.3 the display and manipulation of the X3D

scene. In section 5.4 we present the application from

the user’s perspective.

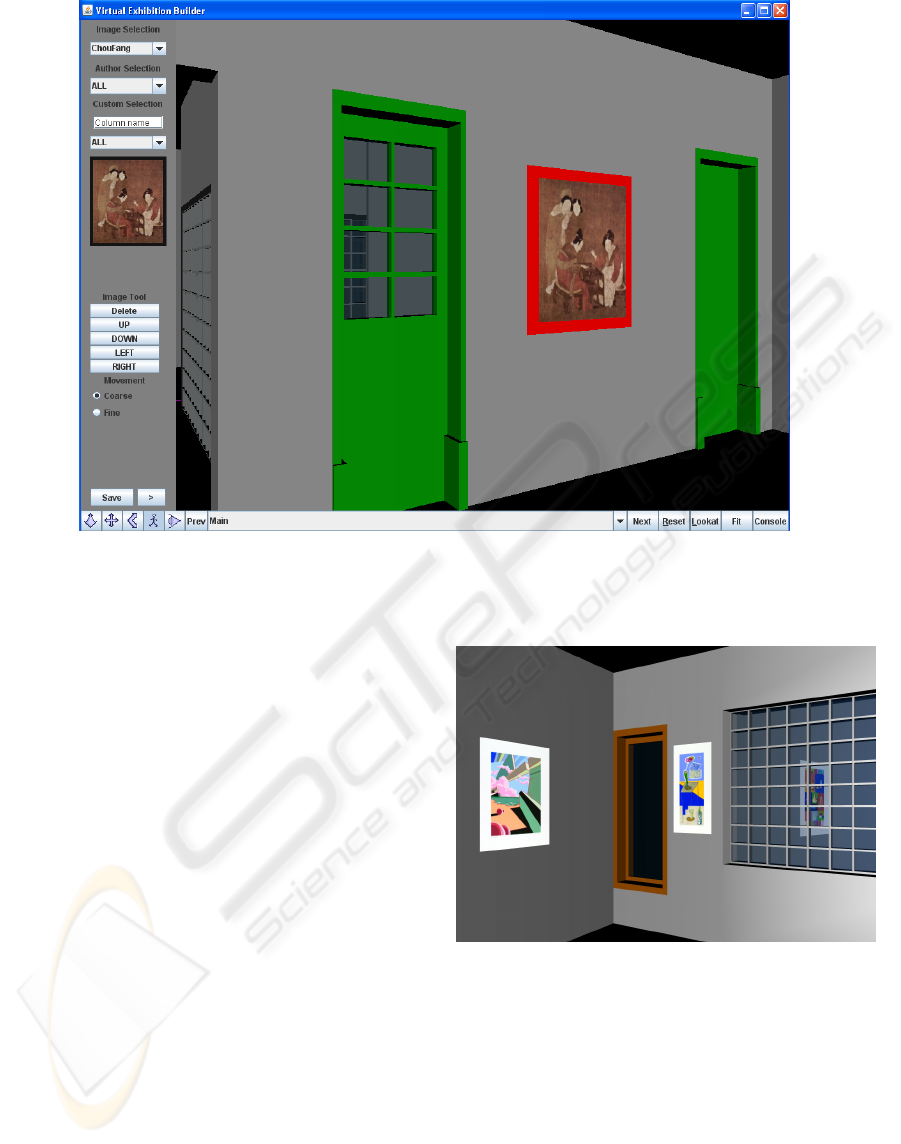

Figure 3: Virtual Exhibition Builder Application Layout.

Figure 4: Virtual Exhibition Builder Simplified Class Diagram.

VIRTUAL ART GALLERY TOOL

473

5.1 Application’s Classes and

Responsibilities

The simplified class diagram can be seen in Fig. 4,

from which we will highlight the key components

and their function.

The Gallery class holds the instances of the two

main classes: GUInterface and Xj3DScene.

GUInterface is responsible for all the menus. It

holds an instance of the class responsible for the

database connection, which it uses for painting ac-

cess and filtering. It also uses the ImageTool class to

generate thumbnails of the paintings in real time.

Xj3DScene is responsible for the display and in-

teraction with the X3D model. It keeps a collection

of Painting’s instances, which represent the paint-

ings added to the scene. Each one of these instances

has a Sensor associated, with information about the

painting’s sensor. The TransformationTool class is

responsible for all calculations involved in 3D trans-

formations, like placing and moving paintings. Ex-

portX3D is responsible for all the X3D code, also

saving it to a new X3D file when the user chooses to

save his work.

5.2 X3D Code Handling

The X3D code is kept in three separate containers,

as seen in Fig. 5.

The first container, PRE, holds all the X3D code

until the end of scene tag.

The collection of containers in the middle holds

the shapes of all the paintings added to the scene.

Each one of these containers is divided into three

sub containers. The B container has the coordinates

of the shape, pertaining to the Coordinate X3D tag,

A and C contain, respectively, the code before and

after the shape’s coordinates.

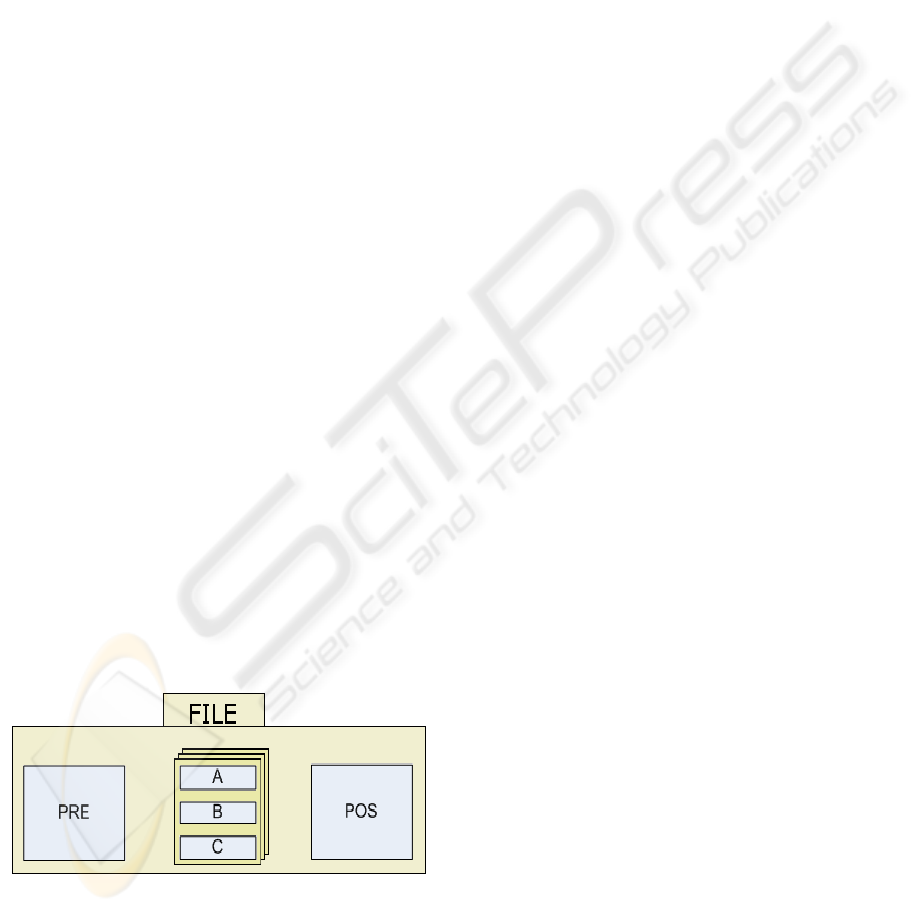

Figure 5: X3D File Contents.

This allows for the updating of the paintings’ coor-

dinates when needed.

The last container, POS holds the end of scene

tag and the remaining code.

When the user saves his work the file is written,

starting with PRE, then all the containers in the

collection, and finally POS is written.

5.3 Handling the Scene with XJ3D

When the application starts all the sensors in the

X3D file are loaded into a collection of sensors and

the coordinates of each sensor are also stored. A

listener is created and all the sensors are added to it.

This will allow the application to catch the activa-

tion of any sensor. When a sensor is activated, its

coordinates are used to place the currently selected

painting on the corresponding surface. The scene is

updated, but it is not possible to retrieve the new

X3D code from the scene. Therefore we generate

the X3D code for the new painting, by passing its

information to the ExportX3D class.

The newly placed paintings must also have sen-

sors, so that they can be selected to adjust their posi-

tion. Each Painting instance holds an instance of the

Sensor class, with all the information about the sen-

sor. When a painting is selected, the Image Tool

menu becomes available. A new shape is created

between the painting and the wall to give feedback

to the user about the selection. If the user chooses to

delete the painting, its node is removed from the

scene and the ExportX3D instance is informed of its

deletion, so it can update its X3D code accordingly.

If the user chooses to move the painting several

steps are taken:

 Its parameters and desired movement are passed

into TransformationTool’s instance to calculate

the new coordinates.

 The scene is changed to reflect the new position,

by altering the shape’s Coordinates node. The

coordinates for the visual selection indicator are

also updated.

 The painting’s sensor is updated with the new

coordinates.

 The painting is marked as changed, signaling that

it has moved from its original position.

ExportX3D’s instance code is not updated at this

time. When the user chooses to save, all the new

paintings marked as changed will be updated in

ExportX3D’s instance.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

474

Figure 6: Virtual Exhibition Builder Screenshot.

5.4 Using the Application

We can see a screen capture of the application at

Fig. 6. The bottom menu is the Xj3D specific menu.

It is used to change the view mode and toggle

among viewpoints.

The menu on the left is the application menu. At

the top of the menu we can see the interface to the

database of paintings, where we can filter and

choose paintings. There is a custom filter box which

allows for accommodation of database tables with

more columns then the ones originally specified.

Below the painting’s thumbnail we have the image

tool menu. This is a context sensitive menu that is

only visible when there is a painting selected in the

scene. Here we can delete a painting from the scene

and move a painting through the surface on which it

is placed. The radio buttons control the coarseness

of the movement. The final row of buttons is com-

posed by the Save button, which saves the work

done to a new X3D file, and a button to shift the

menu to the other side of the screen, for ease of use

for users with both dexterities.

The remainder of the screen is occupied by the

X3D scene. Here the user can navigate throughout

the scene and chose a surface with the mouse. The

currently selected painting on the menu will then be

placed in the center of the surface. Only the surfaces

chosen with the Space Picker application are able to

receive paintings.

Figure 7: IAC's Exhibition Sample.

6 PRESENT AND FUTURE

WORK

We are using the applications to help the Azorean

Cultural Institute (IAC) to build virtual exhibitions

with their art collection. An exhibition will be

hosted on the virtual model of its headquarters. We

can see a sample of this work at Fig. 7, a screen

capture of a resulting X3D scene.

VIRTUAL ART GALLERY TOOL

475

There has been some interest in the application by

art students to spread their work through the Inter-

net.

One interesting goal would be the ability to add

3D models to the scene too.

The application has not been tested with X3D

models with textures, and probably would require

some tweaking with the X3D code handling routines

to work properly.

In relation to the previous issue, there is also

some interest in developing an Xj3D based applica-

tion for texture placement in X3D models.

Joining the two existing applications with a new

one, for managing the painting database, would

make this tool more complete and usable.

7 CONCLUSIONS

The Virtual Art Gallery tool makes the task of orga-

nizing a virtual art show in an X3D model a matter

of a few clicks. Use of the applications is very intui-

tive and simple. In our tests with the Virtual Exhibi-

tion Builder application we managed to create exhi-

bitions with ease and consistency, and in a matter of

a few minutes.

The use of free software in the different facets of

the tool, interface, application logic, 3D visualiza-

tion and manipulation, and database access, is, in

our view, an important attribute of the tool, which

we hope will lead to its broader acceptance.

ACKNOWLEDGEMENTS

We would like to publicly express our appreciation

to IAC for the motivation in the project goals and all

the information, blueprints and painting scans, made

available to us.

REFERENCES

httpLouvre, 2007. http://www.louvre.fr/llv/musee/vi-

site_virtuelle.jsp?bmLocale=en

httpQTVR, 2007. http://www.apple.com/quicktime/tech-

nologies/qtvr/

httpWeb3d, 2007. http://www.web3d.org/

Wojciechowski, R; Walczak, K; White, M; Cellary, W.,

2004. Building Virtual and Augmented Reality Mu-

seum Exhibitions. In Proceedings of the ninth interna-

tional conference on 3D Web technology, pp 135-144

Hrk, S., 2001. Virtual Art Gallery. In Central European

Seminar on Computer Graphics.

Bimber, O.; Frohlich, B; Schmalstieg, D.; Encarnação, L.,

2001. The Virtual Showcase. In IEEE Computer

Graphics and Applications, volume 21, nr. 6, pp 48-55

httpArco, 2007. http://www.arco-web.org/index.html

Walczak, K.; Cellary, W., 2003. X-VRML for Advanced

Virtual Reality Applications. In IEEE Computer; vol-

ume 36, nr 3, pp 89-92

Walczak, K., Wojciechowski, R., 2005. Dynamic Creation

of Interactive Mixed Reality Presentations. Proceed-

ings of the ACM Symposium on Virtual Reality Soft-

ware and Technology, pp 167-176

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

476
