A SIP SPATIAL AUDIO SERVER FOR THE EVE PLATFORM

Ch. Bouras

Research Academic Computer Technology Institute (CTI), Greece and

Computer Engineering and Informatics Department (CEID), University of Patras, Greece

V. Triglianos

Computer Engineering and Informatics Departmet (CEID) University of Patras, Greece

Th. Tsiatsos

Department of Informatics, Aristotle University of Thessaloniki, and Research Academic

Computer Technology Institute (CTI), Greece

Keywords: Virtual reality, Multimedia Collaboration, SIP, Spatial 3D audio, Networked Virtual Environments,

Multimedia systems, architecture, and applications.

Abstract: When it comes to 3D Virtual Environments it is well known that 3D sound is of great importance to the

whole interactive experience. The percept of sound is a major counterpart for the eyesight, since it describes

the location, the momentum and the attitude towards the listener, of each surrounding entity. The sound can

offer precision of spatial perception that cannot be achieved by the eye itself. Thus the support of 3D

surround sound of high fidelity is mandatory for a 3D Virtual platform. The evolution of Internet telephony

led to the introduction of new session establishment and management protocols. The most important of

them, the Session Initiation Protocol (SIP), is a robust, lightweight reliable and fast application-layer

control (signaling) protocol that is highly adopted for creating, modifying and terminating sessions. This

protocol can be of extreme importance in establishing audio sessions for multi-user platforms. This paper

presents the work done for developing a SIP 3D spatial audio server for a multi-user virtual environments

platform, called EVE, in order to support 3D spatial audio.

1 INTRODUCTION

The increment of the available network bandwidth

has enabled the development of richer web

applications. In the field of Networked Virtual

Environments this is reflected in the deployment of

as realistic as possible virtual worlds. Virtual 3D

environments offer a realistic abstraction of reality

in an optical fashion. However, 3D sound is of equal

importance in order for an interactive 3d

environment to be realistic A key point to the

realism is the sound capabilities it provides. Plain

audio support is an important feature; however the

best results are achieved with the addition of 3D

spatial sound.

Audio support in virtual platforms practically

means the digitalization of speech. Speech, one of

the most effective means of communication that

humans possess, is a time-efficient, emotion-

declaring way to communicate. Thus, the

introduction of speech is virtual platforms is time

saving, since no message writing is required, while

at the same time the voice contributes to more

realistic communication and interaction between the

users.

3D spatial audio contributes to a best perception

of the environmental entities, especially when the

user has no eye contact with them. The user by

hearing 3D sound obtains information about the 3D

location, and the direction that the entity that emits

the sound moves. Moreover, depending on the

intensity and the tone of the sound, a user can be

aware, to some extent, of the intensions of the entity

towards the user as well as the psychological

395

Bouras C., Triglianos V. and Tsiatsos T. (2008).

A SIP SPATIAL AUDIO SERVER FOR THE EVE PLATFORM.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 395-402

DOI: 10.5220/0001095203950402

 SciTePress

composition of the entity. These psychological

effects that arise from the 3D spatial sound

combined with the perception of space, lead to a

very realistic interaction in two fashions: between

the users, and between a use and the virtual space.

Bearing this in mind the authors of this paper

aims to enhance such a platform called EVE

(http://ouranos.ceid.upatras.gr/vr/

) which is a

networked virtual environments platform that

supports the following characteristics:

• Flexibility and good rendering quality, since the

large set of all X3D nodes can be used to create

worlds that are visually more appealing, as well

as better defined compared to a VRML world.

• A consistent shared 3d virtual environment for

all users connected to the platform, which is

highly interactive and allows for all possible

functionality of an X3D world to be reliably

shared among all connected clients. In other

words EVE is stable in terms of network and

multi-user behavior.

• An efficient physics system functioning locally

on each client’s machine, which is provided by

the Xj3D library and based on the ODE open-

source physics engine, as well as an efficient

sound system.

• Text chat and audio communication, using

H.323 for audio and chat bubbles for text chat.

• User roles and user management.

• Support for avatar gestures and body language

• A flexible, fully customizable and open client-

multiserver architecture.

EVE platform featured spatial H.323 sound since it

was introduced. In order to increase performance,

and stability as well as to emphasize the distributed

nature of the platform a new audio server, utilizing

the latest most popular session protocols and codec

technologies and at the same time featuring a new

algorithmic approach, was introduced. The new

server is based on the SIP session protocol to

establish multicast sessions as well as using RTP for

audio data transmission. The spatial effects are

implemented by the X3D Sound Node interface.

A fair amount of work has be done in on spatial 3D

sound. The majority of today’s 3D games, single or

multi-user, feature spatial 3D sound. However the

sound that is used in this type of applications is pre-

recorded. When it comes to CVE’s where live

streaming sound needs to be converted to spatial 3D

sound, little work has been done. Good examples are

the work in Liesenborgs (1998) and Macedonia et al

(1995).

The work described in Macedonia et al (1995),

is based on multicast networks. We want to avoid

this solution due to the fact that multicasting is not

available in every network. Furthermore, our work

differs from Liesenborgs (1998) in terms of

scalability, complexity of the platform that is

embedded into, and technology. Our scope is to

utilize the latest technologies into our platform,

while using Java API’s in order to maintain the well-

known and commonly accepted benefits of Java.

When it comes to spatial distributed sound there

are two key subjects to address. The first is the

protocol the algorithms and the codecs that will be

used to establish sessions and reproduce sound

between users. The second is the algorithms that will

create the illusion of 3D sound.

As far as the protocol is concerned, the popular

Session Initiation Protocol – SIP was used. The

transmission of the audio data utilizes the RTP

protocol while the task of spatializing the sound is

accomplished by the X3D Sound Node.

X3D offers the Sound Node interface. This node

features built-in spatialization and attenuation audio

algorithms. This solution is both fast and simpler to

develop since no external solution is used more.

The paper is structured as follows: The next

section demonstrates the architecture of the

proposed solutions. Following this (in paragraph 3)

the mechanism and the algorithms that form the

selected solution are described. After that (in

paragraph 4) the implementation issues are

discussed while on section 5 some performance tests

are presented. In Section 6 some concluding remarks

and planned next environment platforms either

commercial products or steps are briefly described.

2 EVE SPATIALIZED AUDIO

ARCHITECTURE

The EVE platform is based on a client-multiserver

architecture, which allows a simple sharing of the

computational load among multiple servers. The

main servers used by the platform are the connection

server, the VRML server (or data server) and a

series of application servers, which add specific

functionality such as audio and text chat to the

platform. The architecture of the EVE platform is

displayed in

Figure 1.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

396

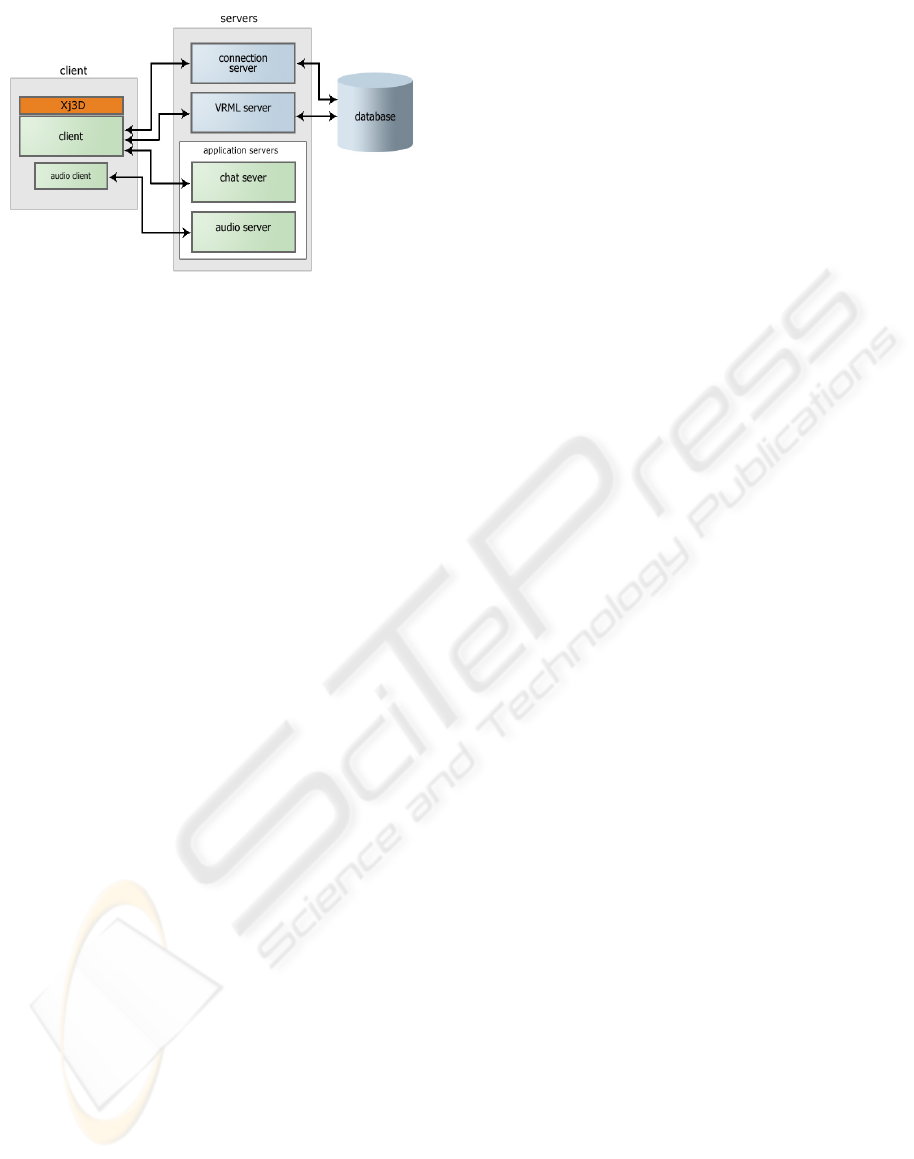

Figure 1: Architecture of EVE.

Due to the multi-user and client-server

characteristics of the platform, not spatialization of

audio but also networking and communication are

important parts of the whole process. Moreover, the

real time nature of the process requires bandwidth

saving and fast audio processing to deliver

continuous playback of the sound. In order to

provide an architecture that would balance the

bandwidth, complexity and processing costs many

candidate scenarios were examined. The best two

are presented in this section. The two architectures

are different in the way that the audio is processed in

order to become spatialized. The procedure of

connecting to the platform until the spatial audio is

produces consists of four discrete stages, from the

client’s point of view:

• The establishment of the connection to the SIP

Spatial Audio server

• The capture of the audio data

• The transmission of the audio data

• The process of spatializing the audio data

• The reception of the audio

For the common part of establishing a

connection to the SIP Spatial Audio server,

capturing the audio data and transmitting the audio

data, follows a description of the technologies that

are implemented.

The Session Initiation Protocol – SIP is ideal for

the session establishment. This lightweight,

transport independent protocol has proven to be very

reliable and robust thus making it the most popular

session protocol nowadays.

Real Time Protocol - RTP a very popular

protocol for real time data, including features like

Real-time Transport Control Protocol - RTCP a

protocol that provides control information for RTP

flows, is chosen for audio data transmission.

As far as the audio capture is concerned, the

Java Media Framework API, which provides

convenient classes and methods for media

manipulation is used.

In the following two subsections, the above

mentioned stages are described for each of the

suggested solutions.

2.1 Solution 1: Audio Spatialization

using X3D Nodes

In this solution the spatialization of the audio is

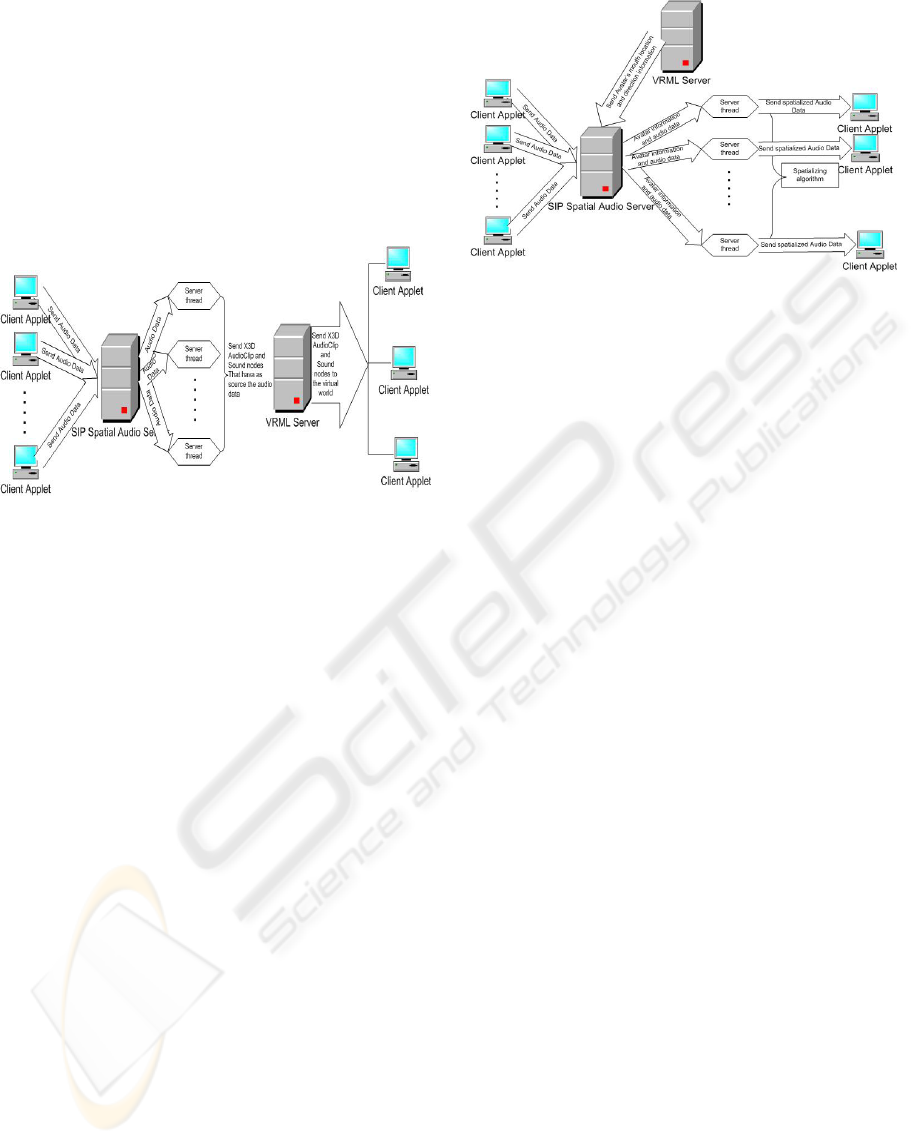

performed by an X3D Sound node (Figure 2). The

client’s side architecture is examined first. The

establishment of the connection is accomplished via

the SIP protocol. The client’s applet makes a call to

the SIP Spatial Audio Server and a server port is

reserved for the connection with the client. After the

session has initiated, an RTP stream, using the JMF

API, is established with the server, in order for the

audio data to be transmitted. At the same time the

client’s capture device captures audio data, again

utilizing JMF API’s classes, and transmits them

through the RTP stream. The X3D browser of the

applet receives the audio data encapsulated, by the

SIP Spatial Audio Server, in X3D AudioClip nodes.

The playback of the audio is performed by X3D

Sound nodes that use the AudioClip nodes as their

sources.

The X3D Sound node features built-in

spatialization and attenuation audio algorithms. This

solution is both fast and simpler to be developed

since no external solution is used.

Regarding the server side, the following

procedure takes place. The server is waiting for new

SIP calls on a dedicated port. After an incoming call

from a client is accepted, a new port is assigned for

the communication between a server thread,

dedicated in servicing the specific client, and the

client. This thread establishes an RTP stream with

the client for receiving audio data. Concurrently, the

audio server acquires information of the user’s

avatar location and orientation in the virtual world

through the VRML Server. This information will be

used to reproduce the sound like it is being emitted

from the avatar’s mouth. For each user an X3D

AudioClip node and an X3D Sound node are

instantiated via the xj3d API and are added in the

graph scene of the virtual world. A file is created to

which the audio data are continuously appended to.

The AudioClip node’s url field is given that file as a

value, while the Sound node’s fields direction,

location and source fields are given the values of the

A SIP SPATIAL AUDIO SERVER FOR THE EVE PLATFORM

397

avatar’s mouth direction, avatar’s mouth location

and the AudioClip, respectively. The key point in

this solution is the entrusting of the audio

spatialization to the X3D Sound node. This node can

produce spatialized audio by setting appropriate

values to the specialized fields.

When the two new X3D nodes are added to the

scene the VRML server sends them to the client

where the client’s X3D browser starts immediate

playback of the Sound node.

Figure 2: Audio spatialization using X3D nodes.

2.2 Solution 2: Audio Spatialization

Exploiting a Spatialization

Algorithm

The second solution (Figure 3) uses a spatialization

algorithm in order to spatialize the audio. The

process of session initiation, audio data capture and

audio data transmission is the same with the one

described in the first solution. What is different in

that solution is the way that the SIP Spatial Audio

Server processes the audio in order to make it

spatialized. That, reflects also to the way that the

client receives and playbacks the processed audio.

The next paragraphs illustrate the differences in both

the client and the server’s side.

The major client’s side change is the way that

the audio is received and being produced. The user

receives a mixed RTP stream, that is, all the streams

of client audio data to be heard, have been processed

from the SIP Spatial Audio Server and have been

mixed in to one stream. Then it reproduces the

sound via a JMF Player.

Figure 3: Audio spatialization exploiting a spatialization

algorithm.

The most important changes are in the server’s

side. When the server receives the streams from the

client together with the avatar information

mentioned in solution one, it uses a spatialization

algorithm for each stream. This algorithm is invoked

from each server thread that serves a client. This

algorithm given a stream and an avatar information,

produces spatialized audio that sounds like it is

being emitted from the avatars mouth. The server

thread invokes that algorithm as many times as the

online users connected to the SIP Spatial Audio

Server, Each invocation of the algorithm instantiates

a new thread that executes the algorithm in order to

continuously process each stream. The processed

streams are mixed by the server thread into one

stream and are sent back to the client.

2.3 Discussion

In this section the paper presents a comparison

between the two solutions and the selection of the

most appropriate one. The two proposed solutions

will be examined in terms of bandwidth and

processing costs, complexity, as well as EVE

depended issues.

The multimedia nature of the platform’s content

disambiguated in high bandwidth consumption. The

addition of an extra multimedia factor (in this case

the audio) must be carefully implemented with as

low bandwidth cost as possible. Regarding the

client, the first solution requires one extra stream for

transmission-only purposes, after the client - server

handshaking has been achieved. The reception of the

audio is accomplished by the already established

udp stream of the VRML Server. As result the

network side of the platform is lightly overloaded.

On the other side, the second solution demands both

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

398

an inbound and an outgoing stream from the client’s

side, thus being more costly in bandwidth.

The processing cost, especially for the client is a

very important factor for deciding which solution

will be implemented. The combination of java with

X3D content and the fact that the platform runs via

an X3D-enabled HTML browser lead to a relatively

high processing cost. The addition of spatial audio

support must, therefore, be as light, in processing

cost, as possible. The server processing cost is very

important as well due to the number of clients a

server may be requested to server. The first solution

adds very little processing cost to the client, since no

extra modules are required to playback the audio.

The only extra cost is that of the X3D browser

reproducing the audio which is comparatively small

comparing it with the need for a new module. The

second solution is light as well for the client since

only one JMF Player class instance is required for

audio playback.

However, that is not the case for the server’s

side. The invocation of n

threads, if n is the number

of clients, demands much more processing time than

the n threads required by the first’s solution server.

In addition the spatialization of the audio is

performed exclusively in the server, when the

second solution is used while on the first scenario

each client’s applet is responsible for the process.

The cost of spatializing the audio becomes a vast

process cost when the clients increase greatly in

number. Conclusively the first solution comes with

lower processing cost than the second one.

In terms of complexity the picture remains the

same. The first scenario relies for the spatialization

to the internal operations of the X3D browser, while

the second invokes n

times the spatialization

algorithm, while at the same time the SIP Spatial

Audio Server is assigned with the complex task to

mix n streams for each user, where n is the number

of online clients.

To conclude with, the first solution is in all of its

aspects better than the second. However, there is a

platform dependent issue that need careful

examination in order to avoid a very uncomfortable

situation. Due to that fact that the first scenario

relies to the continuous communication between the

VRML Server and the SIP Audio Server, a

breakdown of the SIP Audio Server could lead to a

VRML Server exception and vice versa.

Nevertheless given the necessary attention this issue

can be sustained, and as result, given the overall

dominance of the first solution, the first scenario

was chosen.

3 DESCRIPTION OF SIP

SPATIAL AUDIO MECHANISM

In this section the mechanism behind the SIP Audio

Server is described. The mechanism consists of

three main components. The SIP component, the

capture component the RTP component and the

spatialization component The following three

paragraphs describe each one of the above

respectively.

Each EVE client applet features an integrated

SIP client (Figure 4). When the EVE Applet

connects to the connection Server of the platform, a

unique port is granted for SIP use. The applet passes

this port parameter to the SIP client, which sends an

SIP INVITE message to the SIP server in the

previously mentioned port. Subsequently, the client

waits for the SIP OK message. As long as the server

accepts the invitation, a server thread is created to

serve the client. The thread establishes an rtp receive

stream with the client while the client establishes an

RTP send stream with the server thread. When the

client decides to disconnect from the platform a SIP

BYE message is sent to the server. When the client

receives a SIP OK message from the server, the

session ends.

Once the SIP session is established the client’s

applet invokes the methods for capturing the sound.

Firstly, a list of the available capture devices is

examined until an appropriate for sending audio

data, is found. Next, follow the instantiation of a

processor that receives the capture data and

produces a data source in the specified format that is

continuously filled with captured audio data. This

data source is used by the RTP stream to send the

audio data to the sever.

The RTP manager creates an RTP send stream

and passes to it as argument the data source that is

produced by the processor. Once this is

accomplished the stream starts sending the audio

data of the audio source. On the server side, the

server thread that corresponds to the particular client

instantiate an RTP manager, which, in turn, creates a

receive stream that stores the received data to a

buffer file for a constant amount of time. When this

amount time has elapsed a second buffer is being

written for the same amount of time while the first is

flushed. This procedure is continuously repeated

with one buffer being filled with data and the other

being flushed.

A SIP SPATIAL AUDIO SERVER FOR THE EVE PLATFORM

399

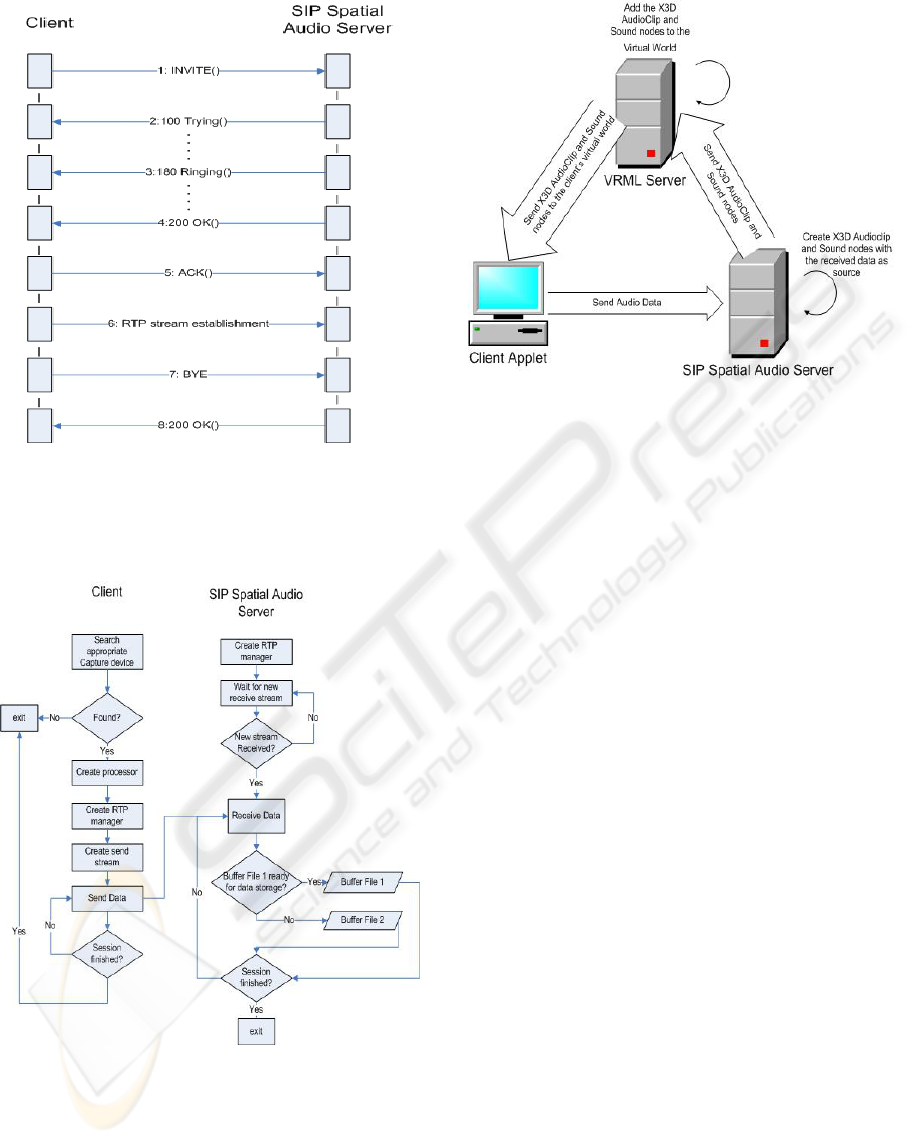

Figure 4: SIP session.

Simultaneously with the capture setup, the

client’s applet instantiates an RTP manager that will

manage the rtp session (Figure 5).

Figure 5: RTP streaming flowchart.

The server thread when the RTP stream is

established, constantly, acquires information from

the VRML server about the client’s avatar. Then two

X3D AudioClip nodes and two X3D Sound nodes

are created. The Sound nodes’ fields of location and

direction match those of the avatars mouth.

Figure 6: Spatialization process.

Each Sound node has one, different with one

another, of the AudioClip nodes as its source field,

while each AudioClip node has as URL field one of

the two buffer files (Figure 6). Once the first buffer

file is filled with data the corresponding AudioClip

starts playback and the corresponding Sound node

produces the effect of spatialization. When the first

AudioClip finishes the second set of nodes starts

playback. This procedure is repeated as far as the

user is connected. It must be stated that the actual

X3D nodes are created on the client-side. However

since the AudioClip takes URLs as a source the

client has access to the buffer files that are stored on

the SIP Audio Server.

4 IMPLEMENTATION ISSUES

In this section the implementation issues are

discussed. The main technologies, classes and

methods of the SIP Spatial Audio Server

implementation are presented.

4.1 SIP Implementation

Because of the fact that the EVE platform is Java –

xj3d based, an java implementation of the protocol

was needed, to maintain its non-commercial, cross

platform characteristics. JAIN – SIP was chosen as

an API, nist-sip 1.2 was used as reference

implementation. These are the main classes used:

• SipStack

• SipFactory

• SipProvider

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

400

• ClientTransaction

• MessageFactory

Three are the main methods invoked:

• processRequest (RequestEvent). A custom

method for processing SIP requests such as

INVITE.

• MessageFactory. createRequest. A method for

creating SIP requests such as INVITE

4.2 RTP Streaming and Audio Capture

The RTP streaming and the audio captured

management tasks, is performed by custom code tha

utilizes the Java Media Framework API – JMF.

Five are the main classes used for the audio

capture:

• javax.media.CaptureDeviceInfo

• javax.media.Processor

• javax.media.MediaLocator

• javax.media.Manager

• javax.media.format.AudioFormat

• javax.media.protocol.DataSource

A list of the most important methods for the

audio capture:

• Vector CaptureDeviceManager.getDeviceList

• DataSource

Manager.createDataSource(MediaLocator ml)

• Processor

Manager.createProcessor(DataSource ds);

• Javax.media.control.FormatControl.setFormat(

AudioFormat af).

• DataSource Processor.getDataOutput()

The capture format that is used in this

implementation is in linear encoding, has 8000 Hz

sample rate, 8 bits of sample size and is

monophonic. The streaming format was of the same

characteristics. We used this relatively low quality

settings in order to save bandwidth and processing

resources.

Main classes used for the RTP streaming are the

following:

• javax.media.rtp.RTPManager

• javax.media.rtp.SendStream

• javax.media.rtp.ReceiveStream

• javax.media.protocol.PushBufferDataSource

• lavax.media.protocol.PushBufferStream

• javax.media.rtp.event.NewReceiveStreamEvent

A list of the most important methods for the RTP

streaming is the following:

• RTPManager.NewInstance()

• RTPManager.createSendStream

(DataSource

dataSource, int streamIndex)

• NewReceiveStreamEvent.getReceiveEvent()

4.3 Audio Spatialization

The spatialization of audio is performed by the X3D

Sound Node. The Sound node specifies fields that

affect the spatialization of the sound. The sound is

located at a point in the local coordinate system and

it is emitted in an elliptical pattern. The location is

specified by the location field, while the direction

vector of the ellipsoids is specified by the direction

field. There are fields that specify the maximum and

minimum values to where the sound is audible, that

is the maximum and minimum lengths of the two

ellipsoids along the direction vector.

A very crucial field is the spatialize field. If set

to TRUE the sound is perceived as being

directionally located relative to the viewer. If the

viewer is located between the transformed inner and

outer ellipsoids, the viewer's direction and the

relative location of the Sound node is taken into

account during playback. In our implementation this

field is set to TRUE, resulting in a very realistic

spatialized audio playback.

The sound source specified by the field source is

an AudioClip node. The AudioClip node specifies

an url field, that in our implementation is the url of

the buffer file, which is used as source. In order to

change between the two sets of nodes, we used an

ecma script which sets the startime field of one

AudioClip that waits to start, equal to the stoptime

field of the currently playing AudioClip.

5 CONCLUSIONS - FUTURE

WORK

This paper presents the addition of an SIP Spatial

Audio Server to the EVE platform. This new server

enhances to a great extend the realism of the virtual

world and expands the interaction capabilities of the

platform. In addition it utilizes the latest

technologies in this field which makes EVE an

equivalent alternative to commercial solutions.

Our next step is to simulate the two proposed

solutions in order to conclude to experimental

results of each solution’s efficiency and stability.

A SIP SPATIAL AUDIO SERVER FOR THE EVE PLATFORM

401

REFERENCES

Liesenborgs, J., 1998. Voice over IP in networked virtual

environments, Computer Society Press.

Macedonia, M., Brutzmann, D., Zyda, M., Pratt, D.,

Barham, P., Falby, J., Locke, J., 1995. NPSNET: A

multi-player 3D virtual environment over the internet.

In Pat Hanrahan and Jim Winget, editors, 1995

Symposium on Interactive 3D Graphics, pages 93-94.

ACM SIGGRAPH, April 1995. ISBN 0-89791-736-7.

Bouras, C., Panagopoulos, A., Tsiatsos, T., “Advances in

X3D multi - user virtual environments”, IEEE

International Symposium on Multimedia (ISM 2005),

Irvine, California, USA,, 12 - 14 December 2005, pp.

136 – 142.

Bouras, C., Giannaka, E., Panagopoulos, A., Tsiatsos, T.,

“A Platform for Virtual Collaboration Spaces and

Educational Communities: The case of EVE.”

Multimedia Systems Journal, Special Issue on

Multimedia System Technologies for Educational

Tools, Springer Verlang, Vol. 11, No. 3, pp. 290 –

303, 2006.

Bouras, C., Tegos, C., Triglianos, V., Tsiatsos, T., “X3D

multi-user virtual environment platform for

collaborative spatial design”. The 9th International

Workshop on Multimedia Network Systems and

Applications (MNSA-2007), Toronto, Canada,, 25 -

29 June 2007, (to appear).

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

402
