VORONOI DIAGRAM AND ITS APPLICATION TO SPATIAL

CALIBRATION FOR GAMMA CAMERA IMAGES

Brian D. Maisler, Hong Liu, J. E. McKisson, Yishi Li and Eric Kvam

Embry-Riddle Aeronautical University, 600 Clyde Morris Blvd, Daytona Beach, FL, USA

Keywords: Gamma Ray Image Restoration, Scintillation Crystals, Position Sensitive Photomultiplier Tubes (PSPMT),

Voronoi Diagram.

Abstract: Gamma camera images obtained from PSPMT detectors and segmented crystal scintillators to be used for

scintimammography are often distorted and blurred. Our software application is used to restore flood-field

gamma camera images and map the peak positions of individual charge clusters back to the positions of the

corresponding source scintillations. Since the exact position of scintillation in a crystal grain is not

controllable due to the randomness of scattering, a region-to-region location map is more statistically sound

than a point-to-point position map. Traditionally, an array of rectangles centered at the restored peaks of

charge clusters is mapped to an array of crystal grains from which the source scintillations are emitted. We

observe that the mapping is essentially a nearest neighborhood problem and innovatively introduce the

Voronoi diagram to replace the rectangular array. The natural fit of the Voronoi diagram to the essence of

neighborhood problem significantly improves the likelihood of correct mapping. It also makes our mapping

method adaptable to apply to crystal plates in other geometric configurations. We implement the

computations of Voronoi diagrams via OpenGL. As an empirical software solution, the images restored

from raw flood field images illustrate high level uniformity and linearity.

1 INTRODUCTION

In breast scintimammography, a compact detector

with high intrinsic spatial resolution and small

inactive peripheries can provide improvements in

extrinsic spatial resolution, efficiency and contrast

for small lesions relative to larger conventional

cameras. The detector that is used by the sponsor of

this research is comprised of a segmented array of

crystals CsI (TI) optically bonded to a grid of

Position Sensitive Photomultiplier Tubes (PSPMTs)

(Weisenberger, 2003

, Smith 2003, Williams 2000).

Tested geometries include both circular and

rectangular arrays.

The detection mechanism is conventional

scintillation, with optical responses spatially

confined into regularly spaced “grains” by the

intersegment material. Ultraviolet photons pass

through the optical bonding material into the

PSPMT envelope to strike the photocathode. The

released charge is amplified and the resulting charge

cloud is collected on a grid of anode elements. The

charge collected on the several anode elements in

the PSPMT is electrically gathered along rows and

columns by a resistive network and presented at

charge sensitive analog to digital converters. The

resulting conversions present a vector of raw charge

distribution data from which the centroid of the

charge cloud is determined in two dimensions. This

centroid constitutes the raw centroid data available

for each event. Data for the calibration is produced

by illuminating the segmented crystal with a uniform

planar flood-field gamma ray source. Event data are

collected and raw centroids are computed.

Raw flood images obtained in the CsI (TI) array

system are intrinsically distorted and blurred

(Weisenberger, 2003

, Smith 2003, Marks 1999).

Optical defects and fabrication limitations cause

distortions of the photon collection pattern at the

photocathode, and electro-optical effects further

distort the charge clouds as they are amplified. Our

task is to develop a software application that takes

raw flood images as calibration inputs (figure 2),

identifies blurred peaks of signals, corrects their

distorted positions, and finally maps the individual

peaks to the source scintillations. Since the exact

position of scintillation in a crystal grain is not

controllable due to randomness of scattering, a

region-to-region location map is more statistically

D. Maisler B., Liu H., E. McKisson J., Li Y. and Kvam E. (2008).

VORONOI DIAGRAM AND ITS APPLICATION TO SPATIAL CALIBRATION FOR GAMMA CAMERA IMAGES.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 68-73

DOI: 10.5220/0001096700680073

 SciTePress

sound than a point-to-point position map.

Traditionally, the output is a map consisting of

rectangles centered at repositioned peaks so that

each rectangle maps to a grain of the segmented

crystal plate. We observe that the mapping is

essentially a closest neighborhood problem and

innovatively introduce Voronoi diagram to record

the position of the source scintillations. Each

polygon contains a point corresponding to the peak

of the accumulated charge clouds emitted from a

particular crystal grain.

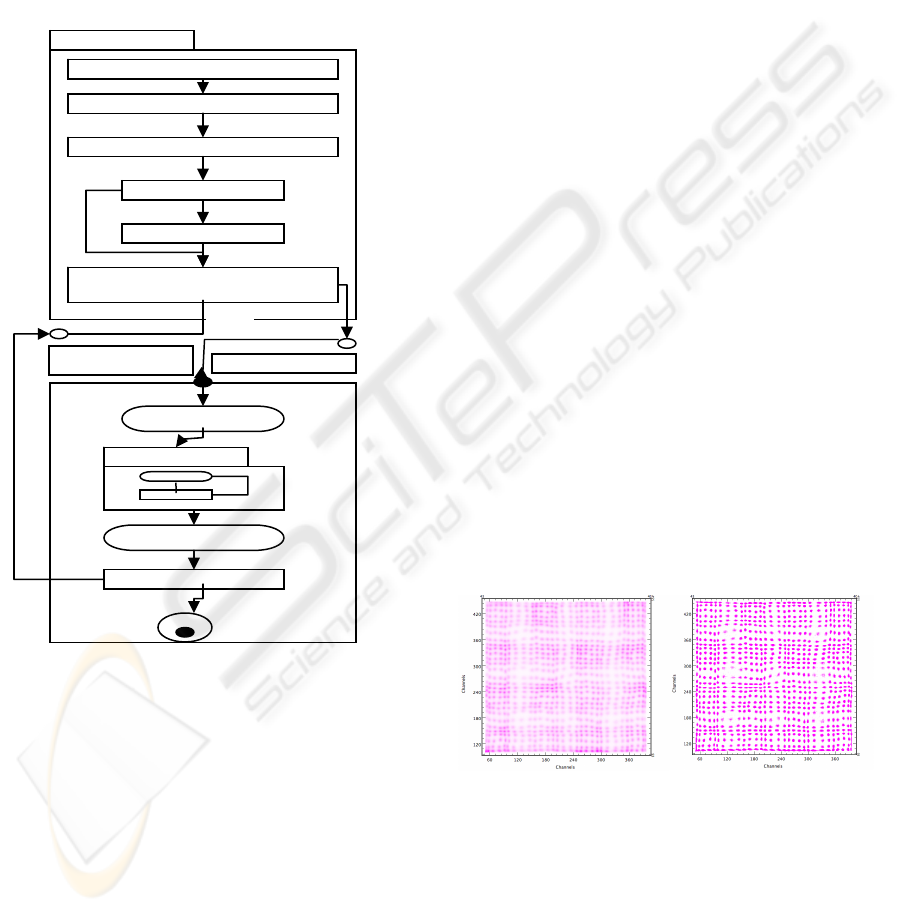

Figure 1.

The application that we developed for image

restoration runs under Kmax environment. Kmax is

a software product of Sparrow Corp. that provides

an environment for creation of Java script files

called toolsheets for instrument control and data

management with high level support for modular

instrumentation, data acquisition, and data analysis

(please follow link, http://www.sparrow.com

). Our

application software consists of two packages. One

is a Kmax toolsheet program that interfaces to the

end users through routines associated with graphical

user interface “buttons” as shown at the top of figure

1. The second package, the block diagram of which

is shown at the bottom of figure 1 is a native C

program running in the background. This

background task is built on OpenGL to take

advantage of graphical tools therein. The two

packages are interfaced through Java Native

Interface (JNI) functions as shown in Figure 1.

The rest of this article is organized as follows.

Section 2 describes our software solution to the

image restoration problem. Section 3 focuses on our

core geometric technique. We introduce the concept

of Voronoi diagram and address the rationale to do

so. Section 4 presents our preliminary work on

regression methods and an adaptive algorithm for

future work.

2 SOFTWARE

This section, we will describe our software solution

to the problem introduced above. We present our

solution by following the four steps illustrated in the

Kmax package of Figure1. In the first step, the raw

data file of an image (as shown in figure 2) is loaded

and the program is initialized. We outline the other

three steps in the following three subsections.

2.1 Filtering Out the Noise

The second step filters noise and enhances peak

localization. The filter contains a curve that is

roughly the same size and shape as the peaks in the

image. The filter is then moved across the image,

multiplying the filter by the image beneath it -

essentially a correlation function. This process

sharpens the image. Figure 3 shows the peak

enhanced image.

Figure 2: Input Image. Figure 3: Peak Enhance

Image.

2.2 Find Peaks

The third step is to locate the peaks in the image. We

call the set of signals that are emitted from

individual source scintillation as a signal cluster. A

peak is the centroid of a cluster. Using the filtered

Native Package

Kmax Packa

BTN_STEP_TWO: Filtering out the noise

BTN_STEP_THREE: Find peaks

BTN_STEP_ONE: Load Raw Images

Found all Peaks?

Done

BTN_STEP_FOUR: Links to JNI for

performing Voronoi Calculations

Add Peaks Manually

Yes

MAIN ()

GlutInit ()

Voronoi Package

Out

ut.tx

JNI

(

Java Native

)

VORONOI DIAGRAM AND ITS APPLICATION TO SPATIAL CALIBRATION FOR GAMMA CAMERA IMAGES

image, a search algorithm attempts to find as many

peaks as possible by looking for all local maxima

about a user-selected cutoff point.

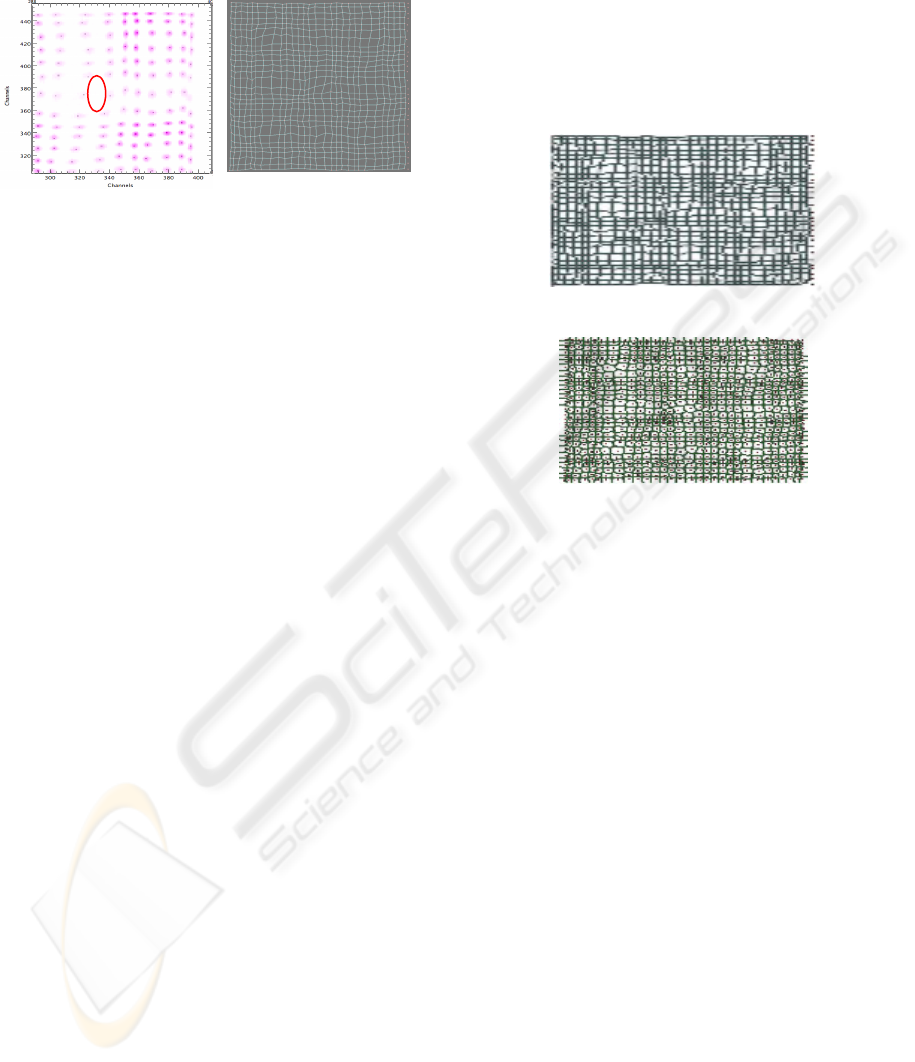

Figure 4: Missed peaks. Figure 5: Axis warped to

peaks.

The search is initiated from the peak closest to

the center of the image assuring the peak search

works equally well for rectangular and circular

detectors. A search ray is projected from the center,

initially along the x-axis. The search algorithm

iterates finding peaks that are near the axis. The

program finds all peaks that are contained within

constraints and assigns them a score based on their

distance from the center peak and the angle from the

search ray. The higher the score, the more likely it is

that the peak is the next correct peak on the axis.

Significantly higher scoring peaks inside the cone

are added to the axis, selecting the smaller angular

deviation from the similar scores. The process

continues until no peaks fit the constraints, usually

when the edge of the image has been reached. The

process is repeated for the next row, constructing a

new search ray parallel to the next row position until

all rows have been registered.

The program will usually find almost all of the

peaks, but tends to have trouble near the edges

where the image becomes strongly distorted due to

the boundaries of crystals and associated losses (see

figure 4). Additional problems arise when the

calibration image data contain response

inhomogeneities, resulting in additional false

positive peaks. As shown in the third step of figure

one, the located peaks with editing tools are then

presented for users to edit them in case some peaks

are missing. This is the only step in our current

version that requires user interaction. An adaptive

algorithm and future work to replace the manual

interaction will be presented in section 4.

2.3 Line up Peaks and Built Output

File

Once all of the peaks have been identified, all peaks

must be horizontally and vertically aligned so that

the calibration file for image restoration can then be

built. The program can also find the dimensions of

the crystal array by looking at the number of peaks

that make up each axis (Figure 5). Once the axes are

formed, the last step is to align the rest of the peaks.

Since we know that topology of the crystal grains in

advance, it is easy to adjust the peak line-up

algorithm to work for both rectangular and circular

detectors.

Figure 6: Grids centered at peaks.

Figure 7: Voronoi diagram of the peaks.

Our first mapping file was built on traditional

method. As shown in Figure 6, each box centered at

a peak maps to a crystal grain from which the charge

clouds of the peak are emitted. As shown in the

fourth step of figure 1, the mapping file of our

current solution was built on Voronoi diagram,

which will be elaborated in next section.

3 VORONOI DIAGRAM

This section focuses on our core geometric

technique, which is using Voronoi diagram to

replace the array of rectangles of the output mapping

file. We introduce the concept of Voronoi diagram,

outline its implementation, and address the rationale

and advantages to introduce this concept to our

program.

3.1 Definition of Voronoi Diagram

A Voronoi diagram creates a polygon around each

peak such that any point contained within that

polygon is closer to that peak than any other peak.

This means that when an event is detected, it is

mapped to the closest possible crystal. The Voronoi

diagram guarantees that every point in a give peak’s

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

polygon is closer to that peak than any other. The

Voronoi diagram is built simply by providing a list

of points; it is independent of the geometric

configuration that the points belong to. In short, it

only depends on the peaks that we found.

The Voronoi diagram is one of the most

important computational geometry concepts, which

is secondary only to convex hulls (O’ Rourke, J.,

1998). Let

},....,{

21 n

PPPP =

be a set of n points in

plane, the nearest neighborhood of

P is defined as:

}|,||:|{ ijxpxpxV

jiP

≠∀−≤−=

. It is a

polygon that contains all points that are closer to

p than any other points

p in the point set P. The

Voronoi diagram is made up of all neighborhoods

V for ni ≤≤1 .

3.2 Computation of Voronoi Diagram

An efficient algorithm to create Voronoi diagrams as

well as its dual Delaunay triangles can be found in

the book of O’ Rourke. Although our user interface

is in Java script, there are two factors that motivate

us to code the Voronoi computation in C. Firstly,

coding the algorithm in Java reduced the

performance measurably. Secondly, OpenGL is

coded in C and we would like to build our

computation on OpenGL, which provides rich

graphic utility functions for us to interpret data and

process the graphics elements. The detail

implementation is beyond the scope of this article.

Source codes are available by personal contact to

liuho@erau.edu

. Our technical challenge is the

interfacing problem with many file operations. We

use JNI to interface the Java script code in Kmax

and native C codes.

Once the Voronoi diagram is built, the

calibration file is created by assigning each crystal

element an integer value. This value will represent

the array position of the regular crystal that the event

will be mapped to. The numbering system starts at

the bottom left corner of the array, which is assigned

the value of 0 with indices increasing in row order.

Event centroids are resolved to an initial pixel

position in the raw image. Each pixel in the image

space is tested to determine which Voronoi polygon

it falls inside and thus which crystal grain the event

is to be associated with. The pixel is then assigned

the value of the corresponding array position. Once

the map has been completed, it is exported in Kmax

histogram format. The resulting calibration file is

then used to interpret the data when the detector

receives a gamma event. The calibration function

takes the apparent (distorted) location of the event

and returns the crystal number (position) in which

the event is most likely to have occurred.

3.3 The Rationale of Voronoi

Approach

We address the rationale to replace rectangular grids

to Voronoi diagrams by the deficiency of the former

approach and the advantages of the latter one.

Building a rectangular array to match the array

of crystals presents a number of problems. First, not

all of the detectors are rectangular; some detectors

are made into circles by cutting off the corners of the

crystal array. Second, due to the distortions,

especially near the edges, it is difficult to detect

exactly where in the array a particular peak belongs.

Third, the size of the crystals and the number of

crystals changes from detector to detector. It is

challenging to make an algorithm that will align the

peaks correctly for different geometric

configurations of segmented crystal plates.

We know from 3.1 that Voronoi diagram is a

geometric concept to describe vicinity. We argue

that the mapping between the peaks of signal

clusters and the crystal grains is essentially a map

between two sets of closest neighborhoods. A

PSPMT diagram of the set-up for mapping the

detector surfaces with gamma rays can be found in

the article by Weisenberger et al. 2003. The charges

scattered from the scintillation hit mostly the nearby

anode elements within a cylindrical cone whose

vertex is the scintillation origin. Notice that the

vertical distance from all anodes to the crystal plate

are uniform, so, the source scintillation of a charge

cluster is most likely originated from the scintillation

whose horizontal distance to the peak (centroid of

the cluster) is smallest. Since we cannot control the

exact location of the scintillation inside a particular

crystal grain due to the randomness of scattering, a

point-to-point mapping between the scintillation

location and their corresponding peaks is not

available. Nevertheless, it is statistically sound to

assume that most of scintillations originated near the

center of the crystal grains. Therefore, the crystal

grains that host the corresponding scintillations are

their natural nearest neighborhoods in statistical

sense. On the other hand, the Voronoi diagrams are

the precise nearest neighborhoods of signal peaks.

Hence, we have a map between the two sets of

neighborhoods; with one set as the nearest

neighborhoods of the signal peaks and the other set

as the crystal grains that are the natural

VORONOI DIAGRAM AND ITS APPLICATION TO SPATIAL CALIBRATION FOR GAMMA CAMERA IMAGES

neighborhood of the original scintillation.

To summarize the idea: 1. A set of regularly

spaced crystal segment grains possess a one to one

relationship to peaks identified in the calibration

image. 2. The Voronoi diagram of the peak locations

define the nearest neighbor mapping from image

pixels to the crystal grains (see figure 7). 3. Each

imaging event in the scintillator produce a cluster of

charge signals at the PSPMT anodes whose centroid

falls inside one Voronoi region. 4. The mapping of

this centroid from the Voronoi region to the crystal

grain defines the shortest distance to the mapped

peak among all peaks in the calibration file. 5. Since

statistically, most scattering charges of a scintillation

hit nearby locations on the detector, the detected

cluster of signals is most likely to have originated

from a scintillation occurring in the mapped crystal

grain corresponding to the containing Voronoi site.

Thus, the region-to-region mapping between the two

sets of nearest neighborhoods is the best one that is

available and necessary in theory. In practice, we

can clearly see the differences of linearity and

uniformity between the solution in Voronoi diagram

approach and the solution in rectangular grids

(comparing figure 7 and figure 6). It is desirable to

measure the quantitative improvement of in our

future work.

The Voronoi diagram will always create a

precise nearest neighbor map regardless of

geometry. This makes the mapping technique

adaptable to crystal plates of other geometric

configurations. It is superior to previous methods

which defined arbitrary neighborhoods based on a

simpler set of bisectors and thus did not guarantee

true nearest neighbor performance. The

computational complexity of the algorithm for

generating the Voronoi diagram O(n ln(n)), where n

is the number of the sites and ln(n) is the natural

logarithmic function of vertex number n. It is fast

enough for use in real time applications.

4 FUTURE WORK

The third step sometimes relies on manually

cropping to correct possible missing peaks, which

mostly occurs at edges. Due to the optical and

electronic faults, it is possible to incorrectly identify

high noises as peaks and falsely filter out low peaks

as noises. With judicious choices by the operator the

initial peak identification process typically detects

90% to 95% of the true peaks. Our future work is to

apply a preliminary nonlinear regression method and

an adaptive algorithm presented below to improve

the accuracy of our peak identification.

4.1 Nonlinear Regression

MATLAB is used to implement the nonlinear

regression analysis presented below. We try to

preprocess the input data file and correct the local

distribution of the individual signal clusters without

change their total energy levels. The two

assumptions are that each cluster observes a

hypothetic Gaussian distribution and corresponds to

a peak and the distortion does not significantly

change the total received energy of a cluster. In our

analysis, we first use the local maximum as a

reference point to estimate the amplitude of the

Gaussian distribution. By substituting the reference

point to the model that we have obtained with both

the mean and the standard deviation, we can solve

for the potential amplitude from the selected

reference point. The second step is to identify those

significantly distorted data by calculating the

difference between the experimental data and the

predicted data. The third step is to correct them in

the direction of the estimated trend by keeping the

mean invariant according to the second assumption.

After constructing the Gaussian distribution the

deficient data values are replaced by the values

suggested by the regression curve. This procedure is

performed iteratively until the difference between

the interactions is sufficiently small (see Figure 8).

4.2 An Adaptive Algorithm

We need firstly to set the criteria to measure the

quality of our calibration. Regardless whether we

use rectangular crystal plate or round crystal plate,

we know the numbers of the crystal grains in each

row and each column. We also recall that our

Voronoi diagram has been indexed horizontally and

vertically at the fourth step. So our first measure is

that the numbers of sites in each row and each

column of Voronoi diagram must match those of the

crystal plate. We also know that the sizes of crystal

grains are almost uniform except for the grains on

the edge of round crystal plates. Though distortion is

inevitable, we expect that the Voronoi diagram has a

certain level of uniformity of sizes, which is

measured by the number of pixels. Hence, our

second measure is the statistical confidence level of

the site sizes. We define our fitness function of the

adaptive algorithm according to these two factors

with empirical weighted coefficients.

In the first step of iteration, the image data

modified in the previous iteration is loaded to

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

replace the raw data. Our major change starts at the

third step as follows: We mark those narrowly

passed peaks as likely false peaks. While those

points passing a specific cutoff filter are recorded as

peaks, other points passing half of the cutoff filter or

whose amplitudes being second to the corresponding

peaks nearby are also recorded as back-up candidate

peaks for next iteration. They are used to mutate

with the narrowly passed peaks to improve the

overall fitness function in the fourth step.

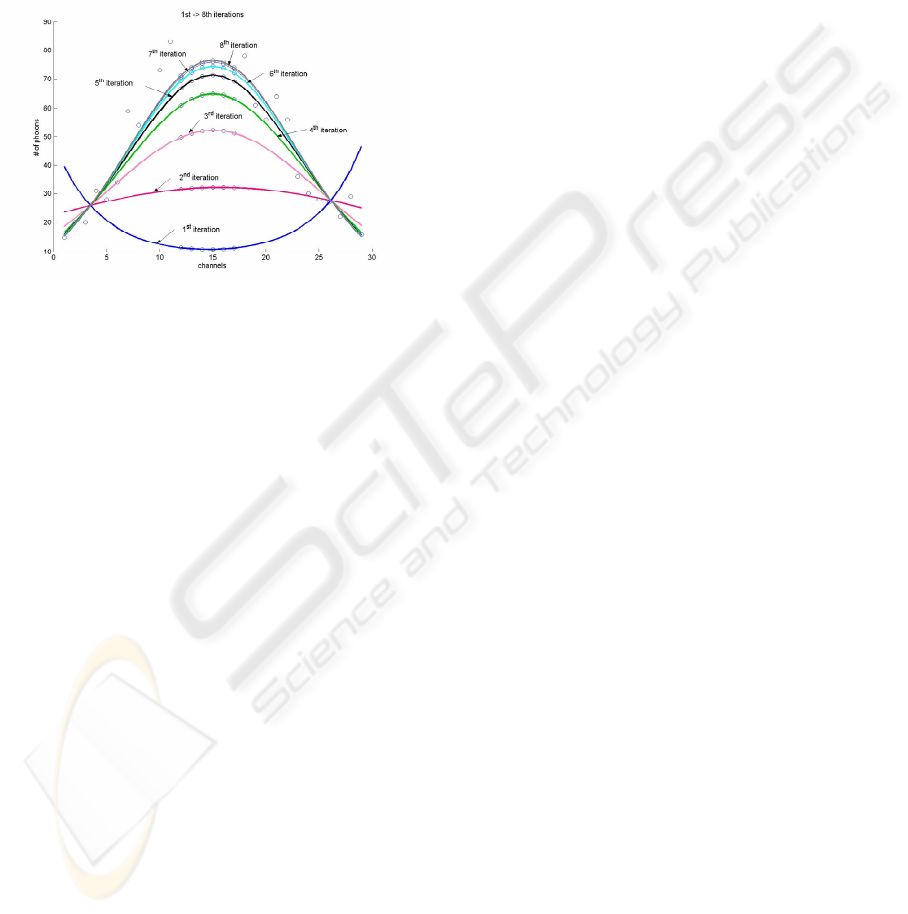

Figure 8: Nonlinear Regressions of Several Iterations.

After constructing the Voronoi diagram and

indexing each site with the mapped pixels, we add

three operations in the fourth step. Firstly, we

recalculate the median and standard variations of the

site sizes along with the amplitude of signals and

update the fitness function. Secondly, we construct a

hypothetic Gaussian distribution of the site sizes of

the Voronoi diagram. If the size of a peak lies out of

the small side of a certain confidence interval, then it

is confirmed as a most-likely false peak. If a

recorded back-up peak candidate is available in the

corresponding site of the most-likely false peak,

then, we test the mutation under the fitness function.

If the mutation improves the fitness, then the back-

up point is promoted as a peak by properly

increasing its signal amplitude without changing the

mean signal intensity, while the most likely false

peak is demoted as a back-up candidate by properly

decreasing its amplitude. Finally, we use an

empirical cutoff of the fitness function to decide if

the iteration should be terminated.

4.3 Conclusions

Voronoi diagram has extensive applications in many

fields (Gonzalez 2004). In the broad image

processing field, Amidror surveyed the applications

of Voronoi diagrams to data interpolations Amidror

2002. We observe that the mapping between the

peaks of charge clouds and scintillation sources of a

segmented crystal plate is essentially a nearest

neighborhood problem. In this work, we use a

Voronoi diagram to construct the position mapping.

To our knowledge, it is the first time that the

Voronoi diagram is applied to solve position

mapping problems in image processing field. The

natural fit of the Voronoi diagram to the essence of

neighborhood problem significantly improves the

likelihood of correct mapping and makes the

mapping technique adaptable to crystal plates in

other geometric configurations. This paper presents

our empirical solution to the image restoration

problem used for breast scintimammography. We

implement the computation of Voronoi diagrams in

C via OpenGL under a Java-based user environment

called Kmax. We also outline a nonlinear regression

method to correct the shape of charge clusters

locally and a preliminary adaptive algorithm to

improve the effectiveness of peak identification in

our future work.

ACKNOWLEDGEMENTS

Authors would like to give thanks to the Thomas

Jefferson National Accelerator Facility for

sponsoring the reported investigation.

REFERENCE

Amidror, I., 2002. Scattered data interpolation methods for

electronic imaging system: A survey, Journal of

Electronic Imaging , Vol. 11(2), 157-176.

Gonzalez, R., C., Woods, R., E., 2004. Digit Image

Processing, Pearson Education, , 2nd edition.

Weisenberger, A.G., Wojcik, R., et al. 2003. SPECT-CT

system for small animal imaging, Nuclear Science,

IEEE Transactions, Volume 50, Issue 1, pp. 74 – 79.

Marks, D.G., Barber, H.B., et al., 1999. Improving

Performance of a CdZnTe imaging array by mapping

the detector with gamma rays, Nuclear Inst. &

Methods in Phys. Res., A 428, 102 – 112.

O’ Rourke, J., 1998. Computational Geometry in C,

Cambridge University Press, second edition.

Smith, M.F, Majewki, S., Weisenberger, A.G., 2003.

Optimizing Pinhole and Parallel Hole Collimation for

Scintimammography with Compact Pixellated

Detectors, IEEE Trans Nucl Sci. 50: 321-326.

Williams, M. B., Goode, A.R., Galbis-Reig, V., et al.

2000. Performance of a PSPMT based detector for

scintmammorgraphy, Phy. Med. Biology, Vol. 45, pp

781-800.

VORONOI DIAGRAM AND ITS APPLICATION TO SPATIAL CALIBRATION FOR GAMMA CAMERA IMAGES
