IMAGE QUALITY IN IMAGE-BASED REPRESENTATIONS OF

REAL-WORLD ENVIRONMENTS

Perceived Smoothness of Viewpoint Transitions

Filippo Speranza

Communications Research Centre Canada, 3701 Carling Avenue, Ottawa, Ontario, K2H 8S2, Canada

Akshay Bhatia, Robert Laganière

University of Ottawa, School of Information Technology and Engineering Ottawa, Ontario K1N 6N5, Canada

Keywords: Virtual environments, perceived smoothness, viewpoint density, speed of movement.

Abstract: In this study, we investigated the effect of viewpoint density and speed of motion on perceived smoothness

of viewpoint transitions. The effect of viewpoint density was examined for two types of viewer motion:

forward and lateral motion. In both cases, we found that perceived smoothness varies with viewpoint

density. We also found the number of viewpoints required to maintain a certain level of perceived

smoothness varies inversely with speed of movement represented.

1 INTRODUCTION

The ability to virtually navigate across visual

representations of real-world environments is of

great benefit to many fields, such as education, real

estate, and tourism. However, the appeal and

usefulness of applications based on virtual

navigation essentially depend on the easiness with

which the user can navigate the environment and the

quality of the visual information provided.

We can consider the representation of the

environment as a collection of viewpoints. A

viewpoint is simply a view of a scene taken from a

specific perspective and hence having a specific

visual direction. To obtain a high quality

representation of the environment, and thus a natural

and comfortable visual experience, two factors are

important: viewpoint quality (e.g., sharpness, color,

etc.) and viewpoint density, which refers to the

number and spacing of the viewpoints made

available to the viewer.

Viewpoint density might have significant effects

on the perceived smoothness of viewpoint transition

and thus on the quality of the visual experience.

When the user moves across the virtual

environment, the visual information needs to be

updated consistently with the speed and direction of

movement. Basically, this involves a series of

transitions from viewpoint to viewpoint. A

degradation of perceived smoothness of viewpoint

transition might be expected if, after a movement of

some extent, the corresponding new viewpoint is not

available (e.g., because not captured). The amount of

degradation will depend upon the techniques (e.g.,

interpolation or duplication) used for replacing the

missing viewpoint. In this study, we investigated the

minimum number of viewpoints that need to be

captured for perceptually smooth transitions.

The effect of viewpoint density might also

depend upon the speed of movement. Assume that

the viewer moves, at a speed of 10 feet/second,

between points A and B, which are separate by a

distance of 10 feet. Assume also that we display this

movement using a 30 fps video rate so that the

viewer will navigate the AB distance in exactly one

second. A complete representation of the movement,

that is one in which each frame contains new and

different information, would require 30 different

viewpoints, i.e. a density of 3 views/foot. Now

assume that the viewer moves the same distance at

twice the previous speed. It is easy to see that, at the

same video rate of 30 fps, we would have to display

only 15 frames (1.5 views/foot) to provide a

complete representation of the movement. Thus, for

each speed of movement there is a maximum

439

Speranza F., Bhatia A. and Laganière R. (2008).

IMAGE QUALITY IN IMAGE-BASED REPRESENTATIONS OF REAL-WORLD ENVIRONMENTS - Perceived Smoothness of Viewpoint Transitions.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 439-442

DOI: 10.5220/0001096804390442

 SciTePress

viewpoint density which provides the maximum

amount of visual information possible at a given

video rate. Densities lower than this maximum

might result in a decrease of perceived smoothness.

The relation between perceived smoothness,

viewpoint density, and speed of movement was

examined for two simple types of viewer (virtual

camera) motion: forward motion (i.e., moving

toward a target in a straight line) and lateral motion

(i.e., moving sideway in a straight line).

2 EXPERIMENT 1 - FORWARD

MOTION

In this experiment, we simulated what the observer

would see if she/he were moving in the environment

from point A to point B along a straight path and

looking in the same direction as that of the

movement. These “forward motion” test sequences

were constructed by selecting viewpoints that had

the same visual direction as the direction of

movement.

2.1 Generation of Video Test Material

We used four were natural sequences, captured with

a LadyBug camera (Point Grey Research Inc.), and

one synthetic sequence, created with 3D StudioMax.

The pixel resolution of all sequences was 1024 x720.

The natural sequences were captured in a

rectangular room. Two sequences, named

CastleLongFront and CastleLongBack, represented a

movement along the longest axis of the room but in

opposite directions. The other two sequences, named

CastleShortFront and CastleShortBack, represented

a movement along the shortest axis of the room, but

again in opposite directions. All four sequences were

created by capturing 4 original images per foot at

equally spaced intervals. The long sequences

encompassed a distance of 24 feet (96 original

viewpoints) whereas the short sequences

encompassed a distance of 10 feet (40 viewpoints).

The synthetic sequence, named SaharaLong,

contained several geometric shapes and a model of a

vehicle whose dimensions were used as a baseline

for the spatial dimensions of the environment.

Simulate distance and viewpoint density were the

same as those of the long natural sequences.

These original sequences were used to generate

sequences having different levels of viewpoint

density and speed of movement. There were four

levels of viewpoint density: 4, 2, 1, and 0.5

views/foot. The lower density sequences were

created by sub-sampling the 4 views/foot original

sequences and duplicating the remaining views.

Thus, the eight views (1,2,3,4,5,6,7,8) that spanned

two feet in the original sequences became

(1,1,3,3,5,5,7,7), (1,1,1,1,5,5,5,5), and

(1,1,1,1,1,1,1,1) in the 2, 1, and 0.5 densities,

respectively.

Each of the four densities was presented at three

speeds: 3.8 (slow), 7.6 (medium), and 15.2 (fast)

feet/second. The speed refers here to the speed at

which the camera (real or virtual) is moving through

the environment. In this study, this speed was

simulated by changing the speed at which the

sequences were played by a DVS HDProStation

digital disk recorder. The slowest speed

approximated the average walking speed

(Knoblauch, Pietrucha, and Nitzburg, 1996).

It was noted that at the fastest speeds the

duration of the sequences would be perhaps too

short for a proper assessment of smoothness. To

obtain sequences of sufficient temporal duration we

first increase the length of the sequence by repeating

the sequence backwards to form a cycle, i.e., from

point A to point B and vice versa (ABA). Secondly,

we concatenated these cycles proportionally to the

speed at which the sequence was to be played: once

for the slow speed, twice for the medium speed, and

four times for the fastest speed. As a result, the long

sequences had duration of 12.6 seconds and the short

sequences had duration of 5.2 seconds.

2.2 Subjective Assessment

In order to evaluate the perceived smoothness of

sequences generated as described above, we

performed a subjective assessment experiment.

Eighteen viewers participated in the experiment.

The combination of five sequences, four

viewpoint densities, and three speeds yielded 60

experimental conditions. The perceived smoothness

of these conditions was assessed using a single

stimulus method (ITU-R Recommendation BT.500,

2004). A test session involved of a series of

assessment trials, each one consisting of the

presentation of a single video sequence followed by

a blank, i.e. mid-grey, display. At the end of each

trial, the viewer was asked to provide a rating of the

perceived smoothness of the entire presentation

using a continuous line judgment scale, which was

divided into five segments. As a guide, the

adjectives “Excellent”, “Good”, “Fair”, “Poor”, and

“Bad” were aligned with the five segments of the

scale. For analysis, the viewers’ responses were

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

440

digitised to range between 0 (lower end of the “Bad”

segment) and 100 (upper end of the “Excellent”

segment).

2.3 Results Forward Motion

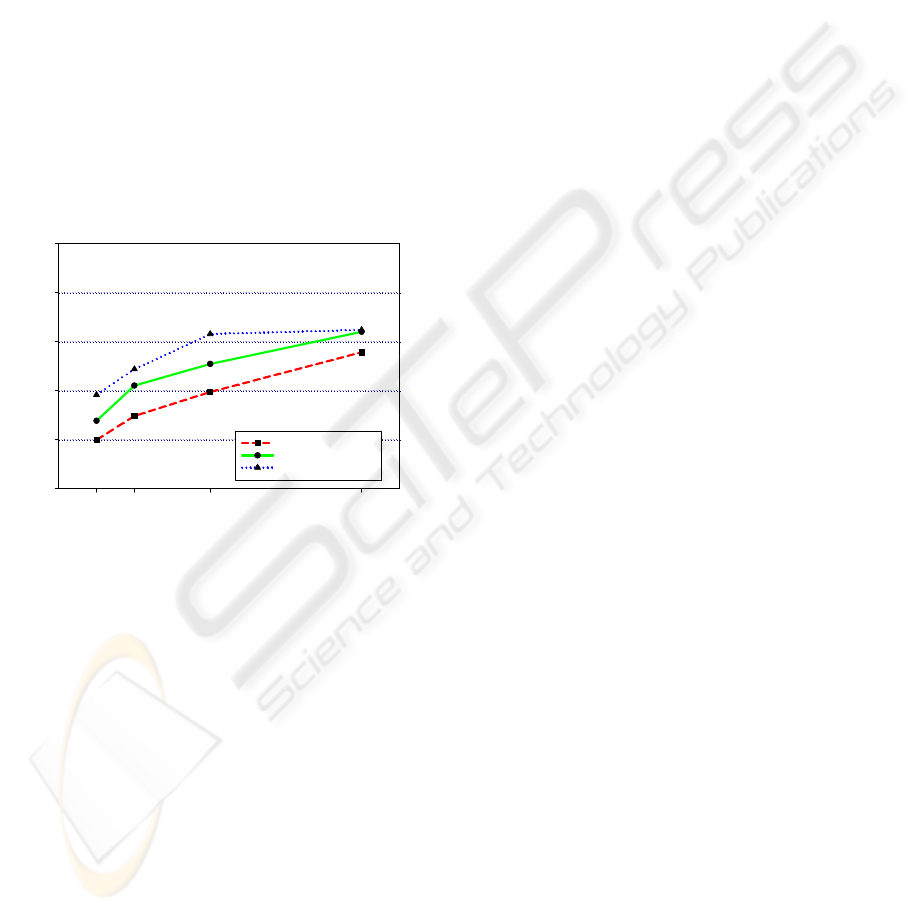

The results for the Forward Motion case are shown

in Figure 1. It can be seen that perceived smoothness

increased with viewpoint density at all three speeds.

The speed functions appear to converge at the 4

views per foot density. However, the rate of increase

differed across speeds. For the fastest speed,

perceived smoothness reached its maximum already

with a 2 views per foot density. For the medium and

slow speeds, the rate of increase was much lower.

As a result, the number of viewpoints required to

maintain a certain level (e.g. 50) of perceived

smoothness decreased as the speed of movement

increased, and vice versa.

Figure 1: Mean perceived smoothness for forward motion.

3 EXPERIMENT 2 - LATERAL

MOTION

In this experiment, we simulated what the observer

would see if she/he were moving in the environment

from point A to point B along a straight path but

looking perpendicularly to the direction of motion.

Thus, this ‘sideway’ motion recreated viewing

conditions similar to those a viewer would

experience if he/she were looking outside the

window of a moving train.

3.1 Generation of Video Test Material

The video material consisted of five sequences

captured as in Experiment 1. Thus, we had four

natural sequences captured in a room setting with a

LadyBug camera. Two sequences, named

CastleLongLeft and CastleLongRight, represented a

movement of 24 feet along the longest axis of the

room but in opposite directions. The other two

sequences, named CastleShortLeft and

CastleShortRight, represented a movement of 10 feet

along the shortest axis of the room but again in

opposite directions. The fifth sequence (named

SaharaLongLeft) was a synthetic sequence generated

with the same environment used for Experiment 1.

The sequence simulated a movement along a 24 feet

distance. All five sequences had an original

viewpoint density of 4 views/foot. The pixel

resolution of all sequences was 1024 x 720.

These original sequences were used to generate,

as in Experiment 1, sequences having four levels of

viewpoint density: 4, 2, 1, and 0.5 views/foot at

three speeds: 3.8 (slow), 7.6 (medium), and 15.2

(fast) feet/second.

3.2 Subjective Assessment

Viewers, apparatus and subjective methodology

were the same as in Experiment 1.

3.3 Results Lateral Motion

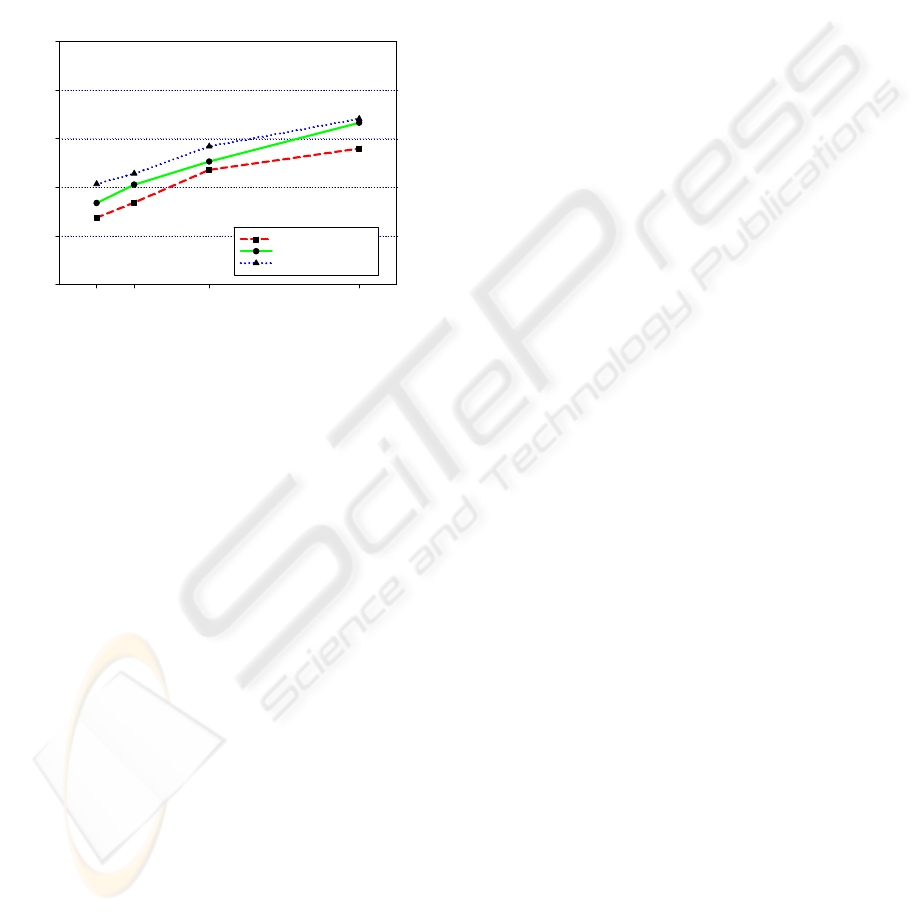

The results for the Lateral Motion case are shown in

Figure 2. These results are generally similar to those

observed for the forward motion case. However, the

convergence at the 4 views/foot density is far less

pronounced. Thus, the results suggest that lateral

motion might require higher densities than forward

motion, possibly because of the higher rate of

change of visual information associated with lateral

movements.

4 CONCLUSIONS

The results show that perceived smoothness varies

with viewpoint density. For the conditions of this

study, a viewpoint density of 4 views per foot

appears to be sufficient for the perception of smooth

movement at all three speeds. We also found that the

number of viewpoints needed to maintain a certain

level of perceived smoothness varies inversely with

speed of movement.

It might be noted that, overall, ratings of

smoothness were rather low. This was mostly due to

the results for the four natural images. These images

were captured by moving a camera in a stepwise

fashion. This resulted in successive images that did

Viewpoint Density (Views/foot)

0.5 1.0 2.0 4.0

Perceived Smothness

100

Slow (3.6 feet/sec)

Medium (7.8 feet/sec)

Fast (15.6 feet/sec)

IMAGE QUALITY IN IMAGE-BASED REPRESENTATIONS OF REAL-WORLD ENVIRONMENTS - Perceived

Smoothness of Viewpoint Transitions

441

not have the same optical central direction and

therefore in images that exhibited, in some cases, a

small spatial jitter from frame to frame. Future

research will be required to address the role of

spatial registration. Finally, it should be also noted

that we used actual images plus replications to

generate the test sequences. It is expected that using

interpolation will further improve perceived

smoothness. Future study will consider the

effectiveness of different interpolation algorithms.

Figure 2: Mean perceived smoothness for lateral motion.

REFERENCES

R.L. Knoblauch, M.T. Pietrucha and M. Nitzburg , 1996.

"Field Studies of Pedestrian Walking Speed and Start-

Up Time," Transportation Research Record (1538), pp.

27-38.

International Telecommunications Union, 2004. , ITU-R

Recommendation BT.500, “Methodology for the

subjective assessment of the quality of television

picture”.

F. Speranza, J.W. Tam, T. Martin, L. Stelmach and C.H.

Ahn, 2005. “Perceived smoothness of viewpoint

transition in multi-viewpoint stereoscopic displays,”

Proc. SPIE: Stereoscopic Displays and Applications

XII, Vol.5664, pp.72-82.
