A REVIEW OF COLLABORATIVE VIRTUAL ENVIRONMENT

(CVE) EVALUATION METHODOLOGIES

Thrasyvoulos Tsiatsos

1, 2

and Konstantinidis Andreas

Department of Informatics, Aristotle University of Thessaloniki

Thessaloniki, Greece

Research Academic Computer

Technology Institute, Greece

Keywords: Collaborative, Virtual Environment, Evaluation.

Abstract: This paper presents several methodologies concerning the evaluation of Collaborative Virtual Environments

(CVEs). In doing so, the authors aim to compensate for the absence of a CVE evaluating standard, with the

goal of aiding future evaluators in their task. Initially, the paper discusses the general benefits of CVEs and

computer supported collaborative learning (CSCL). Based on the examined research it continues with sug-

gested evaluation criteria and the division of evaluation into partitions. Following that, we discuss recom-

mended evaluator profiles and data mining practices. The paper concludes with a description of appropriate

data analysis procedures. In the final section, some closing remarks are made and future work is discussed.

1 INTRODUCTION

A Collaborative Virtual Environment (CVE) is a

computer-based, distributed, virtual space or set of

places. In such places, people can meet and interact

with others, with agents, or with virtual objects.

CVEs might vary in their representational richness

from 3D graphical spaces, 2.5D and 2D environ-

ments, to text-based environments. Access to CVES

is by no means limited to desktop devices, but might

well include mobile or wearable devices, public

kiosks, etc (Churchill et. Al., 2001) It is true that

CVES will play an important role in future educa-

tion since continuous enhancements in computer

technology and the current widespread computer

literacy among the public have resulted in a new

generation of students that expect increasingly more

from their e-learning experiences. To keep up with

such expectations, e-learning systems have gone

through a radical change from the initial text-based

environments to more stimulating multimedia sys-

tems.

The evaluation phase in a software application’s

development cycle is of paramount importance.

Through evaluation, software houses can cut down

on development cost and time. Evaluation can also

aid in the demonstration of a program’s benefits to

funding sources and can improve its overall effec-

tiveness and appeal. Better evaluations can lead to

better designs, based on users’ and experts’ recom-

mendations and suggestions. On the other hand, as

(Turner and Turner, 2002) among others have ob-

served, the evaluation of collaborative applications

is fraught with difficulty.

There reason for this difficulty will become

clearer in the next section, where we discuss the

multitude of criteria that a thorough and complete

CVE evaluation must take into account. In section 3,

we present methodologies on how to simplify the

evaluation process by breaking it down into individ-

ual partitions while in the remaining sections we

suggest evaluator profiles, data mining practices and

data analysis procedures based on what the majority

of the examined research proposes.

2 EVALUATION CRITERIA

It is important when planning an evaluation to de-

termine which items are assessable. This is often the

most complex part. This collection of items is neces-

sary to formulate specific questionnaires and hence

to find and eliminate disturbance factors from the

implementation of a CVE (Goebbels et. Al., 2003)

499

Tsiatsos T. and Andreas K. (2008).

A REVIEW OF COLLABORATIVE VIRTUAL ENVIRONMENT (CVE) EVALUATION METHODOLOGIES.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 499-504

DOI: 10.5220/0001098604990504

 SciTePress

In our research we discovered that these criteria

varied considerably between evaluations. We will

briefly present here the common criteria used among

the majority of researchers. These include: effective-

ness, transparency, confidence, usability, interac-

tion, application, collaborative work, system related

criteria and the sense of co-presence.

The ISO 9241-11 (ISO, 1998), defines effective-

ness as a human’s accuracy and completeness in

doing tasks. A tight relation between effectiveness

and efficiency is also confirmed, as efficiency is

defined as the effort necessary to achieve effective-

ness. A system is designated as transparent if the

user recognizes whether the dialog system is proc-

essing an input command or is waiting for a new

command.

Even though, members of the army community

as well as major organizations such as Boeing,

Chrysler and General Motors are now regularly

using CVES for system and product development

life-cycle (DLC) activities (Lethinen and Hak-

karainen, 2001), there is still the matter of confi-

dence in such a novel technology. In that, according

to (Turner end Turner, 2002): the CVE must show

that it can deliver safety-critical training to senior

professionals; the training through a CVE must be

validated by a recognised training and standards

body as being of a suitable standard; the CVE must

be accepted by the trainers, trainees and employers

who will have to use it.

Usability inspections of the initial applications

are necessary so as to uncover the main design flaws

and allow a clean up of the design, meanwhile

adapting the method to 3D collaborative aspects.

Usability and interaction are very much interrelated.

Concerning interaction, social-arbitrary knowledge

(language, values, rules, morality, and symbol sys-

tems) can only be learned in interactions with others.

Several human-computer interaction rules for dis-

play design must be taken into account when im-

plementing any e-learning system, such as consis-

tency of data display (labelling and graphic conven-

tions), efficient information assimilation by the user,

use of metaphors, minimal memory load on user,

compatibility of data display with data entry, flexi-

bility for user control of data display, presentation of

information graphically where appropriate, standard-

ized abbreviations, and presentation of digital values

only where knowledge of numerical value is neces-

sary and useful.

Application criteria are generally concerned with

the affordances of objects and the lack of help with

the CVE itself. They are broad in nature, from prob-

lems with objects whose operation is not obvious, to

wider topics such as how best to represent group

services to group members.

The difficulty in evaluating collaborative work is

that some tasks are less “shareable” than others. For

instance, solving anagrams can hardly be done col-

laboratively because it involves perceptual processes

which are not easy to verbalise (if they are open to

introspection at all). In contrast, some tasks are

inherently distributed, either geographically (e.g.,

two radar-agents, receiving different data about the

same aeroplane), functionally (e.g., the pilot and the

air traffic controller) or temporally (e.g., the take-off

agent and the landing-agent).

High system responsiveness is perceived as hav-

ing very positive impact on collaboration (Goebbels

et. Al., 2003). Even downsizing the application in

order to decrease the CPU load is thought to be

recommendable. Apparently, good system respon-

siveness is guaranteed if all inputs and outputs are

processed and rendered within less than 50ms.

Given the user’s expectation of free movement at all

times, a low system responsiveness suggests to the

user that an error has occurred, or that the operation

failed. This is also potentially serious for immersed

users since the visual and proprioceptive cues will

conflict.

Finally, researchers can organize isolated auxil-

iary case-controlled experiments focused on the

evaluation of factors of the central CVE concept of

presence. Research (Goebbels et. Al., 2003) has

shown that the perception of co-presence is interre-

lated with the video frame rate. Further experiments

with the video frame rate as a parameter showed that

the perception of co-presence vanishes completely if

the video frame rate sinks below 12 fps.

Additional criteria based on the conversational

framework presented and discussed in (Lethinen and

Hakkarainen, 2001) are resource negotiation, adap-

tation, monitoring, student reflection, extensibility,

coordination of people and activities, individualisa-

tion and learner centeredness. Other criteria, men-

tioned but not shared between the researchers are

input devices, physical equipment and cabling, fre-

quency with which the user looks at the partner and

frequency with which the user speaks with the part-

ner.

Considering all these evaluation items in one ses-

sion is almost impossible, since the items mentioned

above evaluate too many different aspects of Hu-

man-Computer-Human interaction. In order to ad-

dress this number of items special partitions of

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

500

evaluation must be defined. This is the theme of the

next section.

3 EVALUATION PARTITIONS

As we saw in the previous section, the broadness of

CVE evaluation criteria constitutes an obstruction in

the evaluation process. This has been circumvented

by many researchers who propose specific criteria

partitioning. These partitions differ greatly in num-

ber, purpose and scope. Some partitions simply help

categorize the criteria while others constitute distinct

phases or sessions of the evaluation process.

Some researchers (Michailidou and Economides,

2003) categorize the criteria as psychological, peda-

gogical, technical, operational, organizational, eco-

nomic, social and cultural. Others such as (Turner

and Turner, 2002) divide the criteria in dimensions.

These dimensions are the usability dimension, the

collaborative work dimension and the ‘fit for pur-

pose’ dimension. The usability dimension includes

many of the usual issues of interaction with the user

interface (UI), such as: if users can find functions,

perceive the effect of their actions and use a range of

input devices. A final consideration at this level is

the affordances relating to the fidelity of the virtual

world to its physical counterpart, presence (meaning

the sense of being in the virtual world) and engage-

ment (meaning the sense of being ‘wrapped up’ in

any action that may be occurring) have a close but

somewhat complex association with embodiment.

The collaborative work dimension is about the users

trying to work through the UI to employ specific

functions to collaborate with others in the environ-

ment. Finally, the ‘fit for purpose’ dimension is

closely related with the confidence criterion pre-

sented in section 2. The researchers mentioned that

users also appeared to find this partition a natural

one, thus allowing meaningful discussion of peda-

gogic effectiveness whilst acknowledging that ergo-

nomic issues were still outstanding. They commend

the approach to others working in similar evaluation

contexts.

On the other hand, some researchers such as

(Grasso and Roselli, 2006) divide the criteria into

three sessions. These are a usability session, a co-

presence session and a co-work session. We will

briefly present here their proposed methodology. In

an introductory session the evaluators are informed

about the display system, the equipment and the

environment they are going to work with (the objec-

tive being to create almost the same conditions for

all evaluators). Following that, the usability session

begins. Here, the users interact autonomously within

the CVE for about five minutes. During the interac-

tion an external observer is taking notes and filling

out a special observer questionnaire contributing to

data mining, as will be discussed in section 5.

After this, in the co-presence session, the user

works again in the CVE but now with another data

set. In contrast to the latter session an experienced

user who has been involved in the development

process is remotely present within the same envi-

ronment through an audio/video connection. The

experienced user explains the task, the data set, the

input devices and the tools remotely to the evaluator.

Finally, in the co-work session, two users must work

together to complete a task. The task is designed in

such a way as to be impossible for it to be completed

by just one user.

Another way of partitioning the evaluation proc-

ess is by designing task-oriented social situations to

represent typical collaborative scenarios. Two types

of situations are defined. The first is called presenta-

tion and occurs whenever there is an expert who

wants to instruct a novice, as in cases of training or

in the field of education. The other is the joint work

of two people who try to benefit from their com-

bined expert knowledge in order to solve a difficult

problem. A variation of this method consists of two

phases: a usability inspection and a scenario based

evaluation.

A final method of making sure all the criteria are

assessed in the evaluation process is to expose the

users to the different features of a system through

specific tasks. For example, in some papers, four

tasks are defined as presented in

Figure 1.

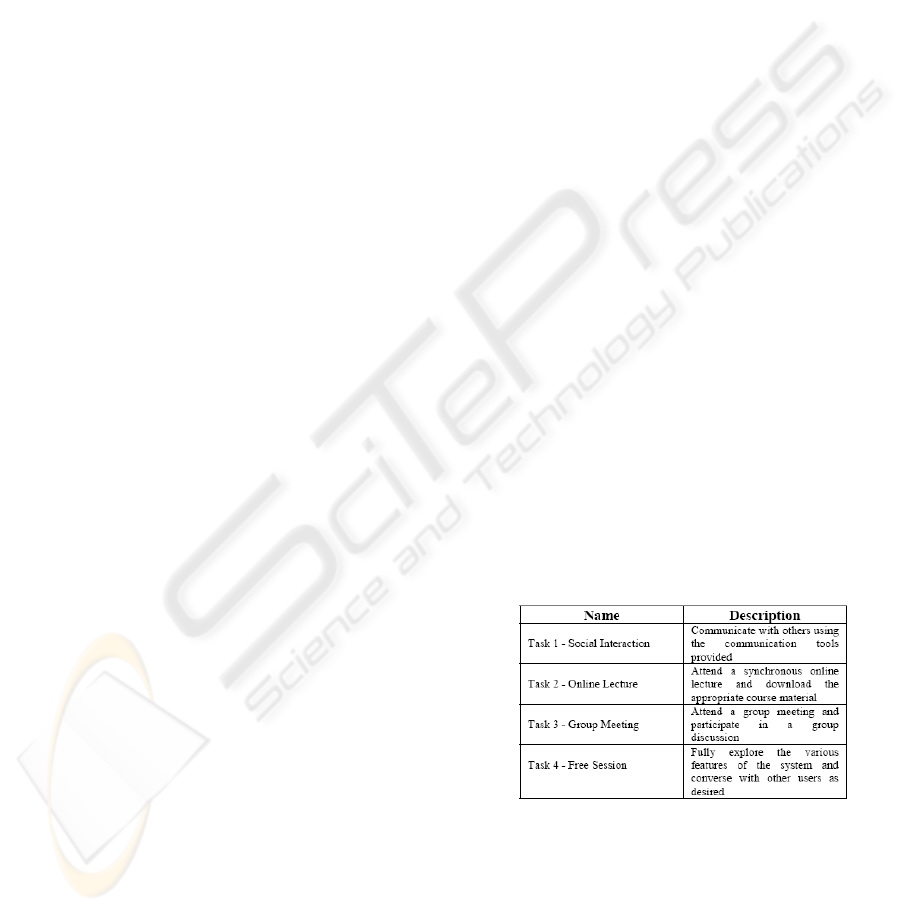

Figure 1: Task oriented evaluation.

4 USER (EVALUATOR)

PROFILES

The choice of evaluators depends greatly on the

intended target group of the CVE and their ability to

A REVIEW OF COLLABORATIVE VIRTUAL ENVIRONMENT (CVE) EVALUATION METHODOLOGIES

501

cooperate with the CVE designers. For example,

when working with children it is especially impor-

tant to inform them that their performance will be

evaluated by the teachers as part of their class-work.

Motivation is an important factor that can question

the validity of experiments with children (Grasso

and Roselli, 2006).

There are several other factors which must be

taken into consideration when deciding upon the

evaluators of a CVE. Factors such as the number of

evaluators employed, previous experience with

CVEs, educational background, profession and age.

Previous experience is very important, since one can

yield considerable detailed suggestions for im-

provements from CVE experts. Secondary factors

include the ability to remain unaffected by virtual

reality-induced symptoms and effects (VRISE),

since empirical testing confirms that virtual reality

systems induce physical symptoms and effects in

VCES (Bochenek and Ragusa, 2003). However, this

should concern mostly 3D CVE designers.

In addition, further research is needed in assess-

ing social discomfort levels generated in CVEs,

caused by participants working concurrently with

real people and their avatars. Finally, when evaluat-

ing a CVE in groups it is important to consider that

low achievers progressively become passive when

collaborating with high achievers and that groups of

three are less effective because they tend to be com-

petitive, whilst pairs tend to be more cooperative

(Dillenbourg et. al., 1996).

In the majority of the researched work, participa-

tion was anonymous and the number of evaluators

varied between 10 and 30. The age of the evaluators

was from a minimum 17 years to a maximum 58

years while the majority was between 22 and 27

years old. Most of the evaluators were university

students, whereas there was diversity in the other

users’ professions.

In one research (Turner and Turner, 2002) how-

ever, because of the restricted availability of users

from the target community, preliminary system

evaluation was carried out by ‘proxy’ subjects who

represented the eventual user population as closely

as possible in terms of relevant background skills

and experience. This allowed the researchers to

conserve the scarce resource of ‘real’ users for more

polished versions of the software. In the same re-

search it is argued that at least where issues of trust

and confidence are involved, domain-specific tech-

niques can only be developed with the participation

of the community concerned.

Selecting evaluators more befittingly can lead to

the more efficient acquisition of data during the data

mining process. Accuracy in the acquired data,

translates to a more conclusive and convincing

analysis. These subjects will be discussed in the next

sections.

5 DATA MINING

This section discusses the tools and methods design-

ers can use to gain important information from the

evaluators’ experience with the CVE. Separating the

evaluation procedure into subjective and objective is

suitable when comparing two different conditions

like a non-computerized approach (e.g. the tradi-

tional textbook) and a contemporary one (e.g.

CVES). The objective part takes into account how

the subjects interact and deal with the different fea-

tures; and can be recorded automatically by the

software. The subjective part reflects the user’s

impression about the interfaces, and can be acquired

through surveys and interviews.

Data collection usually consists of three stages:

pre-testing, system interaction and post-testing.

Most common among researches (e.g. (Turner and

Turner, 2002), (Dillenbourg et. al., 1996)), is the

filling out of questionnaires or web-based forms

before and after the evaluation process by the users.

The pre-questionnaire is usually about self-rating or

demographic information, while the post-

questionnaire concerns itself with the overall CVE

experience and criteria mentioned in section 2. It

should be noted that if the questionnaires are similar

in nature, in order to avoid carry-over effects the

wording of the post-test should be slightly different.

Within the questionnaires, multiple choice ques-

tions, free answers and Likert scales (a variation of

which can be seen in Figure 2) are regularly used.

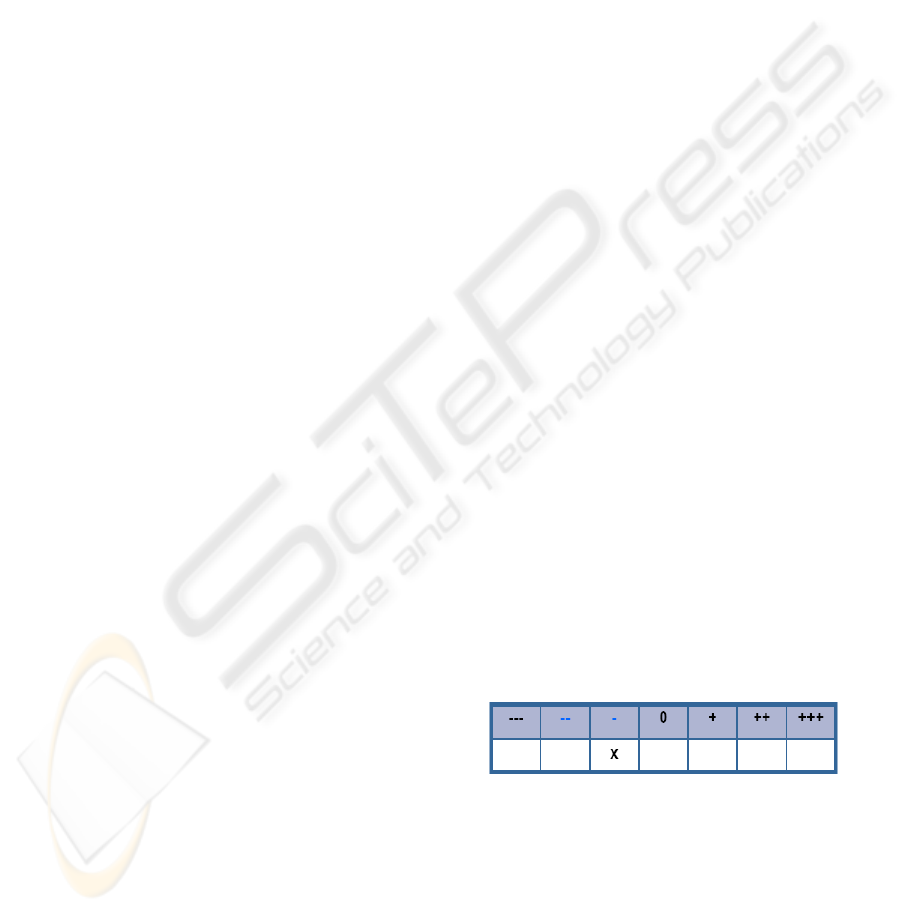

Figure 2: A variation of a Likert scale called a seven-point

scale.

The multiple choice questions are generally grouped

into sections such as: general impression of the

collaborative system; details about virtual worlds

and avatars; navigation within the system; coopera-

tion modes and interaction with the collaborator;

technical questions about the interaction elements.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

502

On the other hand, the free questions are con-

cerned with general ideas for improved usability of

the cooperation modes and omitted information the

participants felt they required about each other in

order to solve their tasks faster. After the question-

naires are examined, video recorded interviews can

be carried out to clarify certain points.

Specifically in (Turner and Turner, 2002), the re-

searchers based their set of tasks and questionnaire

items on Laurillard’s model of teaching and learning

(Laurillard, 1993) The final version of their software

was evaluated by experienced tutors. The NASA

ITQ questionnaire (a measure of immersive tenden-

cies) was administered before the evaluation started

followed up by a questionnaire instrument incorpo-

rating the collaborative and pedagogic aspects, cou-

pled with the NASA PQ – the counterpart to the ITQ

which aims to measure presence.

As mentioned in section 3, when users interact

with the CVE, they can be videotaped as observers

monitor their progress, supported by checklists mir-

roring the questionnaire content. These can be used

for post-evaluation discussions derived from analy-

sis of the verbalisations and behaviour recorded.

The examined evaluation procedures took place

on an average of three consecutive days and had a

mean total evaluation time of three hours.

6 DATA ANALYSIS

The analysis of the acquired data will establish the

data mining process’ validity and lead to conclu-

sions which will help advance CVE development

and design. In order to deal with values between

zero and one, the acquired data should be normal-

ized for simplifying further operations of statistical

analysis by SPSS, Origin or any other software

program used.

The t-test technique is suitable for user numbers

less than thirty. In this test, given two data sets, each

characterized by its mean, standard deviation and

number of data points; we can determine whether

the means are distinct, provided that the underlying

distributions can be assumed to be normal.

While the t-test is suitable for independent sam-

ples, the one way analysis of variance (ANOVA) fits

for tracing a number of groups on one variable, like

finding out the effect of students' learning depending

on different studying methods (King et. al., 2003)

ANOVA is a collection of statistical models, and

their associated procedures, in which the observed

variance is partitioned into components due to dif-

ferent explanatory variables.

Another proposed method of analysis is pre-

sented in (Laurillard, 1993). Here the analysis is

partitioned into three levels. In the first level analy-

sis, average values and their expectancy values are

computed and compared for each session separately.

Following that, in the group analysis, these statisti-

cal values are compared between the different ses-

sions. Since the questionnaires were especially de-

signed so that questions belonging to different ses-

sions evaluate similar criteria. Finally, in the varia-

tion group analysis there is again a comparison of

different sessions with each other. The difference

here lays in the alteration of specific factors between

groups in order to cross-check the influence of these

particular factors in supporting team work.

Finally, some researchers analyze the collabora-

tion into two levels. One level covered the technical

aspects and issues the participants were faced with,

while the other dealt with social aspects of the col-

laboration, like how the participants interacted with

each other. For this analysis methods from psycho-

logical discourse analysis and sequential film analy-

sis were used.

7 CONCLUSIONS

In this paper, based on the methodology the majority

of the examined research is adopting, we presented

the most important factors any CVE designer must

take into consideration when planning an evaluation

procedure. Our goal was to aid future evaluators in

coordinating more efficient and conclusive research.

We described in brief the evaluation criteria engag-

ing the majority of examined researchers and their

propositions in organizing these criteria into proc-

essable modules. Following that, we discussed the

profiles of the users (evaluators) and how the correct

selection of these users can lead to more accurate

data mining and more precise data analysis. In the

last sections we presented specific data mining tools

and analysis procedures incorporated by the major-

ity of the researched work. Our next step is to keep

examining CVE evaluation methodologies with the

prospect of suggesting an effective evaluation prac-

tice.

A REVIEW OF COLLABORATIVE VIRTUAL ENVIRONMENT (CVE) EVALUATION METHODOLOGIES

503

REFERENCES

Bochenek, G.M.; Ragusa, J.M.System Sciences, Virtual

(3D) collaborative environments: an improved envi-

ronment for integrated product team interaction?, Pro-

ceedings of the 36th Annual Hawaii International

Conference on Volume, 6-9 Jan. Page(s): 10 pp (2003)

Britain, S., and Liber, O., A Framework for the Pedagogi-

cal Evaluation of eLearning Environments, (2004),

http://tinyurl.com/2wdf3x

Churchill E., Snowdon D. and Munro A., Collaborative

Virtual Environments: Digital Places and Spaces for

Interaction, Springer-Verlag, London Limited, Great

Britain, (2001).

Dillenbourg, P., Baker, M., Blaye, A. and O’Malley,

C.The evolution of research on collaborative learning.

In E. Spada & P. Reiman (Eds) Learning in Humans

and Machine: Towards an interdisciplinary learning

science. (Pp. 189- 211). Oxford: Elsevier, (1996).

Goebbels, G., Lalioti, V., Göbel, M., Design and Evalua-

tion of Team Work in , Distributed Collaborative Vir-

tual Environments, Virtual Reality Software and

Technology Proceedings of the ACM symposium on

Virtual reality software and technology, Osaka, Japan

, p. 231-238, ACM Press, New York, USA, (2003).

Grasso, A., and Roselli, T., Cooperative Student Assess-

ment Method: an Evaluation Study, International

Journal of Emerging Technologies in Learning (iJET),

Vol. 1, No. 2, (2006).

ISO 9241-11: Guidance on Usability, (1998).

King, Bruce M., Minium, Edward W., Statistical Reason-

ing in Psychology and Education, Fourth Edition. Ho-

boken, New Jersey: John Wiley & Sons, Inc. ISBN 0-

471-21187-7. (2003)

Laurillard, D. M., Rethinking University Teaching: A

Framework for the Effective Use of Educational

Technology. Routledge, London, (1993).

Lehtinen, E. and Hakkarainen K., Computer Supported

Collaborative Learning: A Review, (2001),

http://tinyurl.com/226965

Michailidou, A., and Economides, A., E-learn: Towards a

Collaborative Educational Virtual Environment, Jour-

nal of Information Technology Education, Vol. 2, pp.

131-152, (2003).

Turner, P. and Turner, S. An affordance-based framework

for CVE evaluation. To appear in People and Com-

puters XVI, Proceedings of HCI’02, (2002)

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

504
