EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL

ENVIRONMENTS

The OGRE Approach

Paulo N. M. Sampaio

1,2

, Roberto Ivo C. de Freitas

and Gonçalo Nuno P. Cardoso

Centre for Informatics and Systems of the University of Coimbra (CISUC)

Laboratory of Distributed Systems and Networks (Lab-SDR)

University of Madeira (UMA), Campus da Penteada 9000-390, Funchal, Madeira, Portugal

Keywords: Virtual Reality, OGRE, Multimedia Documents.

Abstract: Most of the tools and languages for modeling Virtual Reality environments, such as VRML, X3D, Java3D,

etc. do not provide means of describing the synchronized presentation of multimedia content inside these

environments. Multimedia has demonstrated its capabilities of motivating users and capturing their atten-

tion, which is an interesting characteristic when we want to provide a higher degree of immersion inside

Virtual Reality applications. This paper presents a robust and generic solution for the integrated presenta-

tion of different kinds of media objects inside virtual environments based on the Graphical Engine OGRE.

1 INTRODUCTION

The integration of multimedia content inside Virtual

Environments (VEs) is a promising and interesting

trend in the development of Virtual Reality (VR)

applications since interaction can be enhanced, and

through the addition of audio and video, the user´s

immersion inside the VE can be improved. Indeed,

we understand the integration of multimedia content

as the temporal and logical synchronization of dif-

ferent media objects (with at least one audio or

video) rendered inside a VE.

Many VR systems have been proposed in the lit-

erature developed within different application do-

mains: e-learning (Chee, 2001), (McArdle et al.,

2004), (Halvorsrud et al., 2004), collaboration

among workgroups (Bochenek and Ragusa, 2003),

augmented collaborative spaces (Pingali and Su-

kaviriya, 2003), Multimodal VR applications (Car-

rozino et al., 2005), among others. Indeed, the rapid

prototyping, modeling and authoring of VEs has

been a major concern to many authors, as presented

in (Rodrigues and Oliveira, 2005), (Osawa et al.,

2002), (Ficheman et al., 2005) and (Garcia et al.,

2002). Although, most of the systems propose the

development of VEs, few of them (or none) explore

the presentation of integrated multimedia content

inside VEs (Walczak et al., 2006).

This paper presents a robust solution to provide

the integration of multimedia content inside a VE

based on the Graphical Engine OGRE

(http://www.ogre3d.org/). The API implemented is

called OGRE-Multimedia, and can be applied to any

VR application to allow their customization with

multimedia content.

OGRE (Object-Oriented Graphics Rendering En-

gine) is a scene-oriented, flexible 3D engine written

in C++ designed to make it easier and more intuitive

for developers to produce applications using hard-

ware-accelerated 3D graphics. The class library

abstracts all the details of using the underlying sys-

tem libraries like Direct3D and OpenGL and pro-

vides an interface based on world objects and other

intuitive classes. When comparing OGRE with other

different languages for describing virtual worlds

(such as VRML (http://www.w3.org/MarkUp/

VRML), X3D (Extensible 3D (X3D)) or Java3D

(http://java.sun.com)), the choice was not hard to

make, specially when it comes to favoring design

quality, flexibility and clear documentation.

This paper is organized as follows: Section 2 pre-

sents a solution to customize a VE with multimedia

presentations; Section 3 presents the main architec-

ture of the API developed; Section 4 illustrates a

Multimedia and Virtual Reality application, and;

Finally, Section 5 presents some conclusions.

524

N. M. Sampaio P., Ivo C. de Freitas R. and Nuno P. Cardoso G. (2008).

EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL ENVIRONMENTS - The OGRE Approach.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 524-531

DOI: 10.5220/0001098905240531

 SciTePress

2 CUSTOMIZING MULTIMEDIA

PRESENTATIONS WITH XML

The main goal of this project is to propose and de-

velop an API for providing the presentation of mul-

timedia content within an OGRE´s virtual environ-

ment (VE). The multimedia content is related to the

presentation of any multimedia player (such as

RealPlayer (http//www.real.com/player), GRiNs

(www.oratrix.com/GRiNS/SMIL2.0), etc.), Flash

(Adobe – Flash Player) or a web-browser. The idea

is to customize and render the multimedia presenta-

tion as textures over any 3D object inside the VE.

However, an issue is considered when it comes

to the integration of a multimedia presentation inside

a virtual environment (VE). This issue is related to

the characterization of the temporal and logical

structures of the multimedia document, and how to

respect these synchronization constraints inside the

VE. Besides, these synchronization constraints still

may depend on external events to the VE, such as

user interactions or events notifying the availability

of resources.

The solution for that relied on the proposal of an

XML-based meta-language for describing multime-

dia documents inside virtual environments, or as we

called the meta-multimedia document. The meta-

multimedia document is applied as a multimedia

authoring language where users can customize the

virtual environment and describe what is going to be

presented, where and when they will be presented.

Briefly, it describes all the components of the mul-

timedia presentation and their temporal and logical

synchronization. The particularity about this presen-

tation is that all the media objects (multimedia

documents, flash, web-browsers, and primitive me-

dia objects such as video, image, text, audio, etc.)

are synchronized and rendered anywhere inside the

virtual environment. The interpretation and coordi-

nation of this document presentation inside the VE

is done by the API developed for OGRE, the OGRE-

Multimedia.

As presented in Figure 1, the structure of the

meta-multimedia document is composed of four

main elements: panel, trigger, eventHandler and

event.

Each panel element describes a presentation

panel for media objects inside the virtual environ-

ment. The container called panels is a set of the

panel objects that must be rendered inside a VE.

Each element trigger characterizes an object inside

the VE which controls the activation and deactiva-

tion of a multimedia presentation. The container

called triggers is a set of all the trigger objects that

will be used to control the multimedia presentations

inside a VE.

Each element EventHandler characterizes how

the presentation of the media objects associated with

a given trigger will be controlled (e.g., start their

presentation when the user clicks on the trigger or

when he approximates it). The container called

eventHandlers is a set of all multimedia presentation

described by all the elements eventHandler.

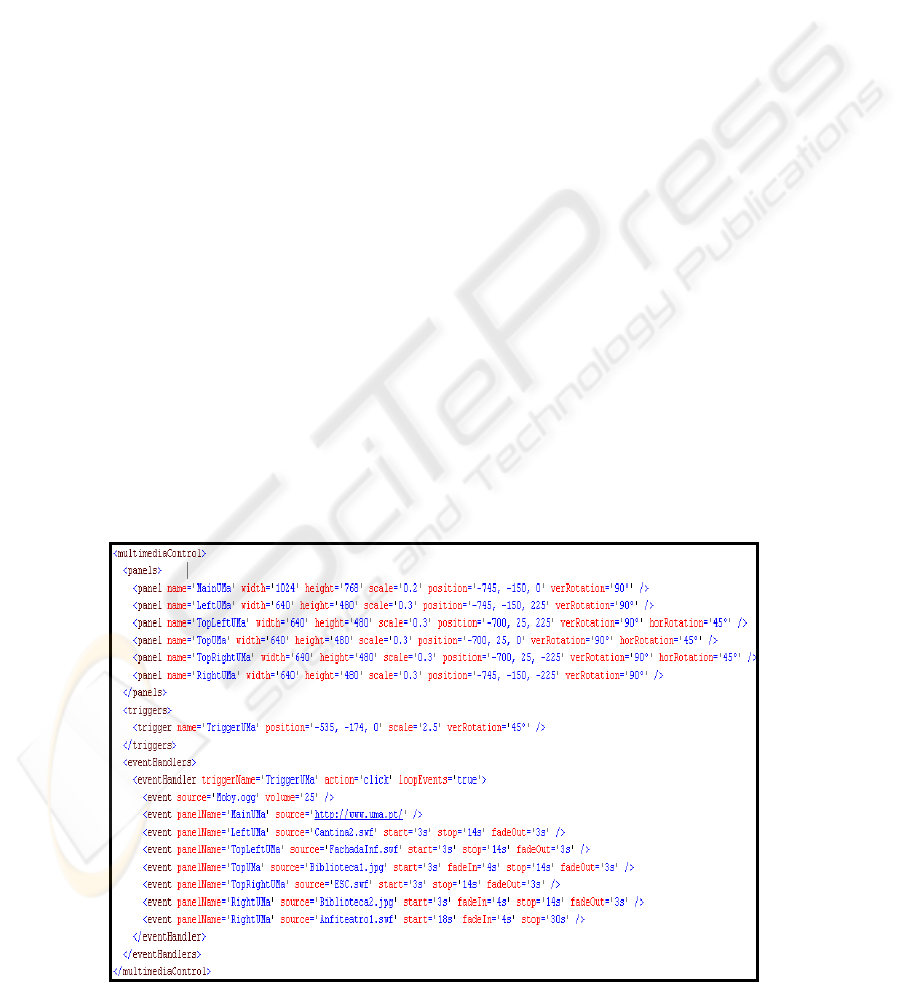

Figure 1: Example of a meta-multimedia document.

EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL ENVIRONMENTS - The OGRE Approach

525

Each element event characterizes how and when

the presentation of each media object of a given

eventHandler will be carried out.

The structure of the meta-multimedia document

was defined to make the process of authoring the

multimedia document easier and intuitive. We con-

sider the meta-multimedia document as the key-

solution for the integration of multimedia content

inside VEs. Indeed, with this document, the author

of the application is able to customize his virtual

environment without changing a single line of his

code.

3 OGRE-MULTIMEDIA:

INTEGRATING MULTIMEDIA

WITHIN VIRTUAL

ENVIRONMENTS

Most of the libraries available for creating Virtual

Reality applications do not have appropriate APIs

for the integration of multimedia content inside a

VE. Some languages and platforms such as VRML,

X3D, Java3D and OGRE, provide only APIs for the

presentation of single media objects (such as video

or audio) without integrating or synchronizing these

objects.

The solution proposed with OGRE-Multimedia

is to provide an API to integrate the presentation of

different multimedia objects (rendered by different

plug-ins or APIs) around the definition of the meta-

multimedia document. In this sense, the meta-

multimedia document describes all the synchroniza-

tion relations among all the components (media

objects, Flash presentation, web-browsers, etc.) of

the document. Taking advantage of the OGRE´s

component-based architecture, this API can be eas-

ily instantiated and integrated with the remaining

available library. This section presents the main

architecture of OGRE-Multimedia

The architecture of OGRE-Multimedia describes

the integration of the meta-multimedia document

with the Virtual Environment, which are supported

by the implemented software modules and some

existing APIs. This architecture is depicted in Fig. 2.

The architecture of OGRE-Multimedia is composed

of four main components: (1) External modules

(TinyXML, OIS, OgreAL, DevIL, Navi and

OGRE), (2) Elementary modules (Meta-multimedia

document and Virtual Environment), (3) System

startup, and (4) System Update.

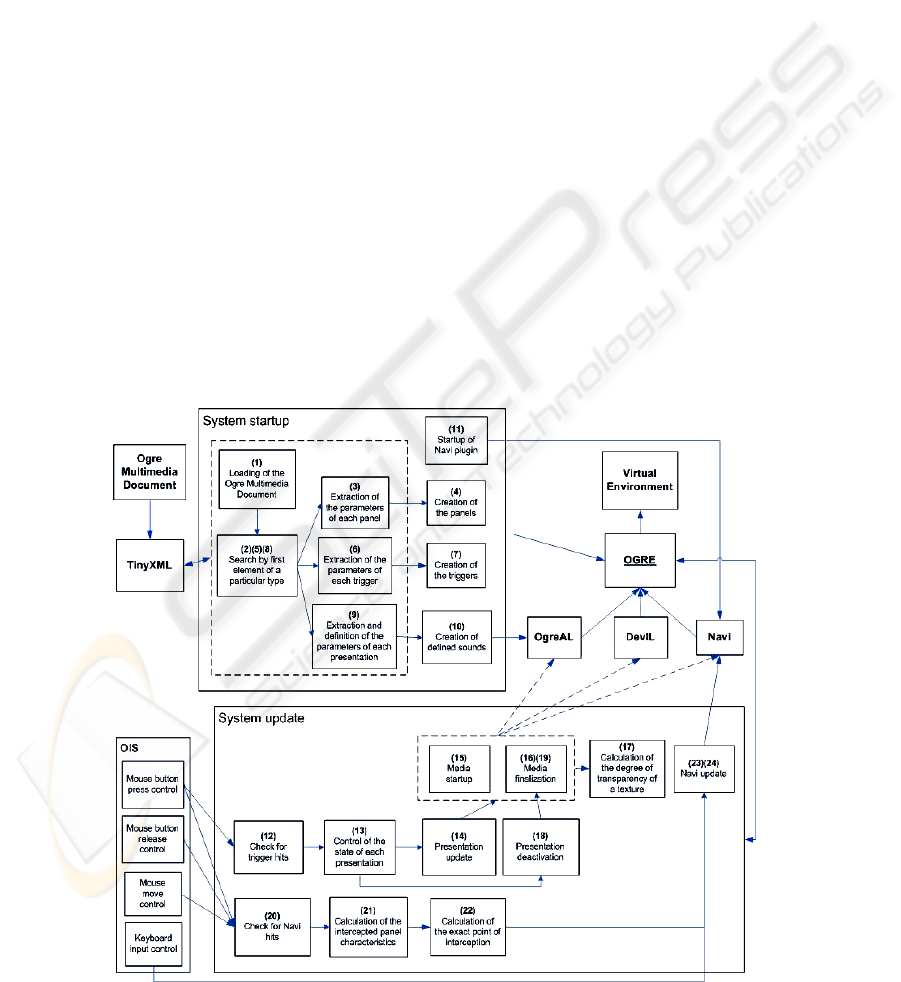

Figure 2: Architecture of OGRE-Multimedia.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

526

External Modules. The external modules are repre-

sented by those APIs developed by other projects, or

which were already provided by the OGRE´s li-

brary. These modules were helpful for the imple-

mentation of OGRE-Multimedia, and demonstrate

how this API can be integrated straightforward with

other plug-ins to enable the presentation of multi-

media content inside VEs. These modules are:

• TinyXML: This API (TinyXML) provides an

XML syntactic analyzer (parser) developed in

C++. TinyXML is applied for reading informa-

tion described on the meta-multimedia docu-

ment;

• OIS: This module (OIS) describes a simple solu-

tion for managing the interaction through the in-

put devices (such as mouse, joystick, keyboard,

etc.) and feedback devices (vibrating commands,

etc.);

• OgreAL: This module (OgreAL Documentation)

is related to a library, based on the library Ope-

nAL ( www.openal.org), which provides func-

tionalities for the presentation of audio inside an

OGRE application. OgreAL is applied in con-

junction with OGRE-Multimedia to provide the

presentation of all the audio information declared

on the meta-multimedia document.

• DevIL: This API (DevIL) is related to the library

used by OGRE for the presentation of images in-

side VEs. DevIL is applied by OGRE-

Multimedia for the presentation of images de-

clared on the meta-multimedia document;

• Navi: This API (Simmons) enables the presenta-

tion and interaction of a web browser window

(based on Firefox 2.0) in an OGRE application.

This API is integrated with OGRE-Multimedia

to provide the presentation of flash (.swf) con-

tent such as video or animations;

• OGRE: This module represents the graphic en-

gine OGRE which is the main module of the sys-

tem being responsible for creating, managing

and updating the tri-dimensional model.

Elementary Modules. The elementary modules

describe the non-functional components of the archi-

tecture, which are used as a support for the applica-

tion. These modules are:

• Meta-multimedia document: Which describes

all the information about the media objects and

their temporal relations, as presented in section

• Virtual Environment: This module is related to

the tri-dimensional models (panels and triggers)

applied to support the multimedia presentation

inside the Virtual Reality application.

System Startup. This component is in charge to set

up the presentation of multimedia content in VEs.

Therefore, the modules of this component are exe-

cuted only once when the application is launched.

These modules are numbered following the se-

quence they are executed:

1) Loading the meta-multimedia document: This

modules reads and loads into memory the multi-

media document (XML), building a DOM

(http://www.w3.org/DOM) out of this file. The

API TinyXML is used for this purpose;

2) 5) and 8) Search by the first element of a par-

ticular type: This module analyses DOM and

search for the first element of a given type. This

step is executed three times, each one searching

for the first occurrence, respectively, of a panel,

a trigger and an eventHandler;

3) 6) and 9) Extraction and definition of the pa-

rameters for each presentation: These modules

extracts and loads all the parameters necessary

for the creation of each panel, trigger and even-

tHandler (and events);

4) 7) and 10) Creation and rendering each panel,

trigger and defined audio: These modules create

the respective panel, trigger and prepare the

presentation of the audio, based on the parame-

ters defined on the meta-multimedia document;

11) Startup of the Navi plug-in: This module pre-

pares the system for the utilization of texture-

based videos, animations and web pages, using

the functionalities of Navi.

System Update. This component is in charge to

control and update the multimedia presentation

inside the VE according to possible user interac-

tions. Therefore, the modules of this component are

executed several times, once the modules of the

component startup are executed. Similar to the

modules of startup, the modules of this component

are also numbered following the sequence of execu-

tion inside the architecture:

12) Checking for user interaction on triggers: This

module verifies if a user interacted with a trigger

by clicking over it. This module uses the func-

tionalities of OIS and OGRE;

13) Controlling of the state of each presentation:

which updates the control parameters related to

the state of each presentation (active or inactive),

EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL ENVIRONMENTS - The OGRE Approach

527

according to their triggering type (selection or

proximity) and user interaction;

14) Updating the presentation: This module is re-

sponsible for timing each multimedia presenta-

tion and controlling each media object being pre-

sented. This module also monitors and activates

a trigger object based on the proximity of the

user;

15) Media startup: This module launches the pres-

entation of a media object. For this purpose, the

appropriate plug-in is applied for the presenta-

tion (by the creation of a multimedia texture for

visible objects), such as DevIL for images, Navi

for video, animation and web pages, and OgreAL

for audio;

16) and 19) Media finalization: This module inter-

rupts the presentation of a media object, elimi-

nating the respective texture for visible media

objects. This interruption is done based on the

presentation duration for this object declared on

the meta-multimedia document;

17) Calculation of the degree of transparency of a

texture: This module calculates the degree of

transparency of a given texture, in case there is a

appearing/fading effect associated with it;

18) Deactivation of presentation: This module is

responsible for interrupting a given presentation

by invoking the module media finalization to in-

terrupt the presentation of the media objects cur-

rently being presented;

20) Checking for user interaction on Navi: This

module verifies if there was a user interaction

with a panel whose texture is a Navi web

browser. This module is useful to determine, in

the future, the exact interaction point with the

web browser;

21) Calculation of the intercepted panel character-

istics: This module determines the characteristics

of the 3D object target of the user interaction.

These characteristics include the number poly-

gons, position of polygons, etc. This information

is useful to determine which polygon the user in-

teracted with;

22) Calculation of the exact point of interception:

This module determines the exact point of a user

interaction with the Navi web site presentation.

This is helpful to follows hyper-links defined in

a web site.

23) and 24) Navi update: which is in charge of up-

dating a Navi web browser texture. The texture

is updated as a result of a web page navigation,

introduction of text in the web site, etc.

Some implementation details and issues are further

discussed on the next section.

4 THE PROTOTYPE

IMPLEMENTED

This section illustrates the prototype implemented

by the presentation of an OGRE-Multimedia appli-

cation. This application applied a virtual world (also

called map) result of another project (Cardoso,

2007). This map describes a three-store building

where the capabilities (distribution, communication,

physics, Artificial Intelligence, enhanced textures,

emission of particles, etc.) of OGRE and its related

APIs were exploited. Figure 3 illustrates a global

view of this application.

OGRE-Multimedia was easily integrated to this

OGRE application, where the methods of OGRE-

Multimedia were invoked to enable the presentation

of multimedia content previously defined on the

meta-multimedia document, called “MMDocu-

ment.mmc”. In the case of this VR application, the

first floor of the building is reserved for the presen-

tation of multimedia content is an exposition-like

fashion. This floor is an open-wide area, where in

front of each wall there is a sensitive column which

can be activated by the user’s click or proximity

(depending on its previous configuration on the

meta-multimedia document) in order to trigger the

multimedia presentation on the wall (Figures 3a and

4a).

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

528

(a) 1

Floor (b) 2

Floor (c) 3

Floor

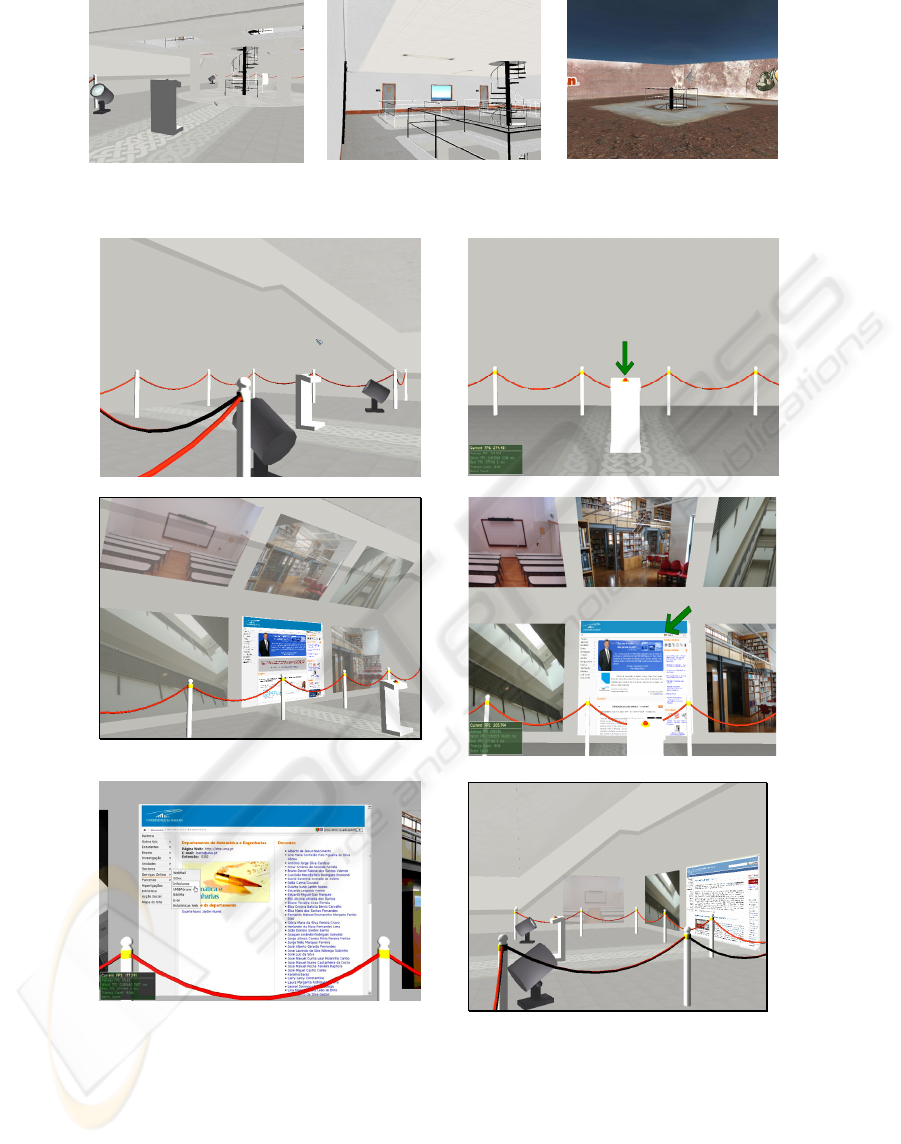

Figure 3: Global view of the virtual three-store building.

(a) (b)

(e) (f)

Figure 4: Presentation of the multimedia content inside the virtual environment.

Figure 4(b) illustrates the interactive column in the

virtual environment. In particular, this column

(which is represented by a trigger element on the

meta-multimedia document) is able to launch a pres-

entation by a user´s click.

The multimedia presentation is launched after

the user interacts (by clicking) with the sensitive

column (Figures 4c). When the media objects start

to be presented, their level of transparency is gradu-

ally changed producing the effect of fading-in. As

we can see in Figure 4(d), a web-browser is also

presented as one of the multimedia textures. This

browser is rendered by the API Navi which allows

EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL ENVIRONMENTS - The OGRE Approach

529

the user to navigate on the Web. Figures 4(d), 4(e)

and 4(f) present an example of this navigation.

All the media objects presented inside the VE are

synchronized and managed by OGRE-Multimedia

which keeps pace of each presentation starting and

interrupting all the media objects according to their

previous configuration on the meta-multimedia

document. OGRE-Multimedia enables the multime-

dia presentation inside the VE making of it a more

realistic environment and, above all, keeping the

user´s focus.

5 CONCLUSIONS

This paper presented the development of an API for

the presentation of integrated multimedia content

inside Virtual Environments based on the Graphical

Engine OGRE, called OGRE-Multimedia. The inte-

grated presentation of multimedia content inside

VEs relied on the proposal of an XML-based repre-

sentation to describe all the media objects to be

presented and their synchronization relations, the

meta-multimedia document. OGRE-Multimedia can

be applied straightforward in different OGRE Vir-

tual Reality applications since it is the result of an

open-architecture where different APIs were applied

in conjunction to provide the presentation of differ-

ent kinds of media objects including the traditional

images, audio, video, animations, etc., and also

multimedia documents such as FLASH, and web-

browsers as well. Indeed, the combination of Multi-

media and Virtual Reality can be successfully ap-

plied to the design of robust applications where

users feel more comfortable and have their focus

inside the VE, definitely augmenting their feeling of

immersion.

REFERENCES

Chee, Y.S., Network Virtual Environments for Collabora-

tive Learning. Invited talk. In Proceedings of

ICCE/SchoolNet 2001—Ninth International Confer-

ence on Computers in Education, Seoul, S. Korea.

ICCE/SchoolNet (2001) 3–11.

McArdle, G.; Monahan, T.; Bertolotto, M.; Mangina, E.:

A Web-Based Multimedia Virtual Reality Environ-

ment for E-Learning. Proceedings Eurographics 2004,

July 2004, Grenoble, France.(2004)

Halvorsrud, R.; Hagen, S.: Designing a Collaborative

Virtual Environment for Introducing Pupils to Com-

plex Subject Matter. NordiCHI '04: Proceedings of the

third Nordic conference on Human-computer interac-

tion. Tampere, Finland, (2004), 121-130, ISBN:

1581138571.

Bochenek, G.M.; Ragusa, J.M.: Virtual (3D) collaborative

environments: an improved environment for integrated

product team interaction?: Proceedings of the 36th

Annual Hawaii International Conference on System

Sciences, 2003. (2003), 10 pp.

Pingali, G.; Sukaviriya, N.: Augmented Collaborative

Spaces. In proceedings of the 2003 ACM SIGMM

workshop on Experiential telepresence, International

Multimedia Conference. Berkeley, California, (2003).

Carrozino, M.; Tecchia, F.; Bacinelli, S.; Cappelletti, C.;

Bergamasco, M.: Lowering the development time of

multimodal interactive application: The real-life ex-

perience of the XVR Project.: In ACM SIGCHI Inter-

national Conference on Advances in Computer Enter-

tainment Technology, (2005).

Rodrigues, S. G. & Oliveira, J. C.: ADVICe - um Ambien-

te para o Desenvolvimento de ambientes VIrtuais

Colaborativos. XI Simpósio Brasileiro de Sistemas

Mutimídia e Web - WebMedia2005, Poços de Caldas,

MB, Brasil, (2005).

Osawa, N.; Asai, K.; Saito, F.: An interactive toolkit

library for 3D applications: it3d. In proceedings of the

workshop on Virtual environments 2002, ACM Inter-

national Conference Proceeding Series; Vol.23, Barce-

lona, Spain, (2002). 149 - 157

Ficheman, I. K.; Pereira, A. R.; Adamatti, D. F.; Oliveira,

I. C. A.; Lopes, R. D.; Sichman, J. S.; Amazonas, J. R.

A.; Filgueiras, L. V. L.: An interface usability test for

the editor musical. In proceedings: International Con-

ference on Enterprise Information System - ICEIS

2005. Miami USA v. 5, (2005) 122-127.

Garcia, P.; Montalà, O.; Pairot, C.; Skarmeta, A.G.:

MOVE: Component Groupware Foundations for Col-

laborative Virtual Environments. Proceedings of the

4th international conference on Collaborative virtual

environments, Bonn, Germany, (2002) 55 – 62.

Walczak, K., J. Chmielewski, M. Stawniak, S.

Strykowski.: Extensible Metadata Framework for De-

scribing Virtual Reality and Multimedia Contents.

Proceedings of the 7th IASTED International Confer-

ence on Databases and Applications DBA 2006. Inns-

bruck, Austria¸ (2006) 168-175.

OGRE 3D: Open source graphics engine. URL:

http://www.ogre3d.org/

VRML: Virtual Reality Modeling Language. URL:

http://www.w3.org/MarkUp/VRML/

ISO/IEC 19775:2004 — Extensible 3D (X3D). URL:

http://www.web3d.org/x3d/specifications/ISO-IEC-

19775-X3DAbstractSpecification/

Java3D API, URL: http://java.sun.com/products/java-

media/3D/

RealPlayer - Real Networks, 2004. URL: http//

www.real.com/player/.

GRiNS – SMIL 2.0 Player, Home Page. URL: http://

www.oratrix.com/GRiNS/SMIL2.0/.

Adobe – Flash Player. URL:

http://www.macromedia.com/ software/flash/about/

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

530

TinyXML – XML Parser. URL: http://

www.grinninglizard.com/tinyxml/

OIS – Object Oriented Input System. URL: http://source-

forge.net/projects/wgois/

OgreAL Documentation. URL: http://

www.mooproductions.org/ogreal/documentation/

OpenAL – Cross-Platform 3D Audio. URL: http://

www.openal.org/

DevIL Development Team. DevIL – A full featured cross-

platform Image Library. URL: http://

openil.sourceforge.net/

Simmons, A. Main Page – NaviWiki. URL: http://

navi.agelessanime.com/wiki/index.php/Main_Page

DOM – Document Object Model. URL: http://

www.w3.org/DOM/

Cardoso, G. “UMa Virtual”. B.Sc. dissertation. University

of Madeira (UMa), 2007.

EMBEDDING MULTIMEDIA CONTENT WITHIN VIRTUAL ENVIRONMENTS - The OGRE Approach

531
