REAL-TIME MIXED REALITY WITH GPU TECHNIQUES

Tobias Franke and Yvonne Jung

GRIS TU-Darmstadt/ Fraunhofer IGD, Fraunhoferstr. 5, Darmstadt, Germany

Keywords:

Mixed Reality, Image Based Lighting, Shader, Real-time, Differential Rendering.

Abstract:

In this paper, we propose a combination of modern GPU-based methods that are able to generate high-quality,

interactive real-time rendering for augmented and mixed reality applications. We also present a new approach

to estimate surface reﬂection functions and materials from images using genetic algorithms.

1 INTRODUCTION

The fusion of real and virtual worlds is the foundation

for a range of computer graphics applications: com-

plex augmented and mixed reality, movie effects and

the ability to advertise products not yet completed,

such as houses still being built or prototypes of cars in

real environments. To achieve a mixed reality feeling,

complex lighting interaction between real and virtual

objects has to be simulated in real time. Only if the

user is not able to clearly distinguish between real and

virtual objects, this aim is reached.

This paper presents a ”piped” combination of cur-

rent methods to generate high quality images in real

time with real world lighting. New GPU-based tech-

niques allow us to limit the needed processing power,

thus making the system mobile and ready for further

enhancements. We also describe a new approach to

derive complex materials from the original scene ra-

diance given by HDR images.

2 PREVIOUS WORK

In (Debevec, 1998) ”differential rendering” was pre-

sented in order to merge virtual objects with real

scenes. By calculating the difference of two rendered

images of the reconstructed virtual scene via a ra-

diosity simulation, once with and once without the

objects, the change that is introduced by placing the

virtual objects into a scene is recovered. Combined

with the rendered objects the difference can be added

to a real image. In (Grosch, 2005) this method was

extended to also handle reﬂective and refractive ob-

jects correctly. Illumination of the real environment is

passed to the virtual object via irradiance maps from

a light probe, captured as HDR images. In (Kautz

et al., 2004), the authors discuss ways of ﬁltering

environment maps to create different types of irradi-

ance maps. Spherical harmonics (SH) are used to ex-

tract the diffuse frequencies of the environment map,

while hardware generated mipmaps are used to cre-

ate glossy maps. A combination of the original and

both ﬁltered images yields the ﬁnal reﬂection that is

mapped onto the virtual object. In (King, 2005), the

author proposes to use irradiance maps in conjunc-

tion with ambient occlusion (AO), a statistical method

that determines shadowsunder complete diffuse light-

ing conditions, without considering any light sources.

These values can be used to attenuate colors from the

irradiance maps to simulate self-shadowing under the

assumption of distant global illumination.

3 LIGHTING

RECONSTRUCTION

3.1 Irradiance Mapping

The ﬁrst important step to enable high quality ren-

dering of real and virtual lights is the lighting recon-

struction phase, where real world lighting is captured

to transfer effects from the real scene onto a virtual

model. For instance, a light-switch could be toggled

in the real environment, which should have an effect

on the virtual objects, otherwise it will be clear rather

soon that they are just an augmentation. For static

conﬁgurations, the incident radiance is captured with

a light probe. Dynamic scene lighting can be captured

249

Franke T. and Jung Y. (2008).

REAL-TIME MIXED REALITY WITH GPU TECHNIQUES.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 249-252

DOI: 10.5220/0001099302490252

 SciTePress

with a 180

◦

ﬁsh eye lens. The acquisition should be

done in HDR, otherwise lighting mapped for different

materials will appear to have no contrast. Our simu-

lation relies on image based lighting, a method that

derives all information about the environment light-

ing from images. Usually, these images are cube- or

sphere maps and can be used to simulate highly re-

ﬂective or mirror-like surfaces. Unlike ”simple” en-

vironment mapping, the idea of irradiance mapping is

to use environment maps for a range of basic trans-

fer functions. By ﬁltering this map, incident light for

glossy or diffuse surfaces can be simulated. Currently

we use the spherical harmonic basis to simulate dif-

fuse and low order glossy irradiance, because high

frequencies are captured inadequately.

3.2 Ambient Occlusion

Using precomputed radiance transfer, more complex

transfer functions can be simulated. Additionally to

the irradiance map L, the surface’s transfer function

T is moved to frequency space, and by exploiting

Ω

L · T ≈

∑

· T

(which is easily evaluable inside

a shader), the integral of the rendering equation is

approximated while retaining high rendering speed.

The perhaps most obvious difference between local

and global illumination are shadows, especially self-

shadowing. Without, objects seem to have no detail

in structure, but with self-shadowing, tiny structures

become emphasized and add to the overall realism.

Many of those details can be recovered with ambient

occlusion. We use AO as a substitute for the trans-

fer function in PRT, because it can be calculated in

real time also for non-rigid objects. Before the irra-

diance maps are applied to the objects surface, AO is

determined through a modiﬁed version of the method

described in (Sattler et al., 2004). Real scenes con-

tain much indirect lighting, so only using direct light

sources as sampling positions is unrealistic. Hence,

random sample positions are used to determine the

ambient occlusion on the model. In table 1, we have

measured the difference between the generated AO

valuesof a 1000 sample reference model and the same

model with a lower sample count. One can see that

even for complex geometry, the error drops below

10% with 25 samples. The relative difference with 5-

sample-steps drops below 1% at 50 samples for most

models. For high-polygon or rigid objects, we pre-

compute and store the same information with its col-

ors. In combination, the colors from the irradiance

maps are attenuated with the ambient occlusion val-

ues on the surface. A result is shown in ﬁgure 1.

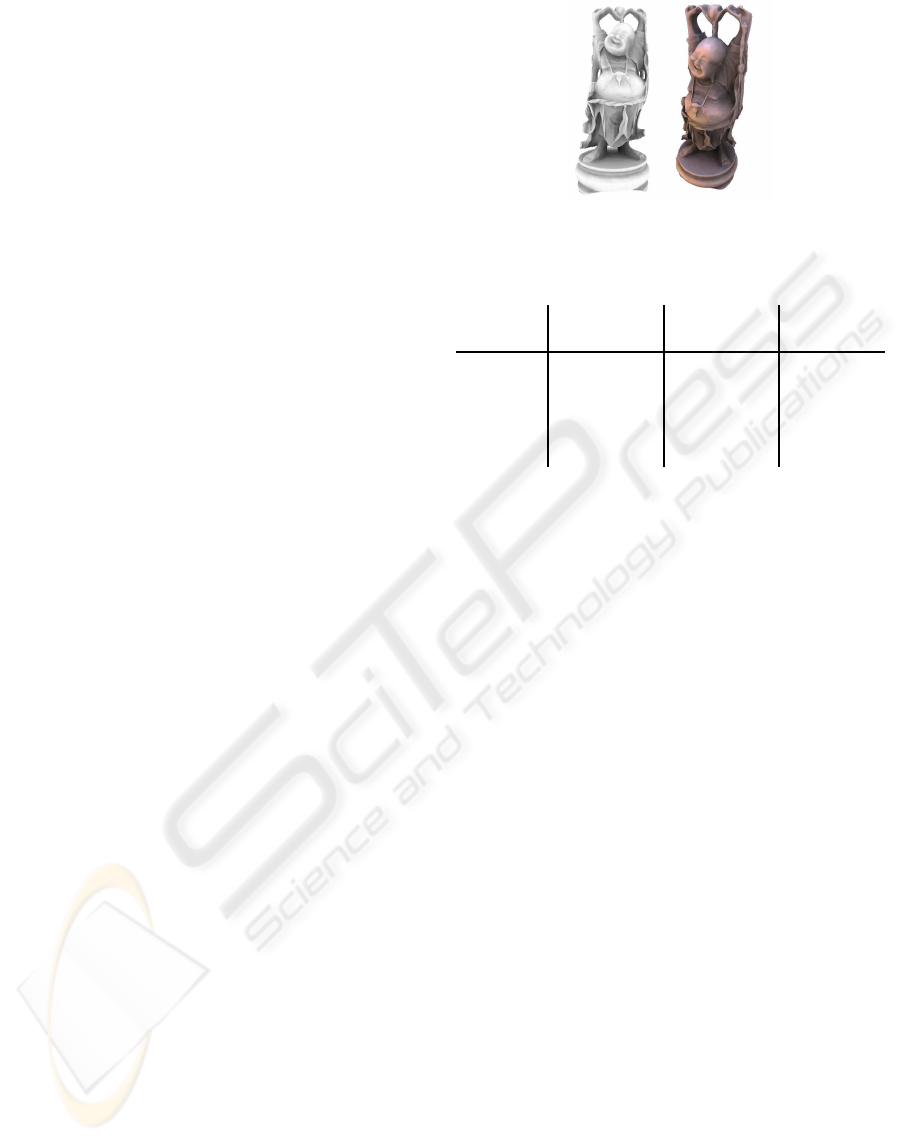

Figure 1: L.: Ambient occlusion. R.: Irradiance mapping.

Table 1: Statistical deviation from converged AO, depend-

ing on smoothness of surface (compare column 1 and 2).

Samples EG Dragon EG Dragon Buddha

Smooth Normal

5 21.6528% 16.6647% 24.1992%

25 9.50936% 5.29504% 8.72107%

50 7.32016% 2.94598% 6.15287%

100 4.02114% 1.42048% 4.46811%

150 3.33963% 2.80035% 3.65112%

3.3 Shadows

One problem is that irradiance mapping does not ad-

dress any positional information about light sources,

whereas AO is not considering light sources at all.

Without this information, casting shadows into the

right direction will become difﬁcult. In our simu-

lation, we ﬁrst extract possible direct light sources

from images in a pre-process. While the direction can

be taken directly from the irradiance map, the posi-

tion is determined by intersecting its boundary points

with the surrounding reconstructed scene model. The

extracted positions are then used to project shad-

ows onto geometry. Visually pleasing results were

achieved with PCF and PCSS shadows, although

the latter caused some performance hits (Jung et al.,

2007). To determine the shadow’s intensity during

runtime, we used the ﬁrst coefﬁcient of the SH analy-

sis of the surrounding lighting conﬁguration. Because

the ﬁrst SH function is constant, the ﬁrst coefﬁcient

will statistically provide information about the ambi-

ent brightness in the scene. Thus, the inverse value

(given that c

is normalized to [0, 1]) can be used as

shadow intensity. The brighter the ambient lighting

is, the less intense the shadow will be and vice versa.

The same value can be used to adjust the AO values.

4 DIFFERENTIAL RENDERING

Differential rendering is a multi pass compositing

technique that is feasible for augmenting images or

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

250

videos with consistent illumination. It requires two

lighting simulations, one with the real scene only and

a second one with the additional virtual objects in-

serted. For real-time appliances the rendering should

be hardware accelerated, therefore both before men-

tioned scenes are rendered into different textures us-

ing standard rasterization methods. Let L

orig

be the

original scene radiance given by the background im-

age, L

with

the rendered scene with virtual objects and

without

the rendering without them. Then the error in

the rendered scene is ∆L

err

= L

without

− L

orig

. As can

be seen, the better geometry and material reconstruc-

tion are, the smaller the resulting error is. By subtract-

ing the error from L

with

, the changes in illumination

caused by inserting the virtual object then can be rep-

resented as L

final

= L

orig

+ (L

with

− L

without

). Finally

a window-sized, view-aligned quad is rendered with

a special shader program, which combines all images

according to this formula.

5 MATERIAL

RECONSTRUCTION

To accurately map virtual light or shadows onto real

surfaces, their properties have to be known upfront.

For instance, to simulate interaction between a virtual

light and a real surface it has to be clear whether or not

that surface is diffuse or mirror-like. If these proper-

ties are unknown, the differential rendering will pro-

duce wrong colors for shadows and lights (or other ar-

tifacts). In our simulation, an off-line process tries to

analytically estimate material properties from camera

images. This process is a modiﬁed implementation of

(Gibson et al., 2001). Combined with real lights in

the image, placeholders for unknown lights, so called

virtual lights, are adapted to match the irradiance of

the surface. Diffuse materials can then be estimated

iteratively with a linear equation system. As soon

as non-linear components are added to the surface

BRDF, other solutions have to be found. The authors

proposed minimizing a cost function with non-linear

optimization for all unknown variables. Instead, we

used genetic algorithms as a consistent substitute for

all material functions.

5.1 Genetic Algorithms

A genetic algorithm is a particular class of evolution-

ary algorithms that is used for global search and opti-

mization problems. Instead of calculating in a deter-

ministic manner a result is evolved from a population

of possible solutions. The main motivation for genetic

algorithms as a substitute to approximate surface re-

ﬂection functions in our implementation is that they

require no knowledge of the problem-space. There-

fore, one single implementation is sufﬁcient to esti-

mate unknown variables for all kinds of BRDF’s. We

encode all variables in a simple vector, which simul-

taneously serves as a genome. To evaluate the ﬁtness

of a possible result, a cost function simply generates

values i

for all visible pixels of the surface using the

evolved genome. All lights, including virtual lights,

are taken into the equation. All generated pixel val-

ues are then subtracted from the pixel values i

of the

real surface in the photograph. The ﬁtness q ∈ (0, ∞)

of a genome can be calculated with q =

∑

−i

. In

the unlikely case that the denominator equals zero, a

perfect match (i.e. a perfect genome) has been found.

6 RESULTS

An P4/2.4 GHz PC with a NVidia 6600 GT graph-

ics board and 1 GB memory was used to conduct

our tests, with the OpenSG (OpenSG, 2007) render-

ing system and the Avalon (IR, 2007) framework for

application description. Test data was acquired with

a Canon EOS 350D camera for scene backgrounds

and the light probe. HDR photos were generated via

Debevec’s HDRShop. The dragon model in ﬁgure

2 is rendered in a 1500× 1000 pixel context with 8

× FSAA, an SH analysis with 9 coefﬁcients, a mix-

ture of 25% diffuse and 75% specular HDR irradi-

ance maps, static AO and PCF shadows. The blending

into the real image is performed via differential ren-

dering and the ﬁnal image is drawn at 9 FPS. Much

higher framerates (up to 60) are achieved for low-

polygon models such as the Stanford bunny. For less

complex models dynamic ambient occlusion can be

enabled without major performance hits, though de-

pending heavily on the sampling rate. The differential

rendering automatically handles occlusions from real

objects to virtual ones or vice versa, as shown in ﬁg-

ure 3. To assure that light and shadows are transfered

correctly onto real materials, the material reconstruc-

tion as described above is used to gather information

about the surface the object is placed on.

Diffuse materials were reconstructed through the

iterative method described above. We have tested a

steady state genetic algorithm on a simulated Phong

material to evaluate the quality of a reconstruction.

1000 surface samples were gathered to determine the

parameters ρ

, ρ

and n, with a population size of

100 genomes. The test results point out that linear

parts of the equation f(x,

) =

n+2

2π

cos

were evaluated with less deviation from the actual pa-

REAL-TIME MIXED REALITY WITH GPU TECHNIQUES

251

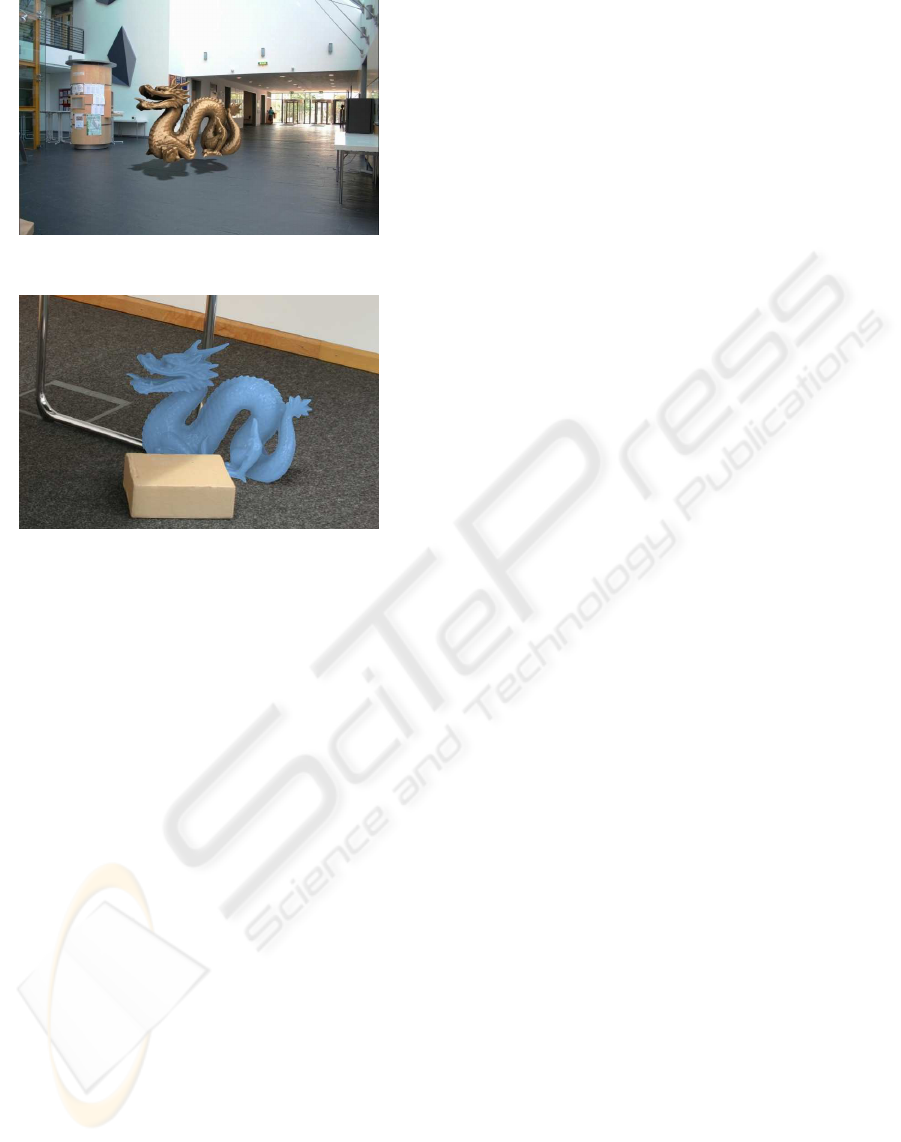

Figure 2: The Stanford dragon model in the entrance hall.

Figure 3: Shadows and occlusion are handled via differen-

tial rendering and reconstructed geometry.

rameters than non-linear parts. While ρ

was evalu-

ated correctly in most cases, i.e. no mutant or local

minima, the deviations in ρ

and especially in n were

generally too high. It is still unclear whether a larger

population or higher mutation rates will lead to better

results. It should be noted that these test cases exclu-

sively deal with known BRDF’s and do not contain

any lighting information from an image whatsoever,

neither virtual nor real lights. In the actual implemen-

tation, the process iteratively factors out virtual light

sources. Ultimately, the calculation of the BRDF pa-

rameters that follows this estimation is replaced by

the genetic algorithm.

7 FUTURE IMPROVEMENTS

The most urgent matter right now is to have a uni-

ﬁed model for creating irradiance maps, because the

currently used spherical harmonics for instance are

unsuitable for high-frequency functions. Relating to

actual reﬂection model parameters such as those of

specular functions will then be much easier. Cur-

rently, Haar Wavlets show promising results, because

the multi-resolution analysis allows to capture high

frequencies with relatively few coefﬁcients. Ambi-

ent occlusion as a placeholder for other surface func-

tions is sufﬁcient right now. However, special effects

such as interreﬂections or caustics are currently not

handled. A suitable and dynamic method compara-

ble to LDPRT (Sloan et al., 2005) has to be included

in the near future. Also, the current approach to ex-

tract light sources manually from sphere maps does

set heavy boundaries to the dynamic usage. A sta-

ble real time approach to extract lights from HDR

sphere maps such as in (Supan and Stuppacher, 2006)

or (Korn et al., 2006) still has to be implemented.

REFERENCES

Debevec, P. (1998). Rendering synthetic objects into real

scenes: Bridging traditional and image-based graph-

ics with global illumination and high dynamic range

photography. In Proceedings of SIGGRAPH 98, CG

Proc., Annual Conf. Series, pages 189–198.

Gibson, S., Howard, T. J., and Hubbold, R. J. (2001). Flexi-

ble image-based photometric reconstruction using vir-

tual light sources. CG Forum (Proc. Eurographics

2001, Manchester, UK), 20(3):C203–C214.

Grosch, T. (2005). Differential photon mapping: Consis-

tent augmentation of photographs with correction of

all light paths. In Alexa, M. and Marks, J., editors,

Eurographics 2005, EG Short Pres., pages 53–56.

IR (2007). Avalon. http://www.instantreality.org/.

Jung, Y., Franke, T., D¨ahne, P., and Behr, J. (2007). En-

hancing x3d for advanced mr appliances. In Web3D

’07: Proc. of the 12th int. conference on 3D web tech-

nology, pages 27–36, New York, USA. ACM Press.

Kautz, J., Daubert, K., and Seidel, H.-P. (2004). Advanced

environment mapping in vr applications. Computers

& Graphics, 28(1):99–104.

King, G. (2005). Real-time computation of dynamic irra-

diance environment maps. In Pharr, M., editor, GPU

Gems 2, chapter 10, pages 167–176. Addison Wesley.

Korn, M., Stange, M., von Arb, A., Blum, L., Kreil, M.,

Kunze, K.-J., Anhenn, J., Wallrath, T., and Grosch, T.

(2006). Interactive augmentation of live images using

a hdr stereo camera. Koblenz, Germany.

OpenSG (2007). Opensg. http://opensg.vrsource.org/trac.

Sattler, M., Sarlette, R., Zachmann, G., and Klein, R.

(2004). Hardware-accelerated ambient occlusion

computation. In Girod, B., Magnor, M., and Sei-

del, H.-P., editors, Vision, Modeling, and Visualizatio,

pages 331–338. Akad. Verl. Aka GmbH, Berlin.

Sloan, P.-P., Luna, B., and Snyder, J. (2005). Local,

deformable precomputed radiance transfer. In SIG-

GRAPH ’05: ACM SIGGRAPH 2005 Papers, pages

1216–1224, New York, NY, USA. ACM Press.

Supan, P. and Stuppacher, I. (2006). Interactive image based

lighting in augmented reality. Central European Sem-

inar on Computer Graphics.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

252
