RECURSIVE AND BACKWARD REASONING IN THE

VERIFICATION ON HYBRID SYSTEMS

Stefan Ratschan

Institute of Computer Science, Czech Academy of Sciences, Prague, Czech Republic

Zhikun She

LMIB and School of Science, Beihang University, Beijing, China

Keywords:

Hybrid Systems, Veriﬁcation, Constraint Propagation.

Abstract:

In this paper we introduce two improvements to the method of veriﬁcation of hybrid systems by constraint

propagation based abstraction reﬁnement that we introduced earlier. The ﬁrst improvement improves the

recursive propagation of reachability information over the regions constituting the abstraction, and the second

improvement reasons backward from the set of unsafe states, instead of reasoning forward from the set of

initial states. Detailed computational experiments document the usefulness of these improvements.

1 INTRODUCTION

Safety veriﬁcation of hybrid systems is the problem

of verifying that for a given hybrid system no trajec-

tory that starts in an initial state ever reaches an unsafe

state. Abstraction reﬁnement approaches this prob-

lem by iteratively reﬁning an overapproximation of

the hybrid system (the abstraction) that is constructed

in such a way that the safety of the abstraction im-

plies the safety of the concrete system. In our method

of constraint propagation based abstraction reﬁne-

ment (Ratschan and She, 2007) the abstraction is built

by decomposing the state-space into hyper-rectangles

(boxes) and using a constraint solver to test, which of

these boxes might contain an initial/unsafe state, and

which box might be reachable from another box.

In this paper, we introduce two improvements to

the method: recursive reasoning and backward rea-

soning. Recursive reasoning improves the way the

method removes elements from boxes for which it can

prove that they are not reachable from an initial state.

The original method argues that a point in a box is

not reachable from another box, if it is not reachable

from a point on the common boundary. In this pa-

per we strengthen this condition using a convenient

over-approximation of the requirement that this com-

mon point on the boundary again has to be reachable.

Backward reasoning uses the observation that we can

remove not only elements from boxes for which we

can prove that they are not reachable from an initial

state, but also elements for which we can prove that

they do not lead to an unsafe state.

There are various other methods for the veriﬁca-

tion of hybrid systems that use a decomposition of the

state space into boxes (Preußig et al., 1999; Kloet-

zer and Belta, 2006). Another paper (Frehse et al.,

2006) employs backward reasoning in a more coarse-

grained manner than in this paper, computing over-

approximations of increasingly precise forward and

backward reach sets.

The content of the paper is as follows: In Sec-

tion 2 we review our hybrid systems formalism, and

in Section 3 we review our veriﬁcation method and

discuss properties of the underlying constraint solv-

ing technique; in Sections 4 and 5 we introduce the

ﬁrst improvement to our veriﬁcation method, and in

Section 6 our second improvement and the combina-

tion of the two improvements; in Section 7 we present

some computational experiments, and in Section 8 we

conclude the paper.

2 VERIFICATION OF HYBRID

SYSTEMS

Hybrid systems are systems with continuous and dis-

crete state variables. In this paper, we brieﬂy recall

our formalism for modeling hybrid systems (Ratschan

and She, 2007).

We use a set S to denote the modes of a hybrid

Ratschan S. and She Z. (2008).

RECURSIVE AND BACKWARD REASONING IN THE VERIFICATION ON HYBRID SYSTEMS.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - SPSMC, pages 65-71

DOI: 10.5220/0001475500650071

 SciTePress

system, where S is ﬁnite and nonempty. I

,...,I

⊆ R

are compact intervals over which the continuous vari-

ables of a hybrid system range. Φ denotes the state

space of a hybrid system, i.e., Φ = S × I

× ··· × I

Deﬁnition 1. A hybrid system H is a tuple

(Flow,Jump, Init,Unsafe), where Flow ⊆ Φ × R

Jump ⊆ Φ× Φ, I ⊆ Φ, and Unsafe ⊆ Φ.

Informally speaking, the predicate Init speciﬁes

the initial states of a hybrid system and Unsafe the

states that should not be reachable from an initial

state. The relation Flow speciﬁes how the system may

developcontinuously by relating each state to the pos-

sible corresponding derivatives, and Jump speciﬁes

how H may change states discontinuously by relating

each state to its possible successor states. Formally,

the behavior of H is deﬁned as follows:

Deﬁnition 2

. A ﬂow of length l ≥ 0 in a mode s ∈ S

is a function r : [0,l] → Φ such that the projection of

r to its continuous part is differentiable and for all

t ∈ [0,l], the mode of r(t) is s. A trajectory of H is a

sequence of ﬂows r

,...,r

of lengths l

,... , l

such

that for all i ∈ {0,..., p},

1. if i > 0 then (r

i−1

),r

(0)) ∈ Jump, and

2. if l

> 0 then (r

(t), ˙r

(t)) ∈ Flow, for all t ∈ [0, l

where ˙r

is the derivative of the projection of r

its continuous component.

Deﬁnition 3

. A (concrete) counterexample of a hy-

brid system H is a trajectory r

,...,r

of H such that

(0) ∈ Init and r

(l) ∈ Unsafe, where l is the length

of r

. H is safe if it does not have a counterexample.

We use the following constraint language to de-

scribe hybrid systems and corresponding safety veri-

ﬁcation problems. The variable s ranges over S and

the tuple of variables ~x = (x

,... , x

) ranges over

× ··· × I

, respectively. In addition, to denote the

derivatives of x

,... , x

we use the tuple of variables

~x = ( ˙x

,... , ˙x

) that ranges over R

, and to denote the

targets of jumps, we use the primed variable s

′

and

the tuple of variables~x

′

= (x

′

,... , x

′

) that range over

S and I

× · · · × I

, respectively. Constraints are arbi-

trary Boolean combinations of equalities and inequal-

ities over terms that may contain function symbols,

such as +, ×, exp, sin, and cos.

We assume in the remainder of the text that a hy-

brid system is described by our constraint language.

That means, the ﬂows of a hybrid system are given

by a constraint Flow(s,~x,

~x), the jumps are given by a

constraint Jump(s,~x,s

′

,~x

′

), the initial states are given

by a constraint Init(s,~x), and a constraint Unsafe(s,~x)

describes the unsafe states. To simplify notation, we

do not distinguish between a constraint and the set it

represents.

Example 1. Consider the following simple hybrid

system with the modes m

and the continuous

variables x

which both range over the interval

[0,2], i.e, Φ = {m

} × [0, 2] × [0, 2].

The set of initial states are given by the

Init(s, (x

)) = (s = m

∧ x

= 0 ∧ x

= 0). The

constraint Unsafe(s,(x

)) = (x

> 1.5∧ x

= 1.5)

describes the set of unsafe states. The hybrid sys-

tem can switch modes from m

to m

if x

= 1, i.e.,

Jump(s,(x

),s

′

,(x

′

)) = (s = m

∧ x

= 1) →

′

= m

∧ x

′

= x

∧ x

′

= x

) . The continuous be-

havior is described by constants. In addition, for a

ﬂow in mode m

, the constraint 0 ≤ x

≤ 1 must hold.

The corresponding ﬂow constraint is

Flow(s,(x

),(˙x

, ˙x

)) =

(s = m

→ ( ˙x

= 1 ∧ ˙x

= 1 ∧ 0 ≤ x

≤ 1)) ∧

(s = m

→ ( ˙x

= 1 ∧ ˙x

= −1)) .

Note that the constraint 0 ≤ x

≤ 1 in ﬂow forces a

jump from mode m

to m

if x

becomes 1.

Obviously, this hybrid system is safe. 

3 FORWARD SEARCH BASED

ABSTRACTION REFINEMENT

In this section, we review our previous ap-

proach (Ratschan and She, 2007) for verifying safety

of hybrid systems using constraint propagation based

abstraction reﬁnement.

We abstract to systems of the following form:

Deﬁnition 4

. A discrete system over a ﬁnite set S is

a tuple (Trans,Init, Unsafe) where Trans ⊆ S × S and

Init ⊆ S, Unsafe ⊆ S. We call the set S the state space

of the system.

In contrast to Deﬁnition 1, here the state space is a

parameter. This will allow us to add new states to the

state space during abstraction reﬁnement.

Deﬁnition 5

. A trajectory of a discrete system

(Trans, Init, Unsafe) over a set S is a function r :

{0, . . . , p} 7→ S such that for all t ∈ {1, . . . , p}, (r(t −

1),r(t)) ∈ Trans. The system is safe if and only if there

is no trajectory from an element of Init, to an element

of Unsafe.

When we use abstraction to analyze hybrid sys-

tems, the abstraction should over-approximate the

concrete system in a conservative way: if the abstrac-

tion is safe, then the original system should also be

safe. If the current abstraction is not yet safe, we re-

ﬁne the abstraction, that is, we include more informa-

tion about the concrete system into it. This results in

Algorithm 1.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

Algorithm 1: Abstraction Reﬁnement.

Require: a hybrid system H described by constraints

Ensure: “safe”, if the algorithm terminates

let A be a discrete abstraction of the hybrid system

represented by H

while A is not safe do

reﬁne the abstraction A

end while

In order to implement this algorithm, we need to

ﬁx the state space of the abstract system. Here we use

pairs (s, B), where s is one of the modes {s

,... , s

}

and B is a hyper-rectangle (box), representing subsets

of the concrete state space Φ. Together with an ab-

stract state, we store the information whether it is ini-

tial or unsafe and the information from which other

states it is reachable. We call such information the

marks of the state. For the initial abstraction we use

the state space {(s

,{~x | (s

,~x) ∈ Φ}) | 1 ≤ i ≤ n},

where all states are marked as initial, and unsafe, and

all transitions between states are possible.

For reﬁning the abstraction, we split a box into

two pieces, replace one abstract state by two, and in-

clude more information from the concrete system into

the abstract one by removing unreachable elements

from the boxes, removing superﬂuous marks from the

new abstract states, and removing unreachable states

from the abstraction.

To remove unreachable elements from the boxes

representing the abstraction, we use a constraint that

formalizes when an element of the concrete state

space might be reachable, and then remove elements

that do not fulﬁll this constraint. In order to do this,

for a box B = [x

] × · · · × [x

], we let its j-th

lower face be [x

]× ··· × [x

]× ···× [x

] and

its j-th upper face be [x

] × · · · × [x

] × · · · ×

]. Two boxes are non-overlapping if their in-

teriors are disjoint.

Now observe that a point in a box B is reachable

only if it is reachable either from the initial set via

a ﬂow in B, from a jump via a ﬂow in B, or from a

neighboring box via a ﬂow in B. We will now formu-

late constraints corresponding to each of these condi-

tions. Then we can remove points from boxes that do

not fulﬁll at least one of these constraints.

The approach can be used with any constraint that

describes that~y can be reachable from~x via a ﬂow in

B and mode s, for example, the one introduced in our

previous publications (Ratschan and She, 2006). We

denote the used constraint by Reach

(s,~x,~y). Thus,

the above three possibilities for reachability allow us

to formulate the following theorem:

Theorem 1. For a set of abstract states B , a pair

′

) ∈ B and a point~z ∈ B

′

, if (s

′

,~z) is reachable

and z is not an element of the box of any other abstract

state in B , then

Iﬂ

′

,~z) ∨

(s,B)∈B

Jﬂ

B,B

′

(s,s

′

,~z)

∨

(s,B)∈B ,s=s

′

,B6=B

′

Bﬂ

B,B

′

,~z)

where Iﬂ

′

,~z), Jﬂ

B,B

′

(s,s

′

,~z), and Bﬂ

B,B

′

,~z) de-

note the following three constraints, respectively:

• ∃~x ∈ B

′

[Init(s

′

,~x) ∧ Reach

′

,~x,~z)],

• ∃~x ∈ B∃~x

′

∈ B

′

[Jump(s,~x, s

′

,~x

′

) ∧

Reach

′

,~x

′

,~z)]

• ∃~x ∈ B ∩ B

′

[[∀faces F of B

′

[~x ∈ F ⇒ in

′

(~x)]] ∧

Reach

′

,~x,~z)].

Here, in

′

(~x) = ∃ ˙x

,... , ∃ ˙x

[F(s

′

,~x, ( ˙x

,... , ˙x

)) ∧

˙x

≥ 0], if F is the j-th lower face of B

′

, and if

F is the j-th upper face of B

′

, incoming

′

(~x) =

∃ ˙x

,... , ∃ ˙x

[F(s

′

,~x,( ˙x

,... , ˙x

)) ∧ ˙x

≤ 0].

We denote the main constraint of Theorem 1 by

reach

B ,B

′

,~z). If we can prove that a certain point

does not fulﬁll this constraint, we know that it is not

reachable. For now, we assume that we have an al-

gorithm (a pruning algorithm) that takes such a con-

straint, and an abstract state (s

′

) and returns a sub-

box of B

′

that still contains all the solutions of the

constraint in B

′

. Since the constraint reach

B ,B

′

,~z)

depends on all current abstract states, a change of B

′

might allow further pruning of other abstract states.

So we can repeat pruning until a ﬁxpoint is reached.

Given a set of abstract states B , we denote the result-

ing ﬁxpoint by Prune

(B ).

Now we remove the initial mark from an abstract

state (s

′

) if we can disprove Iﬂ

′

,~z

′

) in The-

orem 1 (i.e., if the pruning algorithm returned the

empty box for this constraint), and we remove the un-

safe mark of an abstract state state (s

′

) if we can

disprove the constraint ∃~x ∈ B Unsafe(s,~x). More-

over, we remove a transition from (s,B) to (s

′

) if

we can disprove both Bﬂ

B,B

′

,~z

′

) and Jﬂ

B,B

′

(s,s

′

,~z

′

)

from Theorem 1. As already mentioned, after recom-

puting the marks, we remove all abstract states from

the abstraction that are not reachable. It is easy to

compute these, since the set of abstract states is ﬁnite.

There are several methods for implementing the

needed pruning algorithms (Benhamou and Granvil-

liers, 2006). For the domain of the real numbers,

given a constraint c and a ﬂoating-point box B, they

compute another ﬂoating-point box P(c,B) such that

P(c,B) ⊆ B (contractance), and such that P(c, B) con-

tains all solutions of c in B. Existential quantiﬁers and

disjunctions can be handled by slight extensions (for

disjunctions we take the box union ⊎).

RECURSIVE AND BACKWARD REASONING IN THE VERIFICATION ON HYBRID SYSTEMS

Such pruning algorithms P usually have the mono-

tonicity property that for a constraint c, and boxes B

and B

′

with B

′

⊆ B, P(c,B

′

) ⊆ P(c, B). Moreover, in

practice, if B

′

⊆ B then P(c, B

′

) is often much smaller

than P(c, B). We will exploit this in the improvement

of our method described in the next section. In ad-

dition, it pays off to distribute disjunctions over con-

junctions:

Lemma 1

. For constraints c

,... , c

,d and a box B,

P(∨

i∈{1,...,n}

∧ d),B) ⊆ P((∨

i∈{1,...,n}

) ∧ d, B)

Proof. For each i ∈ {1, . . . ,n}, P(c

∧

d,B) ⊆ P((∨

i∈{1,...,n}

) ∧ d, B). Thus,

⊎

i∈{1,...,n}

P(c

∧ d,B) ⊆ P((∨

i∈{1,...,n}

) ∧ d,B).

Since P(∨

i∈{1,...,n}

∧d), B) = ⊎

i∈{1,...,n}

P(c

∧d, B),

the lemma holds. 

4 RECURSIVE PRUNING

In this section we introduce the ﬁrst improvement

to the veriﬁcation method described in Section 3.

Throughout the rest of the paper we assume an ab-

straction consisting of a set of abstract states B . The

improvement introduced in this section aims at prun-

ing more unreachable states from B by improving the

recursive propagation of reachability information for

ﬂows from one box to the next.

We consider the pruning of an abstract state

′

) ∈ B . The constraint Bﬂ

B,B

′

,~z) deﬁned

within Theorem 1 models the fact that a certain point

~z in the box B

′

is reached from a neighboring box B

of B

′

via a ﬂow in B

′

. This ﬂow reaches~z through a

common point~x ∈ B∩ B

′

(see Figure 1).

′

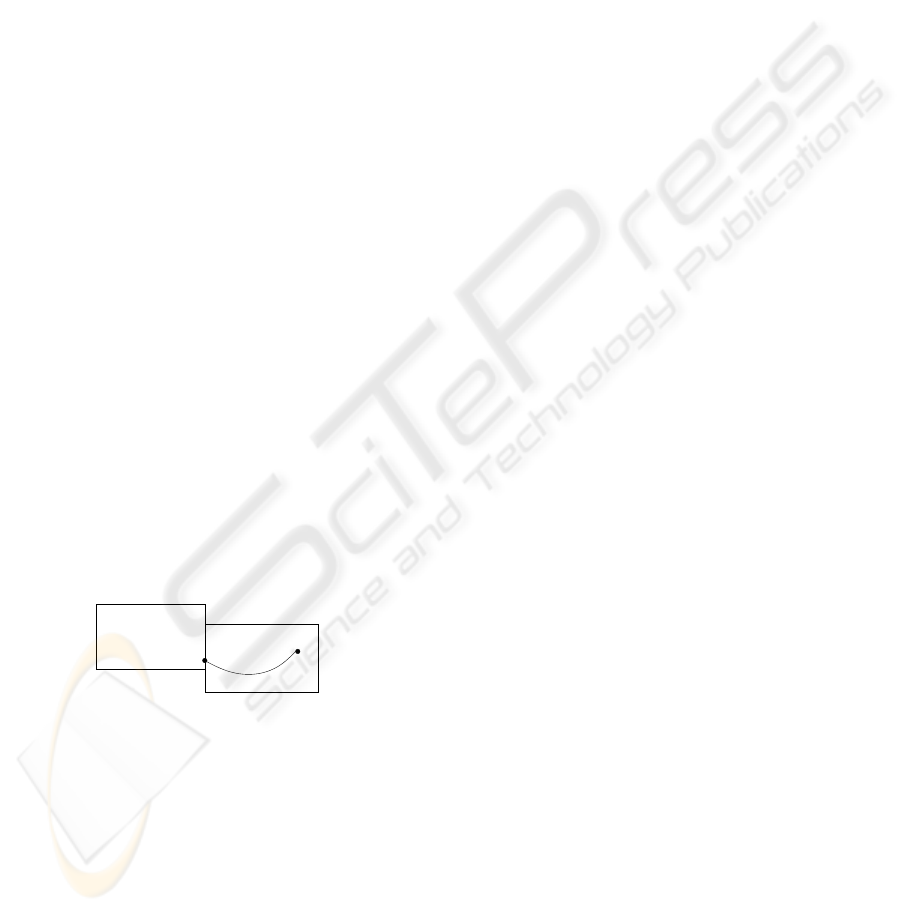

Figure 1: Recursive Pruning.

The basic idea upon which we build in this section

is to strengthen this constraint by requiring that also~x

be reachable in the neighboring box B. Naively, this

could be done by adding the constraint reach

B ,B

′

,~x)

to the constraint Bﬂ

B,B

′

,~z). However, since

Bﬂ

B,B

′

,~z) is itself a part of reach

B ,B

′

,~x), this

would result in an inﬁnitely large constraint due to

recursion. One could make the constraint ﬁnite, by

bounding the recursion, but this still would result in

a very large constraint. We avoid this, by observ-

ing that the neighboring box B is already the result

of pruning wrt. reach

B ,B

′

,~x). However, a part of

this information is lost because we ﬁrst prune B and

only then take the intersection B∩B

′

(i.e., we compute

P(reach

B ,B

′

,~x), B) ∩ B

′

), and we have:

Lemma 2

P(reach

B ,B

′

,~x), B∩ B

′

) ⊆ P(reach

B ,B

′

,~x),B) ∩ B

′

Proof. Due to monotonicity of constraint

propagation, P(reach

B ,B

′

,~x),B ∩ B

′

) is a

subset of P(reach

B ,B

′

,~x),B). Moreover,

P(reach

B ,B

′

,~x), B ∩ B

′

) ⊆ P(reach

B ,B

′

,~x), B

′

and hence P(reach

B ,B

′

,~x),B ∩ B

′

) ⊆ B

′

. So

P(reach

B ,B

′

,~x), B ∩ B

′

) is also a subset of the

intersection of P(reach

B ,B

′

,~x), B) and B

′

. 

In practice, the set on the left-hand side might

be signiﬁcantly smaller than the set on the right-

hand side (i.e., than the set currently used in

the method in Section 3). So it makes sense

to compute P(reach

B ,B

′

,~x),B ∩ B

′

) instead of

P(reach

B ,B

′

,~x), B) ∩ B

′

. This means that in addition

to pruning each box in the abstraction, we could also

prune the intersection between each pair of boxes.

However, this would need a quadratical number of

prunings and stored boxes in memory.

To avoid this, we use an over-approximation

of P(reach

B ,B

′

,~x),B ∩ B

′

) that is still a subset of

P(reach

B ,B

′

,~x), B) ∩ B

′

. We use the information

that the boxes of our abstraction are non-overlapping

(i.e., even if two boxes intersect, they only share the

boundary but no points of the interior). This implies

that the intersection B ∩ B

′

will always be a subset

of the boundary of B—independent of the form of

the box B

′

. So one could try to use the boundary

B of B instead of the box B ∩ B

′

when computing

P(reach

B ,B

′

,~x), B∩ B

′

). However, since B is not a

box and hence it cannot be an argument to the prun-

ing function, we apply the pruning function to its con-

stituent faces separately. That is, we use the constraint

that expresses a disjunction over all faces:

F,face of B



~x ∈ F ∧ reach

B ,B

′

,~x)



and call this constraint reachbound

B ,B

′

,~x). Al-

though this over-approximates P(reach

B ,B

′

,~x), B ∩

′

), Lemma 2 still holds in analogy:

Lemma 3. P(

F,face of B



~x ∈ F ∧reach

B ,B

′

,~x)



,B) ∩

′

⊆ P(reach

B ,B

′

,~x), B) ∩ B

′

Proof. The disjunction is pruned by taking the

box union over the result of pruning each disjunct.

Since each face of B is a subset of B, due to mono-

tonicity of constraint propagation, for each face F,

P(reach

B ,B

′

,~x), F) ⊆ P(reach

B ,B

′

,~x), B). Hence

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

also the box union over the result of pruning each dis-

junct is a subset of P(reach

B ,B

′

,~x), B), which im-

plies the lemma. 

Since the constraint on the left-hand side only de-

pends on one box, we can compute the corresponding

pruning P(reachbound

B ,B

′

,~x), B) only for one ab-

stract state, and store the resulting box with that ab-

stract state. Since this box encloses the set of states

where a ﬂow might leave the abstract state, we call it

the outﬂow-box of the abstract state. So, instead of

B ∩ B

′

in the constraint Bﬂ

B,B

′

we can now take the

outﬂow-box of B, and due to Lemma 3 we will arrive

at a result that is at least as tight as before.

This is illustrated on an example in Figure 2,

where the dotted box is the outﬂow-box resulting from

a situation where the upper and left face of box B have

been pruned to the empty set, and the outﬂow-box is

the result of taking the union of the result of pruning

the two other faces.

′

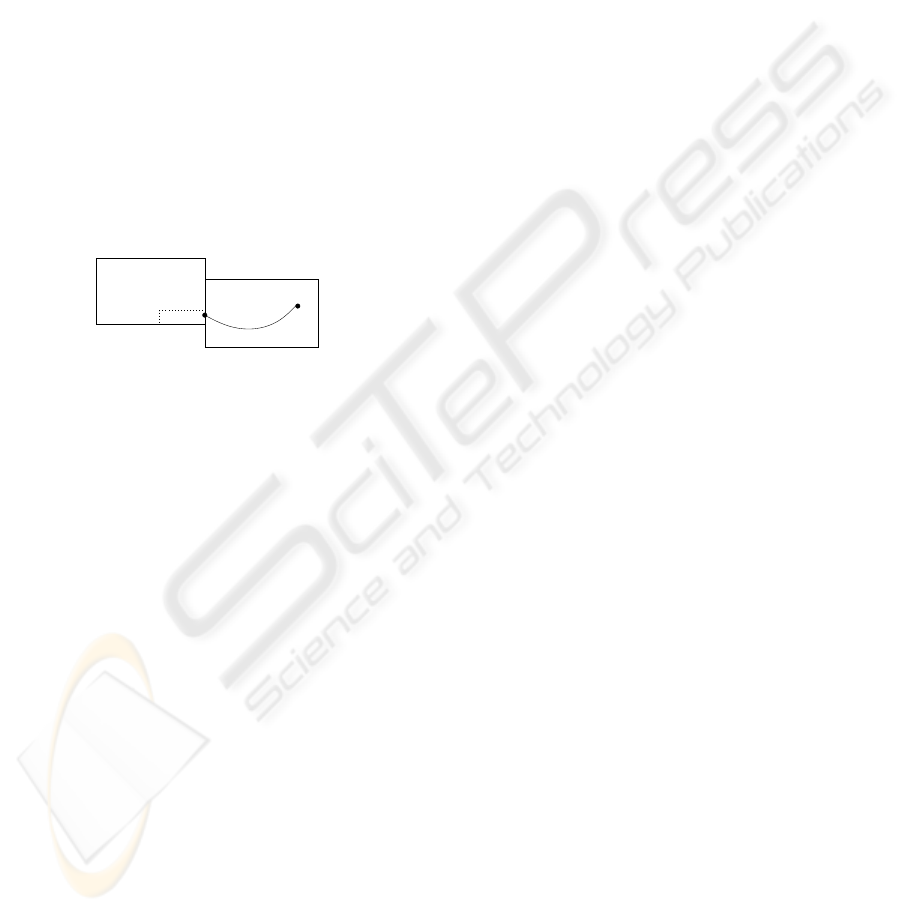

Figure 2: Pruning Faces.

Note that splitting a box B representing a cer-

tain abstract state changes its faces. Especially, there

might be trajectories that leave the resulting boxes

through the new face along which B has been split.

Hence the outﬂow-box of this abstract state becomes

invalid. So we simply set the outﬂow-box to the

whole box B and re-compute it, the next time B is

pruned.

5 RECURSIVE PRUNING WITH

OUTGOING CONDITION

In the previous section we used the fact that within the

constraint Bﬂ we can exploit the information that the

common point~x ∈ B∩B

′

itself has to be reachable. In

this section we strengthen this information by observ-

ing that in order for a trajectory to be able to leave the

box B to enter the box B

′

, the vector ﬁeld at x has to

point out of B.

This can be modelled by adding an additional con-

dition in the constraint reachbound

B ,B

′

,~x), arriving

F,face of B

~x ∈ F ∧ reach

B ,B

′

,~x) ∧ out

′

(~x)

where out

′

(~x) is equal to in

′

(~x) with the inequal-

ity sign switched. Now, since reach

B ,B

′

,~x) is a dis-

junction, Lemma 1 suggests to improve it by pulling

out the new conjunction of reachbound

B ,B

′

,~x), ar-

riving at

F,face ofB

~x ∈ F ∧ out

′

(~x) ∧ Iﬂ

′

,~x)

∨

(s,B

′

)∈B



F,face ofB

[~x ∈ F ∧ out

′

(~x)

∧ Jﬂ

′

(s,s

′

,~x)]



∨

(s, B

′

) ∈ B

s = s

′

6= B



F,face ofB

[~x ∈ F ∧out

′

(~x)

∧ Bﬂ

′

,~x)]



We call the resulting constraint reachout

B ,B

′

,~x),

and use this constraint instead to compute the outﬂow-

box of each abstract state.

The following examples illustrates the improve-

ment provided by reachout over reachbound: Con-

sider the differential equation ( ˙x

, ˙x

) = (1,1) with

a box B = [0,1] × [0,1] and an initial point x

(0,0). If we prune a face [1,1] × [0,1] or [0,1] × [1,1]

wrt. reachbound, we will get the point (1, 1); and

if we prune a face [0, 0] × [0, 1] or [0, 1] × [0, 0] wrt.

reachbound, we will get the point (0, 0). That is, if

we apply the pruning algorithm to reachbound and

B, we will get the full box [0,1] × [0, 1]. Only when

adding the outgoing condition, arriving at the con-

straint reachout, we can ignore trajectories moving

into the box, arriving at the point [1,1] × [1, 1].

6 BACKWARD REASONING AND

COMBINATION

As described in Section 3, in our method we remove

elements from the state space for which we can prove

that they are not reachable from an initial state. How-

ever, the task of safety veriﬁcation is to prove the ab-

sence of a trajectory that starts in an initial state and

reaches an unsafe state. Hence we can also remove

elements from the state space for which we can prove

that they do not lead to an unsafe state—without de-

stroying the property that safety of the abstraction im-

plies safety of the concrete system.

For this, observe that a point might lead to an un-

safe state only if there is a ﬂow from this point to the

unsafe set directly, or a ﬂow from this point to a jump,

or a ﬂow from this point to a boundary point. Hence

we can formulate an analogous version of Theorem 1:

RECURSIVE AND BACKWARD REASONING IN THE VERIFICATION ON HYBRID SYSTEMS

Theorem 2. For a set of abstract states B , a pair

′

) ∈ B and a point ~z ∈ B

′

, if the unsafe set is

reachable from (s

′

,~z) and~z is not an element of the

box of any other abstract state in B , then

Urev

′

,~z) ∨

(s,B)∈B

Jrev

B,B

′

(s,s

′

,~z)

∨

(s,B)∈B ,s=s

′

,B6=B

′

Brev

B,B

′

,~z),

where Urev

′

,~z), Jrev

B,B

′

(s,s

′

,~z), and

Brev

B,B

′

,~z) denote the following three constraints,

respectively:

• ∃~x ∈ B[Reach

(s,~z,~x) ∧ Unsafe(s,~x)],

• ∃~x ∈ B∃~x

′

∈ B

′

[Reach

(s,~z,~x) ∧ Jump(s,~x, s

′

,~x

′

)]

• ∃~x ∈ B ∩ B

′

[Reach

(s,~z,~x) ∧ [∀ faces F of B[~x ∈

F ⇒ in

s,B

′

(x)]]]

In a similar way as forward reasoning, backward

reasoning also allows us to update the initial/unsafe

marks and transitions of the abstraction.

Note that by using forward and backward reason-

ing in Algorithm 1 we might succeed in removing

all elements from the concrete state space. This re-

sults in an empty abstraction which is trivially safe.

Hence, Algorithm 1 can report a successful veriﬁca-

tion in this case. However, the combination of recur-

sive pruning with backward pruning introduces addi-

tional difﬁculties: the outﬂow box is computed using

forward reasoning, and when a box is changed due to

backward reasoning, its outﬂow box is not valid any

more. We solve this problem by always, ﬁrst apply-

ing forward pruning and then backward pruning. If

backward pruning changes the box, we apply forward

pruning again which recomputes a valid outﬂow box.

7 EXPERIMENTAL RESULTS

We extended our hybrid systems veriﬁcation package

HSOLVER (Ratschan and She, 2004) with the two im-

provements introduced in this paper. Then we used

our problem database

of hybrid systems to evaluate

our improvements. The experimental results are sum-

marized in Table 1, Table 2 and Table 3 for different

versions.

We used an IBM notebook with an Intel Pentium

1.70 GHz CPU with 1024Mbytes of main memory

running Linux. The running times are in seconds and

the computations were cancelled when computation

did not terminate before three hours or the number of

the abstract states exceeded 1000. We used the default

splitting strategy of HSOLVER.

http://hsolver.sourceforge.net/benchmarks

Table 1: Experimental Results: I.

Forward

Example time splits

1-ﬂow unknown

2-tanks 1.12 31

car 0.47 0

circuit 53.80 186

clock 1.99 32

convoi-1 1.06 0

convoi 2157.26 374

eco 125.24 223

focus 3.59 57

mixing 296.67 174

mutant 7286.40 742

real-eigen 0.59 2

s-focus 0.54 2

trivial-hard 0.76 26

van-der-pole (VDP) 25.42 64

Table 2: Experimental Results: II.

Backward For-Backward

Example time splits time splits

1-ﬂow unknown 0.32 1

2-tanks 0.10 6 0.43 4

car unknown 1.05 0

circuit unknown 62.99 188

clock 35.79 327 2.00 43

convoi-1 unknown 1.65 0

convoi unknown 1847.67 300

eco unknown 18.32 52

focus 0.62 34 0.89 15

mixing 1.47 7 1.74 0

mutant unknown 8493.97 618

real-eigen unknown 0.61 0

s-focus unknown 0.44 1

trivial-hard 0.03 0 0.05 0

VDP 0.47 1 0.77 1

Comparing the forward version and backward ver-

sion, there is no clear winner, although the forward

version is successful in more cases. The reason seems

to lie in the fact that for more examples the set of ini-

tial states is smaller than the set of unsafe states.

Moreover, the experimental results show that: (1)

For most of the examples, the combined forward and

backward version use less splitting steps than both

the forward version and backward version. How-

ever, for some examples, the CPU time is worse since

in the combined version, the constraints are more

complex. Note that for some examples (e.g., circuit

and clock), the combined version needs slightly more

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

Table 3: Experimental Results: III.

Recursive Rec-Backward

Example time splits time splits

1-ﬂow unknown 0.32 1

2-tanks 0.26 3 0.28 1

car 1.29 0 1.07 0

circuit 53.12 171 68.28 192

clock 1.97 16 0.74 14

convoi-1 2.70 0 1.71 0

convoi 2177.75 374 1830.56 300

eco 253.19 290 5.77 22

focus 2.79 48 0.42 8

mixing 104.96 109 1.75 0

mutant 1978.43 195 1850.17 191

real-eigen 0.59 2 0.61 0

s-focus 0.53 2 0.44 1

trivial-hard 0.07 4 0.05 0

VDP 25.81 64 0.77 1

splitting steps. The reason is that although the com-

bined version is more successful in pruning, the split-

ting heuristics will sometimes choose different boxes

which then results—in rare cases—in more necessary

splits. (2) For all examples except one, the recursive

version needs less splitting steps than the forward ver-

sion. However, for the eco example, the recursive

version needs more splitting steps. This is due to the

same reason as above—moresuccessful pruning leads

to different box choices. Again, for some example the

CPU time is worse since the constraints in the recur-

sive version are more complex. (3) Again with one

exception (circuit), the combined recursive and back-

ward version always needs less splitting steps than

both the recursive version and combined forward and

backward version, often even much less. For most ex-

amples also the run-time improved, sometimes over

an order of magnitute. Only for two additional, rather

easy examples (car, convoi-1), the CPU time slightly

increases since the constraints in the combined recur-

sive and backward version are more complex.

Summarizing, the contributions of this paper re-

sult in a deﬁnite and robust efﬁciency improvement

of the algorithms.

8 CONCLUSIONS

In this paper we have introduced two improvements

to a method of safety veriﬁcation of hybrid sys-

tems by constraint propagation based abstraction re-

ﬁnement. The provided computational experiments

clearly show the advantage of proposed improve-

ments. We will base future improvements of the

method on a detailed study of the behavior of the used

algorithms on further benchmark problems.

ACKNOWLEDGEMENTS

The work of the ﬁrst author has been supported by

CR grant 201/08/J020 and by the institutional re-

search plan AV0Z100300504. The second author was

partly supported by the National Key Basic Research

Program of China under Grant No. 2005CB321902

and the Program for Excellent Talents of Beijing un-

der Grant No. 20071D1600600410.

REFERENCES

Benhamou, F. and Granvilliers, L. (2006). Continuous and

interval constraints. In Rossi, F., van Beek, P., and

Walsh, T., editors, Handbook of Constraint Program-

ming, pages 571–603. Elsevier Amsterdam.

Frehse, G., Krogh, B. H., and Rutenbar, R. A.

(2006). Verifying analog oscillator circuits using

forward/backward abstraction reﬁnement. In DATE

2006: Design, Automation and Test in Europe.

Kloetzer, M. and Belta, C. (2006). Reachability analysis of

multi-afﬁne systems. In Hespanha, J. and Tiwari, A.,

editors, HSCC’06, volume 3927 of LNCS. Springer.

Preußig, J., Stursberg, O., and Kowalewski, S. (1999).

Reachability analysis of a class of switched contin-

uous systems by integrating rectangular approxima-

tion and rectangular analysis. In Vaandrager, F. and

van Schuppen, J., editors, HSCC’99, number 1569 in

LNCS. Springer.

Ratschan, S. and She, Z. (2004). HSOLVER.

http://hsolver.sourceforge.net. Software package.

Ratschan, S. and She, Z. (2006). Constraints for continuous

reachability in the veriﬁcation of hybrid systems. In

Proc. AISC’2006, number 4120 in LNCS. Springer.

Ratschan, S. and She, Z. (2007). Safety veriﬁcation of

hybrid systems by constraint propagation based ab-

straction reﬁnement. ACM Transactions on Embedded

Computing Systems, 6(1).

RECURSIVE AND BACKWARD REASONING IN THE VERIFICATION ON HYBRID SYSTEMS
