PEOPLE TRACKING USING LASER RANGE

SCANNERS AND VISION

Andreas Kr¨außling, Bernd Br¨uggemann, Dirk Schulz

Department of Communication, Information Processing and Ergonomics (FKIE)

Research Establishment for Applied Sciences (FGAN), Neuenahrer Straße 20, 53343 Wachtberg, Germany

Armin B. Cremers

Institute of Computer Science III, University of Bonn, R¨omerstraße 164, 53117 Bonn, Germany

Keywords:

People tracking, crossing targets, laser range scanners, vision, HSV colour space.

Abstract:

Tracking multiple crossing people is a great challenge, since common algorithms tend to loose some of the

persons or to interchange their identities when they get close to each other and split up again. In several

consecutive papers it was possible to develop an algorithm using data from laser range scanners which is able

to track an arbitrary number of crossing people without any loss of track. In this paper we address the problem

of rediscovering the identities of the persons after a crossing. Therefore, a camera system is applied. An

infrared camera detects the people in the observation area and then a charge–coupled device camera is used to

extract the colour information about those people. For the representation of the colour information the HSV

colour space is applied using a histogram. Before the crossing the system learns the mean and the standard

deviation of the colour distribution of each person. After the crossing the system relocates the identities by

comparing the actually measured colour distributions with the distributions learnt before the crossing. Thereby,

a Gaussian distribution of the colour values is assumed. The most probably assignment of the identities is then

found using Munkres’ Hungarian algorithm. It is proven with data from real world experiments that our

approach can reassign the identities of the tracked persons stable after a crossing.

1 INTRODUCTION AND

RELATED WORK

Multi-robot systems and service robots need to coop-

erate with each other and with humans in their envi-

ronments. For this reason, they have to know about

the locations and actions of the objects they want to

interact with. Target tracking deals with the state es-

timation of one or more objects. It is a well stud-

ied topic in the ﬁeld of aerial surveillance using radar

devices (Bar-Shalom and Fortmann, 1988) and also

in the area of mobile robotics. Here, mainly laser

scanners are used for the purpose of people track-

ing (Prassler et al., 1999; Schulz et al., 2001; Fod

et al., 2002; Romera et al., 2004; Zhao and Shibasaki,

2005; Bellotto and Hu, 2007). Due to the high resolu-

tion of laser scanners, which mostly cover a 180 de-

gree ﬁeld of view with 180 or 360 measurements, one

target is usually the source of multiple returns within

one laser scan. This conﬂicts with the assumption of

punctiform targets used in the ﬁeld of radar tracking.

There, each target is the origin of exactly one mea-

surement. In contrast to that, using laser scanners, one

needs to be able to assign the obtained measurements

to extended targets.

A second important characteristic of tracking in

the ﬁeld of mobile robotics is the occurrence of cross-

ing or interacting targets, for example two or more

persons getting close to each other, so that they can

no longer be distinguished by common tracking algo-

rithms (Fortmann et al., 1983; Kr¨außling et al., 2005;

Kr¨außling et al., 2007). In this article we present an

approach to deal with this particular problem. The

key idea of our approach is to adopt an algorithm for

tracking punctiform objects in clutter,known from the

radar community, for the purpose of reliably tracking

extended objects with laser scanners. Several differ-

ent methods for tracking punctiform crossing targets

in clutter, i.e. tracking in the presence of false alarm

measurements close to a target, have been developed

over the last decades:

1. the MHT (Multi Hypothesis Tracker) introduced

Kräußling A., Brüggemann B., Schulz D. and B. Cremers A. (2008).

PEOPLE TRACKING USING LASER RANGE SCANNERS AND VISION.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 29-36

DOI: 10.5220/0001482700290036

 SciTePress

by Reid in 1979 (Reid, 1979).

2. The JPDAF (Joint Probabilistic Data Association

Filter) introduced by Fortmann, Bar–Shalom and

Scheffe in 1983 (Fortmann et al., 1983).

These techniques can easily be extended to tracking

extended objects as well, but there are several reasons,

why such approaches are brittle:

• In most cases there are several measurements

from the same target.

• Interacting objects might be indistinguishable

over longer periods of time.

• Some of the objects might be occluded for some

time.

• The objects can carry out abrupt manoeuvres, es-

pecially when they are crossing their paths.

These difﬁculties are well known in the mobile

robotics community:

• Tracking moving objects whose trajectories cross

each other is a very general problem ... Problems

of this type cannot be eliminated even by more

sophisticated methods ... (Prassler et al., 1999).

• Tracks are lost when people walk too closely to-

gether ... (Schumitch et al., 2006).

Due to these reasons, we have developed methods for

tracking interacting people in laser data (Kr¨außling

et al., 2004b; Kr¨außling et al., 2005; Kr¨außling et al.,

2007). These methods have in common, that they

employ a variant of the well known Viterbi algo-

rithm (Viterbi, 1967; Forney Jr., 1973) in combina-

tion with geometrical properties of the people track-

ing problem, in order to achieve a high degree of ro-

bustness against track loss.

However, although the tracks are very rarely lost

by these algorithms, they tend to confuse the assign-

ment of the tracks to the individual persons being

tracked after a crossing of paths has occurred. This

happens because the distance measurements of the

laser scanners do not provide direct information about

the persons’ identities. For this reason, additional

cues are required, if we want to reliably distinguish

between persons. Possible cues are:

1. Different colours and surface-textures of the pairs

of trousers people wear might result in different

intensities of the reﬂected laser beams.

2. Ultrasound or infrared signals uniquely identify-

ing individuals, which are transmitted by spe-

cial active badges the people wear (Schulz et al.,

2003).

3. Different colours of the clothes people wear. This

information can be exploited for the identiﬁcation

of the people using a camera network.

4. Differences in physiognomy like size and built of

persons. These differences can again be detected

using cameras (Schulz, 2006).

In this article we propose a technique to com-

bine Viterbi-based tracking with person identiﬁcation

based on colour information. A calibrated setup con-

sisting of an infrared and a CCD camera is used to

learn colour histograms of the persons, while they

are well separated during tracking. This information

is then employed to correctly reassign person IDs to

tracks after interactions have occurred. The new as-

signments are determined using the Hungarian algo-

rithm, which computes the maximum likelihood as-

signment, based on the likelihood of colour observa-

tions. Our experiments show that this approach al-

lows to track several interacting humans without loss

of track and without accidental confusion of the track

assignments.

The remainder of this paper is organised as fol-

lows. In Section 2 the combined method for track-

ing multiple interacting persons is described. It con-

sists of the tracking method based on the Viterbi al-

gorithm and an identity assignment method based on

colour information. Section 3 presents experiments il-

lustrating the robustness of our approach against loss

of track as well as against errors in track assignment.

We conclude in Section 4.

2 THE METHOD

In order to reliably keep track of several interacting

persons, we have to solve two problems: the trajecto-

ries of the persons have to be estimated without loos-

ing track of the persons and we have to make sure, that

we can always assign the individual trajectories to the

correct person. We have developed the so called Clus-

ter Sorting algorithm (CSA) to solve the ﬁrst problem

(Kr¨außling, 2006b). The CSA uses data from laser

range scanners to estimate the trajectories of objects

over time. The second problem is then solved by

additionally using colour histograms extracted from

camera images, in order to compute the most likely

assignment of the trajectories to the persons being

tracked. In the following, we will ﬁrst explain the

CSA in detail. Afterwards we will describe how the

reassignment of tracks based on colour information

can be integrated into the approach.

The Cluster Sorting algorithm estimates multi-

ple trajectories using a hidden Gauß–Markov chain,

where the tracking process is carried out using

Kalman ﬁlters. Because laser range scanners re-

turn range measurements to any object in the sur-

rounding of the robot, the measurements originating

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

from persons have to be discriminated from measure-

ments of static objects. The CSA computes valida-

tion gates (Bar-Shalom and Fortmann, 1988) for this

purpose, i.e. only measurements, which are close to

the currently estimated positions of persons are be-

ing considered; we call those measurements the se-

lected measurements. The distinction between mea-

surements of different persons is possible based on

the distance between selected measurements, as long

as persons do not get close to each other; otherwise,

persons share selected measurements. For this reason,

the CSA deals with the selected measurements in two

different ways:

(1) as long as the measurements of persons are

well separated, it computes for each person the un-

weighted mean of all the selected measurements of

that person. These means are then used to update the

Kalman ﬁlters for the individual trajectories of each

person; we call this procedure the Kalman Filter Al-

gorithm (KFA). It has been shown in (Kr¨außling et al.,

2005; Kr¨außling, 2006a) to be very fast and to provide

good information about the position of the targets, but

it cannot reproduce multi-modal probability distribu-

tions. Thus it is not able to handle multiple interacting

people.

(2) When persons have selected measurements in

common, the CSA no longer computes one single

track for each person, but it starts to compute indi-

vidual tracks for each selected measurement of each

person using a variant of the Viterbi algorithm. The

algorithm calculates for every old selected measure-

ment a separate position estimate and validation gate.

The new selected measurements are the ones which

lie in at least one of those gates; we call this al-

gorithm Viterbi-based algorithm (VBA); it has been

introduced in (Kr¨außling et al., 2004a). The algo-

rithm allows to represent multi-modal probability dis-

tributions to some extend, which is a major advan-

tage when dealing with multiple interacting targets.

The VBA is much more robust against track loss,

when compared to the KFA, because the VBA main-

tains several hypotheses about a persons position, one

hypothesis for each gating measurement. Common

tracking algorithms like the KFA, in contrast, make a

hard decision which measurement they use. In difﬁ-

cult situations, they tend to assign the same measure-

ment to several objects. Algorithms with a random

component like the SJPDAF (Schulz et al., 2001) oc-

casionally choose for each track the path of a differ-

ent person, so that no persons gets lost. But this be-

haviour is not stable (Kr¨außling and Schulz, 2006).

It remains to describe, how the CSA actually de-

cides when to switch between the KFA and the VBA.

The Cluster Sorting algorithm uses two classes of ob-

jects:

• single targets.

• clusters, which represent at least two interacting

persons, i.e. humans that are moving very close to

each other.

Single targets are tracked with the KFA, since there

is no need for representing multi-modal probability

distributions. Clusters are tracked with the VBA,

since multi-modal distributions have to be repre-

sented. This approach guarantees that none of the ob-

jects that are associated with the cluster is lost. This

fact is important especially when the objects split and

start to move separately again.

Three different events have to be regarded when

tracking multiple interacting people:

1. The merging of two single persons. This means

that two single targets get very close to each other.

This is the case, if at least one measurement is lo-

cated in the validation gates of both targets. Then

the algorithm stops to track the two single targets

with the KFA and starts tracking a cluster, which

contains both targets, using the VBA. Therefore,

it uses the measurements located in the validation

gates of at least one target.

2. The merging of a single human and a cluster. This

means that a single person and a cluster get very

close to each other. This happens, if at least one

measurement is located in the validation gates of

the person and the cluster. In this case the al-

gorithm stops to track the single human and the

cluster separately. Instead it starts tracking a com-

bined cluster. Therefore, it uses the measurements

located in the validation gates of either the single

target or the previously considered cluster or both.

3. The merging of two clusters. This means that two

clusters get very close to each other. This is the

case, if at least one measurement is located in the

validation gates of both clusters. If this is true, the

algorithm stops to track the two clusters and starts

tracking a combined cluster. Therefore, it uses the

measurements located in the validation gates of at

least one of the previously considered clusters.

Note, that whenever a merging takes place, the algo-

rithm remembers the humans which correspond to the

newly combined cluster.

For each tracked cluster, we also have to decide,

if it has split into single person tracks again. Whether

clusters are split depends on three conditions:

1. The position estimates corresponding to the mea-

surements in the validation gates are separated

into subclusters. For this purpose, we select the

ﬁrst estimate, which then is associated with the

PEOPLE TRACKING USING LASER RANGE SCANNERS AND VISION

ﬁrst subcluster. For all other estimates associated

with the cluster, the Euclidean distance to the ﬁrst

estimate is calculated. If this distance is below a

certain threshold, the estimate is associated with

the ﬁrst subcluster. In our experiments, we set

the threshold to 150cm, which corresponds to the

maximum distance between the legs of a walking

person. We then have to consider the estimates,

for which the Euclidean distance to the ﬁrst sub-

cluster exceeds this manually chosen threshold.

Using the same procedure we applied for build-

ing the ﬁrst subcluster, we now construct sub-

clusters until all estimates are associated with one

of these smaller clusters. If the number of sub-

clusters equals the number of humans which were

merged into this cluster, the ﬁrst condition for the

dispersion of the cluster is fulﬁlled. Then, we pro-

ceed with step 2.

2. We now check the pairwise distance between the

subclusters. If the distance is above a manually

chosen bound, we regard these clusters as sepa-

rated. We choose the value of that bound to be

300cm. The second condition is fulﬁlled, if the

number of pairs of separated subclusters equals

n(n−1)

. Thereby, n is the number of single per-

sons associated with the cluster. Hence, we are

checking if all subclusters are pairwise separated.

3. Above this, we can separate single subclusters

from the cluster to indicate them in the graphics.

This follows the same logic as in step 1. Note,

the algorithm is not able to determine, how many

targets are represented by a single subcluster.

If conditions 1 and 2 are met, the n subclusters are

associated with the n single targets therefrom tracked

by the KFA. When separating targets from clusters,

we cannot guarantee if the target association is the

same as before merging the targets into the cluster.

Thus, a possible solution to this problem, which uses

colour information will now be proposed.

To obtain the colour information of the persons, a

charge–coupleddevice camera (CCD camera) is used.

In order to recognise which parts of the picture of

the CCD camera belong to the persons, we employ

an infrared camera. The two cameras are mounted in

parallel on the robot, with only a small displacement;

this allows us to easily correlate infrared and CCD

images. The setup is shown in Figure 1. Since the

temperature of the persons is in a small, well deﬁned

range, it is easy to identify the regions in the images

of the CCD camera which originate from humans.

Next, the persons which are detected by the camera

system have to be assigned to the persons which are

tracked by the laser scanners and the tracking algo-

Table 1: The values of the hue in the HSV colour space.

Hue red yellow green cyan blue magenta

Degrees 0 60 120 180 240 300

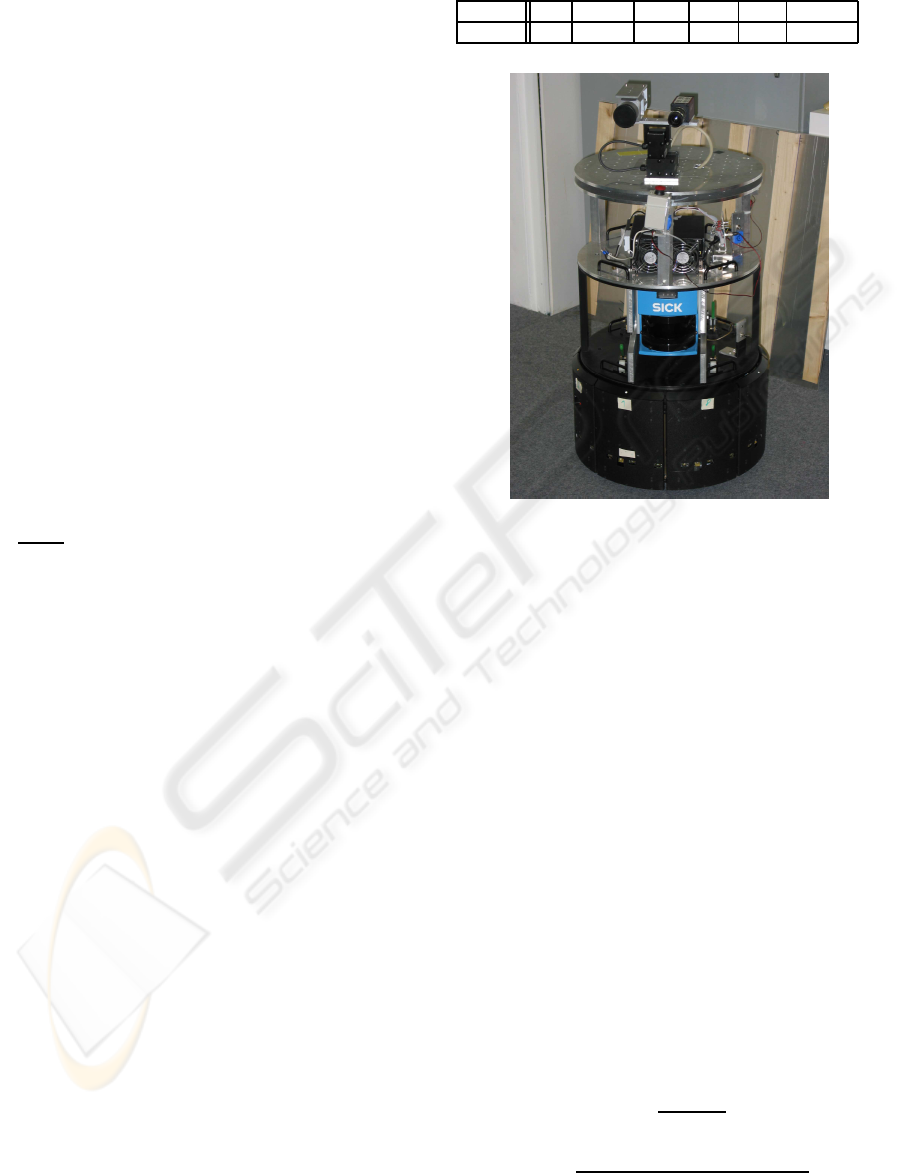

Figure 1: The robot equipped with the laser scanners and

the cameras.

rithm. For this purpose, we exploit the fact that the

camera system enumerates the persons in clockwise

direction. Therefore, we arrange the persons tracked

by the tracking algorithm in clockwise direction, too.

The colour information from the CCD camera is

represented using the HSV colour space (Gonzalez

and Woods, 1992), where H stands for hue, S for sat-

uration and V for value. In our experiments we only

used the hue, because it is fairly independent from

the illumination and a stable characteristic of the per-

sons. The hue values range from 0 to 360 degrees.

The mapping between the values of the hue and six

basic colours, we use for identiﬁcation, is shown in

Table 1.

The colour characteristics are learnt during the ex-

periment before the crossings. We assume that the av-

erage relative frequencies of the hue for person i fol-

low a Gaussian distribution with mean µ

and variance

. Let µ

i,k

and Σ

i,k

be the learnt mean and the learnt

variance at time step k and let y

i,k

be the measurement

corresponding to person i at time step k,

i,k

∑

j=1

i, j

, (1)

i,k

∑

j=1

i, j

− µ

i,k

)(y

i, j

− µ

i,k

)

⊤

k− 1

. (2)

This mean and this variance can be learnt on–line

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

without storing previous values y

i,l

, l < k, according

∆

k+1

= µ

i,k+1

− µ

i,k

(3)

i,k+1

k+ 1

i,k

i,k+1

k+ 1

(4)

i,k+1

− µ

i,k+1

)(y

i,k+1

− µ

i,k+1

)

⊤

k− 1

i,k

+ ∆

k+1

∆

⊤

k+1

. (5)

As soon as the tracking algorithm detects a crossing,

the algorithm stops to learn the colour characteristics

and the actual values µ

i,k

and Σ

i,k

are assigned to the

persons as the characteristics µ

and Σ

. As soon as

the tracking algorithm detects the end of the crossing,

the algorithm reassigns the identities to the persons. If

j,k

is the measurement of the person that is assigned

to track j at time step k, then the probability p

i, j,k

, that

the track j at time step k belongs to the person, which

has been assigned the identity i before the crossing, is

i, j,k

(det(2πΣ

))

1/2

·exp



−



j,k

− µ



⊤

−1



j,k

− µ





. (6)

Because the colour measurements of different points

in time are independent, the probability p

i, j,k

, that

the track j from time step k

to time step k

originates

from person i is

i, j,k

∏

k=k

i, j,k

. (7)

The tracks j, which are calculated by the tracking al-

gorithm, are usually interchanged during a crossing.

Thus, let m be the total number of persons associated

with the cluster being split and let σ be a permuta-

tion of the person IDs 1,. . . ,m. Then, the probability

that the IDs have been interchanged during the cross-

ing according to the permutation σ giventhe measure-

ments from time step k

to time step k

∏

l=1

l,σ(l),k

. (8)

The best reassignment

σ of the tracks j to the learnt

persons i is the one, that maximises the probability

. To compute

σ we interpret the negative log-

likelihoods log



i, j,k



as the marginal assignment

costs of assigning track j to person i after a cross-

ing. The negative log-likelihoods log(Π

) then con-

stitute the assignment cost of a complete assignment

(permutation) σ. The minimum cost assignment

σ is

then calculated using the well known Hungarian algo-

rithm (Munkres, 1957).

0 60 120 180 240 300 360

0.2

0.4

0.6

0.8

1.2

colour distibution of the three persons

Colors in Degrees

relative frequency of the color pixels

person 1

person 3

person 2

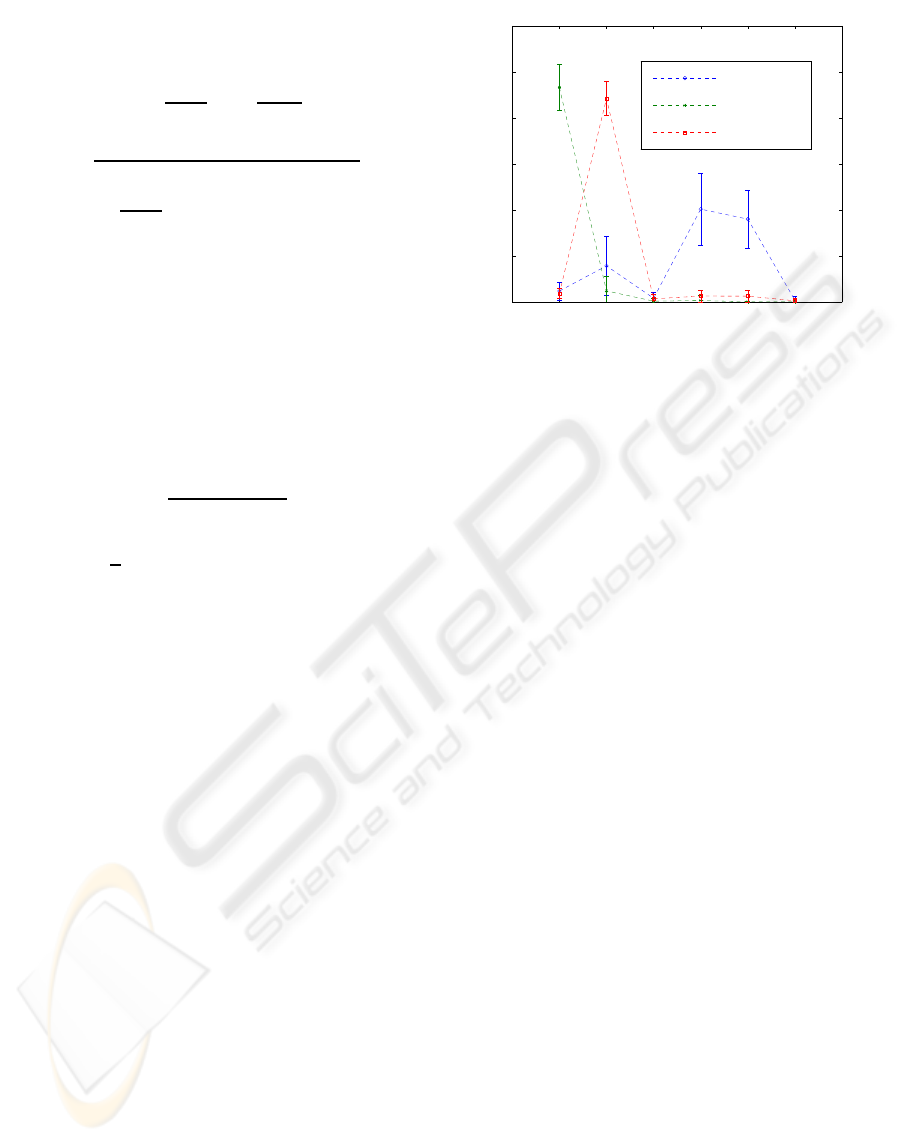

Figure 2: Colour distributions of the three subjects.

3 EXPERIMENTS

We conducted experiments with three persons in a

real world scenario in our laboratory. The ﬁrst per-

son was wearing a blue cardigan and a blue pair of

trousers. The second person was wearing a yellow

cardigan and blue pair of trousers. The third person

was wearing a red shirt and a red pair of trousers.

Figure 2 shows the corresponding colour distribu-

tions. The ﬁrst subject has his maximum in the blue

domain, the second has it in the yellow domain and

the third in the red one. Thus, the measured colour

distributions show a good coincidence with the real

colours.

The experiments were accomplished with a B21

robot platform shown in Figure 1. On the top the

camera system is mounted. The left camera is the in-

frared camera and the right camera is the CCD cam-

era. There are two laser range scanners armed back to

back at the robot, so that there is a 360 degree ﬁeld of

view.

The number of possible permutations of three ob-

jects is 3! = 6. Thus, we conducted six experiments,

for each permutation one experiment. We deﬁned po-

sition 1 as the right upper part of the surveillance area,

position 2 as the left upper part of the surveillance

area and position 3 as the lower middle part. The

persons are indexed in the order they appear in the

surveillance area. In the six experiments the person

indexed 1 occupied position 1 before the crossing, the

person indexed 2 occupied position 2 and the person

indexed 3 occupied position 3. After the crossing they

occupied different positions corresponding to the six

possible permutations. The experiment for the per-

mutation 123 7→ 123 is described in detail.

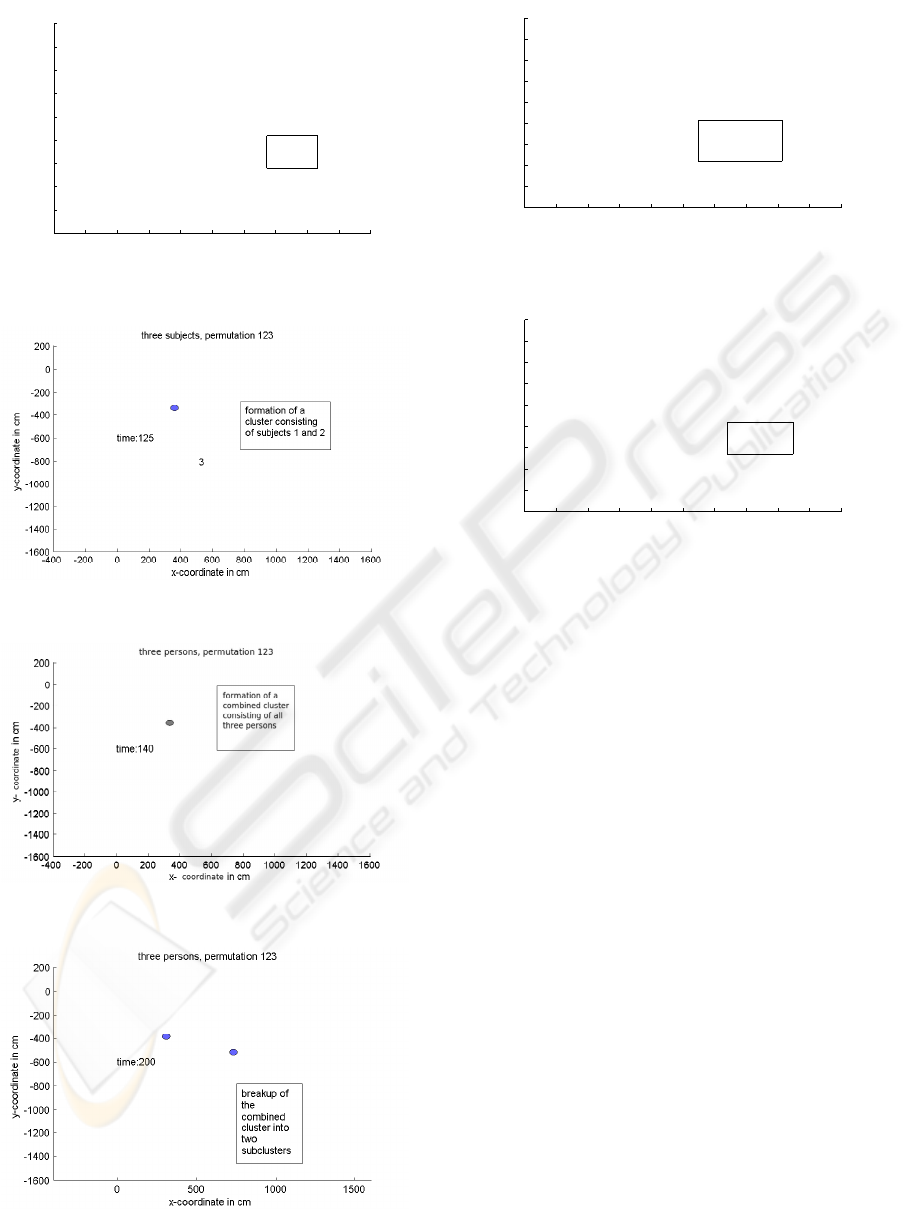

At ﬁrst the three persons are occupying their start

PEOPLE TRACKING USING LASER RANGE SCANNERS AND VISION

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 105

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 123

before the

interaction

Figure 3: Three subjects before the crossing, permutation

123 7→ 123.

Figure 4: Formation of a cluster consisting of person 1 and

2, permutation 123 7→ 123.

Figure 5: Formation of a cluster consisting of all three per-

sons, permutation 123 7→ 123.

Figure 6: Disaggregation of the combined cluster into two

subclusters, permutation 123 7→ 123.

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 220

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 123

three single

subjects after

the interaction

Figure 7: Three persons after the crossing, permutation

123 7→ 123.

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 110

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 213 to 123

before the

interaction

Figure 8: Three persons before the crossing, permutation

213 7→ 123.

positions and are indexed in the order of their appear-

ance in the surveillance area; this is illustrated in Fig-

ure 3. Within this ﬁgure, the numbers corresponding

to a person are drawn at the location computed by the

tracking algorithm. In Figure 4 the persons 1 and 2

interact and merge into a cluster. The clusters are rep-

resented by ellipses within the ﬁgure. In the next step

person 3 joins the other two and the algorithm merges

them into a single cluster as shown in Figure 5. Af-

ter some time, the group splits up into two subclusters

(see Figure 6), and ﬁnally the three persons walk on

their own again. This situation is illustrated in Fig-

ure 7. As can be seen, the algorithm tracks the three

persons without loss of track and reassigns the identi-

ties correctly after the interaction.

Next, we investigated the question, whether the

algorithm still works well, when the starting posi-

tions are interchanged. For this purpose we used the

permutation 213 7→ 123, which means for instance,

that the initial position of person number 2 is posi-

tion number 1. Figures 8 and 9 show the starting and

the end positions respectively with the assigned iden-

tities. Obviously the identities are in this case also

reassigned correctly.

Finally, we examined the case, whether the algo-

rithm can deal with several consecutive permutations.

Therefore, we used the two consecutive permutations

123 7→ 213 and 213 7→ 231. Figure 10 shows the ini-

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 230

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 213 to 123

after the

interaction

Figure 9: Three persons after the crossing, permutation

213 7→ 123.

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 85

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 123 to 213 to 231

before the first

interaction

Figure 10: Three persons before the ﬁrst crossing, permuta-

tion 123 7→ 213 7→ 231.

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 205

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 123 to 213 to 231

after the first

interaction

Figure 11: Three persons after the ﬁrst crossing, permuta-

tion 123 7→ 213 7→ 231.

tial positions. Figure 11 shows the reassigned iden-

tities after the ﬁrst crossing and Figure 12 shows the

reassigned identities after the second crossing. It can

easily be recognised that the identities are reassigned

correctly after each crossing.

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

−400 −200 0 200 400 600 800 1000 1200 1400 1600

−1600

−1400

−1200

−1000

−800

−600

−400

−200

200

time: 350

x−coordinate in cm

y−coordinate in cm

three subjects, permutation 123 to 213 to 231

after the second

interaction

Figure 12: Three persons after the second crossing, permu-

tation 123 7→ 213 7→ 231.

4 CONCLUSIONS

In this article we investigated the problem of tracking

multiple interacting humans. There are two difﬁcul-

ties, which have to be addressed to solve this chal-

lenging problem:

1. The robot should not loose track of a person and

2. the robot should always assign the correct identity

to the individual persons, especially after a group

of interacting persons split.

We proposed a hybrid approach to solve these two

problems, a laser-based tracking approach is applied

to keep track of the trajectories of persons, and colour

information about the persons’ clothes is employed to

disambiguate between the persons being tracked.

The proposed tracking algorithm reliably keeps

track of several persons, even in very difﬁcult situa-

tions, like the crossing of tracks and interactions of

persons. Robustness against track loss is achieved

by applying a switching approach, where a simple

Kalman ﬁlter is used as long as tracks are well sep-

arated and a variant of the Viterbi algorithm, which

tracks individual laser measurements independently,

takes over as soon as persons get close to each other.

A clustering technique is then employed to assign the

measurement tracks to individual person tracks again,

when the persons split up again.

However, during the Viterbi phase, the assignment

of the persons identities to tracks is lost. For this rea-

son, we employ the camera information to correctly

reassign the persons IDs to the individual tracks af-

ter the crossing. The current implementation uses a

combination of an infrared and a CCD camera for this

purpose. The camera system provides the robot with

colour information about the tracked persons. The

most likely assignment of the identities is then found

by using the Hungarian algorithm.

Our experiments show that this approach is able

to reliably track multiple interacting persons without

PEOPLE TRACKING USING LASER RANGE SCANNERS AND VISION

interchanging the individual tracks even in challeng-

ing situations. But of course there are still possibil-

ities for future research. The approach will run into

problems, if the colour distributions of the peoples’

clothes become too similar. This could be remedied

by additionally taking size and shape information into

account, like in (Schulz, 2006). In rare situations it is

also still possible that the tracking algorithm looses

track of an individual person, e.g. if a human moves

away while it is in the shadow of the other persons

during a crossing. This drawback could be overcome

by coordinating a team of robots in order to keep full

coverage of the scene.

REFERENCES

Bar-Shalom, Y. and Fortmann, T. (1988). Tracking and

Data Association. Academic Press.

Bellotto, N. and Hu, H. (2007). People tracking with a mo-

bile robot: A comparison of Kalman and particle ﬁl-

ters. In Proceedings of the 13th IASTED International

Conference on Robotics and Applications, pages 388–

393. International Association of Science and Tech-

nology for Development.

Fod, A., Howard, A., and Mataric, M. J. (2002). Laser–

based people tracking. In Proceedings of the IEEE

International Conference on Robotics and Automation

(ICRA), pages 3024–3029.

Forney Jr., G. D. (1973). The Viterbi algorithm. Proceed-

ings of the IEEE, 61(3):268–278.

Fortmann, T. E., Bar-Shalom, Y., and Scheffe, M. (1983).

Sonar tracking of multiple targets using joint prob-

abilistic data association. IEEE Journal of Oceanic

Engineering, 8(3).

Gonzalez, R. C. and Woods, R. E. (1992). Digitale Image

Processing. Addison–Wesley.

Kr¨außling, A. (2006a). Tracking extended moving objects

with a mobile robot. In Proceedings of the 3rd IEEE

Conference on Intelligent Systems, also to be pub-

lished in the Post Conference Volume (IEEE IS–06):

Intelligent Techniques and Tools for Novel System Ar-

chitectures, Series: Studies of Computational Intelli-

gence, Springer.

Kr¨außling, A. (2006b). Tracking multiple objects using the

Viterbi algorithm. In Proceedings of the 3rd Inter-

national Conference on Informatics in Control, Au-

tomation and Robotics (ICINCO), also to be published

in the Springer book of best papers of ICINCO 2006,

pages 18–25.

Kr¨außling, A., Schneider, F. E., and Wildermuth, D.

(2004a). Tracking expanded objects using the Viterbi

algorithm. In Proceedings of the 2nd IEEE Confer-

ence on Intelligent Systems.

Kr¨außling, A., Schneider, F. E., and Wildermuth, D.

(2004b). Tracking of extended crossing objects us-

ing the Viterbi algorithm. In Proceedings of the 1st

International Conference on Informatics in Control,

Automation and Robotics (ICINCO), pages 142–149.

Kr¨außling, A., Schneider, F. E., and Wildermuth, D. (2005).

A switching algorithm for tracking extended targets.

In Proceedings of the 2nd International Conference

on Informatics in Control, Automation and Robotics

(ICINCO), pages 126–133.

Kr¨außling, A., Schneider, F. E., Wildermuth, D., and Se-

hestedt, S. (2007). A switching algorithm for tracking

extended targets, volume II, pages 117–128. Springer,

informatics in control, automation and robotics edi-

tion.

Kr¨außling, A. and Schulz, D. (2006). Tracking extended

targets — a switching algorithm versus the SJPDAF.

In Proceedings of the 9th IEEE International Confer-

ence on Information Fusion, CD–ROM.

Munkres, J. (1957). Algorithms for assignement and trans-

portation problems. Journal of the Society for Indus-

trial and Applied Mathematics, 5(1).

Prassler, E., Scholz, J., and Elfes, E. (1999). Tracking

people in a railway station during rush–hour, volume

1542, pages 162–179. Springer Lecture Notes, com-

puter vision systems edition.

Reid, D. B. (1979). An algorithm for tracking multiple tar-

gets. IEEE Trans. Automatic Control, 24:843–854.

Romera, M. M., Vazquez, M. A. S., and Garcia, J. C. G.

(2004). Tracking multiple and dynamic objects with

an extended particle ﬁlter and an adapted k–means

clustering algorithm. In Proceedings of the 5th

IFAC/EURON Symposium on Intelligent Autonomous

Vehicles, CD–ROM.

Schulz, D. (2006). A probabilistic exemplar approach to

combine laser and vision for person tracking. In Pro-

ceedings of Robotics: Science and Systems II.

Schulz, D., Burgard, W., Fox, D., and Cremers, A. B.

(2001). Tracking multiple moving objects with a mo-

bile robot. In Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR).

Schulz, D., Fox, D., and Hightower, J. (2003). People

tracking with anonymous and ID–sensors using Rao–

Blackwellised particle ﬁlters. In Proceedings of the

18th International Joint Conference on Artiﬁcial In-

telligence (IJCAI).

Schumitch, B., Thrun, S., Bradski, G., and Olukotun, K.

(2006). The information–form data association ﬁlter.

In Proceedings of the 2005 Conference on Neural In-

formation Processing Systems (NIPS). MIT Press.

Viterbi, A. J. (1967). Error bounds for convolutional codes

and an asymptotically optimum decoding algorithm.

IEEE Transactions on Information Theory, 13(2).

Zhao, H. and Shibasaki, R. (2005). A novel system for

tracking pedestrians using multiple single–row laser–

range scanners. IEEE Transactions on Systems, Man

and Cybernetics —- Part A: Systems and Humans,

35(2):283–291.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics
