ROBOT GOES BACK HOME DESPITE ALL THE PEOPLE

Paloma de la Puente, Diego Rodriguez-Losada, Luis Pedraza and Fernando Matia

DISAM - Universidad Politecnica de Madrid, Jose Gutierrez Abascal 2, Madrid, Spain

Keywords:

Mobile Robots Navigation, Localization and Mapping, Reactive Control, Dynamic Points.

Abstract:

We have developed a navigation system for a mobile robot that enables it to autonomously return to a start

point after completing a route. It works efﬁciently even in complex, low structured and populated indoor

environments. A point-based map of the environment is built as the robot explores new areas; it is employed

for localization and obstacle avoidance. Points corresponding to dynamical objects are removed from the map

so that they do not affect navigation in a wrong way. The algorithms and results we deem more relevant are

explained in the paper.

1 INTRODUCTION

Autonomous navigation around indoor environments

is a difﬁcult task for a mobile robot to achieve, es-

pecially if there are people passing by frequently. A

good start point is presented in (Borenstein et al.,

1996) by breaking down the general problem of

robot navigation into three questions:”Where am I?”,

”Where am I going?”, ”How should I get there?”. So,

the ﬁrst (and main) problem encountered when deal-

ing with this issue is the necessity of knowing where

the robot is at every moment.As the robot moves, er-

rors in odometry information increase signiﬁcantly

hence making it essential that these data be corrected.

Different probabilistic methods for performing this

correction using measurements received from stereo-

ceptive sensors (such as laser range-ﬁnders or sonars)

have thus far been developed, being those capable of

building a map at the same time for proper representa-

tion of the environment the most effective and popular

ones.

As for the second question, the goal to be reached

is often deﬁned by the user. It may be given by higher

level tasks depending on the particular application.

The last question is challenging as well. A ﬁrst

step is motion control, which is better addressed by

means of a closed-loop controller using position feed-

back (Siegwart and Nourbakhsh, 2004). With a reg-

ulator of this kind, path planning comes to comput-

ing a sequence of passing points leading to the tar-

get. Once a nominal trajectory has been obtained,

safe navigation requires reactive control, for the robot

should be able to change its behavior if a situation

that endangers its mission appears. Regarding this,

several strategies have been used in the literature to

face obstacle avoidance. Some of the proposed solu-

tions (Feiten et al., 1994), (Yang and Li, 2002) consist

of sending special drive and steer velocity commands

when an obstacle is detected. The latter and other

authors do so through fuzzy control. An interesting

and generic approach is an iterative algorithm found

in (Lamiraux et al., 2004) for real time deformation

of previously collision free paths when operating with

nonholonomic robots.

Dynamic objects in the environment bring about

further difﬁculties in map building and reactive con-

trol. If the problem is simpliﬁed and observed fea-

tures are represented as permanent in the map, it is

still useful for localization purposes but there will be

discrepancies with reality. It also increases the map’s

size unnecessarily and may result in the robot avoid-

ing obstacles which are no longer there. (R.Siegwart

et al., 2002) tackle this issue applying the EM algo-

rithm and making use of an a priori map of the en-

vironment. They also address other aspects of robot

navigation in populated exhibitions, remarking the

importance of introducing novel combinations and

adaptations of different preexisting approaches. (Hh-

nel et al., 2003) developed a statistical method to

identify measurements corresponding to dynamic ob-

jects and perform localization and building of occu-

pancy grid maps, all in the context of the EM algo-

rithm.

In this paper we present a system which allows

208

de la Puente P., Rodriguez-Losada D., Pedraza L. and Matia F. (2008).

ROBOT GOES BACK HOME DESPITE ALL THE PEOPLE.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 208-213

DOI: 10.5220/0001491502080213

 SciTePress

the robot to build a point-based map of its static sur-

roundings while being teleoperated from somewhere;

this map is afterwards used by the robot to localize it-

self and make its way back to its original pose, avoid-

ing any obstacles which may be near the initial path.

Experiments in highly crowded and cluttered environ-

ments have been carried out successfully.

This work is to be used in an ambitious project

concerning the autonomous setup of an interactive

robot at museums and trade fairs. The robot’s name

is Urbano and it already counts on a robust local-

ization system based upon geometrical features over

SLAM-EKF that originates 2D precise maps in real

time (Rodr

ıguez-Losada, 2004). Here we expose an

efﬁcient less complex model with the speciﬁc demon-

strator of the returning home utility. This work has

been partially founded by DPI-2004-07907-C02-01.

The paper is organized as follows. Section 2 in-

cludes a description of the algorithms corresponding

to localization and mapping. In Section 3 we present

the movement and reactive control implemented al-

gorithms. Section 4 accounts for experimental results

we have obtained. Finally, Section 5 contains our con-

clusions and future working lines.

2 LOCALIZATION AND

MAPPING

2.1 Localization and Map Building

The solution adopted for this problem is a Maxi-

mum Incremental Probability algorithm whose foun-

dation is the Extended Kalman Filter(EKF). The sys-

tem elaborates and continually updates a map built

from the observations acquired from the laser mea-

surements.

The state vector used is deﬁned as the robot’s

global pose, [x

,θ

]

, whereas the odometry mea-

surements (incremental, so referred to the robot’s lo-

cal coordinate system) represent the system inputs,

~u = [u

,θ

]

. Time subscripts are omitted in the

latter so as to simplify notation; measurements ob-

tained last are always the ones considered. According

to this, the state equation is put as:

=~x

k−1

⊕~u = f (~x

k−1

,~u) (1)

where ⊕ represents the composition of relative trans-

formations.Odometry measurements can be modelled

as a gaussian variable, ~u

∼ N(

,Q).

2.1.1 Predictor Equations

Applying the deﬁnition of the ⊕ operator, the pre-

dicted state, ˜x

, will be given by:





˜x

˜y









ˆx

k−1

+ u

cos

k−1

− u

sin

k−1

ˆy

k−1

+ u

sin

k−1

+ u

cos

k−1

+ θ





(2)

And the state’s covariance prediction,

, is computed

from:

= F

k−1

+ F

(3)

being F

δ f

δ~x

, F

δ f

δ~u

(we use the best state

estimation obtained up to now)

The algorithm is initiated with ˆx

= 0,

= 0.

2.1.2 Corrector Equations and Data Association

Ideally, each observation ~o

= [o

]

(or laser mea-

surement received) is implicitly related to the pre-

vious estimation of the state by means of compo-

sition with it and comparison to the corresponding

= [x

l j

]

point in the map. The resultant expres-

sion is known as the innovation of observation i:

i j

= ~x

⊕~o

−

= h(~x

,~o

) =

0 (4)

which combined with ⊕ deﬁnition is the same as:

i j



−x

l j

+ ˜x

+ o

cos

− o

sin

−y

l j

+ ˜y

+ o

sin

+ o

cos



0 (5)

If we denote H

i j

δ~x

,~o

, H

i j

δ~o

,~o

for

every iteration k, the covariance of each innovation is

given by:

i j

= H

i j

+ H

i j

(6)

where R is the covariance of laser measurements.

We have followed the Nearest Neighbor strategy

to pair each observation with its correspondent map

point. Computation of the Mahalanobis distance for

innovation h

i j

once we have got its covariance matrix

will let us select that map point which minimizes

such distance. If Mahalanobis test is passed for that

association, then it is taken into account at the correc-

tion step; otherwise it will be added as a new point of

the map vector. Among all the h

i j

and H

zi j

matri-

ces obtained for an observation at a certain iteration,

only those corresponding to the map point, if any, as-

sociated to it will be kept to correct the estimation.

They will be denoted h

min

. As more as-

sociations are made, there are more measurements to

ROBOT GOES BACK HOME DESPITE ALL THE PEOPLE

209

be used. This is contemplated by ﬁlling other matri-

ces containing joint information from all of them:

h = [h

min

,...,h

min

]

(7)

= [H

min

,...,H

min

]

(8)







min







(9)

where t is the total number of associations. Now we

get the global S matrix and the Kalman gain from

S = H

+ H

(10)

K =

−1

(11)

The corrected values are updated from this informa-

tion and the prediction values obtained from 2 and 3:

~x =

~x − Kh; (12)

P = (I − KH

)

P (13)

2.2 Removal of Dynamic Points

The algorithm presented above incorporates to the

map every observed point which cannot be associated

to a pre-existing one. If we stick to it, points cor-

responding to a dynamic object detected at a given

moment are included in the map when they are ﬁrst

seen (just as any other object is) and nothing is done

to avoid them being there forever. Here we propose

a method that removes map points far from being ob-

served at a given moment, before the correction and

update of the map take place.

Firstly, an evolvent polygon of the laser measure-

ments is constructed in a recursive way. The general

procedure is summarized in the following lines:

• A segment from the ﬁrst measurement to the last

is taken.

• The furthest observation from that segment is

sought among the others.

• If the separation between the segment and that ob-

servation is high enough, the process is repeated

between the ﬁrst observation and the one selected

and then between this observation and the last

one.

• When for one segment there is no observation at

a greater distance than a threshold, its limits are

stored in a vector containing the polygon vertices.

Some other simpliﬁcations are made in order not to

generate too many vertices. Map points that remain

quite inside the polygon cannot correspond to cur-

rently observed objects because if so, they would ei-

ther have been included as polygon vertices or they

would be very close to them (due to the threshold and

the simpliﬁcations mentioned above).

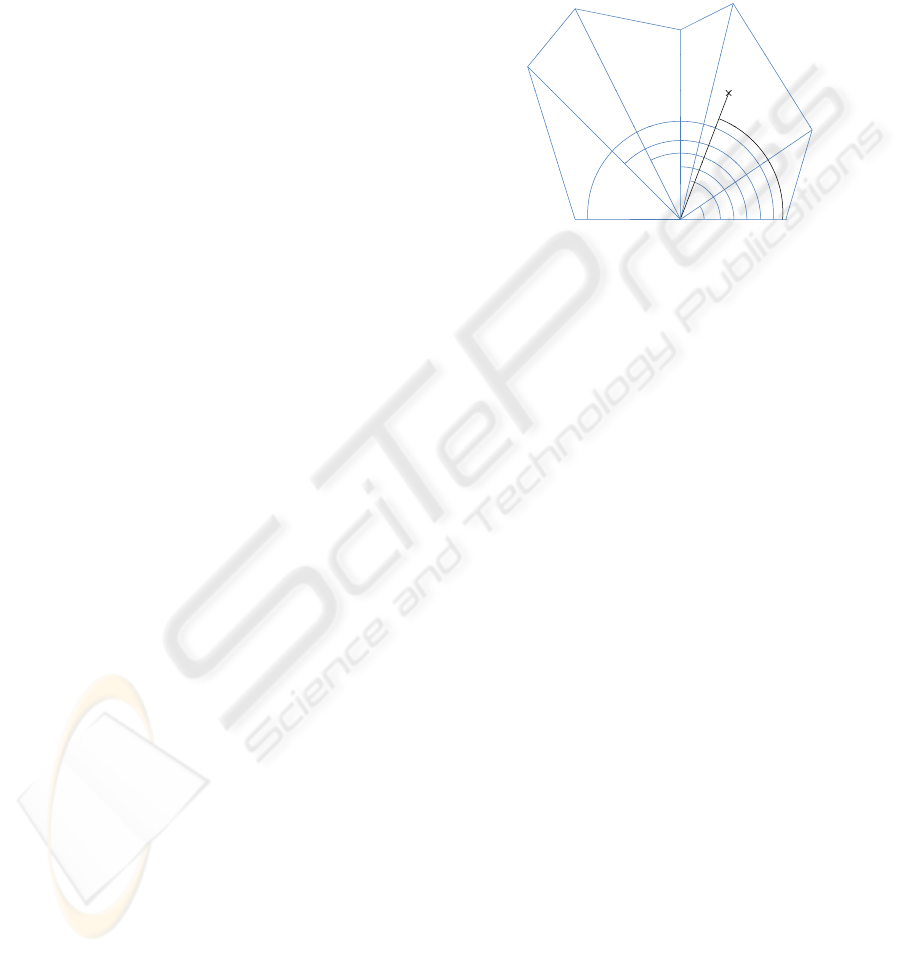

Figure 1: Angles to be measured for seeing if a point is

inside an unconvex polygon.

To ﬁnd out whether a map point is inside the poly-

gon, we compute a series of angles (α

...α

in ﬁgure

1) as soon as the vertices extraction is over. Then,

for every point in the map which is not too near the

polygon’s border we determine its coordinates in the

laser reference system and then compute the value of

the β angle represented in the same ﬁgure. Selecting

those alphas β lies in between (α

and α

in the ﬁg-

ure’s case) we obtain the corresponding vertices and

use their distance to the robot to establish if that map

point should be erased. We use a conservative crite-

rion that leaves outside the map only those points at a

smaller distance than the closest of both vertices. This

prevents any map points being removed incorrectly.

The computational cost of creating the polygon

and ﬁnding the values of the needed angles is upper

bounded, since the number of observations provided

by the laser is constant. Notice that only one angle

has to be computed for each point in the map, which

makes it a not very cumbersome algorithm.

3 MOTION CONTROL

3.1 Motion Controller

To get the robot moving from one point to another

we have employed gain scheduling, implementing a

controller in agreement to the divide and conquer ap-

proach. The error is a linear combination of three

angles. In ﬁrst place is the difference between the

present orientation of the robot and the one it should

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

210

have to look straight ahead to the next goal. The sec-

ond angle is that one the robot should turn to have the

same global orientation as the current trajectory seg-

ment it is at. The third angle is similar to the second

although in this case it is the next trajectory segment

that is considered. Weights of 0.3, 0.2 and 0.5 have

been used to produce smooth anticipative movement

following a given trajectory. We deﬁne several inter-

vals for that global error and vary a constant value of

drive velocity and the gain of a proportional controller

for the steer velocity within each of them.

In the experiments described here, the given tra-

jectory is obtained by saving the robot’s pose every

time it moves a constant distance.

Nominalpath

Collisionpath

Correctedpath

Goal

Ob t l

Start

Robot

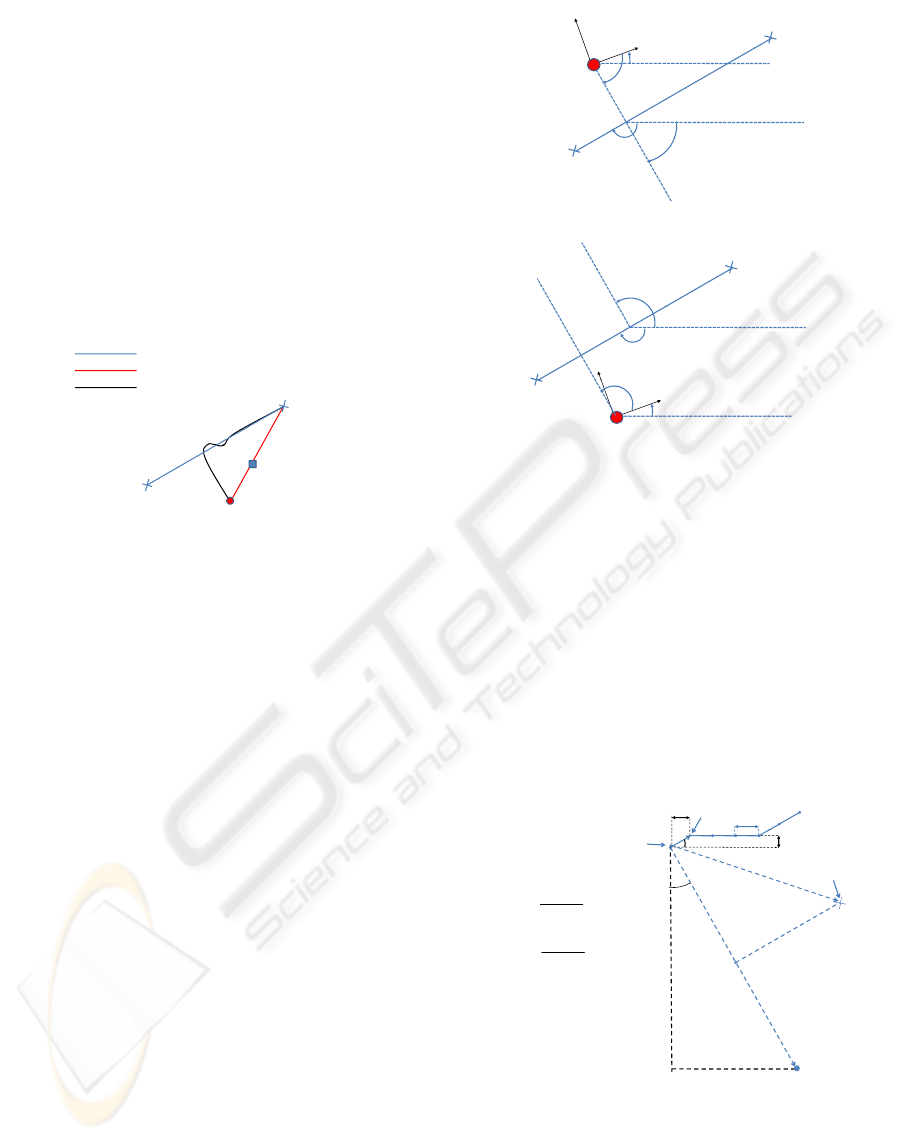

Figure 2: Possible paths if the robot is not near the deﬁned

trajectory.

If the robot were to be quite separated from the

deﬁned trajectory, this controller would take it to the

goal not across the nominal path but across one in

which there might be an obstacle(ﬁgure 2).

The corrected path is obtained by forcing the robot

to approach the nominal path before heading for the

target. For this purpose we have included control laws

that regulate angles δ

or δ

in ﬁgure 3 depending on

which side of the path the robot is at. We use an-

gles in [−π,π] along all our work, which is what the

ForceInRange function has been deﬁned for. These

laws are employed instead of the initial ones only

when the robot is far enough from the deﬁned path.

When the robot is told to go back, it turns 180 at

ﬁrst and then come into action the rules that have just

been commented. At a certain distance from home,

the robot begins to slow down until it reaches its ﬁ-

nal pose. Then it turns to adopt the orientation it had

when it abandoned home.

3.2 Path Deformation

To get a trajectory free of obstacles we displace the

points of the nominal trajectory which are affected by

objects detected in the environment.To begin with, we

make sure that consecutive points in the initial trajec-

tory are at a short enough distance, let it be 0.1m.For

each point i we follow the same steps. At ﬁrst, a point

Goal

ang1+ PI/2

Start

ang1+



PI/2

= ang1+PI/2‐ θ

Goal

ForceInRange(ang1‐ PI/2)

Start

ang1

ForceInRan

(

1‐ PI

)

‐

Figure 3: Angles through which control is executed.

p is deﬁned on the normal to the segment joining that

point of the trajectory and the next one so that it is 1m

away from the former. The vector going from point i

to point p will be referred to as v

. We deﬁne a vector

with origin at the considered trajectory point and

end at the subsequent obstacles detected. The orthog-

onal projection of this vector v

onto v

determines

point p

. Its distance to the trajectory point i is d,

which may be positive or negative if the obstacle is at

one side or another of the trajectory.

0.1

‐x

)

‐y

)

(

sin

−

stac

)

(

1.0

sin

−

)(10

1.0

cos 01

−=

−

= 1

=x

0

+sinα=x

0

+10(y

1

‐ y

)

–

cos

‐

10(x

‐

)

p (

)



cos



10(x



)

=

(

)

Figure 4: Deﬁnition of point p and other magnitudes for the

trajectory point i = 0.

The distance from p

to the obstacle will be called

. All these magnitudes are represented in ﬁgure

4.Only those objects resulting in a small enough value

of d

take part in the deformation relative to that

ROBOT GOES BACK HOME DESPITE ALL THE PEOPLE

211

i+1

i’

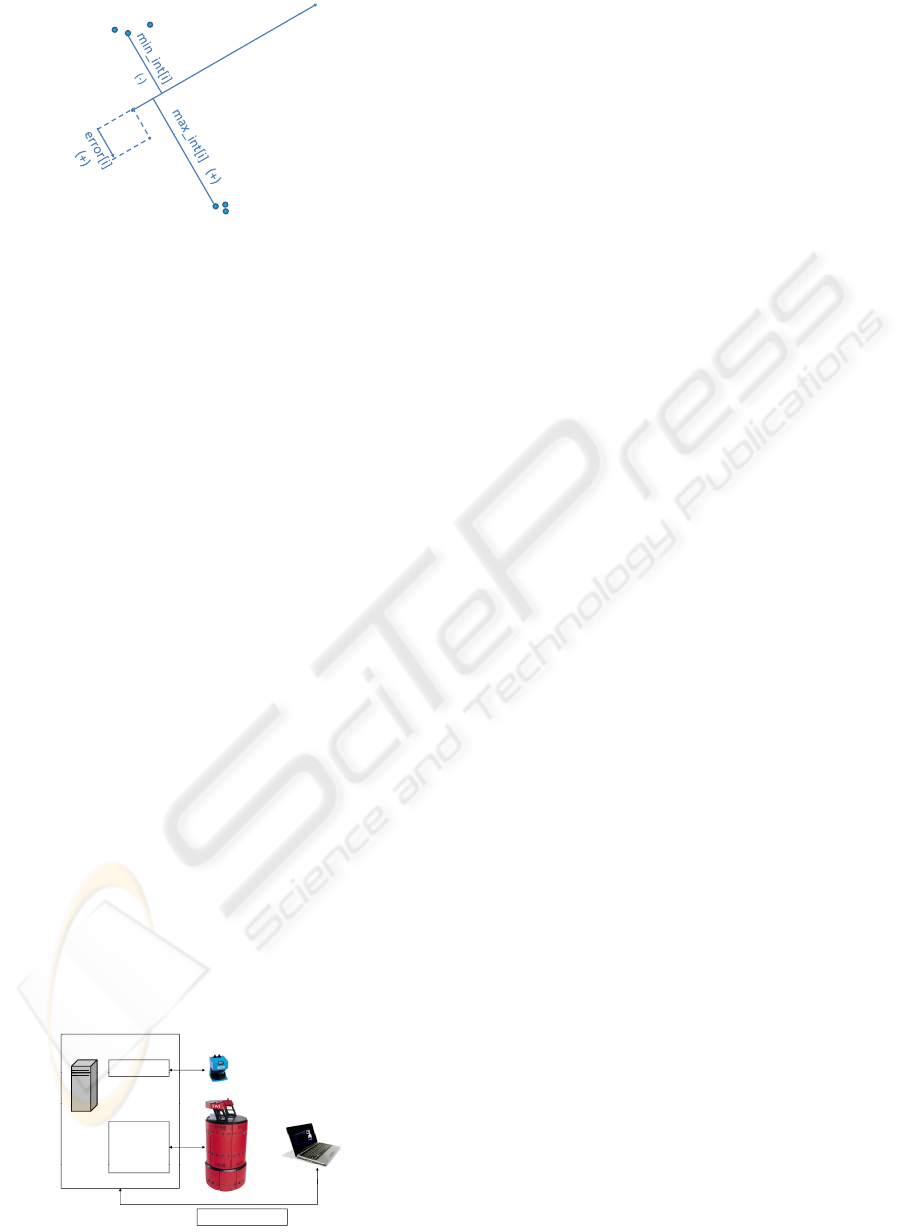

Figure 5: Displacement applied to each point of the nominal

trajectory.

path point. Correcting d by considering the inﬂu-

ence of the robot radius and afterwards obtaining its

minimum and maximum values, an area of permitted

movement can be determined. We will call these two

distances min_int[i] and max_int[i], respectively.

They are initialized with the maximum displace-

ment allowed, for the case of no presence of obstacles

and other similar situations. Their mean will be the

displacement,error [i], to apply to that path point in

order to leave it at an intermediate distance between

the limits found for each of both sides (see ﬁgure 5).

To generate a smoother deformation we use the aver-

age of that error value and the previous and next ones:

error2[i] = (error[i − 1] + error[i] + error[i + 1])/3

4 EXPERIMENTS AND RESULTS

The system has been tested in different environments,

using simulators (one we have developed ourselves

and also MobileSim, by Activemedia Robotics) and

real robot data from text ﬁles at the beginning, and the

robot Urbano afterwards. Urbano stands on a B21r

platform and has a laser SICK LMS200 mounted on

top. The architecture of the system is the one in ﬁg.

The most signiﬁcant experiments we have con-

ducted took place at our laboratory, which has very

narrow areas and people often coming to and fro. The

Robot PC

LMS 200

Robot

Serial Port

LMS

200

B21r

Client PC

Mobility

Server

TCP streams

Figure 6: Urbano’s distribution schema.

robot was teleoperated from one end of the laboratory

to the other, ﬁnding a lot of visitors while building the

map.When we had brought it to the main entrance, we

told him to return home. Since that moment all of its

behavior is absolutely autonomous. In the way back,

other people were seen and Urbano was able to avoid

them. Some other slight corrections were made in or-

der to follow a path which got apart from close obsta-

cles. One of the maps we obtained is the one in ﬁgure

7. The green path is the odometry corresponding to

the teleoperation mode. The pink path is the one rep-

resenting dead-reckoning in the way back. The blue

trajectory is the correction for the ﬁrst stage of the ex-

periment, while the red one is the correction obtained

when the robot was coming back home. Cyan points

are those which were removed from the map. Most of

them were clearly identiﬁed with people’s successive

positions when walking in front of the robot.

Another experiment was performed in the build-

ing where lessons are imparted at a time in which

there were plenty of students coming out from their

classes. The resultant map and the actual environment

are shown in ﬁgure 8.

5 CONCLUSIONS

The system presented here has two main components,

one having to do with localization and map building

and one related to control and path deformation.

The implemented localization and mapping algo-

rithm is a Maximum Incremental Probability method

based on the Extended Kalman Filter (EKF). Its main

drawback is the fact that it does not consider the un-

certainty in the map itself, but it allows for a higher

degree of simplicity and has proven an appropriate

behavior on the experimental conditions of a wide va-

riety of tests apart from those exposed in this paper

(using data obtained by several real robots in differ-

ent indoor environments, some of them having large

odometry errors). The elimination of points makes

more realistic and reliable maps which represent the

last structure observed by the robot. If the same map

were used in another experiment, instead of making

the robot build a new one in real time,it would get

adapted to the conﬁguration of the environment at that

moment. This strategy also prevents mistakes in data

association and reduces maps’ size when possible.

The developed control module enables the robot

to achieve a ﬁnal target without hitting any obstacles.

A high level technique keeps the path to be followed

away from the objects detected by the laser, and the

controller does not let the robot get far from this col-

lision free path. Obstacles at lower height than the

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

212

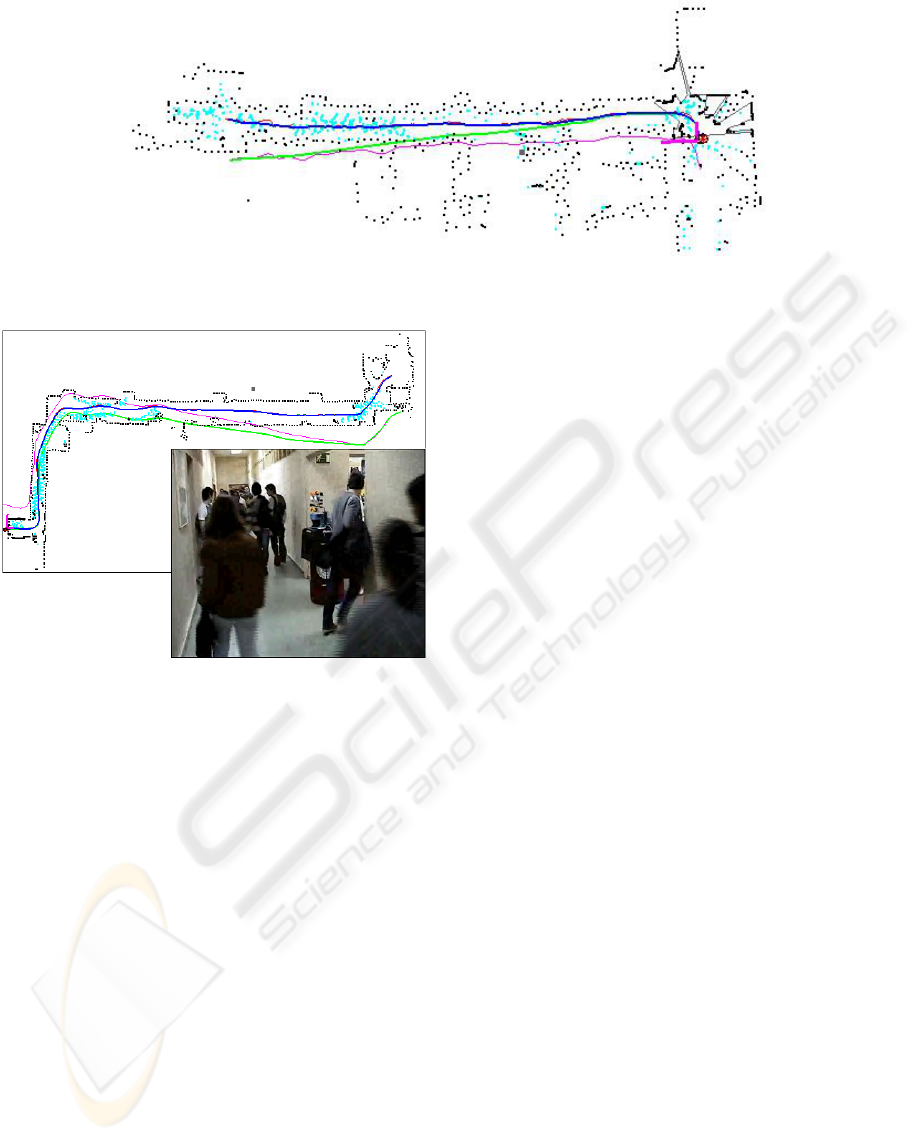

Figure 7: Real time built map of our laboratory.

Figure 8: Real time built map of an area plenty of students.

laser sensor cannot be seen. Consequently, not only

will these obstacles be left out of the map and cause

it to be less accurate but, what is much worse, they

will not be considered in path deformation either. As

a precaution, Urbano has got some ultrasound sensors

at an intermediate height which make the robot stop

if they detect it is about to crash, but it might not be

enough under some circumstances. This caveat gives

rise to one of our next working lines.

6 FUTURE WORK

As previously mentioned, we now orientate our work

towards the integration of knowledge models for the

autonomous setup of an interactive robot at museums

and trade fairs. The reference of this project, called

Robonauta, is:DPI2007-66846-c02-01.

To achieve this important objective, some lines re-

lated to this work and to Urbano’s navigation in gen-

eral are:

• Extension of geometrical models. Employing a

wrist that can precisely position the 2D scanner

in different angles for data acquisition, we aim at

constructing robust algorithms to create 3D maps

which will make the robot’s navigation safer.

• Improvements in control, so that the robot can

move faster and follow its path more accurately.

• Path deﬁnition by means of people tracking or by

means of voice commands spoken to the robot.

• Incorporation of new conducts which will enable

the robot to follow a learning process by itself.

REFERENCES

Borenstein, J., Everett, H., and L.Feng (1996). Navigating

Mobile Robots: Systems and Techniques. A.K Peters.

Feiten, W., R.Bauer, and Lawitzky, G. (1994). Robust Ob-

stacle Avoidance in Unknown and Cramped Environ-

ments. In IEEE Int. Conf. Robotics and Automation.

Hhnel, D., R.Triebel, W.Burgard, and S.Thrun (2003). Map

Building with Mobile Robots in Dynamic Environ-

ments. In IEEE Int. Conf. Robotics and Automation.

Lamiraux, F., Bonnafous, D., and O.Lefebvre (2004). Re-

active Path Deformation for Nonholonomic Mobile

Robots. IEEE Transactions on Robotics.

Rodr

ıguez-Losada, D. (2004). SLAM Geom

etrico en

Tiempo Real para Robots M

oviles en Interiores

basado en EKF. PhD thesis, ETSII-Universidad

Politcnica de Madrid.

R.Siegwart, R.Philippsen, and B.Jensen (2002).

http://robotics.epﬂ.ch.

Siegwart, R. and Nourbakhsh, I. (2004). Introduction to

Autonomous Mobile Robots. MIT Press.

Yang, S. and Li, H. (2002). An Autonomous Mobile Robot

with Fuzzy Obstacle Avoidance Behaviors and a Vi-

sual Landmark Recognition System. In 7

ICARCV.
