MODEL BASED DESIGN OF NETWORKED EMBEDDED SYSTEMS

A Modeling Approach using FlexRay as an Example

Johannes Kl¨ockner, Sven K¨ohler and Wolfgang Fengler

Institute of Computer Engineering, TU Ilmenau, Ilmenau, Germany

Keywords:

Model Based Design, FlexRay, CAN, MLDesigner, Network Simulation, Building Blocks, Fieldbuses.

Abstract:

This paper presents a work in progress on a method to create system level models of networked systems in

automotive applications. It introduces an example, that shows a strategy to create models, providing high

ﬂexibility in terms of interoperability, ﬁeld of application, reusability and replaceability. The chosen modeling

tool contains a multi-domain simulator and allows a mission and system level design. Beside the exposition

of the basic architecture of the model there is a description of various model parts showing the variety of

different levels of abstraction. The grade of reuseability of the developed building blocks is very high. Finally

a perspective for future extensions towards a general modeling strategy for various networked applications in

embedded systems is provided.

1 INTRODUCTION

In recent years the complexity of embedded systems

has been growing to large, hard to manage dimen-

sions. Additional to the system design itself the net-

working of embedded systems becomes more com-

plicated and requires a lot of planning and design de-

cisions. In contrast to that growing complexity the

time to market dramatically decreases and develop-

ment costs need to be reduced to be competitive.

At present the tool and method support for efﬁ-

cient top-down development processes is insufﬁcient.

One way to deal with this problem is the model driven

development of systems. The creation of models

eases the hard- and software development and cre-

ates documented interfaces. Some concepts permit

to automatically produce source code to enhance a

rapid development. Most modeling technologies al-

low a simulation to validate behavior of the modeled

system or network without the demand to build an

expensive prototype. Furthermore, these techniques

provide technologies for performance tests, thus sup-

porting e.g. the optimization of applications.

One ﬁeld of technology, where models can be

used to accelerate the development, is the automo-

tive industry. Today’s vehicles contain a large amount

of electronic systems, the variety ranges from driver

assistance to passenger entertainment. These estab-

lished features and new applications like drive-by-

wire or networked cars

increase the need for new

networking technologies, that offer fast and reliable

time critical communication, as well as the design of

a complex complete system.

FlexRay (FlexRay Consortium, 2007) is a new

communication system, that offers real time features

as well as high bandwidth by the use of a ﬂexible time

triggered system. The industry promotes this com-

munication protocol as an important future technol-

ogy and the migration to FlexRay has already begun.

In this paper we will present a modeling strategy for

networked embedded systems in automotive environ-

ment, that is best suited for the upcoming time trig-

gered communication systems providing real time ca-

pability and high performance. The FlexRay protocol

will serve as the central example for the developed

approach.

This paper is organized as follows. Section 2 de-

scribes the state of the art in system development.

Section 3 introduces the basic modeling strategy. Sec-

tion 4 presents the selected modeling tool. Section 5

describes the different model elements. Section 6

presents the drawn conclusions. Finally, Section 7

gives a brief overview of the next development steps.

Car-2-Car communication

253

Klöckner J., Köhler S. and Fengler W. (2008).

MODEL BASED DESIGN OF NETWORKED EMBEDDED SYSTEMS - A Modeling Approach using FlexRay as an Example.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - SPSMC, pages 253-259

DOI: 10.5220/0001492602530259

 SciTePress

2 STATE OF THE ART

A lot of tools support the conﬁguration and develop-

ment of FlexRay systems. Mostly they are enhance-

ments of already known approaches deployed for

the design of controler area network (CAN) (Robert

Bosch GmbH, 1991) based systems, e.g. the tool set

of the company Vector Informatik GmbH

(Carsten

B¨oke, 2006). The tools are principially used for ap-

plication development. Simulation and monitoring is

available in conjunction with a hardware node. With

regard to model based design and simulation, which

allows system design and analysis, these tools are not

suitable. MATLAB (The MathWorks, 2007) is a sys-

tem design tool focused on continuous time models,

but it is not well suited to build a model for discrete

event simulations, like communication protocols. The

company DECOMSYS

provides an extension block

to use FlexRay inside MATLAB. This precast block

allows a hardware based model simulation. Due to

this and the limited block access the analysis vari-

eties are restricted. Current research on schedulability

analysis (Richter, 2007) is based on stand alone solu-

tions. They are not integrated into the development

process of communication systems.

There is no adequate combination of system anal-

ysis and system design. Within a model based design

an efﬁcient development of a complete system is pos-

sible (Salzwedel, 2004). A system is a composition

of different building blocks. The building blocks shall

be grouped into categories, e.g. communication pro-

tocols. Each category should offer common interfaces

to provide a high grade of reusability and exchange-

ability. Also a category has to be divided in different

parts containing different realizations of a system ele-

ment, which possess variable levels of abstraction. To

support the system design and analysis mechanisms

are needed to enable the monitoring of the system and

communication behavior, the fault injection and to al-

low an easy conﬁguration of the system.

The tool MLDesigner (MLDesign Technologies

Inc., 2007) fulﬁlls the requirements of a model based

design allowing system analysis and development. It

will be described in section 4.

3 MODELING STRATEGY

The modeling approach introduces a strategy to sup-

port a generalized model based top-down develop-

ment process focused on networked embedded sys-

tems in automotive applications. A networked system

http://www.vector-worldwide.com/

http://www.decomsys.com/

comprises several components. The predeﬁnition of

common interfaces supports the modeling approach

and allows an easy exchange of components. The

components themselves can be seen as small systems

composed of basic elements, e.g. the application, the

operation system and the communication protocol. In

a top-down development process compatibility and

reusability can be achieved by using building blocks.

Basically the system is divided into two parts, ap-

plication and communication. This partitioning is

equivalent to a division between function and archi-

tecture. An important element in networked systems

is the communication architecture. It is necessary to

compare different network topologies and determine

the inﬂuence of the communication type on the sys-

tem design. To allow an easy comparison between

variable protocols, building blocks provide reusabil-

ity and exchangeability. Due to this the initial focus

can be set to the communication structure and build-

ing blocks on the level of communication protocols.

FlexRay is selected as ﬁrst exemplary realization.

To address as many use cases as possible, different

levels of abstraction are required. For a given sys-

tem there are various relevant examination aspects,

the efﬁcient simulation of which requires the use of

particular models and building blocks. With building

blocks a complete FlexRay system can be modeled

on an abstract level to simulate the high-level system

behavior. In terms of an analysis of the detailed tim-

ing and synchronization behavior of a FlexRay node

another more detailed model is provided. Both mod-

els include options for fault injection and monitoring.

To ensure a maximum of reuseability of the mod-

eled components a common interface between both

abstract and detailed model components is speciﬁed.

The models are organized in libraries and provide dif-

ferent implementations of system elements. These

system elements are, e.g. different applications re-

lated to different abstraction levels and also different

communication protocols.

For future work the interface towards the application

or other so called upper layers is very important to al-

low the integration of further protocols. These proto-

cols have to implement the interface in a similar way

to achieve a maximum of reuseability and exchange-

ability of the system elements. The support of a mul-

tiplicity of protocols allows a comparison of different

communication systems in a particular scenario. Also

the analysis of heterogeneous networks and the anal-

ysis of a structural migration is possible. These tasks

are relevant regarding FlexRay and CAN.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

254

4 MODELING TOOL

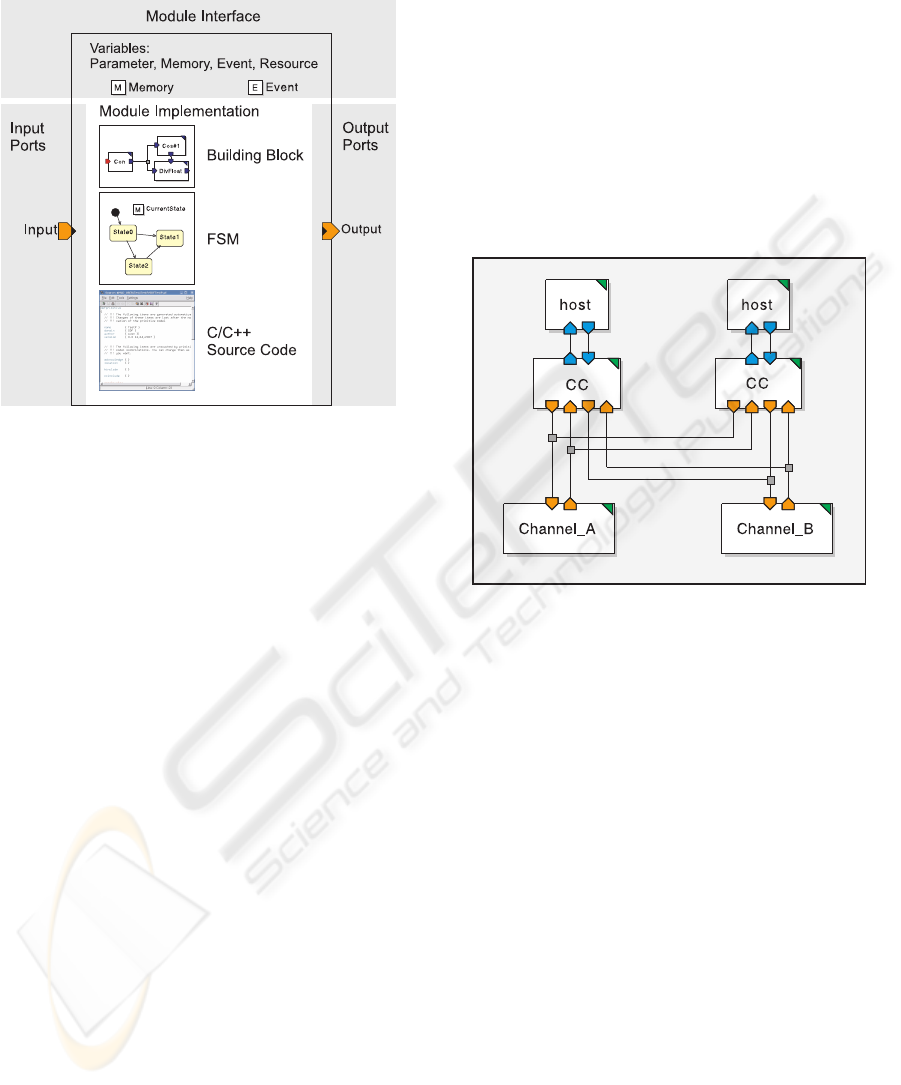

Figure 1: Model structure of a basic communication system.

The tool MLDesigner by MLDesign Technologies,

Inc. is dedicated to improve the design process from

early concepts to implementation. It is a tool offer-

ing mission and system level design, including oper-

ational, architectural and functional level, and evalu-

ation facilities. Build upon the well known Ptolemy

project of UC Berkeley (The Ptolemy Project, 2007)

it offers the same modeling techniques, but extends

them with new models and a better graphical repre-

sentation. Like Ptolemy, MLDesigner provides differ-

ent models of computation as so called domains. It of-

fers a discrete event domain (DE) and ﬁnite state ma-

chines (FSM), synchronous data ﬂow domain (SDF)

as well as a continous time/discrete event domain

(CTDE) for numerically solving models given as dif-

ferential equations. The models created in MLDe-

signer are structured similar to those of Ptolemy. The

top level of the modeling hierarchy is called system.

A system includes all other used blocks and has no in-

terface to other blocks outside. Examples for building

blocks are shown in Figure 1. Those can be primi-

tives like FSM or C/C++ source code as elementary

blocks in the hierarchy. Other levels in the hierar-

chy are formed of modules, intern containing modules

or primitives. All building blocks possess different

types of variables. Parameters cannot be altered dur-

ing simulation meanwhile memories depicted by an

”M” in a box shown in Figure 1 are changeable. Vari-

ables can either be local or linked to a similar element

in the nexthigher hierarchy level. Building blocks can

communicate with their environment by using these

linked variables or through ports shown as arrows on

the bounding box of a building block. By the use

of wormholes the communication between building

blocks of different domains is supported. This very

ﬂexible and powerful modeling paradigm offering a

top down design makes MLDesigner the best suited

tool for our modeling strategy.

5 FLEXRAY LIBRARY

5.1 Basic Model Structure

Figure 2: Model structure of a basic communication system.

Each communication system shown in Figure 2 is a

composition of three different elements: host, com-

munication controller (CC) and channel. A combina-

tion of a host and a CC is called node. The host con-

tains the application and is responsible for the conﬁg-

uration of the CC, initiation of the sending operation

and processing of the received data. At this point the

division into parts is visible, the host describes the

functionality and the CC describes the type of com-

munication. Nodes are grouped to communication

clusters by connecting them to a channel. Each clus-

ter consists of two channels, channel A and channel

B. The CC itself implements the communication pro-

tocol, e.g. the frame transmission and the frame re-

ception, and contains memories, which represent the

controller state and conﬁguration data.

Interaction between model elements is realized us-

ing different data structures as signals. For the signal-

ing between host and CC the communication is ser-

vice based. Referring to this the data structure con-

tains a service identiﬁer, a sub service identiﬁer and

additional data required by the selected service. The

deﬁnition of these services is based on the FlexRay

speciﬁcation. Dependent on the model type, abstract

MODEL BASED DESIGN OF NETWORKED EMBEDDED SYSTEMS - A Modeling Approach using FlexRay as an

Example

255

or detailed, the data exchangebetween differentnodes

via the channels is frame based or on bit level. To al-

low an easy exchange of the two models, abstract and

detailed model provide the same interface to the host.

This so called controller host interface (CHI) is part

of the CC. In the FlexRay speciﬁcation the interface

functions are only roughly described, therefore this

basic description has to be ﬁlled to realize a precise

model.

In the following the models are described in more

detail. First there will be a short description of the

CHI, which is an important part of the abstract and the

detailed model, because it provides the same interface

towards an upper layer. Afterwards the abstract and

the detailed CC models will be explained.

5.2 Model Elements

5.2.1 Controller Host Interface

The CHI is responsible for the data and control ﬂow

between CC and host. Beside the function as inter-

face, the CHI administrates the transmission and re-

ception buffer, manages the reception ﬁlter and pro-

vides access to conﬁguration and status data. Both

reception and transmission buffer are CHI local mem-

ories, the same applies for the reception ﬁlter. The re-

ceive and transmission buffers are implemented with

unrestricted capacity. With regards to the primary

aims of the library it is not necessary to take limited

buffers into account. Each buffer is realized as a vec-

tor of data elements containing the relevant informa-

tion, example given frame identiﬁer, channel, payload

length and payload data.

The CHI has two different interfaces, one to the

host by using the mentioned service based data struc-

ture and a second interface towards the CC protocol

functions. This second data structure can be inter-

preted as purely signal based. It is derived from the

protocol’s internal communication and contains a sig-

nal identiﬁer and a ﬁeld for additional data. A host

has write access to the transmission buffer and read

access to the reception buffer by using CHI services.

On the other side the protocol can use signals to write

received data into the reception buffer and to retrieve

data to send from the transmission buffer.

Each CC contains its own conﬁguration, these

communication parameters are realized as memories,

too. Write access to the memories is only possible by

using the CHI and the provided services. Each host

is responsible for the correct conﬁguration of its own

CC. So for conﬁguration aspects it is not necessary

to parameterize the CHI module. To support the cre-

ation of a host an additional library is provided allow-

ing initialization, conﬁguration, message sending and

reception.

5.2.2 Abstract CC Model

The design of a model starts with the question: What

is the operational aim of the model? Creating a de-

tailed model the answer is easy, the model has to be

built as accurately as possible. To achieve this the

speciﬁcation is used as blueprint. As mentioned be-

fore the abstract model should allow a system anal-

ysis or development of systems on a higher level,

e.g. to support decisions in an early stage of de-

velopment. The abstract model of the FlexRay CC

uses some simpliﬁcations concerning the clock syn-

chronization mechanism, the temporal behavior and

the frame based data transmission. An external cen-

tral time master called Global Clock (GC) is responsi-

ble for synchronization and the timing of the FlexRay

communication.

The GC generates the cluster wide valid time,

which is represented by the so called macroticks

(MT). Important protocol values like the slot counter

for both FlexRay channels and the cycle counter are

derived from the MT. Each controller needs infor-

mation about important time events. In a FlexRay

cluster these are the slot starts. The GC announce a

change of the slot counter to all controllers. A con-

troller retrieves the actual counter values and checks,

if valid transmission data is available. In addition to

the medium access control the protocol model is also

responsible for data transmission and reception.

The description of the model can be divided into

two parts, one is the interface and the other is the

functionality and structure. Basic information about

the interfaces are already given, on one side of the

controller it is the well known CHI and on the other

side the controller communicates with the channel via

a data structure. This channel data structure contains

all relevantdata: frame identiﬁer, payload data length,

cycle count, payload data and also some data for ad-

ministrative tasks, e.g. an error indicator. The ab-

stract model consists of the following modules: CHI,

UpdateStatus, SendtoChannel and ProcessRecData.

As shown in Figure 3 the controller has two mod-

ules SendtoChannel and two modules ProcessRec-

Data, one connected to channel A and one connected

to channel B. Each module itself has a complex in-

ternal structure consisting of further blocks based on

modules, MLDesigner primitives and newly devel-

oped custom primitives. The internal structure of the

modules will not be discussed in detail.

The module UpdateStatus receives events gener-

ated by the GC, updates the local time and triggers the

module SendtoChannel when a new slot starts. This

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

256

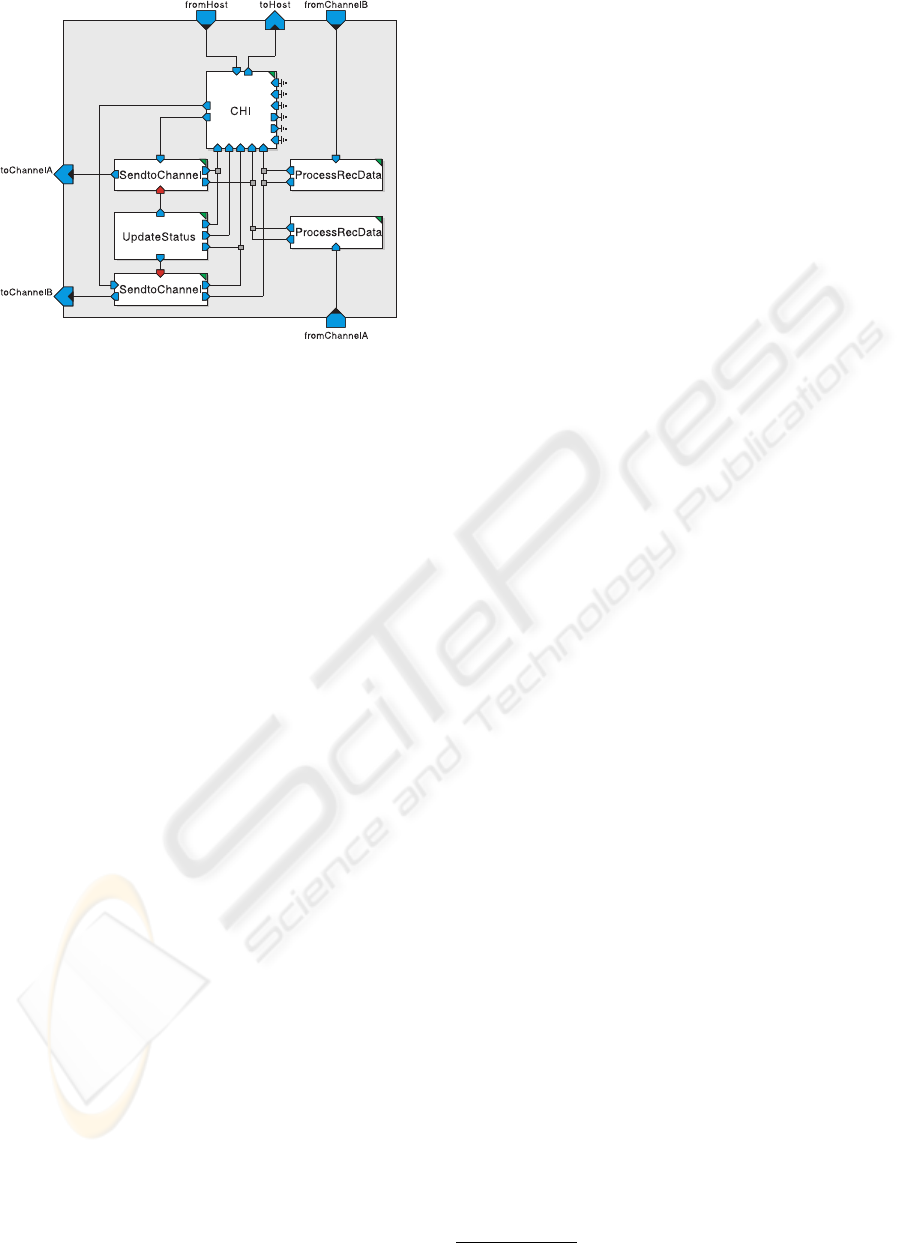

Figure 3: Internal structure of the abstract CC model.

module is responsible for the medium access control.

A data request signal is send to the CHI. Dependent

on the reply signal a data frame is created and send

to the channel. This data frame is forwarded by the

channel to all connected controllers and received by

the module ProcessRecData. After frame reception

and conversion the received data is forwarded to the

CHI containing the reception buffer.

To associate the simulation with the reality there

is a coherence between real time and simulation time.

An integer time step in the simulation is equivalent to

a second. This assumption is compatible to the de-

tailed model.

Preliminary performance tests have shown a real-

time to simulation time ratio of 1:200 in case of the

abstract model. Some small changes improved the ra-

tio to 1:20. It can be assumed that further improve-

ments are possible, example given by using optimized

data representation.

5.2.3 Detailed CC Model

The detailed model should allow an exact analysis

of the protocol and a system. The main beneﬁt is,

that the internal behavior and the internal protocol

mechanisms can be visualized. As a result of the

detailed implementation of the clock synchronization

and the time generation mechanisms there are ad-

ditional functionalities feasible, like the simulation

based optimization of conﬁguration parameters.

The model is called detailed, but there is also a

level of abstraction by comparison to a real system.

Beside the memory management the abstraction con-

cerns the communication. In real systems the data is

transmitted using analogous signals, in context of the

detailed model the communication is bit based. Each

controller transmits and receives a bit string and in-

terprets the data. An advantage of the modeling tool

MLDesigner is, that the model can be easily enhanced

using the CTDE domain, if a more detailed model

processing an analogous signal waveform is needed.

As mentioned above the FlexRay speciﬁcation is

used as a kind of blueprint for the detailed model. The

speciﬁcation itself is divided in different parts: the

protocol (FlexRay Consortium, 2005b) and the elec-

trical physical layer (FlexRay Consortium, 2005a)

speciﬁcation. Due to the bit based communication the

focus lies on the protocol speciﬁcation. The proto-

col is speciﬁed in a semi-formal way using text and

SDL

(ITU-T, 2002) to describe the functionalities.

The SDL semantic has been implemented in a suit-

able way by using MLDesigner elements. The FSM

domain in connection with DE modules allows the

realization of the protocol analog to the SDL speci-

ﬁcation. In the FlexRay speciﬁcation is some space

left for interpretation. This concerns the realization

and use of the CHI, the controller conﬁguration and

the memory management and the signaling and com-

munication of the SDL processes. First to mention

is, that all SDL processes are realized as FSMs. For

the intercommunication of the FSMs the MLDesigner

signaling concept is used in the following way. Ana-

log to the aforementioned signal mechanisms a data

structure is used. Different kinds of signals are used

in the speciﬁcation: pure signals, signals with data

and function calls concerning the CHI. All of these

are implemented with one data structure containing

a signal name as identiﬁer and a ﬁeld to place ad-

ditional data. The internal communication is real-

ized by using this data structure. For the communi-

cation to other elements the detailed model provides

almost identical interfaces in comparison to the ab-

stract model. To the host the already known CHI

interface is used. An important part is the conﬁg-

uration of the controller. According to the abstract

model the conﬁguration is initiated by the host and

the design is supported with an additional library. In-

teraction with the channel element is performed with

0 and 1 as bit values. The CC model as shown in

Figure 4 consists of a CHI module and different mod-

ules which are equivalent to the SDL processes de-

ﬁned in the FlexRay speciﬁcation. The modules CSP

(Clock Synchonization Processing), MTG (Macrotick

Generation) and POC (Protocol Operation Control)

exist only once, whereas the modules CODEC (Cod-

ing/Decoding Processes), CSS (Clock Synchroniza-

tion Startup), FSP (Frame and Symbol Processing)

and MAC (Medium Access Control) exist twice, one

per channel. Each process is implemented as a ﬁnite

state machine.

Speciﬁcation and Description Language

MODEL BASED DESIGN OF NETWORKED EMBEDDED SYSTEMS - A Modeling Approach using FlexRay as an

Example

257

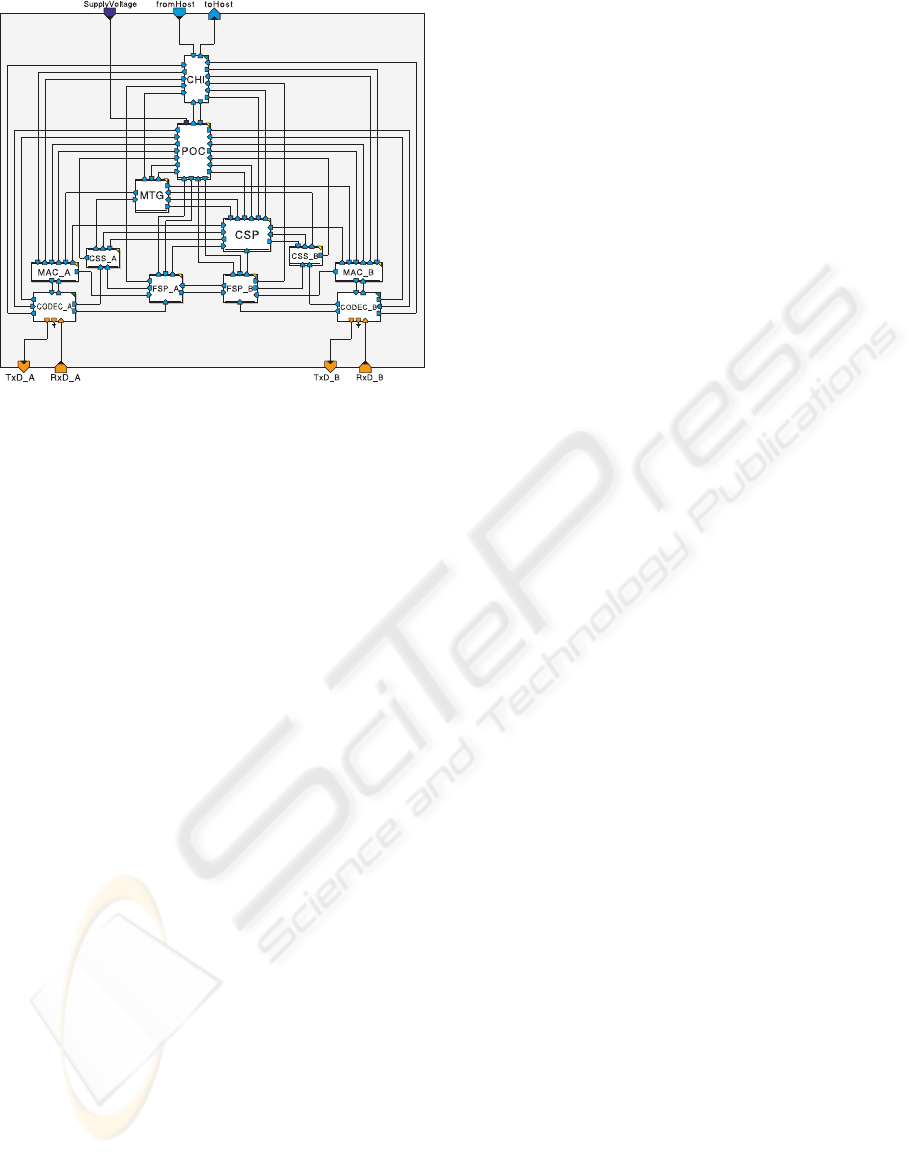

Figure 4: Internal structure of the detailed CC model.

5.2.4 Channel

There are two different types of channels, one for an

abstract CC and one for a detailed CC. Both have

functions to inject faults, forward and delay data.

A delay for frames is necessary to model a cor-

rect timing behavior, since the frame data structure is

completely transmitted at the start of a slot. Without a

delay the frame would be also received at the start of a

slot. Insertion of a delay, which is based on the trans-

mission rate and the data length, establishes a correct

timing.

Including errors and faults in a model is an impor-

tant facet when analyzing a system. A great advantage

of a model is the possibility to stress a system with an

arbitrary fault. There is no need for complex fault

injection or fault generation by using real scenarios

with expensive hardware. The design of a fault model

is a relevant part of the whole model library. Up

to now there exist some basic mechanisms to inject

faults, which will be improved in future. One fault

injection mechanism is a node failure - a node loses

bus synchronization and has to reconnect to the bus.

Another important failure injection mechanism is the

sending of erroneous data frames. The invalidation of

an abstract data frame is split into two parts. A frame

can be signed as invalid by using the error indicator.

The selection, if a frame is faulty, is also based on

a probability distribution and can be seen as the ﬁrst

part of the fault model. A second part is the selection

of the error cause, this is probability controlled, too.

The fault model, which is part of the detailed chan-

nel, allows a more extensive and sophisticated analy-

sis. Not a whole frame can be marked as invalid, now

one single bit can ﬂip with the effect, that the error

check mechanisms can be proofed as well. With an

additional marking of ﬂipped bits it can be tested, if a

transmission error was detected or remaind undiscov-

ered. Additional to these data frame errors it is pos-

sible to insert synchronization faults. In many cases

fault models perform an important role, not only in

the analysis of protocol performance, but also in the

analysis of higher-level behavior. This could be the

comparison of different fault handling strategies.

5.3 Validation

An important task in building models has not been

mentioned yet, the validation of the model. Is the be-

havior of the developed model equivalent to the spec-

iﬁed system? A short discussion of the validation of

both models is given. The validation of the models is

delicate because of the different monitoring feasibil-

ity. A real system allows only limited access to the

internal behavior of the controller. As a result an ex-

act comparison was not possible. The model allows

a detailed monitoring, fault injection and analysis of

every internal signal, none of which is provided by a

real controller. In case of the not visible aspects the

validation is based on the assumed behavior described

in the FlexRay speciﬁcation. The abstract model was

tested by comparing it with the send behavior of a real

system. As reference a system of two communicating

FlexRay nodes is used. The communication and the

timing behavior in normal and fault scenarios is com-

pared with th results of an equivalent model. The re-

sults show, that the modeled system behaves like the

real system. To validate the detailed model and the

CHI another way is chosen. Here the model is com-

pared to the speciﬁcation and the behavior is shown

by simulation of test scenarios. The complexity of

the examples varies from small module tests to whole

system tests. The detailed model was tested against

the real two-node system, too. Comparison of the ob-

servable behavior of model and real system showed

the same results.

6 CONCLUSIONS

In this paper a modeling strategy was described,

which enables the design of models dealing with

automotive communication systems like CAN and

FlexRay. The resulting model provides concepts to

monitor both, the behavior of networked systems and

the internal behavior of the communication. This will

allow easy fault injection as well as a schedulability

analysis dependent on the selected bus system. The

presented library developed for MLDesigner uses the

discrete event domain in combination with FSMs and

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

258

demonstrates the approach with FlexRay as an exam-

ple. Modularized components are part of the library.

These so called building blocks allow an easy con-

struction of a wide range of systems. The library in-

cludes modules implementing the FlexRay communi-

cation controller and a basic host system, which pro-

vides elementary functionalities needed in the design

of hosts and applications. The components can be

used to construct models for networked systems and

subsystems or to develop models for gateways. The

use of different communication protocols and gate-

ways enable the simulation and the analysis of com-

plex systems. Furthermore the concept is designed to

assist in migrating parts of networked systems from

CAN bus usage to FlexRay. The developed models

with different degrees of abstraction support the de-

velopment in early stages and enable the evaluation

and veriﬁcation of system properties prior to hard-

ware design.

7 FUTURE WORK

The next step in applying this approach will be the

design of monitoring modules to support the analysis

of the FlexRay protocol itself during a simulation run

and to provide all necessary information for debug-

ging systems or generating results, e.g. for schedula-

bility.

The completion of a CAN bus model is necessary.

This will allow the seamless integration of CAN mod-

els into systems designed for FlexRay and vice versa,

also simulating the migration of network parts from

CAN to FlexRay will be possible.

Future work will also deal with the automated

generation of models. Therefor the FIBEX (ASAM,

2007) standard will be utilized. It will allow to de-

scribe all important parameters of FlexRay and CAN

systems to generate the network structure. With an

extension of the FIBEX XML ﬁles might be possible

to generate a complete system model based upon a

FIBEX description using additional information. This

process will be done by an XSLT transformation of

the FIBEX ﬁle into an MLDesigner model also spec-

iﬁed using XML ﬁles.

After the completion of the communication part

of a system the functional part has to be added. Dif-

ferent modules implementing e.g. a gateway func-

tionality will be designed. A future publication will

deal with different mapping strategies usable within

these gateways based on the concept and the mod-

els described in this paper. Modules for different

host systems and operating systems will be added to

support OSEK (OSEK/VDX, 2005) and OSEKtime

(OSEK/VDX, 2001) compatible systems.

Finally we will create a system level model for

an existing real world scenario in automotive appli-

cations to demonstrate our new approach in modeling

systems.

ACKNOWLEDGEMENTS

This work was funded by the ”Th¨uringer Auf-

baubank”

under joint projekt number ”2006 VF

0014”.

REFERENCES

ASAM (2007). FIBEX - Field Bus Exchange Format Ver-

sion 2.0.1.

Carsten B¨oke (2006). Regler real testen. Design/Elektronik

07/2006.

FlexRay Consortium (2005a). FlexRay Communications

Systems - Electrical Physical Layer Speciﬁcation Ver-

sion 2.1.

FlexRay Consortium (2005b). FlexRay Communications

Systems - Protocol Speciﬁcation Version 2.1.

FlexRay Consortium (2007).

http://www.flexray.com

ITU-T (2002). ITU-T Recomondation Z.100 (08/02): Spec-

iﬁcation and Description Language (SDL).

MLDesign Technologies Inc. (2007). MLDesigner Docu-

mentation, Version 2.7.

http://www.mldesigner.

com/

OSEK/VDX (2001). OSEK/VDX time triggered operating

system Version 1.0.

OSEK/VDX (2005). OSEK/VDX Operating System Version

2.2.3.

Richter, K. (2007). Scheduling analysis for ﬂexray. In KFZ-

Entwicklerforum und FlexRay Solution Day 2007.

WEKA.

Robert Bosch GmbH (1991). CAN Speciﬁcation Version

2.0.

Salzwedel, H. (2004). Design technology development to-

wards mission level design. In 49. Internationales

Wissenschaftliches Kolloquium IWK’2004.

The MathWorks (2007). Matlab 7 - Desktop Tools and De-

velopment Environment.

http://www.mathworks.

com/

The Ptolemy Project (2007).

http://ptolemy.eecs.

berkeley.edu/

http://www.aufbaubank.de

MODEL BASED DESIGN OF NETWORKED EMBEDDED SYSTEMS - A Modeling Approach using FlexRay as an

Example

259
