TRAFFIC SIGN RECOGNITION WITH CONSTELLATIONS OF

VISUAL WORDS

Toon Goedem´e

De Nayer Instituut, Jan De Nayerlaan 5, 2860 Sint-Katelijne-Waver, Belgium

Keywords:

Trafﬁc sign recognition, local features, SURF, embedded.

Abstract:

In this paper, we present a method for fast and robust object recognition. As an example, the method is

applied to trafﬁc sign recognition from a forward-looking camera in a car. To facilitate and optimise the

implementation of this algorithm on an embedded platform containing parallel hardware, we developed a

voting scheme for constellations of visual words, i.e. clustered local features (SURF in this case). On top of

easy implementation and robust and fast performance, even with large databases, an extra advantage is that

this method can handle multiple identical visual features in one model.

1 INTRODUCTION

One of the key upcoming technologies making cars

safer to drive with is automatic recognition of road

signs. An on-board camera installed in the car ob-

serves the road ahead. Intelligent computer vision al-

gorithms are being developed that enable the detec-

tion and recognition of various objects in these im-

ages: trafﬁc lane markings, pedestrians, obstacles,

...Here, we focus on the recognition of trafﬁc signs.

Based on recognition results, certain alerts can be sent

to the driver, e.g. a warning if the current speed of the

car is higher than the speed limit declared in the trafﬁc

sign. Because that the appearance of a certain trafﬁc

sign is ﬁxed (even described by law), the detection is

quite a bit easier than e.g. the detection of pedestri-

ans. Nevertheless, in real-life experiments substantial

appearance variation is measured, mainly due to dif-

ferent light conditions, viewpoint changes, ageing of

the trafﬁc sign, deformations and even vandalism. We

can conclude that a robust method is needed.

The remainder of this text is organised as follows.

Section 2 gives an overview of relevant related work.

In section 3, our algorithm is described. Some real

life experiments are presented in section 4. The paper

ends with a conclusion in section 5.

2 RELATED WORK

Real-time road sign recognition has been a research

topic for many years. This problem is often addressed

in a two-stage procedure involving detection and clas-

siﬁcation. In contrast, our solution is an all-in-one

operation which more likely leads to a faster algo-

rithm. An other difference with related work in the

ﬁeld is that our solution does not rely on template

matching (Rosenfeld and Kak, 1976), colour (Zhu

and Liu, 2006), the detection of geometrical ba-

sis shapes (Garcia-Garrido et al., 2006), or canny

edges (Sandoval et al., 2000). Moreover, our solu-

tion is not limited to certain trafﬁc sign shapes (Bal-

lerini et al., 2005). We use clusters of local image

features (SURF) to robustly describe the appearance

of the trafﬁc sign.

A few years ago, a major revolution in the object

recognition ﬁeld was the appearance of the idea of

local image features (Tuytelaars et al., 1999; Lowe,

1999). Indeed, looking at local parts instead of the

entire pattern to be recognised has the inherent ad-

vantage of robustness to partial occlusions. In both

template and query image, local regions are extracted

around interest points, each described by a descrip-

tor vector for comparison. The development of ro-

bust local feature descriptors, like e.g. Mindru’s gen-

eralised colour moment based ones (Mindru et al.,

1999), added robustness to illumination and changes

in viewpoint.

Many researchers proposed algorithms for lo-

cal region matching. The differences between ap-

proaches lie in the way in which interest points, local

image regions, and descriptor vectors are extracted.

An early example is the work of Schmid and Mohr

(Schmid et al., 1997), where geometric invariance

222

Goedemé T. (2008).

TRAFFIC SIGN RECOGNITION WITH CONSTELLATIONS OF VISUAL WORDS.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 222-227

DOI: 10.5220/0001495302220227

 SciTePress

was still under image rotations only. Scaling was han-

dled by using circular regions of several sizes. Lowe

et al. (Lowe, 1999) extended these ideas to real scale-

invariance. More general afﬁne invariance has been

achievedin the work of Baumberg (Baumberg, 2000),

that uses an iterative scheme and the combination of

multiple scales, and in the more direct, constructive

methods of Tuytelaars & Van Gool (Tuytelaars et al.,

1999; Tuytelaars and Gool, 2000), Matas et al. (Matas

et al., 2002), and Mikolajczyk & Schmid (Mikola-

jczyk and Schmid, 2002). Although these methods

are capable to ﬁnd very qualitative correspondences,

most of them are too slow for use in a real-time appli-

cation as the one we envision here. Moreover, none

of these methods are especially suited for the imple-

mentation on an embedded computing system, where

both memory and computing power must be as low as

possible to ensure reliable operation at the lowest cost

possible.

The classic recognition scheme with local fea-

tures, presented in (Lowe, 1999; Tuytelaars and Gool,

2000), and used in many applications such as in our

previous work on robot navigation (Goedem´e et al.,

2005; Goedem´e et al., 2006), is based on ﬁnding

one-on-one matches. Between the query image and

a model image of the object to be recognised, bijec-

tive matches are found. For each local feature of the

one image, the most similar feature in the other is se-

lected.

This scheme contains a fundamental drawback,

namely its disability to detect matches when multiple

identical features are present in an image. In that case,

no guarantee can be given that the most similar fea-

ture is the correct correspondence. Such pattern rep-

etitions are quite common in the real world, though,

especially in man-made environments. To reduce the

number of incorrect matches due to this phenomenon,

in classic matching techniques a criterion is used such

as comparing the distance to the most and the sec-

ond most similar feature (Lowe, 1999). Of course,

this practice throws away a lot of good matches in the

presence of pattern repetitions.

In this paper, we present a possible solution to

this problem by making use of the visual word con-

cept. Visual words are introduced (Sivic and Zisser-

man, 2003; Li and Perona, 2005; Zhang et al., 2005)

in the context of object classiﬁcation. Local features

are grouped into a large number of clusters with those

with similar descriptors assigned into the same clus-

ter. By treating each cluster as a visual word that

represents the specic local pattern shared by the key-

points in that cluster, we have a visual word vocabu-

lary describing all kinds of such local image patterns.

With its local features mapped into visual words, an

image can be represented as a bag of visual words,

as a vector containing the (weighted) count of each

visual word in that image, which is used as feature

vector in the classication task.

In contrast to the in categorisation often used

bag-of-words concept, in this paper we present the

constellation-of-words model. The main difference is

that not only the presence of a number of visual words

is tested, but also their relative positions.

3 ALGORITHM

Fig. 1 gives an overview of the algorithm. It consists

of two phases, namely the model construction phase

(upper row) and the matching phase (bottom row).

First, in a model photograph(a), local features are

extracted (b). Then, a vocabulary of visual words is

formed by clustering these features based on their de-

scriptor. The corresponding visual words on the im-

age (c) are used to form the model description. The

relative location of the image centre (the anchor) is

stored for each visual word instance (d).

The bottom row depicts the matching procedure.

In a query image, local features are extracted (e).

Matching with the vocabulary yields a set of visual

words ( f). For each visual word in the model de-

scription, a vote is cast at the relative location of the

anchor location (g). The location of the object can

be found based on these votes as local maxima in a

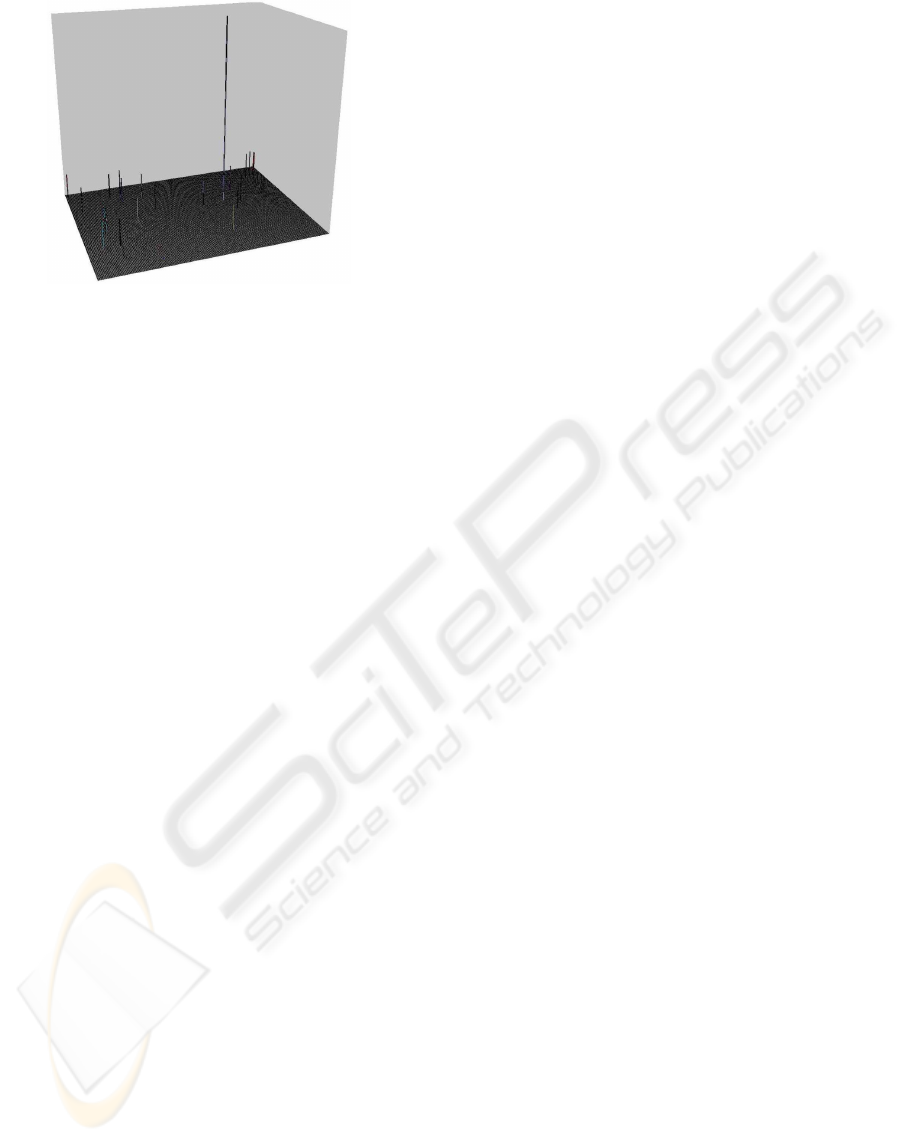

voting Hough space (h). Each of the following sub-

sections describes one step of this algorithm in detail.

3.1 Local Feature Extraction

We chose to use SURF as local feature detector, in-

stead of the often used SIFT detector. SURF (Bay

et al., 2006; Fasel and Gool, 2007) is developed to be

substantially faster, but at least as performant as SIFT.

3.1.1 Interest Point Detector

In contrast to SIFT (Lowe, 1999), which approxi-

mates Laplacian of Gaussian (LoG) with Difference

of Gaussians (DoG), SURF approximates second or-

der Gaussian derivatives with box ﬁlters, see ﬁg. 2.

Image convolutions with these box ﬁlters can be com-

puted rapidly by using integral images as deﬁned in

(Viola and Jones, 2001). Interest points are localised

in scale and image space by applying a non-maximum

suppression in a 3 × 3 neighbourhood. Finally, the

found maxima of the determinant of the approximated

Hessian matrix are interpolated in scale and image

space.

TRAFFIC SIGN RECOGNITION WITH CONSTELLATIONS OF VISUAL WORDS

223

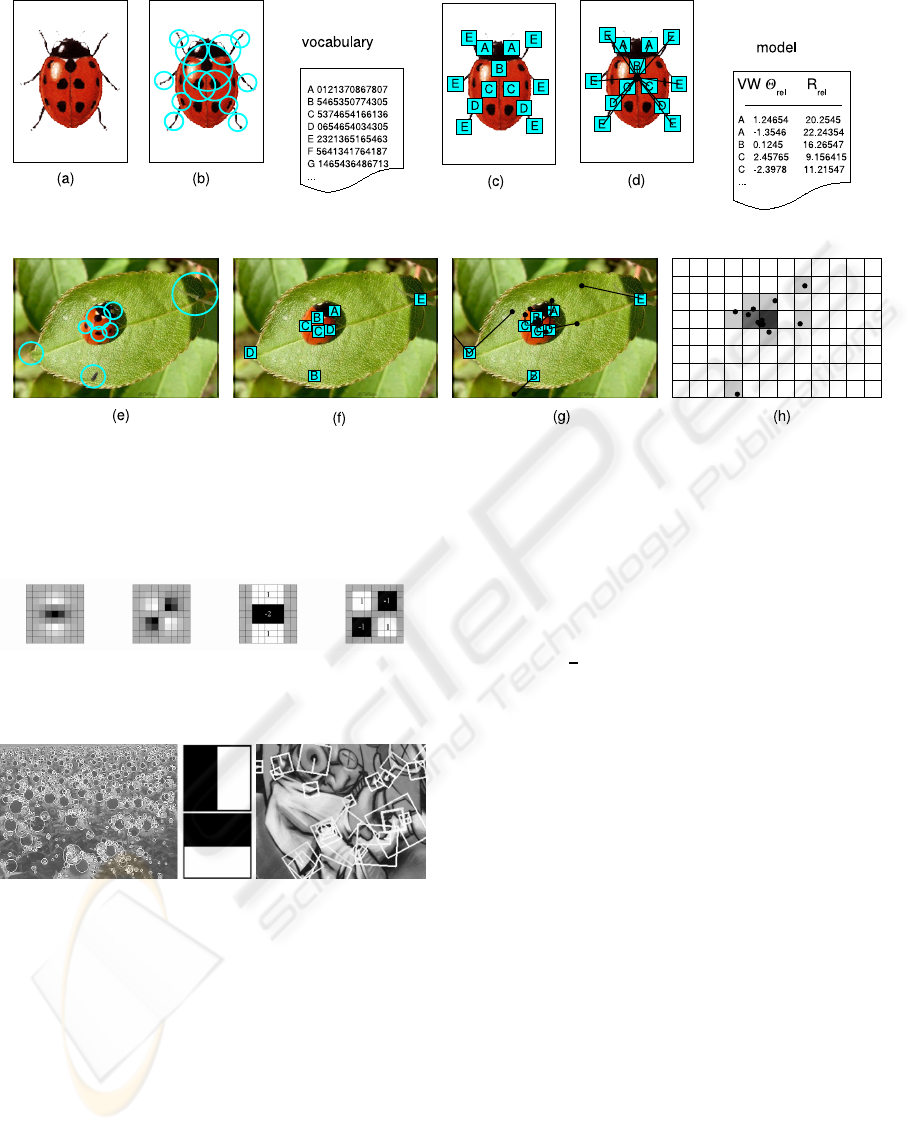

Figure 1: Overview of the algorithm. Top row (model building): (a) model photo, (b) extracted local features, (c) features

expressed as visual words from the vocabulary, (d) model description with relative anchor positions for each visual word.

Bottom row (matching): (e) query image with extracted features, ( f) visual words from the vocabulary, (g) anchor position

voting based on relative anchor position, (h) Hough voting space.

Figure 2: Left: two ﬁlters based on Gaussian derivatives.

Right: their approximation using box ﬁlters.

Figure 3: Middle: Haar wavelets. Left and right: examples

of extracted SURF features.

3.1.2 Descriptor

In a ﬁrst step, SURF constructs a circular region

around the detected interest points in order to assign a

unique orientation to the former and thus gain invari-

ance to image rotations. The orientation is computed

using Haar wavelet responses in both x and y direction

as shown in the middle of ﬁg. 3. The Haar wavelets

can be easily computed via integral images, similar

to the Gaussian second order approximated box ﬁl-

ters. Once the Haar wavelet responses are computed,

they are weighted with a Gaussian centred at the in-

terest points. In a next step the dominant orientation

is estimated by summing the horizontal and vertical

wavelet responses within a rotating wedge, covering

an angle of

in the wavelet response space. The re-

sulting maximum is then chosen to describe the ori-

entation of the interest point descriptor. In a second

step, the SURF descriptors are constructed by extract-

ing square regions around the interest points. These

are oriented in the directions assigned in the previ-

ous step. Some example windows are shown on the

right hand side of ﬁg. 3. The windows are split up

in 4 × 4 sub-regions in order to retain some spatial

information. In each sub-region, Haar wavelets are

extracted at regularly spaced sample points. In order

to increase robustness to geometric deformations and

localisation errors, the responses of the Haar wavelets

are weighted with a Gaussian, centred at the interest

point. Finally, the wavelet responses in horizontal d

and vertical directions d

are summed up over each

sub-region. Furthermore, the absolute values |d

| and

| are summed in order to obtain information about

the polarity of the image intensity changes. The re-

sulting descriptor vector for all 4×4 sub-regions is of

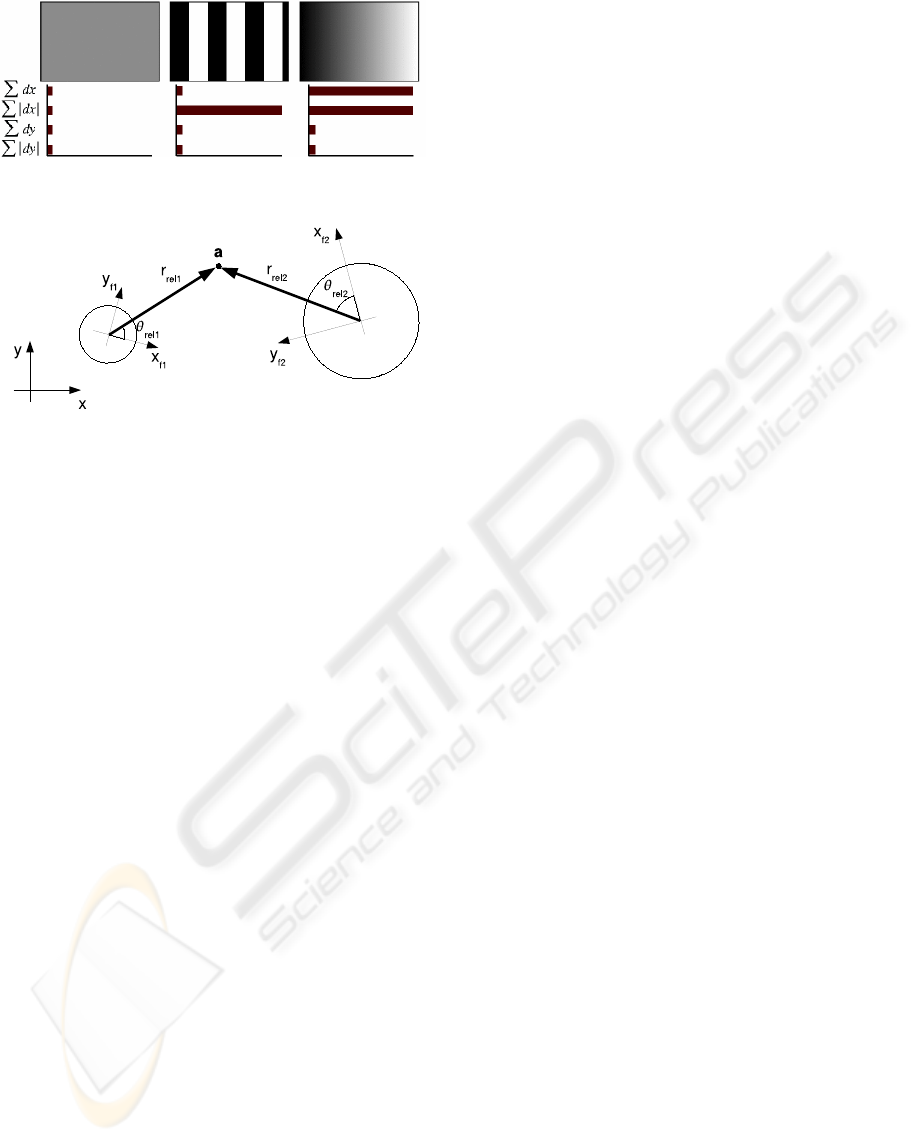

length 64. See ﬁg. 4 for an illustration of the SURF

descriptor for three different image intensity patterns.

More details about SURF can be found in (Bay

et al., 2006) and (Fasel and Gool, 2007).

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

224

Figure 4: Illustrating the SURF descriptor.

Figure 5: The position of the anchor point is stored in the

model as polar coordinates relative to the visual word scale

and orientation.

3.1.3 Visual Words

As explained before, the next step is forming a vo-

cabulary of visual words. This is accomplished by

clustering a big set of extracted SURF features. It is

important to build this vocabulary using a large num-

ber of features, in order to be representative for all

images to be processed.

The clustering itself is easily carried out with the

k-means algorithm. Distances between features are

computed as the Euclidean distance between the cor-

responding SURF descriptors. Keep in mind that this

model-building phase can be processed off-line, the

real-time behaviour is only needed in the matching

step.

In the ﬁctive ladybug example of ﬁg. 1, each vi-

sual word is symbolically presented as a letter. It can

be seen that the vocabulary consists of a ﬁle linking

each visual word symbol with a mean descriptor vec-

tor of the corresponding cluster.

3.2 Model Construction

All features found on a model image are matched with

the visual word vocabulary, as shown in ﬁg. 1 (c). In

addition to the popular bag-of-words models, which

consist of a set of visual words, we add the relative

constellation of all visual words to the model descrip-

tion.

Each line in the model description ﬁle consists of

the symbolic name of a visual word, and the rela-

tive coordinates (r

rel

, θ

rel

) to the anchor point of the

model item. As anchor point, we chose for instance

the centre of the model picture. These coordinates

are expressed as polar coordinates, relative to the in-

dividual axis frame of the visual word. Indeed, each

visual word in the model photograph has a scale and

an orientation because it is extracted as a SURF fea-

ture. Fig. 5 illustrates this. The resulting model is

a very compact description of the appearance of the

model photo. Many of these models, based on the

same visual word vocabulary, can be saved in a com-

pact database. In our trafﬁc sign recognition applica-

tion, we build a database of all different trafﬁc signs

to be recognised.

3.3 Matching

This part of the algorithm is time-critical. We are

spending lots of efforts in speeding up the matching

procedure, in order to be able to implement it on an

embedded system.

The ﬁrst operation carried out on incoming images

is extracting SURF features, exactly as described in

section 3.1. After local feature extraction, matching

is performed with the visual words in the vocabulary.

We used Mount’s ANN (Approximate Nearest Neigh-

bour) (Arya et al., 1998) algorithm for this, which is

very performant. As seen in ﬁg. 1 ( f), some of the vi-

sual words of the object are recognised, amidst other

visual words.

3.3.1 Anchor Location Voting

Because each SURF feature has a certain scale and

rotation, we can reconstruct the anchor pixel location

by using the feature-relative polar coordinates of the

object anchor. For each instance in the object model

description, this yields a vote for a certain anchor lo-

cation. In ﬁg. 1 (g), this is depicted by the black lines

with a black dot at the computed anchor location.

Ideally, all these locations would coincide at the

correct object centre. Unfortunately, this is not the

case due to mismatches and noise. Moreover, if there

are two identical visual words in the model descrip-

tion of an object (as in the ladybug example for words

A, C and D), each detected visual word of that kind in

the query image will cast to different anchor location

votes, of which only one can be correct.

3.3.2 Object Detection

For all different models in the database, anchor lo-

cation votes can be quickly computed. Next task is

to decide where a certain object is detected. Because

a certain object can be present more than once in the

TRAFFIC SIGN RECOGNITION WITH CONSTELLATIONS OF VISUAL WORDS

225

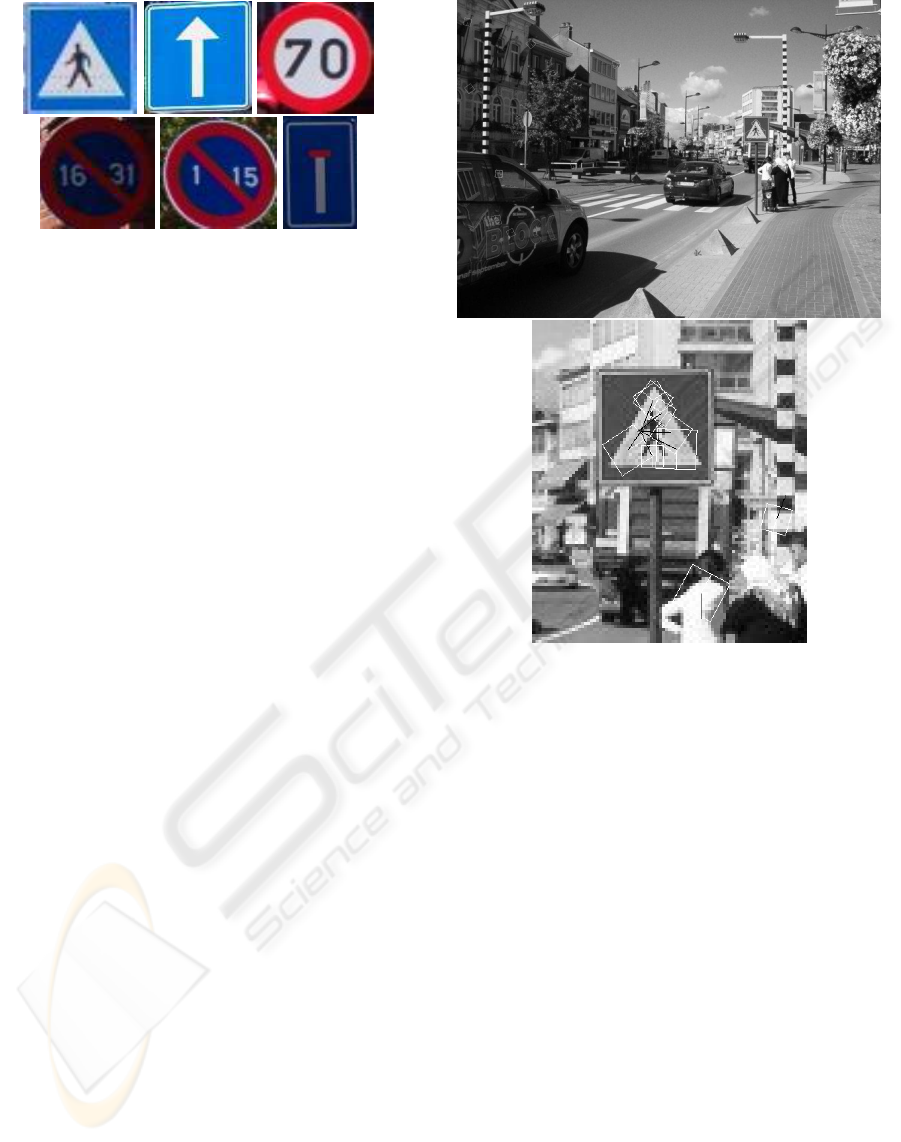

Figure 6: Some model photos from the trafﬁc sign library.

query image, it is clear that a simple average of the an-

chor position votes is not a sufﬁcient technique, even

if robust estimators like RANSAC are used to elimi-

nate outliers. Therefore, we construct a Hough space,

a matrix which is initiated at zero and incremented at

each anchor location vote, ﬁg. 1 (h). The local max-

ima of the resulting Hough matrix are computed and

interpreted as detected object positions.

4 EXPERIMENTS

For preliminary experiments, we implemented this al-

gorithm using Octave and an executable of the SURF

extractor. Fig. 7 shows some typical results of dif-

ferent phases of the algorithm. The test images were

acquired by taking 640 × 480 digital photographs at

random natural road scenes.

In ﬁg. 6, a number of model photographs are

shown. Each of such images, having a resolution

of about 100 × 100 pixels, yielded a thourough de-

scription of the trafﬁc sign design in a model descrip-

tion containing on the average 52 features, what boils

down to a model ﬁle size of only 3.2 KB.

Fig. 7 shows a typical output during the detection

stage. In a query image, local features are extracted.

These are matched with the visual word vocabulary.

Then, for each trafﬁc sign model, for the matching vi-

sual words the relative anchor position is computed.

This stage is visualised in the ﬁgure. As can be no-

ticed, in the centre of the trafﬁc sign, many anchor

votes are coinciding.

The trafﬁc signs were detected by ﬁnding local

maxima in the Hough space, for this example visu-

alised in ﬁg. 8. We performed experiments on 35

query images and were able to detect 82% of the

trained types. Detection failures were mostly due to

the fact that the signs were too far away and hence too

small, and severe occlusions by other objects.

Figure 7: Typical experimental results. In a query image, all

matching visual words are shown for the pedestrian cross-

ing. sign (white squares). From each visual word, the an-

chor location is computed (black line pointing form visual

word centre toanchor). The zoom on the right shows clearly

the recognised sign: many anchor lines coincide.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented an algorithm for object de-

tection based on the concept of visual word constella-

tion voting. The preliminary experiments proved the

performance of this approach. The method has the

advantages that it is computing power and memory

efﬁcient and that it can handle pattern repetitions in

the models.

We applied this method successfully on automatic

trafﬁc sign recognition.

As told before, our aim in this work is an em-

bedded implementation of this algorithm. The Oc-

tave implementation presented here is only a ﬁrst step

towards that. But we believe the proposed approach

has a lot of advantages. The SURF extraction phase

can mostly be migrated to a parallel hardware imple-

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

226

Figure 8: Hough space for the anchor positions of the ex-

ample in ﬁg. 7.

mentation on FPGA. Visual word matching is sped

up using the ANN-libraries, making use of Kd-trees.

Of course a large part of the memory is used by the

(mostly sparse) hough space. A better description of

the voting space will lead to a great memory improve-

ment of the algorithm.

REFERENCES

Arya, S., Mount, D., Netanyahu, N., Silverman, R., , and

Wu, A. (1998). An optimal algorithm for approximate

nearest neighbor searching. In J. of the ACM, vol. 45,

pp. 891-923.

Ballerini, R., Cinque, L., Lombardi, L., and Marmo,

R. (2005). Rectangular Trafﬁc Sign Recognition.

Springer Berlin / Heidelberg.

Baumberg, A. (2000). Reliable feature matching across

widely separated views. In Computer Vision and Pat-

tern Recognition, Hilton Head, South Carolina, pp.

774-781.

Bay, H., Tuytelaars, T., and Gool, L. V. (2006). Speeded up

robust features. In ECCV.

Fasel, B. and Gool, L. V. (2007). Interactive museum guide:

Accurate retrieval of object descriptions. In Adaptive

Multimedia Retrieval: User, Context, and Feedback,

Lecture Notes in Computer Science, Springer, volume

4398.

Garcia-Garrido, M., Sotelo, M., and Martin-Gorostiza, E.

(2006). Fast trafﬁc sign detection and recognition un-

der changing lighting conditions. In Intelligent Trans-

portation Systems Conference 2006, pp. 811 - 816.

Goedem´e, T., Tuytelaars, T., Nuttin, M., and Gool, L. V.

(2006). Omnidirectional vision based topological nav-

igation. In International Journal of Computer Vision

and International Journal of Robotics Research, Spe-

cial Issue: Joint Issue of IJCV and IJRR on Vision and

Robotics.

Goedem´e, T., Tuytelaars, T., Vanacker, G., Nuttin, M., and

Gool, L. V. (2005). Feature based omnidirectional

sparse visual path following. In IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems,

IROS 2005, Edmonton, pages 1003–1008.

Li, F.-F. and Perona, P. (2005). A bayesian hierarchical

model for learning natural scene categories. In Proc.

of the 2005 IEEE Computer Society Conf. on Com-

puter Vision and Pattern Recognition, pages 524531.

Lowe, D. (1999). Object recognition from local scale-

invariant features. In International Conference on

Computer Vision.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2002). Ro-

bust wide baseline stereo from maximally stable ex-

tremal regions. In British Machine Vision Conference,

Cardiff, Wales, pp. 384-396.

Mikolajczyk, K. and Schmid, C. (2002). An afﬁne invariant

interest point detector. In ECCV, vol. 1, 128–142.

Mindru, F., Moons, T., , and Gool, L. V. (1999). Recogniz-

ing color patters irrespective of viewpoint and illumi-

nation. In Computer Vision and Pattern Recognition,

vol. 1, pp. 368-373.

Rosenfeld, A. and Kak, A. (1976). Digital picture process-

ing. In Computer Science and Applied Mathematics,

Academic Press, New York.

Sandoval, H., Hattori, T., Kitagawa, S., and Chigusa, Y.

(2000). Angle-dependent edge detection for trafﬁc

signs recognition. In Proceedings of the IEEE Intelli-

gent Vehicles Symposium 2000, pp. 308-313.

Schmid, C., Mohr, R., and Bauckhage, C. (1997). Local

grey-value invariants for image retrieval. In Interna-

tional Journal on Pattern Analysis an Machine Intel-

ligence, Vol. 19, no. 5, pp. 872-877.

Sivic, J. and Zisserman, A. (2003). Video google: A text

retrieval approach to object matching in videos. In

Proc. of 9th IEEE Intl Conf. on Computer Vision, Vol.

Tuytelaars, T. and Gool, L. V. (2000). Wide baseline stereo

based on local, afﬁnely invariant regions. In British

Machine Vision Conference, Bristol, UK, pp. 412-422.

Tuytelaars, T., Gool, L. V., D’haene, L., , and Koch, R.

(1999). Matching of afﬁnely invariant regions for vi-

sual servoing. In Intl. Conf. on Robotics and Automa-

tion, pp. 1601-1606.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Computer

Vision and Pattern Recognition.

Zhang, M., Marszalek, S., Lazebnik, S., and Schmid, C.

(2005). Local features and kernels for classication of

texture and object categories: An in-depth study. In In

Technical report, INRIA.

Zhu, S. and Liu, L. (2006). Trafﬁc sign recognition based

on color standardization. In IEEE International Con-

ference on Information Acquisition 2006, pp. 951-955,

Veihai, China.

TRAFFIC SIGN RECOGNITION WITH CONSTELLATIONS OF VISUAL WORDS

227
