A KNOWLEDGE-BASED COMPONENT

FOR HUMAN-ROBOT TEAMWORK

Pedro Santana, Lu´ıs Correia

LabMAg, Computer Science Department, University of Lisbon, Portugal

M´ario Salgueiro, Vasco Santos

R&D Division, IntRoSys, S.A., Portugal

Jos´e Barata

UNINOVA, New University of Lisbon, Portugal

Keywords:

Human-robot teamwork, multi-agent systems, cooperative workﬂows, knowledge-based systems, demining.

Abstract:

Teams of humans and robots pose a new challenge to teamwork. This stems from the fact that robots and

humans have signiﬁcantly different perceptual, reasoning, communication and actuation capabilities. This pa-

per contributes to solving this problem by proposing a knowledge-based multi-agent system to support design

and execution of stereotyped (i.e. recurring) human-robot teamwork. The cooperative workﬂow formalism

has been selected to specify team plans, and adapted to allow activities to share structured data, in a frequent

basis, while executing. This novel functionality enables tightly coupled interactions among team members.

Rather than focusing on automatic teamwork planning, this paper proposes a complementary and intuitive

knowledge-based solution for fast deployment and adaptation of small scale human-robot teams. In addition,

the system has been designed in order to provide information about the mission status, contributing this way

to the human overall mission awareness problem. A set of empirical results obtained from simulated and real

missions demonstrates the capabilities of the system.

1 INTRODUCTION

As highly appealing the idea of humans and robots

enrolling in teamwork might seem, their signiﬁcantly

different perceptual, reasoning, and actuation capabil-

ities make the task a daunting one. Typically, human-

robot teamwork (Tambe, 1997; Scerri et al., 2002;

Sierhuis et al., 2005; Nourbakhsh et al., 2005; Sycara

and Sukthankar, 2006) solutions grow from work on

multi-robot and multi-agent systems adapted to in-

clude humans. This paper proposes to see the problem

from the other end, i.e. to include robots as partici-

pants on human-centred operational procedures, sup-

ported by knowledge management concepts usual in

human organisations. Both views are complementary

rather than mutually exclusive.

Human teamwork operational procedures are typ-

ically knowledge intensive tasks (Schreiber et al.,

2000), which can be approximately represented by a

set of templates. Knowledge engineering methodolo-

gies can be used to grasp and formalise domain ex-

perts’ knowledge into the form of templates. These

templates specify stereotyped (i.e. recurring) team

plans, which need to be adapted to the situation at

hand. Here, much of the work on automatic team-

work (re)planning (Sycara and Sukthankar, 2006)

can be employed. Nonetheless, visual interfaces

through which humans can manually adapt the plan

are paramount. See for instance that most of the clues

to detect and solve exceptions to a plan in complex

situations are not observable without complex tacit

human knowledge, which is continuously evolving as

the mission unfolds. Bearing this in mind, a formal-

ism that directly maps the plan and its visual repre-

sentation is essential. In addition to meet this require-

ment, workﬂows also have the advantage of being

common for the representation of activities in human

organisations, thus providing a natural integration of

robots in human knowledge intensive tasks.

Another beneﬁt of considering a knowledge-based

228

Santana P., Correia L., Salgueiro M., Santos V. and Barata J. (2008).

A KNOWLEDGE-BASED COMPONENT FOR HUMAN-ROBOT TEAMWORK.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 228-233

DOI: 10.5220/0001497502280233

 SciTePress

component for human-robot teamwork is that actual

human-robot teams encompass few elements, mean-

ing that the cost of having one human taking care of

major strategic decisions for the entire team is pos-

sibly less than having the system taking uninformed

strategic decisions. In addition, providing humans

with a visual description of the mission state is es-

sential to improve their overall mission awareness

(refer to (Drury et al., 2003) for a thorough study

on the awareness topic in the human-robot interac-

tion domain). The need for this improvement is sug-

gested by the limitations of common map-centric and

video-centric interfaces on fostering mission aware-

ness (Drury et al., 2007).

The paper is organised as follows: Section 2

presents the knowledge-based concepts of the pro-

posed approach, whereas Section 3 describes the

multi-agent system for human-robot teamwork. In

Section 4, a case study is described, and a set of em-

pirical results, obtained from both simulated and real

experiments, are discussed. Finally, conclusions and

pointers to future work are given in Section 5.

2 KNOWLEDGE-BASED

APPROACH

Under the assumption of knowledge-based human-

robot teamwork, domain knowledge must be ac-

quired, formalised, adapted, and employed for the co-

ordination of team members performing a mission.

Such knowledge is mainly composed of mission tem-

plates speciﬁed by a domain expert in terms of work-

ﬂows. Mission templates are then adapted and instan-

tiated by the mission coordinator (a human) to the ac-

tual team on ﬁeld, in order to build an operational

team plan. That is, physical entities (i.e. robots and

humans) are assigned to participants in the mission

template. The proposed approach is composed of four

major steps, namely:

Mission Template Speciﬁcation. Mission templates

are knowledge intensive tasks speciﬁcations, i.e.

domain knowledge, maintained in a knowledge

base supported by a well speciﬁed ontology. Mis-

sion templates are non operational team plans, in

the sense that: (1) on ﬁeld adaptations to the tem-

plate are expected; and (2) no knowledgeof which

physical entity (i.e. human or robot) will play the

role of a given participant is known beforehand.

Mission Template Adaptation. On ﬁeld, the mis-

sion coordinator selects and adapts templates ac-

cording to the environment and work to be done

by the team. An example of an adaptation is the

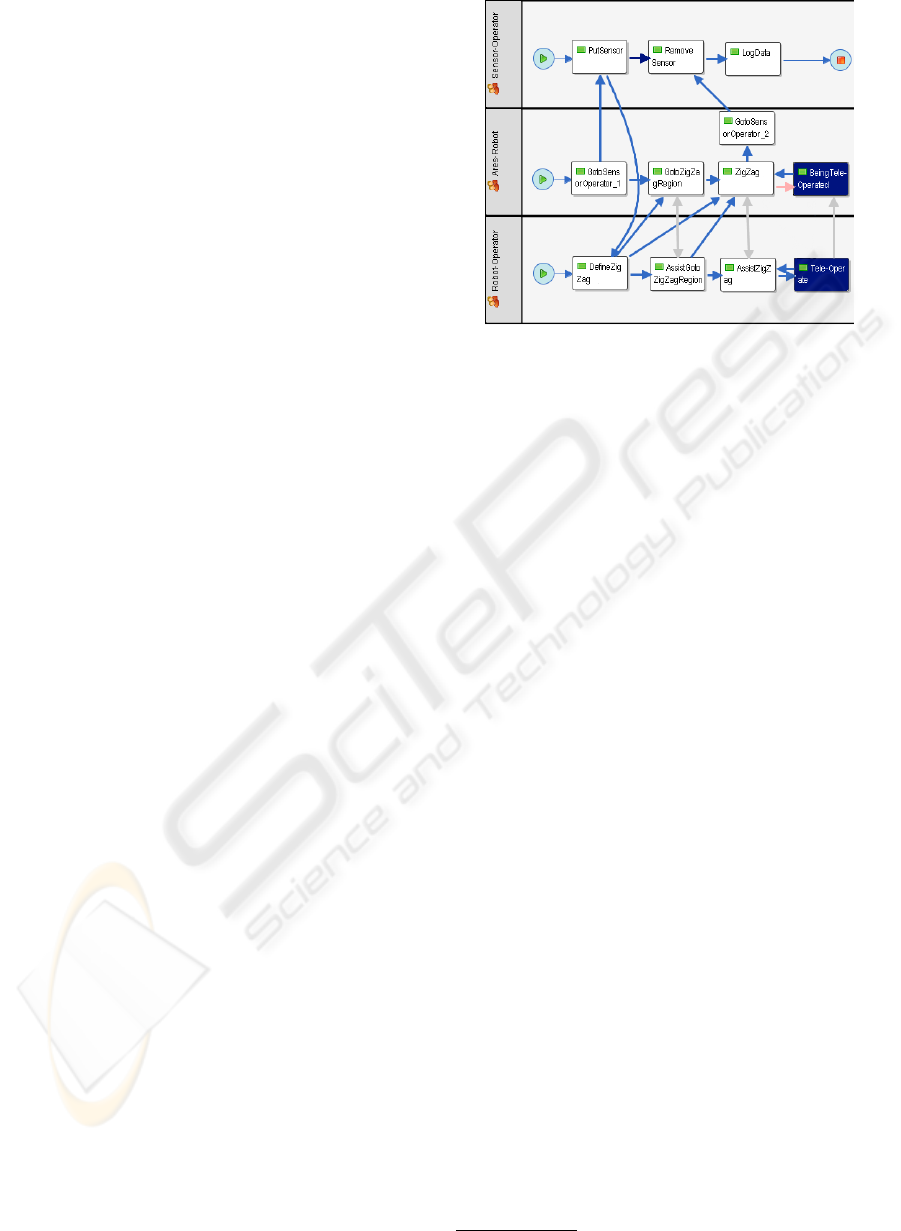

Figure 1: Partial view of the WFDM tool. Dark boxes rep-

resent active activities. Transitions, data-ﬂow links, and ex-

ceptions are represented by blue, grey, and pink arrows, re-

spectively. Each row corresponds to a team participant.

addition of a new activity to deal with a speciﬁc

exception. In the process, some of the adapted

mission templates are added to the mission tem-

plates library for reuse.

Mission Template Instantiation. In this step the

mission coordinator instantiates the adapted mis-

sion template towards an operational team plan,

by recruiting physical entities to the team.

Team Plan Execution. Finally, the operational team

plan is distributed to each team member and exe-

cuted.

Mission speciﬁcation, adaptation, instantiation,

and monitoring are performed in the WorkFlow De-

sign and Monitor (WFDM) tool (see Fig. 1). It was

developed by the authors over the Together Workﬂow

Editor (TWE) community edition

tool for workﬂow

design applied to human organisations.

2.1 Data-Flow Links

Typically, workﬂows describe sequences of activities,

which can exchange data at transition time. This lim-

its their application in domains where activities must

exchange data in a tightly coupled way, i.e. during

their execution. To cope with this limitation, the con-

cept of cooperative workﬂows has been proposed in

(Godart et al., 2000). Although in cooperative work-

ﬂows, activities can share data while executing, being

mostly business management oriented, the exchanged

data is performed sporadically and in the form of doc-

uments.

TWE homepage: http://www.together.at/

A KNOWLEDGE-BASED COMPONENT FOR HUMAN-ROBOT TEAMWORK

229

The introduction of robots as team members adds

new challenges to the execution of cooperative work-

ﬂows. Robots require the use of structured data, i.e.

with an explicit semantics. In addition, since many

of the interactions have the purpose of allowing one

participant (typically a human) to modulate the be-

haviour of another one (typically a robot), messages

must be exchanged in a frequent basis. An example

of a tightly coupled interaction is when a robotic team

member is being teleoperated by a human team mem-

ber.

Bearing this in mind, the cooperative workﬂow

formalism is here extended with data-ﬂow links,

which allow activities to exchange structured mes-

sages, i.e. according to the ontology, in an asyn-

chronous and frequent basis.

In addition to task-dependent interactions, sub-

ordination relationships also play a relevant role in

human-robot teamwork. For this purpose, some ac-

tivity parameters are deﬁned at system level. For

example, one team member (typically human) must

be able to terminate another team member’s (typi-

cally robotic) activity. This termination order is sent

through a data-ﬂow link. This feature can be seen in

Fig. 1, in which the robot is teleoperated only while

the human operator considers necessary.

3 MULTI-AGENT SYSTEM FOR

TEAMWORK

This section describes the multi-agent system sup-

porting the creation, adaptation, instantiation, and ﬁ-

nally, execution of team plans. The system is built

over the Java-based multi-agent platform JADE (Bel-

lifemine et al., 1999), which provides two main facil-

ities, namely: a yellow pages service for agent regis-

tration and lookup, plus an inter-agent messaging in-

frastructure.

Fig. 2 illustrates the major components of the

multi-agent system. The coordinator represents hu-

man operators/experts responsible for formalising,

adapting, instantiating, and monitoring a mission.

The robotic and human participants represent robots

and humans, respectively, involved in the mission’s

execution.

The explicit separation between human and

robotic participant is essential at all levels. First,

when deﬁning domain knowledge, it is important to

know which concepts must be followed by a human

readable description. At execution time, humans are

very good in understanding the situation at hand, even

in the presence of incomplete information. With ex-

perience, humans are also very good in understanding

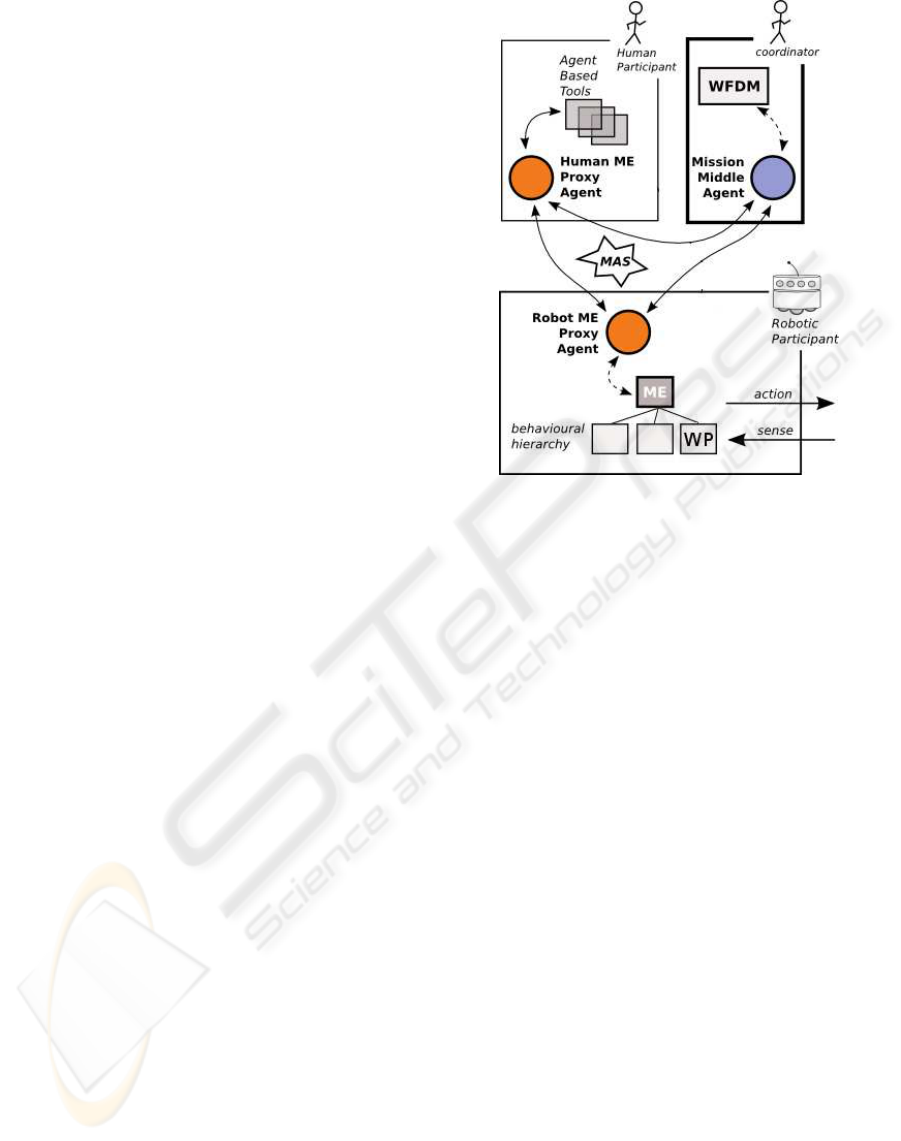

Figure 2: Multi-agent system for teamwork.

when something is not working properly, like suspect-

ing that messages are being lost when information ap-

pears in an intermittent way. Unlike robots, humans

are not fully dependent on system level mechanisms

to handle these situations. Consequently, watchdog

and handshaking mechanisms, among others, are im-

portant in tasks to be performed by robots.

Understanding what activities are to be performed

by humans and robots allows the system, for instance,

to use the network in a parsimonious way. Handshak-

ing mechanisms, which introduce network overhead,

can be relaxed when performed in messages ﬂow-

ing from robots to humans. Considering humans and

robots in such asymmetrical way, allows the system

to exploit each one’s speciﬁcities on its behalf.

3.1 Coordinator

By using the WFDM tool, the domain expert for-

malises knowledge, the coordinator adapts, instanti-

ates, and monitors the execution of the mission. The

WFDM tool interacts with the coordinator’s proxy in

the system, i.e. the mission middle agent, in order to

provide the coordinator with a list of available phys-

ical entities able to play the role of each mission’s

participant. The coordinator is responsible for the ﬁ-

nal selection. Afterwards, the part of the plan corre-

sponding to each participant is sent to its Mission Ex-

ecution (ME) proxy agent. Finally the team initiation

is done by the mission middle agent, by informing all

ME proxy agents of the event.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

230

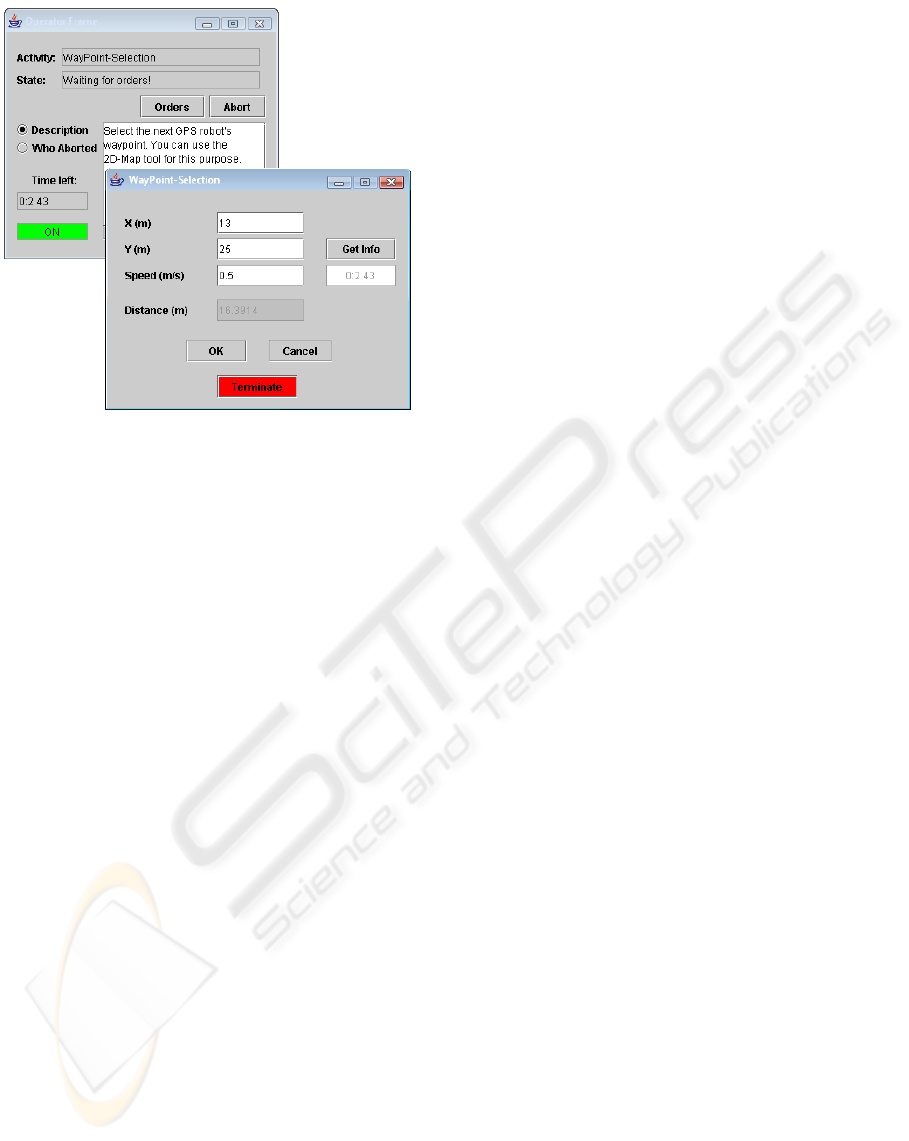

Figure 3: Human participant graphical interface. The frame

in the rear illustrates the main front-end containing the ac-

tivity’s description. The frame in the front is dynamically

adapted according to the current activity.

During mission execution, each ME proxy agent

informs the mission middle agent of its execution state

(e.g. which activity is currently being executed). This

information is then presented through the WFDM tool

to the coordinator, reﬂecting the status of the mis-

sion. This symbolic information augments the coor-

dinator’s mission awareness.

3.2 Participants

Each ME proxy agent is composed of two main

components: (1) the Multi-Agent System Interaction

Mechanism (MAS-IM), and the (2) physical entity in-

terface. The MAS-IM is the component that enables

the agent to interact with other agents in the multi-

agent community, as well as to exploit its middleware

services (e.g. yellow pages service). In this work, this

module is built over the JADE platform. The mission

middle agent also aggregates a MAS-IM module for

the same purposes. The physical entity interface is the

module abstracting the physical entity, i.e. its control

system in the robot case (e.g. the behavioural hier-

archy in Fig. 2), and a set of graphical interfaces (see

Fig. 3) in the human case.

3.3 Plan Execution

Let us start explaining the plan execution with a mo-

tivating example. At a given moment, the human

ME proxy agent knows that its current activity is

waypoint-selection

. In this situation, its physi-

cal entity interface adapts the graphical interface as

in Fig. 3, so that the human can ﬁll in the next way-

point for the robot. Each time the operator updates

this ﬁeld, its operator ME proxy agent sends an inter-

agent message to the robot ME proxy agent, currently

executing the activity

goto-waypoint

. This mes-

sage exchange has been speciﬁed in the team plan by

means of a data-ﬂow link. Then, through its physi-

cal entity interface, the robot ME proxy agent updates

the robot’s control system according to the incoming

message, consequently modulating the goto WayPoint

(WP) behaviour. The WP behaviour is implemented

by a set of perception-action rules able to drive the

robot towards the given waypoint. In addition, the

human is also provided with a message suggesting the

use of a 2-D visualisation (Santos et al., 2007) so as to

enhance its situation awareness, before selecting the

waypoint. This example highlights the main role of

the human ME proxy agent: to provide awareness.

In detail, the plan execution proceeds as follows.

As mentioned, each ME proxy agent receives from the

mission middle agent the part of the team plan corre-

sponding to the participant it is representing. Then, it

executes its part of the plan according to the following

algorithm:

1. Obtain participant’s

start-activity

2. While the current activity is not terminated, up-

date its input parameters with the contents of in-

coming, from other ME proxy agents, data-ﬂow

messages. In addition, ME proxy agents send

data-ﬂow messages to others alike, whose con-

tents are the current activity’s output parameters

values.

The aforementionedprocess of updating the activ-

ity’s input parameters is done by sending a mes-

sage to the participant’s physical entity interface,

which is able to interface directly with the entity’s

execution layer (e.g. robot’s control system). In

turn, the execution layer provides the ME proxy

agent with the current values of the activity’s out-

put parameters, through the physical entity inter-

face.

The activity’s termination event, along with its

code (e.g.

not-ok-aborted

not-ok-time-out

), is provided to the ME proxy agent through

the physical entity interface.

3. Being the current activity, C, terminated, the last

obtained values of its output parameters are sent

to the ME proxy agents of those participants that

have active incoming transitions from C. These

transitions become active if their associated con-

ditions on the termination code of C are met.

These messages are buffered in the receiving ME

A KNOWLEDGE-BASED COMPONENT FOR HUMAN-ROBOT TEAMWORK

231

proxy agents allowing subsequent asynchronous

consumption. For further reference, these mes-

sages will be called

transition

messages.

4. Wait until one of the subsequent participant’s ac-

tivities becomes active. This activation occurs if

all necessary, or one sufﬁcient of its transitions, is

active too. This is assessed by verifying if any of

the received

transition

messages refers to the

necessary and sufﬁcient transitions.

5. The parameters encompassed in received

transition

messages are used to update the

activity’s input parameters. If more than one

message (e.g. sent by activities in different

participants) feeds the same input parameter, only

one is selected according to a pre-speciﬁed –

in the plan – priority. The actual update of the

activity’s input parameters is carried out as in step

2, i.e. through the physical entity interface.

6. Return to step 2 until the

end-activity

reached.

To allow the coordinator to follow the mission

unfolding, messages stating activities and transitions

activation/deactivation events are sent to the mission

middle agent, which in turn updates the WFDM tool.

4 CASE STUDY

In order to illustrate the proposed architecture, one

case study has been selected: scanning a terrain with

a scent sensor to detect mineﬁelds. The case study is

deﬁned as a high-level task involving one robot, and

two humans, viz. one robot operator plus one sensor

operator. The goal is to determine if a given terrain

is a mineﬁeld. When the mission starts, the robot is

equipped with a sensor able to determine the proba-

bility of the terrain to be a mineﬁeld. After analysing

the terrain, the sensor is returned to the sensor op-

erator, which is located in a safe location away of

the potential mineﬁeld. The robot operator, also re-

mote to the operations site, helps the robot whenever

needed. Fig. 1 depicts how the team plan looks like in

the graphical interface of the WFDM tool.

In this case study, the robot ﬁrst moves towards

the operator handling the scent sensor so as to get the

sensor (

GotoSensorOperator 1

). After reaching the

operator,

GotoSensorOperator 1

terminates activat-

ing

PutSensor

, in which the sensor operator equips

the robot with the sensor. Then, the robot operator

parameterises a zig-zag behaviour (i.e. a set of paral-

lel lanes to be followed in a sequential manner) us-

ing the graphical interface of activity

DefineZigZag

Afterwards, the robot moves in the direction of the

deﬁned zig-zag region (

GotoZigZagRegion

), while

being modulated by the robot operator whenever nec-

essary (

AssistGotoZigZagRegion)

. The zig-zag

speciﬁcation is passed to the robot as a transition in-

put parameter, whereas the

GotoZigZagRegion

mod-

ulating signal is passed through a data-ﬂow link. As

soon as the robot reaches the zig-zag region, the zig-

zag behaviour is activated (

ZigZag

), which is also as-

sisted by the robot operator (

AssistZigZag

). An ex-

ample of assistance is “change to the next lane”. If

the robot departs too much from the lane being fol-

lowed, caused for instance by the presence of a large

obstacle, then

ZigZag

terminates with an exception.

In response, the robot passes to teleoperation mode

(

BeingTeleOperated

) and the current robot opera-

tor’s activity is terminated.

Then, the robot operator is called to teleoper-

ate the robot (

TeleOperate

). In this case, the

TeleOperate

provides

BeingTeleOperated

with

teleoperation commands as data-ﬂow messages. This

corresponds to the mission state illustrated in Fig. 1.

As soon as the operator considers the robot is again

in a convenient position to resume its autonomous

zig-zag behaviour,

TeleOperate

terminates, which

in turn requests

BeingTeleOperated

to terminate as

well. This is an example of a human activity termi-

nating a robot activity by means of data-ﬂow. Be-

ing again in autonomous zig-zag behaviour, the robot

eventually reaches the end point of the zig-zag region

and

ZigZag

terminates. Then, the robot moves to-

wards the sensor operator (

GotoSensorOperator 2

leaving the sensor there (

RemoveSensor

), whose data

is logged (

LogData

). All

Goto*

activities are of the

same type

GotoXY

4.1 Empirical Results

A set of simulated and ﬁeld missions with the phys-

ical robot Ares for off-road environments (Santana

et al., 2007; Santana et al., 2008), demonstrated the

feasibility of the system. The information provided

to the operator was enough for a proper awareness at

each moment of the mission. The design of demining

and surveillance missions, as complex as the one

presented as case study, posed no major challenges

to the user. However, for more complex tasks it

was clear the need for workﬂow nesting capabilities.

In terms of network load, the system showed to be

sustainable, even for teleoperation cycles of 10Hz.

However, wireless communication temporary failures

resulted in the loss of messages, resulting in system’s

performance degradation, and sporadic crashes.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

232

5 CONCLUSIONS AND FUTURE

WORK

To our knowledge, this paper contributes with a pio-

neering step towards exploitation of knowledge based

techniques in human-robot teamwork. The goal was

to enable cooperative execution of stereotyped tasks,

essential in demanding scenarios, where timely deci-

sion making is required. The cooperative workﬂow

formalism, usually employed for business oriented

human organisations, was selected.

Clear distinctions on the way humans and robots

interact required the workﬂow formalism to be

adapted. Some adaptations were suggested, with par-

ticular focus on data-ﬂow links. These links en-

able the implementation of tightly coupled coordina-

tion. This ability is usually disregarded in works of

both theoretical teamwork and cooperative workﬂow

ﬁelds, which typically focus on high-level tasks with

sporadic interactions. Although multi-robots litera-

ture is more concerned with tightly coupled coordina-

tion, it lacks a structural approach to cope with the hu-

man factor. This paper presented a multi-agent system

that explicitly considers the human. First, the work-

ﬂow formalism is usually employed by humans and

consequently natural to them. Second, by consider-

ing different message exchanging protocols and sys-

tem level activity parameters, both human and robot

asymmetries are explicitly taken into account. Third,

human readable information is formally attached to

the ontology concepts used by the human participant.

As future work we expect to make use of nested

workﬂows. In addition, the abstraction of human-

robot sub-teams as work-ﬂow participants will also

be subject of analysis. Dynamic invocation of team

sub-plans will be pursued as a way of applying well

known stereotyped problem solvers (i.e. mission tem-

plates) to the situation at hand. Robustness against

communication channels degradation must be further

studied. Handshaking and message aging policies

must be analysed, separately, for the human-robot and

robot-robot interaction cases. A thorough analysis of

non-expert user friendliness is still missing.

ACKNOWLEDGEMENTS

We thank Paulo Santos and Carlos Cˆandido for

proofreading. The work was partially supported by

FCT/MCTES grant No. SFRH/BD/27305/2006.

REFERENCES

Bellifemine, F., Poggi, A., and Rimassa, G. (1999). JADE

– a FIPA-compliant agent framework. In Proc. of

PAAM’99, pages 97–108, London.

Drury, J., Keyes, B., and Yanco, H. (2007). LASSOing

HRI: Analyzing Situation Awareness in Map-Centric

and Video-Centric Interfaces. In Proc. of the HRI’ 07,

pages 279–286, Arlington, Virginia, USA.

Drury, J., Scholtz, J., and Yanco, H. (2003). Awareness in

human-robot interactions. In Proc. of the IEEE Int.

Conf. on Systems, Man and Cybernetics.

Godart, C., Charoy, F., Perrin, O., and Skaf-Molli, H.

(2000). Cooperative workﬂows to coordinate asyn-

chronous cooperative applications in a simple way. In

Proc. of the 7th Int. Conf. on Parallel and Distributed

Systems, pages 409–416.

Nourbakhsh, I., Sycara, K., Koes, M., Yong, M., Lewis,

M., and Burion, S. (2005). Human-Robot Teaming

for Search and Rescue. Pervasive Computing, IEEE,

4(1):72–78.

Santana, P., Barata, J., and Correia, L. (2007). Sustainable

robots for humanitarian demining. Int. Journal of Ad-

vanced Robotics Systems (special issue on Robotics

and Sensors for Humanitarian Demining), 4(2):207–

218.

Santana, P., Cˆandido, C., Santos, P., Almeida, L., Correia,

L., and Barata, J. (2008). The ares robot: case study of

an affordable service robot. In Proc. of the European

Robotics Symposium 2008 (EUROS’08), Prague.

Santos, V., Cˆandido, C., Santana, P., Correia, L., and Barata,

J. (2007). Developments on a system for human-robot

teams. In Proceedings of the 7th Conf. on Mobile

Robots and Competitions, Paderne, Portugal.

Scerri, P., Pynadath, D., and Tambe, M. (2002). Towards

adjustable autonomy for the real world. Journal of

Artiﬁcial Intelligence Research, 17:171–228.

Schreiber, G., Akkermans, H., Anjewierden, A., deHoog,

R., Shadbolt, N., VandeVelde, W., and Wielinga, B.

(2000). Knowledge Engineering and Management:

The CommonKADS Methodology. MIT Press.

Sierhuis, M., Clancey, W., Alena, R., Berrios, D., Shum, S.,

Dowding, J., Graham, J., Hoof, R., Kaskiris, C., Ru-

pert, S., and Tyree, K. (2005). NASA’s Mobile Agents

Architecture: A Multi-Agent Workﬂow and Commu-

nication System for Planetary Exploration, i-SAIRAS

2005. M¨unchen, Germany.

Sycara, K. and Sukthankar, G. (2006). Literature review of

teamwork models. Technical Report CMU-RI-TR-06-

50, Robotics Institute, Carnegie Mellon University.

Tambe, M. (1997). Towards ﬂexible teamwork. Journal of

Artiﬁcial Intelligence, 7:83–124.

A KNOWLEDGE-BASED COMPONENT FOR HUMAN-ROBOT TEAMWORK

233
