LHTNDT: LEARN HTN METHOD PRECONDITIONS USING

DECISION TREE

Fatemeh Nargesian and Gholamreza Ghassem-Sani

Department of Computer Engineering, Sharif University of Technology, Tehran, Iran

Keywords: AI Planning, hierarchical task network planning, machine learning, decision tree, domain knowledge.

Abstract: In this paper, we describe LHTNDT, an algorithm that learns the preconditions of HTN methods by

examining plan traces produced by another planner. LHTNDT extracts conditions for applying methods by

using decision tree based algorithm. It considers the state of relevant domain objects in both current and

goal states. Redundant training samples are removed using graph isomorphism. Our experiments, LHTNDT

converged. It can learn most of preconditions correctly and quickly. 80% of our test problems were solved

by preconditions extracted by ¾ of plan traces needed for full convergence.

1 INTRODUCTION

Hierarchical Task Network (HTN) planning is a

promising and applicative research topic in Artificial

Intelligence. The basic idea of HTN was first

developed in mid-70s (Sacerdoti 1975; Tate 1977).

Its formal underpinnings were developed in mid-90s

(Erol, Hendler, and Nau 1996). An HTN planning

problem consists of an initial state, a set of tasks to

be performed as problem goal, and a domain

description. HTN domain description contains a set

of operators as primitive tasks (they can be

performed directly in the domain during execution

time) and a set of methods describing possible ways

of decomposing tasks into subtasks and subtasks

into primitive tasks. Each method has a

precondition. In order to apply a method on a

planning state, its precondition must be satisfied in

that state. Planning is done by applying methods to

decompose non-primitive tasks into subtasks, and

applying operators to primitive tasks to produce

actions. Planning ends when all of the tasks

mentioned in the goal set are satisfied, then the

planner has found a solution plan; otherwise the

planner will need to backtrack and try other

applicable methods and actions that are not

considered yet (Ilghami, et al. 2005).

HTN is a configurable planner whose domain

knowledge is provided by a human domain expert to

achieve satisfactory performance. Therefore, such

planners’ functionality depends on domain-specific

problem solving knowledge to be accurate. It should

be born in mind that the designer of a domain for a

configurable planner generally has many valid

alternative ways of specifying the domain, and it is

well known that the exact form of the domain can

have a large impact on the efficiency of a given

planner. Even if a human designer can identify some

of the complex manner in which the tasks and

operators in a domain description interact, he will

likely be faced with tradeoffs between efficiency and

factors such as compactness, comprehensibility and

expressiveness. Consequently, there are obvious

advantages to a planner that can evolve its domain

theory via learning. Learning is the process of using

past experiences and percepts to improve one’s

ability to act in the future. The extensive survey and

analysis of research work related to machine

learning as applied to planning reveals that machine

learning methods can be used in learning and

improving planning domain theory (Zimmerman and

Kambhampati 2003). In this paper, we discuss a

learning algorithm for evolving HTN planning

domain automatically.

In recent years, several researches have reported

work on integrating learning methods and HTN

planning. An example is a system called HICAP,

developed by Munoz-Avila et al. 1999, which uses

planning in military environment. HICAP integrates

SHOP, a hierarchical planner, (Nau, et al. 1999) and

a case-based reasoning (CBR) system called

NaCoDAE (Aha and Breslow 1997). Learning HTN

domain means eliciting the hierarchical structure

Nargesian F. and Ghassem-Sani G. (2008).

LHTNDT: LEARN HTN METHOD PRECONDITIONS USING DECISION TREE.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - ICSO, pages 60-65

DOI: 10.5220/0001499900600065

 SciTePress

relating tasks and subtasks. Existing work on

learning hierarchies, extracts hierarchy from a

collection of plans having primitive operators’

descriptions (Ruby and Kibler 1991; Reddy and

Tadepalli 1997; Choi and Langley 2005). The idea is

that the tasks are the same as goals that have been

achieved by the plans. Reddy and Tedepally, in X-

Learn system, uses inductive generalization to learn

task decomposition constructs, named D-rules,

which relate goals, sub-goals and conditions of goal

decomposition.

Research on learning macro-operators (Korf 1987;

Mooney 1998; Botea, Muller, and Schaeffer 2005)

falls in the category of learning hierarchical

structures in planning domains. ALPINE (Knoblock

1993) and PARIS (Bergmann and Wilke 1995)

systems are good examples of using abstraction in

planning. Knoblock presented a completely

automated approach for generating abstractions of

problem solving using a tractable, domain-

independent algorithm. The inputs of this system are

the definition of a problem space and the problem to

be solved; and the output is an abstraction hierarchy

that is tailored to particular problem. Two recent

studies (Ilghami et al. 2005; Xu and Munoz-Avila

2005) propose eager and lazy learning methods

respectively to learn the preconditions of HTN

methods. Ilghami, in CaMeL, assumes that method

definitions are available and uses Candidate

Elimination Algorithm to extract methods'

preconditions from plan traces. In HDL (Ilghami,

Nau, and Munoz-Avila 2006), there is no prior

information about the methods and it learns HTN

domain description by examining plan traces

produced by another HTN problem-solver. Another

recent work, by Langley and Choi 2005, learns a

special case of HTNs, known as teleoreactive logic

programs. Rather than a task list, this system uses a

collection of Horn Clause-like concepts. The most

recent work, by Hogg 2007, presents HTN-

MAKER, an offline and incremental algorithm for

learning task models. HTN-MAKER receives as

input a collection of plans generated by a STRIPS

planner (Fikes and Nilsson 1971), an action model,

and a collection of task definitions; and produces a

task model. When combined with the action model,

this task model results in an HTN domain model.

Here, we introduce LHTNDT (Learn HTN using

Decision Tree), an algorithm that uses a decision

tree based learning method for learning

preconditions of HTN methods. It is assumed that

system has the knowledge of general structure of

decomposing tasks into subtasks. But this

knowledge is incomplete in case that it does not

have sufficient information about where to use the

method to be successful and efficient. LHTNDT

learns conditions for efficient application of methods

by doing analysis on plan traces that are known to be

successful or unsuccessful for certain problem

instances. The preconditions are shown in the

formalism of a decision tree.

The paper is organized in 5 sections. Section 2

overviews the inputs to the learning algorithm and

its output. Section 3 discusses the learning

algorithm. Section 4 reports empirical results of

applying learning method on a planning domain.

Finally section 5 draws conclusions and describes

future work.

2 INPUTS AND OUTPUTS OF

LHTNDT

Inputs to the learning algorithm are annotated plans.

We use a set of optimal plan traces, which contain

not only the correct methods used for a planning

problem, but also information about possible

decisions that could be made while this plan was

being generated. This form of input is often

preferable because it will result in faster and more

accurate learning, because plan traces contain much

more information about the domain being learned

than plans (Ilghami et al. 2005). The annotated plan

traces are in the form of trees whose nodes are the

states that the planner has passed through in order to

achieve a goal. For each node we consider not only

the methods that are on the path, to the goal state but

also other applicable methods that have caused

failure in planning or optimal planning.

The annotated plan traces are in the form of trees

whose nodes are the states that the planner have

passed through in order to achieve the goal.

The decision tree based learning algorithm is used

for extracting complete domain knowledge for HTN.

By using decision trees, planner is not obliged to test

all method preconditions during test time. In the

proposed algorithm, one decision tree is generated

for each domain method. The target attribute of

theses trees specify whether to use the

corresponding method or not.

Thus, the output of LHTNDT is certain decision

trees as preconditions of the domain methods.

According to the structure of decision trees, the

precondition learned for HTN by LHTNDT is a

disjunctive normal form of sentences.

LHTNDT: LEARN HTN METHOD PRECONDITIONS USING DECISION TREE

Figure 1: The LHTNDT algorithm.

3 LHTNDT ALGORITHM

Pseudo-code of LHTNDT is given in Figure 1. For

learning the preconditions of applicable methods of

a state, we consider both the current and goal states

of the plan. The attributes of the decision trees are

the combination of domain predicates and all objects

of the domain. These attributes are doubled when

they are considered for both appearing in the goal

and current states. The values that these attributes

can take are True, False and Don’t Care. The third

value provides the system with the ability to check

just the attributes that are important as preconditions

of the method, during the test phase. LHTNDT starts

by defining and initializing decision trees. Then for

each node in each given plan trace, it produces a

training sample for each applicable method. If

applying the method on a node results in a non-goal

leaf node, it reveals that using the method in that

situation resulted in failure or a non-optimal plan.

Thus, the sample extracted from it should be of type

Negative. Otherwise, the produced sample is

considered as Positive sample. The sample is added

to training set if it does not have common structure

with other existing samples. Finally, LHTNDT

learns certain decision trees for domain methods.

The algorithm converges when learned decision

tress for methods converge. In other words,

hypothesis spaces for preconditions converge to a

fixed point. The subroutines of LHTNDT are as

follows:

• ExtractImportantObjects(samp, m

), is a

function that iteratively extracts the objects of

the domain that are somehow related to method

. The main idea is inspired by Ilghami et al.

2005. The relative situation of domain objects in

the current state and also their ultimate situation

in the goal state specifies whether to apply the

method or not. Considering the objects that are

directly or indirectly related to the objects on

which method is applied, assists the system not

to learn the facts that are not useful. The

function starts by initializing relevant objects to

the set of objects that have appeared in a

predicate of current state with at least one of the

objects in the arguments of method m

Then, in

each subsequent iteration, it alternatively

processes goal state and current state and adds

those remaining objects that are in a predicate in

which one of the objects in the relevant objects

Inputs: S={S

, …, S

}, a set of world states

M={m

, …, m

}, the set of operators in HTN domain (D)

Π={ Π

, …, Π

}, a set of plan traces

, G

, D), planning problem

I: Initial State

G: Goal State

Output: DT, a set of decision trees, each of them represents the precondition of

a method

LHTNDT(S, I, G, M, Π)

DT=0, Samples

FOR each plan trace Π

i ∈

FOR each node n in Π

, whose s

∈

S except I and G

FOR each method m

∈

M considered in n

Let samp be a training sample

samp.CurrentState = n.State

samp.GoalState = Π

.GoalState

IF applying m

to n results in a non-leaf node

Samp.Type = “Positive”

ELSE

Samp.Type = “Negative”

ExtractImportantObjects (samp, m

)

IF (AddSample (Generalize (samp, m

), Samples

, m

)))

MakeDTTrainingSample (samp, Samples

)

FOR each method m

in M

LearnDT(Samples

, m

, DT)

RETURN DT

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

Goal state:Current State:

: unstack_putdown(2, 3)

Relevant Objects={1, 2, 3}

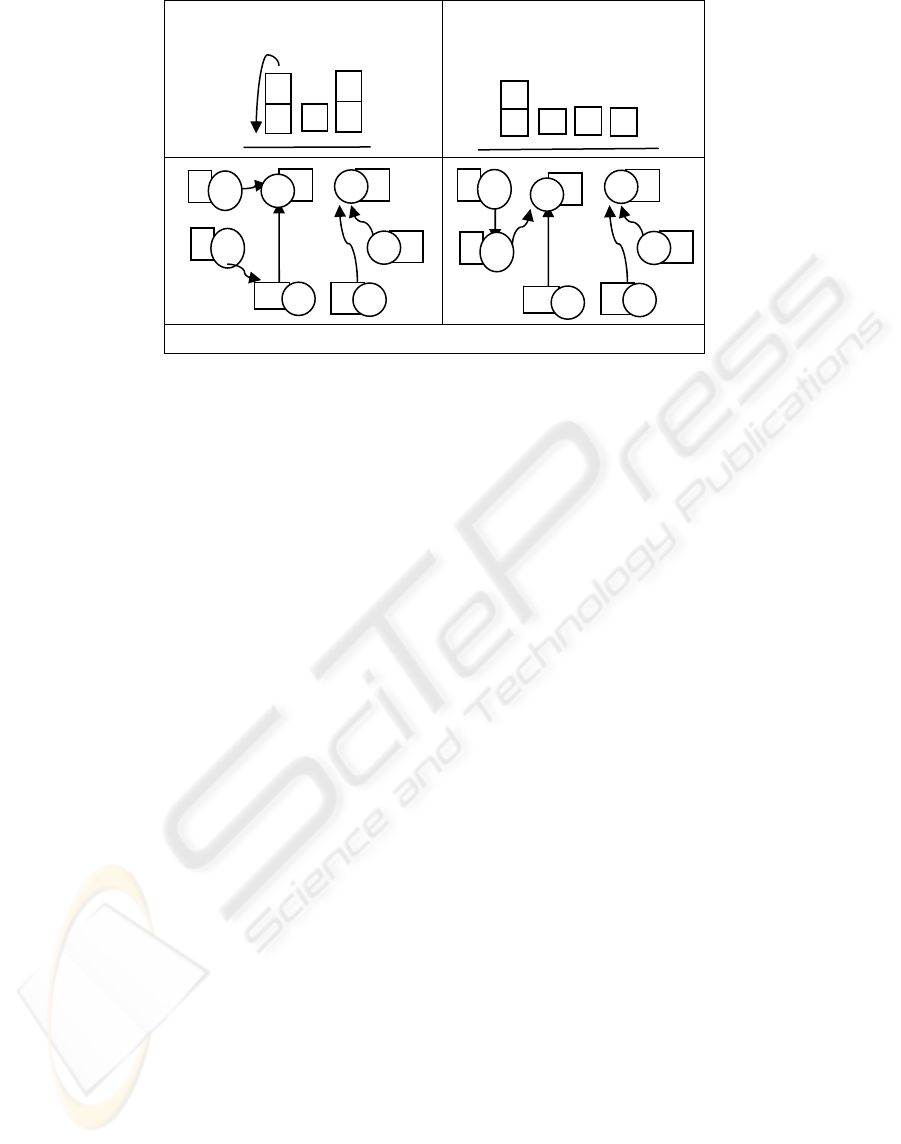

Figure 2: Graphs for a training sample in Blocks World domain (node 0 is considered as table, node 6 is defined for

specifying non-relevant objects).

set appeared as an argument. These iterations

continue until no new objects are added to the

relevant objects set.

• Generalize(samp, m

), make the generalized

form of the method and also the current and

goal state mentioned in the training sample

samp.

• AddSample(samp, Samples

, m

), where

Samples

is the set of all unique training samples

for method m

. This function creates a graph for

each sample. The graph has two components,

one for the initial state and the other for the goal

state. The nodes of the graph are domain

objects, named as various variables. Each node

is labeled by a number indicating whether the

corresponding object is a relevant object. The

edges of the graph are labeled with the name of

the predicate that two nodes are appeared in.

The nodes that are arguments of m

, are labeled

with their argument order in the method. These

graphs are also the generalized form of the

samples. An example of the graph produced for

a sample is depicted in figure 2. In order to

prevent from adding a sample with the same

structure as existing samples, we perform the

test of graph isomorphism between the graph of

samp and the graphs of other samples. If samp

is isomorphic with none of the samples in

Samples

, samp is a new sample and should be

added to the Samples

set. Thus, the function

returns True, otherwise it returns False. The

idea of using graphs for extracting new samples

can also be used for the predicates of more than

2 arguments. The algorithm should be modified

in such a way to group and merge nodes that are

involved in a common method and adjoin node

groups.

• MakeDTTrainingSample(samp, Samples

assigns value to the attributes of decision tree in

order to make a training sample. It maps sample

graph nodes to the generalized objects in

attributes by matching the node of the first

argument of the method of samp with the first

generalized object defined in attributes and

continuing this matching by traversing the graph

and mapping generalized object of attributes

and newly-met objects of the graph. For each of

the attributes, if none of the objects in the

attribute is mapped with one of the objects in

sample relevant object set, the value of the

attribute is set to Don’t Care. Otherwise, if the

ground predicate made out of the attribute and

its mapped objects is among initial state or goal

state (according to the attribute name), the value

of the attribute is True and in the case it is not,

the value is False.

• LearnDT(Samples

, m

, DT), creates a decision

tree for each of the methods according to

training sample in Samples

4 EMPIRICAL EVALUATION

One of the challenges in any learning algorithm is

how to define a criterion to evaluate its output. In

this section, we explain some points about

implementing LHTNDT algorithm. Then, we

discuss our experiments to figure out how many plan

traces are needed to converge and also the precision

LHTNDT: LEARN HTN METHOD PRECONDITIONS USING DECISION TREE

of the planning domain that LHTNDT has learned

by just ¾ of plan traces needed for convergence.

As mentioned in previous section, LHTNDT

extracts training samples from certain annotated

optimal plan traces. Thus, LHTNDT, unlike

previous systems which require plan traces produced

by an expert or a planner working with a hand-

tailored domain, does not need any priori

knowledge. For accuracy of training samples, we

needed all optimal solution plans of a problem. So

that, we firstly used an iterative deepening Depth

First Search (DFS) algorithm modified for planning.

But this planner often failed in domains with many

objects because of their time and space complexity.

In order to fix this problem, we modified HSP

which is an optimal temporal planner, a member of

heuristic search planners. HSP* produces parallel

optimal plans. Since optimal parallel plans are not

certainly optimal sequential plans, optimal

sequential plans are extracted from HSP

* outputs

and plan traces are created for them. We have

assumed a method as a sequence of actions (a two

level hierarchy of tasks). Therefore, the operators for

planning are action sequences (macro-operators) that

are defined as methods’ structure. The domain used

in our experiments is the blocks world, with 4

operators and 3 methods. It is based on the block-

stacking algorithm discussed in (Gupta and Nau

1992). For training the system, we generated 4 sets

of random problems with 3, 5, 6, and 10 blocks

using BWSTATES program (Slaney and Thiébaux

2001). The uniqueness of the problems is checked

by making a graph for each of the problems and

testing its isomorphism relationship with other

problem graphs. The nodes of the graphs are domain

objects and the edges are labeled with predicate

names and a number showing which state this

predicate belongs to: the initial or goal states. Figure

3 compares the number of plan traces LHTNDT

needed to converge.

Although more information is provided in plan

traces of larger problems, the number of plan traces

needed by LHTNDT to converge smoothly increases

as more objects are defined in the domain. The

reason is that the number of attributes and the

situations that should be learned (current and initial

states) increase. It should be also born in mind that a

plan trace contains more negative samples than

positive ones and this may cause later convergence.

An HTN planner is implemented for testing the

preconditions learned by LHTNDT. This planner

acts just like SHOP (Nau, et al. 1999), but in case

that more than one method is recommended, by

decision tree, to be applied, a random method is

chosen. Often, there is not enough information in the

input or there are not enough training samples to

derive an optimal output. We used just ¾ of

problems needed for convergence of LHTNDT for

training and tested the learned preconditions on a

random test set. In the diagram depicted in figure 4,

the precision of method preconditions learned by ¾

problems needed for convergence is shown.

Although the planner could not find a plan for all

test problems, but it can be seen that LHTNDT can

learn most of method preconditions even before full

convergence, because it tries to extract as much

information as it can form input plan traces. The

precisions are high because we have taken into

account the condition of objects both in the current

state and goal state.

5 CONCLUSIONS AND FUTURE

WORK

LHTNDT is an algorithm that learns method

preconditions for HTN planner. Its input consists of

annotated optimal plan traces produced by another

planner (HSP*). LHTNDT takes into account the

structure of current and goal state for learning

conditions of applying a method. Diverse structure

of training samples are extracted by checking the

graph isomorphism among created graphs for

samples. In our experiments in blocks world

domain, although LHTNDT needed various plan

traces to converge, according to the results for

precision of planning domain before full

convergence of preconditions, it learned most of

necessary conditions of methods relatively quickly.

Regarding the fact that no structurally repetitive

training sample is considered for learning and also

the relative state of relevant domain objects in both

current and goal states are explored, it can be

claimed that LHTNDT produces correct

preconditions for HTN planning domain.

120

172

389

100

150

200

250

300

350

400

450

35610

Number of Blocks, Blocks World

Problems Needed

LHTNDT

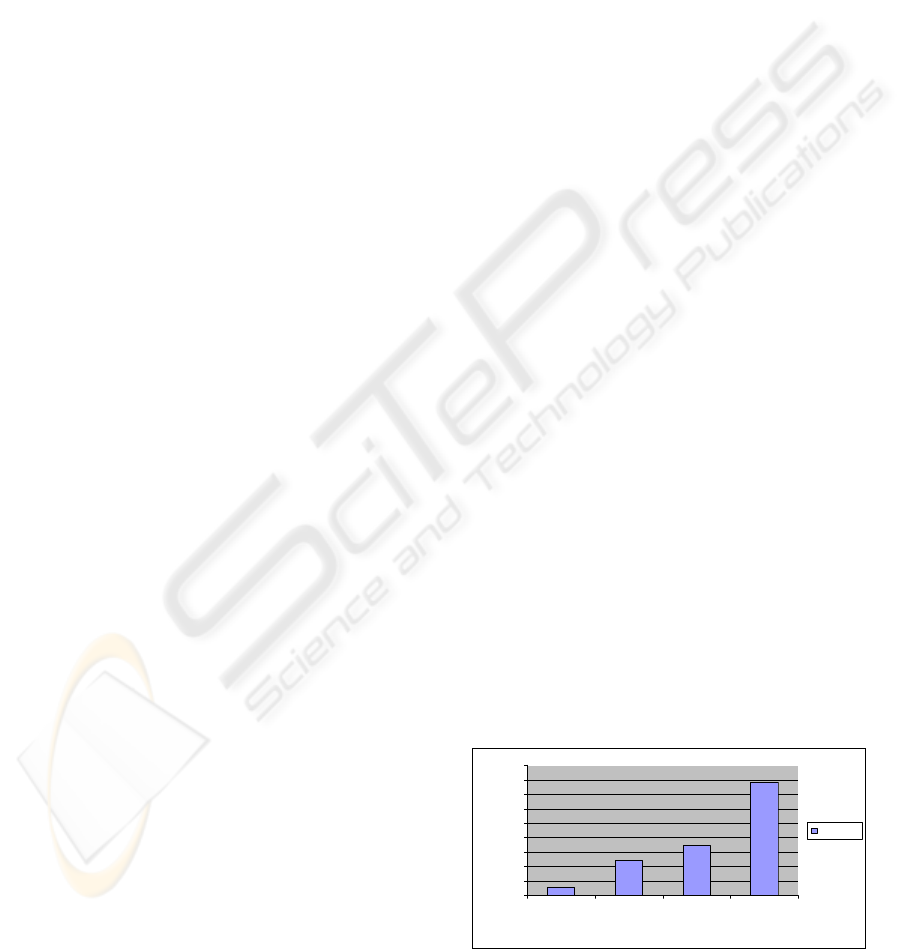

Figure 3: Number of plan traces needed to converge.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

A decision tree represents the preconditions of

domain methods as disjunctive normal form of

sentences. We believe that some rules can be

extracted from the decision trees. Therefore, axioms

can be used in

presenting the preconditions. If the

existence of recursion is verified in a method

precondition decision tree, the rules will be written

in such a way that the

rules that are extracted from

smaller domains can be used for larger domains.

LHTNDT algorithm learns

preconditions of HTN

methods. Our future work will include developing

techniques to learn HTN methods'

structures from

plan traces produced by another planner.

LHTNDT

0.7

0.8

0.7 0.7

0.64

0.66

0.68

0.7

0.72

0.74

0.76

0.78

0.8

0.82

35610

Numbe r of Blocks, Blocks W orld

Precision

LHTNDT

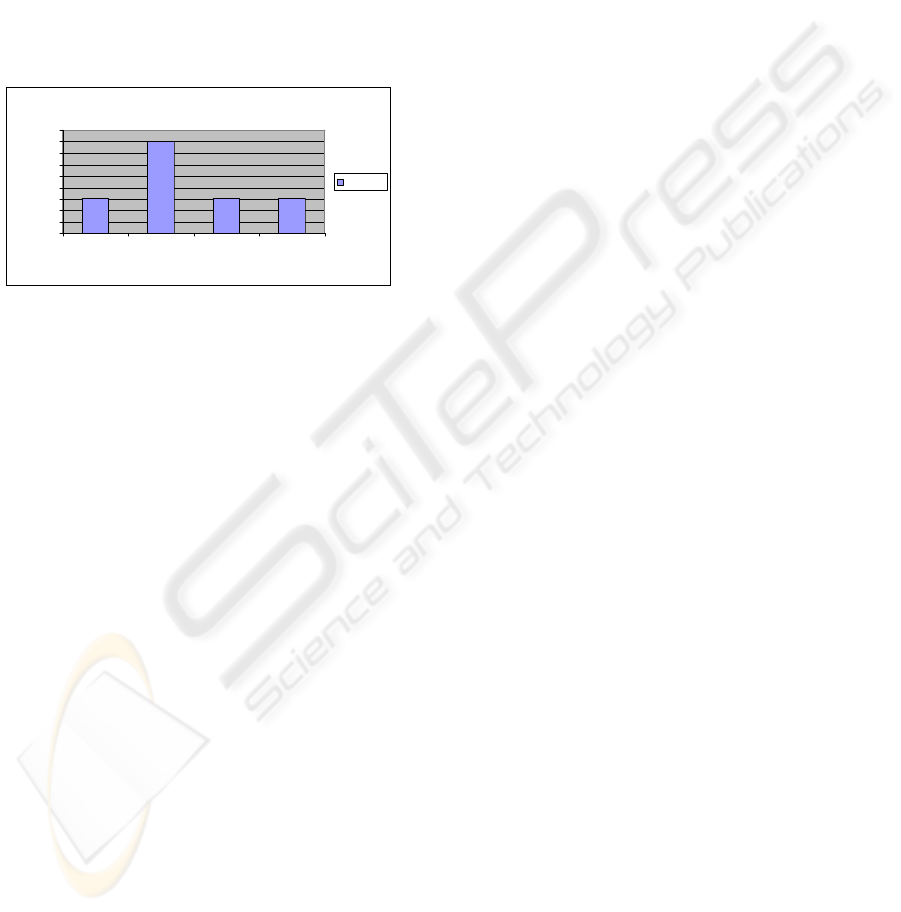

Figure 4: Precision of method preconditions learned by ¾

of plan traces needed for full convergence.

REFERENCES

Aha, D. W.; and Breslow, L. A. 1997. Refining

Conversational Case Libraries. In Proceedings of the

Second International Conference on Case-Based

Reasoning, pp. 267-278. Providence, RI: Springer

Press/Verlag Press.

Bergmann, R.; and Wilke, W. 1995. Building and

Refining Abstract Planning Cases by Change of

Representation Language. Journal of Artificial

Intelligence Research, pp. 53-118.

Botea, A.; Muller, M.; and Schaeffer, J. 2005. Learning

Partial-order Macros from Solutions. In Proceedings

of the 15

International Conference on Automated

Planning and Scheduling (ICAPS-05). AAAI Press.

Choi, D.; and Langley, P. 2005. Learning Teleoreactive

Logic Programs from Problem Solving. In

Proceedings of the 15

International Conference on

Inductive Logic Programming. Springer.

Erol, K.; Hendler, J.; and Nau, D. S. 1996. Complexity

Results for Hierarchical Task-Network Planning.

Annual of Mathematics and Artificial Intelligence

18(1), pp. 69-93.

Fikes, R. E.; and Nilsson, N. J. 1971. STRIPS: A New

Approach to the Application of Theorem Proving to

Problem Solving. Artificial Intelligence (2), pp 189-

208.

Gupta, N.; and Nau, D. 1992. On the complexity of

Blocks-world Planning. Artificial Intelligence 56(2-3):

pp. 223-254.

Hogg, Ch. 2007. From Task Definitions and Plan Traces

to HTN Methods, Workshop of International

Conference on Automated Planning and Scheduling

(ICAPS-07).

Ilghami, O.; Nau, D. S.; Munoz-Avila, H.; and Aha, D.

2005. Learning Preconditions for Planning from Plan

Traces and HTN Structure.

Ilghami, O.; Munoz-Avila, H.; Nau, D. S.; and Aha. D.

2005. Learning Approximate Preconditions for

Methods in Hierarchical Plans. In Proceedingsof the

International Conference on Machine Learning,

Bonn, Germany.

Ilghami, O.; Nau, D. S.; and Munoz-Avila, H. 2006.

Learning to Do HTN Planning, International

Conference on Automated Planning and Scheduling

(ICAPS-06).

Knoblock, C. 1993. Abstraction Hierarchies: An

Automated Approach to Reducing Search in Planning.

Norwell, MA: Kluwer Academic Publishers.

Korf, R. E. “Planning as Search: A Quantitative

Approach”, Artificial Intelligence, 33(1), pp. 65-88,

1987.

Mooney, R. J. 1998. Generalizing the Order of Operators

in Macro-Operators. Machine Learning, pp. 270-283.

Munoz-Avila, H.; McFarlane, D.; Aha, D. W.; Ballas, J.;

Breslow, L. A.; and Nau, D. S. 1999. Using

Guidelines to Constrain Case-based HTN Planning. In

Proceedings of the Third International Conference on

Case-Based Reasoning, 288-302. Providence, RI:

Springer Press.

Nau, D. S.; Cao, Y.; Lotem, A.; and Munoz-Avila, H.

1999. SHOP: Simple Hierarchical Ordered Planner. In

Proceedings of the Sixteenth International Joint

conference on Artificial Intelligence, 968-973.

Stockholm: AAAI Press.

Reddy, C.; and Tadepalli, P. 1997. Learning Goal-

decomposition Rules using Exercises. In Proceedings

of the International Conference on Machine Learning

(ICML-97).

Ruby, D.; and Kibler, D. F. 1991. Steppingstone: An

Empirical and Analytic Evaluation. In Proceedings of

the 9

National Conference on artificial Intelligence:

pp. 527-531.

Sacerdoti, E. 1975. The Nonlinear Nature of Plans. In

Proceedings of the 4

International Joint Conference

on Artificial Intelligence, Tiblisi, USSR, pp. 206-214.

Slaney J. K.; and Thiébaux S. 2001. Blocks World

revisited. Artificial Intelligence 125(1-2): pp. 119-153.

Tate, A.; 1977. Generating Project Networks. In

Proceedings of the 5

International Joint Conference

on Artificial Intelligence, Cambridge, MA, pp. 888-

893. MIT Press.

Xu, K.; and Munoz-Avila, H. 2005. A Domain-

independent System for Case-based Task

Decomposition without Domain Theories. In

Proceedingsof the 20

National Conference on

Artificial Intelligence (AAAI-05). AAA Press.

Zimmerman, T.; Kambhampati, S. 2003. Learning-

assisted Automated Planning: Looking back, tracking

Stock, Going Forward. AI Magazine, 73-96.

LHTNDT: LEARN HTN METHOD PRECONDITIONS USING DECISION TREE
