COMMUNICATION, CONFIGURATION, APPLICATION

The Three Layer Concept for Plug-and-Produce

Uwe E. Zimmermann, Rainer Bischoff

KUKA Roboter Gmbh, Zugspitzstraße 140, 86165 Augsburg, Germany

Gerhard Grunwald, Georg Plank, Detlef Reintsema

German Aerospace Center (DLR), Institute of Robotics and Mechatronics, Oberpfaffenhofen, 88234 Wessling, Germany

Keywords: Plug&Play, robotics, reduced set-up time, determinism, real-time communication, device description.

Abstract: The Plug-And-Play is a synonym for the simple use of computer systems in office applications. This

appealing idea also emerges in the branches of robotics and automation. But due to their specific technical

and application driven requirements i.e. real-time, determinism, safety… a simple taking over of the

technology is not sufficient. Plug-and-Produce extends the “easy to use” for applications in robotics and

automation. This will lead to a dramatically reduction of set-up times of work-cells. In order to fulfil the

various requirements a three layered Plug-and-Produce architecture is presented. The communication layer

addresses all topics regarding the bus-system level; the configuration layer is responsible for the control and

operation system level; and the application layer addresses the needs of the user and system programmer. A

prototypical implementation is also presented.

1 INTRODUCTION

Technically, the integration of components i.e. a

memory stick, a camera, or a disk drive into a

computer system is a very complex task. Different

kind of knowledge is required. This includes

hardware, communication systems, operating

systems, programming and application interfaces.

Practically, the user wishes the simple addition of

his new device without requiring reconfiguration or

manual installation of device drivers. “Plug-And-

Play“(PnP) is the synonym for this wish. In the early

1980s the NuBus (NuBus, 1983) which was

originally developed by MIT and used by Apple

Macintosh and Texas Instruments was one of the

earliest PnP-busses. Today the Universal Serial Bus

(USB) is the widest spread and probably best known

PnP-bus (Axelson, 2005).

The Plug-And-Play technology was developed

for the simple use of computer systems in office

applications. Recently this appealing idea also

emerged in the branches of robotics and automation.

But due to their specific technical and application

driven requirements (details see in section 2) a

simple taking over of PnP is not possible. Hence the

EU funded project SMErobot™ (SMErobot, 2005)

created the term „Plug and Produce“(PnProduce) to

express these peculiarities and to delimit from the

office applications.

The potential of PnProduce is very obviously:

The set-up time of robot cells is time-consuming and

thus an important cost factor. It take days or even

weeks just to get all peripheral systems

communicating and working with each other, even

though the system was planed and designed very

detailed in advance. Costs could be dramatically

reduced, if it is possible to reduce the installation

time. Especially future robotics systems will require

much more flexibility due to frequent task and

equipment changes. It should be possible to connect

a new, even a priori unknown device to the robot

controller and to use it immediately without the need

of a long and error prone manual configuration.

Besides the reduction of costs a further important

factor is the “easy to use” feature. In future, more

and more robots will find their way into small and

medium enterprises, into the public and the health

sector. Also service robots or assistants for

entertainment and at home are emerging. These

systems will be in common, that non-robotic experts

255

E. Zimmermann U., Bischoff R., Grunwald G., Plank G. and Reintsema D. (2008).

COMMUNICATION, CONFIGURATION, APPLICATION - The Three Layer Concept for Plug-and-Produce.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics, pages 255-262

DOI: 10.5220/0001504902550262

 SciTePress

will have to deal with such complex systems.

Adding of new tools, exchanging of faulty devices

or upgrading the system has to be manageable

without the need of an expert.

By means of scenarios and use cases section 2

motivates the details of PnProduce and specifies the

inherent technical requirements. In section 3 we

introduce the three layer concept of PnProduce and.

Some first implementation results are presented in

section 4.

2 PLUG AND PRODUCE

REQUIREMENTS

PnProduce concepts for industrial applications

especially robotics can adapt existing PnP concepts

from IT. But there are some special issues that have

to be covered and which are not solved by available

solutions. By means of use cases some features of

PnProduce are discussed and also the specific

technical requirements.

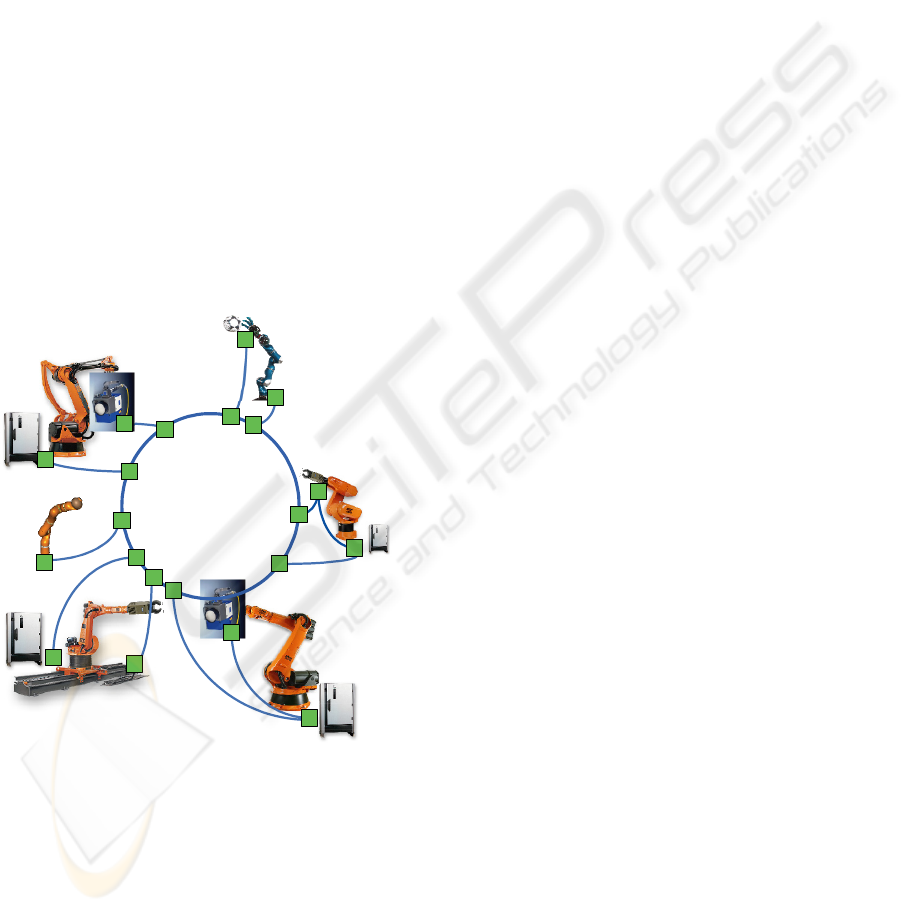

Figure 1: Scenarios for PnProduce.

2.1 Use Cases

Figure 1 shows a generic setup of a work cell with

multiple, different robots, tools, grippers, hands,

sensors, and controllers. They are connected via

real-time bus systems i.e. EtherCAT, Sercos ….

Also the single components inside a robot should be

connected via PnProduce.

2.1.1 Device Exchange

A robot component i.e. a drive unit has to be

exchanged or upgraded. The servicing staff powers

off the robot, exchanges the devices. In case of

PnProduce the robot has only to be switched on

being operational again. The central control unit

automatically identifies the new device, reads the

actual device status information, configures it and

integrates its functionality into the application.

2.1.2 (Automatic) Tool Change

Especially for versatile robot assistants frequent tool

changes are a common requirement. A device driven

approach is just a subversion of the previous use

case, where a new tool (e.g. driller) is plugged to the

robot and the associated tool service (e.g. “drill”) is

available for the user.

In a service driven approach the user first selects

the service (e.g. “drill”) and then the tool that could

perform the task is automatically selected by the

robot system itself. This means that an automatic

tool changer system has to be set up.

2.1.3 Start Up of a New System/Application

In general an application can be characterized by the

potential functionality of the connected components

and devices. When powering on the functionalities

of the devices are communicated with the central

controller or a programmer. Bus, devices and robot

controller are already configured for the immediate

use. The application itself can be described by the

detailed device configurations needed for running

the task. This could be done manually or (semi-

automatic).

2.1.4 Start Up of an Existing

System/Application

An application as described above may be stored in

a file. When switching on the system the controller

gets all status information from the devices which

are connected via the real-time bus. These data can

be compared with the stored description of the

planned application. The controller can verify

whether all devices are connected and properly

configured. If not appropriate feedback to the user

can be given.

2.2 Deterministic and Real-time

Communication

The communication in robotics and automation must

guarantee some features to facilitate a proper and

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

256

safe operation of the system. One of the most

important features are real-time and determinism. As

there are multiple specifications on the term real-

time, we will use in the context of PnProduce: “The

timing constraints of the system must be guaranteed

to be met. Guaranteeing timing behaviour requires

that the communication is predictable”. The term

deterministic tightens the requirement in real-time

communication. It is not sufficient to guarantee the

data within a time frame. The data have to be

delivered at a precise time.

2.3 Static and Dynamic Parameters

In the past, the application programmer

differentiates cyclic and acyclic communication.

Cyclic data are i.e. the sensor values from a force

torque sensor or the nominal and real value of the

robot joints. These data types are also called

“process images” (CAN, 2007), that are a complete

or partial local data base. The application or the

devices operate only on this local data, whereas the

bus system is responsible to keep the distributed data

consistent. The advantage is that communication and

application are highly decoupled. Another important

factor is the deterministic exchange of data as the

bus load is constant and could be analyzed a priori.

robot controller (master)

process image

P1 P2 P3 P4 P5 P6

Application

(acyclic) read/write

Device A (sensor)

P1 P3 P5 P6

Device B (actor)

P2 P4 P6

Cyclic data exchange

robot controller (master)

process image

P1 P2 P3 P4 P5 P6

Application

(acyclic) read/write

Device A (sensor)

P1 P3 P5 P6

Device B (actor)

P2 P4 P6

Cyclic data exchange

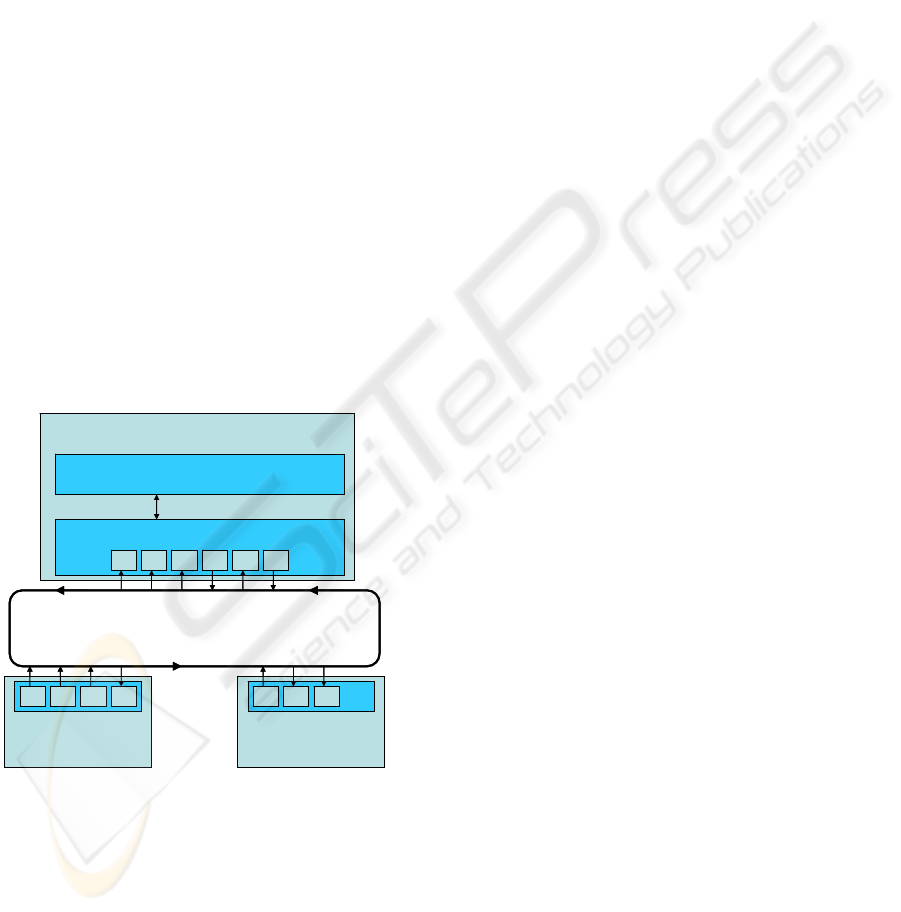

Figure 2: Cyclic/acyclic data exchange.

Also there is an acyclic communication

regarding the application. Data types are commands

or events. Commands are triggered by the

application program and are explicitly programmed

by the user. Examples are “gripper open” or “sensor

on”. They are typically for actuators and tools that

are connected to the robot controller. The

philosophy of commands is very similar to the

Service Oriented Architecture (SOA) approaches.

Most existing robot languages are command based

and therefore PnProduce concepts could be

integrated seamlessly.

Events are used for the asynchronous transfer of

small data sets to inform the control system or the

devices on their actual status. They may also be used

for setting parameters of the attached devices and/or

software.

The parameters may be classified in static and

dynamic parameters. The latter may be set during

system start-up or in case of configuration purposes.

But they cannot or should not be changed during

run-time. Thus there is no need to include these

parameters in the process data sets. In general, static

parameters are device specific. Dynamic parameters

dynamically lead to more flexible systems. For

example, if a gripper with an adjustable gripping

force is used, the force parameter can be set once

(configuration data) before the application starts or

can be changed depending on what kind of object

has to be gripped (process data).

Commands and events are still called acyclic

even it is communicated in a cyclic manner on the

bus level. The process images as well as the data

exchange between the local data bases has to be

configured, which is a complex task and leads to

high demands for a PnProduce system. This is

especially true if the data exchange should be

dynamically changed.

2.4 Plug-And-Play Variants

There are different grades in the performance of

Plug-And-Play systems. The simplest version is

Cold PnP: All devices and components are switched

off and get connected. Thereafter the entire system is

switched on.

The most difficult variant is Hot PnP. The entire

system is in operational mode. The user may remove

or attach a device without further intervention and

most important without disturbing the running

application.

An intermediate level is Coordinated PnP which

is a preliminary stage of Hot PnP. The chance nature

of attaching/removing devices is eliminated. This

guarantees that the application itself is not disturbed.

The attaching/removal is user or program controlled.

Another classification scheme for PnP is

complete, semi-automatic, or configurable.

Complete PnP:

- The attached device is automatically

recognized and may be used without further

intervention.

COMMUNICATION, CONFIGURATION, APPLICATION - The Three Layer Concept for Plug-and-Produce

257

- Device descriptions are stored in a data

base; drivers are automatically configured

and integrated to the application system.

Semiautomatic PnP:

- The device is attached and device type/class

is recognized.

- User has to integrate the appropriate drivers

(CD, DVD, Internet …)

- No further configuration is needed

Configurable PnP:

- Additionally to semiautomatic the user has

to configure the drivers, devices manually.

2.5 Abstraction and Descriptions

Hot-PnP, Complete-PnP, and the other variants

presuppose the description of devices,

configurations, and applications. The purpose is to

encapsulate some device/configuration/application

dependent functionality thus it can be used in a

modular fashion.

Device Descriptions are a key technology for

PnProduce. There are a several approaches which

will be shortly presented.

The first is EDDL, the Electronic Data Definition

Language and its predecessor the GSD, the Generic

Station Description. Both of them are used in the

PROFIBus Setting (EDDL, 2007).

The GSD is the obligatory “ID card” for every

Profibus device. It contains the key data of the

device, details relating to its communication

capabilities and other information relating, for

example, to diagnosis values. In the device

integration process the GSD is sufficient to employ

for the cyclic exchange of measurement values and

manipulated variables between the field device and

the automation system.

The EDDL is a textual and OS independent

format to describe field devices. It gives hints on

how to model the GUI, which is used to configure

the devices. This results in a standardized GUI for

devices of every manufacturer. The EDDL holds

fields for metadata, such as ordering and

maintenance information. The standardization is IEC

61804-2.

Another example for a description language is

EDS and DCF. EDS stands for electronic data sheet

and is used with the CAN bus, mainly with

CANopen and DeviceNet. EDS is just a template,

DCF, device configuration file, is a concrete

instance of this template.

EDS is also a plain ASCII or XML file,

standardized in ISO 15745. By means of an EDS, a

device can be described with respect to the content

of its object dictionary. User defined data types

(records), their value(s), simple values of predefined

type, arrays, "funktion pointers” and similar data is

stored there and therefore described in the EDS.

There are a lot of EDS Files predefined for devices

supporting the CAN bus (CAN, 2007).

FDCML is the field device configuration markup

language. It describes identity, logical and physical

communication facilities (bus independence),

functionality, and configuration facilities. Also it

supports the multilingual documentation of the

device. It's flexible in respect to future developments

and is capable of describing dependencies between

device parameters. It is possible to describe the

different types of devices which can be connected to

this device, the needed resources to use this device,

its structure and so on (FDCML, 2007).

The descriptions used in UPnP are written in

XML syntax (therefore again multilingualism

possible). UPnP describes identity, provided services

(functional units within devices), actions (functional

units within services) and state variables related to

these services. For each service the description

contains the type and URI's for eventing and

controlling. The device itself contains a URI for its

presentation. With these URIs it is possible to

interact with the service and to examine the device

(UPnP, 2007).

The actions are parameterized with supplied

arguments, which are defined within the service.

These arguments can be in or out arguments, relate

to any state variable within the service and have a

defined return value.

The state variables are typed, have a value range

and can send events. It is a very abstract approach,

so it doesn't include any description of physical

connections and therefore bus-independent.

Used in our setting the abstract approach and the

missing definition of the physical connection display

the need for extensions of the description.

Configuration descriptions are another category

of descriptions. They describe how a unique

instance of a device is actually used. Configuration

descriptions are only valid for exactly one device

instance and often are dependant from a single

application. A configuration description is more or

less just a “snapshot” of the actual device state, e.g.

the values of the static parameters. They can be used

to make device data persistent, to check if the actual

configuration is valid and for automatic

configuration of devices after a device exchange.

The application description contains the devices

and services needed to run an application. It is used

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

258

to check, if all conditions are met to start the

application or if there are modifications regarding

the connected devices.

3 THREE LAYER CONCEPT

It is obviously to see that PnProduce has different

levels of abstraction. You can identify three “Plug-

And-Produce”-layers to meet the requirements of

robotics and automation systems:

1. Communication and bus-system level: log-in

and log-out of subscribers;

2. Control and operation system level: integration

and release of components in the environment;

3. Application level: the offered functionalities of

the subscribers are used.

The German national project PAPAS: Plug And

Play for Automation Systems (PAPAS, 2006)

addressed this complexity and suggested a layered

structure similar to the famous ISI/OSI layers for

communication. Figure 3 relates the PAPAS

structure both to the ISO/OSI model and the typical

field bus approach.

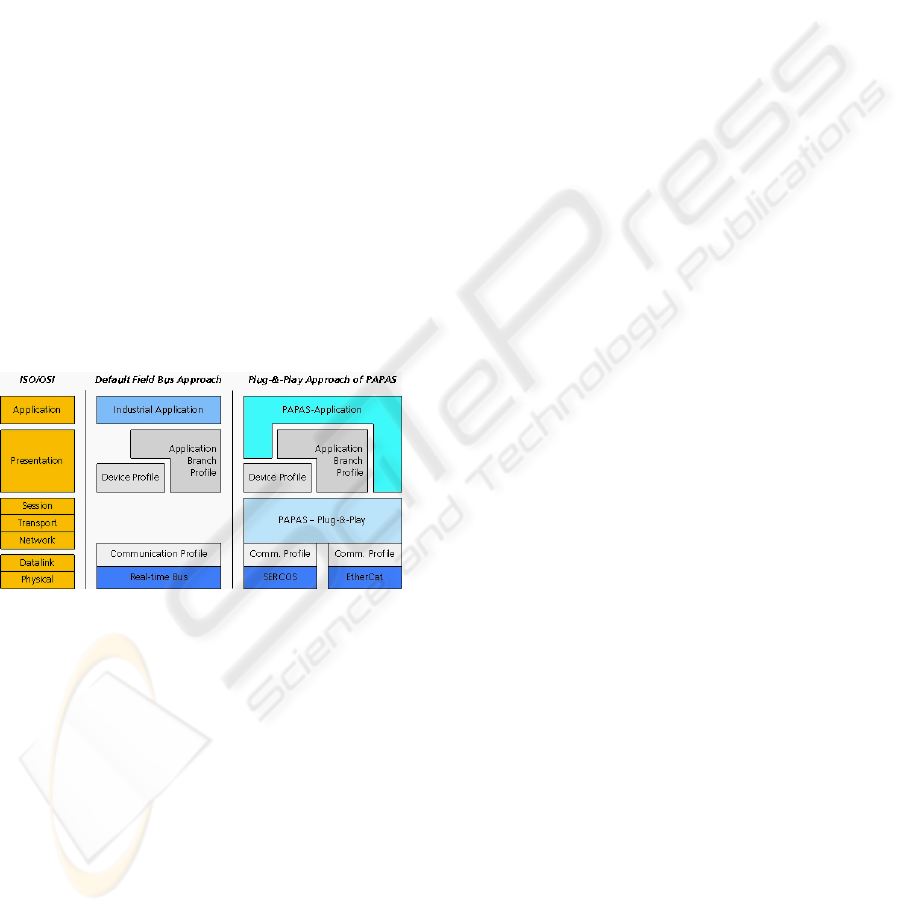

Figure 3: The PAPAS Plug-And-Play layer architecture

(Plank et.al. 2006).

The Datalink and Physical Layer are directly

related to the communication bus and its physics.

Examples of a field-bus are CAN or Profibus.

PAPAS investigated among others Sercos

(SERCOS, 2007) and the Ethernet-based real-time

busses EtherCAT (ETG, 2007) and Ethernet-

Powerlink (EPSG, 2007). The two layers are the

only, clear delimited layers regarding the ISO/OSI

specification. The layers Session, Transport, and

Network are not used in the general field-bus

approaches. In all three models the application and

presentation layers are oriented towards the

application and/or the configuration of the

application. The limits of these ISO/OSI layers are

indistinct.

3.1 Communication PnProduce

The basis of PnProduce is the communication layer,

as it addresses the potential (i.e. bandwidth, load,

determinism, clock …) of the communication itself.

It is directly related to Layer 1 to Layer 5 of the

ISO/OSI reference model. The PAPAS Plug&Play

layer addresses here the PnP-functionality regarding

the bus-systems and their specific communication

protocols. At this level the independency of the bus-

system is implemented.

When these layers are successfully switched on

the systems knows all the participants by its network

address but not by its function. The transferring data

types are not known yet which guarantees the

independence of the application.

3.2 Configuration PnProduce

The effect of this layer is twofold. It configures the

system with regard to the communication as well as

to the application.

When the communication system is operational,

the participants are known and the master is able to

read their device descriptions (see 2.5). Typical

device information is:

- Synchronous, asynchronous communication

- Minimal/maximum bandwidth for sending

and/or receiving data i.e. joint value,

force/torque value, image data …

- Minimal/maximum clock for sending and/or

receiving data

According to their requirements and the needs of the

specific application the communication system can

be configured.

Analogue the devices and controls have to be

configured regarding their functionality. Following

tasks can/should be done in this layer:

- Determining which devices i.e. sensor are

available;

- Determining which functions, services, and

parameters are available (see device

descriptions);

- Automatic reconfiguration of a device after it

has been exchanged because the old one was

defect;

- Reading device status information i.e. error log,

software release, operating hours, and other

statistical data.

3.3 Application PnProduce

The intention of this layer is to structure the open

ended world of applications thus you can reuse robot

programs or tasks (synonym for robot applications)

COMMUNICATION, CONFIGURATION, APPLICATION - The Three Layer Concept for Plug-and-Produce

259

in another context or environment. A robotic task

could be i.e. to “drill a hole”. This task is composed

by a robot, a sensor, a drilling machine, a piece of

wood, and software commanding the active devices.

You can repeat the task with the same components

but also with i.e. another robot. The application

remains the same. Only the functionality of the

connected devices is of interest.

The following scenarios describe a graded

structure, which can be distinguished within

Application PnProduce.

- Standardised Functions/Services: If functions,

services and parameters are standardised like

CANopen profiles (Pfeiffer et.al. 2003, CAN,

2007), they can be used automatically and

called from the system or the application.

- User integration: If a new device with an

unknown functionality is attached, the system is

able to autonomously detect and integrate it at

the communication level. But it is not able to

integrate its services or functions. It will inform

the user on the new component its offered

functionalities.

- Semantic information: Another possibility is to

integrate semantic knowledge into unknown

functionality. But this is a very difficult and not

completely solved task. Besides the syntactic

description a service the meaning must also be

represented.

Whereas the application PnProduce layer is fully

independent from the communication PnProduce

layer and vice versa, the configuration PnProduce

layer can have dependencies with both,

communication and application.

3.4 PnProduce Layer Model

The following will explain the PnProduce layers and

their interdependencies in more detail.

The new high performance communication

systems must meet the modern robotics and

automation demands:

- Distributed automation

- Close and coordinated coupling of devices with

different functions, timing, and data loads

- High clock speed

- Short reaction time

- Reduction of costs

The actual serial real-time bus systems (i.e.

EtherCAT, Ethernet-Powerlink, and Sercos) comply

with these demands. But they differ in transfer

modes and protocols. Thus the integration of

different devices equipped with different bus

systems into one robotics application is very difficult

and needs a lot of expert knowledge. In order to

reach the Communication PnProduce functionality

and thus a transparent and deterministic access to the

bus system level, an abstraction of the PnP-

behaviour from the bus-system is needed.

Configuration

PnProduce

Client Software

Application

Device Function

PAPAS

System Software

Logical Device

Bus Interface

i.e. EtherCAT, Sercos

Bus Interface

physical data link

logical data link

Function Layer

Device Layer

Bus Layer

Master- Node Slave- Node (Device)

Communication

PnProduce

Application

PnProduce

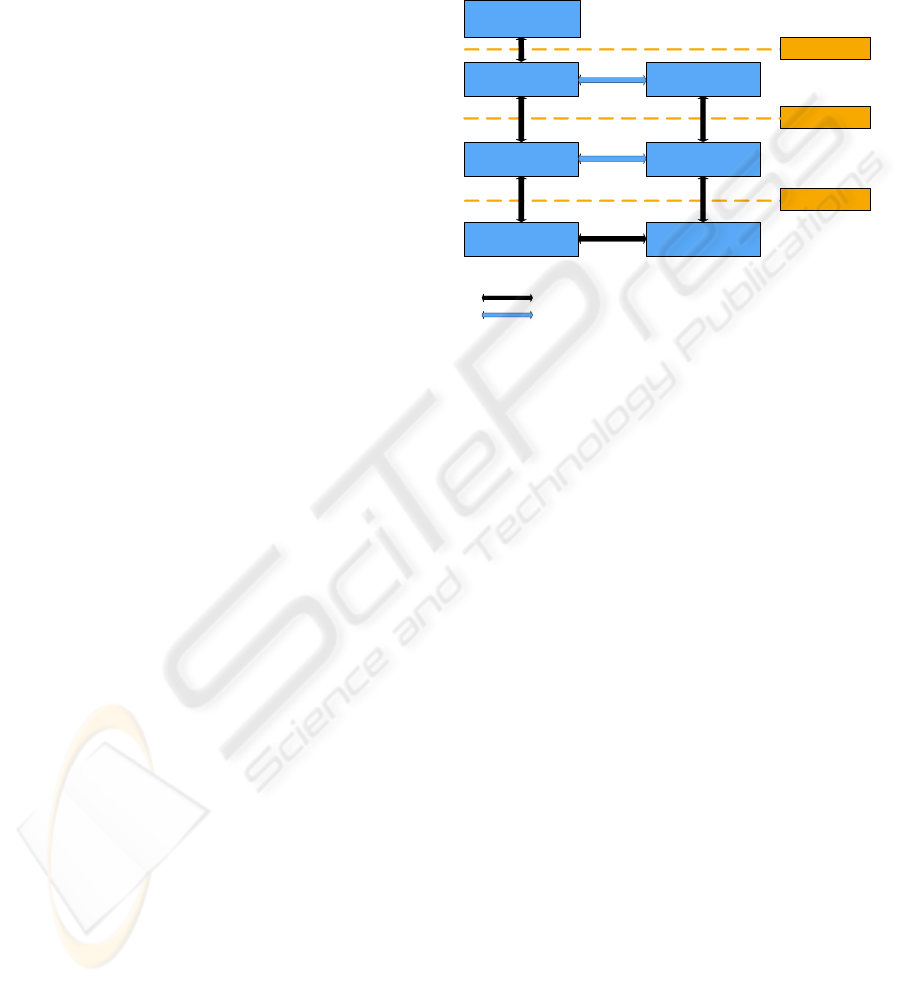

Figure 4: The PnProduce layer model. Each transition

interface provides a specific kind of PnProduce-

capability.

PnProduce assumes a master/slave architecture

which is commonly used in robotic and automation

systems. The PnProduce layer model (Figure 4)

shows the most important components and the data

flow.

- Master-Node: i.e. robot controller;

- Slave-Node: i.e. sensor device in its entirety;

- Device Function: description of the input/output

characteristics i.e. sensor values;

- Client Software: API of the device;

- Logical Device: Basic interface, which

facilitates the master an unified handling of the

varying devices;

- PAPAS System Software: Specific w.r.t. the

operation system but independent of the client

software and the bus interface;

- Bus-Interface: hardware i.e. EtherCAT, Sercos

Master and slave are composed of three layers. The

Bus Layer provides the physical and packet oriented

connection. The Device Layer contains all the

system information needed for the device

configuration. The Function Layer describes the

logical interconnection between master and slave.

The master puts a request on the bus. If the

needed communication resources are available either

the master or the slave sends its data. The success is

indicated by acknowledge. The PnProduce protocol

provides four data transfer modes:

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

260

1. Control: configuration of new attached devices

and device control. All devices have to support

this mode.

2. Interrupt: Asynchronous data transfer of small

data sets. The protocol guarantees the data

transfer in device specific service intervals.

3. Bulk: Asynchronous data transfer of large data

sets. The protocol guarantees the data transfer as

soon as the needed bandwidth is available.

4. Isochronous: This mode guarantees fixed data

rates and a maximum latency. When a new

device is attached the master verifies whether

the requested communication bandwidth is

available.

4 EXPERIMENTAL SYSTEMS

This section describes in short the first version of an

implemented PnProduce system. Here the focus is

mainly on the communication PnProduce

functionality. The application addressed within the

PAPAS experimental setup is based on a robot

assistant for human working in industrial

environments (see Figure 5). One chosen task of the

robot is a typical example of an industrial

manufacturing process, which is still executed

almost completely manually today, with a very low

degree of automation. The assembly algorithms

developed and tested on a set of planar objects with

complex, non-convex geometric forms are described

within (Stemmer et.al, 2006).

igure 5: A light-weight robot arm as an assistant for

uman-like working in industrial environments the

APAS experimental setup is designed to demonstrate a

ypical example of an industrial manufacturing process.

For verification of the PnProduce approach a set

of typical industrial tools has been prepared to

demonstrate hot plugging. Typical tools are a

Programmable Focusing Optics (PFO), a compliant

force-torque sensor or a parallel gripper (see Figure

6). The PFO of Trumpf Laser flexible welds spots

and seams without moving the workpiece, neither

the focusing optics having to be moved at all. The

PFO focuses the laser beam to any defined location

in the working area.

Figure 6: Typical classes of slave tools and devices fo

robotics and automation applications: a gripper wit

parallel jaw motion, a force torque sensor and a

rogrammable focusing optics (PFO) which have been

prepared to interact as an EtherCAT slave device.

Especially for assembly and part mating with

industrial robots, a compliant force-torque sensor

was developed. The compliant sensor does not only

yield the forces and torques but also the

positional/rotational displacements of a tool, e.g.,

under the influence of gravity.

Figure 7: JAVA-based tools can be used to monitor the

plug-and-play process, to display recorded device data

and to command plugged devices using a general purpose

class-specific interface.

With the Ethernet Control Automation

Technology (EtherCAT) a new Ethernet-based field

bus system was chosen at the drive or I/O level

(ETG, 2007) for real-time transportation of process

data.

The experimental set up uses a line structure

configuration. A chain of EtherCAT slaves can be

connected in any sequence to the EtherCAT master

which monitors the Ethernet bus for plugged

devices. Inserting a new device into an expansion

slot forces the master to trigger the PnProduce

process of the overlaying PnProduce layer without

COMMUNICATION, CONFIGURATION, APPLICATION - The Three Layer Concept for Plug-and-Produce

261

requiring reconfiguration or manual installation of

device drivers.

5 SUMMARY AND OUTLOOK

The integration of industrial components i.e. gripper,

force/torque sensors, intelligent tools… into a robot

work-cell is a very complex task. Different kind of

knowledge is required. This includes hardware,

communication systems, operating systems,

programming and application interfaces. Plug-and-

Produce extends the very well known concept of

Plug-And-Play towards the use in industrial

environments. Due to their specific technical and

application driven requirements i.e. real-time,

determinism, safety… a simple taking over of the

PnP technology is not sufficient. Plug-and-Produce

extends the “easy to use” for applications in robotics

and automation. This will lead among other things to

a dramatically reduction of set-up times of work-

cells.

In order to fulfil the various requirements a

layered Plug-and-Produce architecture was

presented. The key feature is to properly encapsulate

the functionalities of one layer with regard to the

neighbouring. Standardized interfaces i.e. the device

description will permit the interchangeability of

hardware and software

Three “Plug-And-Produce”-layers were specified

to meet the requirements of robotics and automation

systems:

1. Communication and bus-system level: log-in

and log-out of subscribers;

2. Control and operation system level: integration

and release of components in the environment;

3. Application level: the offered functionalities of

the subscribers are used.

The first implementation results especially the

Communication PnProduce are very promising. The

future activities of Application PnProduce may be

influenced by the research in Service Oriented

Architectures (SoA). Here we have to investigate

whether these concepts satisfy the PnProduce

requirements and how they can be integrated.

ACKNOWLEDGEMENTS

This work has been partially funded by the German

Collaborative project PAPAS under grant no.

02PH2060 and the European Commission’s Sixth

Framework Programme under grant no. 011838 as

part of the Integrated Project SMErobot™.

REFERENCES

NuBus, 1983. NuBus Specification, Texas Instruments.

Axelson, J. 2005. USB Complete: Everything You Need to

Develop Custom USB Peripherals. Lakeview

Research, Madison WI.

SMErobot, 2005. SMErobot™ - The European Robot

Initiative for Strengthening the Competitiveness of

SMEs in Manufacturing, www.smerobot.org,

Integrated project funded under the European Union’s

Sixth Framework Programme (FP6).

CAN, 2007. Controller Aera Network, www.can-cia.de.

EDDL, 2007. The Electronic Device Description

Language (EDDL), www.eddl.org.

FDCML, 2007. Field Device Configuration Markup

Language, www.fdcml.org.

UPnP, 2007. Universal Plug and Play, The UPnP™

Implementers Corporation, www.upnp-ic.org.

PAPAS, 2006. Plug-And-Play Antriebs- und

Steuerungskonzepte für die Produktion von morgen (in

German), www.robotic.de/PAPAS.

Plank, G., Reintsema, D., Grunwald, G., Otter, M., Kurze,

M., Löhning, M., Reiner, M., Zimmermann, U.,

Schreiber, G., Weiss, M., Bischoff, R., Fellhauer, B.,

Notheis, T., Barklage, T. 2006. PAPAS

Abschlussbericht (in german), http://www.dlr.de/rm-

neu/Portaldata/52/Resources/dokumente/papas/PAPA

S-Abschlussbericht.pdf

ETG, 2007. EtherCAT Technology Group: „Technology

Introduction and Overview”, http://www.ethercat.org.

SERCOS, 2007. SERCOS interface, www.sercos.de.

EPSG, 2007. Ethernet POWERLINK Standardization

Group, www.ethernet-powerlink.org.

Pfeiffer, O., Ayre, A., Keydel, C. 2003. Embedded

Networking with CAN and CANopen. RTC Books

Stemmer, A., Schreiber, G., Arbter, K., and Albu-

Schäffer, A. 2006. „Robust Assembly of Complex

Shaped Planar Parts Using Vision and Force”, in

IEEE International Conference on Multisensor Fusion

and Integration for Intelligent Systems (MFI2006), 3.-

6. September 2006, Heidelberg, Germany.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

262
